17CH vs 55CH DMX: Multi-Effect DJ Light Guide 2026

Not necessarily.

A 55CH profile gives you more detailed control, but it also uses more DMX channels, takes longer to program, and requires a controller or software setup that can manage the extra functions efficiently. A 17CH profile provides less individual control, yet it can be the better choice for mobile DJs, wedding receptions, private parties, and events where setup time matters.

The professional decision is not to choose the mode with the highest number. It is to choose the mode that matches the venue, the number of fixtures, the available DMX capacity, and the level of control the show actually needs.

This guide explains how multi-effect DJ lights work, what DMX channels really control, how 17CH and 55CH modes differ, how to assign addresses, and how to build practical lighting scenes for weddings, clubs, bars, mobile DJ events, and small stages.

A traditional lighting system often uses several different fixtures.

PAR lights provide color washes. Beam fixtures create visible aerial effects. Strobe lights add rhythmic impact. LED strips define shapes and architectural details. Rotating effect lights add movement across the room.

That approach offers plenty of flexibility, but it also means more fixtures to transport, more cables to run, more DMX addresses to manage, and more time spent installing and testing the system.

A multi-effect DJ light combines several of those functions in one housing.

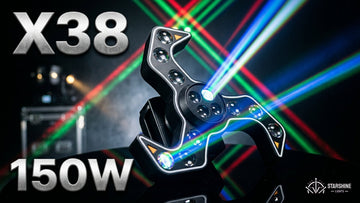

The Starshine X38, for example, integrates thirteen 10W RGBW 4-in-1 LEDs, three 5W golden-yellow strobe LEDs, 109 color-changing strip LEDs, a motorized central bee-eye effect, and continuous fixture rotation. It also supports 17CH and 55CH DMX modes, along with Auto, Sound-Active, and Master/Slave operation.

The real value of this kind of fixture is not simply that it produces more effects. Its value is efficiency.

For mobile DJs, wedding professionals, small clubs, bars, and event rental companies, an integrated fixture can create a layered show without requiring a large collection of separate DJ lights, party lights, and stage lights.

Product descriptions often list RGBW LEDs, strobes, strips, and rotation as separate features. What matters in a real venue is how those systems work together.

It helps to think of the fixture as four visual layers.

The RGBW light engine establishes the main color and brightness of the show.

Red, green, and blue can be mixed into a wide range of colors, while the dedicated white component produces cleaner white output and can brighten pastel combinations. For weddings, you might use soft blue, lavender, or white. For bars and clubs, saturated red, blue, green, and purple often create stronger visual contrast.

The X38 uses thirteen 10W RGBW 4-in-1 LEDs as its primary output system. These LEDs provide the main color, beam, and movement effects seen across the room.

For buyers comparing LED party lights or DJ stage lights, RGBW output is useful because it gives you both saturated colors and a practical white channel in one system.

A standard white strobe can feel sharp and aggressive. A golden-yellow strobe creates a warmer visual accent that stands apart from the RGBW beams.

It works especially well during:

• Musical drops
• Beat changes
• Performer entrances
• Dance-floor peaks
• Short transitional moments

The key is restraint. A strobe is most effective when it appears briefly. Running it continuously reduces its impact and can quickly make the room uncomfortable.

The X38 includes three 5W golden-yellow strobe LEDs, with an adjustable strobe rate of up to 20 flashes per second.

The LED strip does not need to illuminate the entire room to be useful.

Its role is to make the fixture itself part of the visual design. While the RGBW beams move through the air, the strip can create flowing colors, chases, animated outlines, and slower background effects around the fixture’s distinctive three-arm shape.

This is one reason multi-effect disco lights can remain visually interesting even when a venue uses little or no haze. The audience can still see movement and color directly on the fixture.

Static colors change the look of a room. Movement changes how the room feels.

Continuous X-axis rotation sends light across the dance floor, walls, ceiling, and stage. The motorized center optic adds another moving layer, preventing the fixture from looking like a single object simply spinning in one direction.

When the main RGBW system, center effect, LED strip, and strobe operate at different speeds, one fixture can create a much deeper show than a basic single-effect light.

That is particularly useful in club lighting, nightclub lighting, and small-venue stage lighting, where space may be limited but the room still needs visual movement.

DMX can look intimidating when you first see a channel chart, but the basic idea is straightforward.

A standard DMX universe contains 512 channels. Think of those channels as 512 numbered control positions. Each channel sends a value from 0 to 255.

A fixture assigns a specific function to each channel. For example:

• One channel may control the master dimmer.
• One may control red.
• One may control green.
• One may control blue.
• One may control white.
• One may control strobe speed.
• One may control fixture rotation.
• One may control motor speed.
• One may select an automatic program.

When a fixture is set to 17CH mode, it occupies 17 consecutive DMX channels. In 55CH mode, it occupies 55 consecutive channels.

The starting address tells the fixture where to begin reading data.

A 17CH fixture starting at address 001 uses channels 001 through 017. The next independently controlled fixture should begin at 018.

This same principle applies whether you are using a hardware DMX light controller, computer-based lighting software, or a larger professional control system.

The 17CH mode is designed for operators who need fast, practical control.

It groups the main functions into a smaller profile, including rotation, motor speed, master dimming, strobe, RGBW output, strip colors, effect macros, bee-eye movement, and sound sensitivity.

You give up some individual-zone control, but that does not automatically make the show less professional.

In many real-world events, simplified control is an advantage.

A mobile DJ may need to set up speakers, stands, cables, a controller, microphones, and lighting within a limited time. When the system includes only two to four fixtures, 17CH can provide all the control needed for a strong dance-floor show.

Fewer channels also make it easier to build scenes that can be reused at different venues.

Wedding lighting needs to follow the mood of the event.

During dinner, speeches, or the first dance, slow rotation, lower brightness, stable RGBW colors, and minimal strobe usually work better than complex chases. Once the dance floor opens, the operator can raise the energy without rebuilding the entire show.

For this kind of application, 17CH is often more than enough.

Many clients want energetic party lights, not an hour-long programmed concert sequence.

A streamlined mode gives the operator direct control over the functions that matter most: color, movement, brightness, strips, and strobe.

A venue without a dedicated lighting technician can prepare a few low-, medium-, and high-energy scenes in advance. Staff can then switch between those scenes without managing dozens of individual channels.

The biggest advantage of 17CH is not simply lower channel usage. It also reduces the chance of mistakes.

The more complex the program, the more opportunities there are for incorrect values, overlapping addresses, mismatched profiles, or unexpected behavior. For mobile professionals who work in a different room every week, a reliable show file is often more valuable than maximum complexity.

The main benefit of 55CH mode is not that it offers “more effects.” It gives you more independent control over effects that already exist.

In the X38’s extended profile, nine RGBW LED zones can be controlled separately. The central bee-eye has independent RGBW and motor control. The RGB strip can be adjusted separately, and each of the three golden-yellow strobe LEDs has its own dimmer channel.

That makes several advanced looks possible:

• Lighting the nine RGBW zones in sequence
• Creating left-to-right or mirrored chases
• Using different colors in separate zones
• Holding the center bee-eye in white while the outer zones remain blue
• Triggering the three strobe LEDs one at a time
• Running a slow strip animation behind a faster RGBW chase
• Turning off the main output while leaving the strip and center effect active
• Building intensity by adding one zone at a time before a musical drop

A permanent professional club lighting system is often programmed once and used repeatedly. Spending more time on detailed programming makes sense because the scenes can be saved and reused for months.

Bands, dance performances, brand events, and scheduled club shows often need lighting changes to happen at exact moments.

Independent zones allow the operator to create looks that support the structure of the performance rather than simply reacting randomly to sound.

Operators familiar with DMX software, cue stacks, and timelines can use 55CH to build more precise chases, color patterns, and layered movement.

When the fixture itself appears on camera, random automatic effects can cause inconsistent exposure and distracting flashes. Independent control makes it easier to create repeatable, camera-friendly sequences.

A practical rule is:

A higher channel count does not automatically produce a better show.

Using 55CH only to control master brightness, color, and rotation will not necessarily look better than a well-designed 17CH program. At the same time, a thoughtful 17CH show will usually look more professional than a 55CH fixture running random effects all night.

Suppose you are using four X38 fixtures.

The most important rule is to avoid unintentional overlap.

When two fixtures use the same starting address and the same channel mode, they respond to the same commands. That is not always a mistake.

Mobile DJs and wedding professionals often intentionally give two fixtures the same address to create symmetrical movement and matching colors on opposite sides of a dance floor.

Use separate addresses when each fixture needs independent color, movement, strobe, or timing.

Also confirm that the fixture profile loaded into the controller matches the mode selected on the fixture. A controller running a 17CH profile cannot correctly operate a fixture set to 55CH.

A common beginner mistake is to start moving every fader at once.

Color, rotation, strips, strobe, and macros are all activated immediately, producing a scene that contains plenty of activity but no clear visual focus.

A more reliable approach is to build the scene in layers.

Raise the master dimmer before testing colors and effects.

When a fixture powers on normally but produces no light, the most common cause is that the master dimmer or the required RGBW channels are still at zero.

Avoid starting with a random rainbow macro.

Choose two or three colors that fit the event:

• Weddings: warm white, lavender, soft blue
• Bars: red, blue, purple
• Clubs: saturated red, blue, green, and white
• Brand events: company or campaign colors
• Live music: colors that complement the performers and stage design

A smaller color palette often looks cleaner and more intentional than constant random changes.

Begin with a slow rotation speed and watch how the beams travel through the room.

Fast movement can quickly turn a clear pattern into visual noise. Slow and medium-speed sweeps build atmosphere, while faster rotation should be reserved for higher-energy sections.

The strip can function as a continuous background layer.

For example, the main beams might alternate between blue and white while the strip runs a slow purple chase. This creates more depth than having every system change color at the same time.

Think of strobe as punctuation.

Use it during drops, transitions, musical accents, and brief peaks. Continuous high-speed flashing can tire the audience and leaves nowhere for the show to build.

This is one of the most useful habits in event lighting.

A low-energy scene can support guest arrival, dinner, speeches, or background music. A medium-energy scene fits general dancing and audience interaction. A high-energy scene is reserved for musical peaks and dance-floor highlights.

Once those three levels exist, live operation becomes much easier.

A wedding reception does not need maximum energy from the beginning.

During guest arrival, use lower brightness, warm white or soft lavender, and slow movement. Keep the strobe off during speeches and formal moments.

For the couple’s entrance, add a controlled sweep or a slow strip animation. During the first dance, use stable colors and smooth movement so the lighting supports the moment without becoming a distraction.

When the dance floor opens, increase the motor speed, introduce strip chases, and use short golden strobe accents during musical peaks.

For most wedding applications, 17CH provides enough control while keeping programming simple and dependable.

A mobile DJ needs a system that is fast to set up and easy to repeat.

A practical show file might include:

• Slow blue-and-white movement
• Medium-speed red-and-purple looks
• Faster RGBW color changes
• A strip chase scene
• A high-energy drop scene
• A blackout or soft transition scene

Use strobe only for musical accents. Sound-Active mode can be useful as a backup, but relying on it for the entire event usually produces less controlled results.

A small library of dependable scenes is often more useful than dozens of complicated cues.

A fixed club system is where 55CH becomes especially valuable.

The nine RGBW zones can create sequential, mirrored, or alternating chases. The central bee-eye can use a contrasting color. The strip can run as a slow background layer, while the three golden-yellow strobe LEDs are triggered separately.

One possible look could begin with the outer zones lighting one by one, a white center effect rotating slowly, and a blue strip running continuously. At the next musical accent, the three strobe LEDs fire in sequence.

The result feels less like one fixture running a built-in program and more like several coordinated lighting systems.

Auto mode is useful for demonstrations, small parties, and venues without a lighting operator.

Its main advantage is convenience. Its limitation is that the program does not understand the event schedule. It cannot tell the difference between a speech, a first dance, background music, and the main dance-floor peak.

Sound-Active operation is useful for quick setups and informal events.

The built-in microphone reacts to music, but the response is affected by speaker placement, bass levels, room reflections, and sensitivity settings.

The X38 allows sound sensitivity to be adjusted from 0 to 99.

If the sensitivity is too high, the fixture may react to voices, footsteps, and background noise. If it is too low, the lighting may respond only to strong bass hits.

Master/Slave operation allows several fixtures to run synchronized programs without a separate controller.

One fixture operates as the master, and the others follow it. This is useful for weddings, small bars, and private events where coordinated effects are needed without detailed programming.

DMX is the best option when the show needs to be predictable, repeatable, and connected to the event schedule.

Wedding receptions, brand events, club programs, and live performances benefit from DMX because professional lighting is not about producing the greatest number of changes. It is about producing the right change at the right moment.

The same DJ light can look completely different depending on where it is installed.

A fixture mounted too low may send bright beams directly into the audience’s eyes. A fixture mounted too high may reduce the visibility of the LED strip and the fixture’s animated body effects.

For mobile DJ lighting, placing two fixtures on opposite sides of the dance floor creates balanced coverage. In clubs, mounting fixtures at different angles can produce intersecting movement from several directions. On a small stage, avoid aiming every beam directly toward the performers’ faces.

A light, even layer of haze makes RGBW beams more visible in the air. Heavy fog is not always better. Too much fog can soften colors, obscure performers, and reduce overall clarity.

Before using haze, always check the venue’s fire alarm system and atmospheric-effect policies.

It may look exciting for the first few minutes, but constant high-speed movement quickly becomes repetitive and tiring.

When RGBW colors, the strip, the bee-eye, and the strobe all operate randomly, the result often looks chaotic rather than layered.

When strobe is constantly active, it stops feeling like an accent.

If the light is set to 55CH but the controller is using a 17CH profile, the functions will not line up correctly.

When two fixtures that should be independent keep responding together, overlapping addresses are a common cause.

This is one of the simplest and most frequent setup problems.

The fixture may respond to speech, room noise, and speaker vibration instead of following the music cleanly.

A program created in a small rehearsal room may move too quickly or feel too bright in a compact venue. Test movement, output, and strobe levels in the actual space whenever possible.

When customers search for DJ lights for sale, the first specifications they usually notice are wattage, LED quantity, and the number of effects.

Those details matter, but several other factors have a greater impact on day-to-day use.

More channels are not automatically better.

A fixture that offers both a simplified profile and an advanced profile is often more flexible than a model with only one large channel mode.

Check whether the main light engine, strip, strobe, and center effect can be controlled separately.

When everything is locked into a single macro, the fixture may be easy to use but limited for professional programming.

Independent zones are especially valuable in professional stage lighting, professional club lighting, and programmed entertainment installations.

They allow chases, alternating colors, progressive builds, and more controlled visual patterns.

Mobile DJs and smaller venues may not use a controller at every event. Auto, Sound-Active, and Master/Slave modes remain important even on professional fixtures.

For event companies and mobile DJs, weight, dimensions, setup speed, and storage requirements directly affect the working day.

Professional buyers should look for a complete product manual, DMX channel chart, dimensions, operating instructions, and demonstration videos.

When comparing a stage lighting equipment supplier, ask whether technical documents, fixture profiles, replacement parts, and after-sales support are available.

The X38 is designed primarily for dry indoor entertainment and demonstration environments. No waterproof rating is listed, so it should not be promoted or used as an outdoor weatherproof fixture.

This distinction matters when comparing professional party lights, stage lighting equipment, or products intended for permanent outdoor use.

For a small event, it may replace several basic fixtures.

Two to four multi-effect lights can provide color, movement, strobe, and animated body effects for weddings, private parties, bars, and mobile DJ events.

For a large stage or professional nightclub, however, a multi-effect fixture is better treated as part of the system rather than the entire system.

It cannot fully replace front lighting, dedicated wash fixtures, profile lights, high-output beam fixtures, or large stage strobes.

Its strength is integration and efficiency, not outperforming every specialized fixture in every category.

For buyers working with a limited budget, limited transport space, or short setup windows, that balance can be extremely valuable.

The Starshine X38 is designed for users who want RGBW beams, golden-yellow strobe accents, animated LED strips, a central bee-eye effect, and continuous rotation in one fixture.

Its 17CH profile lowers the programming barrier for mobile DJs and event operators. Its 55CH profile gives clubs, lighting programmers, and advanced users access to independent zones and more detailed effect control.

The fixture is built around four different operating priorities:

• 17CH provides efficiency.
• 55CH provides precision.
• Auto and Sound-Active modes provide convenience.
• DMX provides repeatability and control.

That is one of the most important things to consider when evaluating a multi-effect DJ light.

For dealers, rental companies, and venue installers comparing professional stage lights, club lights, or wholesale DJ lights, the most useful fixture is not always the one with the longest feature list. It is the one that can serve both fast standalone events and more detailed programmed shows.

A good lighting show does not need to produce a new effect every second.

The most comfortable and effective shows usually come from restraint: knowing when to hold a color, when to introduce movement, when to build intensity, and when to use a short strobe accent.

17CH and 55CH should not be treated as a simple beginner-versus-professional choice.

The 17CH mode is appropriate for fast, stable, and efficient work. The 55CH mode is appropriate when the show requires independent zones, complex chases, and detailed programming.

The right mode depends on the room, the music, the number of fixtures, the controller, and the amount of preparation time available.

Once you start designing lighting around musical structure, event flow, and venue space—instead of allowing the fixture to run randomly—a multi-effect DJ light stops being a device that simply flashes.

It becomes a tool for shaping rhythm, energy, and atmosphere.
