SM30 RGB Laser Module 30W/33W | High-Power Laser Projector Module
Regular price
$2,450.00
Sale price
$2,450.00
Regular price
Unit price
Overview

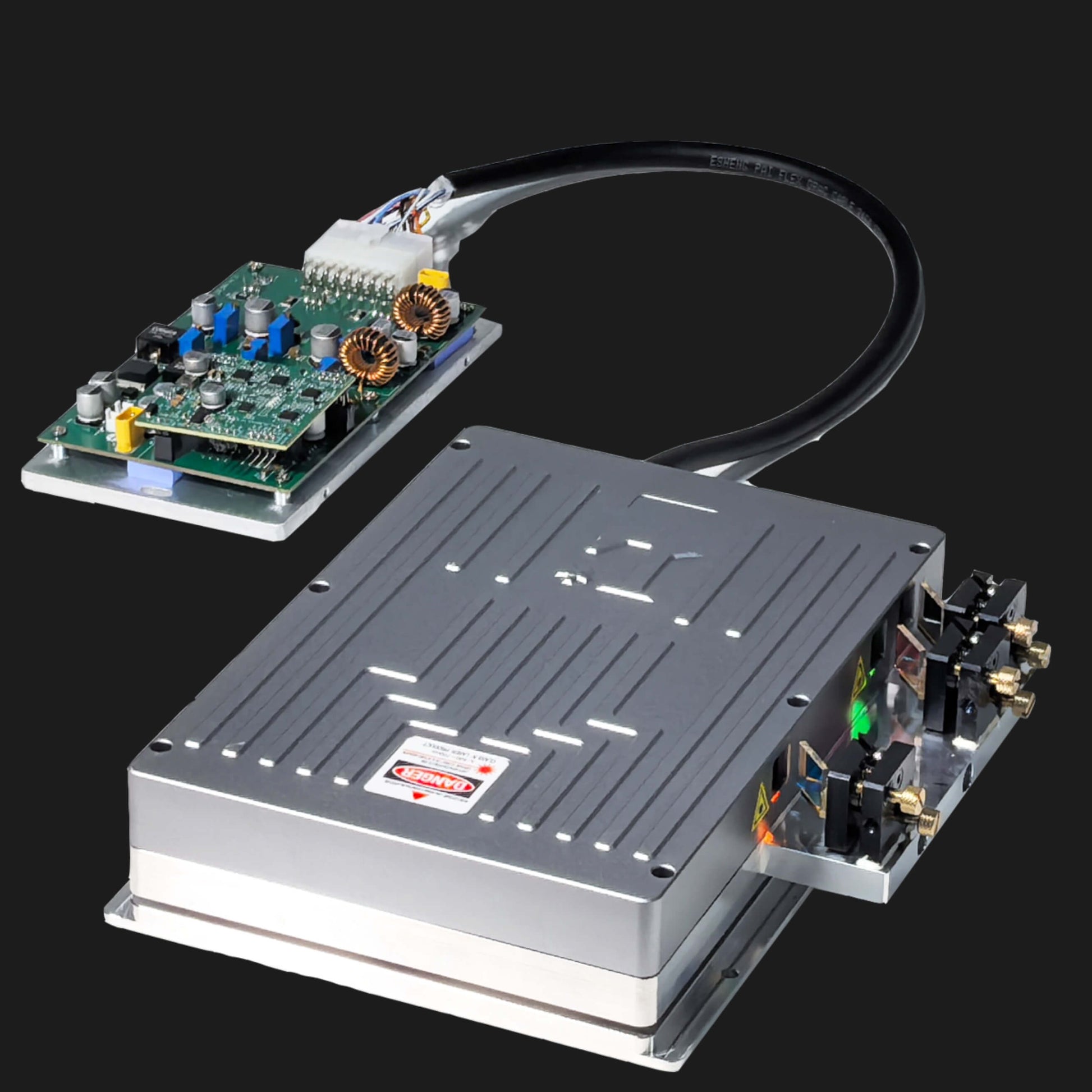

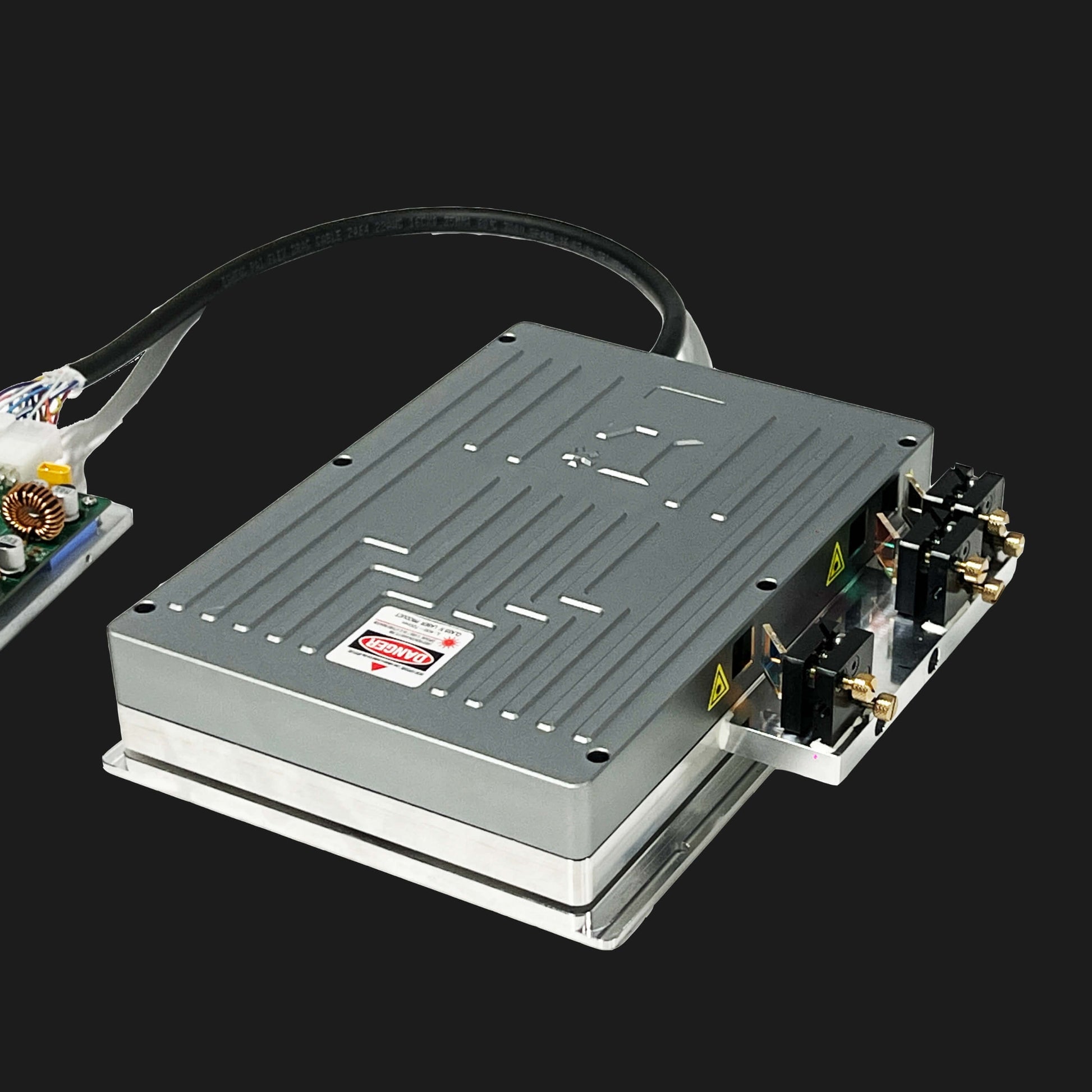

SM30 RGB Laser Module 30W/33W | High-Power Laser Projector Module
Built for Professional Laser Projector Performance
The SM30 RGB laser module is a high-power light engine designed for professional laser projector builds where brightness, beam quality, and stability are non-negotiable; whether you’re building a laser show projector for touring, festivals, nightclubs, or outdoor installs, SM30 integrates quickly and runs steadily so your laser light show looks consistent from the first cue to the last, making it a reliable choice for OEM projector chassis, upgrades, and custom RGB laser projector configurations.
Clean Beam Profile with All-Fiber Shaping
Power only looks professional when the beam stays tight and the spot stays clean, and the SM30 RGB laser module uses all-fiber shaping to deliver a cleaner beam profile that helps graphics, logos, and scan content appear sharper in a laser projector or laser light projector, especially for show programming where edge clarity and color mixing quality directly affect the perceived “pro” level of a laser light show.
Long-Run Stability for Show-Time Consistency
Built for real show conditions, SM30 focuses on dependable output over long runtimes, featuring less than 1 RMS power stability over 4 hours and a preheat time under 1 minute so your laser show projector can go from setup to performance quickly while maintaining consistent brightness and color balance, and with an operating range designed for typical event environments, SM30 supports steady performance when your laser projector needs to run through rehearsals, soundcheck, and the full show without drifting.
Smooth Brightness Control with Analog Modulation (0–5V)
For predictable cueing and smooth dimming, SM30 supports analog modulation (0–5V) with an approximate input range of 0.12V–4.95V and clear behavior (more than 2V full output, less than 2V off), making brightness control more consistent in a professional laser projector control chain and improving the reliability of fades, strobes, and timed looks in a programmed laser light show or laser show system.
Easy Installation + Wide Housing Compatibility
SM30 is engineered for easy installation and fast integration, with mechanical dimensions and an output height that are designed to match most mainstream laser projector housings on the market, which helps reduce custom machining and shortens assembly time for a laser show projector build; if you’re not familiar with module installation, we can provide a step-by-step video tutorial covering mounting, wiring, modulation testing, airflow direction, and beam-height alignment, and if you share your housing’s internal space or photos, we can also help confirm fitment quickly so you can start testing sooner.
Specs
Wavelengths (nm)
SM30-RGB33W: 638±5 / 520±5 / 445±5
SM30-RGB30W: 638±5 / 520±5 / 445±5 / 465±5 (listed option)
Spot type
All-fiber shaping
Operating mode
CW
Power stability (RMS, 4 hours)
less than 1
Divergence
1.0 mrad
Divergence
1.0 mrad
Exit spot
6.5 × 7 mm

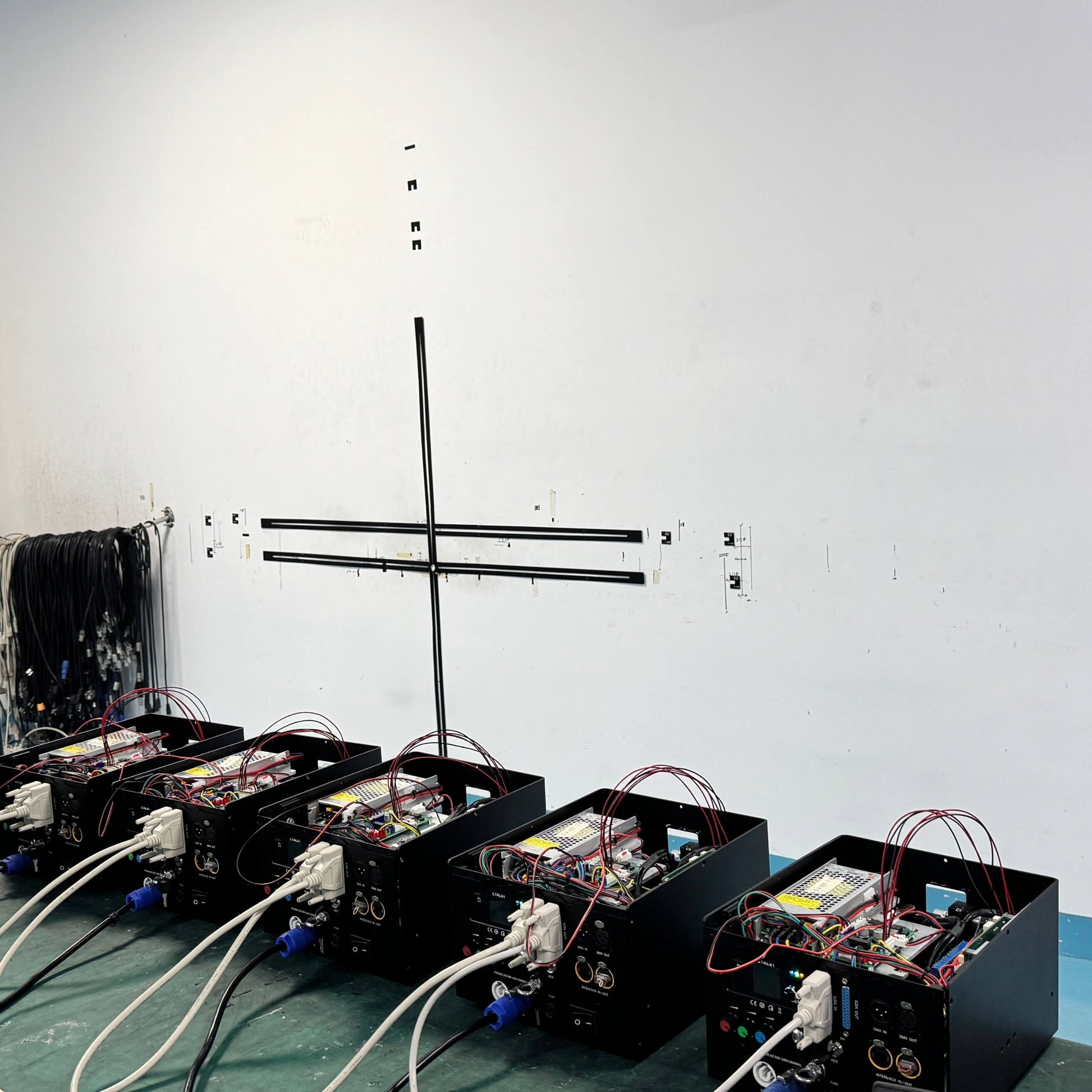

Spot @ 10 m
20 × 20 mm
Spot @ 20 m
35 × 30 mm
Power input
DC 24V
Analog modulation
≈0.12V–4.95V
Operating temperature
20°C to 40°C
Output height
40 mm

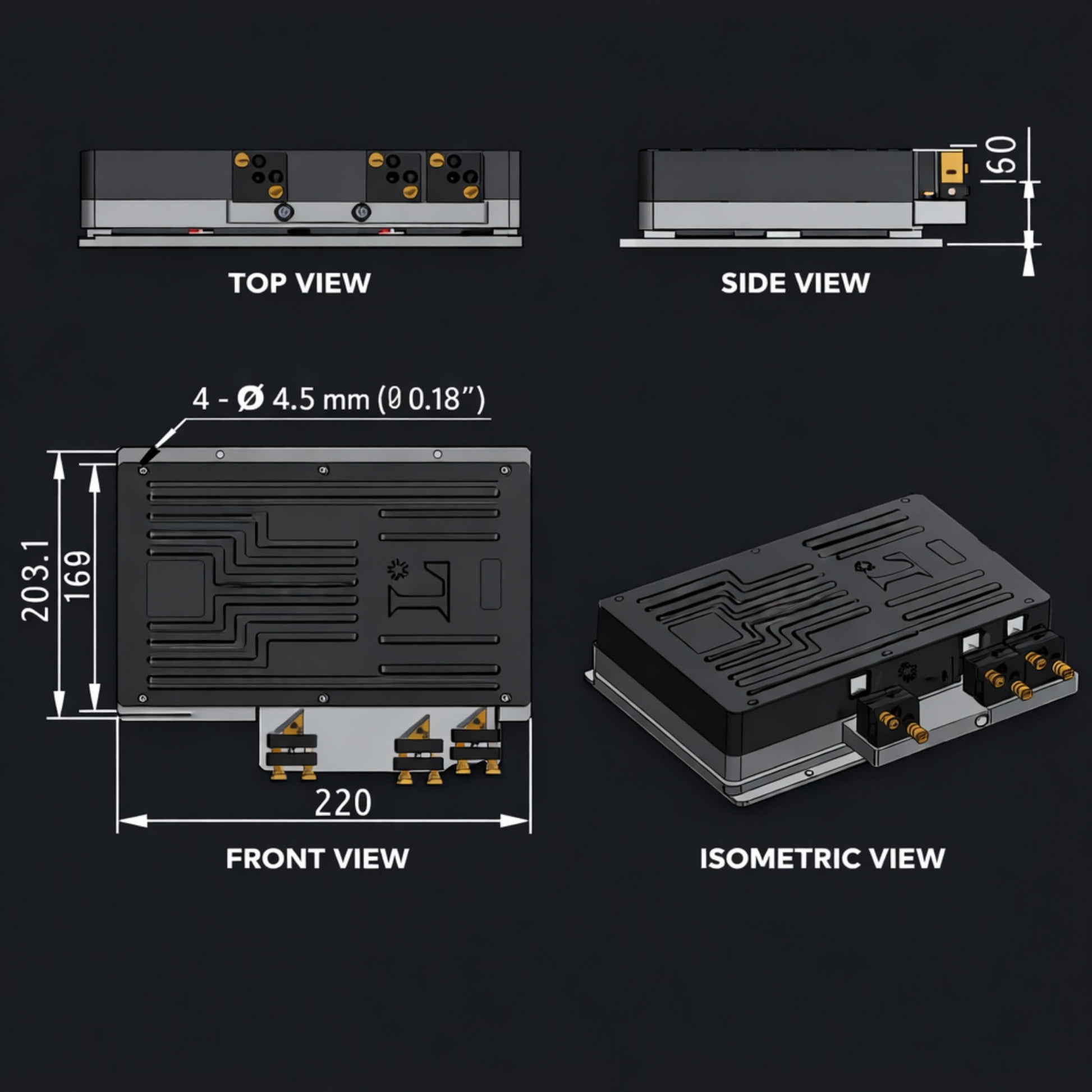

Module size
220 × 203.1 × 50.5 mm
FAQ
Q: Is SM30 a complete laser projector?
A:No. SM30 is an RGB laser module (light engine) designed to be integrated into a complete laser projector system (housing, scanners, controller, safety system, and power management).
Q: Will SM30 fit my existing laser projector housing?
A:In most cases, yes. SM30 is designed to match most mainstream laser projector housings. Share your housing’s internal dimensions or a few photos and we can help confirm fitment.
Q: Is installation difficult?
A:SM30 is designed for easy mounting and wiring. If you’re new to integration, we can provide a video installation tutorial covering mounting, wiring, analog modulation testing, and airflow direction.
Q: What control signal does SM30 support?
A:SM30 supports 0–5V analog modulation (≈0.12V–4.95V) with clear behavior: >2V full output / <2V off.
Q: What is SM30 typically used for?
A:Touring stages, festivals, venues, outdoor installs, laser projection systems, and other professional laser light show applications where stable RGB output matters.
Q: Any usage notes to protect the module?
A:Use a clean, dry environment, ensure proper heat dissipation, avoid adjusting internal potentiometers, and never connect to the wrong power source.
