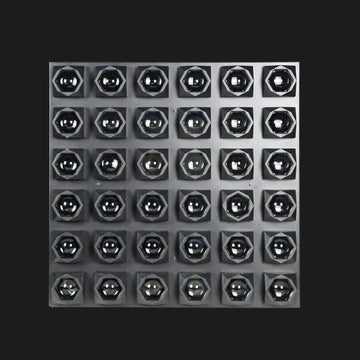

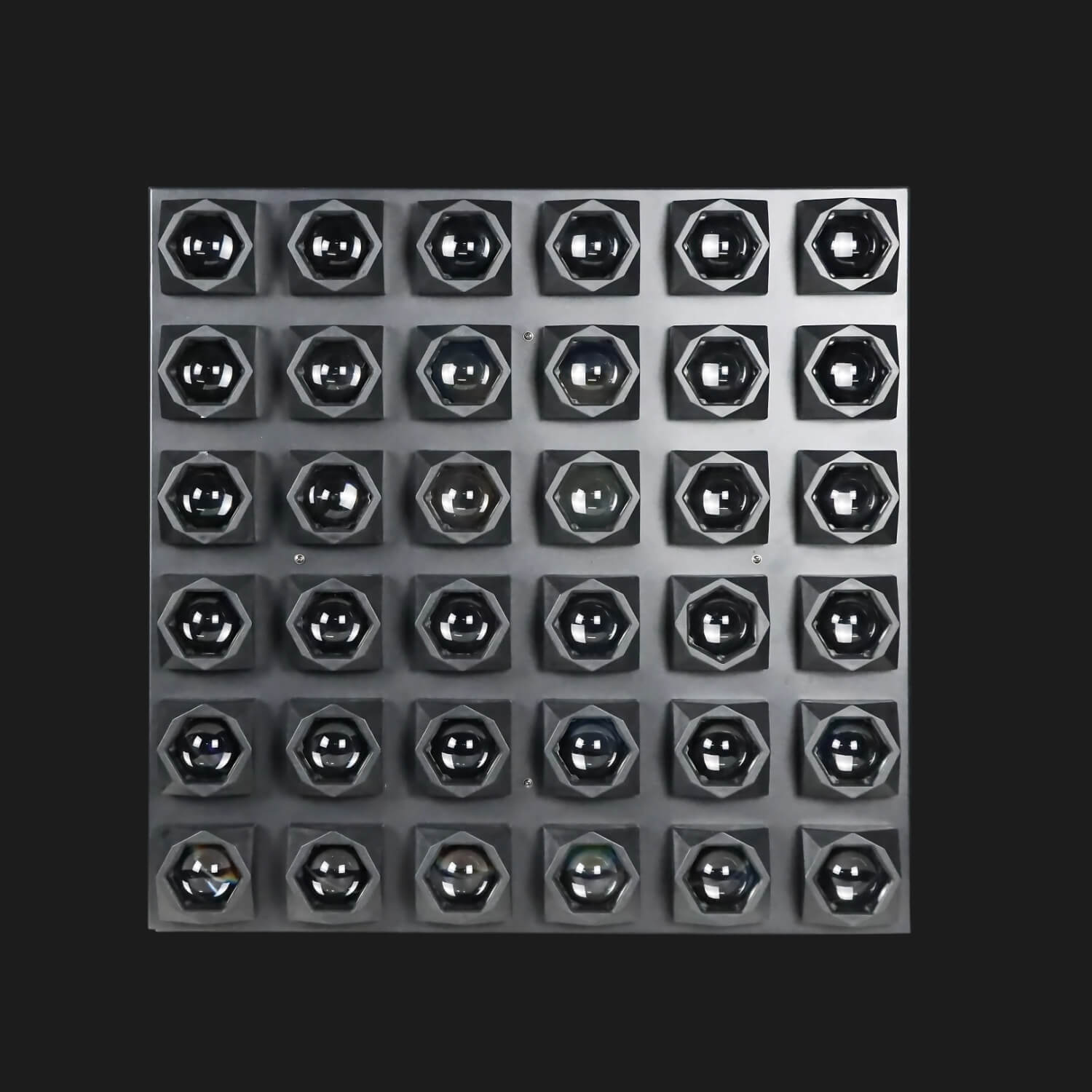

R3 matrix light front view 50x50x12 cm
R3 audience blinder strobe effect stepless
R3 pixel wall horizontal and vertical splicing
R3 DMX 4ch 12ch 144ch channel map diagram
R3 matrix light on truss with safety cable
R3 RGBW color mixing low pixel graphics
R3 36 LED matrix light 6x6 RGBW pixel panel
R3 DMX512 matrix light with 144 channel pixel control
R3 36x8W RGBW LED stage pixel panel beams with haze
R3 matrix light front view 50x50x12 cm
R3 audience blinder strobe effect stepless
R3 pixel wall horizontal and vertical splicing
R3 DMX 4ch 12ch 144ch channel map diagram
R3 matrix light on truss with safety cable
R3 RGBW color mixing low pixel graphics

R3 DMX LED Matrix Light 36x8W RGBW Pixel Panel for Club Stage

Regular price $250.00
Sale price $250.00 Regular price
Unit price
  • 36×8W RGBW Output
  • Delivers bright color mixing, punchy wash looks, and defined beams from a compact 6×6 LED matrix light.
  • 6×6 Pixel Panel Layout
  • The 6×6 RGBW DMX pixel panel supports low-pixel graphics, chase lines, number cues, and center-burst looks.
  • DMX512 Control
  • Supports DMX512, Auto-run, Master/Slave, and Sound modes for flexible setup in different show environments.
  • 4CH / 12CH / 144CH Modes
  • Choose quick macros, zoned control, or full pixel-by-pixel programming depending on the rig and workflow.
  • Smooth Linear Dimming
  • 0–100% linear dimming helps create cleaner fades and more precise low-end brightness control.
  • Stepless Strobe / Blinder
  • Works as both a matrix effect light and an audience blinder with adjustable strobe intensity.
  • Modular Splicing Design
  • Supports horizontal and vertical splicing for walls, frames, and tunnel-style pixel installations.
    Overview
    Payment Method
    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Google Pay
    • Shop Pay
    • Union Pay

    What's in the box

    • 1 × R3 LED Matrix Light
    • 1 × Power Cable
    • 1 × Mounting Bracket Set
    • 1 × User Manual

    Services and Benefits

    In Stock Fast Tax-Free Shipping

    $250.00
    Powerful RGBW Output for Matrix Looks, Wash, and Beam Effects
    The R3 uses 36 × 8W RGBW 4-in-1 LEDs in a 6×6 layout for strong color output and versatile stage looks. This LED matrix light creates punchy wash effects, tight beam accents, and bold low-pixel graphics from one fixture. RGBW color mixing delivers richer tones, cleaner whites, and more flexible show design options. It works well for users who need a brighter, more dynamic fixture than a standard static wash light. For buyers looking for a 6x6 RGBW DMX pixel panel for practical stage use, the R3 is a strong fit.
    R3 festival stage pixel wall installation
    R3 wedding backdrop matrix light design
    DMX512 Control with Flexible Channel Modes
    Control Options: R3 supports DMX512, Auto-run, Master/Slave, and Sound modes for programmed shows and fast event setups.
    Channel Flexibility: The fixture offers 4CH, 12CH, and 144CH channel maps to match different controller sizes and show needs.
    Pixel Programming: In 144CH mode, the R3 supports pixel-by-pixel control for mapped effects, custom patterns, and more detailed programming.
    Quick Operation: The 4CH and 12CH modes are practical for clubs, weddings, bars, and mobile productions that need reliable presets and fast setup.
    Workflow Advantage: This makes the R3 suitable for quick-use stage lighting rigs and more advanced pixel panel programming workflows.
    Smooth Dimming and Strong Strobe / Blinder Performance
    Linear Dimming: The 0–100% linear dimming system helps create smoother fades and cleaner intensity changes on stage.
    Blinder Effect: The R3 can also work as an audience blinder, adding direct visual impact during drops, intros, and key show moments.
    Strobe Range: Its stepless strobe function lets you move from subtle shimmer to stronger, more aggressive stage hits.
    Visual Rhythm: This combination of pixel light, strobe, and blinder performance gives the fixture more range than a single-purpose effect light.
    Event Use: It is especially useful in clubs, DJ booths, wedding stages, and live event productions where rhythm and crowd energy matter.
    R3 DMX chain with terminator and booster
    R3 RGBW beam and wash combined effect
    Modular Splicing for Walls, Frames, and Tunnel Designs
    Splicing Design: The R3 supports horizontal and vertical splicing, making it easier to expand from one fixture to a larger modular setup.
    Creative Expansion: Multiple units can be combined to create pixel walls, geometric frames, stage outlines, and tunnel-style visual structures.
    Project Value: This modular layout gives buyers more flexibility for future upgrades without changing product families.
    Installation Use: It works well for temporary productions and fixed indoor installations that need expandable pixel-based stage lighting.
    Scalable Output: Whether used as a single fixture or part of a larger build, the R3 keeps the same core control logic and visual style.
    Practical Indoor Fixture for Clubs, Shows, and Event Setups
    Power Input: The R3 runs on AC 100–240V, 50/60Hz for wide compatibility across standard indoor power environments.
    Rated Power: With a rated power of 300W, it balances strong output with manageable power use for stage and event applications.
    Indoor Use: Its IP20 rating and operating range of -10°C to 50°C make it suitable for indoor stage lighting and controlled event spaces.
    Fixture Size: The unit measures 50 × 50 × 12 cm and weighs 6.8 kg, making it practical for transport, rigging, and multi-unit layouts.
    Packing Reference: The packing sizes also make it easier for buyers to estimate shipping, storage, and project logistics.
    R3 RGBW beam and wash combined effect
    Specs
    General
    Model: R3
    Product Type: LED matrix light / RGBW DMX pixel panel / matrix blinder light
    Recommended Applications: Clubs, live shows, weddings, DJ booths, stage productions, indoor modular pixel installations
    Light Source
    LED Quantity: 36 pcs
    LED Power: 8W each
    LED Color: RGBW 4-in-1
    Pixel Layout: 6×6
    Control
    Control Modes: DMX512 / Auto-run / Master/Slave / Sound
    DMX Channels: 4CH / 12CH / 144CH
    Pixel Control: Pixel-by-pixel in 144CH mode
    Dimming: 0–100% linear
    Effects: Strobe / blinder / color mixing / chase / low-pixel graphics
    Electrical
    Input Voltage: AC 100–240V
    Frequency: 50/60Hz
    Rated Power: 300W
    Physical
    IP Rating: IP20
    Operating Temperature: -10°C to 50°C
    Dimensions: 50 × 50 × 12 cm
    Net Weight: 6.8 kg
    Packing Information

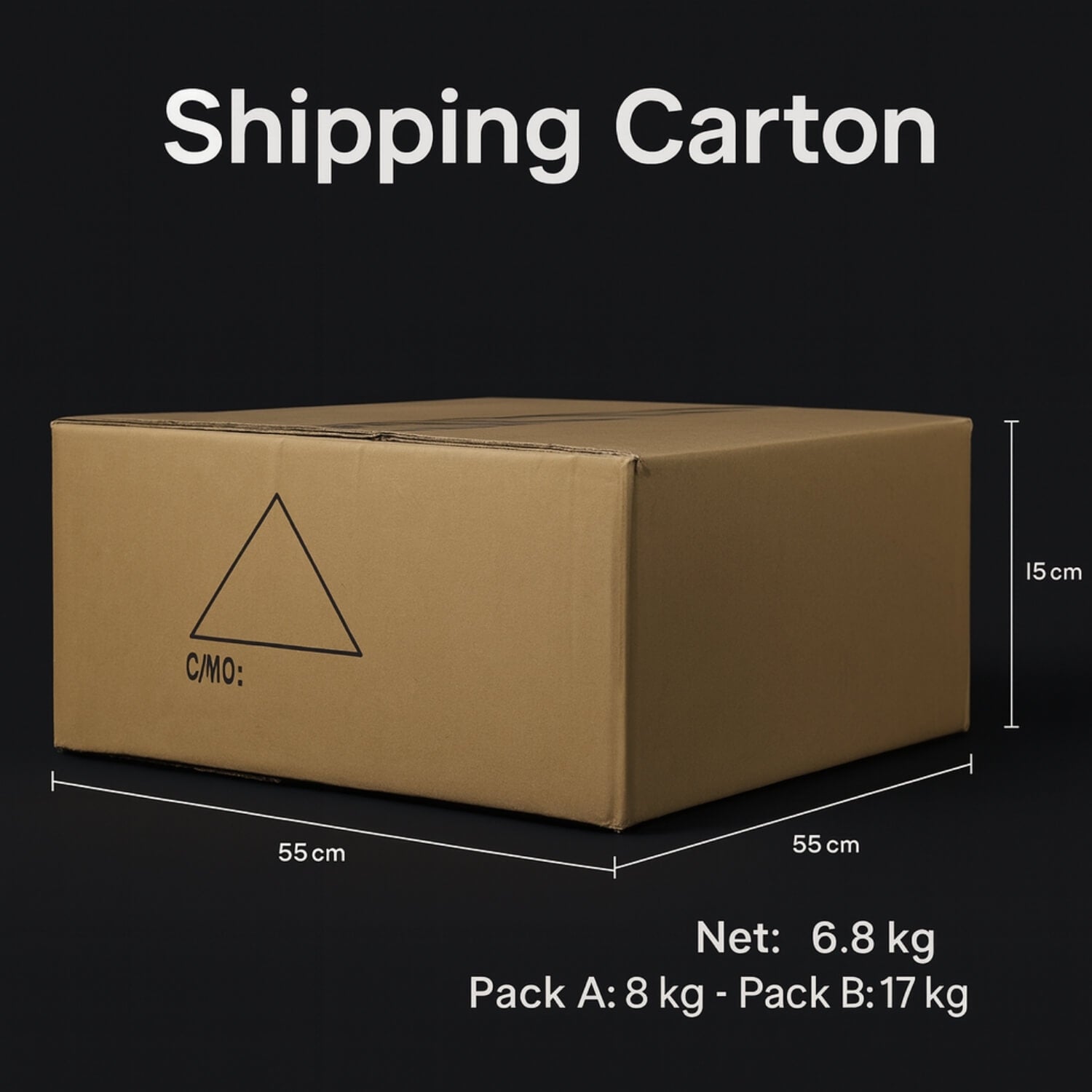

    Single Pack Size: 55 × 55 × 15 cm
    Single Pack Gross Weight: Approx. 8 kg
    Double Pack Size: 57 × 57 × 31 cm
    Double Pack Gross Weight: Approx. 17 kg
    FAQ
    Q: What DMX channel modes does the R3 support?
    A:The R3 supports 4CH, 12CH, and 144CH modes. The 144CH mode is designed for pixel-by-pixel control and more advanced effect programming.
    Q: Does this LED matrix light support pixel-by-pixel control?
    A:Yes. In 144CH mode, the R3 supports pixel-by-pixel control for mapped visuals, pattern design, and more detailed DMX programming.
    Q: Can the R3 be used as an audience blinder?
    A:Yes. The R3 supports stepless strobe and blinder effects, making it suitable for audience hits and high-impact show moments.
    Q: Is haze needed for better beam effects?
    A:Yes. A light haze is recommended indoors if you want stronger beam visibility and clearer matrix looks.
    Q: Can multiple R3 units be connected together?
    A:Yes. The fixture supports horizontal and vertical splicing for modular walls, frames, and tunnel-style layouts.
    Q: Is this fixture suitable for wedding stages?
    A:Yes. The R3 works well for wedding stages, event backdrops, DJ booths, and live productions where RGBW pixel effects and blinder looks are useful.
    Q: Is the R3 for indoor or outdoor use?
    A:The R3 is rated IP20, so it is intended for indoor stage lighting and protected event environments.
    Q: Is the power input universal?
    A:Yes. The fixture supports AC 100–240V, 50/60Hz, which is suitable for standard power systems in many regions.
    Q: What makes this different from a standard wash light?
    A:In addition to RGBW wash output, the R3 offers matrix-style visuals, low-pixel graphics, strobe effects, blinder use, and modular splicing.
    Q: What kinds of projects is this matrix light best for?
    A:It is a good fit for clubs, live shows, weddings, DJ booths, event stages, and indoor modular pixel wall builds.
