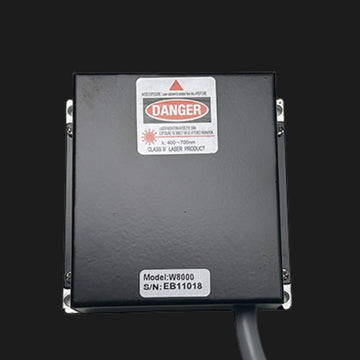

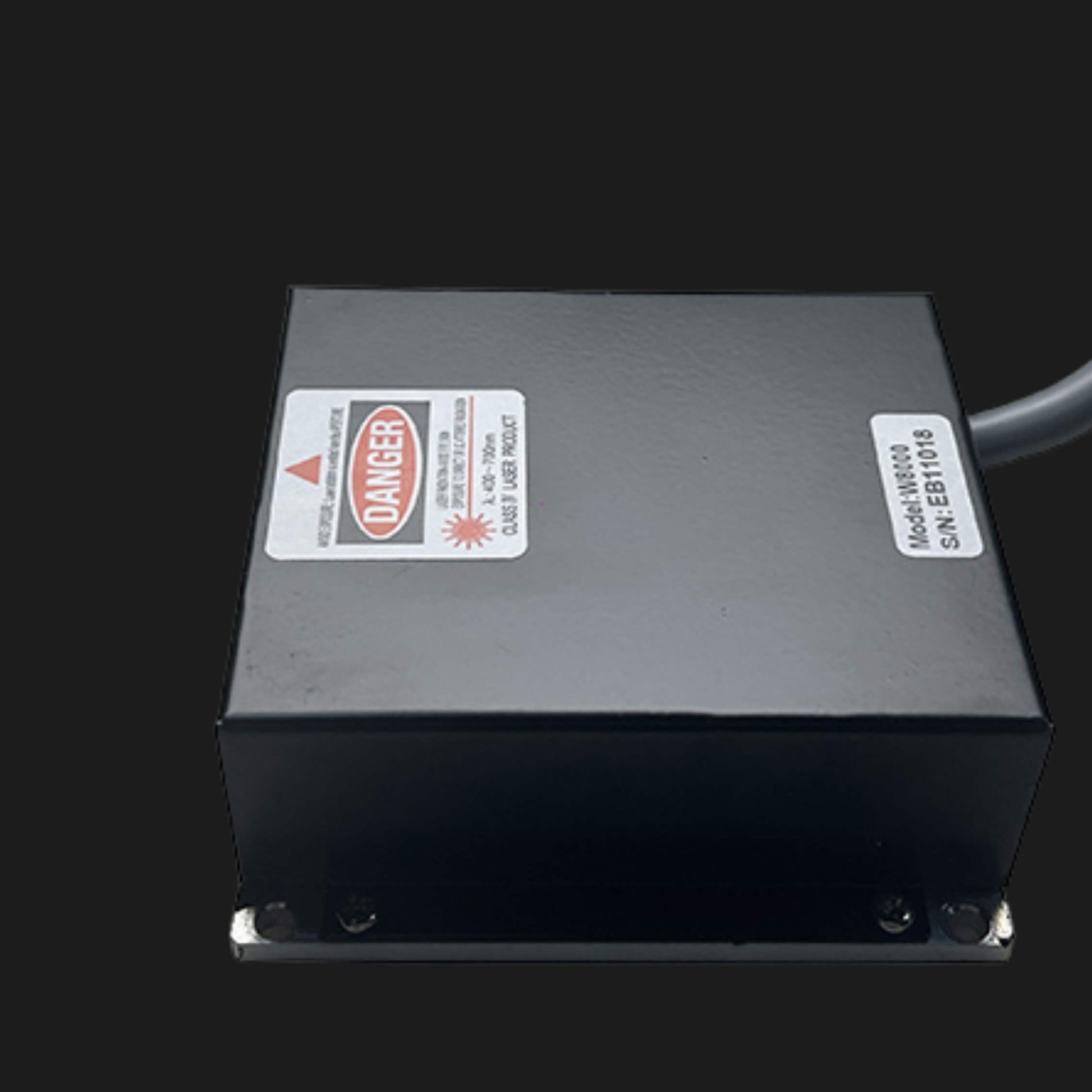

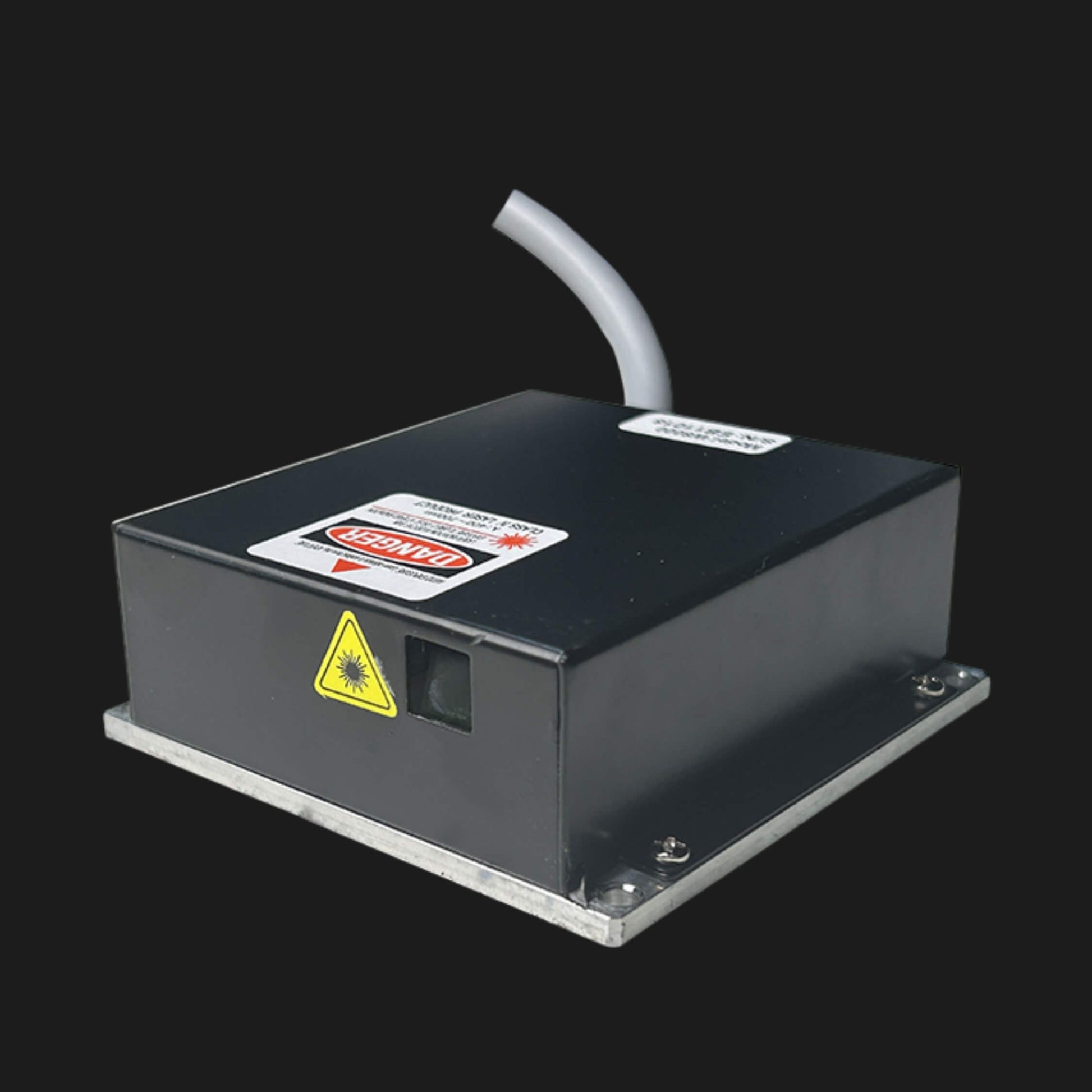

SM8 8W RGB Laser Module for Laser Projector
SM8 RGB Laser Module (8W) for Laser Projector Builds
SM8 is an 8W RGB laser module designed for laser projector integrations, featuring 638/525/450nm wavelengths, a fiber-shaped beam, 1.0 mrad divergence, less then 1-minute warm-up, 0–5V analog modulation, DC12V 6A power input, and a compact, housing-friendly size—plus easy installation support and a step-by-step video tutorial if needed.
Built for Laser Projector Integration: SM8 8W RGB Laser Module
The SM8 8W RGB laser module is a compact light engine built for reliable laser projector builds where clean color mixing, stable runtime performance, and fast integration matter. It’s a practical choice for venue systems, rental inventory, and installation projects that need vivid RGB output in a housing-friendly format—especially when you want an efficient, repeatable integration path for a laser show projector or a compact laser light show rig.
Cleaner Beam with Fiber Shaping for Better Visual Results
A professional-looking laser light projector isn’t just about brightness—it’s about beam quality. SM5 uses a fiber-shaped beam approach to produce a cleaner spot profile that helps graphics, logos, and projection content look sharper and more consistent. The spec sheet provides exit spot size and long-throw spot references at 10m and 20m, making it easier to match optics and focal mode to your real throw distance and venue requirements.
Cleaner Beams at Distance: Fiber Shaping + Predictable Divergence
SM8 uses fiber shaping to improve spot quality and keep the beam more controlled for projection and aerial looks. With published beam references—3.5×6 mm at the aperture, 25×22 mm at 10 m, and 50×32 mm at 20 m—plus 1.0 mrad divergence, it’s easier to plan optics and scanning behavior for a laser light projector build where beam cleanliness and consistency affect how professional your content looks.
Stable Output Fast: less then 1 Minute Warm-Up + Long-Run Consistency
For production workflows, speed and stability matter. SM8 is specified with less then 1 minute warm-up and power stability (RMS, over 4 hours) less then 1, supporting steady performance through rehearsals and long runtime sessions. It operates in CW mode and is rated for -20°C to 40°C, making it suitable for typical indoor venues and many moderate outdoor installation environments where predictable output is a priority.
Smooth Control for Show Looks: 0–5V Analog Modulation + Simple Power Planning
SM8 supports 0–5V analog modulation (approx. 0.2V–4.8V), which helps deliver smoother fades and more predictable brightness behavior for cue-based looks in a laser light show system. Power is DC12V 6A with the listed LRS-75-12 driver, which simplifies wiring and power planning inside common projector housings and helps standardize builds when you’re producing multiple units.
Easy Installation + Fits Most Housings

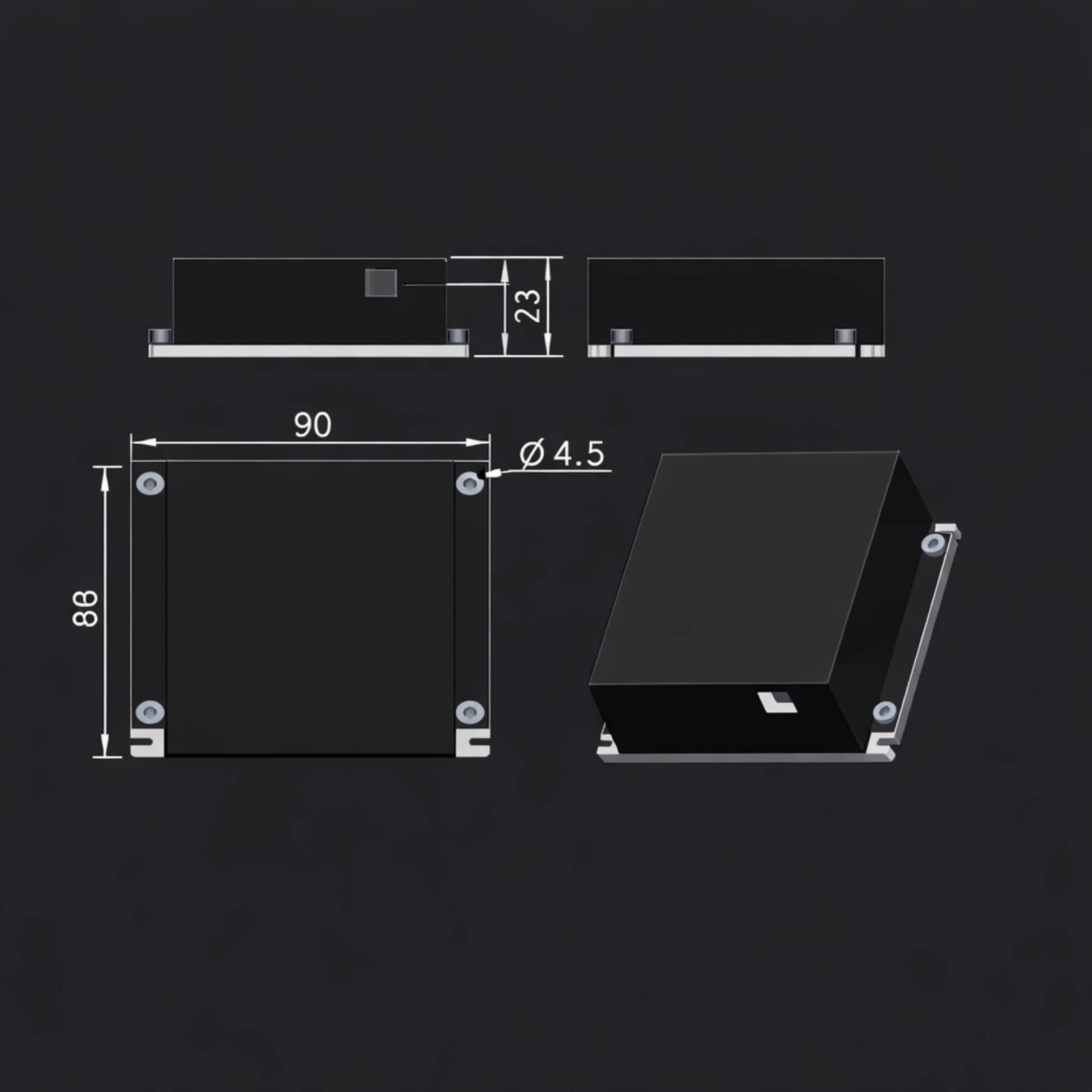

SM8 is designed for installer-friendly integration, with a compact footprint (90×88×33 mm) and a 25 mm output height that makes mechanical layout and beam-height alignment easier in tight spaces. Our laser modules are easy to install and compatible with most mainstream laser projector housings on the market for new builds or upgrades. If you’re not familiar with module installation, we can provide a step-by-step video tutorial covering mounting, wiring, power matching, modulation testing, airflow direction, and basic alignment—so you can integrate faster and avoid trial-and-erro
Specs
Model
SM8 (RGB8W)
Wavelengths (nm)
638±5 / 525±5 / 450±5
Output Power (W)
R 2.2 / G 1.7 / B 4.5 (8W class)
Spot Type
Fiber shaping
Spot @ Aperture (1/e², mm)
3.5×6
Spot @ 10m (1/e², mm)
25×22
Spot @ 20m (1/e², mm)
50×32
Beam Divergence (mrad)
1.0
Light Output Height
25 mm
Working Temp
-20°C to 40°C
Life Expectancy
8000 hours
Warranty
2 years
FAQ
Q: What is SM8—Is it a complete laser projector?
A:SM8 is an 8W RGB laser module (light engine) designed to be integrated into a complete laser projector system (housing, scanners/controller, safety features, and power management).
Q: Who should choose an 8W RGB laser module?
A:SM8 is a strong fit for compact to mid-size venues, mobile rigs, logo projection, and entry-to-mid laser light show programming where clean RGB mixing and stable control matter.
Q: How clean is the beam at real distances?
A:SM8 provides beam references at the aperture, 10 m, and 20 m, plus 1.0 mrad divergence, helping you plan optics and scanning for more predictable projection behavior.
Q: How fast is setup after powering on?
A:Warm-up is specified at under 1 minute, which is helpful for quick deployment.
Q: What modulation does SM8 support?
A:SM8 supports 0–5V analog modulation (approx. 0.2V–4.8V) for smoother fades and cue-based looks.
Q: What power input do I need?
A:SM8 is specified for DC12V 6A with the listed LRS-75-12 driver for stable operation.
Q: Is installation easy—will it fit my housing?
A:Yes. SM8 is compact and housing-friendly, designed to fit most mainstream laser projector housings.
Q: What if I don’t know how to install a laser module?
A:We can provide a step-by-step video tutorial for mounting, wiring, power matching, modulation testing, airflow direction, and basic alignment.
Q: Any engineering tips for best stability?
A:Keep airflow aligned with the heat path, avoid blocking vents, and don’t operate in high humidity or severe vibration environments.
