O114 114W Landmark Laser Light | 5km Sky Laser DMX Laser Projector
Regular price
$16,550.00
Sale price
$16,550.00
Regular price
Unit price
Overview
O114 114W Landmark Laser Light | 5km Sky Laser DMX Laser Projector
Built for Landmark “Sky Beam” Impact
The O114 landmark laser light is a projection-type laser show projector engineered for long-distance sky beam visibility in large outdoor environments. By expanding and collimating the beam before projection, O114 creates a clean, attention-grabbing sky laser column that reads clearly over city skylines and landmark zones when weather and air clarity allow, making it a strong fit for cultural tourism night shows, outdoor activations, and large-scale laser light show applications where beam presence matters more than “party effects.”
114W True RGB Laser Output (638/520/445nm)
O114 delivers 114W total optical output power with true RGB laser light performance—R34W + G40W + B40W—built around 638nm red, 520nm green, and 445nm blue wavelengths for vivid color saturation and strong beam intensity in real outdoor conditions. This wavelength set supports high-visibility pure colors and dynamic mixed looks, helping the beam stay bold against ambient city light and making the unit a practical choice for outdoor lasers used in landmark and skyline projects.
Projection-Type Optics for Long-Throw Performance
As a distance-focused laser projector, O114 uses projection-type optics with beam expansion and collimation, featuring a φ290mm light output range and a rated projection distance of over 5 kilometers to support long-throw sky beam effects. This optical approach is designed to maintain beam definition and presence across large open areas, which is exactly what many landmark laser light installations require when the goal is a sharp, readable beam rather than close-range pattern projection.
DMX Laser Control + Dedicated Safety Chain (E-Stop / Key / Interlock)
O114 is a DMX laser built for structured show control, supporting emergency stop control, RGB adjustment control, and DMX512 control for macros, manual RGB dimming, total dimming, and strobe-style effects depending on your programming needs. For safer operation, it uses a dedicated safety chain: if the E-Stop switch, key lock, or RGB control switch is not enabled, the laser will not emit, which helps keep output management consistent for outdoor laser show equipment deployed in public-facing or professional project environments.
Worldwide Power + Flight Case With Wheels for Deployment
Designed for real deployments, O114 runs on 100–240V at 50/60Hz with a maximum power consumption of 835W, supporting international projects and mixed-power job sites without special voltage versions. For transport and repeated load-in/load-out, it ships in an aviation flight case with wheels, sized L670 × W540 × H570mm, helping protect the unit and speed up handling for teams running landmark laser light installations, touring setups, or recurring outdoor event builds.
Specs
Model
O114

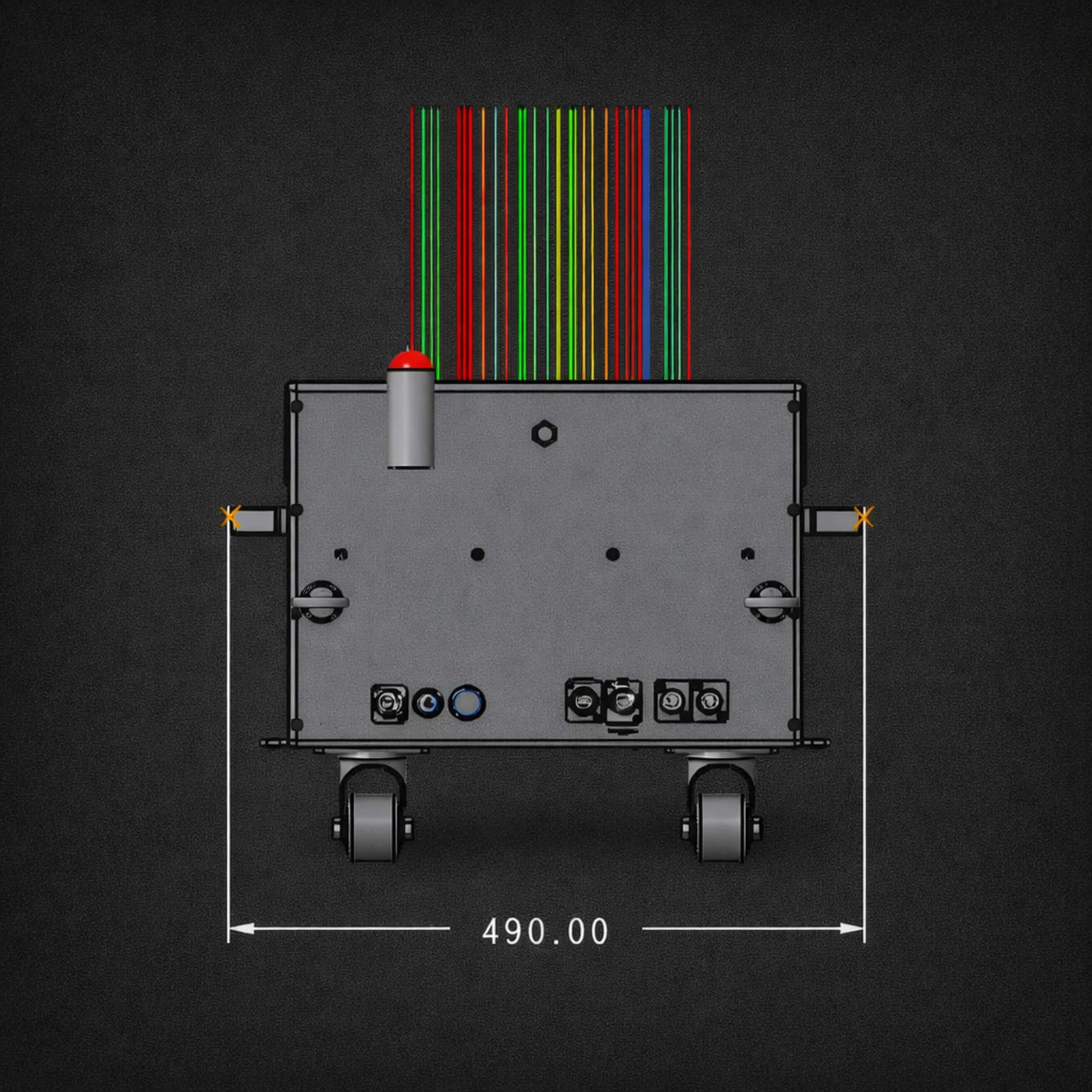

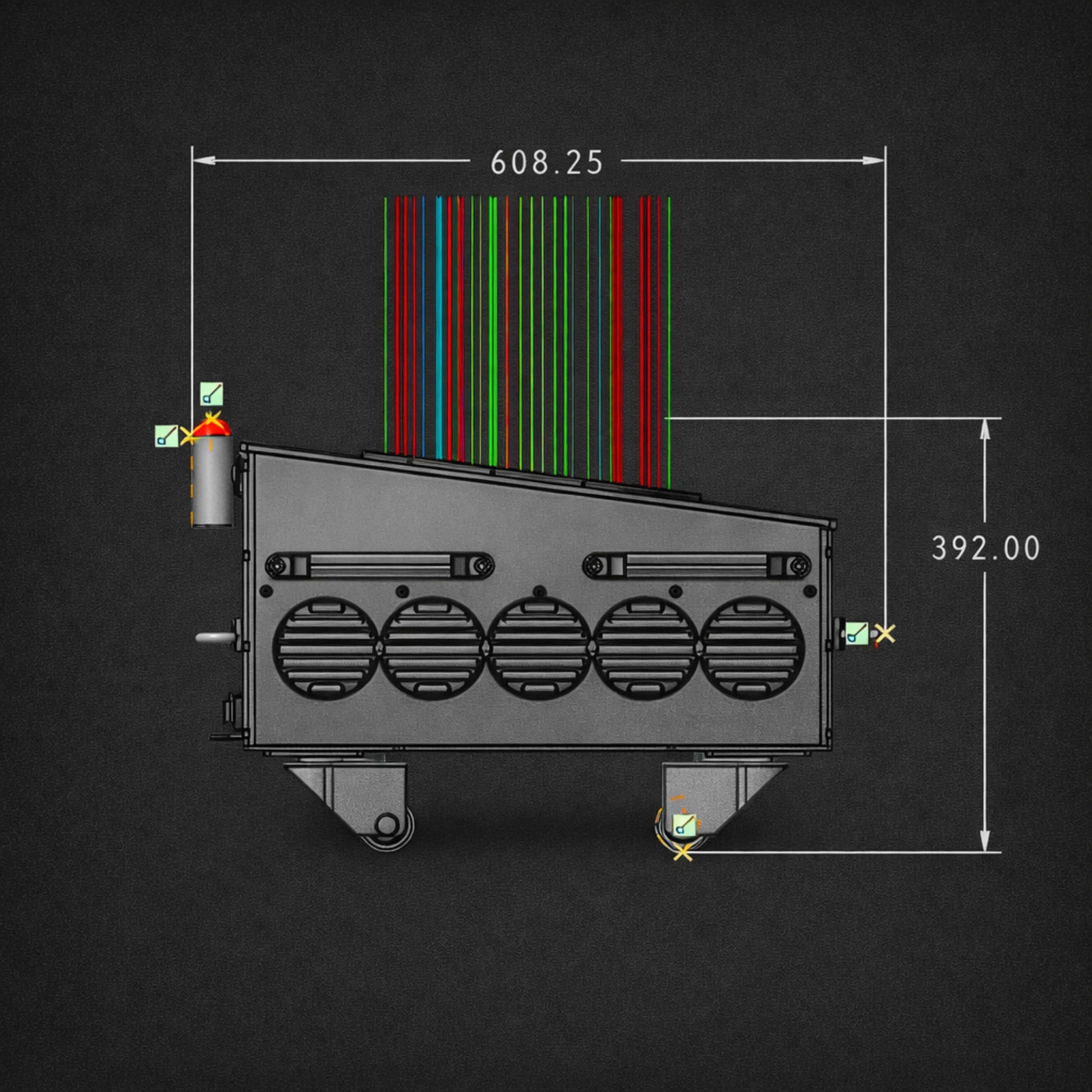

Dimensions
L607.5 × W490 × H392 mm
Net Weight
51.6 kg
Output Power
R34W + G40W + B40W = 114W
Wavelength
638nm / 520nm / 445nm
Light Output Range
φ290mm
Projection Distance
5km
Control Modes
E-stop / RGB adjustment / DMX control
Rated Voltage
100–240V, 50/60Hz
Max Power Consumption
835W
FAQ
Q: Is O114 a “laser show projector” or a “laser projector”?
A:It’s a professional laser show projector / laser projector designed for outdoor landmark beam projection, optimized for long-throw sky beam effects.
Q: How far can O114 project?
A:Rated projection distance is >5km. Actual visibility depends on weather, air clarity, ambient light, and aiming angle.
Q: Does it support DMX laser control?
A:Yes—O114 supports DMX512 control and built-in programs for RGB color changes and brightness adjustment.
Q: Can I run it without a DMX console?
A:Yes—use the included RGB adjustment control and emergency stop control for manual operation.
Q: What DMX functions are available?
A:Macro mode, auto modes, strobe modes, manual RGB dimming (CH2–CH4), total dimming (CH5), and strobe speed control (CH7).
Q: What safety conditions must be met before laser output?
A:If any of the E-Stop switch, key lock, or RGB control switch is not enabled, the laser will not emit.
Q: How often should I clean the optics?
A:Clean regularly (recommended every six months) and use non-corrosive cleaning methods as described in the maintenance section.
