How to Program Moving Head Lights: 8-Beam RGBW DMX Guide
The first time you see an 8-beam RGBW moving head stage light in action, it is easy to focus on one thing: the fixture looks bright.
Brightness matters, of course, but it is not what makes this type of light interesting.
Once the fixture is connected to a DMX controller, positioned above a stage or dance floor, and used with a light layer of haze, it becomes much more than a bright effect light. It can create multiple aerial beams, colored ring effects, continuous movement, rhythmic strobe accents, and layered lighting looks from one compact fixture.
Programmed carefully, two or four moving head stage lights can make a modest venue feel deeper and more dynamic. Programmed poorly, the same lights can produce a confusing mix of random movement, flashing colors, and effects that never give the audience a chance to focus.
This guide explains how to program an 8-beam RGBW LED moving head light from the ground up. We will cover DMX addressing, channel modes, RGBW color mixing, RGB ring effects, pan and tilt movement, continuous rotation, haze, cue design, fixture quantity, common programming mistakes, and troubleshooting.
The goal is not to use every feature at once. The goal is to understand what each feature contributes and use it at the right moment.
Quick Answer
To program an 8-beam moving head light, start by selecting the correct DMX channel mode and assigning each fixture a starting address. Test the master dimmer, RGBW beam colors, and RGB ring channels separately before adding movement.
Next, create several useful static positions, limit pan and tilt to the actual performance area, and build slow movement cues before adding continuous tilt, chases, strobe effects, or automatic programs.
For professional-looking results, keep the main beams, RGB rings, movement, intensity, and strobe in separate programming layers. A thin, even layer of haze will make the narrow aerial beams more visible.
1. What Is an 8-Beam RGBW Moving Head Light?
An 8-beam RGBW moving head light is a motorized stage lighting fixture that uses multiple LED light sources inside one moving head.
Instead of creating one main beam, the fixture produces a group of narrow beams that move together as the head pans, tilts, or rotates.
RGBW refers to the four LED colors used in the main beam system:
- Red
- Green
- Blue
- White
Red, green, and blue can be mixed to create a wide range of saturated colors. The dedicated white emitter adds cleaner white output and stronger white accents than an RGB-only system usually provides.
Some models also include RGB rings around the main lenses. These rings create color effects on the face of the fixture, adding a second visual layer that can be programmed separately from the aerial beams.

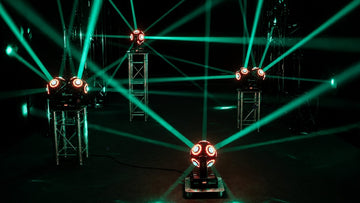

One real-world example is the Starshine X37 8-Beam Moving Head Stage Light. It combines eight 10W RGBW LEDs, independent RGB ring effects, a tight 2–3° beam angle, 540° pan movement, and continuous tilt rotation.
2. How Is an 8-Beam Moving Head Different from a Standard Moving Head?
A standard moving head beam light usually contains one primary light source and one optical path. One fixture produces one main beam that can be moved, colored, dimmed, or strobed.
An 8-beam model uses several LED sources in the same moving head. A single fixture can therefore create a group of visible lines instead of one line.
More Visual Density from One Fixture
A single-beam fixture creates one aerial line. An 8-beam fixture creates a group of lines.
This can make a compact DJ light setup feel fuller without requiring a large number of separate stage lights. A pair of multi-beam fixtures can produce a surprisingly dense aerial effect when they are positioned and programmed correctly.
A More Visible Fixture Face
With many traditional moving head lights, the projected beam creates most of the visual impact.
With an RGB ring fixture, the front of the light also becomes part of the show. The audience can see both the beams in the air and the colored rings around the lenses.
This is especially useful when the lights are aimed toward the audience, the dance floor, or a video camera.
More Complex Movement
When eight narrow beams move through a 540° pan range or continuous tilt rotation, the result is more visually complex than a single beam moving through the same path.
However, that complexity must be controlled.
Eight beams moving at maximum speed can become cluttered very quickly. More beams give you more material to work with, but they do not automatically create better stage lighting.
3. Why Beam Angle Matters
When comparing LED stage lights, many buyers look at wattage first.
Wattage matters, but it does not tell you how concentrated the beam will be or how the fixture will look inside a real venue.
Beam angle describes how quickly the light spreads as it moves away from the fixture.
A narrow beam stays concentrated over a longer distance. A wide beam spreads faster and covers a larger area.
The X37 uses a 2–3° beam angle, which is narrow enough to create defined aerial lines, fan effects, circular movement, and geometric patterns.
| Throw Distance | Beam Diameter at 2° | Beam Diameter at 3° |
|---|---|---|
| 16 ft / 5 m | 7 in / 17 cm | 10 in / 26 cm |
| 33 ft / 10 m | 14 in / 35 cm | 20 in / 52 cm |
| 49 ft / 15 m | 20 in / 52 cm | 31 in / 79 cm |
At a throw distance of around 33 feet, the beam remains relatively tight instead of spreading into a broad pool of light.
That is why narrow moving head stage lights work well for DJ lights, concert lighting, disco lights, club lighting, and indoor event lighting.
A wash light spreads color across an area. A beam light draws a visible line through space.
Those are different jobs, and a professional stage lighting system often uses both.
4. Does an 8-Beam Moving Head Need Haze?
The fixture can operate without haze, but the complete aerial effect will be less visible.
In clean air, you may clearly see the light coming from the lenses and the point where it lands. The path between the fixture and the target may appear weak.
Haze introduces tiny particles into the air. Light reflects from those particles, allowing the audience to see the beam throughout the room.
The best result usually comes from a thin, even layer of haze.
Too little haze makes the beams difficult to see. Too much haze reduces contrast and causes separate beams to blend together.
A good haze level should reveal the beams without making the venue look visibly smoky.
Before using a haze machine in a hotel, school, theater, wedding venue, or commercial building, confirm the venue’s policies and fire detection requirements.
5. RGBW Beams vs. RGB Ring Effects
RGBW beams and RGB rings do not serve the same purpose.
Understanding that difference is one of the easiest ways to create more professional lighting looks.
RGBW Beams Create Space
The main beams create aerial lines, movement paths, stage positions, and visual depth.
Red, green, and blue can produce saturated mixed colors, while the dedicated white emitter is useful for:
- White aerial sweeps
- Music drops
- Strobe accents
- Concert finales
- Dramatic transitions
- High-energy DJ moments
The main beams are what the audience sees moving through the room.
RGB Rings Create a Surface Effect
The RGB rings add color to the face of the fixture.
Even when the beams point away from the audience or camera, the rings can keep the fixture visually active. This makes them useful for club lighting, nightclub lighting, concert video, and dance floor installations.
The rings can match the beam color, but contrasting colors often create more depth.
| Show Moment | Main Beams | RGB Rings |
|---|---|---|
| Slow opening | Deep blue | Purple |
| Wedding entrance | Soft white | Pink or lavender |
| DJ transition | Off | Slow RGB fade |
| Music drop | White | Red |
| Club track | Blue or green | Magenta |
| Final hit | White | Multicolor macro |
One of the most useful programming techniques is a ring-only transition.
Fade out the main beams while leaving the RGB rings active at a lower intensity. The fixtures remain visible, but the room gets a visual break before the beams return.
That contrast makes the next cue feel stronger.
6. What You Need Before Programming
Before programming your DMX moving head lights, prepare the following equipment:
- One or more DMX-compatible moving head lights
- A hardware DMX controller or compatible lighting software
- Proper DMX cables
- A DMX terminator for long or unstable signal runs
- The correct fixture manual and channel chart
- Suitable power distribution
- Rated mounting clamps
- Independent safety cables
- A haze machine when visible aerial beams are needed
- A notebook, spreadsheet, or show file for recording addresses and cues
Use proper DMX cabling for professional or permanent installations. Standard microphone cables may use similar connectors, but they are not the preferred choice for reliable DMX signal transmission.
Before connecting several fixtures, write down the planned starting address for each light. This simple step prevents many channel overlap problems later.
7. How to Program Moving Head Lights with DMX
The following workflow applies to most DMX moving head lights, even if the exact channel order is different.
Step 1: Select the DMX Channel Mode
Choose the fixture’s channel mode before patching it into the controller.
If the light is set to 16CH, the controller profile must also use the 16-channel layout. If the fixture is set to 18CH while the controller expects 16CH, channel functions will not line up correctly.
Step 2: Assign the Starting Address
Give each fixture a unique starting address when you need independent control.
Several lights can share an address when identical movement is required, but matching addresses prevent individual positioning, mirrored movement, and separate colors.
Step 3: Patch the Correct Fixture Profile
Load the exact fixture profile into the controller or lighting software whenever possible.
When no profile is available, build a custom profile from the manufacturer’s channel chart. Do not choose a visually similar fixture and assume its channels will be identical.
Step 4: Test the Master Dimmer
Raise only the master dimmer and one color channel.
Keep the following functions at zero:
- Strobe
- Automatic programs
- Sound-Active programs
- LED macros
- Motor macros
- Reset functions
This creates a controlled starting point.
Step 5: Test RGBW Colors
Test red, green, blue, and white individually.
Next, try simple color combinations:
- Red and blue for magenta
- Blue and green for cyan
- Red and green for amber or yellow tones
- Blue with a small amount of white for a cooler look
- Red with a small amount of white for a warmer tone
Avoid pushing every color to maximum intensity unless a pale or nearly white result is intentional.
Step 6: Test the RGB Rings Separately
Turn the main beam channels down and raise the RGB ring channels.
Confirm that the rings can display red, green, blue, and mixed colors independently from the main beams.
Save at least one ring-only cue for transitions.
Step 7: Set Safe Pan and Tilt Positions
Move the fixture into several useful positions while the light is at a low intensity.
Avoid:
- Camera positions
- Control booths
- Staff work areas
- Emergency exits
- Highly reflective surfaces
- Audience eye level
- Areas outside the performance space
Do not begin with full-range movement. First define the part of the venue you actually want to light.
Step 8: Save Static Positions
Before programming movement effects, create several static positions:
- Center stage
- Stage left
- Stage right
- Dance floor center
- Ceiling fan
- Rear wall
- Audience overhead
- Floor crossing
These positions become building blocks for later movement cues.
Step 9: Add Slow Movement
Start with a slow sweep between two positions.
Once the movement is smooth and stays within the intended area, create:
- Mirrored movement
- Alternating movement
- Circular tilt effects
- Continuous rotation
- Position chases
- Faster music-drop effects
Step 10: Add Intensity, Color, and Ring Layers
Build these elements separately whenever possible:
- Position
- Movement
- Main beam color
- Ring color
- Intensity
- Strobe
- Macro effect
Separating the layers makes it easier to reuse the same movement with different colors or apply one color look to several movement cues.
Step 11: Label Every Cue Clearly
Use practical cue names such as:
- Blue Slow Sweep
- White Drop Hit
- Ring-Only Transition
- Red and Blue Mirror
- Continuous Tilt Build
- Four-Fixture Chase
- Wedding First Dance
- Club Strobe Accent
Clear cue names make live operation much easier.
8. Choosing Between 16CH and 18CH DMX Modes
The X37 specifications list both 16CH and 18CH DMX operating modes.
For many mobile DJs, bars, wedding venues, and small stages, the 16CH profile provides access to the most important functions:
- Pan movement
- Tilt positioning
- Continuous tilt rotation
- Pan and tilt speed
- Master dimming
- Electronic strobe
- RGBW beam colors
- RGB ring colors
- LED macros
- Motor macros
- Automatic programs
- Sound-Active functions
- Fixture reset
An 18CH profile may provide additional or more detailed control, depending on the fixture firmware and channel map.
More channels do not automatically create a better show.
Choose the mode that gives you the control you need without making the show file unnecessarily complicated. Before using 18CH, confirm that the controller profile matches the exact fixture version.
9. How to Assign DMX Addresses
In 16CH mode, each fixture uses 16 consecutive channels.
| Fixture | Starting Address | Channels Used |
|---|---|---|
| Fixture 1 | 001 | 001–016 |
| Fixture 2 | 017 | 017–032 |
| Fixture 3 | 033 | 033–048 |
| Fixture 4 | 049 | 049–064 |
In 18CH mode:
| Fixture | Starting Address | Channels Used |
|---|---|---|
| Fixture 1 | 001 | 001–018 |
| Fixture 2 | 019 | 019–036 |
| Fixture 3 | 037 | 037–054 |
| Fixture 4 | 055 | 055–072 |
For professional programming, give each fixture a unique address and organize the lights into controller groups.
Useful groups include:
- Stage Left
- Stage Right
- Front Fixtures
- Rear Fixtures
- Odd Fixtures
- Even Fixtures
- Center Fixtures
- Dance Floor Fixtures
This makes mirrored movement, alternating colors, and chases much easier to build.
10. How to Program Pan and Tilt
Pan and tilt are some of the most overused functions in professional moving head lights.
A common beginner cue sends every fixture across its full pan and tilt range at maximum speed. It may look energetic for a few seconds, but it quickly becomes tiring.
Professional movement usually comes from restraint.
Limit the Movement Area
A fixture may offer 540° pan movement, but you rarely need the full range in every program.
In a small venue, the useful range may be only 120° to 220°.
Limiting the movement area helps the beams stay focused on the stage, dance floor, walls, or ceiling instead of sweeping across doors, work areas, or empty parts of the room.
Use Speed to Reflect the Music
Fast movement works well during:
- Music drops
- Drum fills
- Build-ups
- Short transitions
- Final hits
- High-energy dance sections
Slow movement works better during:
- Openings
- Cocktail hours
- Dinner service
- Ballads
- Speeches
- Background music
- Atmospheric club sections
When every movement is fast, the audience loses any sense of contrast.
11. How to Use Continuous Tilt Rotation
Continuous tilt is one of the most recognizable features of this type of LED moving head light.
A conventional moving head normally tilts to a mechanical limit and then reverses direction. Continuous tilt allows the head to keep rotating in the same direction.
This creates movement without an obvious endpoint.
Circular Beam Rotation
Hold the pan position steady and run continuous tilt at a moderate speed.
The eight beams create a rotating fan or wheel-like effect. With haze, this can become one of the strongest looks available from a single fixture.
Mirrored Rotation
Place one fixture on each side of the stage.
Program one fixture to rotate clockwise and the other counterclockwise. Opposing directions create a more balanced result than two fixtures rotating in the same direction.
Alternating Group Rotation
Set odd-numbered fixtures to rotate clockwise and even-numbered fixtures to rotate counterclockwise.
Use different RGB ring colors for each group to increase visual separation.
Music Drop Acceleration
Begin a build-up with slow continuous tilt.
Increase the speed as the music gains energy. At the drop, raise the intensity, introduce white beams, or add a short strobe accent.
Avoid leaving the rotation at maximum speed for an entire song. High-speed movement is most effective when it appears briefly.
12. Five Practical Lighting Looks
These examples can be programmed with a hardware controller, DMX software, or another stage lighting control system.
Look 1: Slow Atmospheric Sweep
Use this look for openings, cocktail hours, wedding dinners, lounges, and quiet club sections.
Set the main beams to deep blue at a reduced intensity. Use purple on the RGB rings. Keep the pan range narrow and move it slowly.
Tilt can remain static or change very gradually.
Do not use strobe. Avoid rapid color changes.
A comfortable atmosphere often comes from a stable look that changes slowly.
Look 2: Mirrored DJ Movement
This look works well for mobile DJ lights, birthday parties, school dances, and smaller dance floors.
Divide two or four fixtures into left and right groups.
Move the left fixtures inward while the right fixtures use the opposite pan direction. Try blue beams with magenta RGB rings.
Change positions every 8 or 16 beats rather than moving on every kick drum.
Look 3: RGB Ring Transition
Use this between songs, before an announcement, or during a quieter section.
Fade out the main beams and leave the RGB rings active.
Run a slow color fade or low-speed ring macro. This keeps the fixtures visible without filling the room with constant aerial beams.
Ring-only transitions are especially useful in a wedding DJ light setup.
Look 4: High-Energy Music Drop
Begin with dim colored beams and slow movement.
Just before the drop, fade out the main beams while keeping the RGB rings visible. When the drop hits, bring in bright white or saturated RGBW beams, increase continuous tilt speed, and add a brief strobe accent.
One or two musical phrases are usually enough for the strobe.
Look 5: Multi-Fixture Chase
Use this for professional club lighting, nightclub lighting, and small concert lighting systems.
Arrange four or eight fixtures in sequence. Turn the beams on from left to right, one fixture at a time.
Run the RGB rings in the opposite direction to create a second layer of motion.
For a clean chase, change one major element at a time. Start with intensity, then add movement or color.
13. How Many Moving Head Stage Lights Do You Need?
The correct number depends on room size, ceiling height, throw distance, mounting position, and the visual density you want.
Two Fixtures
Two fixtures are suitable for:
- Mobile DJs
- Small weddings
- House parties
- Karaoke rooms
- Compact bars
- Small indoor events
A pair can create mirrored movement, crossed beams, symmetrical positions, and alternating effects.
Four Fixtures
Four fixtures work well for:
- Medium-size weddings
- School events
- Bars
- Dance floors
- Small live performances
- Private events
Four lights can be divided into left and right, front and rear, or odd and even groups.
Six to Eight Fixtures
Six to eight fixtures are better suited to:
- Professional club lighting
- Nightclub lighting systems
- Concert lighting
- Permanent installations
- Live music venues
- Event production companies
More fixtures create more programming options, but they also require more DMX channels, power distribution, signal routing, rigging, and maintenance.
Four carefully programmed fixtures can often look better than eight fixtures running the same automatic program.
14. Programming for DJs, Weddings, Clubs, and Concerts
Programming DJ Lights
Mobile DJs need quick setup, dependable operation, and a useful collection of ready-to-run cues.
A practical show file should include:
- Slow atmospheric movement
- Medium-energy dance looks
- High-energy drops
- White strobe accents
- RGB ring transitions
- Static color scenes
- A Sound-Active backup mode
Sound-Active mode is useful when no lighting operator is available, but it cannot understand song structure as accurately as a programmed cue list.
A microphone can detect sound level and rhythm. It cannot reliably identify the verse, chorus, build-up, or emotional tone of a song.
Programming Wedding Lighting
Wedding lighting should not remain at maximum intensity throughout the event.
Guest arrival, dinner, speeches, and the first dance usually benefit from lower intensity, softer colors, and slower movement.
Professional party lights should become more active after the formal part of the reception is complete and the dance floor opens.
Photography and video also matter. Constant flashing, rapid movement, and bright white beams may interfere with cameras or distract from important moments.
A wedding DJ light setup should support the event rather than compete with it.
Programming Disco Lights and Nightclub Lighting
Clubs can use stronger color contrast, faster movement, more visible RGB ring effects, and more aggressive strobe accents.
Even so, professional nightclub lighting design still requires contrast.
When every minute uses maximum brightness, constant motion, and rapid flashing, the audience quickly becomes accustomed to it. The real musical peaks no longer feel special.
Good club lighting includes quieter looks, static positions, reduced intensity, and occasional dark moments.
Programming Concert Lighting
Concert lighting should follow the structure of the music.
A verse may use fixed positions and lower-intensity colors. The chorus can introduce wider pan movement. An instrumental section may use continuous tilt. The final chorus can add white beams or a brief strobe effect.
Strong concert lighting supports the band, the singer, and the arrangement.
It should not feel like an unrelated automatic program running above the performance.
15. Common DMX Problems and Solutions
| Problem | Likely Cause | Recommended Fix |
|---|---|---|
| Fixture does not respond | Incorrect DMX address or mode | Match the fixture address and channel mode with the controller profile. |
| Fixture moves randomly | Auto or motor macro channel is active | Return all automatic and macro channels to zero. |
| Colors do not match the controller | Incorrect fixture profile | Load or create the correct channel profile. |
| RGB rings work but beams stay off | Master dimmer or RGBW channels are at zero | Raise the master dimmer and test each RGBW channel. |
| Several fixtures respond together | Matching DMX addresses | Assign unique starting addresses. |
| Movement is reversed | Pan or tilt reverse is enabled | Check the onboard menu settings. |
| Signal becomes unstable | Long cable run, poor cable, or missing termination | Use proper DMX cable and terminate the final fixture. |
| Light moves outside the stage | Pan and tilt ranges are too wide | Create position limits or smaller movement effects. |
| Sound mode responds poorly | Sensitivity is too low or too high | Adjust microphone sensitivity for the venue. |
| Fixture becomes unusually hot or noisy | Ventilation, motor, or internal problem | Stop operation and inspect the fixture before further use. |
Many problems that look like fixture faults are actually profile, address, or macro-channel issues. Testing one function at a time is usually faster than changing several settings at once.
16. How to Keep Stage Lighting from Looking Cheap
Many LED stage lights are capable of producing professional results, but poor programming can make them look like basic party lights.
The problem is often not the fixture. It is the way the available functions are combined.
Do Not Run RGBW at Full Output All the Time
When red, green, blue, and white are all pushed to full intensity, the result often becomes pale or nearly white.
The individual color identity disappears.
For clearer color, begin with one or two main colors and add only the amount of white you actually need.
Do Not Make Every Fixture Perform the Same Movement
Perfect synchronization can be powerful during a specific hit or transition, but it should not define the entire show.
Mirrored movement, alternating groups, and delayed chases usually create more depth.
Do Not Use Strobe Continuously
Strobe is punctuation.
It works because it interrupts the normal visual rhythm. When it runs continuously, it stops feeling dramatic and becomes tiring.
Use it briefly and intentionally.
Do Not Let Macros Fight Manual DMX Control
When manually controlling movement and color through DMX, check whether any LED macro, motor macro, or automatic program channel is still active.
Many cases of a fixture “moving randomly” are not mechanical problems. A macro channel may simply be above zero.
Do Not Ignore Darkness
Lighting design is not only about deciding when a fixture should turn on.
It is also about deciding when it should turn off.
Fade out the main beams. Leave only the rings visible. Turn off one fixture group. Hold a static color. Give the audience a moment to reset.
The next lighting hit will feel stronger because it has contrast.
17. What to Check Before Buying a Moving Head Light
Product pages often lead with wattage, but a useful buying decision requires more than one number.
LED Source and Optical Design
Check the number of LEDs, the wattage of each emitter, the color system, and the beam angle. Eight LEDs do not automatically guarantee eight clearly defined beams if the optics are poorly designed.
DMX Channel Documentation
Confirm that the manual includes a usable channel chart for the mode you plan to operate. A fixture profile is easier to create when every channel range is clearly documented.
Standalone Control
For mobile events, Auto, Sound-Active, and Master/Slave modes can be useful backups when a controller is unavailable or a simple show is all that is required.
Movement Type
Check the pan range, tilt range, continuous-rotation functions, movement speed control, reverse settings, and whether the fixture can return accurately to saved positions.
Independent Effect Control
If the fixture includes RGB rings or multiple effect sections, confirm that they can be controlled independently. Separate channels create more useful programming options than one combined macro.
Installation and Service
Check the fixture weight, mounting points, required clamps, safety cable attachment, ventilation, operating environment, warranty, spare-part availability, and technical support.
A lower purchase price is less valuable when the fixture profile is unavailable, replacement parts are difficult to obtain, or the product cannot be serviced after installation.
18. Rigging, Haze, and Safety
Even the best stage lights will not perform well if they are installed incorrectly or used in the wrong environment.
The X37 is intended for dry indoor or weather-protected installations. It does not have a listed outdoor IP rating, so it should not be treated as a weatherproof outdoor fixture.
For overhead mounting, use a properly rated clamp and an independent safety cable.
Before each installation, inspect:
- Mounting brackets
- Clamp hardware
- Screws
- Safety cable
- Attachment points
- Power cables
- DMX connections
- Ventilation openings
Narrow beams concentrate light into a small area. Avoid staring directly into the LED apertures, and do not leave static beams aimed at audience eye level.
When using haze, check the venue’s rules and fire detection system in advance. Hotels, schools, theaters, and commercial buildings may have different requirements.
Discovering on the day of the event that haze is not permitted can completely change how narrow-beam lighting looks.
19. Who Should Use an 8-Beam RGBW Moving Head?
This type of LED moving head light is a strong fit for:
- Mobile DJs who want multiple beams from one fixture
- Event companies building compact lighting packages
- Bars and clubs that need active dance floor effects
- Small stages that need higher beam density
- Users who want RGBW beams and RGB ring effects
- Operators who need DMX, Auto, Sound-Active, and Master/Slave modes
- Venues upgrading from basic LED party lights
- Buyers looking for professional moving head lights without a large fixture footprint
It may not be the best choice for:
- Soft front lighting for speakers or performers
- Outdoor events without rain protection
- Detailed gobo projection
- Theatrical pattern work
- Long-distance stadium beam effects
- Applications requiring a wide wash field
An 8-beam RGBW fixture is primarily a dynamic effect light.
It is not a replacement for every other type of stage lighting equipment.
A complete lighting system may still need wash lights, profile fixtures, strobes, blinders, front lights, haze equipment, and a suitable DMX controller.
20. Understanding the Starshine X37 in a Real Lighting System
The Starshine X37 is not designed around traditional gobo projection or a conventional moving spot optical system.
Its main purpose is to combine eight narrow 2–3° RGBW beams, RGB ring effects, 540° pan movement, and continuous tilt rotation inside one compact fixture.
For mobile DJs, bars, private events, and small stages, its main value is the ability to create two visual layers.
The first layer is the group of eight beams moving through the air.
The second layer is the RGB lighting visible on the front of the fixture.
Through DMX, the operator can control movement, RGBW beam color, RGB ring color, dimming, strobe, and built-in effects. Without an external controller, the fixture can also run in Auto, Sound-Active, or Master/Slave mode.
That makes it useful in both simple and more advanced stage lighting systems.
Starshine is mentioned here because the X37 provides a useful real-world example of this fixture category. The larger lesson applies to many similar multi-beam moving head stage lights: product specifications determine what a fixture can do, but programming determines what the audience actually sees.
Explore the X37
For a compact DJ light setup, club lighting system, or small stage package, review the full specifications and control options of the Starshine X37 RGBW Moving Head Stage Light.
21. Frequently Asked Questions
Do 8-beam moving head lights require haze?
No. They can still project color onto walls, floors, ceilings, and scenery without haze. However, a light and even layer of haze makes the aerial beam paths much more visible.
Can the RGB rings operate without the main beams?
Yes. Under DMX control, you can leave the RGBW beam dimmer or color channels at zero while raising the RGB ring channels. This is useful for transitions, lower-energy scenes, and background party lighting.
Is 16CH or 18CH better?
Neither mode is automatically better. A 16CH profile may provide all the control needed for most events while using fewer DMX channels. An 18CH profile may provide additional functions, depending on the fixture firmware and channel map. Choose the mode that fits your control needs.
Are two fixtures enough for a mobile DJ?
Two fixtures can create mirrored movement and balanced left-to-right coverage for a small DJ setup. Larger dance floors and stages usually benefit from four or more fixtures.
Can I rely entirely on Sound-Active mode?
Sound-Active mode can work for simple events or situations without a lighting operator. For professional events, manually programmed DMX cues usually provide more consistent timing, movement, and color control.
What is continuous tilt rotation?
Continuous tilt allows the moving head to keep rotating in one direction instead of reaching a mechanical limit and reversing. This can create circular sweeps, rotating fans, and spinning multi-beam effects.
Can the fixture be used outdoors?
Only in a properly weather-protected location. Without a listed outdoor IP rating, the fixture should be kept away from rain, splashing water, condensation, and prolonged humidity.
What is the best beam angle for a small venue?
A narrow 2–3° beam angle works well when the goal is to create sharp aerial lines. A wider beam may be more appropriate when you need broader coverage or wash-style illumination.
Why does a moving head respond to the wrong DMX controls?
The most common causes are an incorrect channel mode, the wrong fixture profile, or an overlapping DMX address. Confirm that the mode selected on the fixture matches the controller profile before troubleshooting individual channels.
Should each moving head have a separate DMX address?
Use separate addresses when you want individual control, mirrored movement, chases, or different colors. Use matching addresses only when you intentionally want several fixtures to perform the same functions.
Does a DMX line always need a terminator?
Not every short setup requires one, but a terminator is recommended on the final fixture when cable runs are long or the signal becomes unstable.
How often should the lenses be cleaned?
The schedule depends on dust, haze use, and the venue environment. Disconnect power, let the fixture cool, and clean the optical surfaces with an appropriate cleaner and a soft, lint-free cloth whenever visible buildup begins to reduce output.
22. Final Thoughts: Professional Lighting Does Not Mean Using Every Effect at Once
An 8-beam RGBW moving head stage light offers a long list of features:
- Multiple narrow beams
- RGBW color mixing
- RGB ring effects
- Pan movement
- Tilt positioning
- Continuous rotation
- Electronic dimming
- Variable-speed strobe
- Built-in macros
- Automatic programs
- Sound-Active operation
- Master/Slave synchronization
It can be tempting to turn everything on at once.
That is rarely the best approach.
Before building a cue, decide what you want the audience to notice.
Do you want them to see clean blue beams?
A mirrored movement across the dance floor?
The RGB rings glowing during a quiet transition?
A sudden white hit at the peak of the song?
When every effect has a reason to appear, the lighting begins to communicate.
This principle applies whether you are using the Starshine X37 or another 8-beam RGBW LED moving head light.
Start with a simple, readable look. Then add layers only when they improve the scene.
More stage lights do not automatically create better stage lighting. The real skill is guiding the audience’s attention to the right place at the right moment.
Need Help Planning Your Moving Head Lighting System?
Share your venue size, mounting height, fixture quantity, event type, and control requirements with the Starshine team for a more practical recommendation.
Download PDF Product Catalogs
Get detailed product specifications, control information, rigging notes, and installation references.
