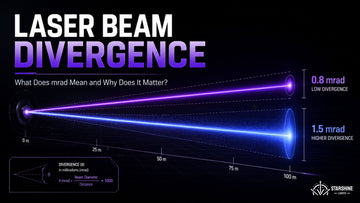

Laser Beam Divergence: What mrad Means for Laser Projectors

Two 10W laser projectors can produce surprisingly different results in the same venue.

One may still create a tight, defined beam dozens of meters away, while another becomes noticeably wider as the throw distance increases. The same thing happens with logos and text: both projectors may look sharp at short range, but farther away, one keeps relatively fine lines while the other starts to look thicker and softer.

One major reason is laser beam divergence, usually specified in mrad.

You may see figures such as:

• 0.8 mrad
• 1.0 mrad
• 1.1 mrad
• 1.5 mrad

on a laser projector specification sheet.

But what do those numbers actually mean?

Is 0.8 mrad always better than 1.5 mrad?

And how is beam divergence different from beam diameter, scan angle, and KPPS?

The more useful question is:

This guide explains the answer from a practical show-lighting perspective, including DJ, club, graphics, concert, rental, and outdoor applications.

If a laser projector is specified at 1 mrad full-angle divergence, its beam diameter increases by roughly 1 mm for every meter of travel, in addition to its initial beam diameter.

For example, if the beam is 4 mm wide at the projector aperture:

This is a simplified small-angle estimate, but it gives buyers a useful way to understand what mrad means in the real world.

1 mrad does not mean that the beam itself is 1 mm wide.

It describes how quickly the beam expands as distance increases.

Laserworld likewise separates beam size at the aperture from beam divergence and defines divergence as the widening of a laser beam over distance. (Laserworld)

Before comparing two projectors, also check:

• the initial beam diameter;
• whether divergence is specified as full-angle or half-angle;
• the RGB beam shape;
• the manufacturer's measurement method.

A single mrad number does not tell you everything.

These four specifications are commonly confused because they often appear together on the same professional laser projector specification sheet.

They control completely different things.

A simple way to remember them:

Beam Diameter = how thick the beam starts

Beam Divergence = how quickly it gets thicker

Scan Angle = how wide the image can spread

KPPS = how the scanner draws the image

KPPS and scan angle belong to the scanning system. Beam diameter and divergence describe the optical beam itself.

ILDA notes that for scanners rated at 30K or higher, 8° peak-to-peak is the generally accepted reference angle for the ILDA Test Pattern used for professional graphics-scanning specifications. (ILDA)

The current Starshine J10 Laser Projector specification lists:

• Beam Size at Aperture: 3.5 × 6 mm
• Beam Divergence: 1.1 mrad full angle
• Scanning System: 40 kpps ILDA @ 8°
• Maximum Scanning Angle: 60° max
• Modulation: 100 kHz analog

Those specifications answer different questions.

This tells you the approximate beam dimensions as the laser leaves the projector.

It also reminds us that show-laser beams are not necessarily perfectly circular.

A beam specified as 3.5 × 6 mm has different dimensions along two axes.

This describes how quickly the beam expands with distance.

It does not describe scanner speed.

This describes scanner performance under a specified test condition.

A faster scanner does not turn a 1.1 mrad beam into a 0.8 mrad beam.

This describes how wide the scanner can move the projected image.

It is not the same as beam divergence.

So when you see:

Beam Size + Divergence + KPPS + Scan Angle

on the same specification sheet, do not compare them as if they were four versions of the same performance measurement.

A real laser beam is not a perfectly parallel cylinder that remains exactly the same width forever.

It has a small angular spread.

At short distances, that spread may be small enough that you barely notice it.

That is why two projectors can look similar at 5 meters but noticeably different at 50 or 100 meters.

Laserworld's divergence calculator illustrates the same relationship: as distance increases, divergence has an increasingly large effect on beam diameter. (Laserworld)

Beam divergence is only one part of long-range laser performance, however.

Long-distance visibility also depends on:

• optical power;
• wavelength;
• atmospheric conditions;
• haze or fog;
• ambient light;
• viewing angle.

For a deeper look at those factors, see How Far Can a Laser Beam Travel?. The Starshine distance guide covers power, beam quality, environment, and haze as separate factors affecting practical beam range.

For most buyers, this is more useful than memorizing the definition of milliradian.

The table below shows only the additional beam expansion caused by divergence:

The initial beam diameter still has to be added.

The extra expansion from 0.8 mrad versus 1.0 mrad differs by only about:

2 mm

In a small club, that may not be the most important reason to choose one projector over another.

The same comparison between 0.8 and 1.5 mrad becomes:

80 mm vs. 150 mm

Now the difference is much more meaningful.

It becomes:

160 mm vs. 300 mm

This is why beam divergence is a specification whose practical importance usually increases with working distance.

No.

You still need to know the initial beam diameter.

Consider two hypothetical projectors:

Initial Beam Diameter: 4 mm
Beam Divergence: 1.2 mrad

Initial Beam Diameter: 8 mm
Beam Divergence: 0.8 mrad

Now compare their approximate beam sizes:

Projector A has higher divergence, but because it starts with a smaller beam, it is still slightly thinner.

The two are approximately equal.

Projector B begins to benefit more from its lower divergence.

This demonstrates one of the most important buying rules in this article:

The more useful comparison is:

Beam Diameter + Beam Divergence + Working Distance

Laserworld also notes that aperture beam size and divergence are related optical parameters and need to be balanced rather than viewed entirely in isolation. (Laserworld)

For maintaining a tight beam over a long distance, lower divergence is generally an advantage.

But:

The specification has to solve a real problem in your application.

A lower-divergence projector may have a clear advantage for long-distance projection.

In a short-throw club, however, the practical difference between two relatively low-divergence projectors may be less important than:

• scanner quality;
• modulation;
• optical alignment;
• reliability;
• control options;
• usable output power.

This is why professional equipment should be judged as a system rather than by one headline number.

Often yes — but only when your application can actually use the advantage.

• long-distance beam shows;
• building projection;
• architectural projection;
• outdoor events;
• large concerts;
• long-throw graphics;
• logos or text at longer distances.

Here, the beam has more distance over which to expand.

The divergence difference therefore becomes more meaningful.

• small clubs;
• mobile DJ events;
• 5–15 meter short throws;
• simple atmospheric beam effects.

If the budget is limited, you may gain more practical value from:

• better scanners;
• analog modulation;
• stronger control options;
• better reliability;
• appropriate optical power;
• higher build quality.

Instead of asking:

“Is 0.8 mrad worth paying more for?”

ask:

Sometimes.

Sometimes the difference is hard to notice.

Visible differences depend on:

• projection distance;
• initial beam diameter;
• viewing angle;
• haze density;
• ambient light;
• graphic size;
• projection surface;
• how the effect is photographed or viewed.

Inside an 8-meter-wide club, the mathematical difference still exists, but it may not dominate the visual result.

At 100 meters, the same divergence difference has had far more distance to accumulate.

So the question:

“Can I see the difference?”

cannot be answered without knowing the distance.

A logo, line drawing, text cue, or animation is built from scanned laser lines.

If each line becomes significantly thicker as projection distance increases, small graphic details can become harder to distinguish.

That may affect:

• small text strokes;
• closely spaced logo elements;
• detailed line art;
• small geometric shapes.

Lower divergence can therefore help preserve relatively fine graphic lines over longer distances.

But there is an important limitation:

Several factors may contribute:

• beam diameter;
• beam divergence;
• scanner performance;
• RGB alignment;
• beam shape;
• analog modulation;
• optical alignment;
• projection distance;
• graphic complexity.

If RGB alignment is poor, a line that should appear white may show colored edges.

If the scanner cannot reproduce the graphic accurately, even a thin beam will not prevent:

• flicker;
• distorted corners;
• loss of small details;
• rough-looking curves.

This is why a professional laser show projector should be evaluated as both an optical system and a scanning system.

KPPS tells you about scanner performance.

Beam divergence tells you about beam expansion.

Neither replaces the other.

There is no universal “best” divergence value.

The correct priority depends on what the laser is actually being asked to do.

If most working distances are around:

5–15 meters

beam divergence is worth checking, but it usually should not be the only buying priority.

For professional DJ laser lights, practical questions include:

• Is the output appropriate for the room?
• Is the scanner suitable for the graphics I use?
• Does it support my DMX, ILDA, or software workflow?
• Does it offer analog modulation?
• Is it easy to transport?
• Is it reliable enough for repeated events?

For short-range club laser lights, the overall optical and scanning quality may matter more than a very small difference between two already-low divergence figures.

In a longer nightclub, where beams need to cross an entire dance floor, divergence becomes easier to notice.

Two projectors with similar output power can produce different beam thickness at the far end of the room.

Wedding applications often involve:

• names;
• monograms;
• logos;
• simple animations.

For those applications, beam diameter and divergence deserve more attention than they might for simple aerial effects.

Scanner performance and RGB alignment remain equally important.

Rental companies face a different purchasing problem.

One week a projector may be used in a:

10-meter club

The next job may be a:

50-meter corporate production

Then it may go onto:

an outdoor stage

In this case, optimizing entirely around one extreme specification is not always the best commercial choice.

A rental company should also consider:

• useful working-distance range;
• scanner performance;
• optical power;
• control options;
• reliability;
• IP rating where required;
• transportability.

Sometimes:

Working distances for stage lasers are often longer than in a small club.

Here it makes sense to consider:

Optical Power + Beam Divergence

Power helps create visibility.

Low divergence helps maintain beam tightness over distance.

They do different jobs.

Imagine a lighting designer knows that the projector will sit:

70 meters

from a building facade.

With the initial beam diameter and divergence specification, they can estimate the approximate line thickness before equipment arrives on site.

That is much more useful than discovering during setup that:

“The logo lines are too thick.”

This is one reason beam divergence deserves more attention when selecting a professional laser projector for longer throw distances.

Outdoor applications are one of the clearest examples of where beam divergence becomes valuable.

The current Starshine O5 Outdoor Laser Projector page lists:

• Beam Size: <5.3 × 7 mm
• Beam Divergence: ≤0.8 mrad
• Scanning: 35K–40KPPS
• Scanner Angle: ±30°
• IP Rating: IP65

The point is not that “0.8” is simply a better-looking marketing number.

An outdoor laser light show, building facade projection, or architectural installation can involve much longer working distances than a small club.

As distance increases, divergence has more opportunity to affect final beam size.

That is when low divergence becomes much more relevant.

A tighter beam over distance is not only an image-quality issue.

At the same optical power, keeping the energy concentrated into a smaller area can affect irradiance and hazard calculations.

That is why beam diameter and divergence are among the parameters used in professional laser safety calculations. Laserworld's NOHD guidance, for example, includes power, beam diameter at the aperture, and divergence as inputs. (Laserworld)

This article's simple beam-size calculations are not a method for determining safe audience exposure.

Professional laser shows must follow applicable safety requirements, use appropriate engineering safeguards, and be operated by trained personnel. In the United States, entertainment laser projectors and shows are subject to FDA/CDRH requirements under the federal laser performance standards. (FDA)

So:

Lower divergence does not automatically mean safer.

The low-divergence advantages discussed here are primarily about:

beam quality and long-distance projection.

The basic concept is straightforward.

Measure the beam diameter at one position.

Measure it again after a known distance.

Then use:

beam-width increase + distance

to calculate the angular divergence.

Professional laser beam measurement is more involved because real RGB projectors may have:

• different beam profiles for different wavelengths;
• non-circular beams;
• different measurement conventions;
• averaging methods;
• beam-analyzer measurements.

Laserworld's divergence specification tool uses the beam diameter at the aperture, projected spot size, and projection distance to calculate divergence. It also warns users to distinguish between full-angle and half-angle values. (Laserworld)

For most buyers, the important question is not whether you can reproduce the laboratory test yourself.

It is:

Imagine a beam expanding outward from its center axis.

This describes the angle from:

the center axis to one side of the beam

This describes the complete angle from:

one side of the beam to the opposite side

That distinction matters when comparing specifications.

If one manufacturer says:

1 mrad full angle

and another simply says:

1 mrad

without stating the method, you should not automatically assume the projectors have identical beam performance.

Laserworld specifically warns that manufacturers may use different full-angle and half-angle conventions when specifying divergence. (Laserworld)

Not reliably.

Photos and videos are affected by:

• camera exposure;
• lens choice;
• haze density;
• viewing distance;
• ambient lighting;
• processing;
• camera angle.

A beam that looks thick on video does not automatically have high divergence.

A very thin-looking promotional beam does not prove that a projector has extremely low divergence.

For professional laser show equipment, actual optical specifications are a better comparison tool than promotional footage alone.

Low divergence can be useful, but it is only one part of the projector.

Final beam size depends on both initial size and divergence.

One describes beam expansion.

The other describes scanner coverage.

KPPS is a scanner specification, not a beam-divergence specification.

If the measurement conventions differ, the numbers may not be comparable.

Optical output does not tell you how quickly the beam expands.

A divergence figure has little meaning without knowing how far the beam normally needs to travel.

Scanner performance, alignment, modulation, and beam shape still matter.

If you are comparing two professional laser projectors, ask the manufacturer:

1. What is the beam diameter at the aperture?
2. What is the beam divergence?
3. Is the divergence specified as full-angle?
4. What is the scanner speed, and at what scan angle is it rated?
5. What is the maximum scan angle?
6. Is the projector designed mainly for beams, graphics, or both?

If the application is outdoors, also ask about:

• IP rating;
• expected working distance;
• optical output;
• operating temperature range.

If graphics are the priority, also check:

• analog modulation;
• RGB alignment;
• scanner performance;
• ILDA, FB4, or software compatibility.

These questions tell you far more than simply asking:

“How many watts is it?”

Use this simple decision guide.

Mostly beam shows?

Divergence Priority: Medium

Focus on overall beam quality, power, scanner performance, control, and reliability.

Mostly logos or graphics?

Divergence Priority: High

Also prioritize scanner performance, RGB alignment, and modulation.

Divergence Priority: High

Always compare:

Beam Diameter + Beam Divergence

not divergence alone.

Divergence Priority: Very High

Also compare:

• optical power;
• beam diameter;
• weather protection;
• scanner performance;
• graphics requirements;
• applicable safety constraints.

Beam divergence may look like a small number buried in a laser projector specification sheet.

Its importance becomes much easier to understand once working distance is added to the equation.

Remember:

Beam Diameter tells you how thick the beam starts.

Beam Divergence tells you how quickly it expands.

Scan Angle tells you how wide the scanner can spread the image.

KPPS tells you about scanner drawing performance.

If you mainly use a projector in a short-throw small club, the lowest possible mrad figure may not deserve the top position on your buying list.

If your work involves:

• long-distance graphics;
• concerts;
• outdoor laser shows;
• building projection;

beam divergence deserves much more attention.

So instead of asking:

Which projector has the lowest mrad?

ask:

That is the buying decision beam divergence should help you make.
