A19 App DMX ILDA RGB Laser Light 3W 1000+ Effects for DJs & Clubs
Regular price
$550.00
Sale price
$550.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × A19 3W RGB Laser Light Projector
- 1 × Installed Mounting Bracket
- 1 × 3-Pin Power Cable
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$550.00

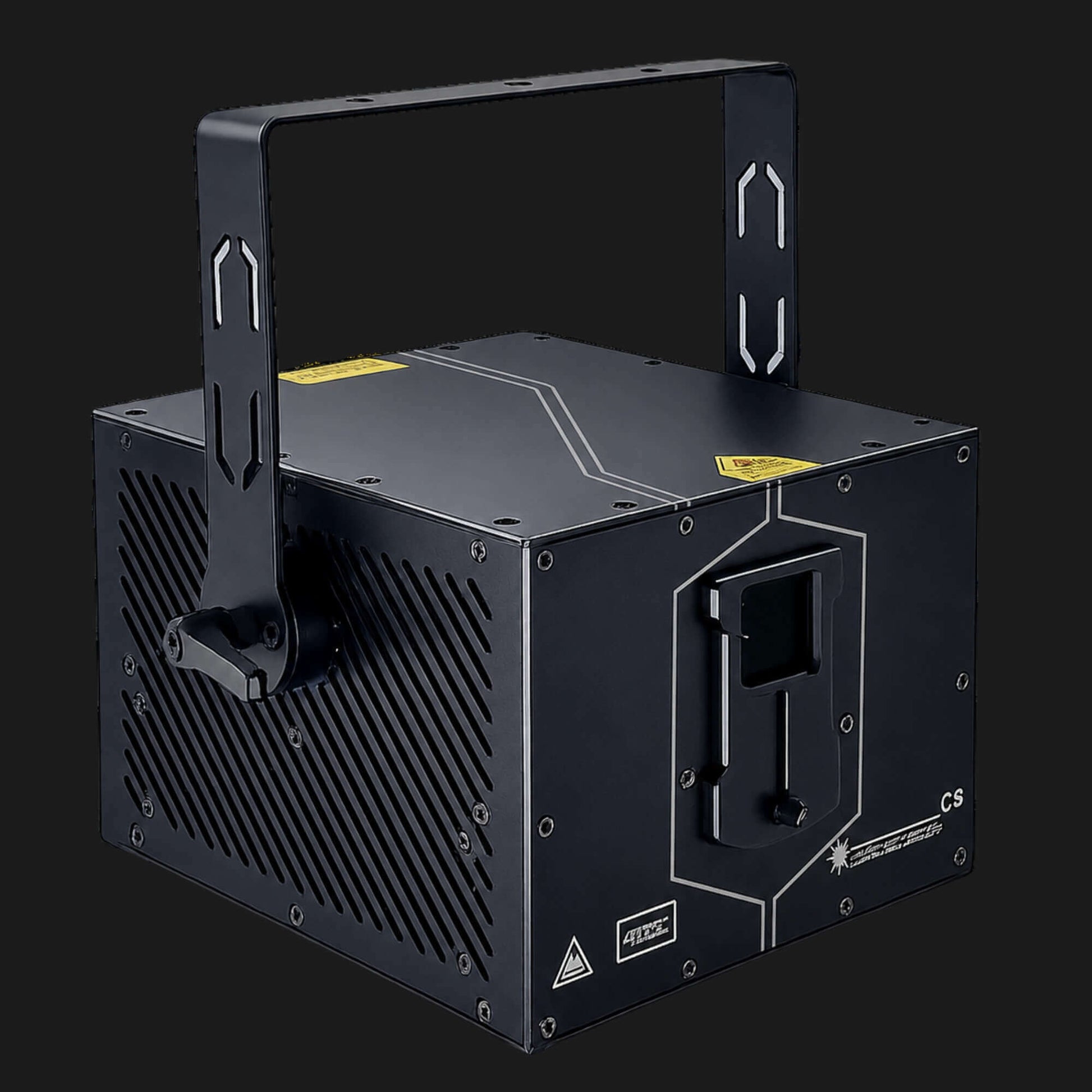

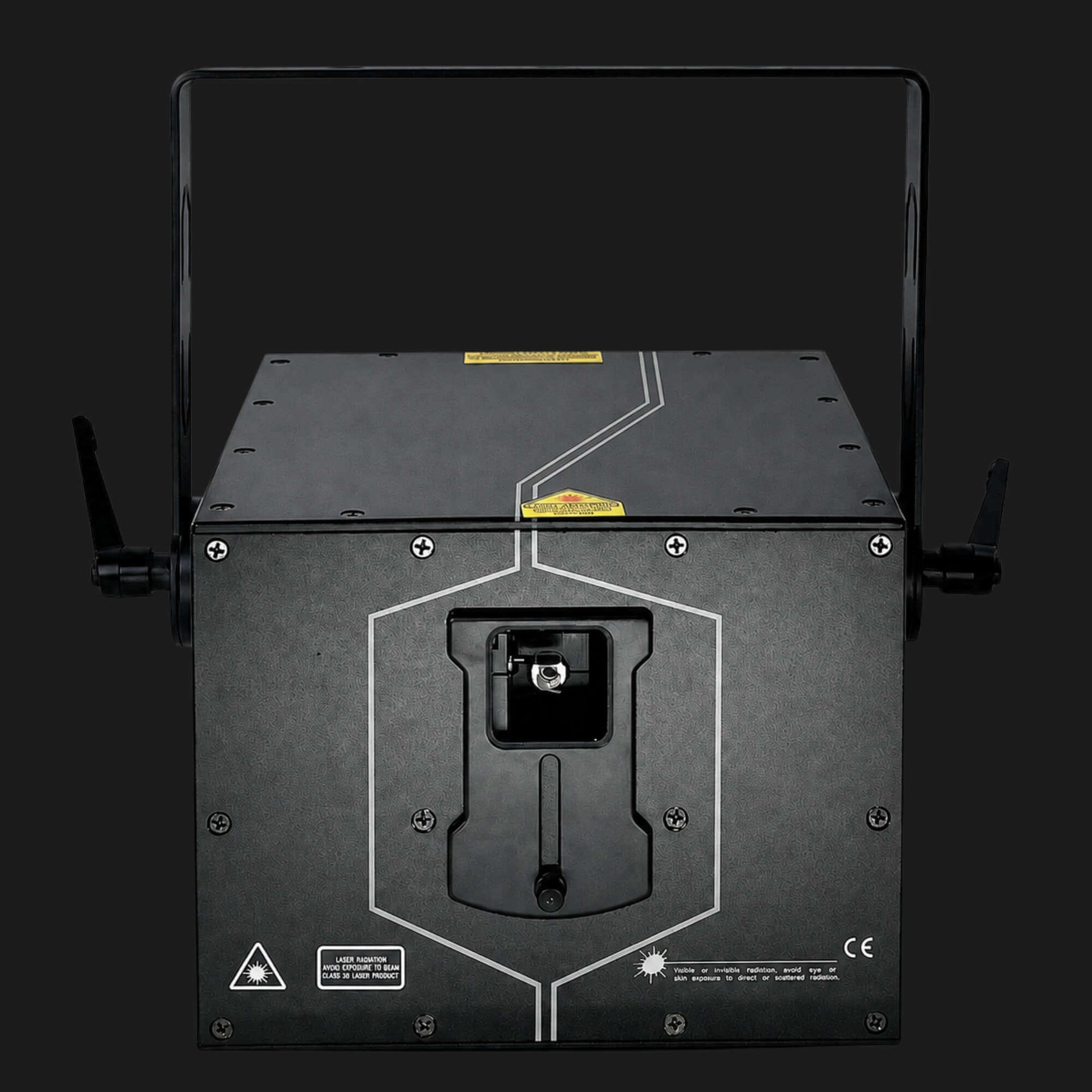

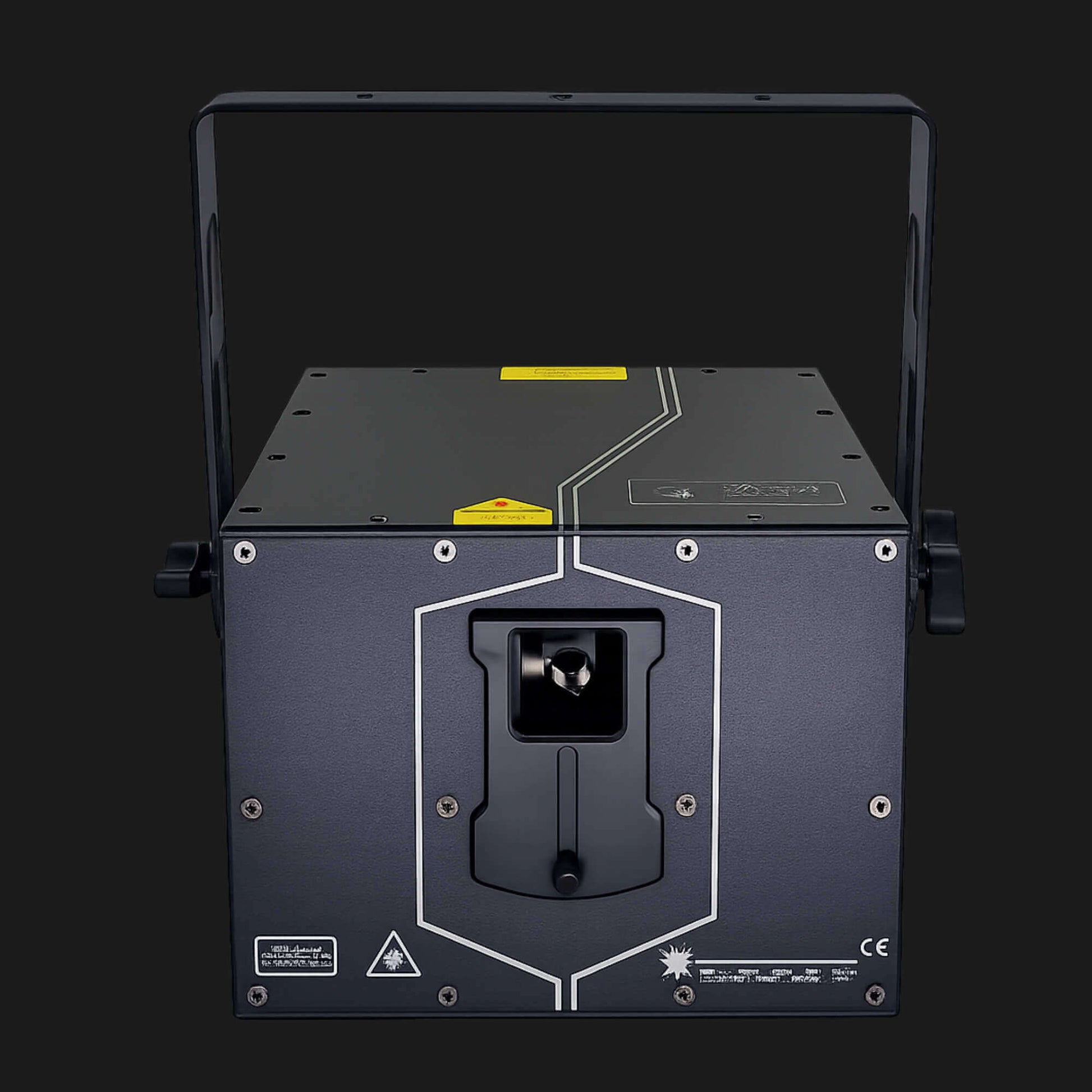

Professional 3W Full-Color RGB Output
The A19 features a 3,000 mW laser engine with 1W red, 0.5W green, and 1.5W blue output. Optimized 638 nm red, 520 nm green, and 445 nm blue wavelengths deliver clean primary and mixed colors, while independent rear-panel RGB adjustment, fast TTL modulation, and a 15 kpps galvanometer with a maximum ±50° scan range support flexible patterns, strobes, animations, and progressive drawing effects.
App, DMX and ILDA Control
Multiple Control Modes: Run the RGB laser light via Automatic, Sound-Active, DMX-512, Master/Slave, ILDA, or a compatible mobile App.
21CH Standard Mode: Control brightness, pattern, color, movement, rotation, zoom, and drawing through a streamlined DMX layout.
38CH Professional Mode: Access finer positioning, individual RGB brightness, 16-bit rotation and size control, scanning functions, and copy effects.
DB25 ILDA Connectivity: Standard ILDA input and loop output support compatible external laser-control hardware and software.
RJ45 Signal Connections: RJ45 input and output support compatible ILDA-network or linked-signal operation.
1,000+ Built-In Laser Effects
Large Program Library: More than 1,000 built-in patterns and effects provide ready-to-use content without an external controller.
Quick Play Options: Select sequential or random programs in Automatic or Sound-Active operation.
Music-Responsive Shows: The built-in microphone and adjustable sensitivity react to music in DJ, club, and party environments.
Creative Effect Tools: Program strobe, color movement, X/Y/Z rotation, movement, zoom, wave, and progressive drawing effects.
Color LCD Menu: The full-color display simplifies DMX addressing, program selection, scanner setup, playback, and system configuration.
Built for DJ, Club and Event Lighting
DJ Applications: Use the A19 as a professional DJ laser light for mobile entertainment, weddings, dance events, and live performances.
Club Installations: Create programmable effects for bars, lounges, KTV rooms, clubs, and permanent club lighting systems.
Party Lighting: Add music-responsive patterns and full-color movement to indoor party laser lights setups and private events.
Disco Effects: Use the fixture as a disco laser for dance floors, themed nights, and entertainment venues.
Stage Integration: Combine the A19 with stage laser lights, DMX fixtures, and other stage lighting equipment for coordinated productions.

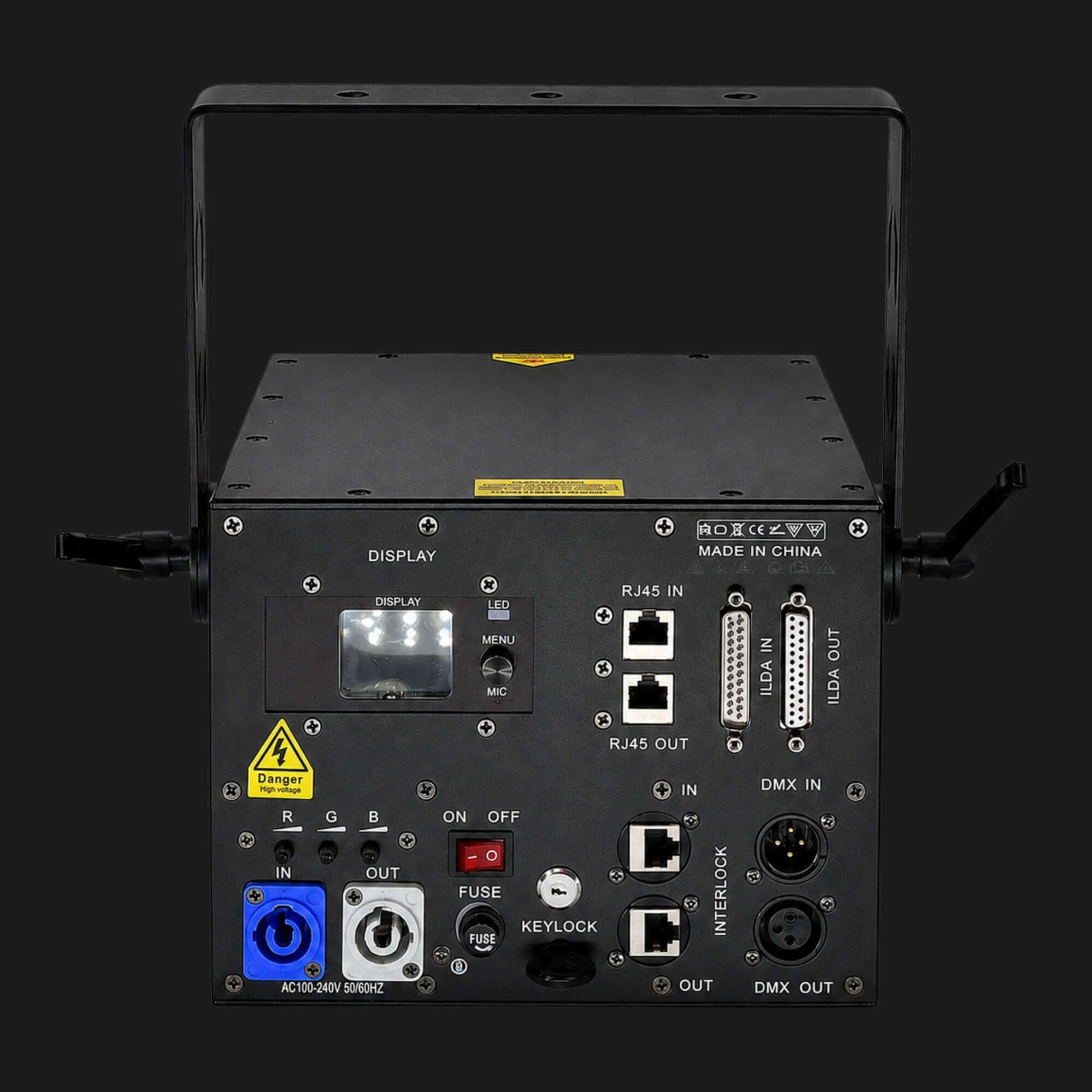

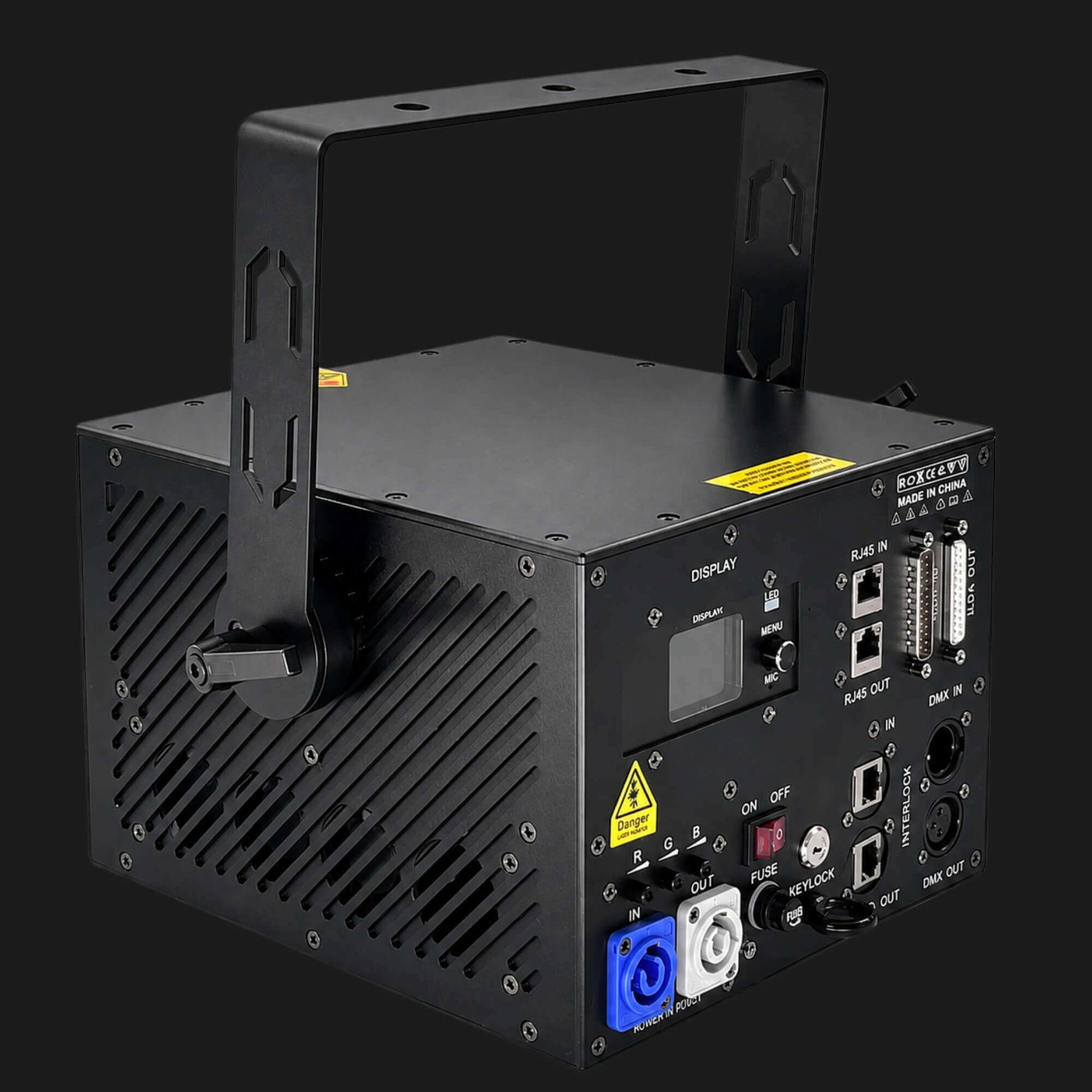

Professional Connections and Safety Controls
DMX Input and Output: Standard 3-pin connectors integrate the fixture with lighting consoles and linked DMX lasers.
Power Input and Output: Locking power connections support clean placement and linked power arrangements within verified electrical load limits.
Mechanical Key Lock: The removable key helps prevent unauthorized laser output.
Remote Interlock: External interlock input and output add safety control for professional installations.
Stationary-Point Protection: The safety setting closes the output when a stationary laser point is detected.
Specs
Brand
STARSHINE
Model
A19
Product Type
Full-Color RGB Laser Light Projector
Declared Total Laser Output
3,000 mW
Red Laser
638 nm / 1W
Green Laser
520 nm / 0.5W
Blue Laser
445 nm / 1.5W
Laser Configuration
DPSS RGB
Laser Modulation
TTL
Scanner Speed
15 kpps
Maximum Scan Range
±50°
Built-In Programs
1,000+ effects
Control Modes
Automatic, Sound-Active, DMX-512, Master/Slave, ILDA, Compatible Mobile App
DMX Modes
21CH Standard / 38CH Professional
DMX Connections
3-Pin DMX Input and Output
ILDA Connections
DB25 ILDA Input and Output
RJ45 Connections
RJ45 ILDA/Network Input and Output
Display
Color LCD Menu
Manual Color Adjustment
Independent Red, Green, and Blue Output Controls
Safety Controls
Key Lock, Remote Interlock, Stationary-Point Protection
Power Input
AC 100–240V, 50/60Hz
Total Power Consumption
30W
Operating Temperature
−10°C to 50°C
Fixture Dimensions
300 × 280 × 180 mm
Inner Carton Dimensions
380 × 370 × 285 mm
Master Carton Dimensions
400 × 390 × 610 mm / 2 Fixtures
Net Weight
5.25 kg
Gross Weight per Fixture
6.3 kg
Gross Weight per Master Carton
13.6 kg
Recommended Applications
DJs, Weddings, Bars, Clubs, KTV Rooms, Banquet Halls, Lounges, Stage Shows, and Permanent Installations
FAQ
Q: What is the total output power of the A19?
A: The A19 has a declared total RGB laser output of 3,000 mW. It combines a 1W red laser, a 0.5W green laser, and a 1.5W blue laser.
Q: Is the A19 suitable for professional DJ laser light setups?
A: Yes. It supports Automatic, Sound-Active, DMX-512, Master/Slave, ILDA, and compatible mobile App control, making it suitable for mobile DJs, entertainment venues, and professional event production.
Q: Can the A19 operate without a DMX controller?
A: Yes. Automatic, Sound-Active, Quick Play, and compatible App modes allow the fixture to run built-in programs without a lighting console.
Q: What is the difference between the 21CH and 38CH modes?
A: The 21CH Standard mode covers the main pattern, color, movement, rotation, zoom, and drawing functions. The 38CH Professional mode adds finer 16-bit control, separate RGB brightness, detailed scanning parameters, and copy effects.
Q: Can the A19 connect to an ILDA laser show system?
A: Yes. It includes DB25 ILDA input and loop output, along with selectable RJ45 ILDA-network connections. Compatibility depends on the external controller, interface, and software being used.
Q: Does the fixture include built-in effects?
A: Yes. The color LCD menu provides access to more than 1,000 built-in patterns, animations, and effect programs.
Q: Is it suitable for party laser lights and club laser lights?
A: Yes. The A19 is designed for weddings, parties, bars, KTV rooms, clubs, banquet halls, lounges, and other indoor entertainment applications.
Q: Can several A19 fixtures run together?
A: Compatible fixtures can be synchronized through Master/Slave operation or programmed through DMX. The fixture also includes ILDA and RJ45 signal connections. Verify signal compatibility and electrical load limits before linking multiple units.

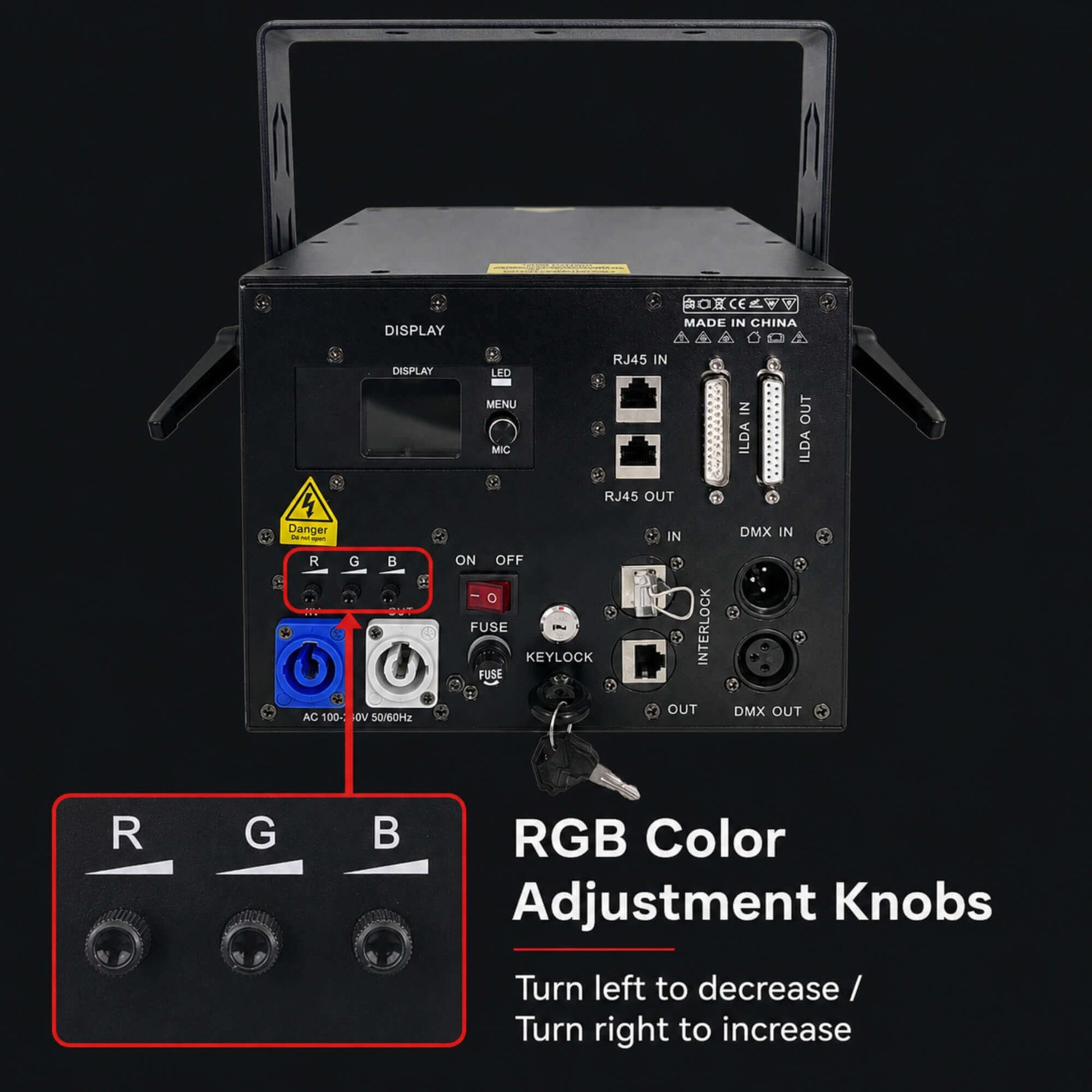

Q: Can the RGB balance be adjusted?
A: Yes. Separate R, G, and B controls on the rear panel let you reduce or increase each color channel independently.
Q: Does haze improve the effect?
A: Atmospheric haze can make laser beams more visible in the air. Use only venue-approved haze equipment and maintain clear airflow around the laser fixture.
Q: Can the A19 display custom content?
A: The ILDA connection is intended for use with compatible external laser-control systems. The exact custom-content functions depend on the connected controller and software and are not specified in the product manual.
Q: Is a DMX cable included?
A: No DMX or ILDA signal cable is listed in the supplied package contents.
Q: Is the A19 waterproof?
A: No waterproof or IP rating is stated in the manual. Keep the fixture dry and protect it from moisture, rain, and condensation.
Q: How should the optical window be cleaned?
A: Use lens tissue or a cotton swab lightly moistened with alcohol. Do not use a wet cloth or aggressive chemical solvents. The manual recommends checking and cleaning the optical window regularly, approximately every 20 days depending on use and environment.
Q: Can the laser be aimed at an audience?
A: Audience scanning requires a professional laser-safety assessment and compliance with applicable regulations. Never aim the laser at people without the required expertise, permissions, and safety controls.
