Architect O3000 Sky Laser | 3000W RGB IP65 Outdoor Lasers

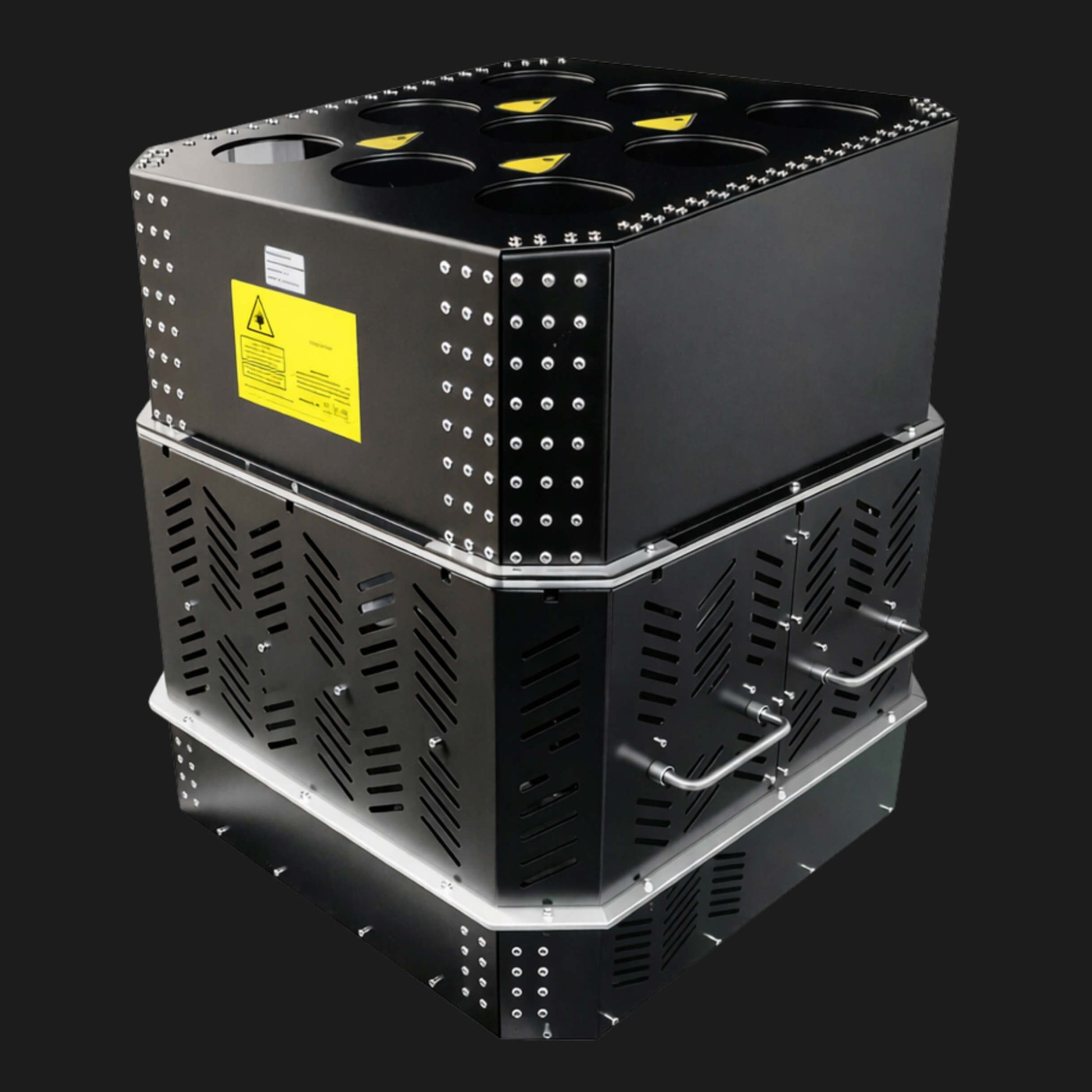

Architect O3000 — 3000W RGB IP65 Outdoor Moving Head Sky Laser Show Projector

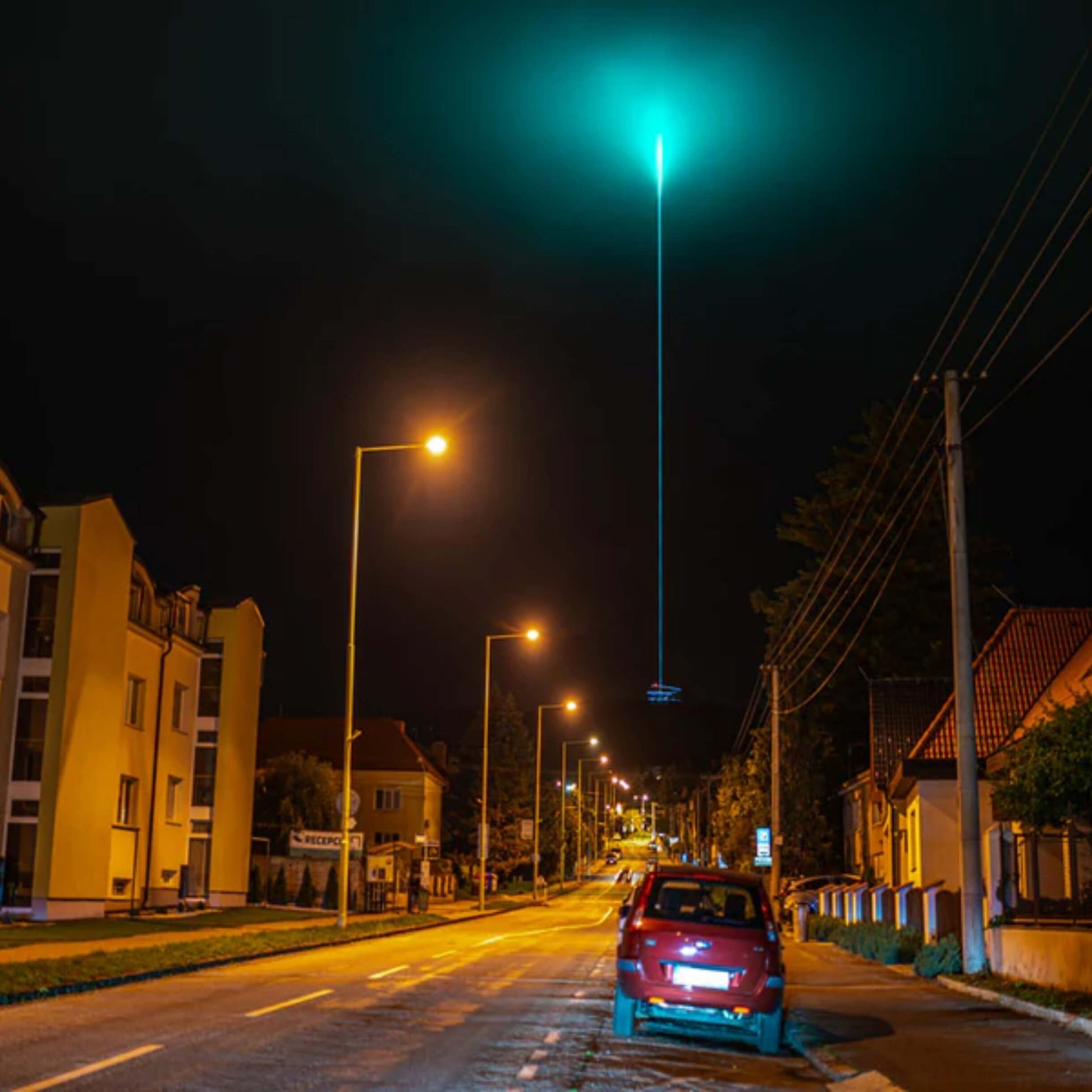

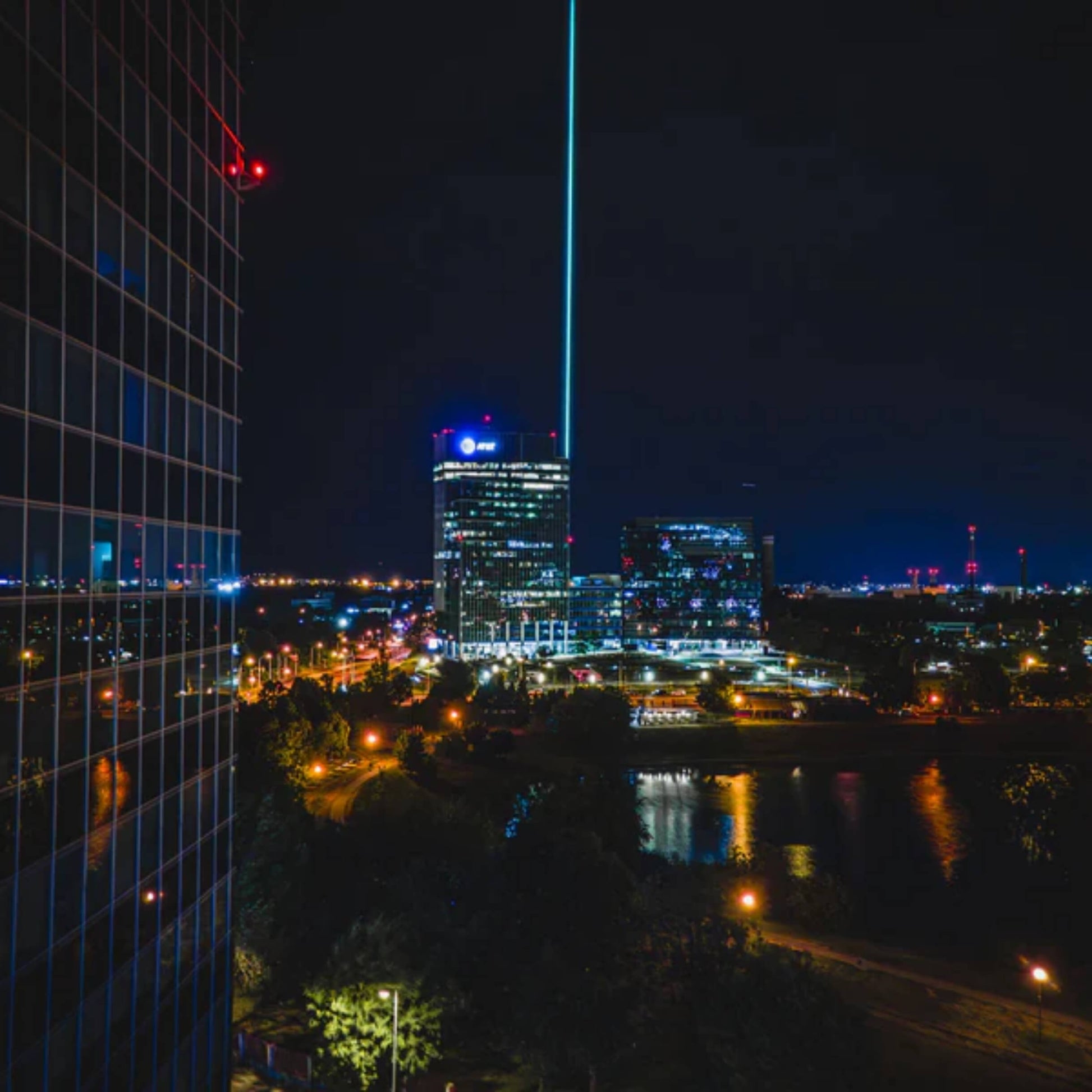

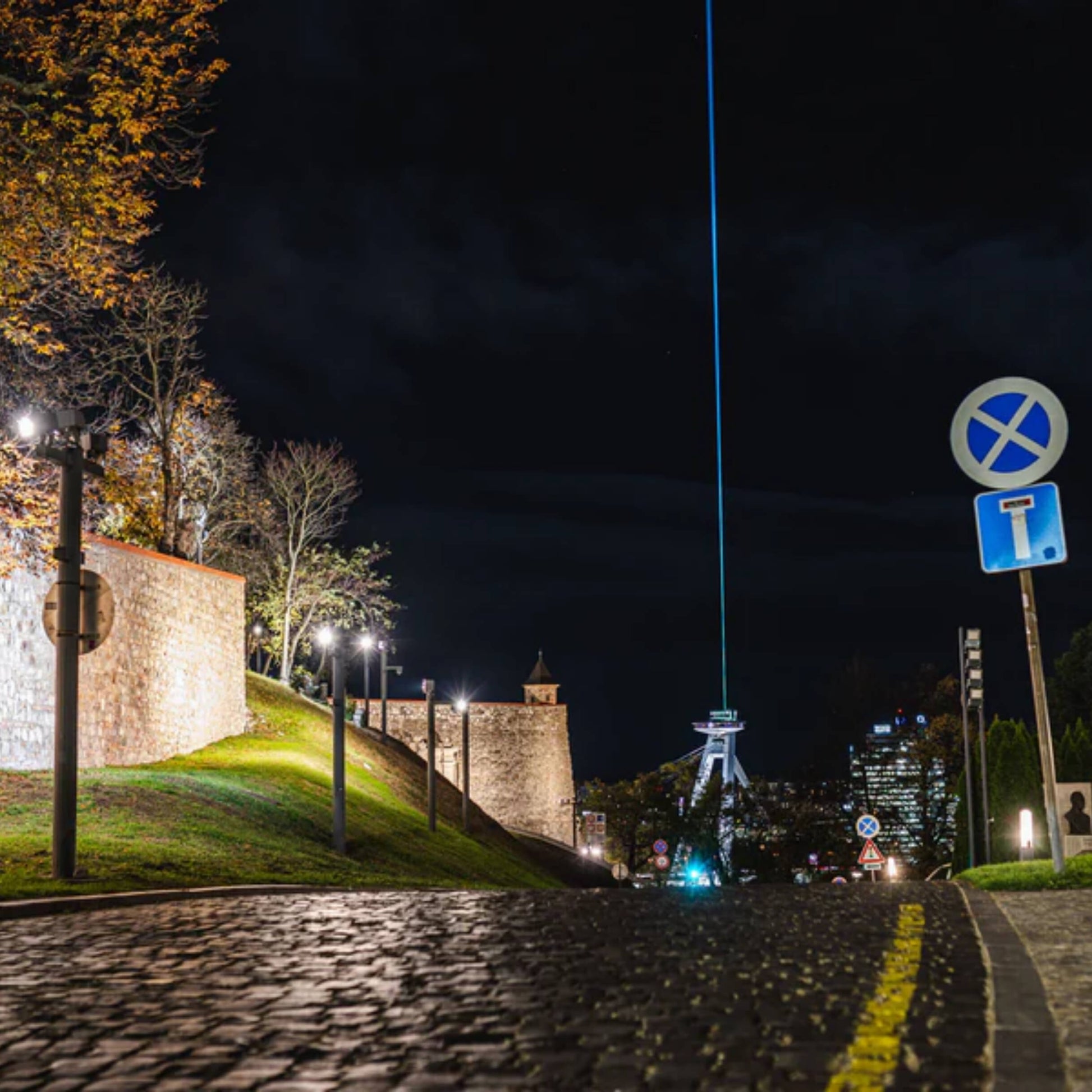

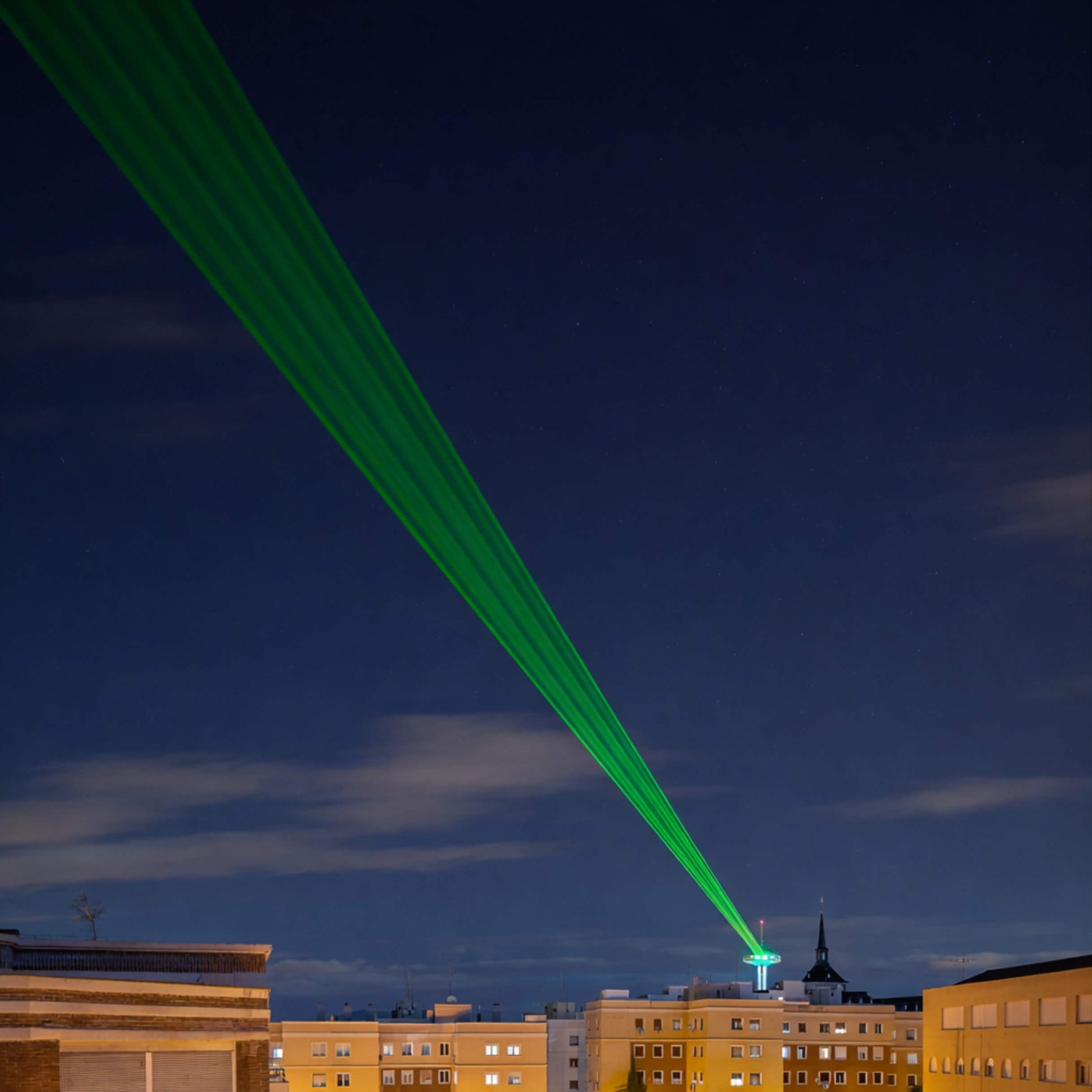

Architect O3000 is a high-power static beam laser (also called a sky laser or landmark laser) built to meet rising demand for ultra-bright laser beam effects in permanent or event-based architectural installs. It’s ideal for highlighting iconic buildings, monuments, and large structures—and for creating a laser light show look that can be noticed from miles away when atmospheric conditions (haze/humidity/low ambient light) are favorable.
Architect’s beam adds a dramatic, elevated visual signature to natural scenery and man-made landmarks, helping locations feel more distinctive, magnetic, and memorable. An optional heavy-duty DMX moving platform allows wide-range pan/tilt movement so the beam can scan the sky and create dynamic landmark moments.
Built for Landmark Visibility (High-Power Laser Beam Impact)
A massive 600 mm output aperture and a 7×180W (R43/G25/B112) integrated diode engine compress the beam for extreme throw. The RGB color-mixing system supports per-point control, so looks from pure green sky-needle to saturated RGB sequences stay bright and clean at distance. This power platform is what you want when a laser light show projector must remain punchy across long sightlines.
For venues and city activations, this is the kind of laser show projector that turns rooftops and architectural lines into an instantly recognizable night-time icon.
Precision Motion and Imaging Control

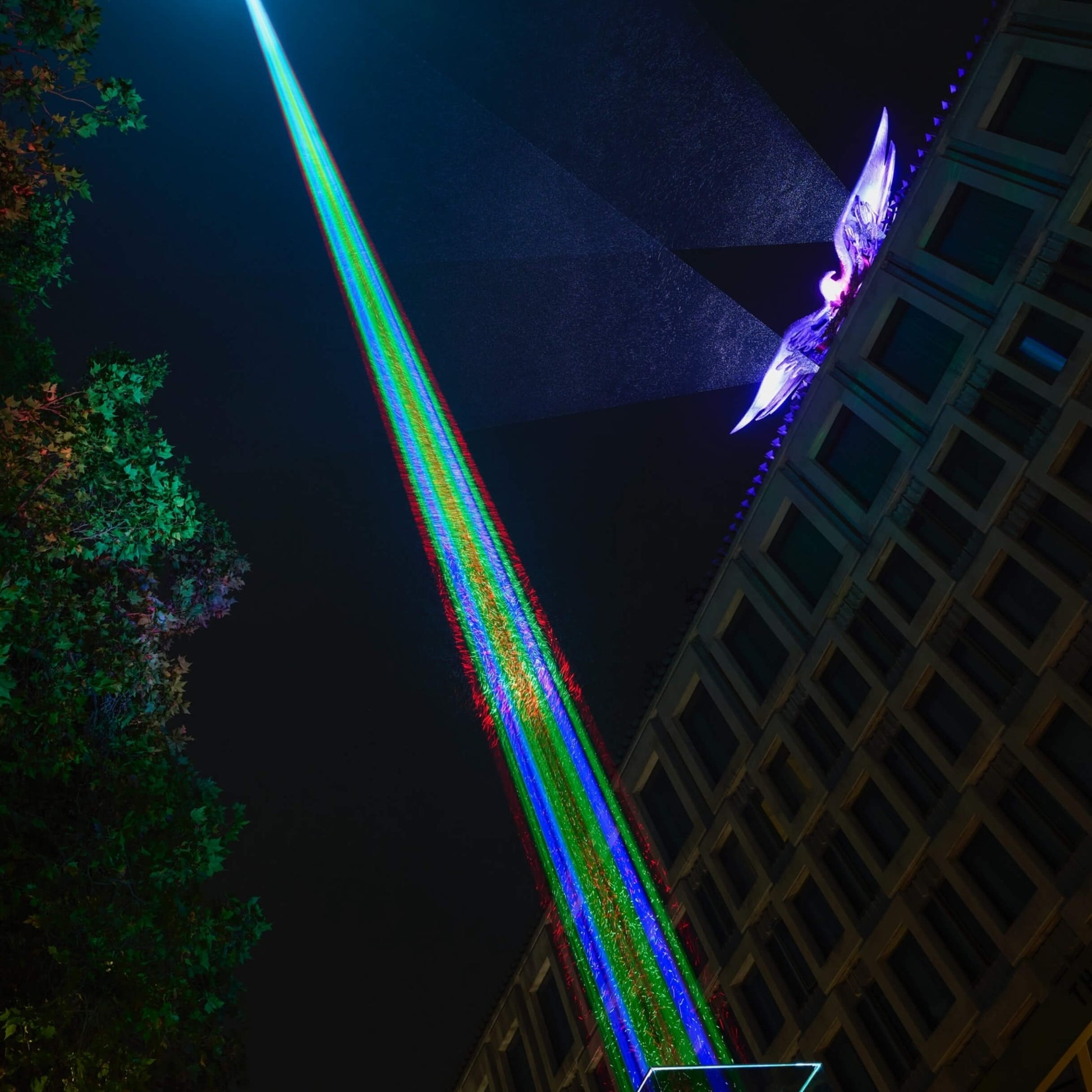

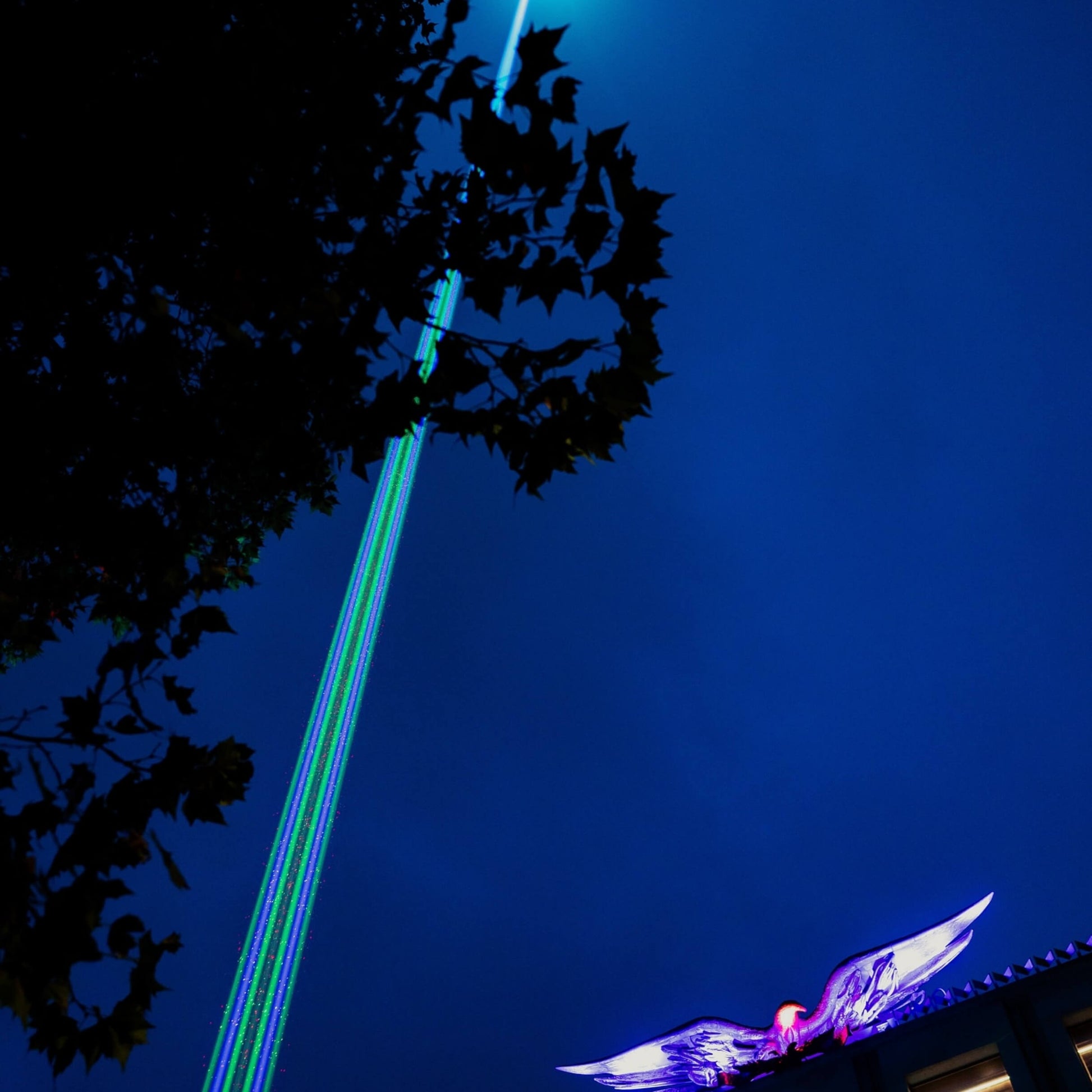

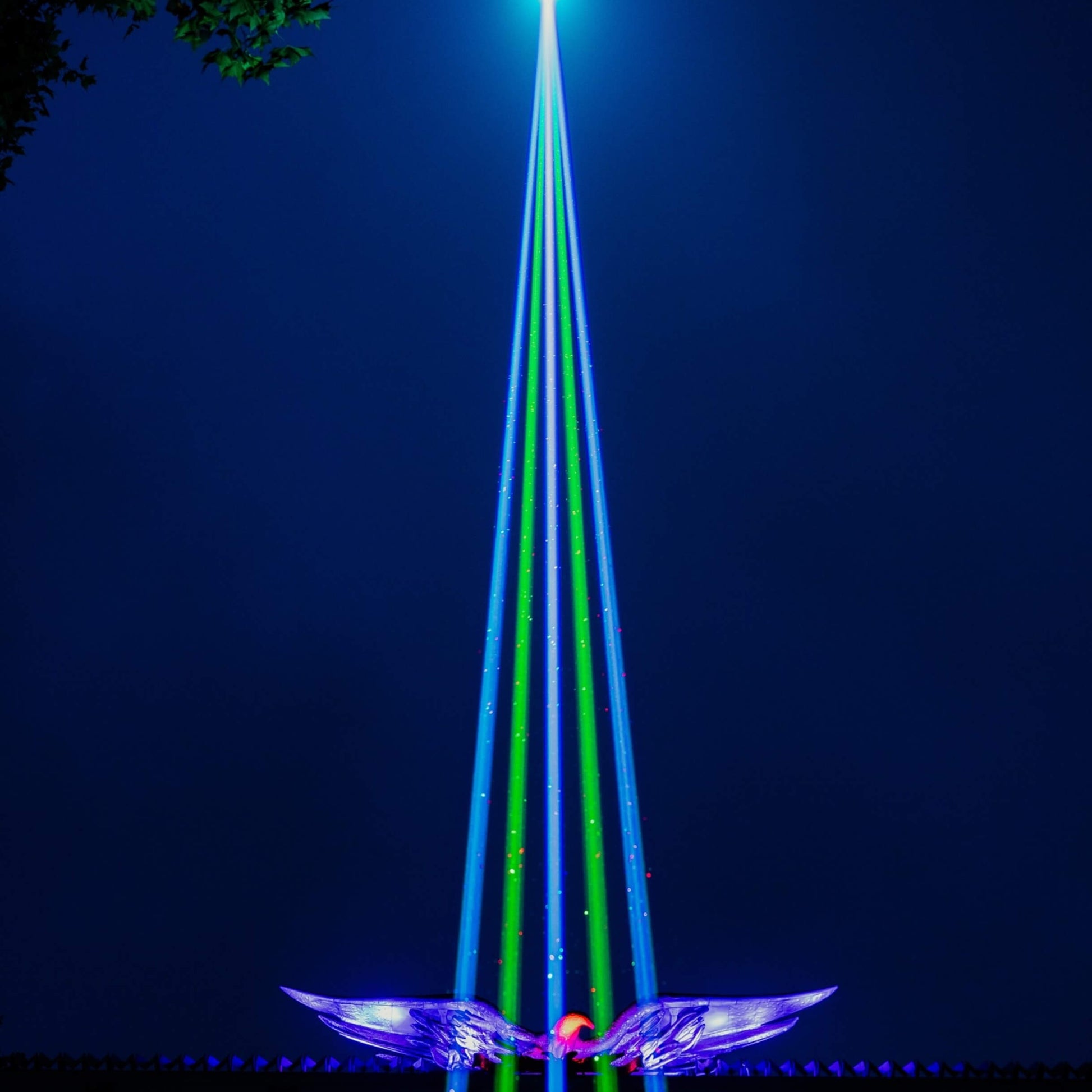

Architect O3000 supports adjustable beam divergence from 0.3° to 1.5°, allowing tight “needle beam” looks or slightly wider beams depending on distance, ambience, and desired footprint. Beam effects are enhanced with selectable 3 / 8 / 16-facet prism options (choose one configuration) plus a frost (softening) effect for smoother, more diffused looks.

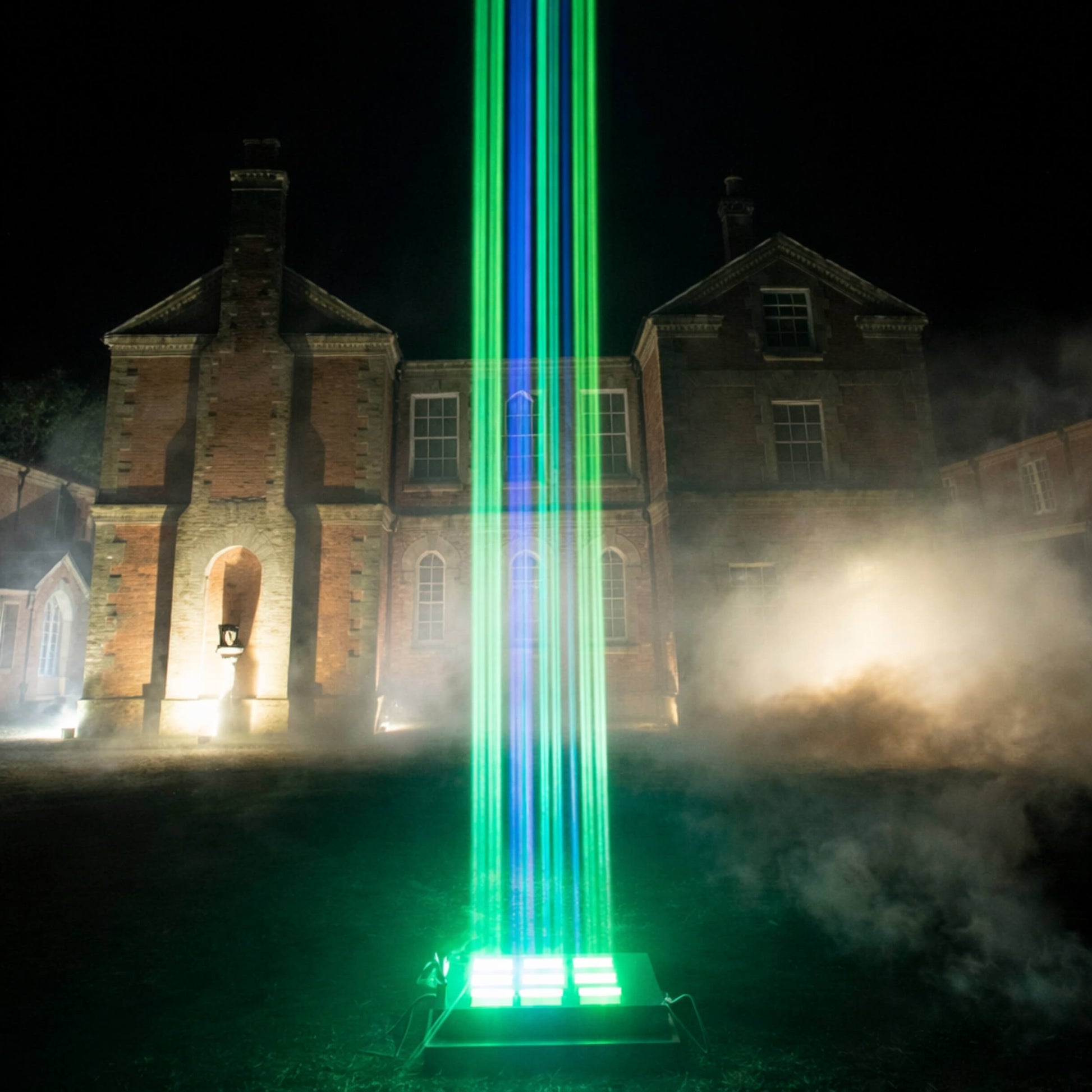

A full 0–100% linear dimmer enables clean intensity ramps for show cues, while strobe supports up to 25Hz with random and pulse options for punchy accents.
Big-Motion Pan/Tilt for Sky Scanning (16-bit Fine Control)
For projects that need movement, the unit provides wide-range motion with 540° pan and 260° tilt, both with 16-bit precision. Automatic correction and reset functions help maintain reliable positioning—important for installations where repeatable cues and long runtime are expected.
This makes Architect O3000 a practical choice when a “static sky laser” must also function like an architectural moving head laser for programmed scenes.
Professional Control: DMX512 + RDM (8-Channel Mode)
Architect O3000 integrates into standard show networks with DMX512 control and RDM support, using an 8-channel international standard mode. RDM helps streamline addressing and fixture management—especially useful for permanent installs and rooftop systems where access may be limited.
This setup fits modern lighting ecosystems and helps the laser operate as a controllable element inside a larger laser show system.
Specs
Product Type

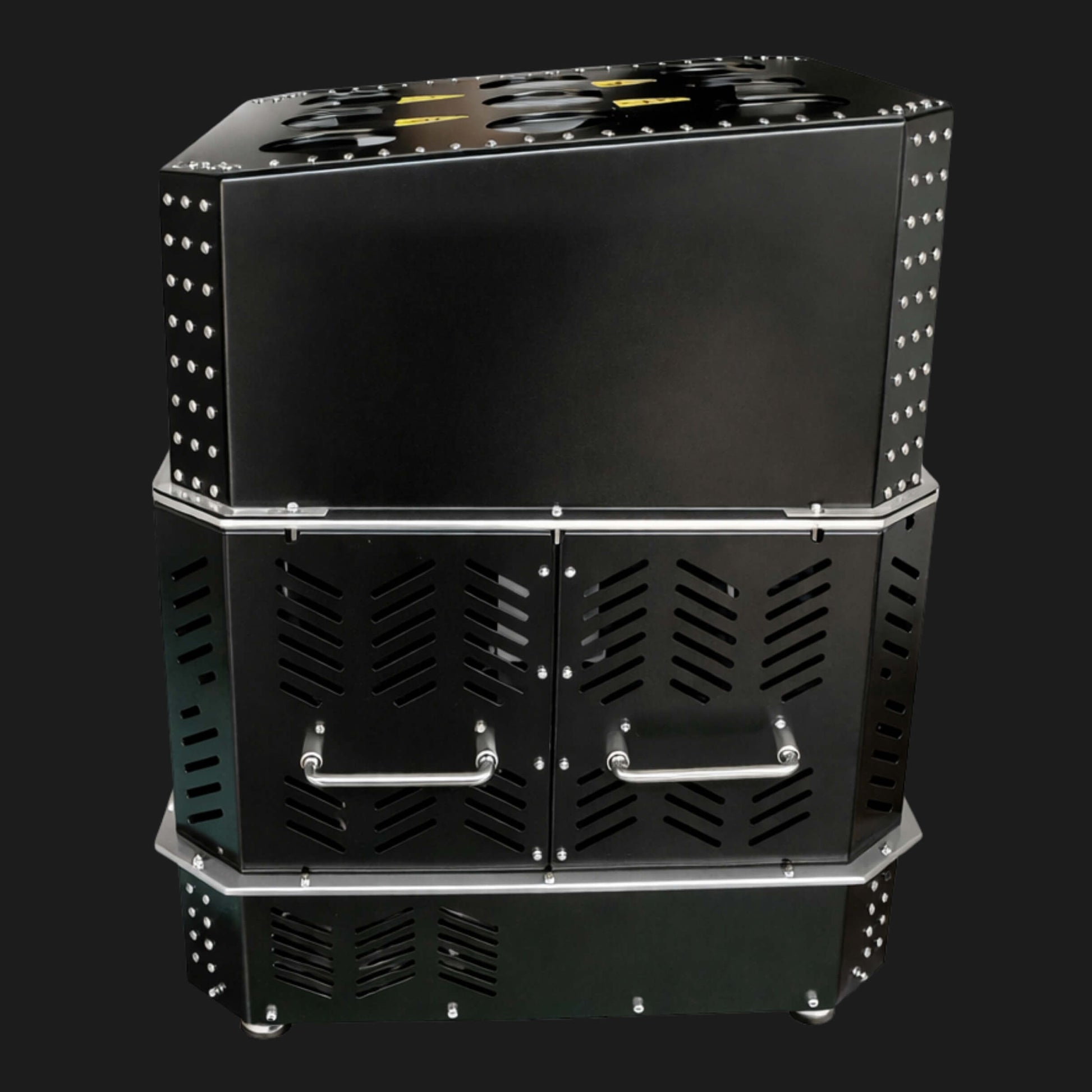

3000W RGB outdoor waterproof laser beam moving head (sky laser / landmark laser)
Light Source
Integrated semiconductor laser diode module
Laser Power (Optical Engine):
Red: 180W @ 638nm ×1
Green: 200W @ 525nm ×1
Blue: 260W @ 450nm ×1
Optical Diameter
110 × 140 / 9 pcs
Pan (16-bit)
540°
Tilt (16-bit)
260°
Reset
Auto correction reset function
Color
RGB laser color mixing, single point single control
Beam Effects
Beam rotation effect
Focus / Divergence
0.3° – 1.5°
Prism (choose one)
3-facet / 8-facet / 16-facet
Frost
Yes
Dimming
0–100% linear
Strobe
Up to 25Hz, random or pulse strobe options

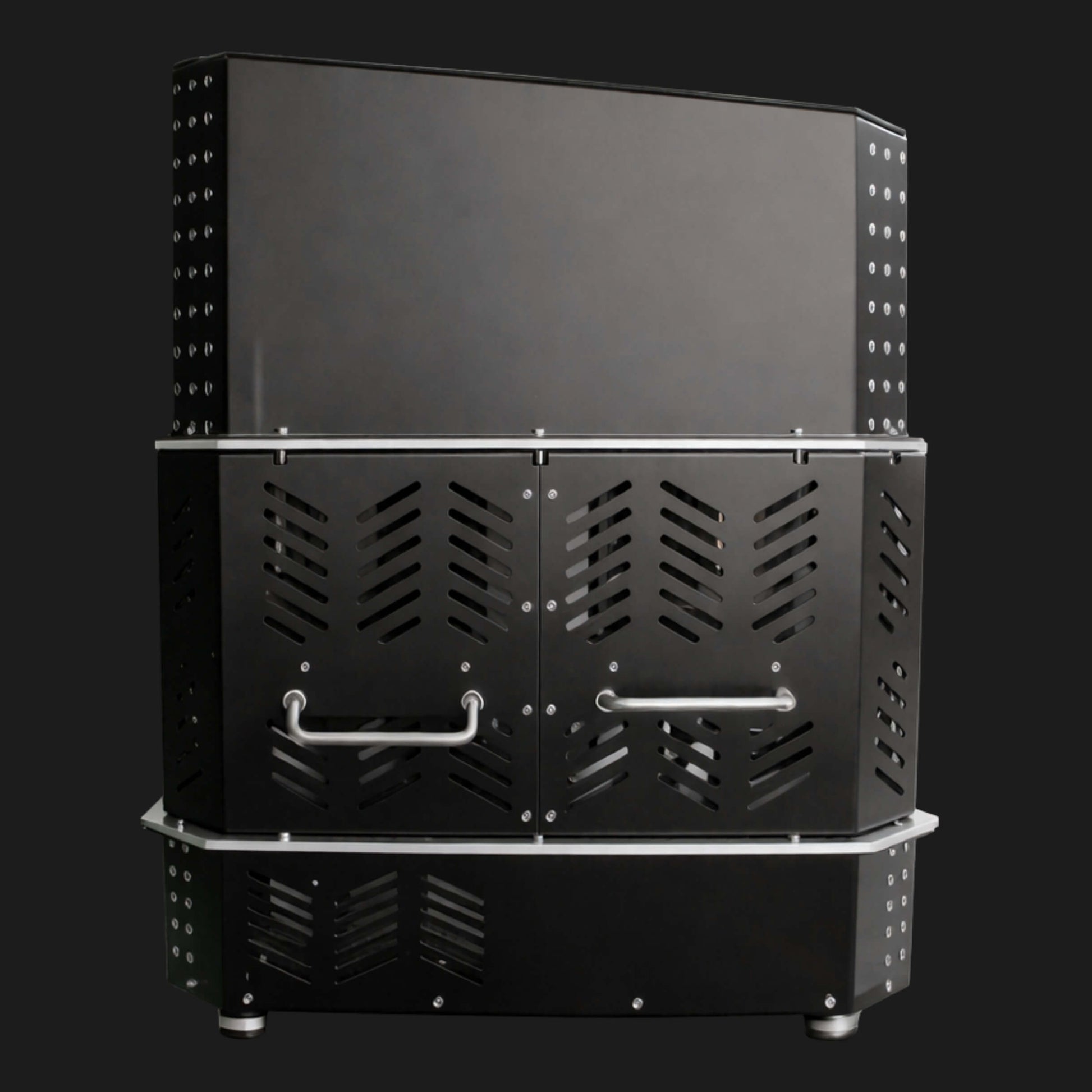

Ingress Protection
IP65
Control
DMX512, 8-channel, RDM
Power Input
AC 200–240V, 50/60Hz
Rated Power
3000W

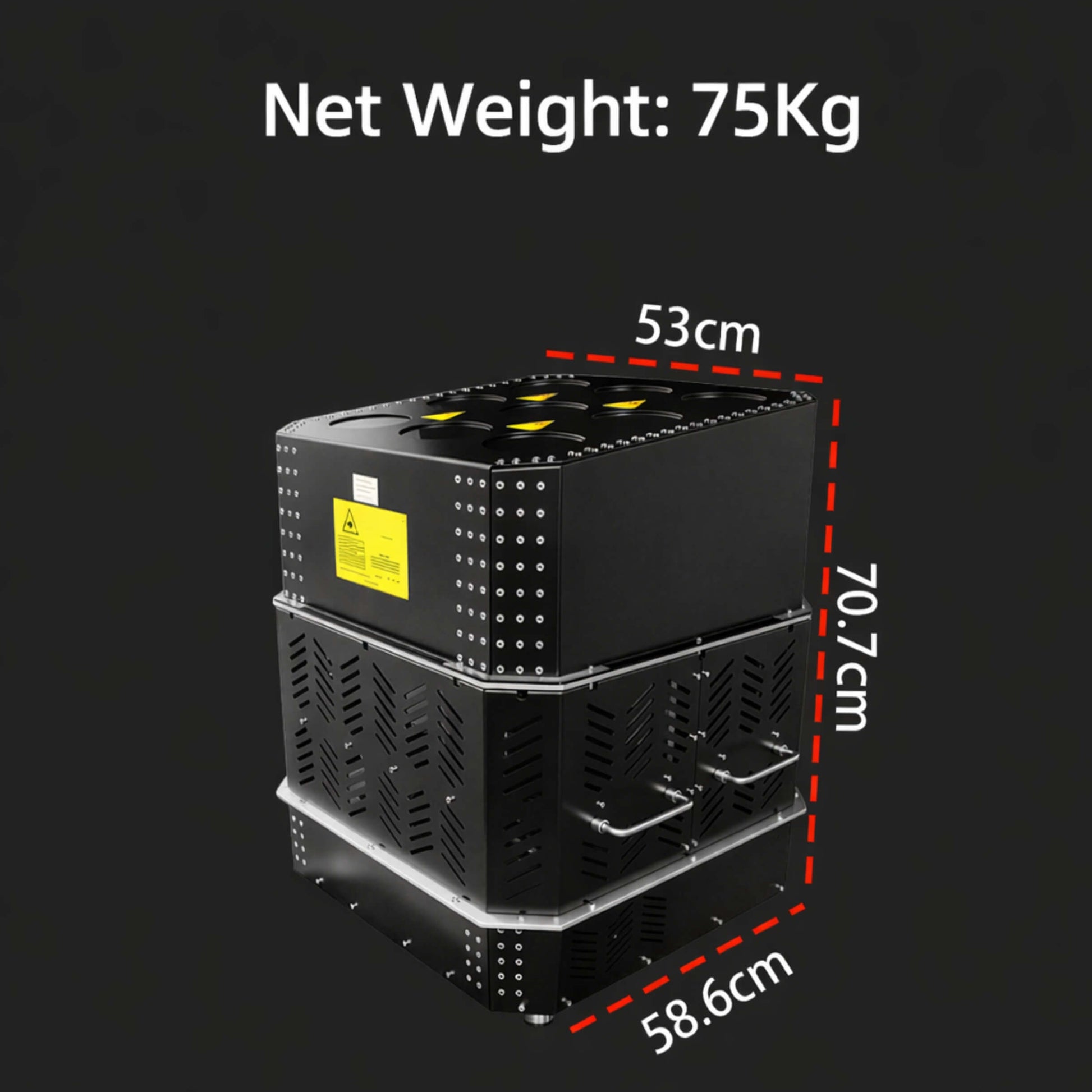

Fixture Size
58.6 × 53 × 70.7 cm
Net Weight
75 kg

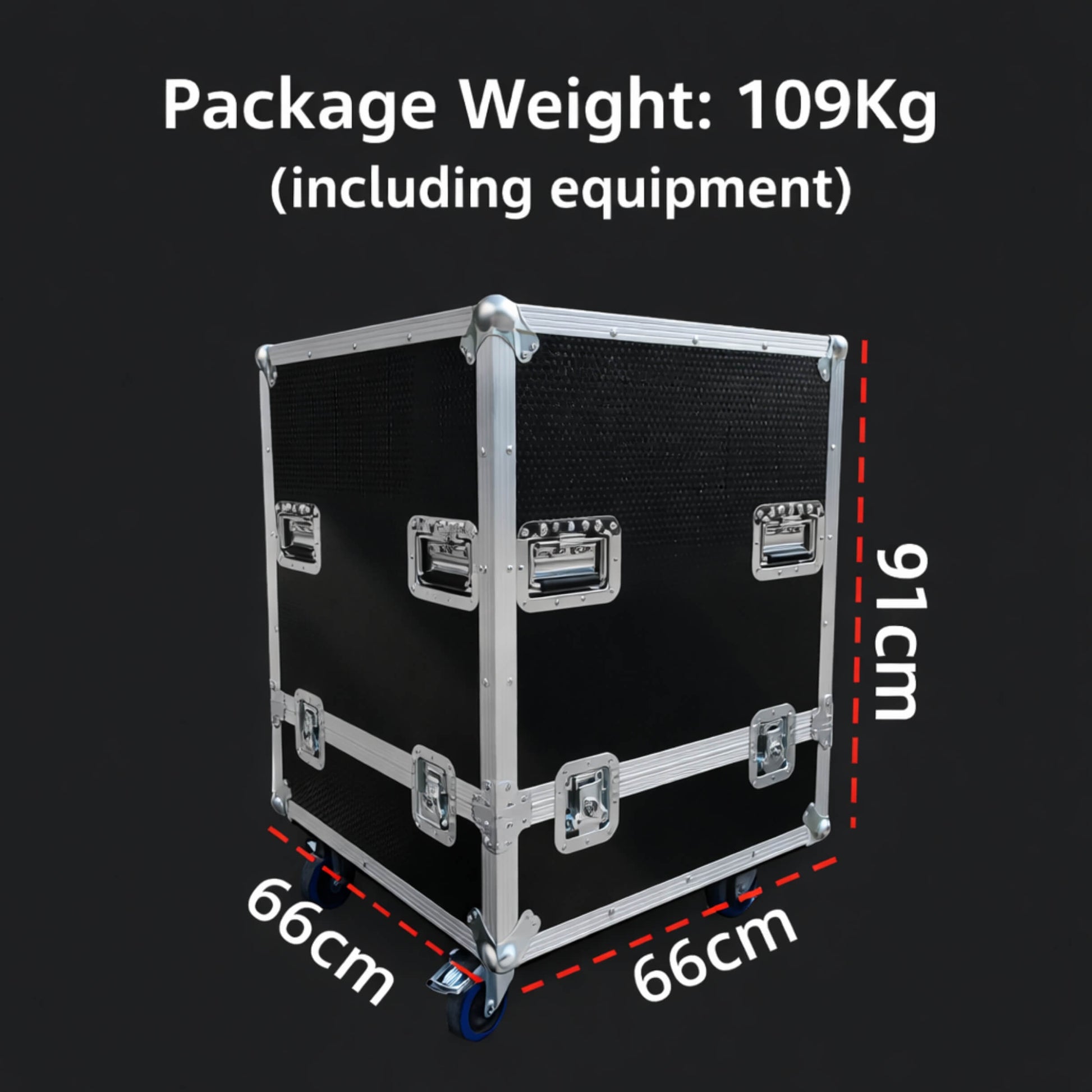

Flight Case Size
66 × 66 × 91 cm
Shipping Weight (with case)
109 kg
FAQ
Q: What is a sky laser used for?
A:A sky laser is used to project a high-visibility laser beam into the sky to highlight landmarks, buildings, and large outdoor locations for architectural presence and special events.
Q: Is Architect O3000 a laser show projector or an architectural laser?
A:It’s both: a high-power laser show projector designed for architectural and landmark applications, supporting programmed cues and beam effects.
Q: How far can the beam be seen?
A:Visibility depends on weather, ambient light, viewing angle, and atmosphere. The beam is designed for long-throw presence, and visibility can increase significantly with suitable atmospheric conditions.
Q: Does it support DMX control?
A:Yes. It supports DMX512 control with an 8-channel mode and includes RDM functionality for easier addressing and management.
Q: Is it waterproof for permanent outdoor installation?
A:It is rated IP65, which supports outdoor use. Final suitability depends on site conditions and professional installation practices (mounting, cable sealing, drainage, airflow clearance).
Q: What beam angle should be used—0.3° or 1.5°?
A:Use 0.3° for the tightest, longest-throw look. Use wider settings (up to 1.5°) when a slightly larger beam footprint is preferred or when conditions call for a softer presence.
Q: What safety controls are included?
A:The package includes safety keys and an emergency stop (E-Stop) with XLR cable. Professional installation and operation are recommended.
