B9 6-Eye RGB Animation Laser Light Bar 6W 12W 18W | DJ Laser Bar for Stage
Regular price
$1,560.00
Sale price
$1,560.00
Regular price
Unit price
Overview
B9 6-Eye RGB Animation Laser Light Bar 6W 12W 18W | DJ Laser Bar for Stage
B9 RGB Animation Laser Light Bar for DJs & Small Stages

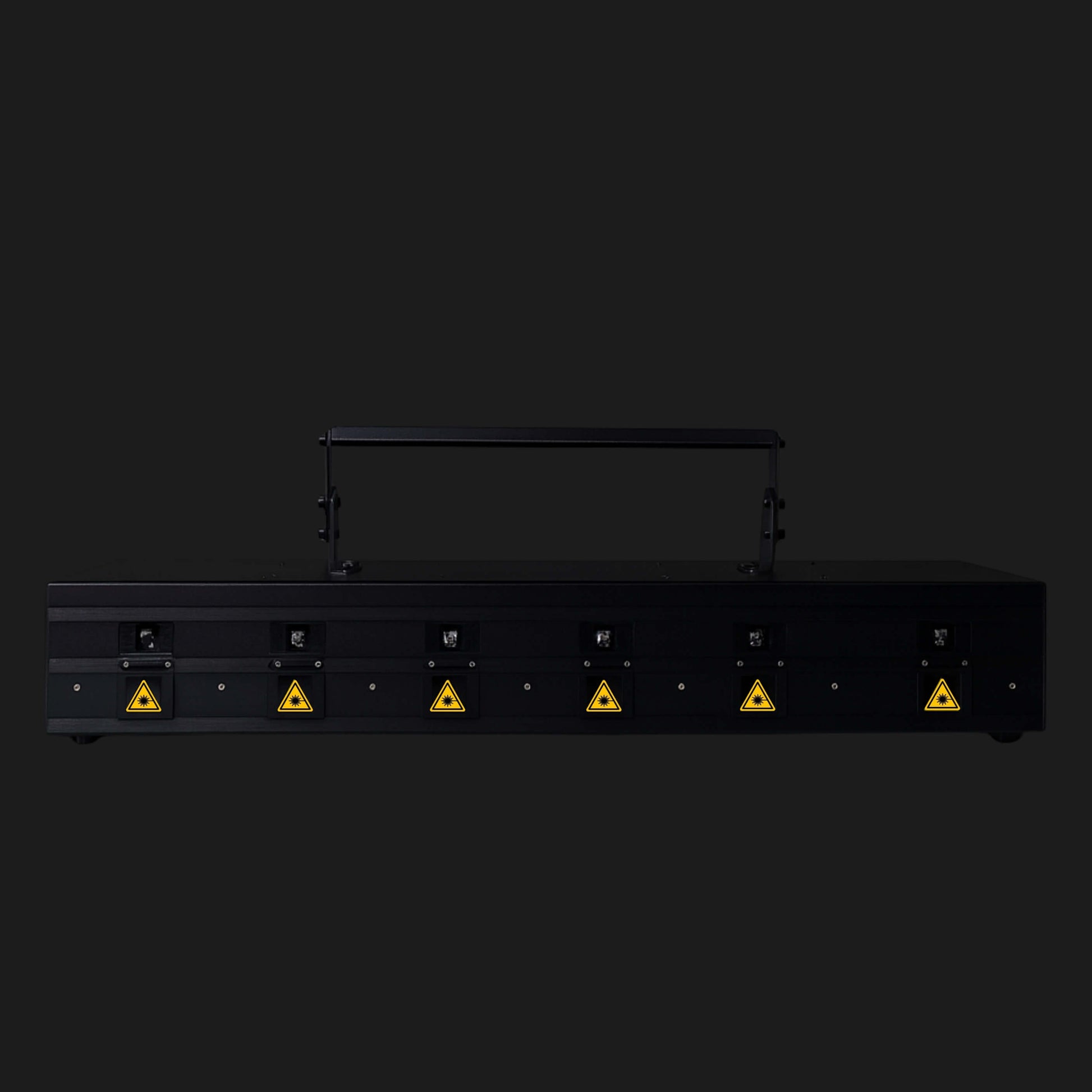

The B9 6-eye RGB animation laser light bar is a slim, linear fixture that packs six independent laser apertures into one rugged housing. A single bar can throw a wide RGB laser wall across the stage, filling the air with sweeping beams, criss-cross grids and angled light curtains.
Available in 6W, 12W and 18W full-color output, the B9 gives you flexible power options for different venues – from compact lounges to busy club dance floors and small live stages. For small clubs, bars, mobile DJs, wedding DJs and KTV rooms, this compact laser light bar becomes the visual centerpiece of your rig and turns any setup into a real laser show without needing a bulky laser projector.
Nichia RGB Laser Diodes with 6W / 12W / 18W Options
At the heart of the B9 is a set of original Nichia RGB laser diodes from Japan, designed for clean, reliable RGB laser performance. The standard 12W configuration uses:
- Red: 500 mW @ 638 nm ×1 per eye
- Green: 500 mW @ 520 nm ×1 per eye
- Blue: 1 W @ 445 nm ×1 per eye
for a total of 2 W × 6 eyes = 12 W of full-color output. The 6W version is tuned for smaller rooms and tighter budgets, while the 18W version delivers extra punch and throw for more demanding stages and brighter environments.
The 638 nm red is rich and punchy, the 520 nm green is crisp and bright, and the 445 nm blue gives a deep, cool tone. Together they create vivid RGB laser light with excellent color mixing for aerial beams and surface projection. High-quality optics with reflectivity >99% minimize power loss, so your beams look sharp, tight and defined in mid-air – ideal for parallel beams, grids and wide laser curtains in smoky club atmospheres.
Compared with many single-aperture budget lasers, the B9 6-eye laser light bar delivers wider coverage, more complex looks and more impactful full-color output from a single, easy-to-rig fixture.
Built-In Text, Pattern and Animation Laser Light Effects
The B9 comes loaded with built-in programs for text, graphics, animations and classic laser beam effects, so you can switch from ambient sweeps to logo-style looks without swapping fixtures.
With a 15K scanner speed and a ±25° beam angle, this animation laser light balances smooth outlines for simple text and graphics with enough coverage for small to mid-sized stages. For everyday gigs, you can run the preset shows in stand-alone or sound-active mode; for headline moments, you can trigger text or pattern looks to highlight a logo, slogan or key track.
For rental and production companies, the B9 animation laser light bar covers a wide range of effects from one compact unit, reducing setup time while still delivering professional laser looks in different power options (6W, 12W, 18W) to match each job.
Flexible Control for DJ Lasers and Professional Stage Laser Lighting
The B9 is designed to drop straight into your existing laser stage lighting or hybrid lighting system. It supports:
- Sound Active – locks into the beat, ideal for DJs and music-driven shows in clubs and bars.
- Auto / Stand-alone – plug in and let the built-in laser show programs run when you don’t have a console.
- DMX-512 – full control from a lighting desk, perfect for time-coded shows and synced chases.
- Master / Slave – link multiple B9 bars to build a unified laser wall and bigger stage coverage.
With both analog and TTL modulation, you get smoother dimming, color fades and rhythmic chases when programming. Used as part of a larger rig, the B9 RGB laser light bar behaves more like a professional laser projector than a simple party toy, making it a solid choice for stage laser lights in touring, club installs and rental stock.
Whether you pick the 6W version for compact rooms, the 12W version as an all-round workhorse, or the 18W version for extra punch, the control workflow stays the same across the whole B9 family.
Tour-Ready Housing, IP54 Rating and Safety for Small Venues
The B9 uses forced-air cooling to keep the laser modules and electronics at a stable working temperature during long shows and back-to-back events. With an IP54 protection rating, it resists dust and light splashes, making it suitable for clubs, indoor venues and semi-covered outdoor setups.
A wide operating temperature range of -20°C to 45°C (-4°F to 113°F) means this RGB animation laser light bar is ready for multi-city tours, rentals and seasonal events. For production and rental companies looking for reliable stage lasers, the B9 offers a strong mix of durability, easy rigging and compact size across all three power classes.
For safety, always mount the B9 securely above eye level, avoid pointing beams directly at people or reflective surfaces, and follow local laser regulations in your region. When used correctly with haze or fog, it delivers dramatic, professional laser show effects while staying suitable for small and mid-sized venues.
Specs
Model
B9 6-Eye RGB Full-Color Animation Laser Light Bar
Available Power Versions
B9-6W: 6 W RGB full-color output (for small rooms and low-light venues)
B9-12W: 12 W RGB full-color output (all-round option for clubs and DJs)
B9-18W: 18 W RGB full-color output (for brighter stages and higher throw)
Light Source Brand: Nichia, original Japanese laser diodes
Total Laser Output
6 W / 12 W / 18 W RGB full color
Input Voltage
AC 110–240 V, 50/60 Hz
Laser Color
RGB full color
Modulation Modes
Analog modulation / TTL modulation
Laser Wavelength
638nm
Beam Angle
±25°
Scanner Speed
15K
Built-In Effects
Text / patterns / animations / laser beams
Cooling Method
Forced-air cooling
Lens Reflectivity
greater than 99%
Protection Rating
IP54
Working Temperature
-20°C to 45°C (-4°F to 113°F)
Control Modes
Sound active / Auto (stand-alone) / DMX-512 / Master–Slave
Typical Applications
Clubs, bars, KTV rooms, wedding stages, small concerts, mobile DJs, rental and production rigs
FAQ
Q: Which B9 power version should I choose – 6W, 12W or 18W?
A:For small bars, KTV rooms and tight spaces, the 6W version is usually enough. The 12W version is the best all-round choice for most clubs, mobile DJs and event companies. If you work in brighter environments, larger stages or need more throw, choose the 18W version for stronger mid-air beams and more headroom.
Q: What kind of venues is the B9 RGB animation laser light bar best for?
A:The B9 is ideal for small to mid-sized indoor stages such as DJ booths, clubs, bars, KTV rooms, hotel ballrooms and live music venues. Coverage depends on mounting height, haze level and the number of fixtures, so many users combine multiple B9 bars to build a wider laser show across the room.
Q: Can the B9 display text or simple logo-style content?
A:Yes. The built-in programs include text, patterns and basic animations, so you can show simple messages or graphics. If you need highly customized logos or complex animation programming, confirm control options and compatible software with your sales engineer so you can integrate the B9 into a broader laser show system.
Q: How does the B9 integrate with my existing lighting and laser controller?
A:The fixture supports sound active, auto, DMX-512 and master–slave control. For quick setups, you can run the built-in shows in stand-alone mode. For precise timing and chases, connect it to your lighting console via DMX and treat it as a professional laser projector alongside moving heads and other fixtures.
Q: Is the B9 suitable for outdoor events?
A:With its IP54 rating, the B9 can handle dust and light splashes, making it suitable for semi-covered or tented outdoor events. We don’t recommend using it fully exposed in heavy rain or direct water spray. For permanent outdoor installations, use additional weatherproof housing just like other stage laser lights.
Q: Do I need a fog or haze machine to get the best effect?
A:Yes, a thin layer of haze or fog makes a huge difference for any laser light projector. With haze, mid-air beams, grids and laser walls become clearly visible, giving you that immersive club or festival look. Without haze, more of the effect is seen on surfaces instead of in the air.
Q: Is the B9 laser light bar safe for small venues and audiences?
A:When installed and used correctly, the B9 is suitable for clubs, bars and small venues. Always mount the bar above eye level, avoid pointing beams directly at people or reflective surfaces, and follow local laser safety regulations. If you are unsure about local rules, check with your installer or production company.
Q: Can I mix different B9 power versions in the same rig?
A:Yes. Many users run 6W B9 units closer to the audience for softer looks, and 12W or 18W B9 units further back for stronger aerial beams and long-throw effects. All versions share the same basic control modes, so they are easy to combine inside one laser stage lighting setup.
