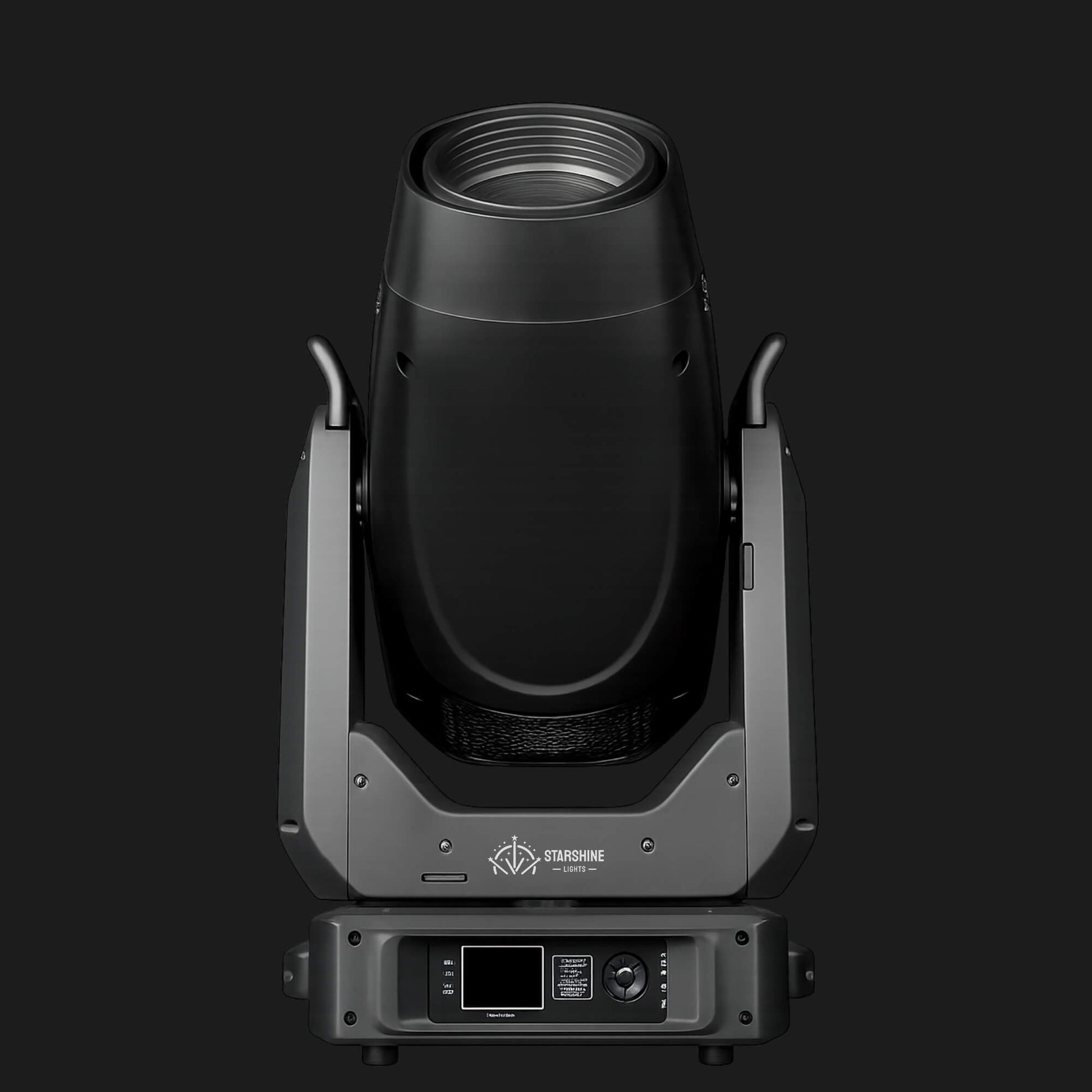

F17 CMY Framing LED Moving Head Profile Light 800W/1000W for Stage
Regular price
$2,550.00
Sale price
$2,550.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × F17 800W/1000W LED Moving Head Profile Light
- 1 × Power Cable
- 1 × Mounting Bracket Set
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$2,550.00
<

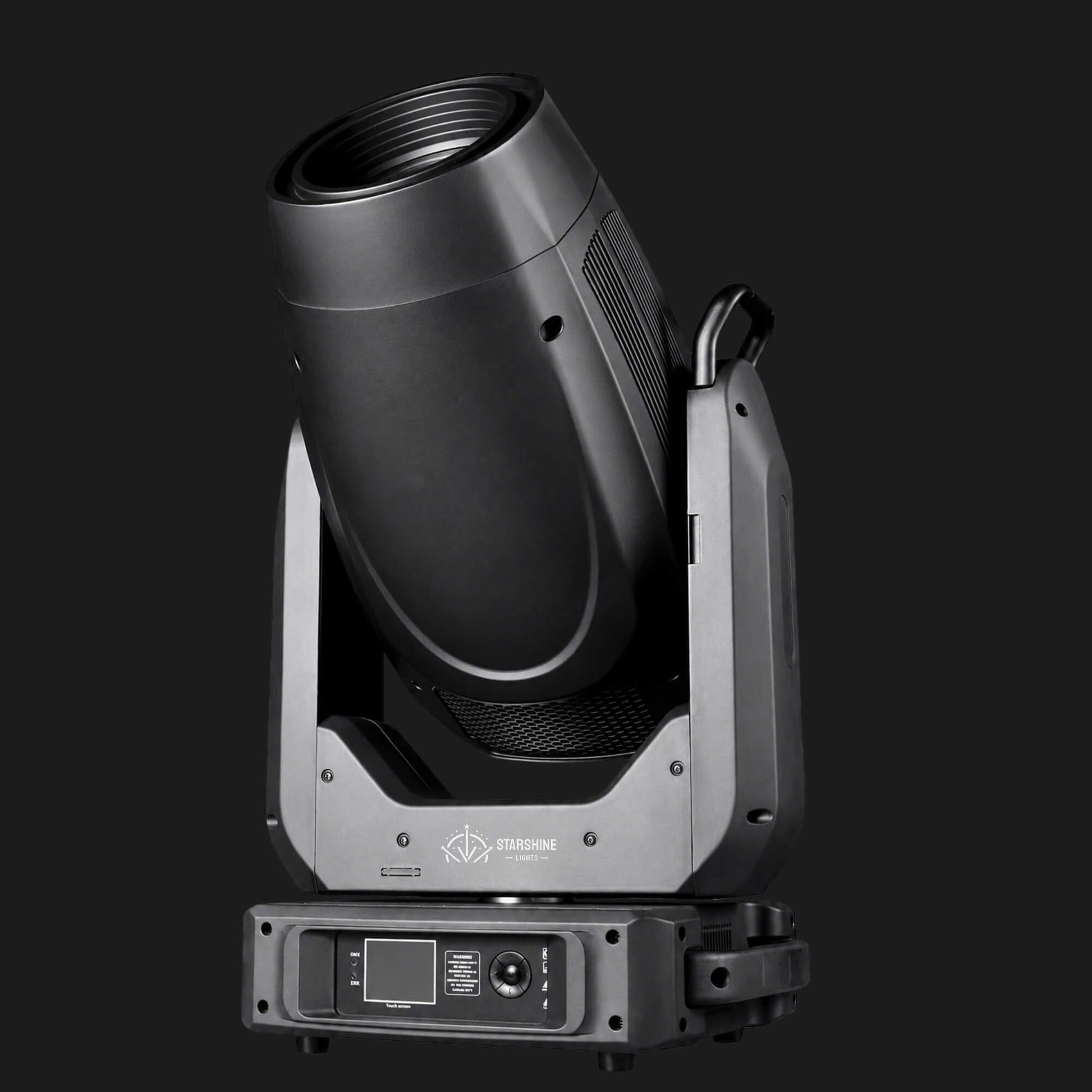

Powerful LED Output for Professional Stages
Powerful LED Output for Professional Stages: Available in 800W and 1000W versions, the F17 gives rental companies, venues, and installers flexible power options for different show sizes. This LED moving head light delivers high-output performance for concerts, theaters, churches, clubs, and event stages, with a clean 6500K source for color mixing, gobo projection, and profile light effects, up to 20,000 hours of LED life for touring and fixed professional stage lighting systems, and a 150mm front lens for premium beam presence and a powerful look on stage.

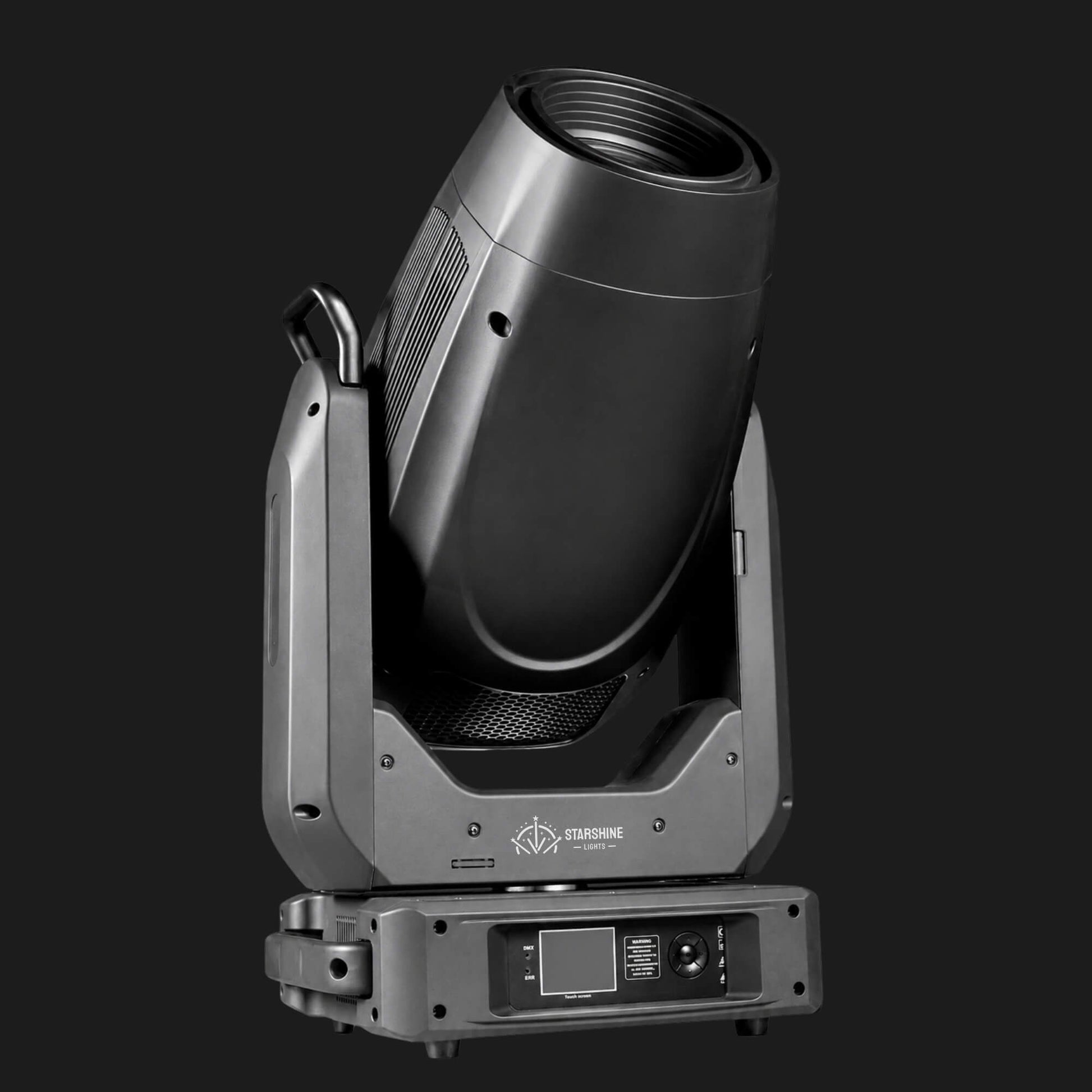

CMY Color Mixing, CTO, and Rich Stage Effects
CMY Color Mixing: Independent CMY color control creates smooth transitions from soft pastel tones to saturated concert lighting colors.
Linear CTO Control: Adjustable CTO from 2500K to 7000K matches warm theatrical scenes, cool white looks, or camera-friendly stage designs.
Color Wheel: A 6-color wheel plus white adds fast color changes, split-color effects, and dynamic lighting transitions.
High CRI Mode: Standard RA ≥75 and high-display mode RA ≥90 improve color rendering for performers, sets, and video capture.
Effect Wheel: Built-in flame and water-style dynamic effects add atmosphere without extra stage lights.
Beam, Spot, Wash, and Profile Control in One Fixture
Wide Zoom Range: The 4°–50° linear zoom covers narrow beam light effects, moving head spot looks, and wider stage coverage.
Framing Shutters: Four independent blades with 8-axis control shape beams for theater lighting, TV studios, and worship stages.
Gobo System: 7 rotating gobos, 8 fixed gobos, and open white create sharp projection, texture, and layered visual effects.
Rotating Prism: The rotating 3-prism system expands beam patterns for concerts, festivals, clubs, and live productions.
Smooth Iris and Frost: 6%–100% aperture control and 0–100% linear frost create hard-edge profiles, soft washes, and atmospheric looks.
Professional DMX Control and Smooth Movement
Precise Movement: 540° pan and 270° tilt with 16-bit accuracy provide smooth positioning for programmed shows.
Quiet XY Motors: Ultra-quiet motors with magnetic code positioning improve movement stability and reduce operating noise.
34 DMX Channels: The F17 provides detailed control through professional DMX512 channel programming.
RDM Support: RDM compatibility allows remote address setting and fixture management through supported control systems.
Flexible Operation Modes: DMX512, RDM, auto run, master-slave, and sound control support console-based and standalone setups.
Designed for Indoor Production, Rental, and Installation

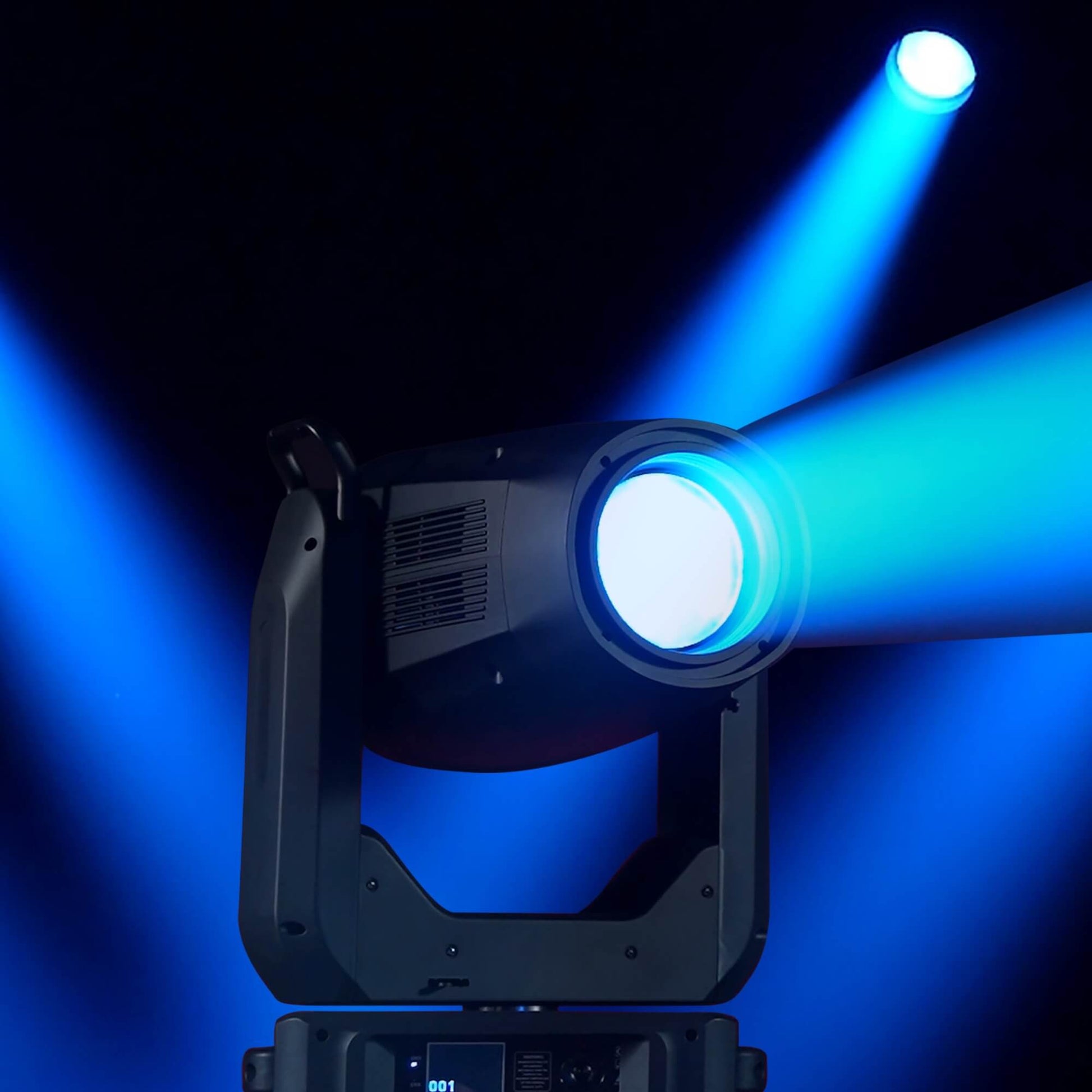

Touch LCD Display: The 2.8-inch touch LCD supports Chinese and English menus with 180° screen rotation for faster setup.

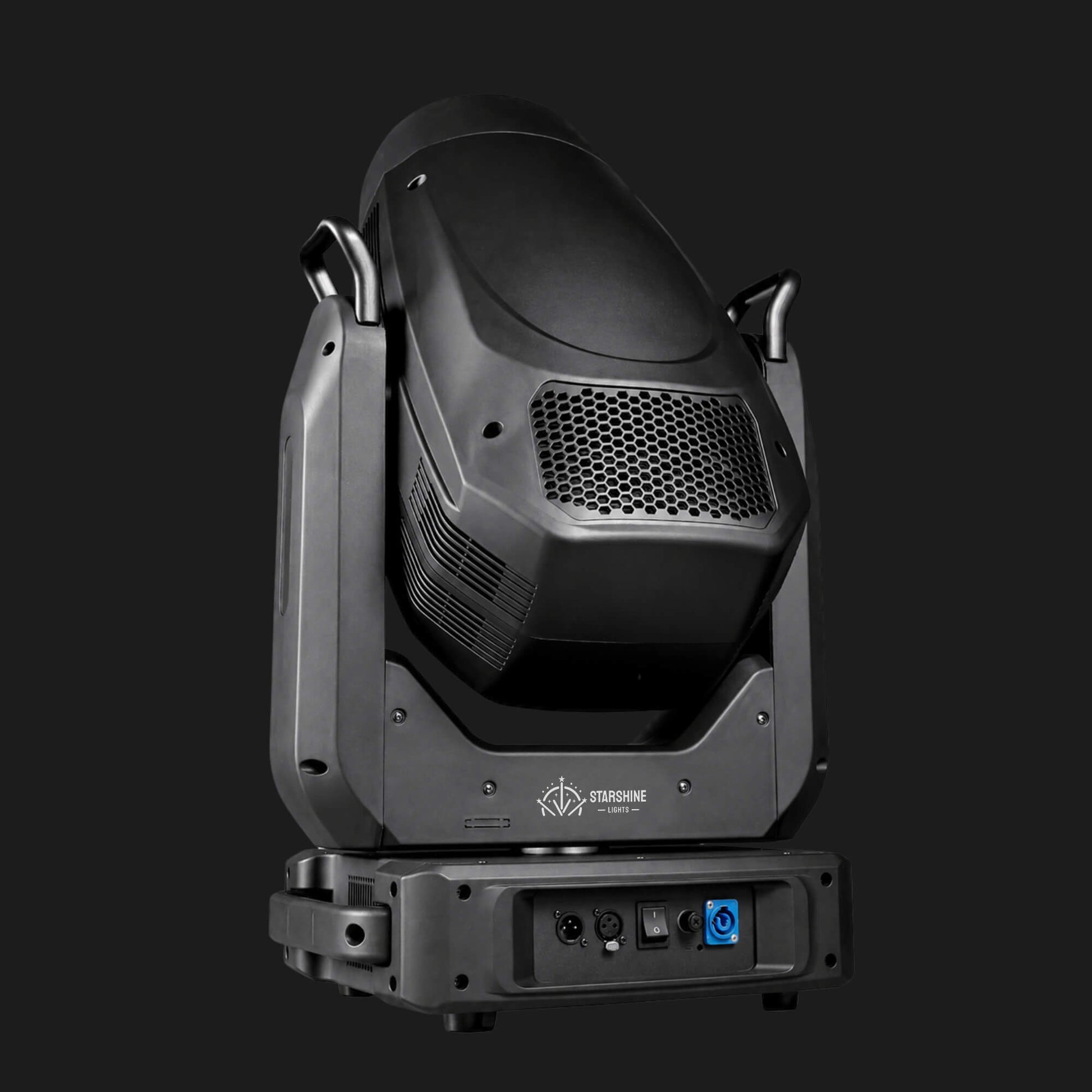

3-Pin / 5-Pin Signal Options: Optional 3-pin and 5-pin signal interfaces fit different DMX controller and rigging environments.

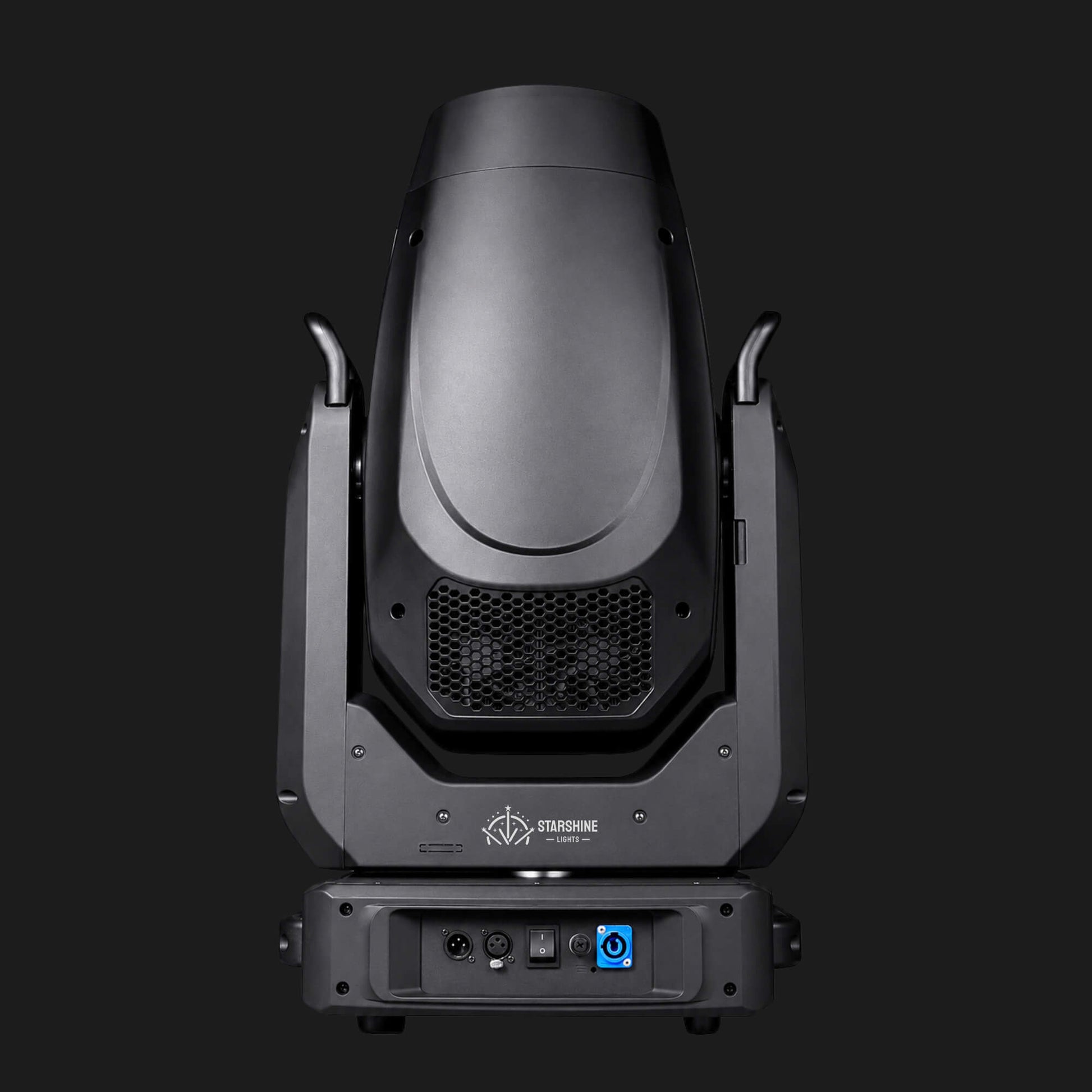

Ultra-Quiet Cooling: The fan cooling system supports stable operation during long shows, rehearsals, and fixed installations.
Indoor IP20 Design: The F17 is made for protected indoor venues, including theaters, churches, concert halls, clubs, and studios.
Production-Ready Build: With a 34.2kg net weight and rugged body design, it is built for serious professional moving head lights applications.
Specs
General
Model: F17
Product Type: LED Moving Head Profile Light
Power Options: 800W / 1000W versions available
IP Rating: IP20
Power & Light Source
Input Voltage: AC100–240V, 50/60Hz
Rated Power: 1000W, depending on configuration
Light Source: High-output LED module
LED Life: 20,000 hours
Color Temperature: 6500K
Optical System

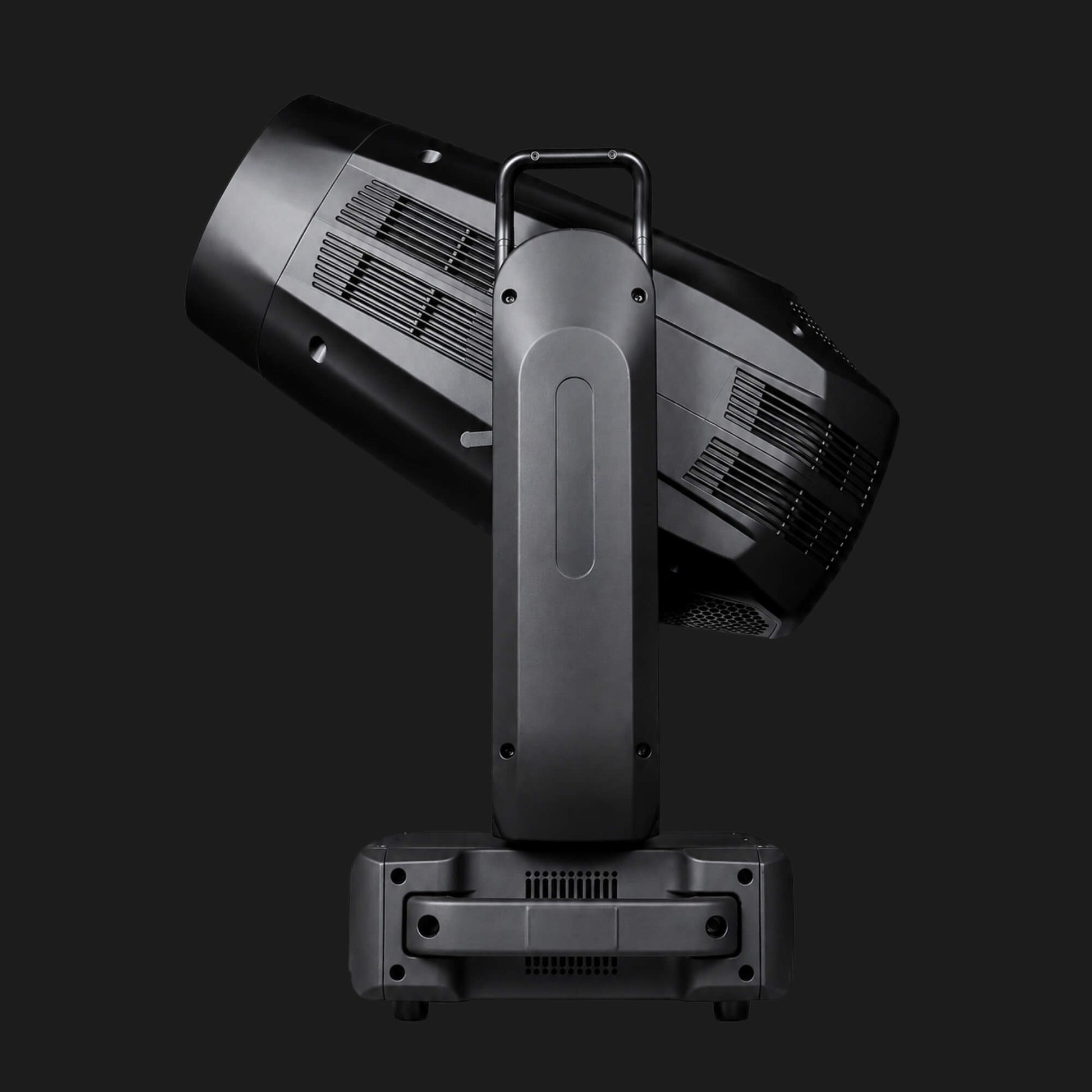

Output Lens Aperture: 150mm
CRI: Standard Mode RA ≥75; High Display Mode RA ≥90
Zoom: 4°–50° linear zoom
Iris / Aperture: 6%–100% smooth adjustment
Frost / Atomization: 0–100% linear frost; light frost / heavy frost
Dimming: 0–100% linear dimming
Effects
Color Wheel: 6 colors + white
Color Mixing System: Independent CMY color mixing
CTO: Linear independent CTO, 2500K–7000K
Prism Wheel: Rotating 3-prism; 8-prism optional
Effect Wheel: Dynamic flame, water, and simulation effects
Gobo Wheel: 7 rotating gobos, pluggable + 8 fixed gobos + white circle
Framing System: 4 independent blades, 8 axes, bidirectional open/close, 180° rotation
Strobe: Up to 25Hz; random strobe and pulse strobe available
Control
Signal Interface: 3-pin / 5-pin optional
Control Modes: DMX512, RDM, auto, master-slave, sound control
Channel Mode: 34 international standard DMX512 channels
Display System: 2.8-inch touch LCD, Chinese/English display, 180° rotation
Movement
Pan: 540°, 16-bit accuracy
Tilt: 270°, 16-bit accuracy
XY Motor: Ultra-quiet motor with magnetic code positioning
Cooling & Protection
Cooling System: Ultra-quiet fan
Operating Temperature: -30℃ to 40℃
Housing and Dimensions

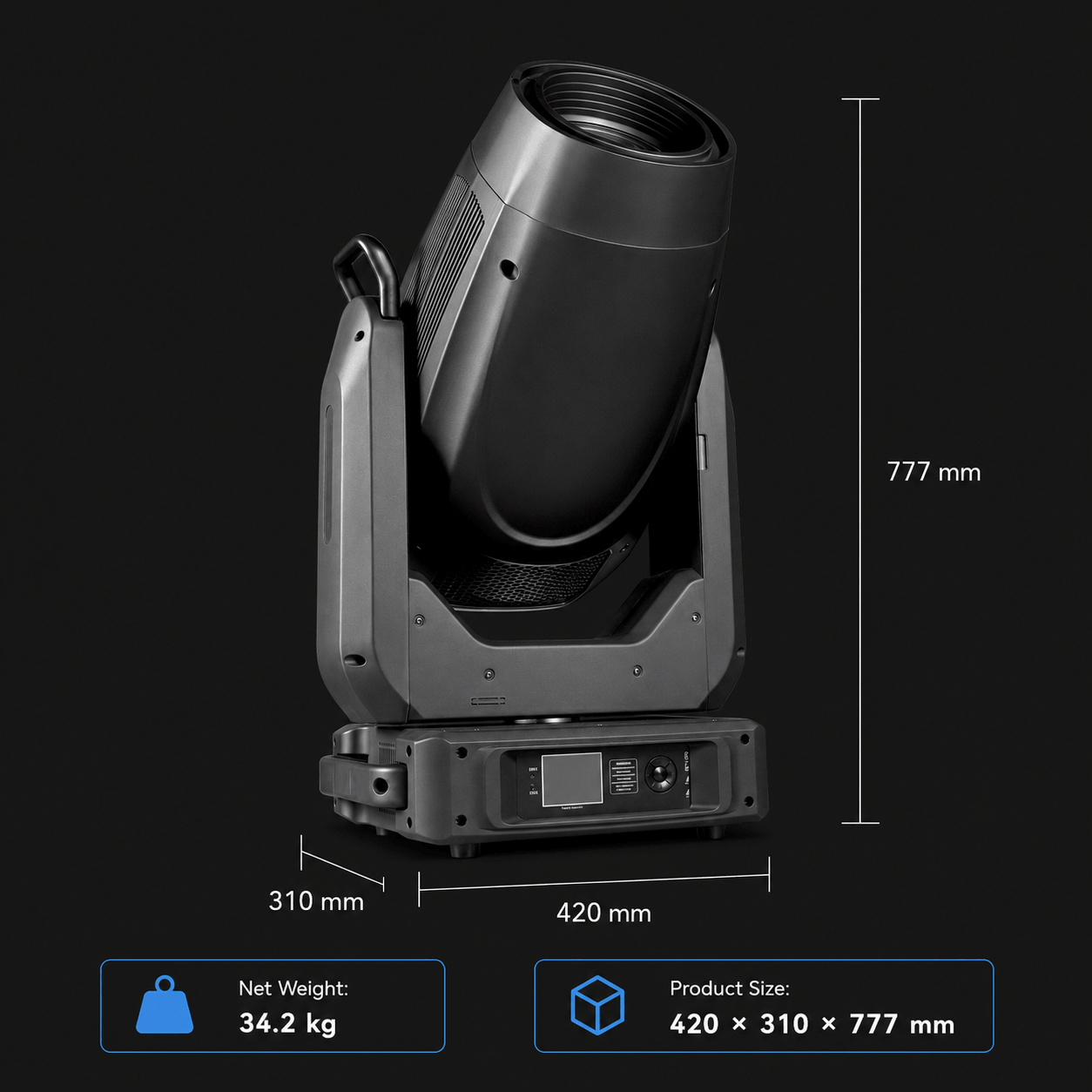

Product Size: 420 × 310 × 777mm
Package Size: 600 × 460 × 900mm
Net Weight: 34.2kg
Gross Weight: 36kg
FAQ
Q: What type of fixture is the F17?
A:The F17 is a professional LED moving head profile light available in 800W and 1000W power options. It is designed for concerts, theaters, churches, clubs, event venues, rental companies, and production installations.
Q: Is the F17 suitable for professional stage lighting?
A:Yes. The F17 combines high-output LED performance, CMY color mixing, CTO, framing shutters, gobos, prism, zoom, frost, iris, and DMX512/RDM control, making it suitable for professional stage lighting systems.
Q: What is the difference between the 800W and 1000W versions?
A:The 800W version is ideal for medium venues, churches, theaters, and rental events. The 1000W version is better for large stages, touring productions, concert lighting, and installations that need stronger output.
Q: Can this moving head light work with a DMX controller?
A:Yes. The F17 supports DMX512 and RDM control with 34 standard DMX channels, making it compatible with professional DMX controller and DMX lighting controller workflows.
Q: What is the zoom range of the F17?
A:The F17 features a 4°–50° linear zoom range, allowing it to create tight beam light effects, moving head spot projection, and wide stage coverage.
Q: Does the F17 include CMY color mixing?
A:Yes. It includes an independent CMY color mixing system, plus linear CTO adjustment from 2500K to 7000K for warm, neutral, or cool lighting looks.
Q: Does it have framing shutters?
A:Yes. The F17 includes 4 independent framing blades with 8-axis control. Each blade can open, close, and rotate, allowing precise beam shaping for theater, studio, and stage applications.
Q: What gobo effects does it offer?
A:The fixture includes 7 rotating gobos, 8 fixed gobos, and open white. It can create sharp patterns, texture effects, and layered projection looks.
Q: Is the F17 quiet enough for churches and theaters?
A:Yes. The F17 uses ultra-quiet motors and an ultra-quiet fan cooling system, making it suitable for indoor spaces where noise control matters.
Q: Can it be used without a lighting console?
A:Yes. In addition to DMX512 and RDM, the F17 supports auto run, master-slave, and sound control modes, so it can be used in simple standalone setups.
Q: Is this fixture waterproof?
A:The F17 is rated IP20, so it is designed for indoor or protected environments. It should not be exposed directly to rain or moisture.
Q: What makes the F17 different from basic LED moving lights?
A:Basic LED moving lights usually focus on movement and simple colors. The F17 adds professional profile light functions such as CMY, CTO, framing shutters, gobos, prism, iris, frost, wide zoom, and detailed DMX control.
