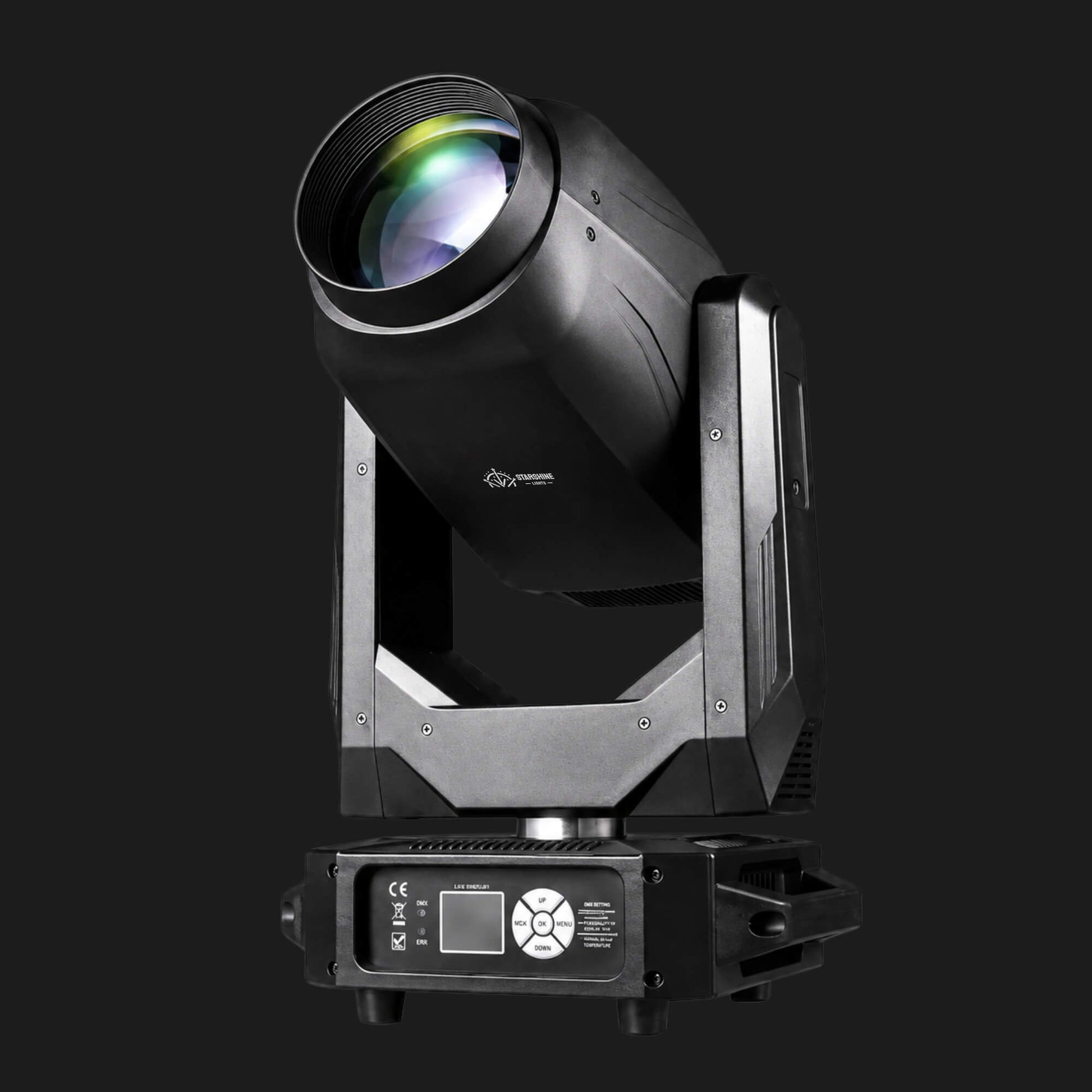

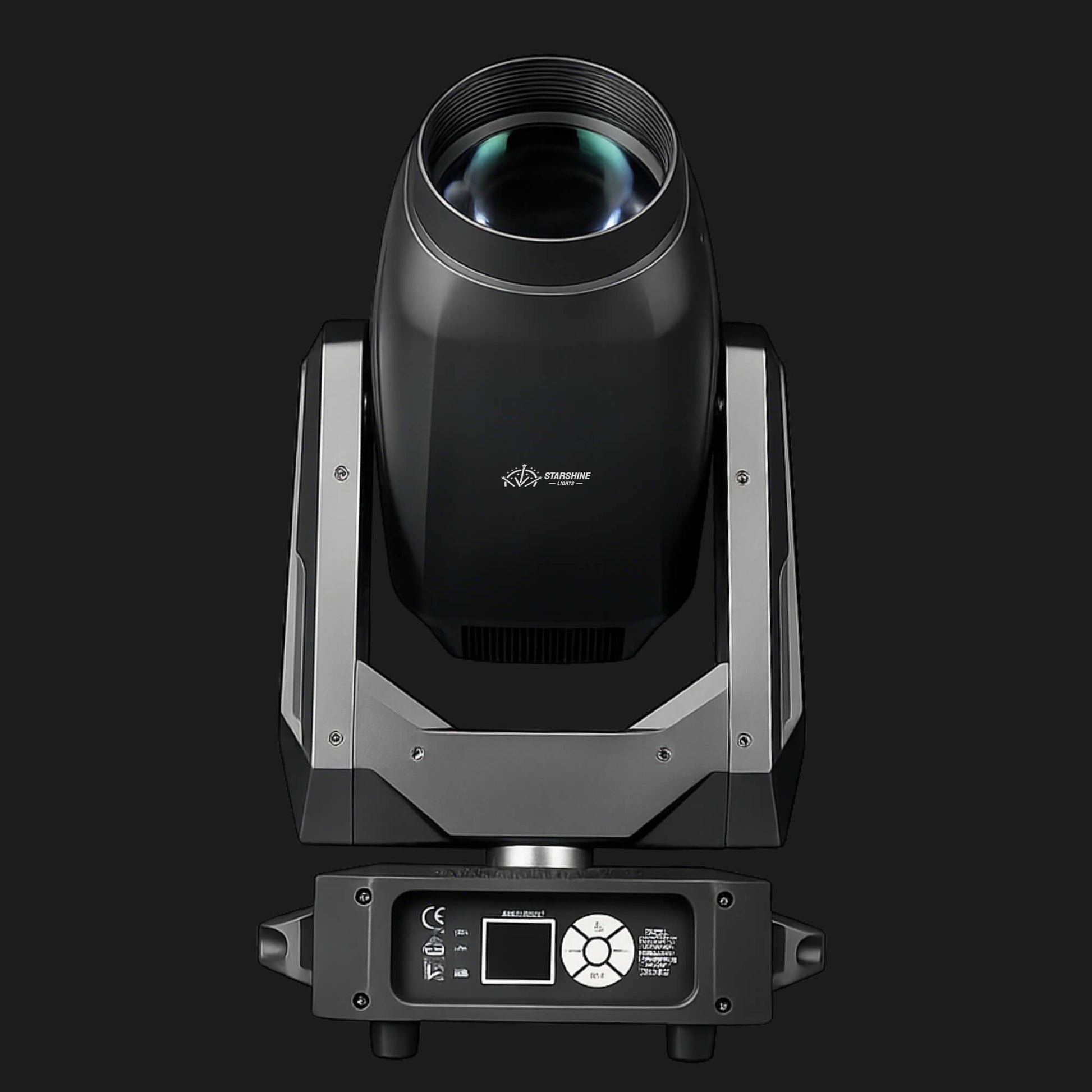

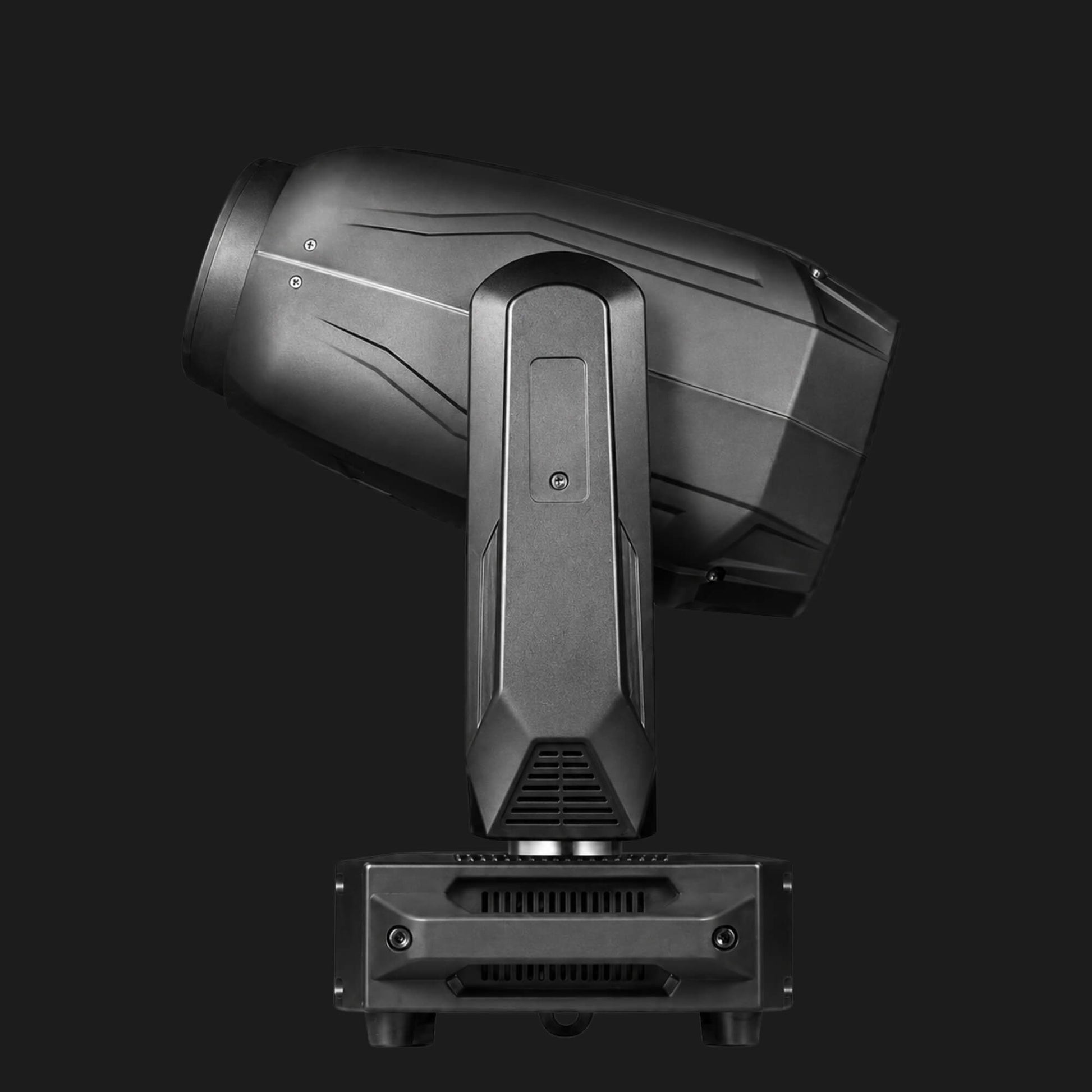

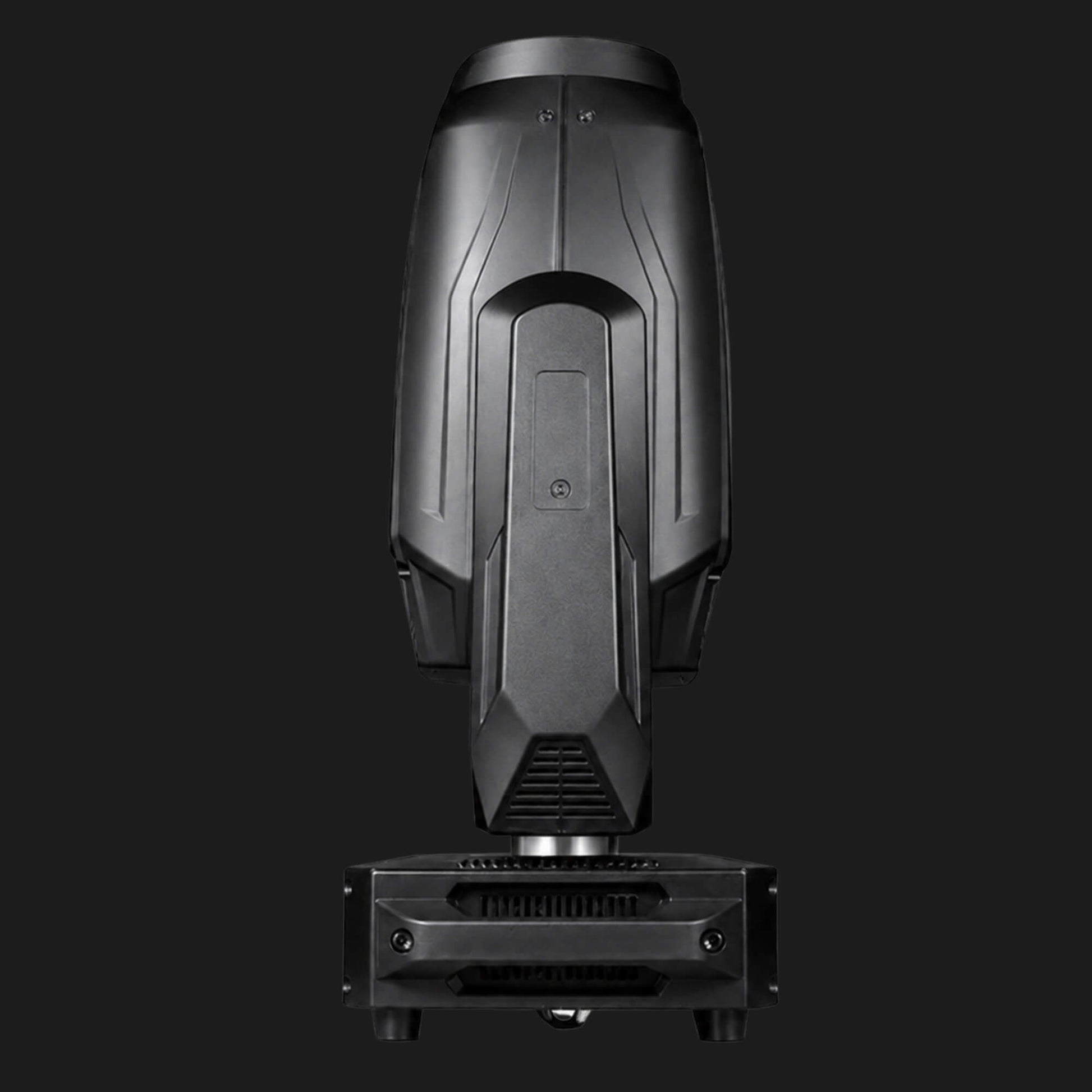

F18 DMX BSWF Moving Head Light 400W LED CMY Framing for Stage
Regular price
$1,250.00
Sale price
$1,250.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × F18 400W LED BSWF Moving Head Light
- 1 × Power Cable
- 1 × Mounting Bracket Set
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$1,250.00
<
Powerful LED Output for Professional Stages

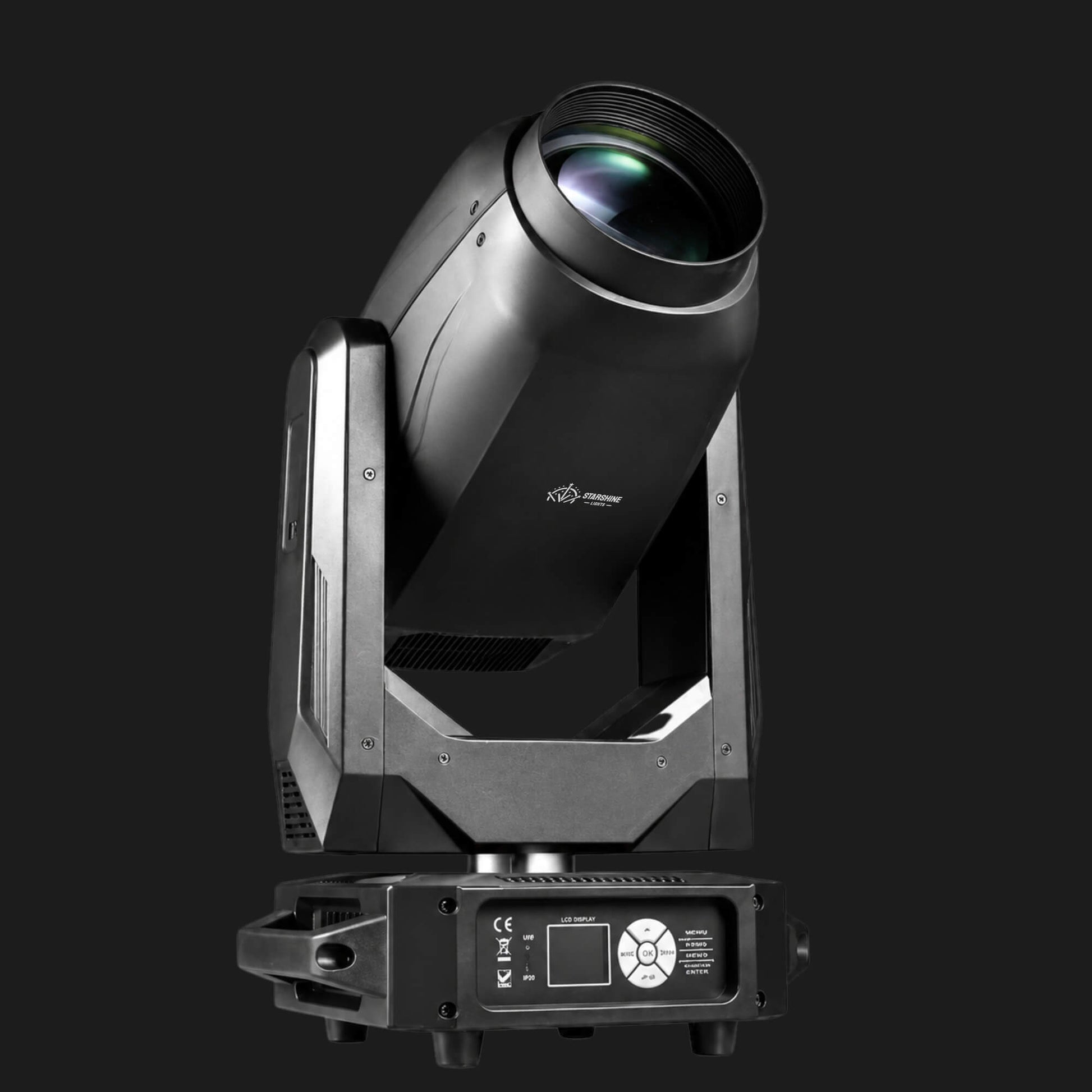

Powerful LED Output for Professional Stages: Available in 800W and 1000W versions, the F17 gives rental companies, venues, and installers flexible power options for different show sizes. This LED moving head light delivers high-output performance for concerts, theaters, churches, clubs, and event stages, with a clean 6500K source for color mixing, gobo projection, and profile light effects, up to 20,000 hours of LED life for touring and fixed professional stage lighting systems, and a 150mm front lens for premium beam presence and a powerful look on stage.
Beam, Spot, Wash, and Framing in One Moving Head Light
Tight Beam Light: The 2° beam mode creates sharp aerial beams for concert lighting, club lights, and live stage effects.
Flexible Spot Mode: The 4°–52° spot range is ideal for gobo projection, stage highlighting, and detailed visual effects.
Wide Wash Coverage: The 2°–46° wash mode delivers smooth color fills for stages, theaters, churches, and event spaces.
Precision Framing: The 8-shutter framing system creates triangles, diamonds, rectangles, and custom beam shapes.
Smooth Electronic Focus: High-precision glass optics and electronic focus keep projection clear at different throw distances.
Rich Color Mixing, Gobos, and Prism Effects
Linear CMY Mixing: CMY color mixing gives lighting designers smooth color transitions for professional LED stage lighting.
Linear CTO Control: CTO adjustment fine-tunes white balance for warm, neutral, or cool stage looks.
Color Wheel Effects: The color wheel includes 6 colors plus white, with split-color, scroll, color change, and rainbow effects.
Gobo Light Effects: Fixed and rotating gobo wheels create sharp patterns, shake effects, rotation, and variable-speed scrolling.
Rotating Prism: Independent prism effects add layered beam movement and bigger visual impact for concert lights and live shows.
DMX Control for Advanced Stage Lighting Equipment
DMX Programming: The F18 supports DMX control for advanced show programming with a DMX controller.
Multiple Control Modes: DMX, auto-running, master-slave, and sound control fit different stage lighting setups.
16-Bit Movement: 540° pan and 270° tilt with 16-bit control deliver smooth, accurate movement for professional moving head lights.

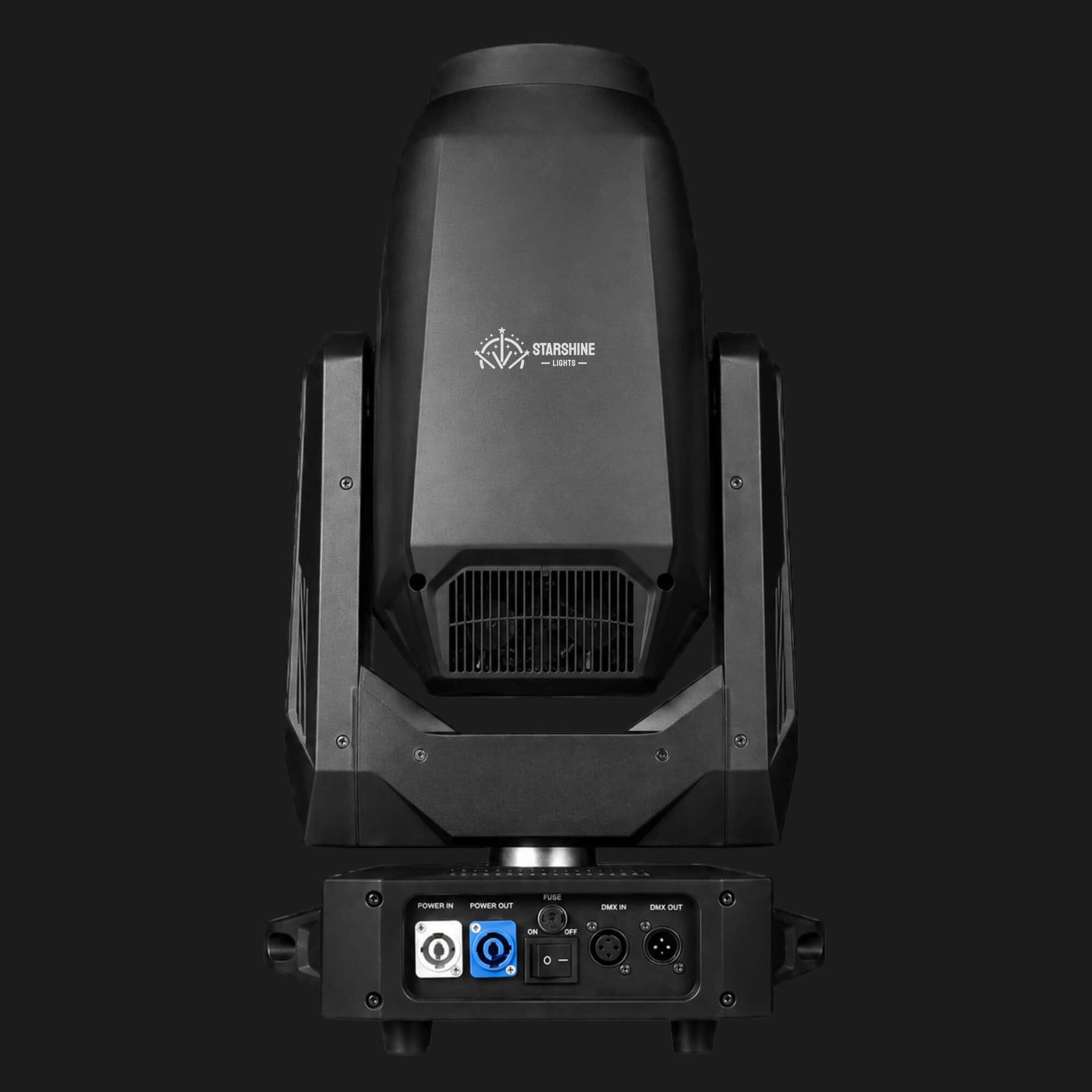

DMX Connections: Standard 3-pin and 5-pin XLR input/output ports support stable signal pass-through.
Signal Protection: Built-in input signal isolation keeps DMX lights stable during demanding live productions.

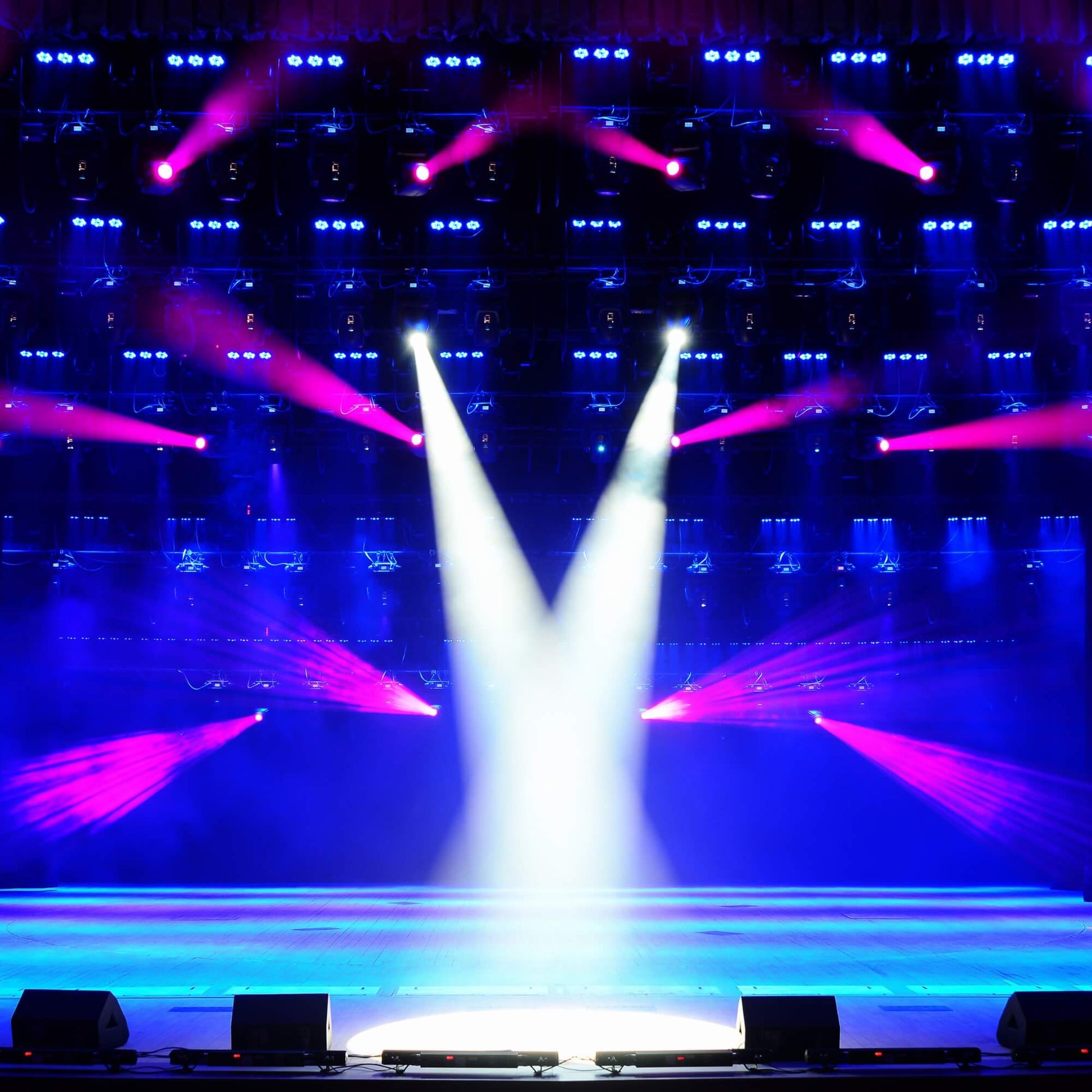

Reliable Design for Concerts, Clubs, and Theaters
LCD Touch Display: The LCD touch screen and physical buttons make setup fast and intuitive for lighting operators.
Bilingual Interface: Chinese/English menu switching supports easier setup for global users and rental teams.
Smart Fan Cooling: Intelligent fan control adjusts speed automatically to reduce operating noise during live performances.
Indoor Stage Use: With an IP20 rating, the F18 is designed for indoor concerts, theaters, clubs, houses of worship, and event venues.
Compact Touring Size: Measuring 348 × 255 × 655 mm, this LED moving head light fits professional stage lighting equipment packages.
Specs
General
Model: F18
Product Type: 400W LED BSWF Moving Head Light
Optical System: Beam, Spot, Wash, Framing
Protection Grade: IP20
Power & Light Source
Rated Voltage: AC100V–240V ±10%, 50/60Hz
Rated Power: 500W
Light Source: 400W LED Module
Color Temperature: 7300K
Lamp Life: 1500 Hours
Optical System
Beam Mode: 2°
Spot Mode: 4°–52°
Wash Mode: 2°–46°
Dimming: 0–100%
Focus: Electronic focus with high-precision glass optical lens
Frost: 0–100% soft frost effect
Effects
Color System: Linear CMY + Linear CTO
Color Wheel: 6 Colors + White
Color Effects: Split color, bi-directional scroll, color change, half-color rainbow
Fixed Gobo Wheel: 9 Gobos + White
Rotating Gobo Wheel: 5 Gobos + White
Gobo Effects: Shake, rotation, bi-directional scroll, variable speed
Prism System: Independent rotating prism
Prism Focus: Linear focus and zoom adjustment
Framing System: 8 independent framing shutters
Control
Control Modes: DMX, Auto-Running, Master-Slave, Sound Control
DMX Channels: 22/26CH; manual also includes Std. 33CH channel mapping
DMX Input/Output: Standard 3-pin / 5-pin XLR sockets
Display: LCD touch screen + physical buttons
Menu Language: Chinese / English
Display Rotation: 180° auto-rotation
Signal Protection: Built-in signal isolation protection
Movement
Pan Movement: 540°, 16-bit
Tilt Movement: 270°, 16-bit
Cooling & Protection
Cooling System: Intelligent fan control
Working Temperature: -20°C to 40°C
Protection Grade: IP20
Housing and Dimensions
Product Size: 348 × 255 × 655 mm
Net Weight: 17 kg
FAQ
Q: What is the F18 400W LED BSWF moving head light used for?
A:The F18 is designed for professional stage lighting, concert lighting, theater lights, club lights, church stage lighting, rental productions, and live event lighting.
Q: What does BSWF mean?
A:BSWF means Beam, Spot, Wash, and Framing. The F18 combines these four major stage lighting functions in one moving head light.
Q: Is the F18 suitable for professional moving head lights setups?
A:Yes. With a 400W LED source, CMY/CTO color mixing, gobos, prism effects, framing shutters, zoom, frost, and DMX control, it is built for professional moving head lights applications.
Q: What beam angles does the F18 support?
A:The F18 supports 2° beam mode, 4°–52° spot mode, and 2°–46° wash mode, making it flexible for beam effects, gobo projection, and wide wash coverage.
Q: Does the F18 have gobo light effects?
A:Yes. It includes a fixed gobo wheel with 9 gobos plus white and a rotating gobo wheel with 5 gobos plus white. The gobos support shake, rotation, and bi-directional scrolling effects.
Q: Does this LED moving head light support DMX control?
A:Yes. The F18 supports DMX control and includes standard 3-pin and 5-pin XLR input/output sockets for professional DMX lights systems.
Q: Can the F18 be used as a wash light?
A:Yes. The 2°–46° wash mode provides wide and smooth color coverage for stage backgrounds, live events, theaters, and indoor venues.
Q: Does the F18 include a framing system?
A:Yes. It features 8 independent framing shutters that can shape the beam into triangles, diamonds, rectangles, and other custom forms.
Q: What is the difference between beam, spot, wash, and framing?
A:Beam mode creates narrow aerial beams, spot mode supports focused projection and gobos, wash mode creates wider color coverage, and framing allows the beam to be shaped with shutters.
Q: Can the F18 be used with other DMX lights?
A:Yes. The F18 uses standard DMX control and 3-pin / 5-pin XLR connections, making it suitable for integration with other DMX lights and stage lighting equipment.
Q: Is the F18 suitable for rental companies?
A:Yes. Its 400W LED output, BSWF 4-in-1 design, DMX control, compact body, and multiple effects make it a practical choice for rental events, touring shows, and production companies.
Q: Is the F18 suitable for outdoor use?
A:The F18 is rated IP20, so it is designed for indoor use. For outdoor shows, it should only be used with proper weather protection.
Q: What is the product size and weight?
A:The F18 measures 348 × 255 × 655 mm and weighs 17 kg.
