F21 DMX CMY Framing LED Moving Head Profile Light 600W for Stages
Regular price
$1,800.00
Sale price
$1,800.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × F21 600W LED Moving Head Profile Light
- 1 × Power Cable
- 1 × Mounting Hardware Set
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$1,800.00
<
Powerful 600W LED Output
The F21 uses a high-brightness 600W white LED to deliver strong, defined output for professional moving head lights, long-throw stage applications, and large performance spaces. With 700W total power, it provides the intensity needed for concert lights, theater productions, touring events, and broadcast environments. Approximately 90% beam uniformity reduces visible hot spots for balanced illumination, while the 20,000-hour LED lifespan lowers lamp replacement frequency and ongoing maintenance requirements. The LED source automatically switches off when the dimmer is closed, reducing unnecessary energy consumption and heat.
Beam, Spot, and Wash Flexibility
Motorized 3°–40° Zoom: Creates a narrow moving head beam, focused moving head spot, or wider profile and wash light.
Smooth Linear Zoom: DMX-controlled zoom suits different stage sizes, trim heights, and projection distances.
High-Definition Focus: Motorized linear focus keeps gobo patterns and framing edges sharp from approximately 2 meters to infinity.
Fine Focus Adjustment: Fine-tuning enables precise detailed projections, scenic textures, and framing applications.
Adjustable Frost Filter: The built-in frost system produces smooth wash effects, scenic illumination, and diffused LED stage lighting.
CMY Color Mixing and CTO Adjustment
Infinite CMY Mixing: Cyan, magenta, and yellow create smooth transitions for concert lighting, theater scenes, and programmed productions.
Linear CTO Control: Adjusts white-light color temperature from 3000K to 6500K for warm tones, neutral white, or cooler concert stage lighting.
Dual Color Wheels: Two color wheels each offer four colors plus open white for fast selection and creative combinations.
Split-Color Effects: Positionable color filters create half-color projections and divided multicolor beams.
Bidirectional Rainbow Rotation: Variable-speed color-wheel rotation creates smooth rainbow effects and dynamic color chases.
Framing, Gobos, Prism, and Optical Effects
Four-Blade Framing System: Four adjustable angled blades create rectangles, squares, triangles, and custom projection areas.
150° Framing Rotation: The framing module rotates 150° for angled shapes without repositioning the moving head light.
Dual Gobo Wheels: The fixed wheel has 11 gobos, a fire effect, and open white; the rotating wheel has six replaceable gobos, a water effect, and open white.
Rotating 8-Facet Prism: Bidirectional rotation and adjustable speed create layered aerial patterns for concerts and live events.
Smooth Iris and Frost: The motorized iris adjusts from approximately 5% to 100%, while frost softens projections into wash effects.
Precise Movement and Professional Control
Accurate Pan and Tilt: Provides 540° pan and 270° tilt with 16-bit resolution for smooth, repeatable movement.
Automatic Position Correction: Restores the programmed position after unexpected movement or positioning errors.
35-Channel DMX512 Mode: Controls movement, color, gobos, zoom, focus, prism, frost, framing, iris, dimming, and reset.
Flexible Operating Modes: DMX512, automatic, sound-activated, and master/slave modes support console-controlled and standalone operation.
RDM and LCD Interface: RDM and the onboard LCD menu simplify addressing, configuration, diagnostics, program selection, and fixture resets.
Specs
General
Model: F21
Product Type: LED BSWF Framing Moving Head Light
DMX Channels: 35CH
Built-In Programs: Yes
Power & Light Source
Input Voltage: AC 100–240V
Input Frequency: 50/60Hz
Total Power: 700W
Light Source: 1 × 600W High-Brightness White LED
Light Source Lifespan: Up to 20,000 Hours
Optical System
Beam Uniformity: Approximately 90%
Beam Angle: 3°–40°
Zoom: Motorized Linear Zoom
Focus: DMX Linear High-Definition Focus
Focus Range: Approximately 2 Meters to Infinity
Focus Fine-Tuning: DMX Fine-Focus Control
Frost: Motorized Adjustable Frost Filter
Iris/Aperture: Approximately 5%–100% Smooth Adjustment
Color System
Color Mixing: Infinite CMY Color Mixing
CTO: Linear 3000K–6500K Adjustment
Color Wheel 1: 4 Colors Plus Open White
Color Wheel 2: 4 Colors Plus Open White
Color Effects: Split Color, Filter Positioning, and Bidirectional Rainbow Rotation
Gobos & Framing
Fixed Gobo Wheel: 11 Fixed Gobos, Fire Effect, and Open White
Fixed Gobo Effects: Gobo Shake and Pattern Effects
Rotating Gobo Wheel: 6 Replaceable Rotating Gobos, Water Effect, and Open White
Rotating Gobo Effects: Indexing, Positioning, Bidirectional Rotation, and Shake
Framing System: 4 Independently Adjustable Angled Shutter Blades
Framing Rotation: 150°
Prism, Dimmer & Strobe
Prism: 8-Facet Rotating Prism
Prism Effects: Bidirectional Rotation and Adjustable Speed
Dimmer: 0%–100% Linear Dimming
Strobe Rate: 1–25 Flashes per Second
Strobe Modes: Standard, Random, and Pulse Strobe
Control
Control Protocols: DMX512 and RDM
Operating Modes: DMX512, Automatic, Sound-Activated, and Master/Slave
Display: LCD Display
Console Functions: Address Setting, Program Control, Sound Mode, and Fixture Reset
Energy-Saving Function: LED Source Switches Off When the Dimmer Is Closed
Movement
Pan: 540°
Tilt: 270°
Movement Resolution: 16-Bit
Position Correction: Automatic Pan and Tilt Position Correction
Product Dimensions

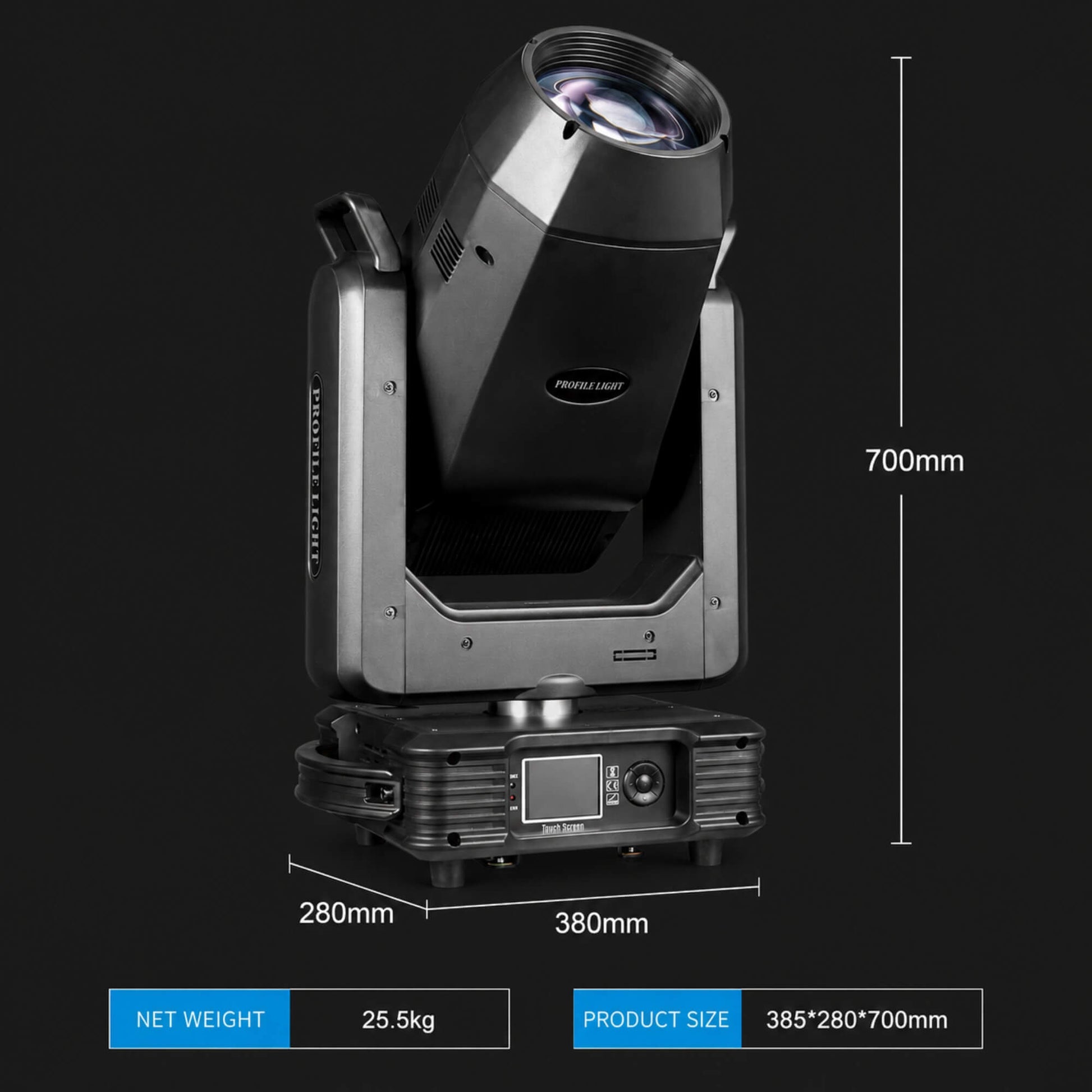

Product Dimensions: L385 × W280 × H700 mm
Net Weight: 25.5 kg
FAQ
Q: What type of stage light is the F21?
A:The F21 is a professional 600W LED moving head profile light that combines beam, spot, wash, framing, CMY color mixing, gobos, prism, frost, and iris functions.
Q: Can the F21 create beam, spot, and wash effects?
A:Yes. Its 3°–40° motorized zoom produces narrow moving head beam effects, defined moving head spot projections, and wider stage coverage. The frost filter can soften the output for wash effects.
Q: How does a profile light differ from a standard moving head spot?
A:A profile light includes framing shutters that can shape and crop the beam. A standard moving head spot generally produces a circular beam and cannot isolate scenic areas with the same precision.
Q: Can the F21 create custom beam shapes?
A:Yes. Four independently adjustable framing blades can create rectangles, squares, triangles, angled forms, and other custom shapes. The framing module also rotates through 150°.
Q: Does the F21 support CMY color mixing?
A:Yes. It includes continuous CMY color mixing and linear CTO adjustment from 3000K to 6500K, along with two color wheels for fast color changes and split-color effects.
Q: What is the F21 zoom range?
A:The motorized zoom adjusts from 3° to 40°, allowing the fixture to cover narrow long-throw applications as well as wider stage areas.
Q: How many gobos are included?
A:According to the supplied commercial specifications, the fixed gobo wheel includes 11 gobos, a fire effect, and open white. The rotating wheel includes six replaceable gobos, a water effect, and open white.
Q: Can the rotating gobos be positioned?
A:Yes. The rotating gobos support indexing, individual positioning, bidirectional rotation, variable speed, and shake effects.
Q: Does the F21 support DMX512 and RDM?
A:Yes. The fixture provides a 35-channel DMX512 control mode and supports RDM for compatible remote addressing and fixture management.
Q: Can the F21 operate without a DMX console?
A:Yes. Automatic, sound-activated, and master/slave modes allow the fixture to operate without a dedicated lighting console.
Q: What movement range does the F21 provide?
A:The fixture offers 540° pan and 270° tilt with 16-bit resolution and automatic position correction.
Q: What venues is the F21 suitable for?
A:The F21 is suitable for theaters, concert stages, performance halls, houses of worship, television studios, corporate events, rental productions, and other professional stage lighting applications.
Q: What is the focus range?
A:The electronic focus system can produce clear projection from approximately 2 meters to infinity, depending on the zoom angle, gobo, and installation conditions.
Q: Does the F21 include a frost filter?
A:Yes. The adjustable motorized frost filter softens the output for smooth wash effects and diffused scenic lighting.
Q: What are the product dimensions and net weight?
A:The fixture measures L385 × W280 × H700 mm and has a net weight of 25.5 kg.
