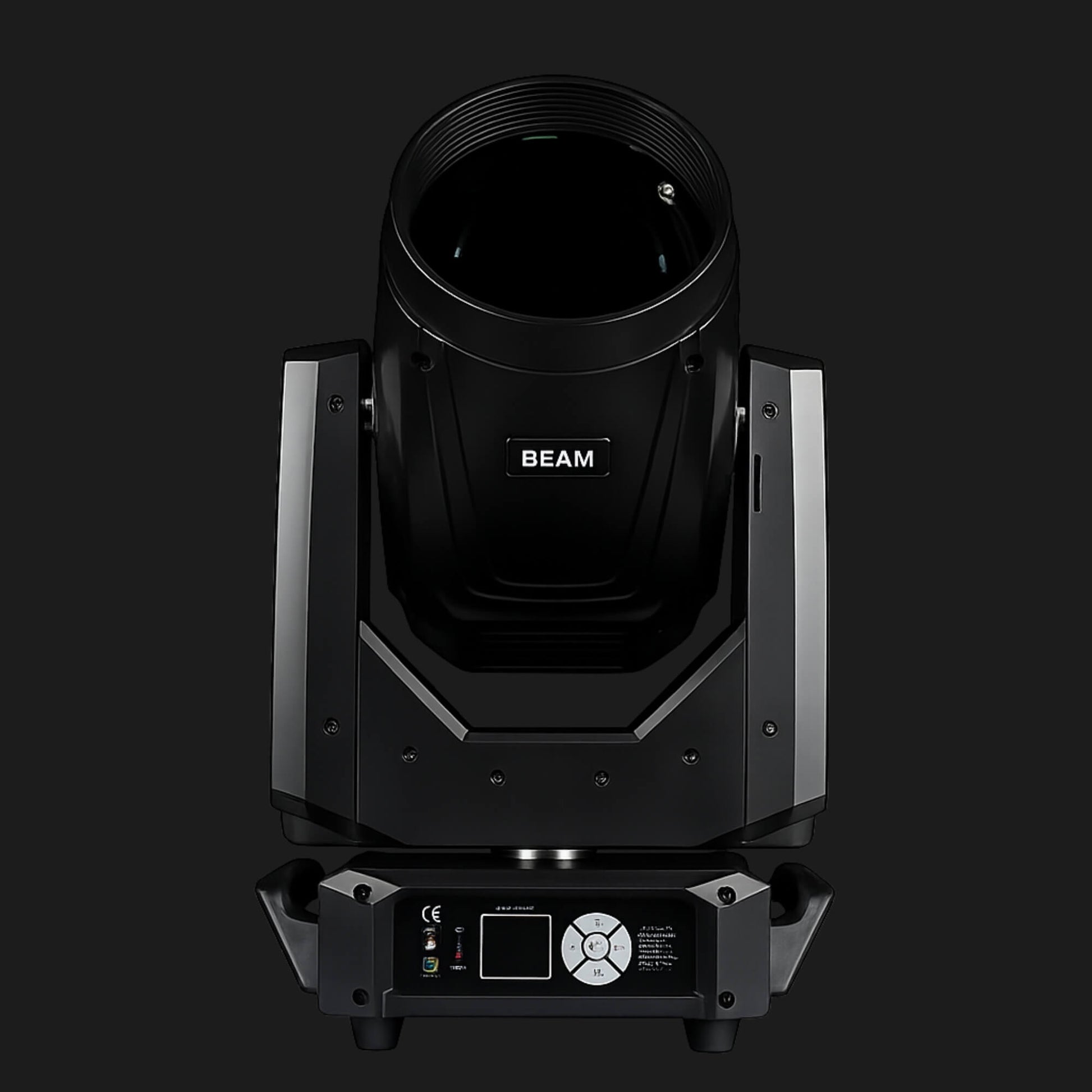

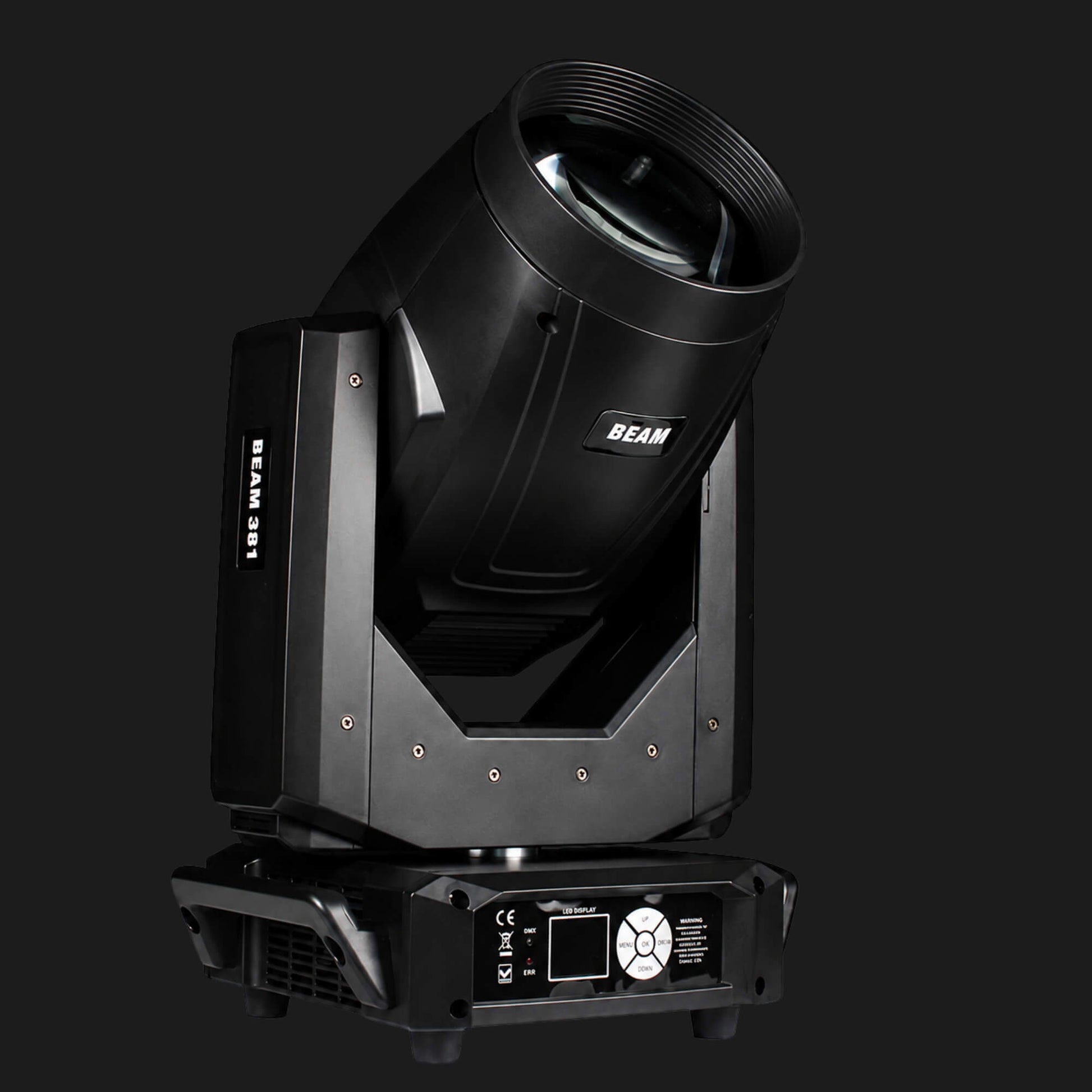

F22 DMX Dual-Prism Moving Head Beam Light 381W for Stage & Concerts
Regular price
$920.00
Sale price
$920.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × F22 381W Moving Head Beam Light
- 1 × Power Cable
- 2 × Omega Mounting Brackets
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$920.00
<
Powerful 381W Beam for Professional Stage Lighting
The 381W MSD light source delivers an intense, concentrated beam for professional stage lighting and large live productions. Its adjustable 0–3.9° narrow beam angle creates sharp aerial beams for concert stages, clubs, and event venues, while electronic focus provides accurate beam and gobo adjustment up to 20 meters. The 5600–8000K color temperature produces crisp white output with strong contrast in haze and fog, and the 165 mm optical aperture supports powerful projection and a bold professional appearance.
Rich Colors, Gobos, and Layered Effects
14-Color Wheel: Select 14 vivid colors plus open white for split-color looks, rapid transitions, and dynamic stage effects.
17-Gobo Wheel: Includes 17 gobos plus open white for textured beams, geometric patterns, and animated projections.
Advanced Gobo Effects: Gobo shake, continuous scrolling, adjustable speed, one-way movement, and positioning support flexible programming for moving head stage lights.
Rainbow Effect Wheel: A multicolor effect creates fast color changes and layered visuals for concert lights, DJ shows, and professional club lighting.
Frost Filter: The built-in frost effect softens the narrow beam for a wider, atmospheric lighting look.
Dual Rotating Prisms and High-Speed Effects
16-Facet Prism: The rotating 16-facet prism splits the beam into sharp rays for energetic aerial effects.
48-Facet Honeycomb Prism: The 48-facet honeycomb prism creates dense, wide-spread beam patterns for clubs, festivals, and concert lighting.
Bidirectional Prism Rotation: Both prisms support forward and reverse rotation, adjustable speed, and precise positioning.
Linear Dimming: Smooth 0–100% dimming provides controlled fades and accurate output for professional event lighting.
Advanced Strobe Modes: The adjustable 0.5–14 flashes-per-second strobe includes pulse, ramp, synchronized, asynchronous, and random effects.
Precise Movement and 18CH DMX Control
Three-Phase Motor System: High-precision motors provide responsive movement and accurate positioning for complex lighting programs.
16-Bit Pan Control: A 540° pan range with fine adjustment delivers smooth sweeps and precise horizontal beam placement.
16-Bit Tilt Control: A 280° tilt range with fine positioning and automatic correction maintains accurate alignment.
18CH DMX512: The 18-channel mode controls movement, dimming, strobe, colors, gobos, prisms, frost, electronic focus, lamp operation, and reset.

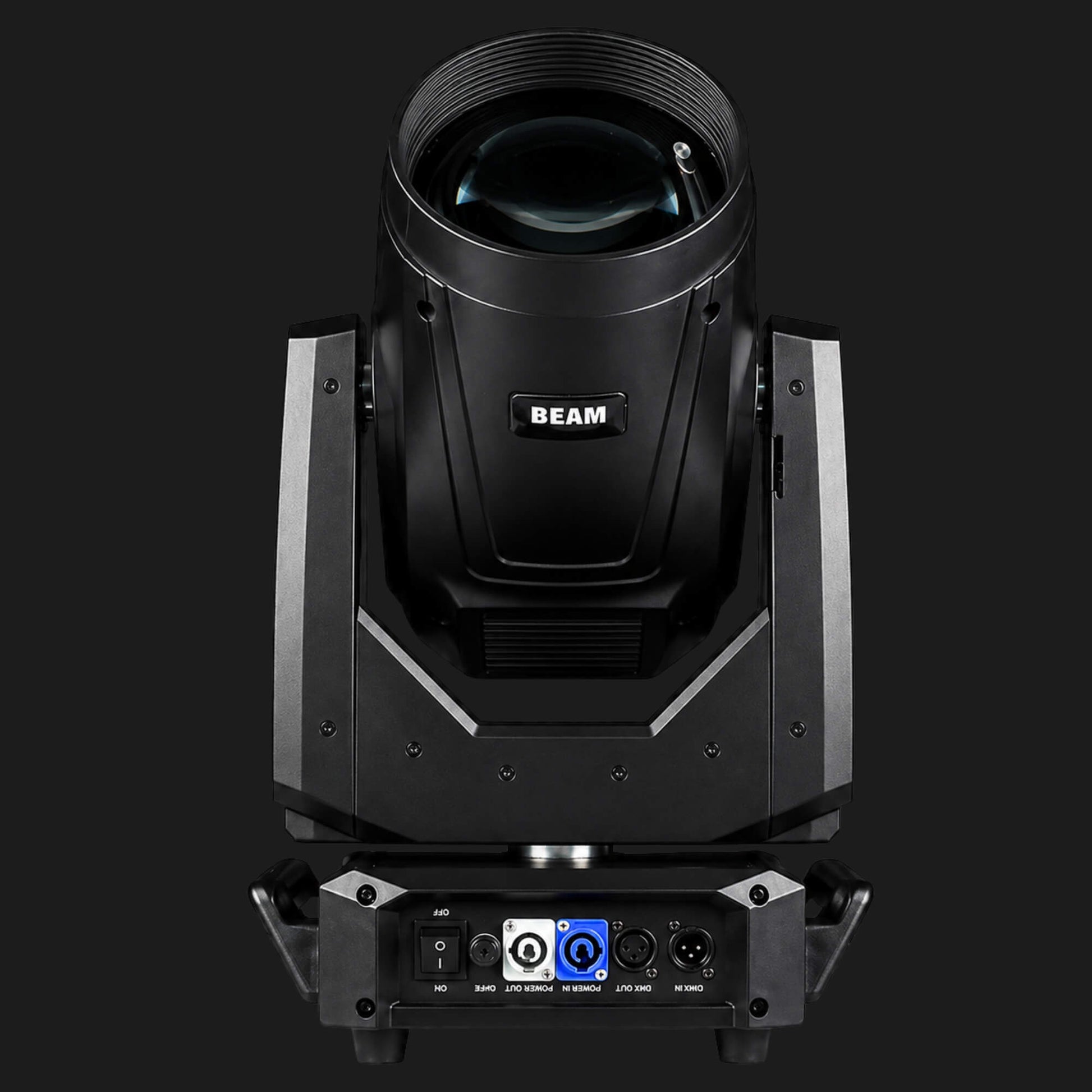

RDM and Dual XLR Connections: DMX512 with RDM, 3-pin XLR, and 5-pin XLR connections simplify integration with professional DMX moving head lights.
Flexible Operation for Stages, Clubs, and Events
Multiple Operating Modes: Use DMX Control, Auto Run, Sound Control, or Master/Slave mode for programmed or standalone operation.

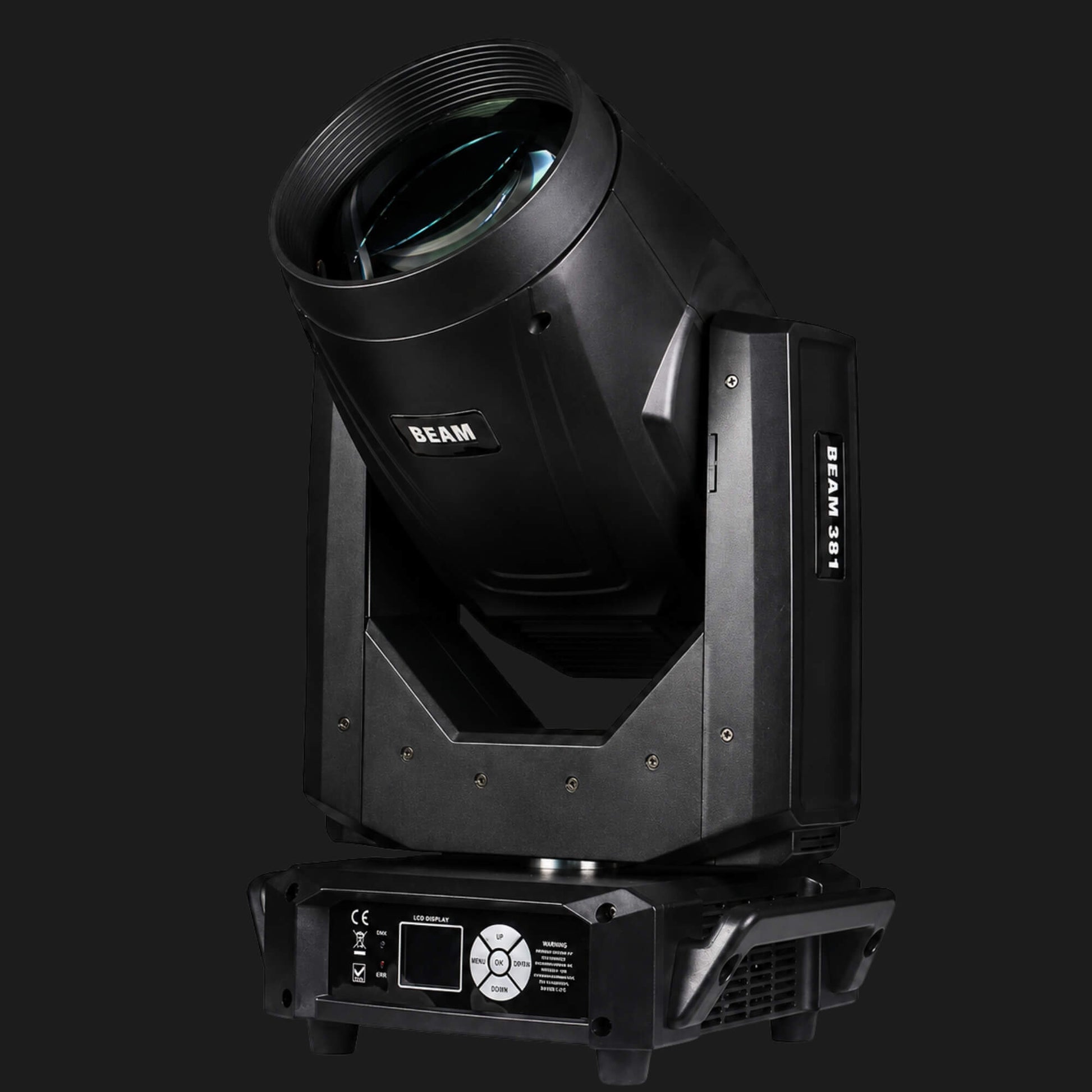

Bilingual LCD Display: The English and Simplified Chinese menu provides access to addressing, testing, display settings, and advanced functions.
Manual Function Testing: Pan, tilt, focus, color, gobo, prism, frost, and strobe can be tested through the fixture menu.
Thermal Protection: Built-in temperature protection safeguards the fixture during demanding shows and extended operation.

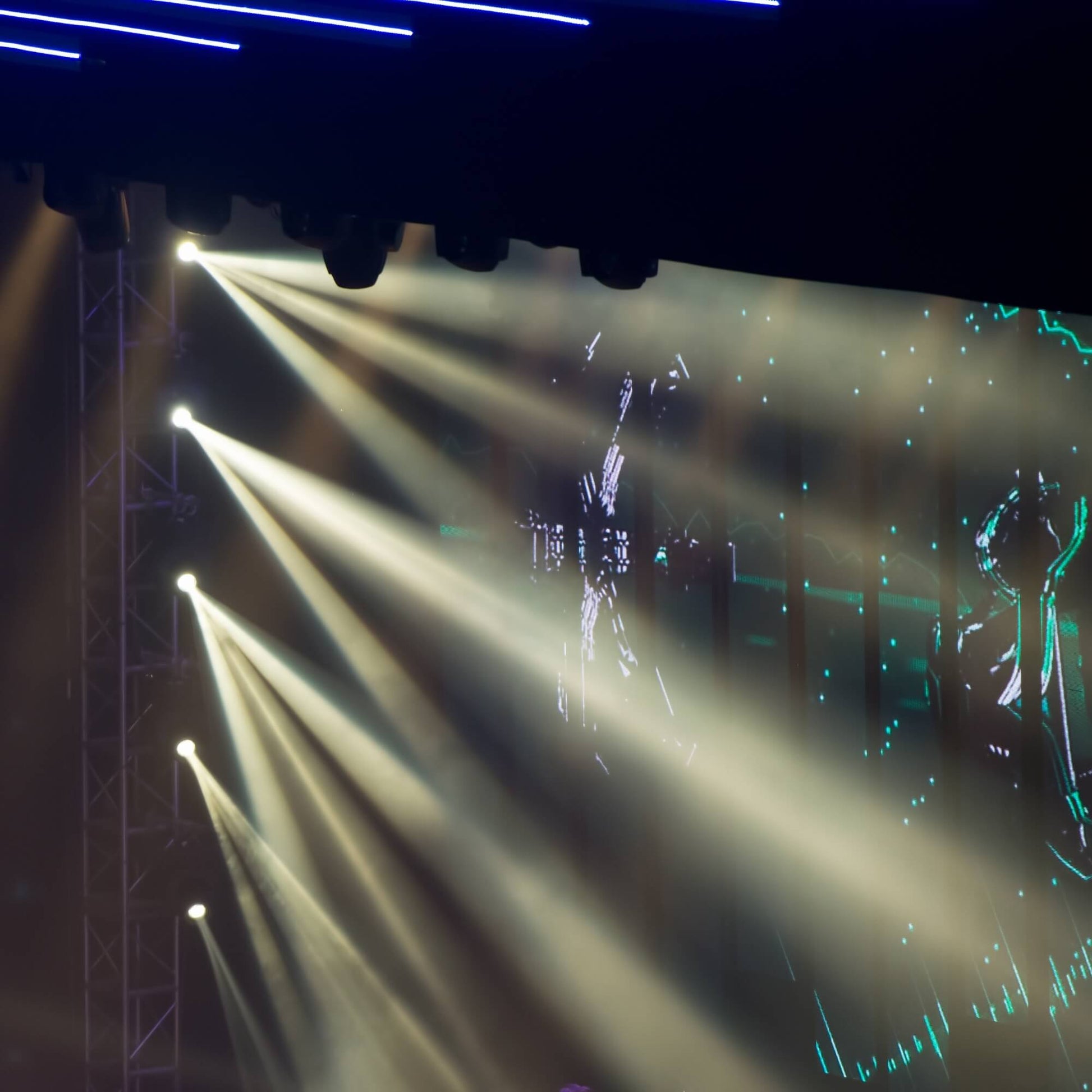

Wide Application Range: The F22 suits concert lighting, DJ stages, professional club lighting, church stage lighting, theaters, festivals, touring shows, and rental events.
Specs
General
Model: F22
Product Type: Professional Moving Head Beam Light
DMX Channels: 18CH
Control Protocol: DMX512 with RDM
Operating Modes: DMX, Auto Run, Sound Control, and Master/Slave
DMX Connections: 3-Pin and 5-Pin XLR Input/Output
Power & Light Source
Input Voltage: AC 90–220V
Frequency: 50/60 Hz
Fixture Rated Power: 500W
Light Source: 381W MSD Lamp
Color Temperature: 5600–8000K
Protection: Thermal Protection
Optical System
Output Aperture: 165 mm
Beam Angle: 0–3.9°
Focus: Electronic Focus up to 20 m
Additional Effects: Rainbow Effect Wheel and Frost Filter
Color & Gobo System
Color Wheel: 14 Colors Plus Open White
Gobo Wheel: 17 Gobos Plus Open White
Gobo Effects: Shake, Scrolling, Adjustable Speed, One-Way Movement, and Positioning
Prism System
Prism 1: 16-Facet Rotating Prism
Prism 2: 48-Facet Honeycomb Rotating Prism
Prism Control: Bidirectional Rotation, Adjustable Speed, and Positioning
Dimmer & Strobe
Dimmer: 0–100% Linear Dimming
Strobe Speed: 0.5–14 Flashes per Second
Strobe Modes: Pulse, Ramp, Synchronized, Asynchronous, and Random
Movement
Pan Range: 540° with 16-Bit Fine Control
Tilt Range: 280° with 16-Bit Fine Control
Position Correction: Automatic Pan and Tilt Correction
Motor System: Three-Phase Motors with Precise Positioning
Display & Control
Display: LCD Menu in English and Simplified Chinese
Control Protocol: DMX512 with RDM
Operating Modes: DMX, Auto Run, Sound Control, and Master/Slave
DMX Connections: 3-Pin and 5-Pin XLR Input/Output

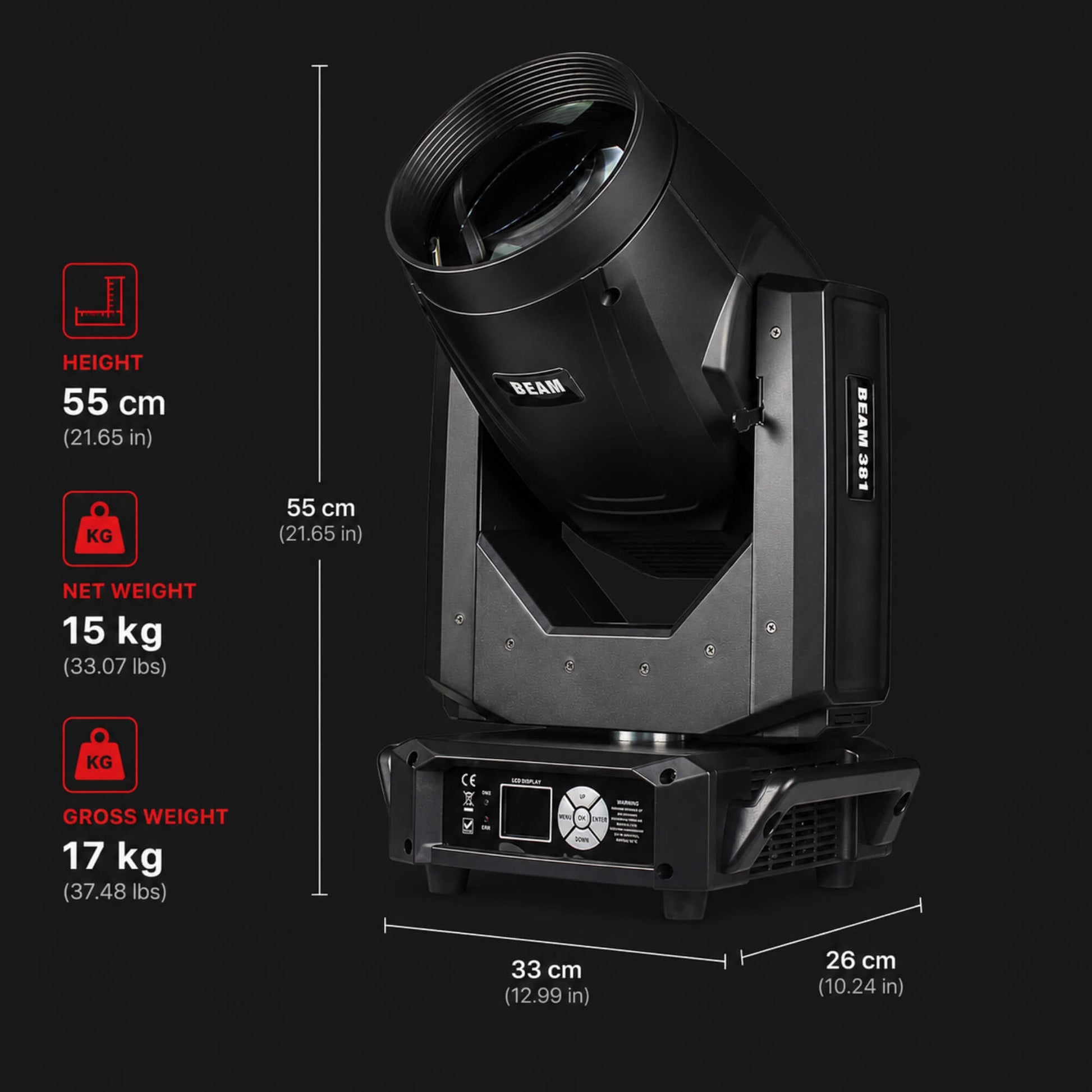

Product Dimensions
Product Size: 330 × 260 × 550 mm
Net Weight: 15 kg
Packaging
Package Size: 580 × 460 × 420 mm
Gross Weight: 17 kg
FAQ
Q: What type of stage light is the F22?
A:The F22 is a professional moving head beam light designed to create narrow, high-intensity aerial effects for concerts, clubs, theaters, houses of worship, and live events.
Q: What is the difference between the 381W light source and 500W rated power?
A:The fixture uses a 381W MSD lamp as its light source. The 500W rated power represents the approximate total power consumption of the complete fixture, including the lamp, motors, cooling system, electronics, and control components.
Q: What is the beam angle of the F22?
A:The optical system provides an adjustable 0–3.9° beam angle. This narrow output creates concentrated beams suitable for professional concert lighting and large-stage effects.
Q: Does the F22 have electronic focus?
A:Yes. Electronic focus can be adjusted through DMX or the onboard control menu and is designed to provide clear beam and gobo projection at distances of up to 20 meters.
Q: How many colors and gobos are included?
A:The F22 includes 14 colors plus open white and 17 gobos plus open white. The gobo system also supports shake, scrolling, adjustable speed, and positioning.
Q: What prism effects are available?
A:The fixture includes a rotating 16-facet prism and a 48-facet honeycomb prism. Both support forward and reverse rotation, speed adjustment, and positioning.
Q: Can both prisms be controlled through DMX?
A:Yes. Prism selection, insertion, rotation direction, rotation speed, and positioning can be managed through the 18-channel DMX mode.
Q: Can the F22 operate without a DMX controller?
A:Yes. Auto Run, Sound Control, and Master/Slave modes allow the fixture to operate without an external DMX lighting console.
Q: Does the F22 support professional DMX systems?
A:Yes. The fixture supports DMX512 with RDM and includes both 3-pin and 5-pin XLR signal connections.
Q: How precise is the movement?
A:The F22 provides 540° pan and 280° tilt with 16-bit fine adjustment. Its motor system and automatic correction function help maintain accurate positioning.
Q: Does the F22 require haze or fog?
A:The fixture can operate without haze or fog, but a properly controlled haze or fog effect makes its narrow aerial beams, gobos, and prism patterns much more visible.
Q: Is the F22 suitable for DJ and club lighting?
A:Yes. Its sound-activated mode, fast movement, vivid colors, gobos, strobe, and dual-prism effects make it suitable for DJs, clubs, and entertainment venues.
Q: Can the F22 be used for church stage lighting?
A:Yes. It can be used for worship concerts, youth programs, holiday productions, and other large church events that require high-impact moving beam effects.
Q: What maintenance does the fixture require?
A:Regularly clean the optical lens, cooling fans, air filters, and ventilation areas. Keep the fixture dry, allow it to cool before servicing, and avoid using unsuitable solvents on the housing.
Q: What safety precautions should be followed during rigging?
A:Use a stable, load-rated mounting structure, suitable clamps, and an independent safety cable. Suspended installation should be completed by qualified personnel.
