M23 ILDA DMX RGB Moving Head Laser Light 10W for Stage Shows
Regular price
$620.00
Sale price
$620.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × M23 RGB Moving Head Laser Light
- 1 × Power Cable
- 1 × Mounting Bracket Set
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$620.00

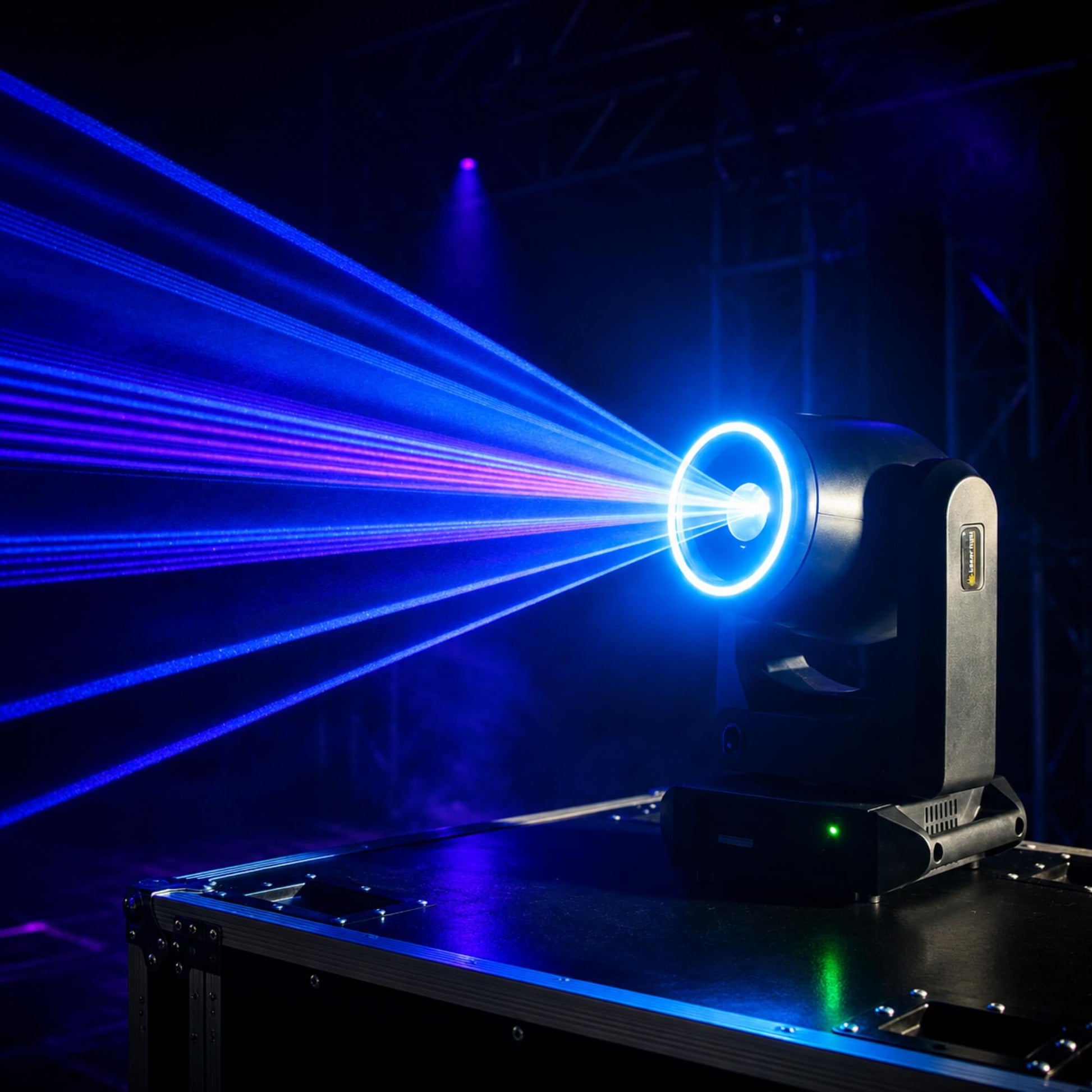

Full-Color RGB Laser Effects
The M23 moving head laser light delivers full-color RGB laser effects with vivid red, green, and blue laser output for stage lights, clubs, DJ events, and live shows. Available in 5W, 8W, and 10W power options, it creates clean aerial beams, animated patterns, and high-impact stage laser lights for different indoor venues and show sizes. With red 638±5nm, green 520±5nm, and blue 450±5nm wavelengths, it produces bright, balanced full-color laser effects for indoor stage lighting, DJ stage lights, bars, theaters, event halls, and professional club lighting installations.
20Kpps Scanning and Creative Laser Effects
High-Speed Scanner: A 20Kpps vibratory mirror scanning system creates smoother laser graphics, beam movement, and pattern transitions.
Wide Scan Angle: The ±20° scanning angle supports projection coverage for indoor stages, clubs, bars, and event spaces.
Pattern Control: Adjust pattern size, horizontal and vertical position, rotation, zooming, wave effects, strobe, and drawing speed.
Color Effects: Choose fixed color, color changing, color flowing, water-flow style effects, and gradual drawing effects for richer laser stage lighting.
Show Versatility: The M23 works as stage lighting equipment for DJs, clubs, theaters, bars, performance spaces, and event production teams.
ILDA, DMX, Music, and Auto Control
ILDA Control: Connect with compatible ILDA laser software for custom laser graphics, animations, logos, and programmed laser shows.
DMX-512 Ready: Works with standard DMX lighting consoles and integrates with DMX stage lights and larger lighting systems.
Flexible Channel Modes: Normal 29CH and Expert 46CH modes support simple or advanced programming control.
Music Control: Sound-activated operation reacts to live beats for DJ stage lighting and party environments.
Auto Programs: Built-in automatic programs speed setup for mobile DJs, small venues, club lights, and stage lighting equipment users.
Professional Moving Head Performance
Wide Pan Coverage: 540° X-axis movement gives this moving head stage light coverage across walls, ceilings, dance floors, and stage areas.
Smooth Tilt Control: 270° Y-axis movement creates sweeping effects for moving head lights, laser shows, and live performance scenes.
16-Bit Precision: Adjustable pan and tilt speed with 16-bit control supports smoother positioning and accurate beam movement.
Dynamic Motion Effects: The moving head design adds motion to stage lasers for energetic, immersive, visually layered shows.
Pro-Level Application: A strong choice for professional moving head lights for clubs, DJs, rental events, and live venues.
Reliable Indoor Stage Lighting Design
Wide Voltage Input: AC100V–230V ±10% supports different regions and professional stage lighting setups.
Efficient Operation: 150W max power consumption balances strong laser output with practical energy use.
Fan Cooling System: Built-in fan cooling helps manage heat during continuous indoor operation.
LCD Menu Control: The onboard LCD menu supports address setup, channel setup, laser setup, language selection, display rotation, and reset.
Professional Installation: Designed for trained users, stage lighting equipment suppliers, rental companies, DJs, and indoor venue operators.
Specs
Product Model
M23
Product Name
M23 RGB Moving Head Laser Light
Product Type
Moving head laser light / stage laser light
Rated Voltage
AC100V–230V ±10%
Rated Frequency
50Hz–60Hz
Power Consumption
150W max
Laser Power
5W / 8W / 10W
Laser Color
RGB
Laser Wavelength
Red 638±5nm, Green 520±5nm, Blue 450±5nm
Laser Modulation Signal
Analog modulation or TTL modulation
Scanning System
20Kpps vibratory mirror system
Scanning Angle
±20°
DMX Channels
29CH / 46CH
Control Modes
ILDA / DMX-512 / Music Control / Automatic
X-Axis Movement
540°, adjustable rotation speed, 16-bit
Y-Axis Movement
270°, adjustable rotation speed, 16-bit
Cooling System
Fan cooling
Operating Environment
Indoor use only
Display
LCD display
Menu Functions
Function mode, laser show, moving head show LED, play setup, address setup, channel setup, laser setup, moving head setup
LED Functions
LED brightness, LED effect, LED effect speed, LED strobe
Suitable Applications
Stage lights, DJ stage lights, club lighting, event lighting, indoor laser shows, rental lighting systems
FAQ
Q: What is the M23 RGB moving head laser light used for?
A:The M23 is designed for indoor stage lighting, DJ stage lights, club lighting, bars, theaters, event venues, live shows, and laser show installations.
Q: Does the M23 support DMX control?
A:Yes. The M23 supports DMX-512 control and includes Normal 29CH and Expert 46CH modes, making it suitable for DMX moving head lights setups and professional lighting consoles.
Q: Can I use ILDA software with this laser light?
A:Yes. The M23 supports ILDA control, allowing users to create custom laser graphics, animations, logos, and programmed stage laser lights effects.
Q: What laser colors does the M23 support?
A:This model uses RGB laser output with red 638±5nm, green 520±5nm, and blue 450±5nm for full-color laser effects.
Q: Is this fixture good for DJs and clubs?
A:Yes. The M23 works well for DJ stage lighting, professional club lighting, event production, and indoor party laser effects.
Q: What is the scanning speed?
A:The M23 uses a 20Kpps scanning system with a ±20° scanning angle for smooth patterns, beam movement, and animated laser effects.
Q: Is the M23 suitable for outdoor use?
A:No. This product is designed for indoor use only and should not be exposed to rain, moisture, or damp environments.
Q: Is this a good option for stage lighting equipment suppliers?
A:Yes. Its ILDA control, DMX-512 compatibility, 29CH / 46CH modes, RGB laser output, and moving head design make it a strong product for stage lighting equipment supplier catalogs and rental inventory.
Q: Is this moving head laser light good for mobile DJs?
A:Yes. The M23 is a strong option for mobile DJs because it includes music control, auto programs, RGB laser effects, and moving head motion for party and live music environments.
Q: Can this laser light be used for club lighting?
A:Yes. It is suitable for club lights, professional club lighting, bars, lounges, and indoor entertainment venues that need colorful laser beams and dynamic stage effects.
Q: What is ILDA control used for?
A:ILDA control allows users to connect compatible laser software for custom laser graphics, animations, logos, and programmed laser shows.
Q: What is the difference between 29CH and 46CH modes?
A:The 29CH mode is suitable for normal DMX control, while the 46CH expert mode gives advanced users more control over patterns, movement, LED effects, strobe, zooming, and positioning.
Q: Can I use multiple M23 laser lights together?
A:Yes. With DMX-512 address setup from 001 to 512, multiple fixtures can be integrated into a larger stage lighting system.
Q: Is this laser light suitable for beginners?
A:It can be used with auto mode and music mode for easier operation, but professional installation and safe laser operation are recommended.
Q: Does it work with other stage lighting equipment?
A:Yes. The M23 can be used alongside DMX stage lights, moving head stage lights, LED wash lights, laser lights, and other professional stage lighting equipment.
