MH-RGB1200W IP65 Outdoor RGB Moving Head Laser
Regular price
$7,250.00
Sale price
$7,250.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × MH-RGB1200W RGB Moving Head Laser Light
- 1 × Flight Case
- 1 × Power Adapter Cable
- 1 × Signal Adapter Cable
Services and Benefits
In Stock Fast Tax-Free Shipping
$7,250.00
RGB Moving Head Laser Light for Large Outdoor Projects
The StarshineLights MH-RGB1200W is an IP65 RGB moving head laser light for large outdoor projects, rooftop installations, city landmark buildings, festivals, and large-scale productions such as Burning Man. It features 70W red, 43W green, and 117W blue semiconductor laser sources, a 200mm optical system, and a narrow 0.3°–1.5° beam. With 540° pan, 260° tilt, 20CH DMX512 control, prism effects, linear dimming, and strobe up to 25Hz, it delivers programmed moving laser effects for demanding outdoor environments.
RGB Semiconductor Laser Output
70W Red Laser: Uses a 638nm semiconductor laser diode for red beam output.
43W Green Laser: A 525nm green laser source adds a distinct green component to RGB effects.
117W Blue Laser: The 445nm blue laser source provides the highest rated source power of the three colors.
RGB Color Mixing: Red, green, and blue channels combine to create mixed-color laser effects.
200mm Optical Diameter: A large optical system supports concentrated moving laser beam output.
0.3°–1.5° Narrow Beam with Prism Effects
Narrow Beam Optics: The 0.3°–1.5° beam angle produces concentrated laser effects for large-scale visual installations.
3-Prism Effect: Expands the beam into multiple visual paths.
8-Prism Effect: Creates denser multi-beam laser patterns.
Prism Rotation: DMX control allows animated prism movement.
0–100% Linear Dimming: Adjust laser intensity smoothly throughout the programmed range.
Professional 20CH DMX512 Control
20-Channel DMX Profile: Control movement, dimming, strobe, RGB output, zoom, prism, and related effects.
Independent RGB Channels: Dedicated red, green, and blue channels provide direct color control.
Built-In Color Effects: Fixed-color and rainbow-style color functions are included in the DMX map.
Reset Functions: Dedicated values provide XY, zoom/prism, and full-fixture reset.
Standalone Modes: DMX, Auto, and Music operating modes are available.
IP65 Protection for Outdoor Projects
IP65 Waterproof Rating: Built for outdoor installations exposed to rain, dust, and sand.
Large-Project Applications: Designed for rooftops, city landmarks, festivals, and large outdoor installations.
Liquid-Pipe Cooling: Advanced liquid-pipe heat dissipation manages fixture temperature.
Universal Power Input: Supports AC100–240V, 50/60Hz.
Flight Case Packaging: Supplied in a flight case for transport and project deployment.
Specs
General Specifications
Brand: StarshineLights
Model: MH-RGB1200W
Official Product Name: 1200W Moving Head RGB Laser Beam
Product Type: RGB Moving Head Laser Light
Light Source: Semiconductor laser diode
Color Mixing: RGB
IP Rating: IP65 waterproof
Power Consumption: 1200W
Cooling: Advanced liquid-pipe heat dissipation
Light Source Life: >20,000 hours
Laser & Optical Specifications
Red Laser: 70W / 638nm
Green Laser: 43W / 525nm
Blue Laser: 117W / 445nm
Optical Diameter: 200mm
Beam Angle: 0.3°–1.5°
Dimmer: 0–100% linear adjustment
Strobe: Up to 25Hz
Strobe Modes: Random strobe / Pulse strobe
Prism: 3-prism or 8-prism
Prism Rotation: Supported
Movement
Pan: 540°
Tilt: 260°
Pan Precision: 16-bit
Tilt Precision: 16-bit
Position Correction: Electronic error correction
XY Speed: Fast / Normal / Slow
X Reverse: Supported
Y Reverse: Supported
Control & Programming
Control Protocol: DMX512
DMX Channels: 20CH
Run Modes: DMX / Music / Auto
Built-In Scenes: Up to 10
Scene Stay Time: Adjustable
Independent RGB Control: Yes
Fixed Color Function: Yes
Rainbow Color Function: Yes
Pan/Tilt Fine Control: Yes
Reset Functions: XY / Zoom-Prism / Full Reset
Electrical
Power Supply: AC100–240V
Frequency: 50/60Hz
Power Consumption: 1200W
Grounding: Required
Physical

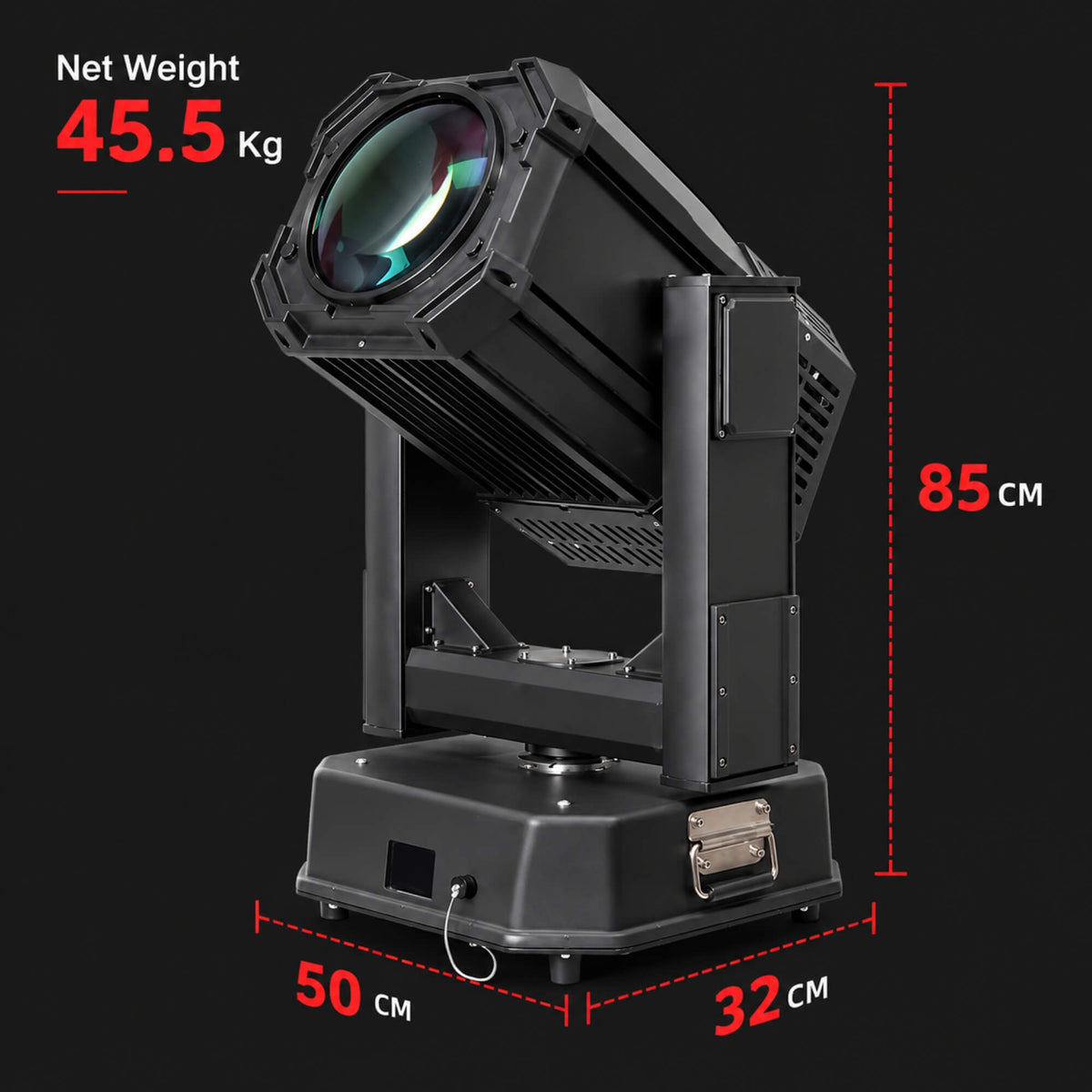

Product Size: 50 × 32 × 85cm
Net Weight: 45.5kg
IP Rating: IP65
Packaging
Packaging: Flight Case
Packaging Size: 88 × 50 × 65cm
Package Weight: 72.5kg
FAQ
Q: What is the StarshineLights MH-RGB1200W and who is it designed for?
A:The StarshineLights MH-RGB1200W is an IP65 RGB moving head laser light designed for large outdoor and architectural lighting projects. It combines 70W red, 43W green, and 117W blue semiconductor laser sources with a 0.3°–1.5° beam, motorized pan and tilt, prism effects, and 20CH DMX512 control. It is intended for project teams working on rooftops, landmark buildings, festivals, and other large outdoor productions.
Q: What outdoor projects is the MH-RGB1200W designed for?
A:The MH-RGB1200W is designed for large outdoor laser projects, including rooftop installations, city landmark buildings, architectural lighting projects, festivals, and large-scale productions such as Burning Man. Its IP65 enclosure, narrow RGB beam, moving-head positioning, and DMX512 control make it better aligned with large project installations than small indoor DJ or party-light applications.
Q: Can the MH-RGB1200W handle rain, dust, sand, and wind exposure?
A:The fixture has an IP65-rated enclosure for protection against dust and water exposure and is designed for outdoor projects where rain, dust, and sand may be present. Wind exposure is different: the current specifications do not provide a numerical wind-speed or wind-load rating. Rooftop and other exposed installations should use a professionally engineered mounting system appropriate to the actual site conditions.
Q: What kind of RGB laser beam and effects does it produce?
A:The MH-RGB1200W uses a 200mm optical system with a 0.3°–1.5° narrow beam angle. Its semiconductor laser sources are rated at 70W red / 638nm, 43W green / 525nm, and 117W blue / 445nm. It also supports RGB color mixing, 3-prism and 8-prism effects, prism rotation, 0–100% linear dimming, and strobe effects up to 25Hz.
Q: How can the MH-RGB1200W be controlled, and can it run without DMX?
A:The fixture supports 20CH DMX512 control for pan, tilt, movement speed, dimming, strobe, RGB channels, zoom, prism functions, and related effects. It can also operate without a DMX console using Auto or Music mode. The built-in programming system supports up to 10 scenes with adjustable stay times, giving users a standalone option when full console programming is not required.
Q: Does the MH-RGB1200W support ILDA, Art-Net, RDM, or wireless DMX?
A:The current MH-RGB1200W documentation confirms 20CH DMX512, Auto, and Music modes, but does not document ILDA, Art-Net, sACN, RDM, or wireless DMX support. Buyers who require those protocols should confirm compatibility before ordering rather than assuming they are included. This is especially important for installations that require laser-control software or network-based lighting control.
Q: What are the pan and tilt movement ranges?
A:The MH-RGB1200W provides 540° pan and 260° tilt with 16-bit precision scanning and electronic error correction. The fixture menu also provides Fast, Normal, and Slow XY movement-speed settings. This moving-head design allows the narrow RGB laser beam to be repositioned through programmed lighting cues rather than remaining fixed in one direction.
Q: Does 1200W mean the MH-RGB1200W has 1200W of laser output?
A:No. 1200W is the fixture's total power consumption, not its laser optical output. The RGB semiconductor laser sources are specified separately as 70W red at 638nm, 43W green at 525nm, and 117W blue at 445nm. Keeping these ratings separate avoids confusing electrical power consumption with the individual laser-source specifications.
Q: What should I consider before installing the MH-RGB1200W outdoors or on a rooftop?
A:The fixture weighs 45.5kg, so rooftop and exposed installations require secure professional mounting and appropriate structural support. It should be properly grounded and installed with at least 50cm clearance from adjacent surfaces. The manual also specifies operation at temperatures no higher than 40°C. For wind-exposed locations, the mounting system should be engineered for the actual site because no numerical wind-load rating is provided.
Q: How is the MH-RGB1200W transported?
A:The MH-RGB1200W is supplied in a flight case for project transport and storage. The fixture measures 50 × 32 × 85cm and weighs 45.5kg. The packed dimensions are 88 × 50 × 65cm with a total package weight of 72.5kg, so buyers should plan handling, vehicle space, and installation access accordingly.
Q: Does the MH-RGB1200W support audience scanning?
A:Audience-scanning capability and the fixture's laser safety class are not stated in the current documentation. Do not assume that the MH-RGB1200W is approved for audience scanning based only on its beam or DMX capabilities. For installations involving people, public spaces, festivals, or architectural sites, confirm the applicable laser-safety requirements and product documentation before programming or operation.
