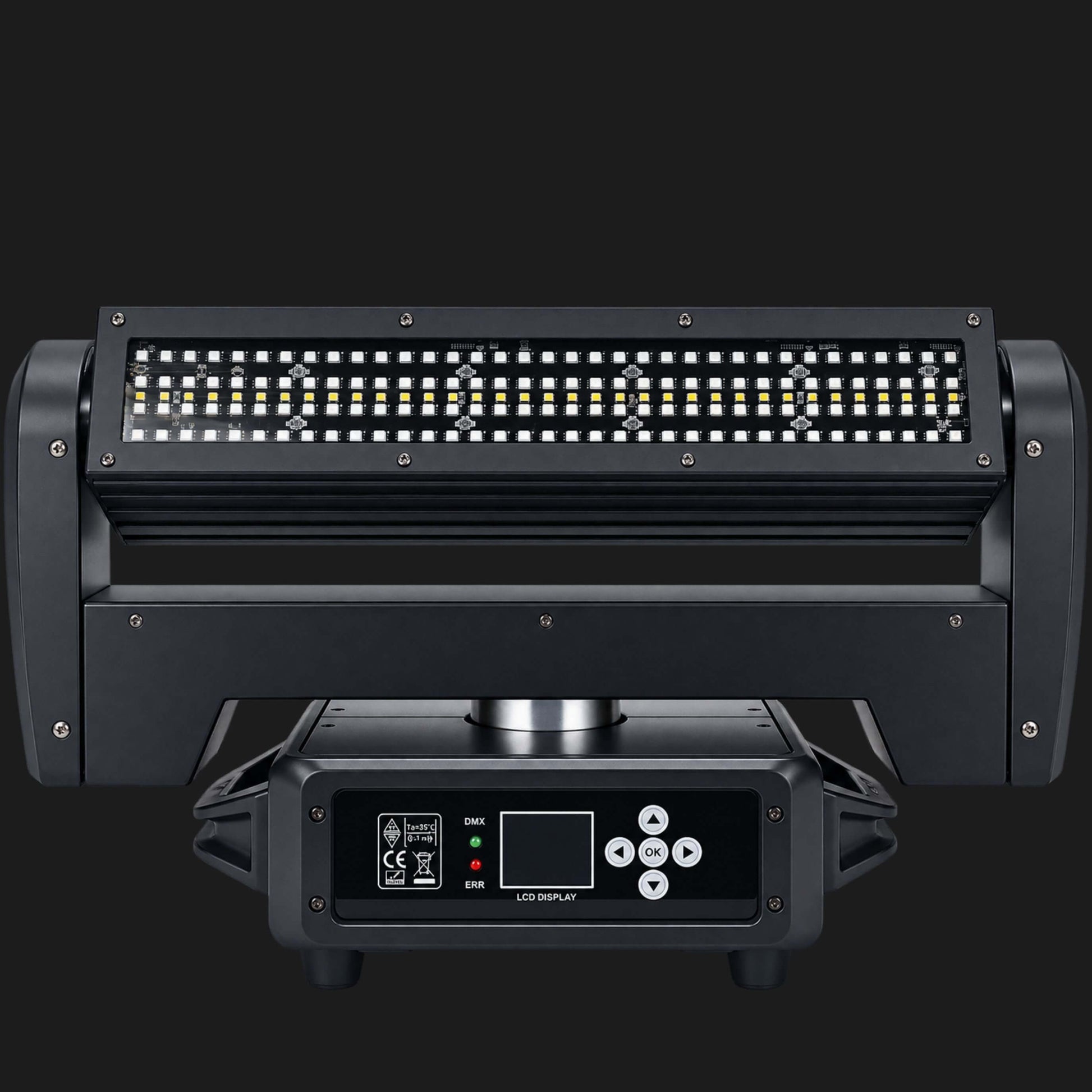

N6 Dual-Sided RGBW Beam Moving Head 6×40W with Pixel Control
Regular price
$560.00
Sale price
$560.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × N6 Dual-Sided RGBW Beam Moving Head
- 1 × Power Cable
- 1 × Safety Cable
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$560.00

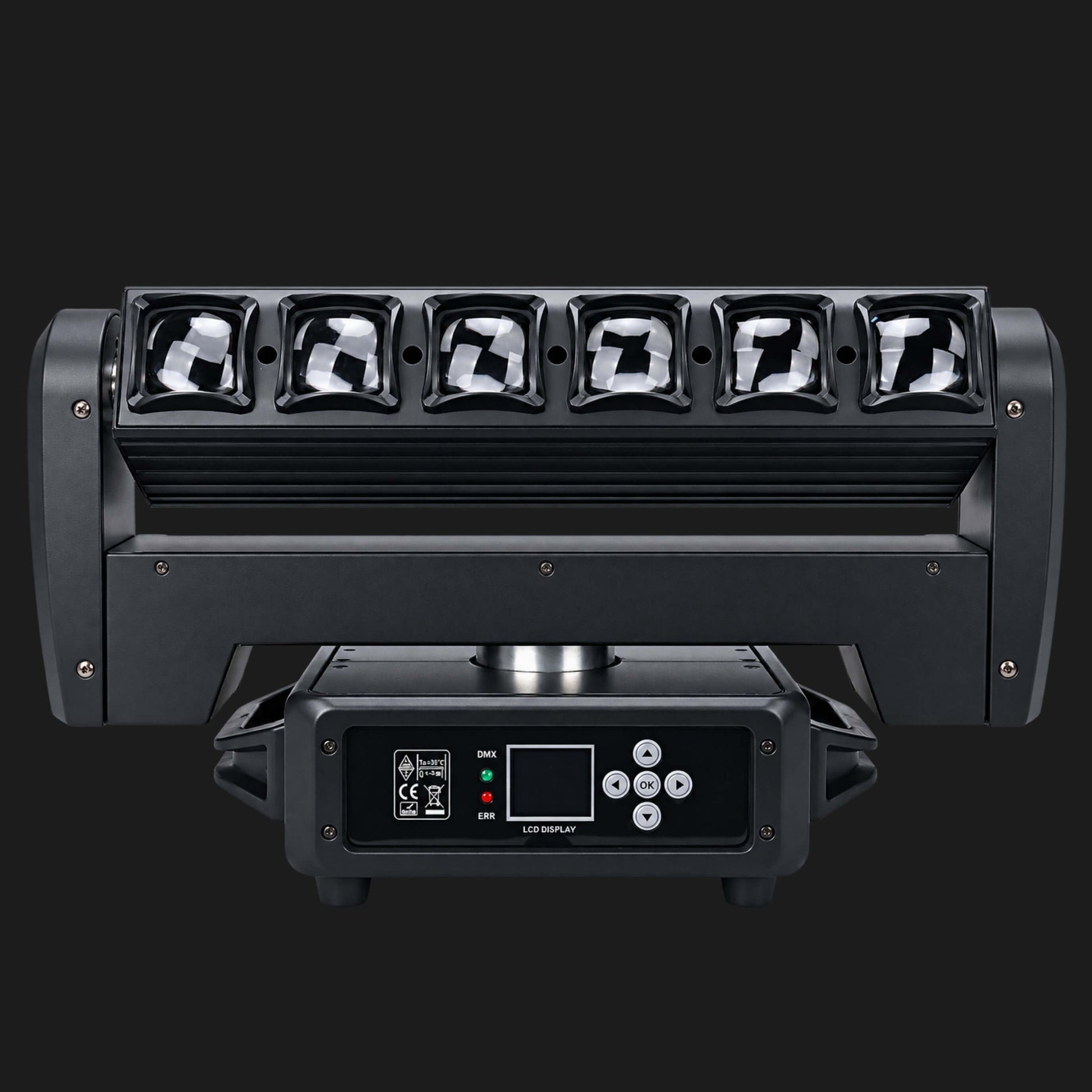

Dual-Sided RGBW Beams with Advanced Pixel Control
The StarshineLights N6 is a professional dual-sided RGBW beam moving head with six 40W RGBW 4-in-1 LEDs and narrow 3.5° optics for defined aerial beams. Independent main and secondary lighting layers create contrasting colors, strobes, scenes, and extended secondary-side pixel effects, while infinite pan and tilt deliver continuous kinetic movement. With 23CH, 28CH, and 63CH DMX profiles, the N6 supports both streamlined show control and detailed zone-level programming for clubs, touring productions, rental companies, and large entertainment venues.
6×40W RGBW Narrow Beam Output
6 × 40W RGBW LEDs: Six RGBW 4-in-1 LEDs deliver saturated colors and bright white output.

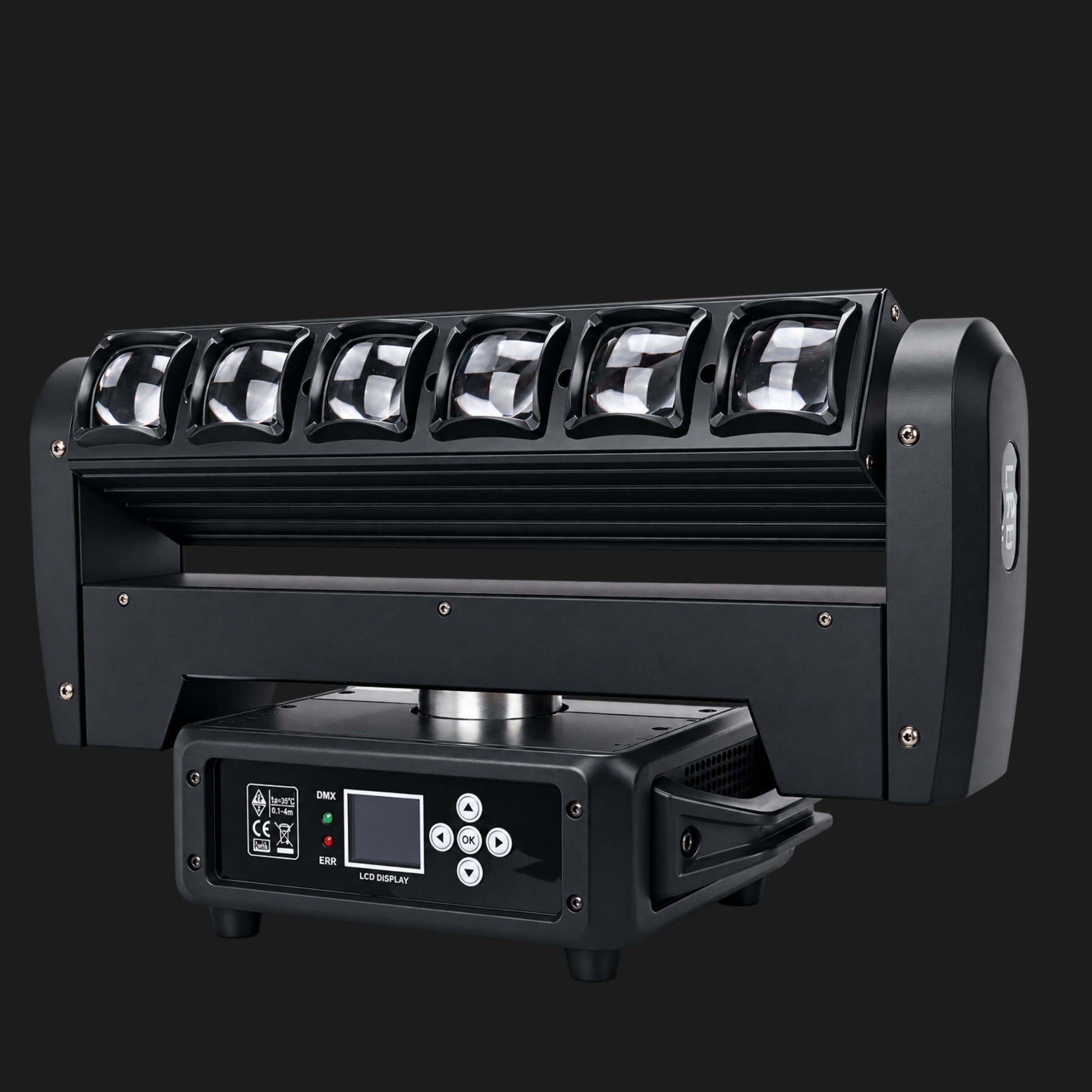

3.5° Narrow Beam: Concentrated optics create defined aerial beams for high-impact lighting effects.
RGBW Color Mixing: Independently control red, green, blue, and white for custom color combinations.
300W Rated Power: Built for professional entertainment and show-lighting applications.
Master Dimmer & Strobe: Control overall intensity and slow-to-fast strobe effects through DMX.
3.5° Narrow Beam: Concentrated optics create defined aerial beams for high-impact lighting effects.
RGBW Color Mixing: Independently control red, green, blue, and white for custom color combinations.
300W Rated Power: Built for professional entertainment and show-lighting applications.
Master Dimmer & Strobe: Control overall intensity and slow-to-fast strobe effects through DMX.
Dual-Sided RGBW Lighting Effects
Dual-Sided Output: Independent main and secondary lighting layers create layered visual effects.
Contrasting Colors: Program different colors across both lighting sections for more dimensional looks.
Independent Strobe Effects: Apply separate strobe effects to the main and secondary sides.
Background Color Control: Add background color and dimmer effects to programmed scenes.
Scene Macros: Built-in scene functions provide quick access to dynamic lighting looks.
Contrasting Colors: Program different colors across both lighting sections for more dimensional looks.
Independent Strobe Effects: Apply separate strobe effects to the main and secondary sides.
Background Color Control: Add background color and dimmer effects to programmed scenes.
Scene Macros: Built-in scene functions provide quick access to dynamic lighting looks.

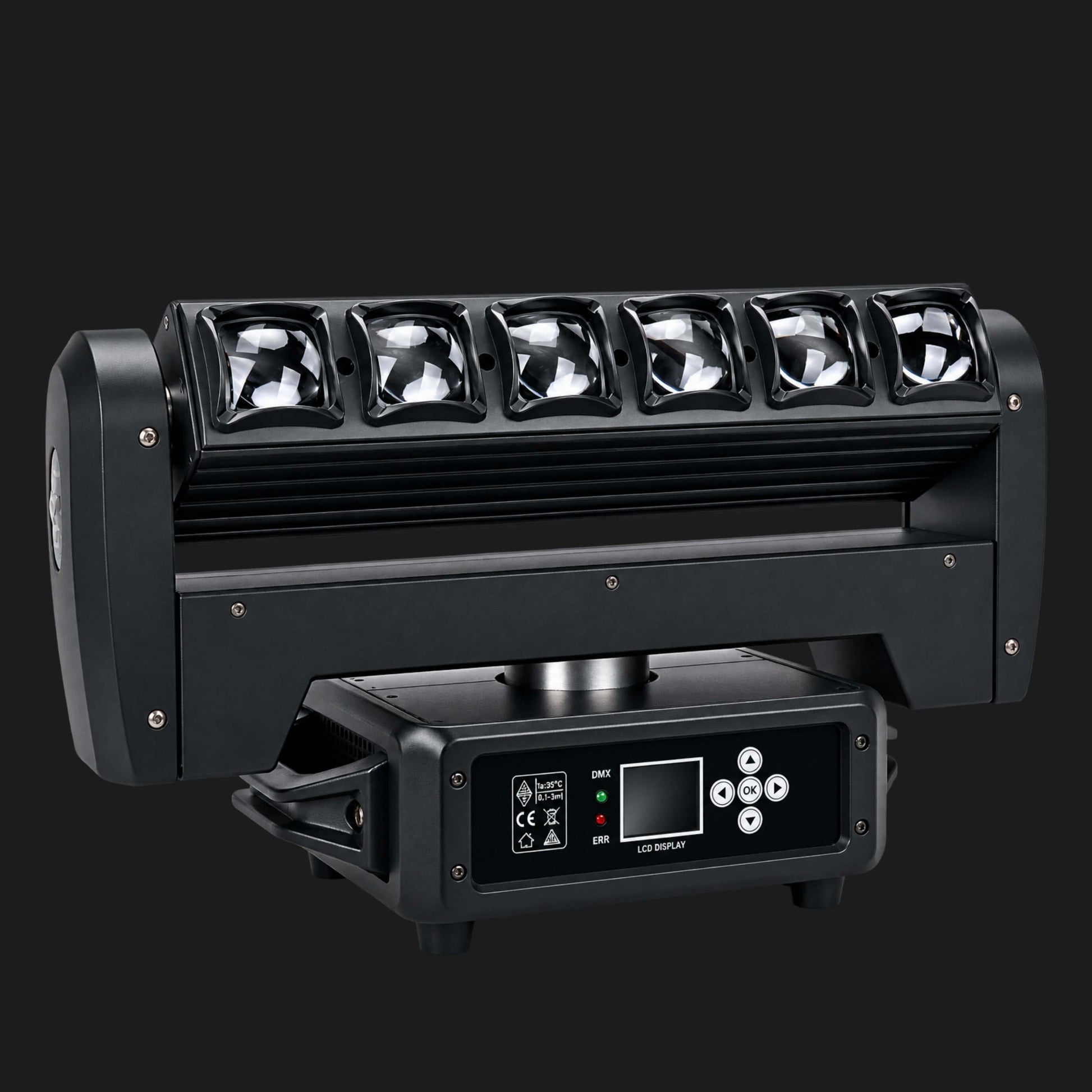

63CH Secondary-Side Pixel Control
Extended Pixel Programming: The 63CH profile adds detailed secondary-side RGB and white zone control.
10 RGB Zones: Program ten secondary-side RGB zones with sequential red, green, and blue control.
5 White Zones: Five independent white zones provide additional pixel and intensity effects.
Pixel Chase Effects: Build sequential color movement across the secondary lighting section.
Three DMX Profiles: Choose 23CH, 28CH, or 63CH according to the programming depth required.
10 RGB Zones: Program ten secondary-side RGB zones with sequential red, green, and blue control.
5 White Zones: Five independent white zones provide additional pixel and intensity effects.
Pixel Chase Effects: Build sequential color movement across the secondary lighting section.
Three DMX Profiles: Choose 23CH, 28CH, or 63CH according to the programming depth required.
Professional DMX512 Control
23CH / 28CH / 63CH Profiles: Select streamlined show control or extended zone-level programming.
DMX512 Integration: Connect the N6 to professional lighting consoles and show-control systems.
3-Pin + 5-Pin XLR: Supports both common professional DMX connection formats.
Standalone Modes: Automatic, Sound-Active, and Master/Slave operation work without a dedicated controller.
TFT Display: The onboard display supports a 180° orientation flip for easier suspended setup.
DMX512 Integration: Connect the N6 to professional lighting consoles and show-control systems.
3-Pin + 5-Pin XLR: Supports both common professional DMX connection formats.
Standalone Modes: Automatic, Sound-Active, and Master/Slave operation work without a dedicated controller.
TFT Display: The onboard display supports a 180° orientation flip for easier suspended setup.
Specs
Brand
StarshineLights
Model
N6
Product Type
Dual-Sided RGBW Beam Moving Head
Fixture Style
Dual-Sided Blade Moving Head
Rated Power
300W
Ingress Protection
IP20
Intended Environment
Dry indoor use
Applications
Clubs, touring productions, rental companies, and large entertainment venues
Light Source
6 × 40W RGBW 4-in-1 LEDs
Color System
RGBW
Beam Angle
3.5°
Main Color Control
Red, Green, Blue, White
Main Effects
Beam, dimming, strobe, color, background color, scenes
Secondary Effects
Color, strobe, background, scenes, extended pixel effects
Pan
Infinite rotation
Tilt
Infinite rotation
Positioning Resolution
8-bit / 16-bit
Continuous Rotation
Pan and Tilt
Control Protocol
DMX512
DMX Profiles
23CH / 28CH / 63CH
Operating Modes
DMX512, Master/Slave, Automatic, Sound-Active
Extended Pixel Programming
63CH mode
Secondary RGB Zones
10 zones
Secondary White Zones
5 zones
Scene Functions
Main and secondary scene macros
Strobe
Main and secondary strobe functions
Reset
DMX-controlled reset
Display
TFT display
Display Orientation
180° flip
DMX Data
3-pin and 5-pin XLR input/output
Power Input
PowerCON input
Input Voltage
AC 100–240V
Frequency
50/60Hz
Fixture Dimensions
640 × 210 × 400 mm
Net Weight
17.5 kg
IP Rating
IP20 – indoor use only
Carton Packing
735 × 505 × 300 mm / 23 kg / 1 fixture
Flight Case Packing
720 × 640 × 600 mm / 70.5 kg / 2 fixtures
FAQ
Q: What is the StarshineLights N6 and who is it designed for?
A:The StarshineLights N6 is a dual-sided RGBW beam moving head with six 40W RGBW LEDs, 3.5° narrow-beam optics, infinite pan/tilt rotation, and 23CH, 28CH, or 63CH DMX control. It is designed for clubs, touring productions, rental companies, and large entertainment venues that need dynamic beam, movement, color, scene, and pixel effects.
Q: Is the N6 a beam moving head light?
A:Yes. The N6 uses 3.5° narrow-beam optics to produce concentrated RGBW aerial beams rather than a wide wash. Its narrow output can be combined with continuous pan and tilt movement for sweeping and kinetic beam effects.
Q: What does the dual-sided design do?
A:The N6 combines a main 6 × 40W RGBW beam section with a separately controlled secondary lighting section. This lets lighting designers build layered looks using different colors, strobes, backgrounds, scenes, and secondary-side pixel effects.
Q: What kind of output can the 6 × 40W RGBW LEDs create?
A:The main section uses six 40W RGBW 4-in-1 LEDs with independent red, green, blue, and white control. Together with the 3.5° optics, they create narrow colored and white beams for aerial effects, movement sequences, strobes, and programmed stage looks.

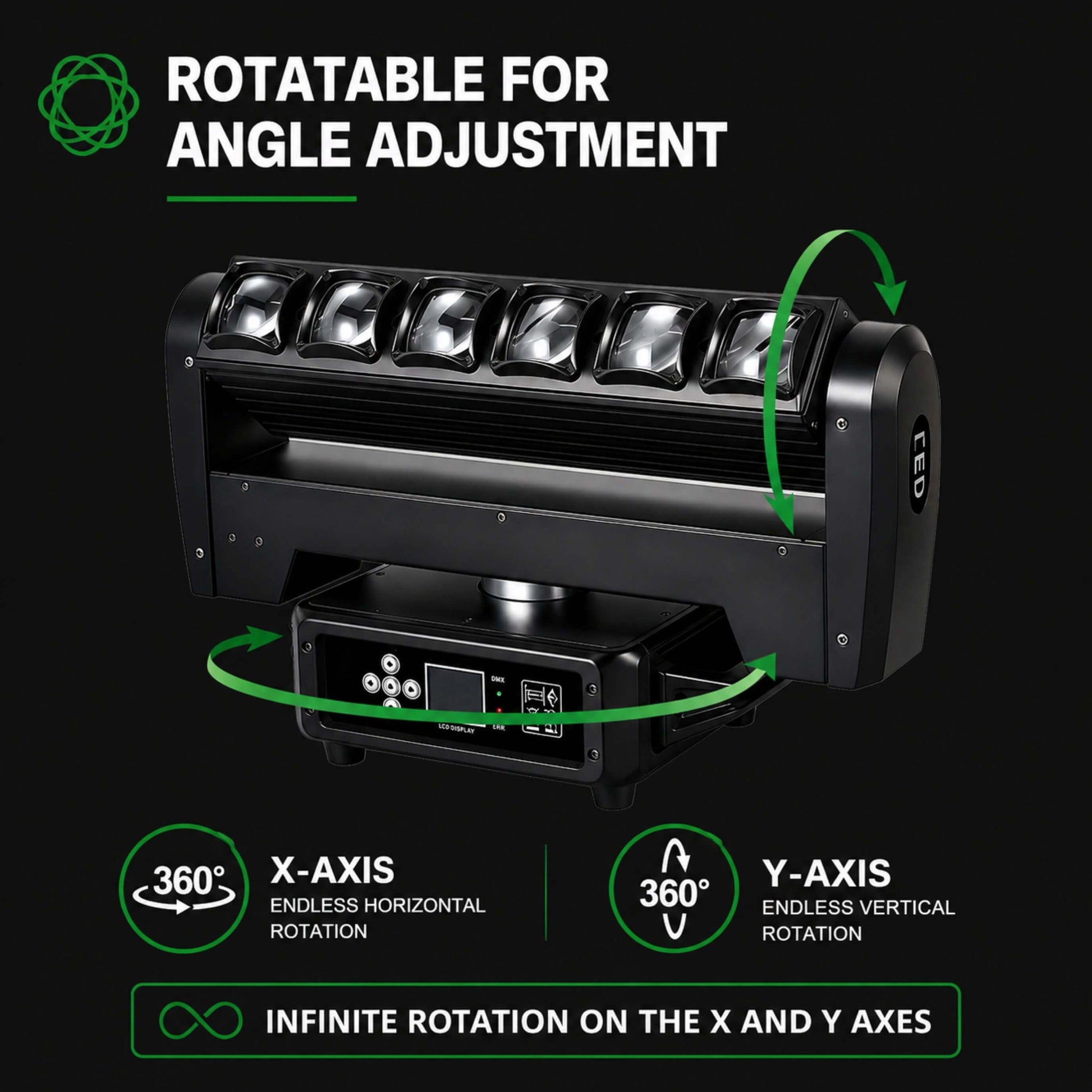

Q: Does the N6 support infinite pan and tilt rotation?
A:Yes. The N6 supports continuous pan and tilt rotation, allowing uninterrupted sweeps and repeating kinetic movement without stopping at a conventional pan or tilt endpoint. The fixture also supports 8-bit and 16-bit positioning control.
Q: Can the main and secondary sides be controlled separately?
A:Yes. Depending on the selected DMX profile, the main and secondary sections provide separate output, RGBW color, strobe, background, and scene controls. This is one of the main advantages of the N6 dual-sided moving head design.
Q: What pixel control is available in 63CH mode?
A:In 63CH mode, the N6 adds extended secondary-side pixel programming with 10 RGB zones and 5 independently controlled white zones. These channels can be programmed sequentially to create color chases, animated pixel effects, and more detailed layered looks.
Q: Which DMX profile should I use: 23CH, 28CH, or 63CH?
A:Choose 23CH for more compact control of movement, color, scenes, and secondary effects. 28CH adds dedicated movement-speed control and direct RGBW control for both sides, making it a practical choice for general show programming. Use 63CH when you need extended secondary-side RGB and white zone control for detailed pixel effects.

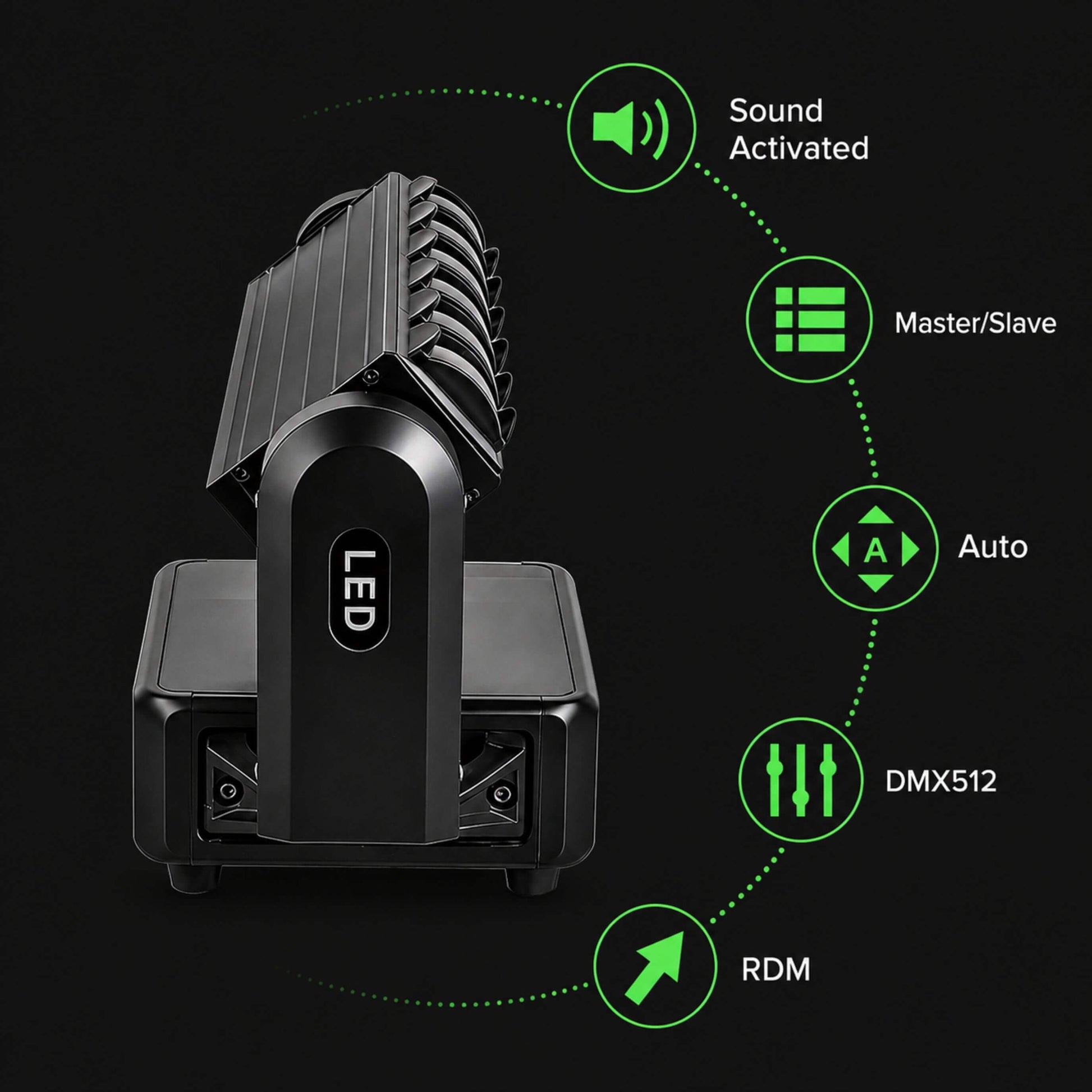

Q: Can the N6 work without a DMX controller?
A:Yes. In addition to DMX512, the N6 supports Automatic, Sound-Active, and Master/Slave modes. Automatic mode runs built-in programs, while Sound-Active mode reacts to nearby music through the fixture microphone.
Q: Can multiple N6 fixtures run together?
A:Yes. The N6 supports Master/Slave operation, allowing one fixture running an automatic or sound-active program to control linked fixtures in synchronization. For individually programmed multi-fixture shows, each N6 can also be assigned its own DMX starting address.

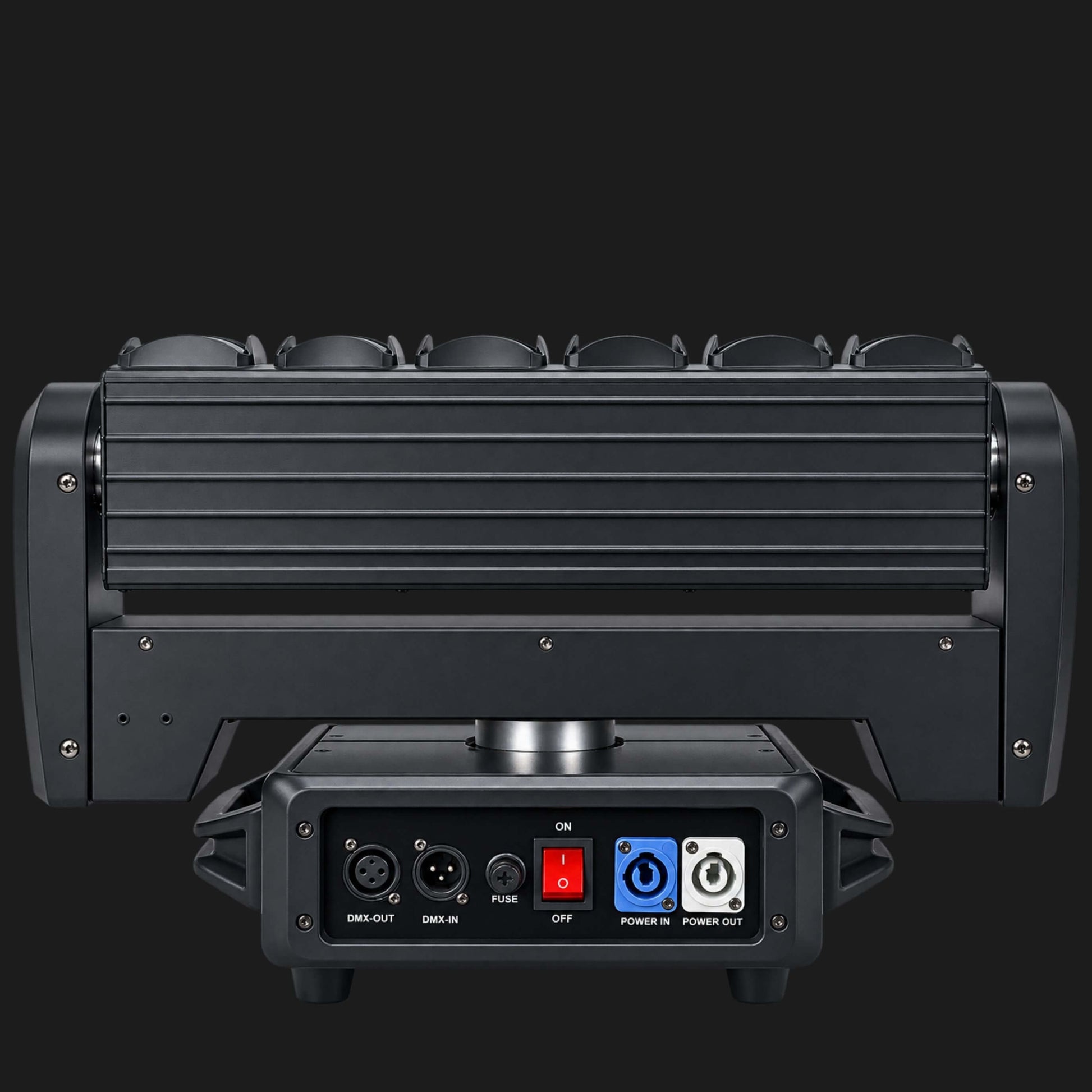

Q: What DMX connections does the N6 use?
A:The N6 provides both 3-pin and 5-pin XLR DMX input/output, so it can integrate into common professional DMX lighting systems. Use shielded DMX cable and daisy-chain fixtures from DMX OUT to DMX IN.
Q: Can the N6 be used outdoors?
A:No. The N6 is rated IP20 and is intended for dry indoor use only. It should be protected from rain, moisture, condensation, excessive dust, and corrosive environments. Buyers who need a weather-resistant outdoor moving head should choose a fixture with an appropriate outdoor IP rating.
Q: Can the N6 be installed overhead?
A:Yes. The N6 can be installed overhead on a suitable load-rated structure using approved mounting hardware and an independent safety cable. Because the fixture has continuous pan and tilt movement, the full rotation area must remain clear of truss, cables, walls, drapes, and other fixtures.
