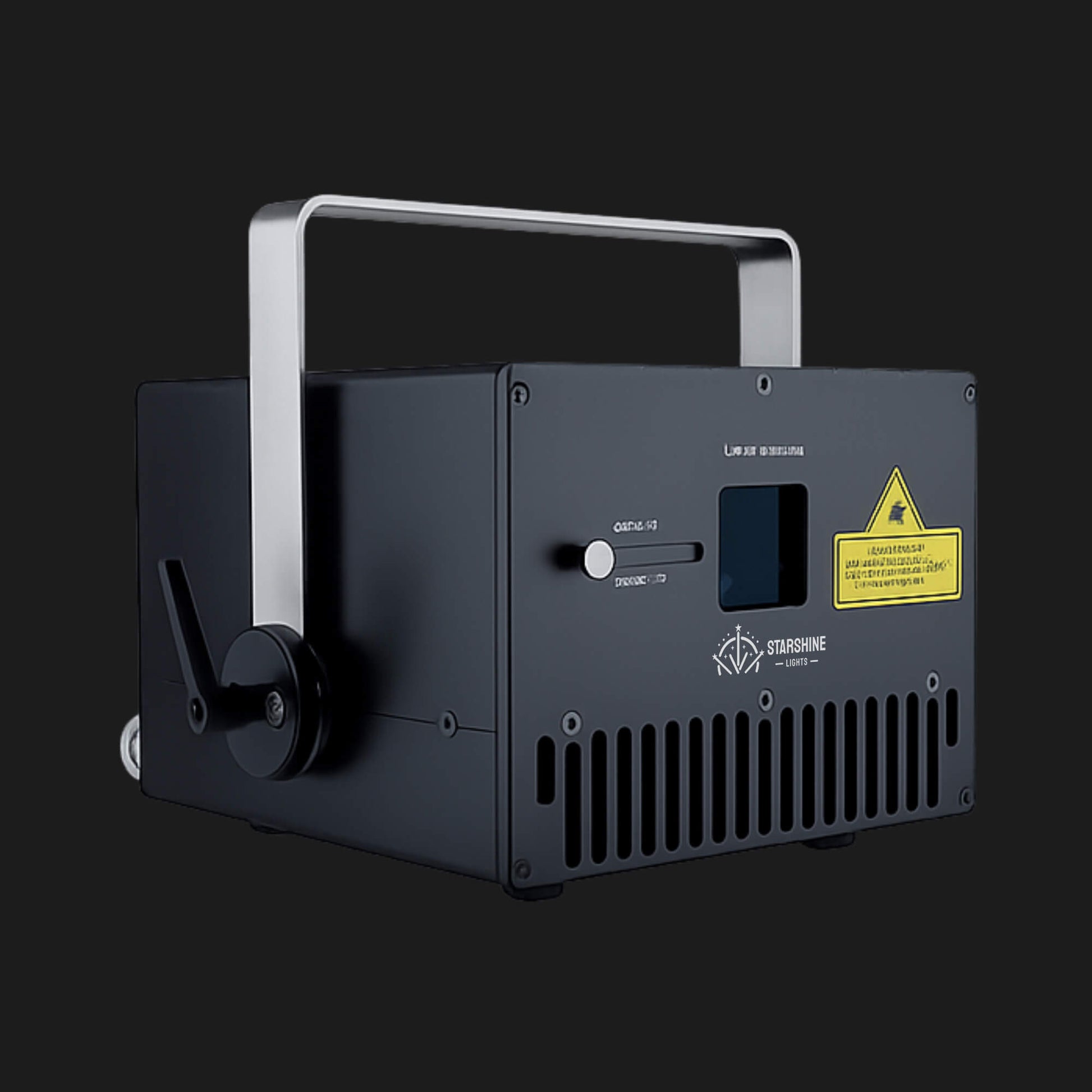

PUB8 APP Control RGB Laser Light Projector 10W for Outdoor Shows
Regular price
$850.00
Sale price
$850.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × PUB8 10W RGB Animation Laser Light Projector
- 1 × PIN Power Cord
- 1 × User Manual
- 1 × Protective Carton Packaging
Services and Benefits
In Stock Fast Tax-Free Shipping
$850.00
Professional 10W RGB Animation Laser Output
PUB8 is a professional 10W RGB animation laser light for outdoor laser shows, stage lighting, and event lighting, using 3W red 638nm, 3W green 520nm, and 4W blue 445nm laser sources for vivid RGB color mixing. With <1.6mrad divergence, a 25kpps galvanometer, and up to 60° scanning angle, it delivers clean graphics, crisp text, detailed animation effects, and wide-area projection for laser light shows, concert lighting, outdoor stage lighting, scenic parks, and rooftop advertising.
IP54 Sealed Design for Outdoor Projects
IP54 Protection: PUB8 uses an IP54-rated housing to reduce dust, moisture, and haze-oil buildup in show environments.
Sealed Optical Layer: The sealed first layer keeps dust and smoke oil away from the laser source and optical system.
Longer Brightness Life: Cleaner internal optics maintain stable brightness and longer laser service life.
Independent Cooling Layer: The separated heat dissipation layer improves thermal performance.
Outdoor Application: Built for outdoor laser shows, landmark lighting, scenic park projects, rooftop displays, and commercial laser advertising.
APP Control, Text Editing, and Hand-Drawn Effects
LightElf APP Control: Control the laser from Android, iOS, or WeChat Mini Program for faster setup and easier operation.
Custom Text Projection: Add event names, brand messages, holiday greetings, promotions, and simple advertising text.
Hand-Drawn Patterns: Draw graphics on your phone and send them to the laser light projector.
Built-In Playback: SD mode offers 200+ built-in programs for plug-and-play laser shows.
Creative Flexibility: Use animation, line, text, programming, and hand-drawn modes for customized laser light show content.
Flexible Control for Professional Stage Lighting
Multiple Control Modes: PUB8 supports SD playback, sound control, auto mode, DMX, master/slave, and ILDA software control.
DMX with RDM: DMX 18/27-channel control with RDM integrates with professional DMX stage lights systems.
ILDA Software Ready: DB25 ILDA in/out ports support advanced graphics, animation, and custom laser show programming.

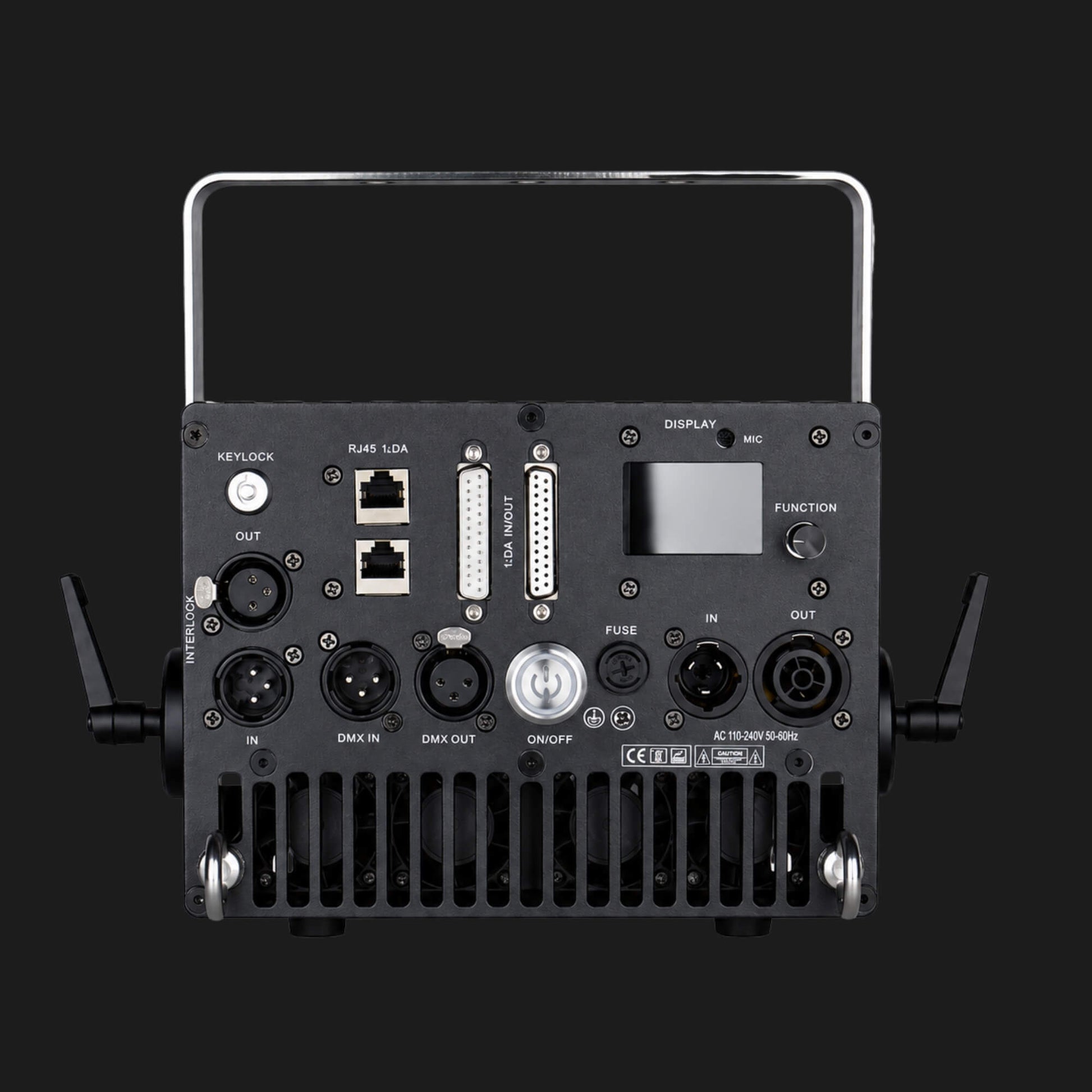

Back Panel Access: Includes AT-S5 LCD, 3-pin DMX in/out, DB25 in/out, key switch, remote in/out, power in/out, and fuse.
TTL/Analog Switching: Automatic TTL/analog modulation switching provides flexible color and dimming control.
Built for Events, Advertising, and Installations
Efficient Air Cooling: Full-machine air cooling and a large heat-sink design maintain stable laser output.
Wide Working Range: Operates from -10°C to 45°C for indoor and outdoor event lighting environments.
Compact Fixture Body: The 21 × 25 × 16.5cm body is easy to install, transport, and position.
Professional Laser Class: As a Class IV laser product, PUB8 requires trained professional operation.
Best Applications: Suitable for outdoor shows, DJ events, festivals, concert lighting, scenic parks, rooftops, landmarks, and commercial displays.
Specs
Model
PUB8 / PUB-8
Product Type
10W RGB Full-Color Animation Laser Light Projector
Private Mold
Yes
Laser Power
10W RGB
Red Laser
3W / 638nm
Green Laser
3W / 520nm
Blue Laser
4W / 445nm
Cooling Method
Full-machine air cooling
Sealing Structure
IP54 sealed optical layer + independent heat dissipation layer
Modulation Mode
TTL / Analog automatic switching
Modulation Frequency
≤100K
Laser Divergence
<1.6mrad, full angle
Laser Spot Size
5 × 6.2mm at aperture
Galvanometer
25kpps
Mirror Reflectance
>99% @ 45° incidence
Covered Wavelength
400–680nm
Scanning Angle
Up to 60°
Laser Service Life
≥10,000 hours under constant-temperature test conditions
Laser Class
Class IV
IP Rating
IP54
Built-In Effects
More than 200 effects via SD mode
Control Modes
SD, sound control, auto mode, DMX 18/27CH with RDM, master/slave, ILDA software control
Back Controls
AT-S5 LCD, 3-pin DMX in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
Working Temperature
-10°C to 45°C
Voltage
100–250V
Rated Power
250W
Applications
Outdoor shows, outdoor advertising, scenic parks, outdoor roofs, landmark projects, stage lighting, event lighting
Warranty
1 year
Fixture Size
21 × 25 × 16.5cm / approx. 22cm with handle
Net Weight
6.5kg
Carton Packing
34 × 31 × 22cm
Gross Weight
7.5kg
2-in-1 Carton
36 × 33 × 49cm
2-in-1 Gross Weight
18kg
Flight Case Size
34 × 36 × 23cm
Flight Case Gross Weight
12kg
FAQ
Q: What is the PUB8 10W RGB animation laser light designed for?
A: PUB8 is designed for outdoor laser shows, stage lighting, event lighting, concert lighting, rooftop advertising, scenic parks, landmark displays, and commercial projection projects.
Q: Does PUB8 support APP control?
A: Yes. PUB8 supports LightElf APP control through Android, iOS, and WeChat Mini Program. Users can control built-in effects, colors, text, hand-drawn patterns, and basic scene settings from a mobile device.
Q: Can this laser light projector display custom text?
A: Yes. The APP supports custom text playback, making PUB8 useful for brand names, event messages, holiday greetings, promotions, and outdoor advertising.
Q: Can I draw my own laser patterns?
A: Yes. Users can draw simple patterns directly in the APP and send them to the laser. This is helpful for creative laser shows, personalized graphics, and simple logo-style effects.
Q: What is the difference between APP control and ILDA control?
A: APP control is ideal for quick text, pattern, and built-in effect playback. ILDA control is better for advanced professional laser show programming, custom graphics, and animation design.
Q: Does PUB8 work with DMX lighting systems?
A: Yes. PUB8 supports DMX 18/27-channel control with RDM, allowing it to integrate with professional DMX stage lights systems.
Q: Is PUB8 suitable for outdoor stage lighting?
A: Yes. The IP54 housing helps protect the fixture from dust, moisture, and haze oil. For long-term outdoor installation, proper mounting, ventilation, and additional weather protection are recommended.
Q: What makes the sealed structure important?
A: The sealed optical layer helps prevent dust and smoke oil from entering the laser chamber, which helps maintain brightness and extend the service life of the laser source.
Q: How many built-in effects does PUB8 include?
A: PUB8 includes more than 200 built-in effects through SD mode, covering animation, line, text, hand-drawn, landmark, and dynamic laser show effects.
Q: Is PUB8 a Class IV laser?
A: Yes. PUB8 is a Class IV laser product. It must be installed and operated by trained professionals, and direct eye exposure must always be avoided.
Q: Can PUB8 be used for outdoor advertising?
A: Yes. With 10W RGB laser output, IP54 sealed design, APP text control, and wide scanning coverage, PUB8 is suitable for outdoor advertising, rooftop displays, commercial events, and scenic park shows.
Q: What types of venues can use PUB8?
A: PUB8 is suitable for outdoor stages, concerts, DJ events, festivals, scenic parks, rooftop shows, advertising displays, landmark projects, clubs, and professional stage lighting setups.
