R5 DMX IP65 Strobe Light 400W 1344 × 5050 SMD RGB LEDs for Stages
Regular price
$730.00
Sale price
$730.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × R5 Waterproof RGB LED Strobe Light
- 1 × Mounting Bracket
- 1 × Integrated Power
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$730.00

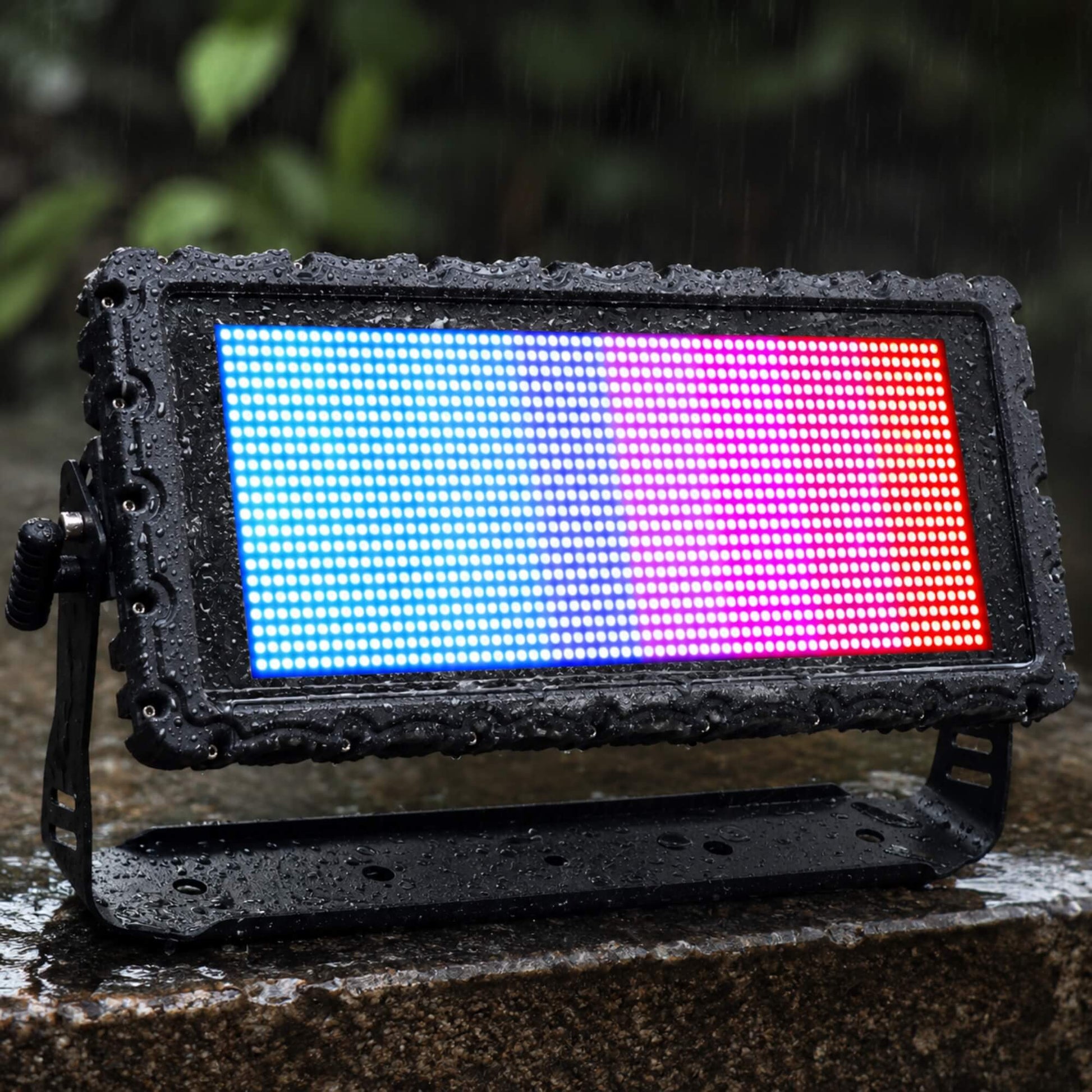

Powerful RGB Strobe and Wash Output
The R5 uses 1,344 × 5050 SMD RGB LEDs and 400W rated power to deliver bright RGB strobe and wash output for concerts, festival stages, nightclubs, and large event spaces. Its adjustable 1–30Hz electronic strobe creates slow rhythmic flashes, beat-matched pulses, and rapid high-energy effects, while independent red, green, and blue adjustment supports custom color mixing. It works as an RGB strobe light, color wash fixture, chase effect light, or animated stage lighting panel.

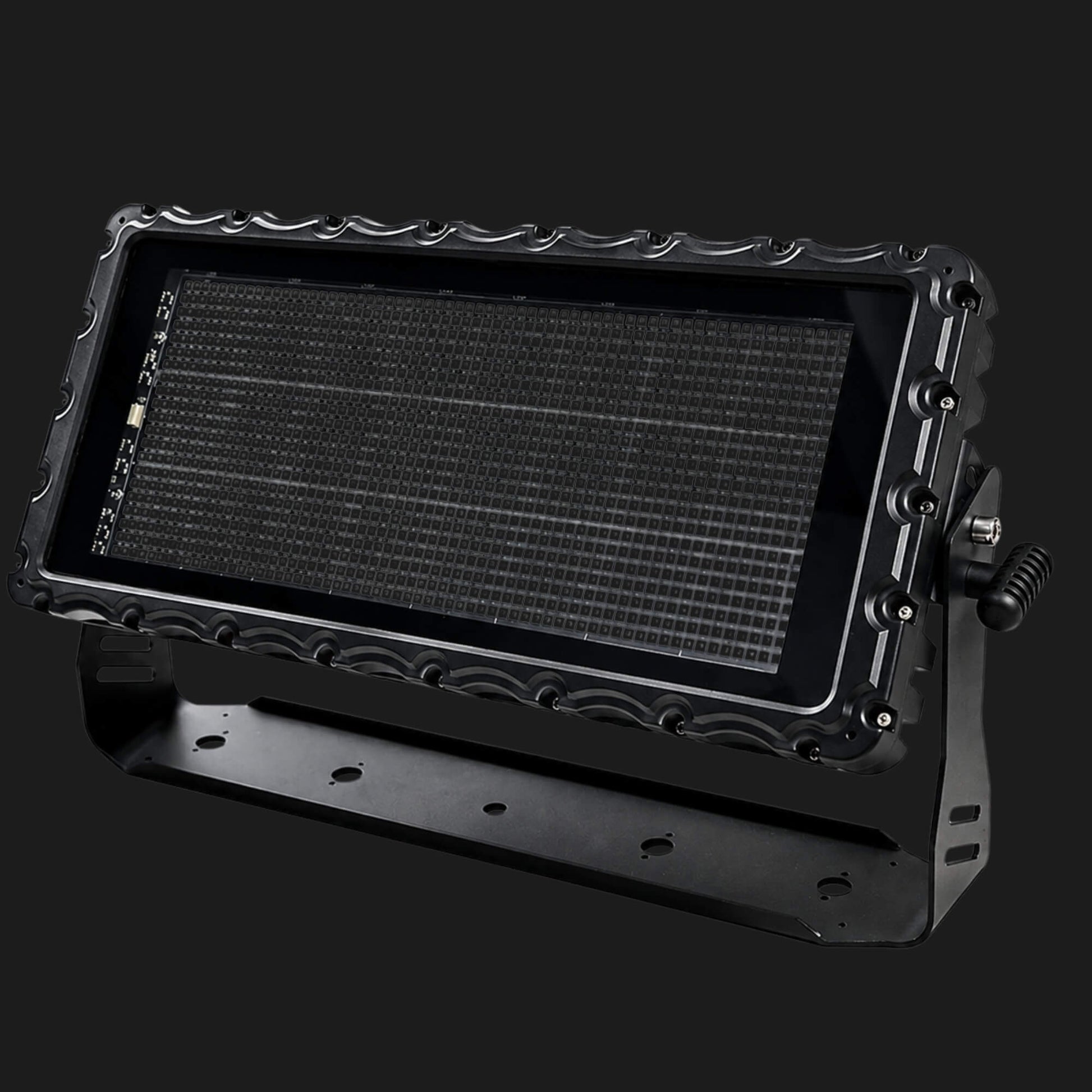

24-Segment Pixel-Style Programming
24 RGB Segments: 24 individually controllable zones create detailed pixel-style animation.
Advanced Chase Effects: Create directional chases, perimeter movement, shuttles, stacking patterns, waves, and trailing effects.
72-Channel Control: Advanced DMX programming gives separate red, green, and blue control for each segment.
Custom Background Color: Selected built-in effects let RGB channels change the animation background color.

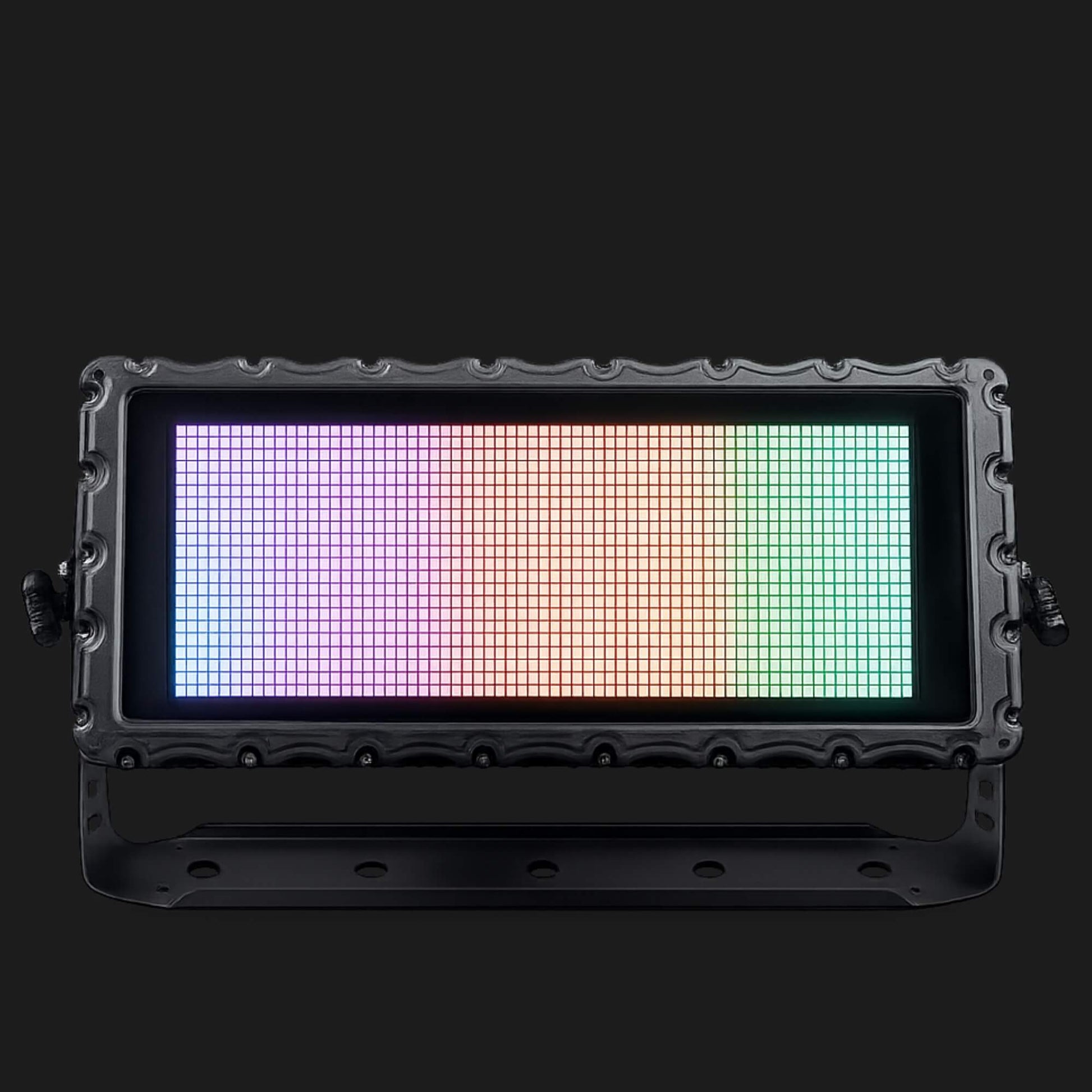

LED Matrix-Style Surface: The dense LED arrangement creates an LED matrix panel look for stage strobe and wash effects.
Flexible DMX and Standalone Control
Multiple DMX Profiles: Choose 3-channel, 7-channel, or 72-channel operation for different control levels.
DMX512 Compatibility: Integrates with professional stage lighting consoles and standard DMX networks.
RDM Support: Compatible RDM controllers manage the fixture through the DMX line.
Standalone Operation: Built-in and sound-activated modes run the LED strobe light without an external controller.
Master/Slave Synchronization: Link multiple stage lights for coordinated automatic or music-reactive programs.
Smooth Dimming and Built-In Effects
32-Bit Linear Dimming: Smooth 0–100% dimming creates controlled fades and polished brightness transitions.
127 Built-In Programs: Select M000–M126 gradients, pulses, chases, wipes, shuttles, perimeter effects, and animated patterns.
Adjustable Effect Speed: Change from slow atmospheric movement to fast, energetic animation.
Independent RGB Adjustment: Adjust red, green, and blue brightness separately from 0–255.
Settings Memory: Saved addresses, channel modes, effects, colors, and speed settings remain after power-off.
IP65 Outdoor Stage Lighting Design

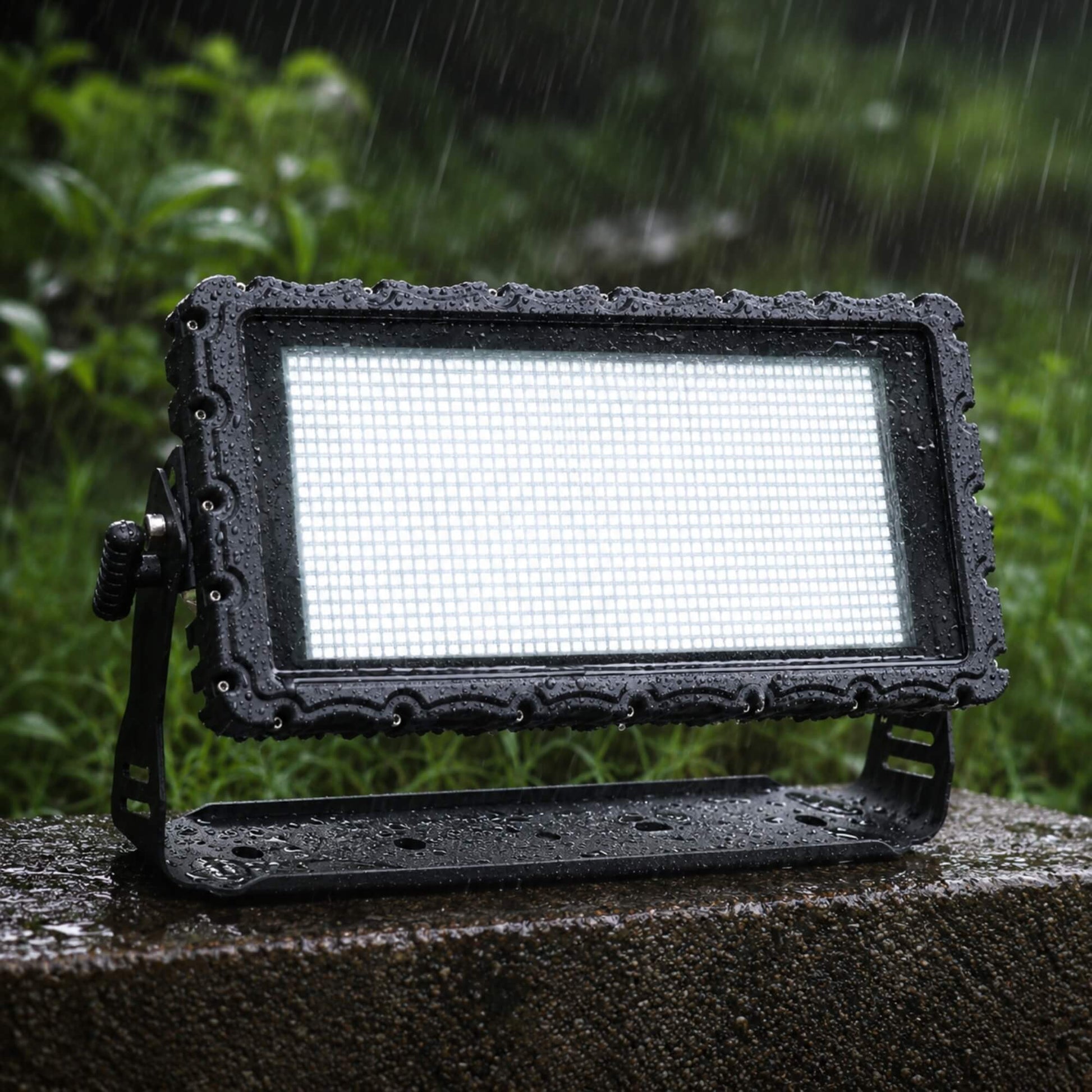

IP65-Rated Housing: Protects the outdoor strobe light from dust and water exposure when connectors and covers are secured.
Wide-Range Power Input: AC 90–240V, 50/60Hz supports touring productions and international installations.

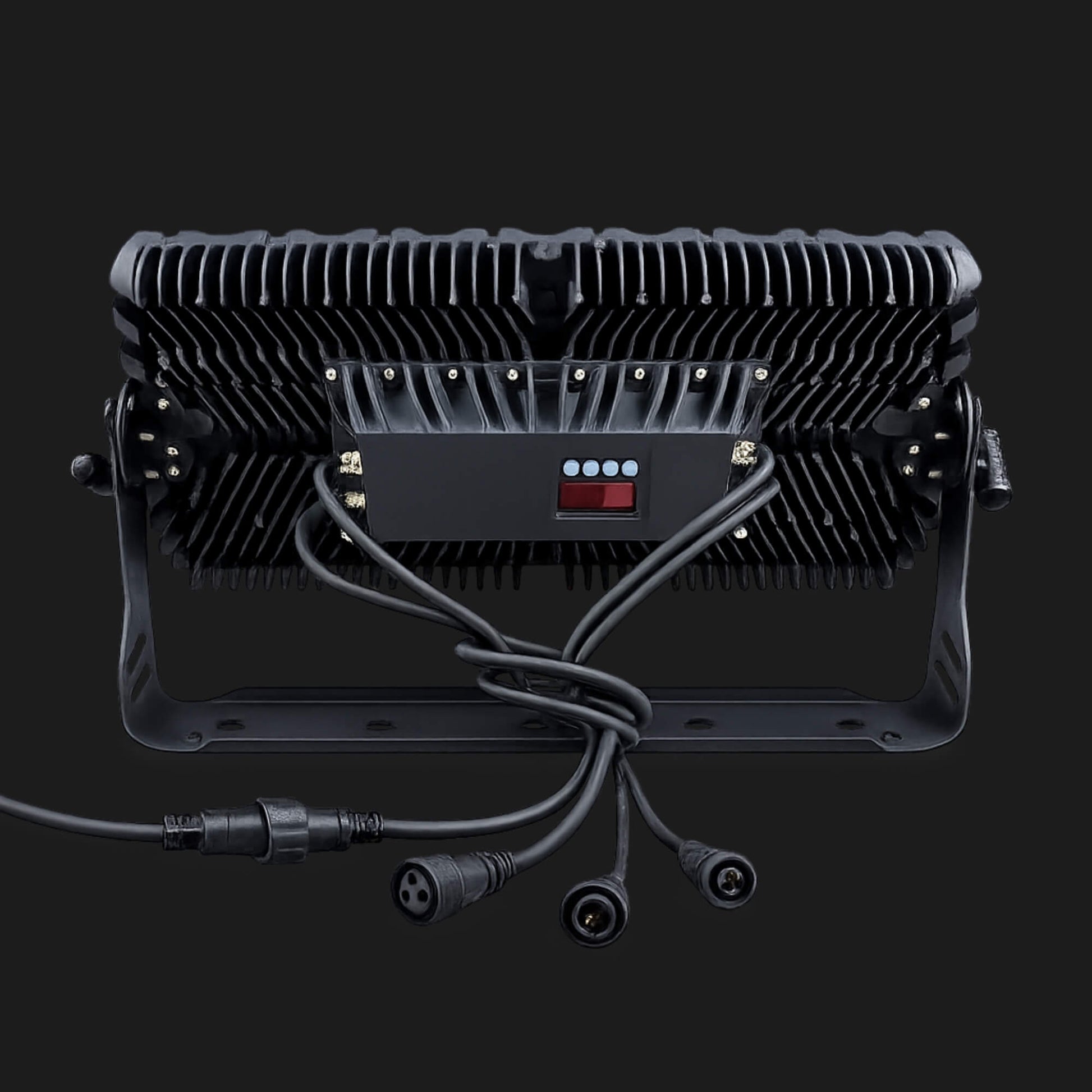

Power Linking: Power input and output simplify multi-fixture stage lighting cabling.
DMX Linking: DMX input and output connect several strobe lights in one control chain.

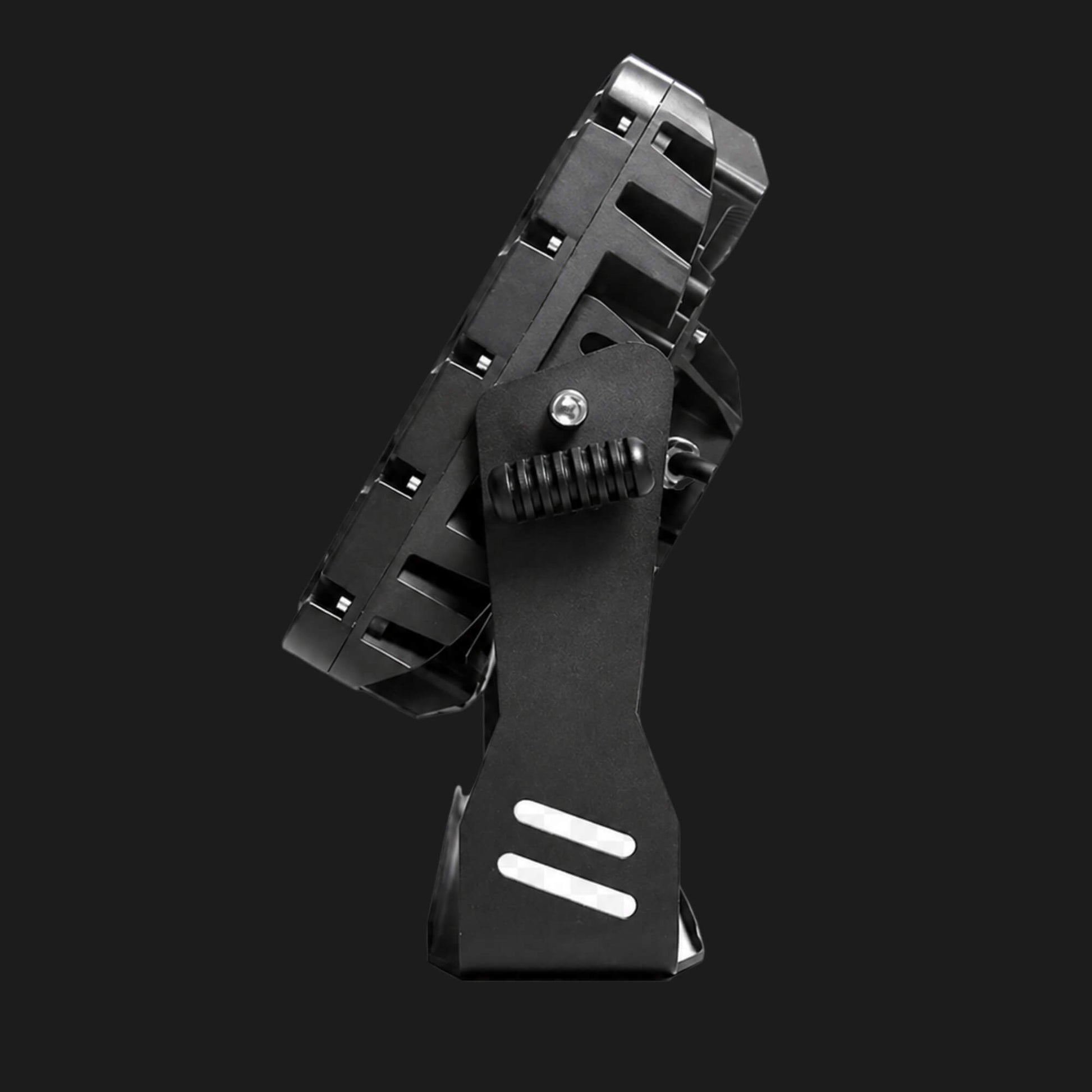

Flexible Mounting: The adjustable bracket supports floor placement, wall wash lighting setups, or suspended installation with a rated clamp and safety cable.
Specs
Product Model
R5
Product Type
Waterproof RGB LED Strobe Light
Power Supply
AC 90–240V, 50/60Hz
Rated Power
400W
Light Source
1,344 × 5050 SMD RGB LEDs
LED Segments
24 RGB segments
Strobe Frequency
1–30Hz
Dimming
32-bit, 0–100% linear dimming
DMX Channel Modes
3CH / 7CH / 72CH
DMX Address Range
A001–A512
Built-In Programs
127 effects, M000–M126
Program Speed
S000–S255
Red Adjustment
R000–R255
Green Adjustment
G000–G255
Blue Adjustment
B000–B255
Main Effects
RGB wash, strobe, chase, pulse, gradient, wipe, shuttle, and animation
Control Modes
DMX512, RDM, master/slave, sound-activated, and built-in programs
Connections
DMX input/output and power input/output
Waterproof Rating
IP65
Control Panel
Four-button digital display
Temperature Display
Fixture temperature monitoring through the display menu
Product Dimensions
65 × 14 × 35 cm
Inner Box Dimensions
69 × 42 × 19 cm
Carton Dimensions
72 × 43 × 42 cm
Carton Quantity
2 fixtures per carton
Net Weight
13.4 kg
Gross Weight
14.4 kg
Packaging Options
Flight case or carton
FAQ
Q: Is the R5 suitable for outdoor stage lighting?
A:Yes. The R5 has an IP65-rated housing designed for indoor and outdoor stage lighting. All waterproof connectors and protective covers must be properly secured during outdoor use.
Q: Does IP65 mean the fixture can be submerged?
A:No. IP65 protection is intended for dust and water-jet resistance. The fixture must not be submerged or installed where it will remain underwater.
Q: How many LEDs does the R5 use?
A:The R5 uses 1,344 × 5050 SMD RGB LEDs arranged across a dense lighting surface.
Q: How many controllable segments are included?
A:The LED surface is divided into 24 RGB segments. Every segment can be individually programmed in the 72-channel DMX mode.
Q: What DMX channel modes are available?
A:The R5 supports 3-channel, 7-channel, and 72-channel profiles. This allows users to choose between simple RGB control, standard effect control, and detailed segment programming.
Q: Can the R5 operate without a DMX controller?
A:Yes. The fixture includes built-in programs, sound-activated operation, and master/slave synchronization, so it can operate without an external DMX console.
Q: How many built-in lighting effects are included?
A:The R5 includes 127 built-in effects covering gradients, pulses, chases, wipes, shuttles, perimeter movement, stacking patterns, and colorful wave effects.
Q: What is the adjustable strobe speed?
A:The electronic strobe operates from 1–30Hz, allowing slow rhythmic flashes and fast high-energy effects.
Q: Can multiple R5 fixtures operate together?
A:Yes. Multiple fixtures can be connected through DMX input/output and synchronized using DMX512 or master/slave mode.
Q: Does the R5 support RDM?
A:Yes. RDM support allows compatible controllers to communicate with and manage the fixture through the DMX network.
Q: What is the difference between an RGB strobe light and a white strobe light?
A:A white strobe light mainly produces bright white flashes. An RGB strobe light can also create colored flashes, washes, gradients, chases, and animated effects by mixing red, green, and blue output.
Q: Can the R5 be used as an LED matrix panel?
A:The R5 uses a dense LED matrix-style surface divided into 24 controllable segments. It creates pixel-style stage effects but is designed as a professional LED strobe and wash fixture rather than a video display panel.
Q: Can the R5 create wall wash lighting?
A:Yes. The wide RGB surface can create broad wall wash lighting for stage backdrops, scenery, event spaces, and architectural features.
Q: Is the R5 suitable for DJ lights setups?
A:Yes. Its built-in effects, sound activation, fast strobe, RGB mixing, and 7-channel control mode make it suitable for nightclubs, mobile DJs, dance floors, and party lighting.
Q: Is the R5 suitable for concerts?
A:Yes. The 400W output, 24-segment control, fast strobe, and 72-channel DMX mode make it suitable for concerts, festivals, live stages, and professional event production.
Q: Can the fixture be used during daytime outdoor events?
A:It can be used outdoors, but the visible strength of RGB and strobe effects depends on ambient light, viewing distance, fixture position, and programming. The effects appear strongest in controlled or lower-light environments.
Q: How should the R5 be mounted overhead?
A:Use the adjustable bracket with a properly rated lighting clamp. An independent safety cable must also be attached to a load-rated mounting point.
Q: What should I check if the fixture does not respond to DMX?
A:Confirm the DMX starting address, selected channel profile, controller output, cable connections, and signal polarity. A DMX terminator may be required on the final fixture in longer signal chains.
