SM5 RGB Laser Module 4W/6W | Compact Laser Projector Module
SM5 RGB Laser Module (4W / 6W) for Laser Projector Builds

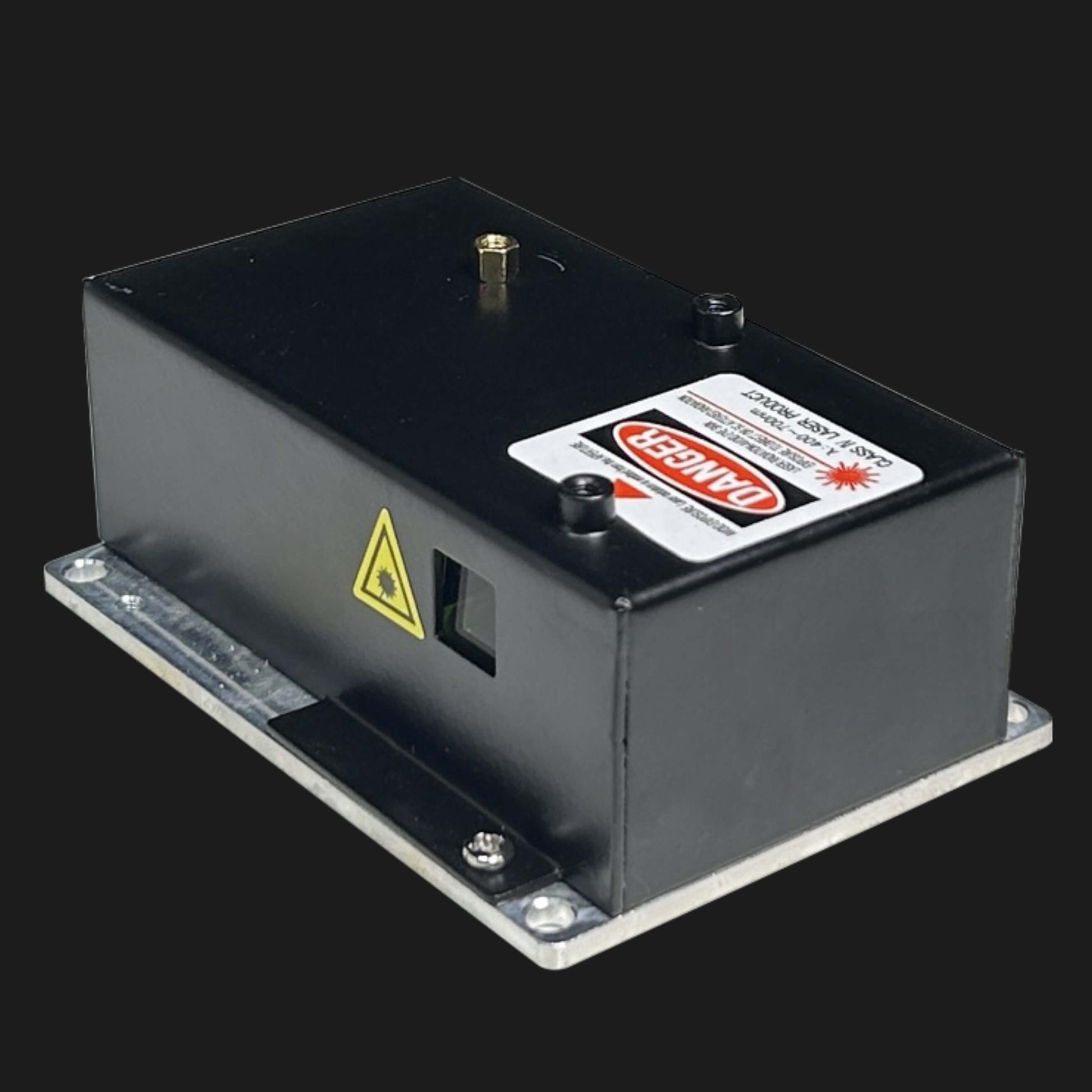

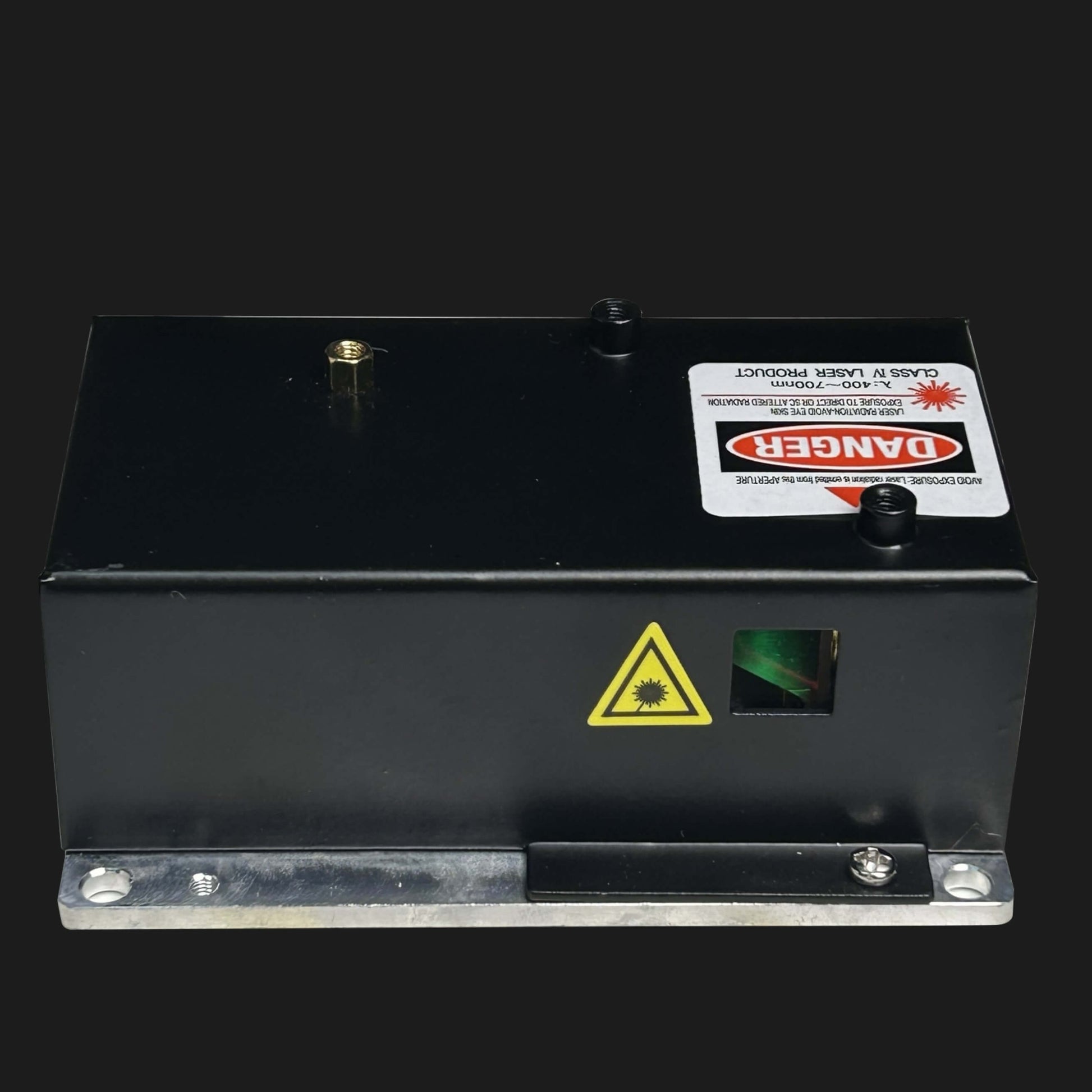

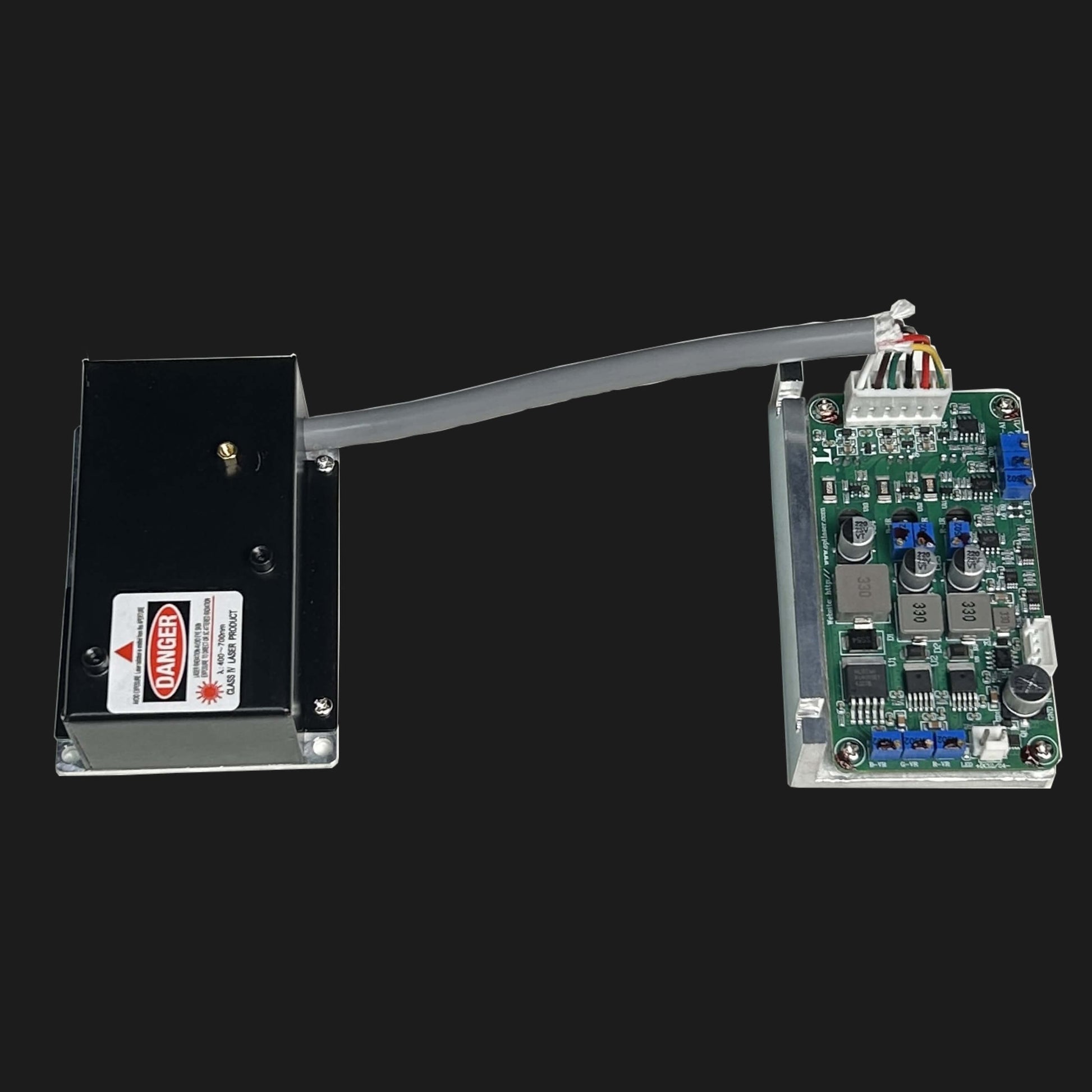

SM5 is a compact RGB laser module available in 4W or 6W, featuring 638/525/450nm wavelengths, fiber-shaped beam profile, 0–5V analog modulation, <1 minute warmup, DC12V power, and an installation-friendly design that fits most mainstream laser projector housings—with a step-by-step video tutorial available if needed.
Built for Easy Integration in Laser Projector Housings
The SM5 RGB laser module is a practical light engine for compact laser projector builds where clean color mixing, stable performance, and fast installation matter. Offered in 4W and 6W versions, SM5 is well-suited for stage fixtures, indoor projection, mobile DJ setups, and small-to-mid venue laser light show systems. Its compact footprint and standardized integration approach help reduce custom machining and shorten build time—especially when you’re upgrading an existing projector chassis.
Cleaner Beam with Fiber Shaping for Better Visual Results
A professional-looking laser light projector isn’t just about brightness—it’s about beam quality. SM5 uses a fiber-shaped beam approach to produce a cleaner spot profile that helps graphics, logos, and projection content look sharper and more consistent. The spec sheet provides exit spot size and long-throw spot references at 10m and 20m, making it easier to match optics and focal mode to your real throw distance and venue requirements.
Fast Warmup + Stable Operation for Show Schedules
SM5 is designed for real production timing: both 4W and 6W configurations support warmup under 1 minute and operate within -20°C to 40°C, which covers typical venue and installation environments.For longer runtimes, the 6W configuration lists strong stability performance (RMS over 4 hours), making it a reliable option when your laser show projector needs to run through rehearsals, soundcheck, and full sets with consistent output.
Smooth Brightness Control with 0–5V Analog Modulation
SM5 supports 0–5V analog modulation (listed as approximately 0.2–4.8V), which makes intensity control more predictable for fade-friendly cues and timing-based effects.Whether you’re building a simple internal dimming setup or integrating SM5 into a broader show control chain, analog modulation helps your laser light show transitions look cleaner—especially for gradual fades, pulses, and programmed looks.
Specs
Wavelengths
638±5nm / 525±5nm / 450±5nm
Output Power
R 0.7W / G 1.4W / B 2.0W (Total class: 4W)
R 1.4W / G 1.6W / B 3.2W (Total class: 6W)
Spot Type
Fiber-shaped (with fiber shaping)
Exit Spot (1/e²)
Short-mid 1.5×6mm; Long 1.3×7mm
Output Height
25mm
Operating Temp
-20°C to 40°C
Analog Modulation
0–5V (≈0.2–4.8V)
Expected Lifetime
8000 hours
Warranty
2 years

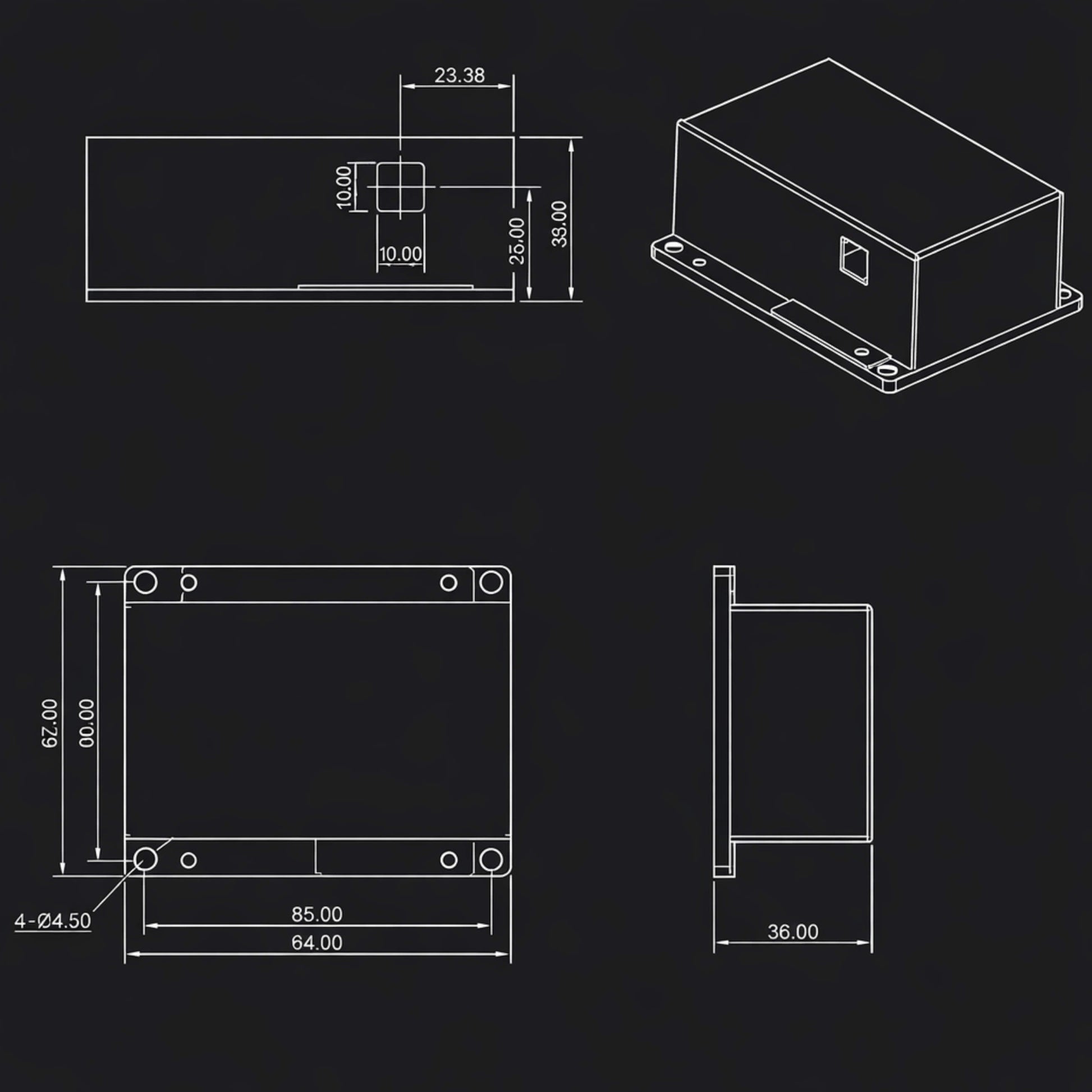

Module Dimensions
94×67×36mm
Exit Spot (1/e²)
Short-mid 2.3×6mm; Long 3.5×7mm
Spot @10m (1/e²)
Short-mid 25×22mm; Long 16×18mm
FAQ
Q: What is SM5? Is it a complete laser projector?
A:SM5 is an RGB laser module (light engine) available in 4W or 6W. It’s designed to be integrated into a complete laser projector system (housing, scanners, controller, safety features, and power management).
Q: Which version should I choose—4W or 6W?
A:Choose 4W for compact builds, smaller venues, and budget-friendly setups; choose 6W when you want stronger brightness and added long-run stability for more demanding laser light show use.
Q: Is installation easy? Will it fit my housing?
A:Yes—SM5 is designed for easy installation and fits most mainstream laser projector housings. Share your internal dimensions or photos and we can help confirm fitment.
Q: What if I don’t know how to install it?
A:We can provide a step-by-step video tutorial (mounting, wiring, power matching, modulation testing, airflow guidance) to help you install correctly.
Q: What modulation does SM5 support?
A:Both versions support 0–5V analog modulation (≈0.2–4.8V).
Q: What power supply do I need?

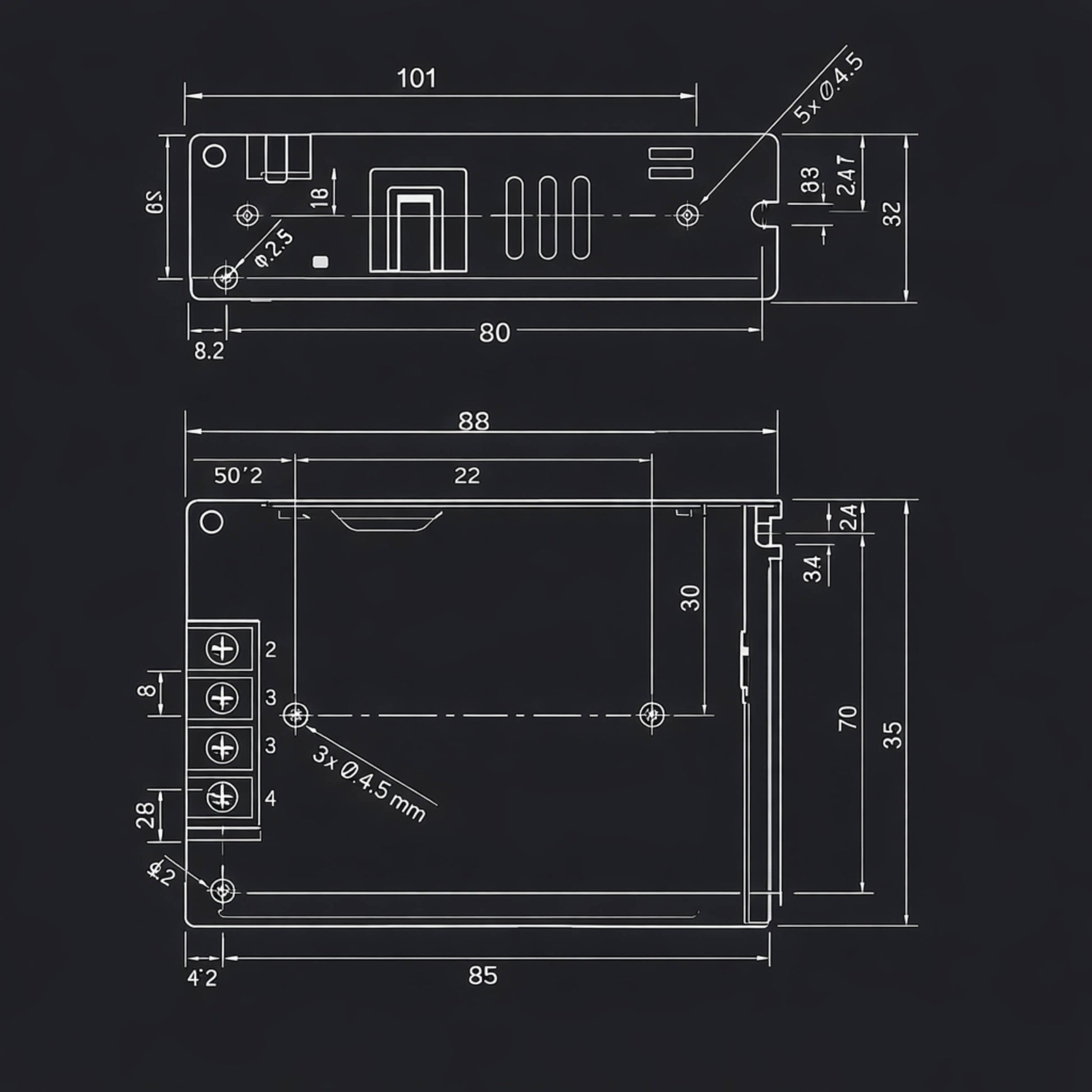

A:Both versions use DC12V 6A, with different recommended drivers (4W: LRS-50-12; 6W: LRS-75-12).
Q: Any safety notes?
A:Always follow laser safety practices, power off before wiring, avoid humidity/impact, and do not adjust internal potentiometers unless trained.
