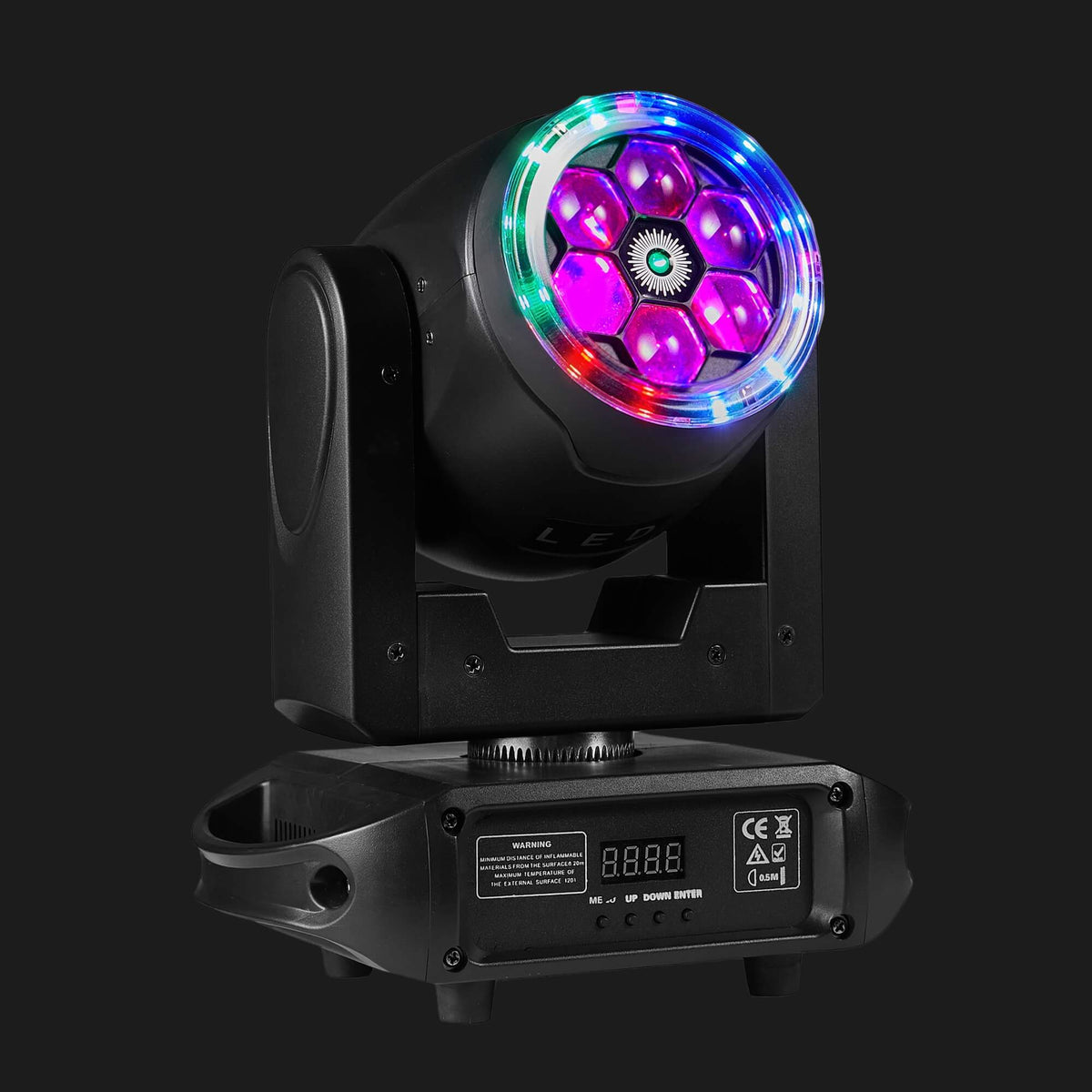

X30 17CH DMX Bee-Eye Laser Moving Head DJ Light 90W for Clubs
Regular price
$250.00
Sale price
$250.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × X30 6-Eye Bee-Eye + Laser Moving Head Light
- 1 × AC Power Cable
- 1 × Mounting Bracket Set
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$250.00
RGBW Bee-Eye, Green Laser, and Halo Effects

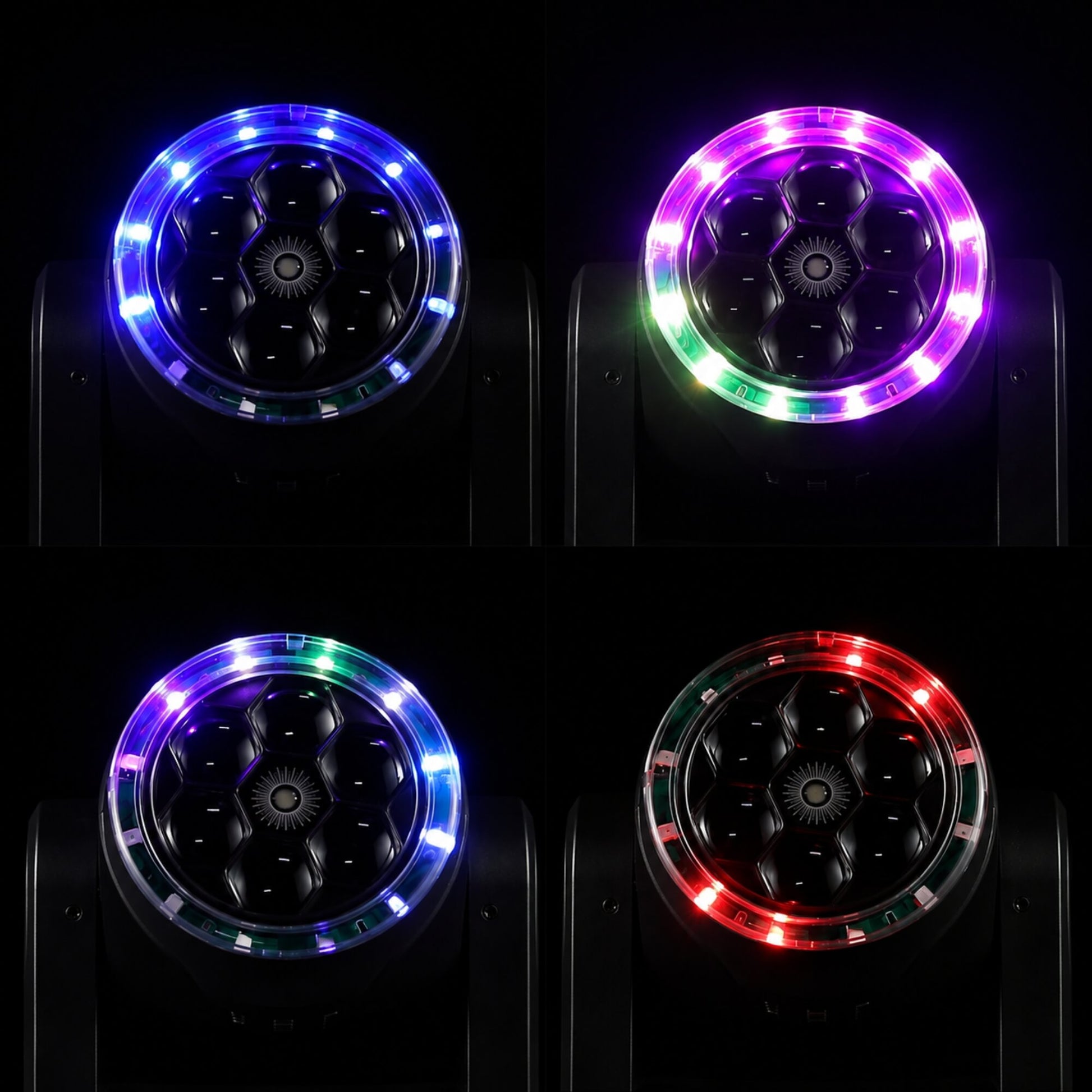

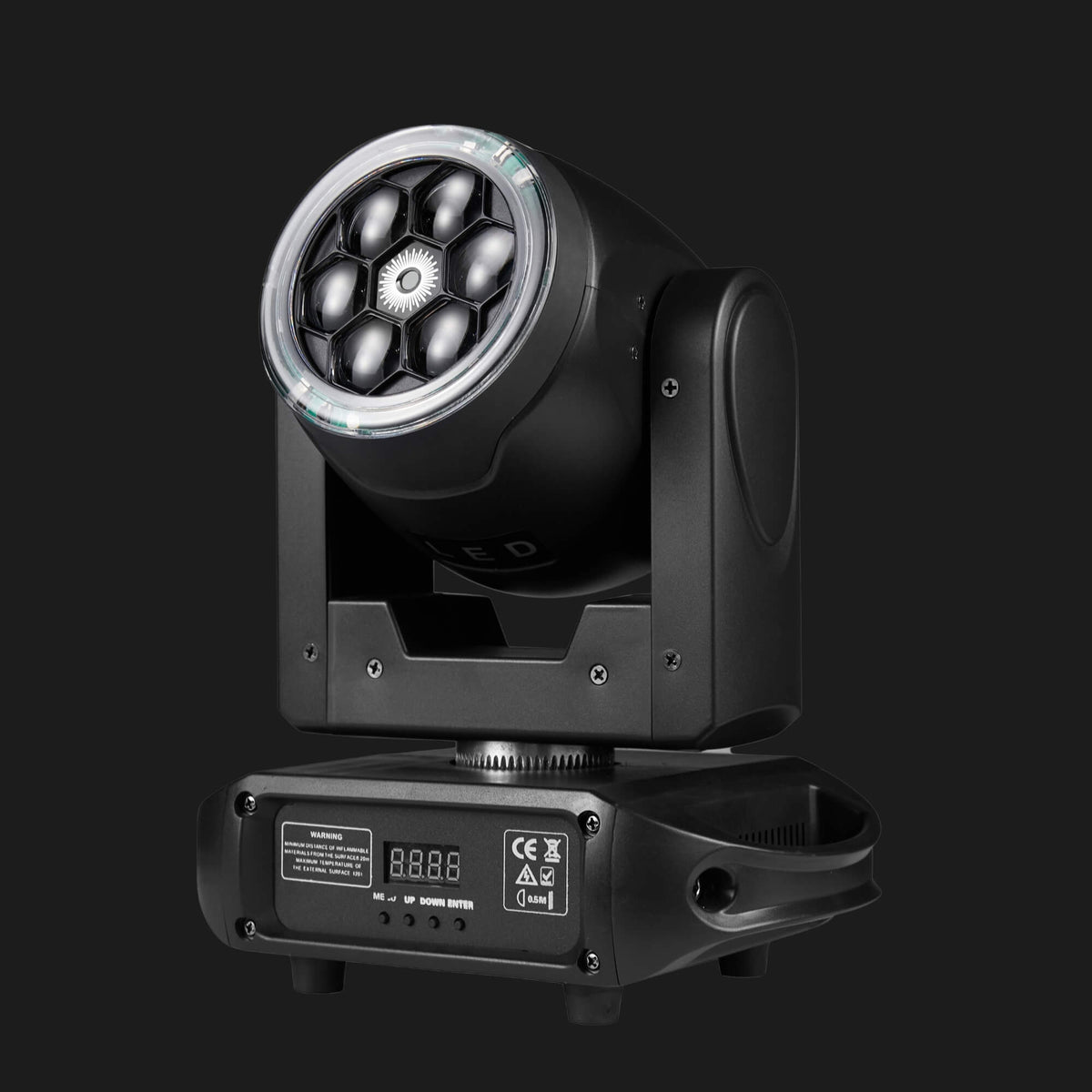

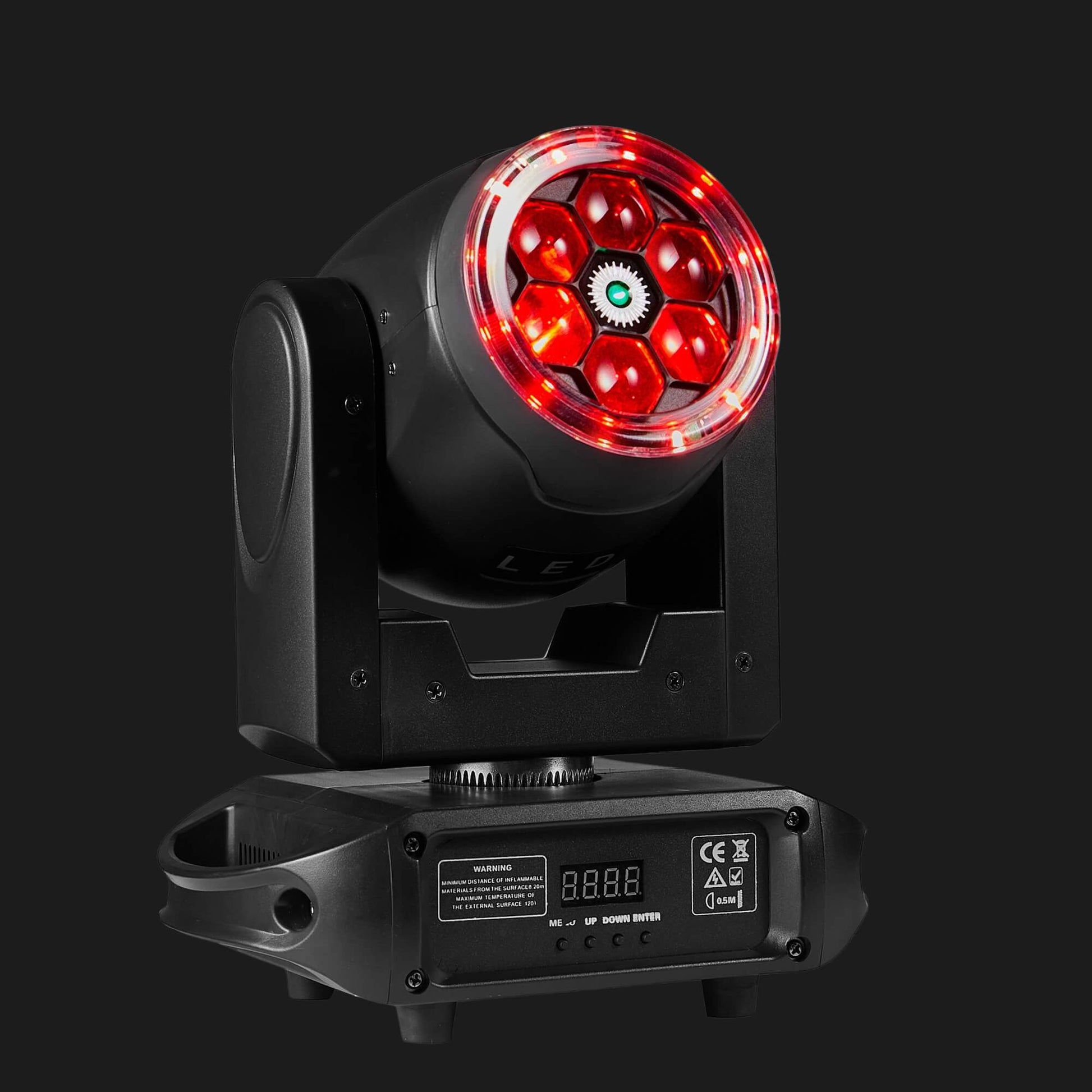

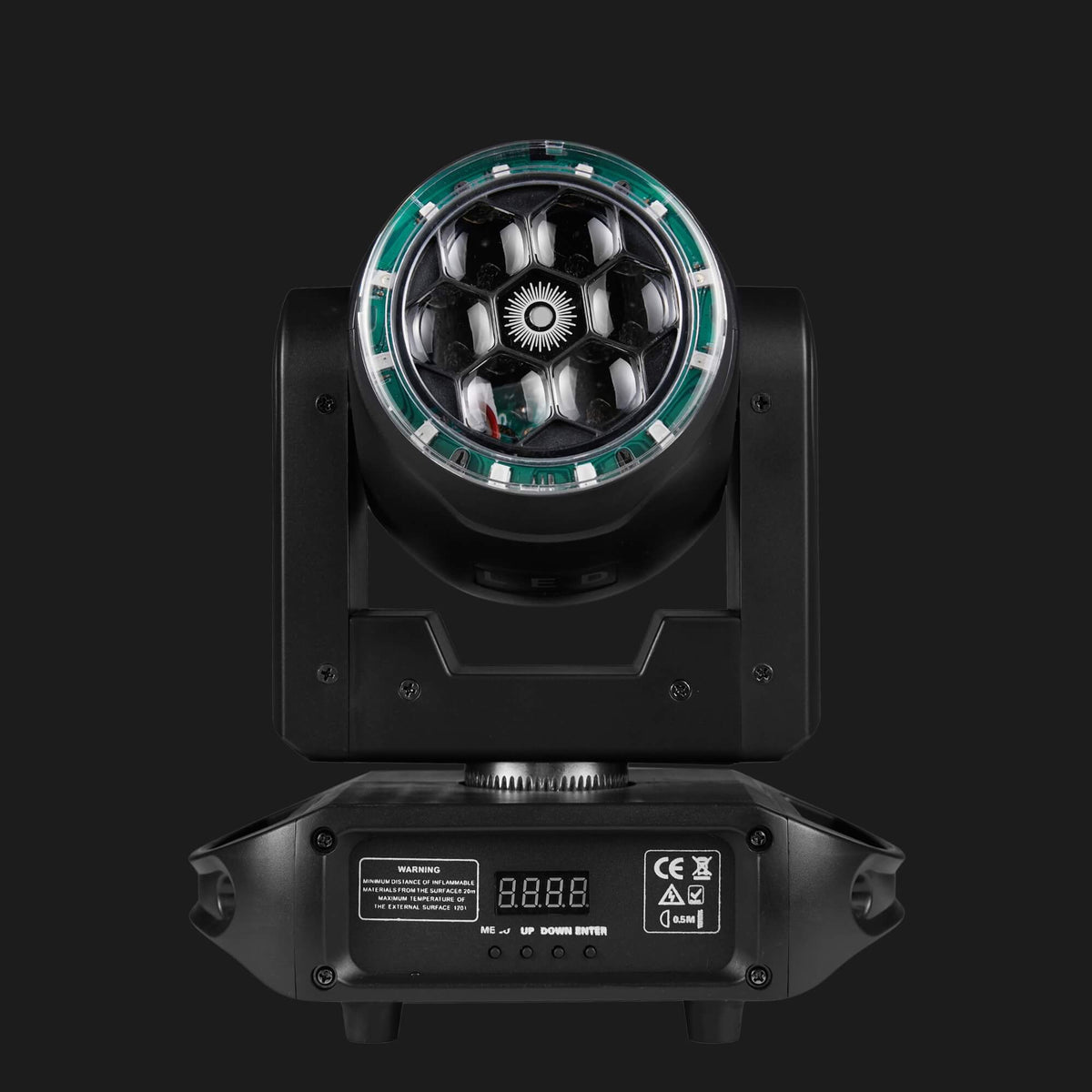

RGBW Bee-Eye, Green Laser, and Halo Effects: Six 15W RGBW 4-in-1 LEDs create vivid red, green, blue, and white output with smooth rainbow-style color combinations, while a 150mW green laser adds sharp aerial lines and layered visual effects for DJ lights, dance floors, and laser party lighting. The motorized bee-eye system offers 360° positioning with clockwise and counterclockwise rotation, while the color-changing aperture ring displays red, green, blue, yellow, purple, cyan, white, and flowing water-style effects. A focused 4° beam and high-precision optical lens group produce defined beams in haze-filled indoor environments.
Wide and Precise Moving Head Control

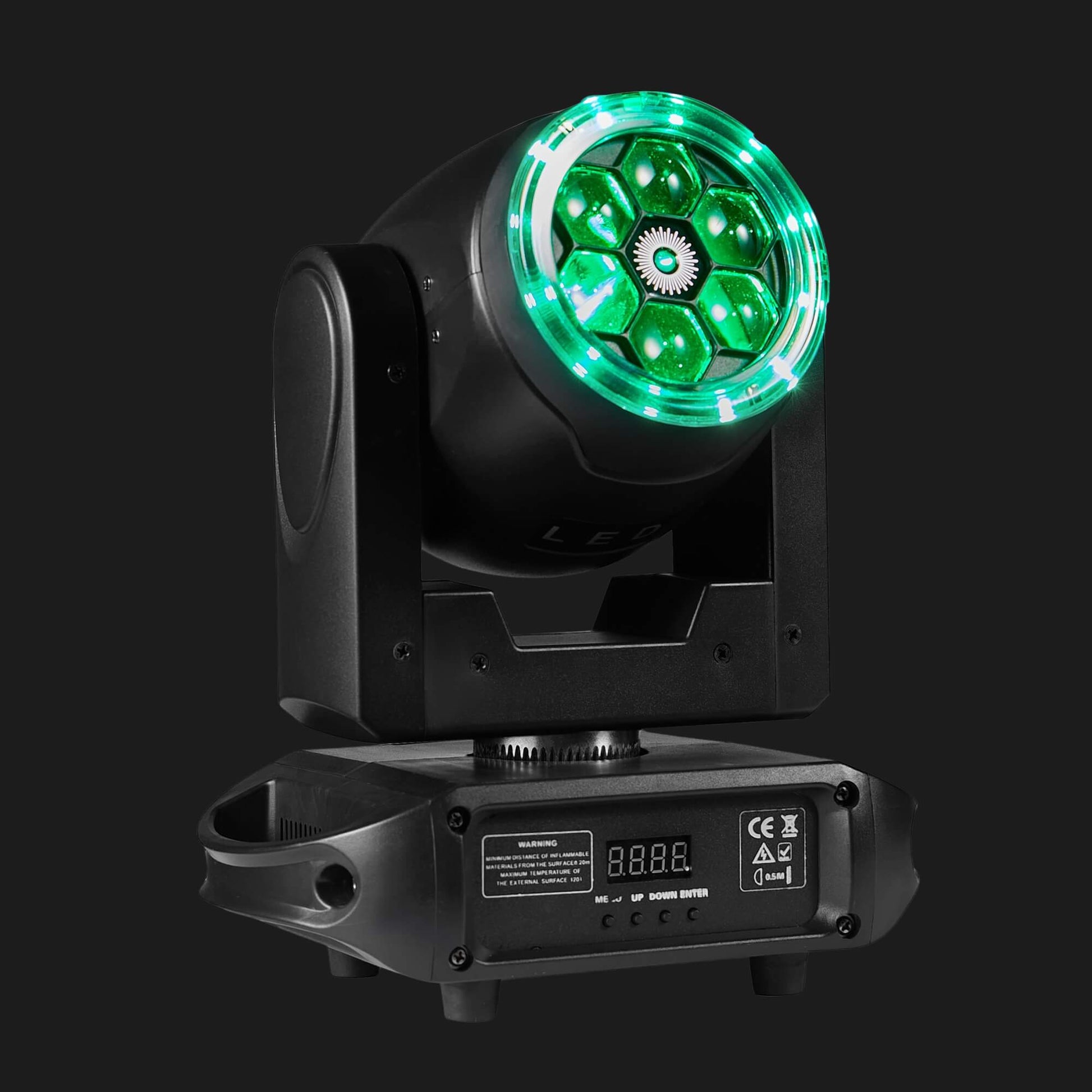

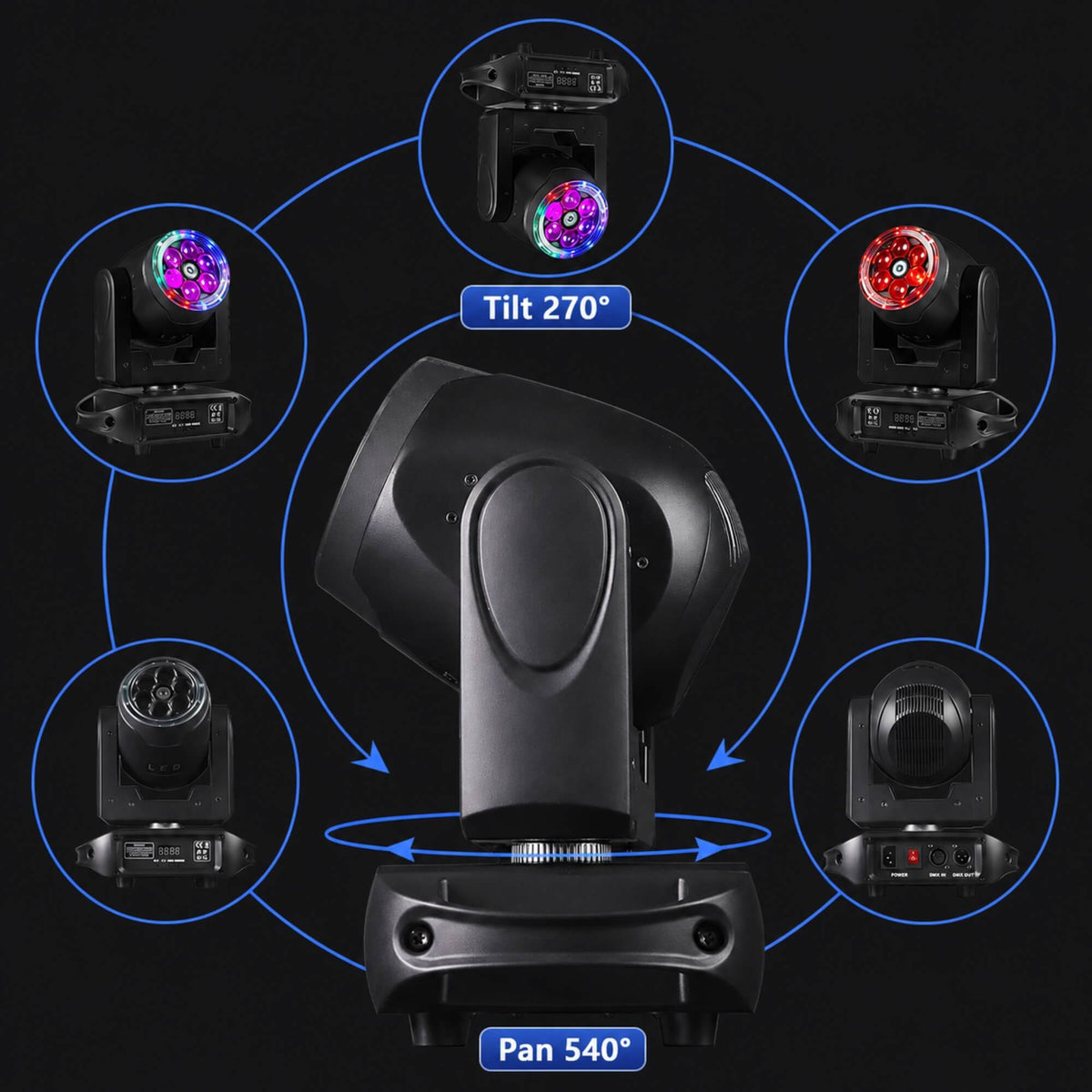

540° Pan Movement: The moving head DJ light sweeps across dance floors, stages, and event spaces.
270° Tilt Movement: Flexible movement creates overhead sweeps, crossed beams, aerial patterns, and audience-facing effects.
8-Bit and 16-Bit Control: Fine pan and tilt control ensures smooth positioning for stage lights and professional DJ lighting.
Electronic Positioning: Automatic electronic positioning returns the fixture accurately to programmed locations.
Movement Calibration: Manually calibrate pan, tilt, and bee-eye rotation offsets through the onboard menu.
17-Channel DMX and Standalone Operation
17-Channel DMX512: Controls movement, RGBW colors, green laser output, dimming, strobe, macros, and the aperture ring.
Multiple Control Modes: Supports DMX512, automatic programs, sound-active mode, and master/slave synchronization.
Sound-Activated Effects: Adjustable microphone sensitivity lets the party lights react to music and live audio.
Master/Slave Synchronization: Connect identical fixtures with 3-pin DMX cables for coordinated DJ lights without individual programming.

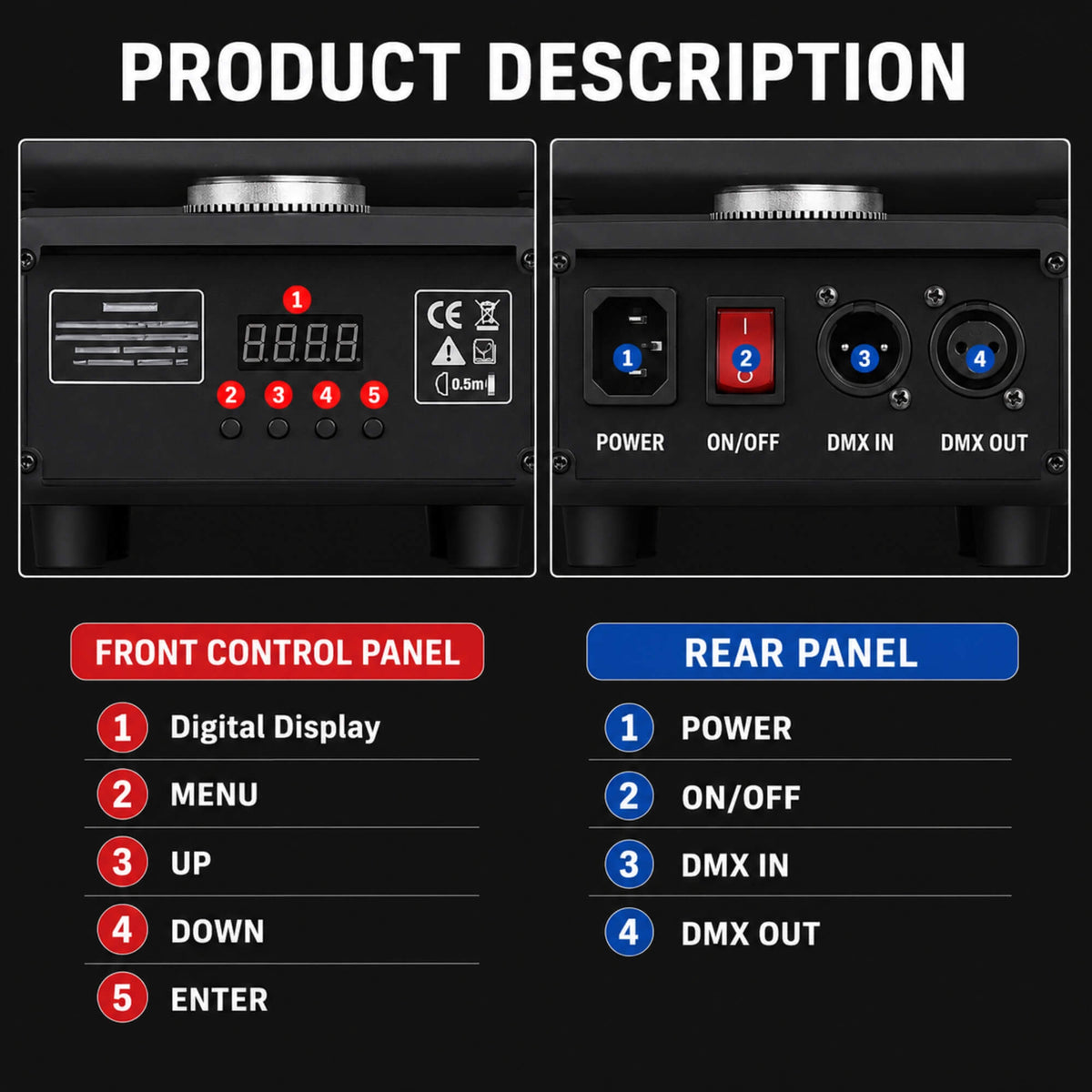

Easy Menu Setup: The four-digit display simplifies addressing, mode selection, calibration, and effect adjustment.
Smooth Dimming, Strobe, and Show Effects
Linear Dimming: Smooth 0–100% dimming provides fades, accents, and transitions for stage lighting and event lighting.
Fast Strobe: Synchronized 1–20 flashes per second create high-energy disco lights and rave lights.
Independent RGBW Mixing: Separate red, green, blue, and white channels enable precise color creation via a compatible DMX controller.
Adjustable Effect Speed: Control moving-head speed, bee-eye rotation, aperture-ring programs, and built-in show effects.
Versatile Applications: RGBW, laser, and halo effects suit mobile DJs, nightclubs, bars, parties, KTV rooms, small concert stages, and indoor events.
Compact Design and Reliable Cooling
90W Rated Power: Multiple lighting effects in one efficient fixture reduce DJ lighting equipment needs.
Intelligent Cooling: Heat-conduction cooling, forced-air ventilation, and temperature protection ensure stable operation.
Universal Voltage Input: AC 100–240V, 50/60Hz supports international stage lighting installations.
Portable Housing: The 24.5 × 16.5 × 32 cm body and 3.5 kg weight simplify transport and mobile DJ setups.
Indoor Event Lighting: Designed for dry, ventilated clubs, parties, bars, entertainment venues, and small live stages.
Specs
Product Model
X30
Product Type
6-Eye Bee-Eye + Laser Moving Head Effect Light
Recommended Category
Moving Head DJ Light / RGBW Stage Light
Power Supply
AC 100–240V, 50/60Hz
Rated Power
90W
LED Source
6 × 15W RGBW 4-in-1 LEDs
Laser Source
150mW Green Laser
Optical System
High-Precision Optical Lens Group
Beam Angle
4°
Color System
RGBW Mixing with Rainbow-Style Combinations
Aperture Ring Colors
Red, Green, Blue, Yellow, Purple, Cyan, and White
Aperture Ring Programs
Static Colors and Flowing/Water-Style Effects
Bee-Eye Positioning
0–360°
Bee-Eye Rotation
Clockwise and Counterclockwise
Pan Movement
540°
Tilt Movement
270°
Movement Speed
Adjustable
Pan/Tilt Resolution
8-Bit / 16-Bit Fine Adjustment
Positioning System
Electronic Automatic Positioning
Pan Direction Reverse
Supported
Tilt Direction Reverse
Supported
Position Calibration
Pan, Tilt, and Bee-Eye Rotation Offset Adjustment
Master Dimming
0–100% Linear Dimming
RGBW Dimming
Independent Red, Green, Blue, and White Control
Green Laser Dimming
0–100% Through DMX
Strobe Rate
Approximately 1–20 Flashes per Second
Control Protocol
International Standard DMX512
DMX Channels
17 Channels
Control Modes
DMX512, Master/Slave, Auto, and Sound-Active
Sound Sensitivity
Adjustable from 000–100
Macro Programs
Automatic and Sound-Active Effects
RDM Function
Automatic RDM Identification
Display Panel
0.39-Inch Four-Digit Display
Display Controls
MENU, UP, DOWN, and ENTER
Display Orientation
Normal or Reversed
Screen Saver
Optional 30-Second Display Timeout

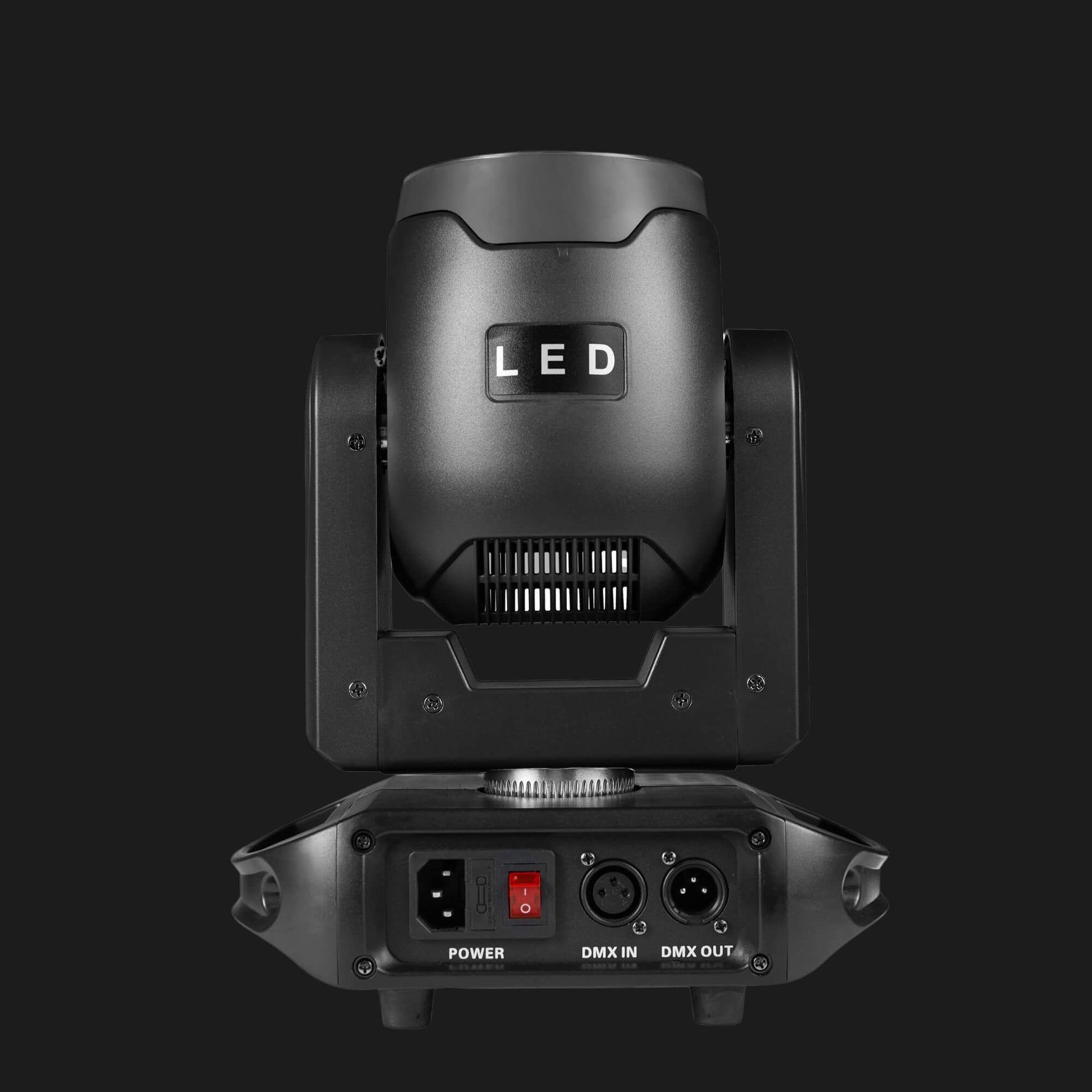

DMX Connections
3-Pin DMX IN and DMX OUT
Cooling System
Heat-Conduction Cooling and Forced-Air Cooling
Temperature Protection
Intelligent Temperature Protection
Product Size
24.5 × 16.5 × 32 cm
Net Weight
3.5 kg
Working Environment
Indoor Use; Keep Dry and Well Ventilated
FAQ
Q: What lighting effects does the X30 produce?
A:The X30 combines six RGBW bee-eye LEDs, a 150mW green laser, a rotating bee-eye lens, a color-changing aperture ring, strobe effects, and built-in automatic programs.
Q: Is the X30 suitable for mobile DJ lighting?
A:Yes. Its compact housing, 3.5 kg weight, sound-active programs, and multiple effects make it practical for mobile DJ lights and portable event setups.
Q: Can the X30 operate without a DMX controller?
A:Yes. The fixture includes automatic, sound-active, and master/slave modes, so it can run without a lighting console.
Q: How many DMX channels does the X30 use?
A:The X30 uses a standard 17-channel DMX512 profile for movement, dimming, strobe, RGBW colors, laser output, aperture-ring effects, macros, and reset control.
Q: What is the pan and tilt range?
A:The moving head provides 540° pan and 270° tilt with adjustable movement speed and 8-bit or 16-bit fine control.
Q: Can the bee-eye lens rotate?
A:Yes. The bee-eye motor supports positioning from 0–360° and can rotate clockwise or counterclockwise at adjustable speeds.
Q: Can the RGBW colors be controlled separately?
A:Yes. Red, green, blue, and white each have an individual DMX channel with linear adjustment from 0–100%.
Q: Can the green laser brightness be adjusted?
A:Yes. The 150mW green laser has a dedicated DMX channel with linear brightness control from 0–100%.
Q: What colors can the aperture ring display?
A:The aperture ring supports red, green, blue, yellow, purple, cyan, and white, as well as a flowing water-style effect program.
Q: Does the fixture include sound-active mode?
A:Yes. A built-in microphone triggers sound-active programs, and microphone sensitivity can be adjusted through the onboard menu.
Q: Can several X30 DJ lights run together?
A:Yes. Identical fixtures can be connected with 3-pin DMX cables for synchronized master/slave operation.
Q: Can each fixture be controlled separately?
A:Yes. Assign each unit a different DMX starting address to control it independently. Use matching addresses only when identical operation is intended.
Q: Can the pan and tilt directions be reversed?
A:Yes. The onboard menu includes pan and tilt reversal options for different mounting orientations.
Q: Is haze required?
A:Haze is not required for the fixture to operate, but a suitable haze or atmospheric effect can make the narrow RGBW beams and green laser lines more visible in the air.
Q: Is the X30 suitable for laser lights for party events?
A:Yes, for properly managed indoor events. The green laser can be combined with RGBW beams, strobe, moving-head motion, and halo effects to create layered laser party lights.
Q: Can the X30 be used as club lights or rave lights?
A:The X30 is suitable for smaller indoor clubs, lounges, dance floors, bars, and entertainment venues where compact moving beams and laser effects are required.
Q: Is the X30 waterproof?
A:No. The X30 is designed for indoor use. Keep the fixture dry, protect it from prolonged humidity, and ensure that its ventilation openings remain unobstructed.
Q: What safety precautions apply to the laser?
A:Do not stare into the LED or laser aperture. Never aim the output toward people, animals, vehicles, or aircraft. Follow all local laser-safety and installation requirements.
Q: How should the fixture be mounted overhead?
A:Use a properly rated mounting clamp and an independent safety cable. Inspect the mounting points, screws, bracket, clamp, and safety cable before every overhead installation.
Q: How should the X30 be cleaned?
A:Disconnect power and allow the fixture to cool. Clean the housing with a soft, slightly damp, lint-free cloth, clean the optical components carefully, and keep the ventilation openings free of dust.
