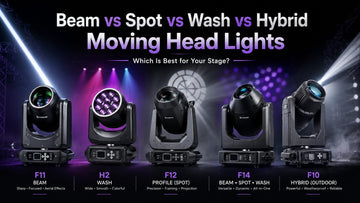

Beam vs Spot vs Wash vs Hybrid Moving Head Lights: Which Is Best?
When people shop for professional moving head lights for the first time, the conversation often begins with one question:
“How many watts is it?”
Wattage matters, but it is rarely the best place to start.
A high-powered fixture is not automatically the right fixture for your stage. A Hybrid light with a long feature list may not fully replace dedicated Beam, Spot, Wash, and Profile fixtures. What really determines the result is the complete optical system: beam angle, throw distance, light intensity, zoom range, color quality, focus, movement, control protocol, and the actual job the fixture needs to perform.
This is where many purchases go wrong.
A customer may ask for the brightest stage lights available, only to explain later that the real goal is flattering, camera-friendly lighting for a wedding. Another buyer may request stage wash lights but expect the sharp aerial shafts normally seen in concert lighting.
When the type of fixture is misunderstood, the budget, quantity, rigging plan, and entire stage lighting design can move in the wrong direction.
This guide explains the differences between Beam, Spot, Wash, Profile, and Hybrid moving head stage lights in practical terms. It also covers the technical specifications buyers should compare, how these fixtures behave in real venues, and where models such as the Starshine F11, H2, F12, F14, and F10 fit into a professional lighting system.
The most useful rule is simple:
The best fixture is not the one with the longest specification sheet. It is the one that performs the right job in your venue.
Full Table of Contents
Quick Answer: Beam vs Spot vs Wash vs Hybrid
Choose a Beam moving head light when you want narrow aerial shafts, prism effects, and high-impact concert lighting.
Choose a Spot moving head light when you need gobos, patterns, motorized focus, and controlled projection.
Choose a moving head Wash when you need smooth, broad color coverage across performers, scenery, or an entire stage.
Choose a Profile moving head when you need framing shutters and precise control around LED screens, projection surfaces, lecterns, scenery, or individual performers.
Choose a Hybrid moving head light when one fixture must perform several of these jobs because truss positions, transportation space, inventory, or budget are limited.
For most complete professional stage lighting systems, the strongest result does not come from using only one type of fixture. It comes from giving each fixture a clearly defined role.
How to Choose a Moving Head Light in 30 Seconds
Use this basic decision process before comparing wattage or price:
- Choose Beam when the audience needs to see the light moving through haze.
- Choose Spot when the audience needs to see a projected pattern, logo, or texture.
- Choose Wash when performers, scenery, or backgrounds need wide, even color.
- Choose Profile when the light must stop precisely at the edge of a screen, stage area, or scenic element.
- Choose Hybrid when one fixture needs to cover several different roles.
The decision becomes more accurate when you also know:
- Stage width and depth
- Mounting height
- Throw distance
- Indoor or outdoor location
- Ambient light level
- LED screen brightness
- Camera requirements
- Whether haze will be used
- Available power
- Existing lighting console
- Budget
- Required quantity
Beam, Spot, Wash, Profile, and Hybrid at a Glance
The easiest way to understand these types of stage lights is to think about the shape and purpose of the light they create.
- Beam is like a spear made of light.
- Spot is like a moving image projector.
- Wash is like a large brush used to paint the stage with color.
- Profile is like a precision cutting tool.
- Hybrid is like a multipurpose tool that can perform several jobs.
All five may offer pan and tilt movement, dimming, strobe effects, color control, prisms, and DMX operation. However, they are designed around different optical priorities.
| Fixture Type | Primary Role | Beam Character | Typical Features | Best Applications |
|---|---|---|---|---|
| Beam | Creates visible aerial shafts | Extremely narrow and concentrated | Prism, color wheel, strobe, frost | Clubs, DJs, concerts, festivals |
| Spot | Projects patterns and controlled light | Defined edge with adjustable focus | Gobo, focus, iris, prism, zoom | Weddings, theater, churches, events |
| Wash | Covers large areas with color | Wide, soft, and smooth-edged | RGBW mixing, zoom, pixel control | Weddings, broadcast, theater, stage color |
| Profile | Provides precise beam shaping | Controlled, sharp, and adjustable | Framing shutters, CMY, CTO, gobos | Theater, TV, churches, corporate events |
| Hybrid | Combines several fixture roles | Changes from narrow beam to wider coverage | Beam, Spot, Wash, sometimes framing | Rental, touring, multipurpose venues |
Professional manufacturers separate moving fixtures into Beam, Spot, Wash, Profile, Beam-Wash, and Hybrid categories because these stage lighting fixtures are not all designed to produce the same result.
1. Beam Moving Head Lights: Designed to Make Light Visible
Beam fixtures are often the first stage lights an audience notices.
With the right amount of haze in the air, a narrow beam becomes visible from the lens all the way across the room. Several fixtures can cross, fan outward, sweep above the audience, or move in synchronized patterns to create the high-energy look associated with concerts, festivals, and nightclubs.
This visual impact is why LED Beam fixtures are widely used in:
- Concert lighting
- DJ stage lighting
- Nightclubs
- Music festivals
- Touring productions
- Large event lighting systems
- Dance performances
- Product entrances
- Opening ceremonies
However, there is one important point that product videos do not always explain:
A Beam fixture is excellent at making the path of light visible, but it is not always good at lighting a person naturally.
What Beam Fixtures Do Best
Concentrated Output Over Long Distances
Beam fixtures use a narrow optical angle to concentrate a large amount of energy into a small area.
If the same amount of light is spread over a wide angle, it appears softer and less intense. When it is concentrated into a narrow angle, the center intensity becomes much higher.
This is why LED Beam lights can look extremely powerful even when their total lumen output is not dramatically higher than that of a Wash fixture.
When comparing Beam fixtures, look beyond wattage and review:
- Beam angle
- Peak candela
- Lux at 10 meters
- Lux at 15 meters
- Lux at 20 meters
- Beam diameter
- Hotspot uniformity
- Edge quality
- Color output
- Optical efficiency
- Prism clarity
- Movement accuracy
Some low-cost fixtures advertise a large wattage but provide no photometric data at realistic throw distances. Without lux or candela figures, it is difficult to predict what the fixture will look like after it is installed above the stage.
Prisms Create Multiple Aerial Beams
A prism divides one beam into several visible shafts.
- 8-facet prism
- 16-facet prism
- 24-facet prism
- Honeycomb prism
- Layered prisms
- Overlapping prisms
- Bidirectional prism rotation
A prism does not simply make the fixture brighter. It spreads the original output across multiple directions, making one fixture appear to create several beams.
The result can be dramatic, especially in concert lighting, but each divided beam carries less energy than the original single beam. The number of prism facets should never be evaluated without also looking at real output and optical clarity.
Some Beam fixtures also include a frost filter. Frost softens the narrow shaft and spreads the light over a wider area, giving the fixture a temporary Wash-like appearance.
That flexibility is useful, but a frosted Beam is still not identical to a purpose-built LED Wash light.
Fast Movement Matches High-Energy Music
Beam fixtures are commonly programmed for:
- Fast sweeps
- Symmetrical crossings
- Fan effects
- Circular movement
- Rapid tilt changes
- Beat-synchronized chases
- Position effects
- Large aerial patterns
Speed, however, is only one part of movement quality.
Professional designers also pay attention to:
- Smooth movement at very low speeds
- 16-bit pan and tilt control
- Positioning accuracy
- Repeatability between cues
- Shaking after a movement stops
- Calibration consistency
- Motor noise
- Reset time
A little motor noise may disappear in a nightclub. The same noise can become distracting in theater, broadcast work, corporate presentations, or church stage lighting.
Dedicated Beam Example: Starshine F11
For DJs, clubs, weddings, and professional event lighting systems that primarily need a tight aerial effect, the Starshine F11 150W LED Beam Moving Head Light is a useful example of a dedicated Beam fixture.
The F11 uses a 150W white LED source and produces a narrow 1.8° beam. Its optical design is intended to keep the shaft visually concentrated in haze, while 18 fixed gobos, optional prism effects, frost, and an RGB halo add more variety than a basic single-effect Beam.
This type of fixture makes the most sense when sharp aerial movement is more important than broad stage coverage.
Typical applications include:
- Mobile DJ systems
- Nightclubs
- Wedding dance floors
- Small and medium concerts
- Band performances
- Bars
- Event entrances
- Rental inventories
The F11 should not be treated as the primary source of smooth facial lighting. It works best when paired with stage wash lights, front light, or Profile fixtures that handle performers and scenery.
Where Beam Fixtures Fall Short
Beam fixtures are not universal high-brightness stage lights.
They are usually a poor choice for primary front lighting because:
- The beam is too narrow
- The hotspot can be severe
- Facial coverage is uneven
- Pattern projection may be limited
- Broad color coverage is weaker than a Wash
- Framing control is weaker than a Profile
- The aerial effect depends heavily on haze
If a project involves a wedding ceremony, church service, conference, interview, or livestream, buying only Beam fixtures may create a lively room while leaving faces poorly lit.
Beam lights work more like exclamation points.
They are excellent for entrances, musical peaks, transitions, and dramatic moments. They are less suitable for handling every lighting task throughout an entire event.
2. Spot Moving Head Lights: Controlling the Content of the Beam
A Spot fixture is often called a moving head spotlight or moving head pattern light.
The main difference between a Spot and a Beam is not simply that the Spot has a wider angle. A Spot normally offers a more complete system for projecting patterns and controlling the shape of the light.
A typical professional stage spotlight may include:
- Fixed gobo wheel
- Rotating gobo wheel
- Motorized focus
- Motorized zoom
- Iris
- Prism
- Frost
- Animation wheel
- Color wheel
- CMY color mixing
- Linear CTO correction
If a Beam fixture draws lines in the air, a Spot fixture draws images on the stage, floor, wall, ceiling, backdrop, or scenery.
What Is a Gobo?
A gobo is a pattern placed in the optical path of a Spot fixture.
Common gobo designs include:
- Dots
- Lines
- Flames
- Clouds
- Leaves
- Window patterns
- Geometric textures
- Radial patterns
- Company logos
- Wedding names
- Event dates
A stage spotlight can project these designs onto:
- Stage floors
- Backdrops
- Building walls
- Ceilings
- Tables
- Dance floors
- Scenery
- Haze-filled air
A good gobo system is not defined only by the number of patterns listed on the product page.
It should also be evaluated for:
- Edge sharpness
- Focus range
- Long-distance focus
- Rotation smoothness
- Rotation speed
- Indexed positioning
- Optical contrast
- Image uniformity
- Custom gobo compatibility
- Gobo replacement procedure
Professional stage spot lighting often uses gobos to give empty surfaces more depth.
A plain floor can become textured. A flat curtain can appear architectural. A wedding venue can display a couple’s name, while a corporate event can project a brand symbol without installing a separate projection system.
Focus and Zoom Are Not the Same Thing
This is one of the most common misunderstandings when buyers compare LED stage spotlights.
Focus
Focus controls whether the edge of the beam or projected gobo appears sharp.
For example, when a gobo is projected onto a wall 30 feet away and appears blurry, motorized focus brings the image back into clarity.
Zoom
Zoom controls the coverage angle.
A narrow zoom setting creates a smaller field for longer throws. A wider setting covers more space at shorter distances.
An LED stage spotlight may have focus without zoom. That means it can sharpen the projected image but cannot significantly change the size of the projection.
A fixture with a broad zoom range may appear more versatile, but the published range does not tell the entire story. Buyers should also check:
- Output at minimum zoom
- Output at maximum zoom
- Edge uniformity
- Gobo sharpness at different angles
- Zoom speed
- Zoom smoothness
- Matching between multiple fixtures
The largest number on the specification sheet is not always the most usable part of the optical range.
When a Spot Fixture Makes Sense
Choose a Spot moving head when you need:
- Clear gobo projection
- Floor and wall texture
- Custom logos
- Motorized focus
- Iris effects
- Medium-width controlled beams
- Animated scenic effects
- Wedding monograms
- Corporate branding
- Theater texture
A Spot is often more useful than a Beam when the audience needs to see what the light is projecting, rather than simply seeing the light move through the air.
3. Profile Moving Head Lights: Precision Beyond a Standard Spot
Spot and Profile fixtures are closely related, but they are not identical.
A moving Profile normally adds a framing shutter system to the functions found in an advanced Spot.
Framing shutters allow a designer to:
- Remove light from unwanted areas
- Keep light off an LED wall
- Avoid a projection screen
- Isolate a lectern
- Highlight one performer
- Outline a rectangular area
- Light a product display
- Create geometric shapes
- Cut around scenery
- Control spill on camera
This level of control is particularly valuable in:
- Theater productions
- TV studios
- Corporate events
- Fashion shows
- Product launches
- Houses of worship
- Museums
- Stages with large video walls
- Conference venues
- Broadcast event lighting
When the goal is precise stage lighting design rather than general effects, a Profile fixture is often a better investment than a basic Spot.
Moving Profile Example: Starshine F12
The Starshine F12 600W LED Moving Head Profile Light is designed for projects that require more precise optical control.
Its main functions include:
- 600W LED light source
- 3°–40° motorized zoom
- CMY color mixing
- Linear CTO control
- Four-blade framing system
- Dual gobo wheels
- Motorized focus
- Iris
- Frost
- DMX and RDM control
This combination makes the F12 more suitable for:
- Theater
- Corporate stages
- Churches
- TV and video production
- Product presentations
- Fashion events
- Large stages with LED screens
- Professional performance venues
The framing system allows the designer to shape the beam around performers, scenic elements, projection surfaces, or video walls instead of allowing light to spill across the entire area.
This is especially useful in church stage lighting and corporate production, where an uncontrolled Spot may wash out a screen or create distracting light in the camera frame.
Spot or Profile: Which One Should You Choose?
Choose a standard Spot when:
- Gobos and focus are the main priorities
- Framing shutters are not required
- The budget is limited
- The fixture will mainly create texture and movement
- The venue does not have strict spill-control requirements
Choose a Profile when:
- Precise beam shaping is important
- The stage includes LED walls or projectors
- Performers must be isolated cleanly
- Camera framing matters
- The venue hosts theater or corporate productions
- The same fixture must create both texture and key lighting
A Profile is generally more complex and more expensive, but it solves problems that a standard Spot cannot solve cleanly.
4. Wash Moving Head Lights: The Foundation of the Stage Picture
Wash fixtures are less dramatic than Beam fixtures and less obvious than gobo-projecting Spot fixtures.
Their purpose is straightforward:
They cover an area with smooth, usable light.
That may sound simple, but most stages depend on Wash lighting.
Without it, performers may disappear into dark areas. Backgrounds can look flat. The stage may have bright spots surrounded by uneven shadows. Beam and Spot effects may still look exciting, but they have no visual environment supporting them.
Stage wash lighting creates that environment.
Why Wash Light Looks Softer
A modern LED Wash fixture often uses multiple RGBW, RGBA, RGBL, or multicolor LED emitters. Lenses and mixing chambers combine those colors before the light reaches the stage.
The main goals are:
- Even coverage
- Soft edges
- Smooth color transitions
- Broad output
- Clean mixed colors
- Minimal color separation
- Consistent brightness
- Usable white light
Poorly designed wash lights for stage may look acceptable on a showroom wall, but their weaknesses become more visible on people, wedding dresses, scenery, or video.
Common problems include:
- Red, green, and blue shadows
- A bright center with dark edges
- Uneven pastel colors
- Green or magenta white light
- Stepped dimming
- Flicker on camera
- Visible LED dots
- Color changes during dimming
The number of LEDs does not tell you how well a fixture will mix color.
Lens quality, LED binning, optical distance, power regulation, thermal management, calibration, and dimming software can matter more than the emitter count itself.
Why Zoom Matters on Stage Wash Lights
A Wash fixture with motorized zoom can move between concentrated backlight and broad stage coverage.
For example:
- A narrow setting can create a tighter overhead or rear light
- A medium setting can cover performers or a band
- A wide setting can color an entire stage or backdrop
This flexibility makes zoomable stage wash lights especially valuable in venues that host different types of events.
Still, a Wash with a narrow zoom setting is not automatically a true Beam fixture.
It may create a Beam-like effect, but it will usually differ from a dedicated Beam in:
- Sharpness
- Peak candela
- Long-throw intensity
- Prism effects
- Beam definition
- Aerial visibility
The opposite is also true. A Beam with frost may produce broader light, but it may not match the color uniformity or smooth coverage of a dedicated Wash.
This is why professional systems often use separate fixture types even when each fixture offers some crossover functions.
Moving Head Wash Example: Starshine H2
The Starshine H2 7×40W RGBW LED Moving Head Wash is a practical example of a modern Wash fixture designed for both stage coverage and visual effects.
Its main functions include:
- Seven 40W RGBW LEDs
- 4.5°–45° motorized zoom
- Bee Eye optical effects
- LED ring effects
- DMX512
- RDM
- Smooth electronic dimming
At narrow zoom settings, the H2 can create tighter moving effects. At wider settings, it works as an LED Wash light for covering performers, scenery, walls, or backgrounds with color.
It is suitable for:
- Weddings
- Churches
- Small and medium venues
- Mobile DJs
- Clubs
- Live bands
- Theater
- Event lighting
- Rental systems
- Stage background color
The H2 is especially useful in systems that need both functional stage wash lighting and decorative eye-candy effects from the same fixture.
However, it should not be treated as a replacement for a dedicated long-throw Beam when the main goal is a razor-sharp aerial shaft.
Is More Pixel Control Always Better?
Many modern moving head Wash fixtures offer individual LED or zone control.
Pixel control can create:
- Color chases
- Ring animations
- Waves
- Multicolor zones
- Rotating eye-candy effects
- Inner and outer ring combinations
- Pixel-mapped patterns
- Layered strobe effects
These features are attractive, but they also increase DMX channel requirements.
A basic Wash may use fewer than 20 channels. A fully pixel-controlled fixture may use dozens or even hundreds. Multiply that by several fixtures, and the system quickly requires more universes, more programming time, and more network management.
A mobile DJ or wedding company may get everything it needs from built-in macros and grouped-zone control.
A touring production, broadcast show, or advanced event lighting system may benefit from full pixel mapping.
The point is not to buy the fixture with the highest channel count. It is to buy a level of control that the operator will actually use.
5. Hybrid Moving Head Lights: Flexible, Practical, and Not Magical
A Hybrid fixture combines Beam, Spot, and Wash functions in one housing.
Common product descriptions include:
- Beam Spot Wash moving head
- BSW moving head
- 3-in-1 moving head
- Hybrid stage light
- Beam-Wash-Spot fixture
The practical benefit is obvious:
One fixture can cover several roles while using less truss space, less truck space, and fewer installation points.
That makes Hybrid fixtures attractive for:
- Mobile DJs
- Wedding production companies
- Small rental businesses
- Bars
- Nightclubs
- Hotel ballrooms
- School auditoriums
- Churches
- Multipurpose venues
- Touring event companies
If a truss can safely support only eight moving fixtures, eight Hybrid units may provide more flexibility than four Beam and four Spot fixtures.
However, there is always a tradeoff.
Why a Hybrid Cannot Perfectly Replace Three Dedicated Fixtures
Beam, Spot, and Wash optics are designed around different goals.
A Beam system wants:
- The narrowest practical angle
- High center intensity
- A sharp aerial shaft
- Strong long-distance visibility
A Spot system wants:
- Clear gobo projection
- Accurate focus
- Even optical fields
- High pattern contrast
A Wash system wants:
- Wide coverage
- Soft edges
- Smooth color mixing
- Minimal color separation
These goals do not always work naturally within the same lens system.
Some Hybrid fixtures have an impressive Beam mode but create their Wash mode mainly by inserting frost. Others project sharp gobos but cannot create the same high-intensity aerial shaft as a dedicated Beam. Some provide wide coverage but lack the uniformity of a true Wash.
Large tours and advanced professional stage lighting systems still use separate Beam, Spot, Wash, and Profile fixtures because each fixture can be optimized for its own role.
Hybrid fixtures are usually the right choice for buyers who need:
- Maximum flexibility from limited positions
- Faster load-in and load-out
- Lower transportation volume
- Fewer fixture types to maintain
- A broad range of effects from a smaller inventory
- Better value within a limited budget
They are not automatically the right choice for every production.
Indoor Hybrid Example: Starshine F14
The Starshine F14 400W Beam Spot Wash Moving Head Light is an example of a professional indoor Hybrid design.
It combines:
- Beam functions
- Spot functions
- Wash functions
- Motorized zoom
- CMY color mixing
- CTO correction
- Gobos
- Prism effects
- Framing functions
- DMX
- RDM
This type of LED moving head light is practical for:
- Rental companies
- Theaters
- Churches
- Event production
- Hotel ballrooms
- Corporate stages
- Multipurpose venues
- Touring systems
The F14 can reduce the number of separate fixture types required in an inventory. It is especially useful when a production needs different visual looks from the same rig on different nights.
For example, one venue may host a corporate meeting in the afternoon, a wedding in the evening, and a music performance the following day. A Hybrid fixture offers more flexibility than a dedicated Beam in this kind of schedule.
Outdoor Hybrid Example: Starshine F10
Outdoor stage lighting adds another layer to the buying decision.
Output and optical functions still matter, but the fixture must also handle:
- Dust
- Moisture
- Changing temperatures
- Repeated outdoor setup
- Cable exposure
- Condensation risk
- More difficult maintenance conditions
The Starshine F10 Waterproof Beam Spot Wash Hybrid Moving Head Light combines Beam, Spot, and Wash functions with a 2.8°–38° zoom range.
It is positioned for:
- Outdoor concerts
- Festivals
- Rental projects
- Theme events
- Large performances
- Outdoor corporate events
- Temporary stages
- Weather-exposed productions
The F10 is useful when an outdoor production needs several effects from one fixture and reducing the number of separate units is important.
Water-resistant or waterproof construction does not remove the need for correct installation. Outdoor users should still check cable connections, mounting orientation, seals, drainage, ventilation, and maintenance procedures.
6. When Separate Fixtures Are Better Than a Hybrid
A Hybrid moving head can reduce the number of fixtures in a rig, but separate fixtures are still the better choice when each optical role must perform at the highest possible level.
A dedicated Beam will normally produce a more concentrated aerial shaft.
A dedicated Wash will generally deliver smoother and more even stage wash lighting.
A dedicated Spot will usually provide cleaner gobo projection.
A Profile gives the designer more exact framing and beam shaping.
Separate fixtures are often the better choice for:
- Large touring concerts
- Broadcast productions
- Professional theater
- Permanent performance venues
- Large churches with regular video production
- Shows requiring precise cue-to-cue consistency
- Productions with enough truss space
- Companies with enough transportation capacity
Hybrid fixtures are often the more practical choice for:
- Mobile DJs
- Wedding production companies
- Small and medium rental businesses
- Hotel ballrooms
- Multipurpose venues
- Schools
- Bars
- Clubs
- Productions with limited rigging positions
- Teams that need faster setup
- Companies that want a simpler inventory
The right question is not whether Hybrid technology is better or worse.
The right question is whether your production benefits more from specialization or flexibility.
7. Wattage Is Not Enough: Specifications That Actually Matter
Wattage is one of the easiest stage lighting specifications to market.
A large number looks impressive, but it does not directly describe what reaches the stage.
Two fixtures labeled 400 watts may produce very different results because of differences in:
- Light source efficiency
- Optical transmission
- Lens design
- Thermal management
- Driver current
- Color system
- Power limitations
- Actual input consumption
The word “wattage” may also refer to different measurements:
- LED source rating
- Discharge lamp rating
- Total fixture power
- Maximum input power
- Theoretical source power
- Typical operating power
A professional stage lighting equipment supplier should be able to explain which number is being published.
Lumens, Lux, and Candela
Lumens: Total Visible Light Output
Lumens describe the total amount of visible light produced.
This is useful, but it does not tell you where the light goes.
A Wash fixture may have high lumen output because the light is distributed across a wide area. A Beam fixture may have lower total lumens but much higher center intensity because the light is concentrated.
Candela: Directional Intensity
Candela describes the intensity of light in a particular direction.
For Beam fixtures and long-throw stage spotlights, candela can be more useful than lumens alone.
Lux: Light Reaching a Surface
Lux tells you how much light reaches a surface.
This is often the measurement that matters most in a real installation.
A buyer usually needs to know:
- How much output remains at 30 feet?
- Will performers be bright enough at 50 feet?
- Can the fixture reach a column 60 feet away?
- How much intensity remains in red or blue?
- Will the fixture compete with an LED video wall?
- Is the output sufficient for the camera exposure?
Serious buyers should ask for lux measurements at several distances rather than relying only on source wattage.
Beam Angle and Field Angle
Beam angle and field angle are not always the same measurement.
In simplified terms:
- Beam angle describes the stronger central portion of the output
- Field angle includes a wider, dimmer part of the light field
If a fixture lists a zoom range of 5° to 50°, ask:
- Is that beam angle or field angle?
- Was it measured or estimated?
- What is the lux output at each end of the range?
- How uniform is the field?
- How much output is lost at maximum zoom?
- Does the edge remain clean?
Different manufacturers may publish these measurements differently, so comparisons should be made carefully.
Estimating Beam Diameter
A simple formula can provide a rough estimate of the diameter of a circular beam:
Beam diameter ≈ 2 × throw distance × tan (beam angle ÷ 2)
For a 5° beam:
- At 10 meters, the diameter is approximately 0.87 meters
- At 20 meters, the diameter is approximately 1.75 meters
For a 20° beam:
- At 10 meters, the diameter is approximately 3.53 meters
This explains why a change of only a few degrees can create a major difference in coverage.
The formula is only an estimate. Real results are also influenced by lens design, source size, edge falloff, beam shape, focus, and fixture angle.
A Larger Zoom Range Is Not Always Better
A specification of 3°–50° appears more impressive than 6°–40°, but only if the entire range is usable.
Ask:
- Is the beam clean at the narrowest setting?
- Is the field even at the widest setting?
- Does the zoom move smoothly?
- Do several fixtures zoom at the same speed?
- Are there dark rings at extreme angles?
- Does the gobo remain sharp?
- How much intensity is lost at wide zoom?
Some fixtures advertise an extremely broad range, but their best-looking output is concentrated in the middle.
Before placing a large order, request:
- White-wall beam photos
- Narrow, medium, and wide zoom comparisons
- Lux readings at several distances
- Gobo focus tests
- Zoom videos
- Multi-fixture synchronization tests
8. RGBW, CMY, and CTO Color Systems
Color technology affects how a fixture looks both to the eye and on camera.
RGBW
RGBW systems are common in LED Wash and Beam-Wash fixtures.
Advantages include:
- Fast color changes
- Bright saturated colors
- Lower power consumption
- Pixel-control capability
- Smooth stage color effects
- Compact optical design
Adding a white LED can improve white-light output compared with basic RGB mixing.
However, the presence of a white LED does not guarantee accurate white light.
Buyers should still evaluate:
- Color temperature
- CRI
- Green or magenta shift
- LED binning
- Calibration
- White-light uniformity
CMY
CMY color mixing is common in professional Spot, Profile, and Hybrid fixtures.
Cyan, magenta, and yellow filters move progressively into the light path, allowing smooth color transitions.
CMY systems are useful for:
- Theater stage lighting
- Corporate production
- Broadcast work
- Touring shows
- Matching colors across multiple cues
- Creating subtle intermediate colors
Some fixtures combine CMY mixing with a separate color wheel for stronger saturated colors and faster color changes.
CTO
CTO correction shifts a cooler white source toward warmer color temperatures.
It is especially useful for:
- Weddings
- Interviews
- Houses of worship
- Corporate presentations
- Theater
- Television
- Mixing with tungsten fixtures
- Creating warm stage lighting
When a fixture is advertised simply as “white,” ask for its actual correlated color temperature and whether linear CTO adjustment is available.
9. Camera Use: CRI, TLCI, and PWM
A fixture can look good to the eye and still look poor on camera.
When stage lights will be used for livestreaming, wedding videography, broadcast, television, or high-frame-rate recording, pay attention to:
- CRI
- TLCI
- TM-30
- Color temperature
- Green-magenta correction
- PWM frequency
- Dimming curves
- Low-level dimming performance
Camera-related problems may include:
- Horizontal bands
- Rolling brightness
- Flicker
- Color shifts
- Uneven skin tones
- Green-looking white clothing
- Stepped fades
- Flicker in slow motion
A supplier may describe a fixture as “flicker-free,” but that phrase is not specific enough.
Ask:
- What is the PWM frequency?
- Can the PWM rate be changed?
- Has the fixture been tested at 24, 25, 30, 50, and 60 fps?
- What happens at 120 or 240 fps?
- Is dimming stable below 10%?
- Does camera mode reduce brightness?
- Are the dimming curves selectable?
For church stage lighting, wedding production, and broadcast event lighting, camera behavior may be more important than maximum Beam intensity.
10. DMX, RDM, Art-Net, and sACN
DMX512 remains the standard control method for most stage lighting systems.
However, “supports DMX” is only the beginning.
When comparing DMX moving head lights, check:
- 3-pin or 5-pin connectors
- Optically isolated DMX input and output
- RDM support
- Art-Net support
- sACN support
- Network firmware updates
- Available channel modes
- Signal-loss behavior
- Addressing options
- Calibration storage
- Fixture personality files
Basic DMX stage lights may be enough for a small system of eight fixtures.
For a system with dozens or hundreds of fixtures, RDM and network protocols can reduce:
- Addressing time
- Troubleshooting time
- Maintenance labor
- Configuration errors
- High-access work
- Setup time
RDM provides bidirectional communication between a compatible controller and fixture. It can support fixture discovery, addressing, status monitoring, and configuration.
Art-Net and sACN carry lighting data over Ethernet networks, allowing many DMX universes to travel through one network infrastructure.
The larger the system becomes, the more important the control architecture becomes to the overall stage lighting design.
11. Choosing Stage Lights by Application
There is no single fixture combination that works for every venue.
The right choice depends on what the audience needs to see and what the operator needs to control.
DJs, Nightclubs, and High-Energy Parties
These applications usually need:
- Narrow Beam fixtures
- High candela
- Prisms
- Fast pan and tilt
- Strobe effects
- Color wheels
- Haze
- Sound-active functions
- Fast busking control
A practical system might use:
- Beam fixtures for aerial effects
- Wash fixtures for color
- Spot fixtures for gobo texture
- Hybrid fixtures where truss space is limited
If the system contains only Wash fixtures, the room may have plenty of color but lack sharp visual structure.
Weddings and Ballrooms
Weddings usually need:
- Soft stage wash lights
- Warm white light
- Quiet operation
- Smooth dimming
- Flicker-free output
- Controlled movement
- Name and monogram projection
- Portable equipment
A balanced wedding rig might use:
- Wash fixtures for atmosphere
- Spot fixtures for names, logos, and floor patterns
- Hybrid fixtures for entrances and dance-floor effects
- A small number of Beam fixtures for high-energy moments
Wedding clients remember how the room felt, but photographers and videographers also need natural skin tones.
A room filled with intense beams may look exciting for a few minutes. It will not solve poor facial lighting.
Theater Productions
Theater usually requires:
- Spot or Profile fixtures
- Framing shutters
- Accurate focus
- Wide zoom ranges
- High CRI
- Smooth low-level dimming
- Quiet fans
- Repeatable positioning
- CMY color mixing
- CTO correction
- Gobos and animation effects
A useful system may include:
- Profiles for actors and controlled areas
- Wash fixtures for scenery and atmosphere
- Spots for texture
- Beams only when the design specifically calls for a strong aerial effect
In theater stage lighting, the most difficult cue is not always fast movement. It may be a slow fade from 3% to 12% or an almost invisible repositioning during a quiet scene.
Churches and Houses of Worship
Church stage lighting often needs:
- Natural-looking faces
- Camera-friendly output
- Low fan noise
- Accurate repeat positioning
- Simple control
- Profile framing
- Smooth Wash coverage
- Careful control around video screens
A practical system may use:
- Profile or Spot fixtures for the pulpit
- Wash fixtures for musicians and choir areas
- A few Beam or Hybrid units for music segments
- Stable white front light for regular services
The fixtures should support the service rather than distract from it. Movement and color effects should be easy to simplify when the production does not need them.
Concerts and Live Music
Concert lighting places more emphasis on movement, scale, rhythm, and visual impact.
A medium-sized system may include:
- Beam fixtures for aerial structure
- Wash fixtures for stage color
- Spots for gobos and texture
- Profiles for performers and scenic control
- Strobes and blinders for musical accents
- Haze for visible beams
Concert stage lights also need to compete with LED walls, scenic video, and ambient light.
This makes real lux and candela data especially important.
For touring use, stage lights for bands should also be evaluated for:
- Weight
- Case dimensions
- Setup time
- Power requirements
- Reliability
- Replacement parts
- Fixture-to-fixture consistency
Portable stage lighting for bands is not only about compact size. It is about how quickly the system can be installed, programmed, operated, and packed after the show.
Outdoor Events and Festivals
Outdoor stage lighting must account for more than brightness.
It may need:
- Weather-resistant construction
- Dust protection
- Water protection
- Sealed connections
- Corrosion-resistant hardware
- Stable thermal management
- Pressure equalization
- Serviceable seals
- Outdoor-rated power and data cabling
Buyers should ask:
- Is the complete fixture protected?
- Are connectors protected after cables are attached?
- Is it designed for temporary events or permanent outdoor installation?
- Is additional protection required near the ocean?
- How should the fixture be inspected after heavy rain?
- Can condensation form behind the lens?
- Is a pressure-equalization valve included?
- Can the fixture be installed where water may collect?
A fixture can be designed for outdoor use and still be damaged by incorrect orientation, damaged seals, inappropriate connectors, or neglected maintenance.
Rental Companies
Rental companies often prioritize:
- Hybrid or Beam-Wash fixtures
- Broad application range
- Moderate weight
- Fast setup
- RDM support
- Multiple DMX modes
- Standardized spare parts
- Modular servicing
- Flight cases
- Power linking
- Batch consistency
A rental fixture must do more than look good during the show.
The owner also needs to know:
- How many fixtures fit in a truck?
- Can two technicians lift the case safely?
- Are clamps easy to install?
- Can a damaged unit be replaced quickly?
- Do fixtures from different batches match?
- How fast can spare parts be shipped?
- Can fans, drivers, power supplies, and mainboards be replaced separately?
- Can firmware be updated across the inventory?
This is why the lowest moving head light price does not always lead to the lowest ownership cost.
12. How Many Moving Head Lights Do You Need?
There is no universal fixture count because stage size, rigging height, event type, and required coverage all matter.
The following examples are planning starting points, not fixed purchasing formulas.
Small Wedding, Mobile DJ, or Bar
A basic package might include:
- 4 Wash or Beam-Wash fixtures
- 4 Beam, Spot, or Hybrid fixtures
- A small number of blinders or strobes
- Haze machine
- DMX controller
Where fixture positions and budget are limited, four to eight Hybrid fixtures may be a practical starting point. Dedicated Wash fixtures can be added later if smoother coverage is needed.
Medium-Sized Live Event
A more complete package might include:
- 6 to 8 Wash fixtures
- 6 to 8 Beam fixtures
- 4 to 6 Spot or Profile fixtures
- Blinders
- Strobes
- Haze or fog
- Separate front lighting
This creates three visual layers:
- Wash fixtures establish color and space
- Spot or Profile fixtures add people, texture, and detail
- Beam fixtures create aerial energy and movement
Theater, Church, or Corporate Event
A suitable package may include:
- Profile fixtures for controlled key lighting
- Wash fixtures for stage and background color
- Spot fixtures for gobos and texture
- A smaller number of Hybrid fixtures for flexibility
- Dedicated white front light
These applications should prioritize:
- Low noise
- Accurate color
- Smooth dimming
- Repeatable movement
- Camera performance
- Ease of service
The most effective stage lighting setup is not necessarily the one with the largest number of moving fixtures. It is the one that gives each fixture a clear job.
13. Five Common Buying Mistakes
Mistake 1: Assuming More Watts Means More Light
Wattage does not describe the final projected result.
Compare:
- Lux
- Candela
- Beam angle
- Optical efficiency
- Throw distance
- Color output
- Actual fixture consumption
A lower-wattage fixture with an efficient optical system may outperform a higher-wattage fixture with poor light collection.
Mistake 2: Asking Beam Fixtures to Handle Every Job
Beam fixtures create energy and aerial structure. They are not ideal for smooth facial lighting or large, even fields.
A balanced professional stage lighting system often uses:
- Wash for the visual foundation
- Spot or Profile for controlled content
- Beam for impact
- Strobe, blinder, or laser for special effects
Mistake 3: Assuming Every Hybrid Replaces Three Dedicated Fixtures
A Hybrid solves problems involving budget, space, transportation, and flexibility.
It does not automatically match a dedicated Beam, Spot, and Wash in every mode.
Test the fixture in:
- Beam mode
- Spot mode
- Wash mode
- Frost mode
- Gobo projection
- Minimum zoom
- Maximum zoom
- Prism effects
Do not judge it only by a promotional video that changes through every feature in 30 seconds.
Mistake 4: Comparing Only the Fixture Price
The real cost of stage lighting equipment also includes:
- Flight cases
- Clamps
- Safety cables
- DMX cables
- Power cables
- Consoles
- Network nodes
- Shipping
- Import costs
- Spare fixtures
- Replacement parts
- Labor
- Training
- Maintenance
Eight appropriate fixtures can be more economical than twelve cheaper fixtures that do not solve the project’s needs.
Mistake 5: Requesting a Recommendation Without Providing Venue Information
A precise recommendation is difficult without:
- Stage width
- Stage depth
- Trim height
- Throw distance
- Indoor or outdoor use
- Camera requirements
- Haze availability
- Power conditions
- Console model
- Budget
- Quantity
- Main event type
A responsible stage lighting equipment supplier should not simply recommend the highest-wattage model without understanding the installation.
14. What Real Test Data Should a Supplier Provide?
Before purchasing professional moving head lights, ask the supplier for more than a short product video.
Useful supporting information includes:
- Lux readings at several distances
- Beam diameter at minimum and maximum zoom
- White-wall beam photographs
- Gobo focus tests
- Full-color output comparisons
- PWM or camera-flicker information
- Fan-noise measurements
- Pan and tilt repeatability tests
- DMX channel charts
- Fixture dimensions
- Fixture weight
- Power consumption
- Spare-parts availability
- Warranty procedures
- Service instructions
A professional supplier should clearly separate verified test results from estimated or theoretical specifications.
When a test has not been completed, an honest answer is more useful than an unsupported number.
15. Questions to Ask Before Requesting a Quote
When comparing a stage lighting store, manufacturer, or wholesale supplier, send a structured list of questions.
Photometric Data
- Can you provide lux readings at 5, 10, 15, or 20 meters?
- What are the beam angle and field angle?
- Is a photometric chart or IES file available?
- Can you provide beam photos at minimum and maximum zoom?
- What is the output in white and saturated colors?
Light Source and Color
- What light source brand and model are used?
- Under what conditions was the rated life calculated?
- Does the fixture use RGBW, CMY, or a color wheel?
- Is linear CTO included?
- What are the CRI, TLCI, color temperature, and PWM frequency?
Optical Effects
- How many gobo wheels are included?
- Can gobos rotate and index?
- Are focus and zoom motorized?
- Can the prisms overlap?
- Is the frost filter light, medium, or heavy?
- Does the fixture include an iris, animation wheel, or framing shutters?
Control
- Does it support DMX512, RDM, Art-Net, or sACN?
- How many DMX channel modes are available?
- Is a complete DMX chart available?
- How is firmware updated?
- Can several fixtures be configured together?
Construction and Service
- What is the net fixture weight?
- Is fan-noise data available?
- How was the environmental protection tested?
- Can the power supply, fan, mainboard, and LED module be replaced separately?
- Is a spare-parts price list available?
- What is the warranty period?
- Are OEM, ODM, and logo customization available?
- What is included in the wholesale price?
- Are flight cases, clamps, and safety cables included?
A professional supplier may not have every document immediately available. What matters is whether the company is willing to distinguish verified information from specifications that still require engineering confirmation.
16. Comparing Stage Lights for Sale
Commercial searches such as stage lights for sale, stage lighting for sale, and LED stage lights for sale often return hundreds of fixtures that look similar at first glance.
Price should be part of the decision, but it should not be the entire decision.
Before choosing among stage lighting equipment suppliers, compare:
- Photometric documentation
- Optical quality
- Color consistency
- Manufacturing quality control
- Replacement parts
- Technical support
- Warranty terms
- Shipping method
- Packaging
- Product certification
- Firmware support
- Communication quality
A stage lighting equipment supplier should help the buyer understand whether the project needs a Beam, Spot, Wash, Profile, or Hybrid fixture.
Simply sending a price list is not the same as providing a lighting solution.
17. How Starshine Approaches Moving Head Selection
Starshine offers Beam, Wash, Spot, Profile, Beam-Wash, and outdoor Hybrid fixtures for different stage lighting applications.
The products discussed in this guide illustrate several different optical roles:
| Model | Fixture Type | Best Fit |
|---|---|---|
| Starshine F11 | Dedicated Beam | DJs, clubs, concerts, aerial effects |
| Starshine H2 | RGBW Moving Wash | Weddings, churches, stages, event color |
| Starshine F12 | Moving Profile | Theater, corporate, broadcast, precise framing |
| Starshine F14 | Indoor Hybrid | Rental, multipurpose venues, flexible production |
| Starshine F10 | Outdoor Hybrid | Outdoor events, concerts, festivals, rental |
A buyer who needs broad color coverage and zoom flexibility may begin with a moving head Wash such as the H2.
A venue that needs precise control around screens and scenic elements may benefit more from a Profile such as the F12.
A DJ or club that needs sharp aerial beams may prefer a dedicated Beam such as the F11.
A rental company or multipurpose venue may find an F14-style Hybrid more practical.
An outdoor production may require an F10-style weather-resistant Hybrid instead of an indoor fixture.
The fixture category is only the starting point.
Before recommending a model or quantity, it is more useful to understand:
- Stage dimensions
- Mounting height
- Throw distance
- Indoor or outdoor use
- Main event type
- Camera requirements
- Weather exposure
- Existing console
- Budget
- Required quantity
Sometimes a buyer initially requests Hybrid fixtures but would achieve a better result with a combination of Wash and Profile lights.
In another project, separate Beam, Spot, and Wash fixtures may be impractical because of transportation limits or restricted truss capacity.
A good recommendation balances performance, budget, installation, transportation, and long-term service.
18. Which Moving Head Light Should You Choose?
Choose Beam If You Need:
- Sharp aerial shafts
- High-energy movement
- Prism effects
- Concert and nightclub looks
- Long-distance visual impact
- Effects that work with haze
Choose Spot If You Need:
- Gobo projection
- Wall and floor patterns
- Defined beam edges
- Motorized focus
- Iris and animation effects
- Wedding, theater, church, or corporate use
Choose Wash If You Need:
- Broad, even color
- Soft edges
- Background and performer coverage
- RGBW color mixing
- Zoom
- Pixel effects
- Wedding, broadcast, and theater use
Choose Profile If You Need:
- Framing shutters
- Precise area control
- Clean positioning around video walls
- High-quality white light
- Theater and broadcast use
- Advanced beam shaping
Choose Hybrid If You Need:
- Several effects from one fixture
- Fewer units
- Reduced truss space
- Easier transportation
- A flexible rental inventory
- More options within a limited budget
The final question should not be:
“Which moving head light is the best?”
A better question is:
“What kind of light is missing from my stage?”
Once that question is answered, choosing between Beam, Spot, Wash, Profile, and Hybrid becomes much easier.
Frequently Asked Questions
What Is the Difference Between Beam, Spot, and Wash Moving Head Lights?
A Beam fixture creates a narrow, concentrated aerial shaft. A Spot fixture projects gobos and controlled patterns. A Wash fixture produces broad, soft color coverage.
A Hybrid combines several of these functions in one housing, while a Profile adds framing shutters for more precise beam shaping.
Are Beam Lights Brighter Than Spot Lights?
Not necessarily.
Beam fixtures often look more intense because they concentrate their output into a narrow angle. Spot fixtures focus more on gobo projection, focus control, and usable image quality.
Compare lux, candela, throw distance, and beam angle rather than wattage alone.
Can a Wash Fixture Be Used as a Beam?
Some stage wash lights offer narrow zoom settings and can create Beam-like effects.
However, they usually do not match a dedicated Beam fixture in sharpness, peak intensity, long-throw visibility, or prism performance.
Can a Beam Fixture Be Used as a Wash?
Some Beam fixtures include frost filters that soften and widen the beam.
This can be useful for temporary coverage, but it normally does not replace the smooth color mixing and uniform field of a dedicated Wash fixture.
Is a Hybrid Moving Head Worth Buying?
Hybrid fixtures are often a strong choice for rental companies, mobile DJs, ballrooms, churches, and venues with limited truss positions.
For large tours, advanced theater, and high-end productions, separate Beam, Spot, Wash, and Profile fixtures usually provide more precise performance.
What Size Moving Head Light Is Best for a Small Venue?
There is no universal wattage recommendation.
The correct size depends on:
- Throw distance
- Beam angle
- Ambient light
- Video-wall brightness
- Ceiling height
- Camera use
- Venue size
- Fixture quantity
A fixture can be too powerful, too narrow, or too noisy for a small room even when its price and specifications appear attractive.
Do Beam Moving Head Lights Require Haze?
Beam fixtures still produce light without haze, but the visible aerial shaft becomes much less noticeable.
Haze makes small particles in the air reflect the beam toward the audience, allowing the path of the light to be seen.
Are Outdoor Moving Head Lights Necessary for Outdoor Events?
Fixtures exposed to rain, dust, humidity, or changing outdoor conditions should be designed for that environment.
Outdoor use still depends on correct cabling, connector protection, mounting, inspection, and maintenance. A weather-resistant housing does not make an installation maintenance-free.
What Are the Best Moving Head Lights for Church Stage Lighting?
Churches usually benefit from a combination of quiet Wash fixtures, Profile or Spot fixtures for controlled key lighting, and a smaller number of Beam or Hybrid fixtures for music segments.
Camera performance, low noise, natural skin tones, and precise control around video screens are often more important than maximum effect output.
What Are the Best Stage Lights for Concert Lighting?
Concert systems commonly combine Beam fixtures for aerial movement, Wash fixtures for color, Spot fixtures for gobos, and Profiles for performers or scenic control.
The best combination depends on stage size, LED screen brightness, trim height, throw distance, music style, and touring requirements.
Where Can I Buy Professional Moving Head Lights?
When evaluating a stage lighting store or manufacturer, compare more than price.
Review:
- Photometric data
- Quality control
- Spare-parts support
- Warranty
- Technical communication
- Shipping
- Product consistency
- After-sales service
The best professional stage lights are the ones that can be operated, maintained, and supported throughout their working life.
How Do I Get an Accurate Stage Lighting Quote?
Provide the supplier with:
- Stage width and depth
- Mounting height
- Throw distance
- Indoor or outdoor location
- Required quantity
- Main application
- Control system
- Camera requirements
- Budget range
This allows the supplier to recommend the right types of stage lighting instead of quoting only by wattage.
About This Guide
This guide was prepared using stage lighting product specifications, optical comparisons, control-system considerations, and questions that commonly arise during real customer projects.
Product specifications may change as fixtures are updated. Always confirm current photometric data, control channels, dimensions, included accessories, and environmental ratings before placing an order.
A useful lighting recommendation should be based on the actual stage, not only on a product name or wattage number.
Need Help Choosing the Right Moving Head Lights?
Share your stage dimensions, mounting height, throw distance, event type, indoor or outdoor conditions, camera requirements, quantity, and budget with the Starshine team for a more targeted recommendation.
Chat on WhatsApp
Download PDF Product Catalogs
Get detailed specifications, wiring diagrams, rigging notes, and installation information.
