How to Plan Cable-Free Outdoor Stage Lighting with Battery-Powered LED Par Lights

A cable that seems harmless during setup can become a problem once guests begin walking through the space, servers start moving between tables, and performers enter the stage area. Around pools, lawns, stairs, historic buildings, and venues with limited electrical access, traditional wired stage lighting can become even more complicated.

That is why battery powered stage lights, wireless outdoor lighting, and app-controlled LED par lights have become increasingly useful for professional event lighting. Their value is not simply that they remove a power cord. They change the entire workflow by allowing faster placement, cleaner presentation, more flexible control, and quicker teardown.

Still, buying a battery-powered par light does not automatically create a reliable lighting system. You need to understand weather protection, battery planning, DMX control, wireless groups, fixture placement, color systems, and backup procedures.

This guide explains how to plan a practical, professional cable-free lighting setup without making the subject unnecessarily complicated.

Traditional par can lights and wired LED fixtures still work very well in theaters, clubs, churches, fixed stages, and permanent installations. Wired power and wired DMX remain dependable choices when the infrastructure is already in place.

Temporary outdoor events are different.

An outdoor wedding may have a ceremony area, dinner area, photo backdrop, entrance, and dance floor spread across a large property. A pool deck may have limited safe locations for power cables. A garden venue may not provide outlets near the trees, walls, columns, or pathways that need lighting. A temporary outdoor stage may also have a short load-in window, leaving very little time for complicated cable routing.

In these situations, fixture mobility matters almost as much as output.

A properly selected battery-powered LED par light can be placed beside a wall, under a tree, near a column, along a pathway, or at the side of a stage without requiring a dedicated outlet. For wedding companies, mobile DJs, production teams, and rental businesses, that can mean fewer extension cords, fewer cable ramps, and less time spent troubleshooting power distribution.

Battery-operated fixtures are also useful in venues where appearance matters. Luxury hotels, private homes, museums, historic buildings, and high-end event spaces may not allow tape, temporary cable channels, or visible wiring across finished surfaces. Compact portable stage lights make it easier to light these spaces without changing the venue itself.

There is one important point, though: battery capacity is not the same as guaranteed runtime.

A fixture with an 8800mAh battery will not run for the same amount of time under every condition. Full-output white, rapid strobing, sound-active programs, and complex pixel effects generally consume more energy than a low-intensity static amber wash.

Professional battery planning should always be based on:

• Required event duration
• Expected brightness level
• Color and effect choices
• Ambient temperature
• Battery condition
• Available charging time
• Backup fixture availability

For long events, test the fixtures under the actual program you plan to use. A quiet dinner scene at 30% intensity may run very differently from a four-hour dance-floor program at full output.

When customers search for waterproof outdoor lights, they often assume that an IP65 fixture can be left anywhere in heavy rain or placed directly beside standing water. That is not what IP65 means.

The first digit in IP65 indicates a high level of protection against dust. The second digit indicates resistance to water jets from certain directions. In practical event use, an IP65-rated fixture can be much better suited to dust, light rain, splashes, and damp outdoor environments than a standard indoor fixture.

For poolside event lighting, the fixture should be placed on a stable, level surface where water cannot collect around the housing. It should not sit in a drainage channel, puddle, low spot, or location where pool water may repeatedly wash over it.

A weather-resistant housing does not automatically protect every external cable, adapter, controller, or extension cord. Power connections and DMX connections must also be suitable for the environment.

If the rear power, charging, or DMX covers are left open, the fixture may not maintain its intended level of protection.

Moving equipment from a cold truck into a warm, humid environment can create condensation. Give the fixture time to adjust before powering it on.

Strong wind, flooding, lightning, unstable surfaces, and extreme weather remain serious risks. Weather-resistant outdoor stage lights still need sensible placement and supervision.

When comparing the best stage lights for outdoor use, ask more than “Is it IP65?” Also look at the mounting bracket, connector protection, housing design, ventilation, base stability, and intended working environment.

More control options do not necessarily make a setup better. The most efficient approach is to choose the simplest control method that can reliably handle the event.

App control works well when the fixture count is small and the lighting cues are simple.

It is useful for:

• Private parties
• Small weddings
• Restaurant patios
• Garden dinners
• Basic venue uplighting
• Static color washes
• Quick color changes
• Small outdoor party lights setups

An operator who does not own a DMX console can use a phone to select colors, brightness levels, and built-in programs.

For example, the Starshine P10 uses a direct Wi-Fi connection. The phone connects to the fixture’s LED-XXX network before opening the compatible app. While connected directly to the fixture, normal internet access may be temporarily unavailable.

App control is convenient, but it is not always the best option for a complex show. A professional console is still better when multiple cues must follow music, presentations, performances, or tightly timed event moments.

Wireless DMX lighting keeps the standard DMX programming workflow while reducing long signal-cable runs.

It is particularly valuable for:

• Outdoor weddings
• Corporate events
• Temporary stages
• Building façades
• Pool and water-feature areas
• Large gardens
• Venues with roads or guest walkways
• Multi-zone event lighting

The most common wireless DMX problems are often caused by setup errors rather than transmission range.

The transmitter, master fixture, and receiving fixtures must use the same wireless group. The fixtures also need to be set to the correct DMX mode. The P10 provides seven selectable 2.4G wireless groups and supports wireless master/slave operation as well as wireless DMX.

A basic wireless DMX workflow looks like this:

1. Select the wireless group on the transmitter.
2. Set every receiving fixture to the same group.
3. Put the fixtures in DMX mode.
4. Select the correct channel personality.
5. Assign DMX addresses.
6. Test one fixture before adding the rest.

If the fixtures do not respond, check the group and DMX mode before assuming the wireless signal has failed.

It is easy to think that wireless fixtures make physical DMX cables unnecessary. In professional production, that is rarely the best approach.

A venue may have many Wi-Fi networks, mobile hotspots, wireless microphones, video transmitters, and other radio devices. Metal structures and crowded technical areas can also affect signal behavior.

Wired DMX is still useful for:

• Permanent installations
• Mission-critical control paths
• Venues with heavy wireless traffic
• Short, easy cable runs
• Emergency backup
• Troubleshooting

A practical system may use app control for small events, wireless DMX for temporary multi-fixture projects, and wired DMX for critical links. Auto, Static Color, and master/slave modes can provide additional backup options.

A larger channel count does not automatically mean a better show. The right mode depends on what the operator actually needs to control.

The P10’s 9CH mode provides direct control of the six colors in the main array and the RGB values of the auxiliary pixels as one group.

This mode is useful for:

• Basic wall washing
• Wedding colors
• Static venue lighting
• Simple stage wash lighting
• Small controllers
• Fast programming
• Limited DMX address space

If the goal is to create a clean blue wall wash, warm amber background, or branded corporate color, 9CH may be the most efficient option.

It gives the operator access to red, green, blue, white, amber, and purple/UV in the main array while treating the auxiliary RGB pixels as a unified zone.

The 17CH mode adds more control over master intensity, strobe, programs, effect speed, and independent behavior between the main LEDs and the auxiliary pixels.

This can be especially helpful for:

• Mobile DJ events
• Clubs
• Wedding receptions
• Live music
• Corporate entertainment
• Medium-size stage lighting design

The main array can hold a static color while the auxiliary pixels run a chase or sound-active effect. For example, the center output can remain warm amber during dinner, while the surrounding pixels become active for the couple’s entrance or the start of dancing.

This creates visual movement without forcing the entire fixture to run a busy effect all night.

The 102CH mode gives individual RGB control to all 32 auxiliary pixels.

Each RGB pixel requires three channels. Thirty-two pixels use 96 channels, and the six main-array colors bring the total to 102 channels.

This mode is designed for:

• Pixel-mapped chases
• Animated borders
• Ring-style effects
• Detailed color movement
• Custom programming
• Advanced DMX stage lights setups

The P10 manual identifies 102CH mode as the appropriate option when each auxiliary pixel needs independent control.

However, 102CH is not always the practical choice.

Ten fixtures in 102CH mode would require 1,020 DMX channels. That means more than one standard DMX universe, more complex addressing, more programming time, and more detailed fixture profiles.

Basic RGB fixtures can create a wide range of colors, but weddings, banquet halls, and premium event lighting often require more than strong red, green, and blue.

RGB-generated white can appear tinted. A dedicated white channel produces a cleaner result and makes pale colors easier to create.

Amber is valuable for champagne, candlelight, warm gold, peach, and soft wedding colors. These tones can be difficult to reproduce naturally with RGB alone.

Warm colors are especially useful for:

• Wedding uplighting
• Banquet halls
• Hospitality spaces
• Historic architecture
• Dinner areas
• Photo backgrounds

UV or purple channels support fluorescent materials, party effects, saturated violet looks, and nightclub-style lighting.

They may not be needed for every event, but they expand the fixture’s creative range.

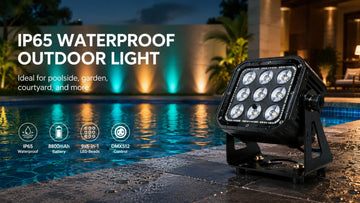

The P10 combines nine RGBWAP main LEDs in a 3 × 3 array with 32 surrounding RGB auxiliary pixels. The main LEDs can handle the primary LED wash light output, while the auxiliary pixels add chases, animated borders, and layered effects. It supports DMX512, Auto, Sound, Static Color, App, and IR Remote operation.

This makes it more flexible than traditional par can lights that provide only a basic wash.

The same fixture can look completely different depending on distance, angle, spacing, and surrounding surfaces.

Many disappointing lighting results are caused by fixture placement rather than insufficient output.

The first priority around a pool is not maximum brightness. It is safe, stable placement.

Keep fixtures away from narrow walking paths and areas where guests may kick, bump, or step over them. Avoid low points where water can collect.

Reflections from the water can make the light appear brighter, so begin at a moderate intensity.

Useful color approaches include:

• Blue and cyan for a cool, modern atmosphere
• Warm white and amber near dining or lounge areas
• Slow color fades for cocktail hours
• Pixel effects for music and dancing
• Reduced brightness near seated guests

The fixtures should not shine directly into guests’ eyes. A small angle adjustment can make a major difference.

Outdoor wedding lighting usually looks better when the color palette is controlled.

Before the ceremony, use soft warm white, pale amber, blush, or gentle pastel colors. During dinner, coordinate the lighting with the flowers, linens, architecture, and background décor. Save stronger changes for entrances, speeches, cake cutting, and the first dance.

For wedding uplighting, consistent spacing matters more than maximum brightness.

Uneven fixture spacing creates bright and dark sections along a wall. Before increasing output, align the distance and angle of every fixture.

A garden does not need every surface to be illuminated.

Choose visual priorities such as:

• Entrance paths
• Feature trees
• Stone walls
• Columns
• Main dining areas
• Photo locations
• Stage backgrounds

Leaving some areas darker creates depth. Using a different color on every tree and wall can make a professional event look like a temporary amusement area. A limited color palette usually feels more intentional.

Outdoor stage lighting needs to separate decorative effects from performer visibility.

LED par lights work well for:

• Backdrop color
• Floor lighting
• Side wash
• Set pieces
• Scenic accents
• Drum risers
• DJ booths

However, an LED par light may not be the only fixture needed for front lighting. Performer faces still require suitable angles, color quality, and glare control.

Dynamic effects should be saved for musical peaks, transitions, and important moments. If every stage light runs a complex chase all night, the audience quickly stops noticing it.

Corporate event lighting often benefits from restraint.

Use brand colors, slow transitions, even spacing, and clean white or amber illumination. Excessive strobing or random sound-active programs can distract from presentations and networking.

For a professional product launch, a stable color wash with a few carefully timed cues is often more effective than constant movement.

A reliable system is usually built before the guests arrive, not repaired after the show begins.

Do not stop after confirming that the fixture powers on. Check the actual battery level and compare it with the planned event duration.

Reduce brightness in less important areas if necessary and reserve higher output for key moments.

Every fixture that needs to receive the same wireless data must use the same 2.4G group.

This is a simple setting, but it is one of the most common causes of wireless control failure.

A controller profile set to 17CH will not correctly operate a fixture set to 9CH or 102CH.

The P10 manual specifically warns that the fixture’s selected channel mode must match the controller profile.

Calculate the channel range of every fixture before arriving at the venue.

The higher the channel mode, the faster the address space is used. Address overlap can cause unexpected colors and effects.

Confirm dimming, color, strobe, and program control on one fixture before adding the entire system.

When all fixtures are connected at once, it can be harder to identify whether the issue is the controller, address, profile, group, or fixture.

A wireless system that works beside the stage should also be tested from the actual operator position.

Walk the venue, check signal response, and confirm that walls, metal structures, equipment cases, and crowds do not create unexpected problems.

Save a static color and confirm that Auto mode works. Carry a few DMX cables when practical.

When the primary control system works, the backup is invisible. When something fails, that backup can keep the event looking professional.

IP65 fixtures are not underwater lights. Do not place them inside a pool, deep puddle, drainage channel, or flooded area.

Battery capacity is only one part of runtime. Output level, color, LED load, temperature, program type, and battery age also matter.

102CH offers detailed pixel control, but it also requires more address space and programming. For many events, 17CH is faster and more practical.

A fixture that is too close may create a bright spot at the bottom and weak color higher up the wall. Increase the distance and adjust the angle before increasing brightness.

More brightness does not always produce a better design. Good stage lighting needs contrast, focus, and controlled intensity.

Wireless microphones, Wi-Fi routers, phones, hotspots, video systems, and other equipment can make the radio environment more complicated. Test the system before the event begins.

Sound-active programs can be useful for parties, but they may feel distracting during dinner, speeches, ceremonies, or corporate presentations.

Even the best LED stage lights can look unprofessional if the angles, spacing, brightness, and colors are different from fixture to fixture.

Customers searching for stage lights for sale, LED stage lights for sale, or stage lighting for sale often begin by comparing prices. Price matters, but the lowest purchase price does not always produce the lowest operating cost.

Installation labor, charging workflow, reliability, control compatibility, transportation, repairs, and technical support all affect the real value of the equipment.

Before buying from a stage lighting equipment supplier, ask:

• What is the tested runtime at different brightness levels?
• How long does a full charge take?
• Is the battery replaceable?
• What battery type is used?
• Does the IP rating apply when all protective covers are closed?
• Which wireless DMX system is built in?
• How many wireless groups are available?
• Is a complete DMX channel chart provided?
• Are Android and iOS supported?
• Can the fixture operate in wired and wireless master/slave modes?
• Are fixture library files available?
• Is there a charging or flight case option?
• Are replacement parts available?
• What warranty and technical support are included?
• Do the website, product manual, and DMX chart show the same specifications?

These questions are especially important for rental companies and production teams buying several fixtures.

A dependable stage lighting store or experienced stage lighting equipment supplier should be able to explain the difference between marketing claims and real-world operating conditions.

Buyers should also be cautious when comparing cheap stage lighting with equipment intended for repeated professional use. A low price is less attractive if the fixtures are difficult to program, inconsistent in color, unreliable outdoors, or unsupported after purchase.

The Starshine P10 is not limited to basic static uplighting.

Its feature set is suited to users who need portability, weather resistance, flexible control, and more advanced visual options in one fixture.

Potential users include:

• Outdoor wedding teams
• Mobile DJs
• Event production companies
• Stage lighting rental businesses
• Hotels and banquet venues
• Poolside and garden event operators
• Corporate event teams
• Temporary outdoor stages
• Users who need app-controlled lighting
• Programmers who want pixel effects

For simple operation, the P10 can run through Auto, Sound, Static Color, IR Remote, App, or master/slave modes. For more advanced control, it provides 9CH, 17CH, and 102CH DMX personalities, along with 2.4G wireless DMX and individual auxiliary-pixel control.

That flexibility allows the same fixture to support both a small event without a lighting console and a more advanced DMX stage lighting system.

Still, the fixture should match the project.

A simple wall-washing job may not require detailed pixel programming. A rental company handling weddings, outdoor parties, DJ events, and stage productions may place much more value on multiple control modes, wireless synchronization, and IP65 protection.

The real value of battery-powered LED par lights is not that they look more modern. It is that they can reduce confusion on site.

One less cable means one less trip hazard. One less temporary power connection means one less failure point. A fixture that can be moved quickly makes it easier to respond when a client changes the floor plan at the last minute.

But dependable outdoor stage lighting still requires planning.

Batteries need to be tested. Wireless groups need to match. DMX modes need to be confirmed. Fixture addresses need to be organized. IP65 protection needs to be understood correctly. Backup control needs to be available.

A good lighting system should not require the crew to spend the entire night wondering whether the fixtures will keep working. Once the event begins, the equipment should quietly do its job.

Guests may never notice how many cables were removed from the venue. They will notice the clean environment, the carefully selected colors, and the way the lighting changes at exactly the right moment.

That is where well-planned LED outdoor lighting, professional event lighting, and reliable battery-powered stage lights earn their value.
