Dual Moving Head DJ Light Guide: X35 Beam, Strobe & DMX

Building a better DJ lighting setup does not always mean buying more fixtures.

Anyone who has loaded equipment into a van, carried it through a hotel service entrance, or tried to finish a wedding setup before guests arrived already knows the problem. A separate beam light, strobe light, laser, wash fixture, stand, clamp, power cable, and DMX cable may look impressive on a product list, but all of it has to be transported, mounted, tested, controlled, and packed away at the end of the night.

For mobile DJs, wedding entertainers, bars, karaoke venues, private parties, and compact stages, the most useful lighting system is often the one that creates enough variety without becoming difficult to manage.

That is where a dual moving head DJ light can be practical.

Instead of using two individual moving head lights plus separate strobe and laser fixtures, an all-in-one design can combine moving RGBW beams, rhythmic strobe effects, red and green lasers, and multiple control modes inside one compact housing.

The result can be a cleaner rig with fewer connections and faster setup. However, simply turning on every effect at the same time rarely produces a professional-looking show. Beam, strobe, and laser effects each have a different job, and the dual moving heads need to be positioned and programmed with purpose.

This guide explains how the system works, where it fits, how many fixtures you may need, how to set up DMX addresses, and how to avoid the mistakes that make otherwise capable DJ lights look chaotic.

A dual moving head DJ light uses two motorized outputs to create crossing, mirrored, opening, sweeping, and rotating effects from one fixture.

Models that combine RGBW beams, strobe LEDs, and red/green laser effects can reduce the number of separate fixtures required for mobile DJs, parties, weddings, bars, clubs, and small stages.

Automatic and sound-activated modes work well for fast setups. Master/slave operation can synchronize compatible fixtures, while DMX512 provides more precise control over movement, color, dimming, strobe speed, lasers, and built-in effects.

For a small home party, one fixture may be enough. A mobile DJ or wedding dance floor will often benefit from one or two units, while clubs and compact stages may use multiple fixtures alongside wash lights and haze.

A standard moving head light normally has one motorized optical head mounted on a base. Horizontal movement is called pan, while vertical movement is called tilt.

A dual moving head light places two optical heads on the same fixture. Depending on the design, the heads may share horizontal pan movement while using independently controlled tilt axes.

That creates more movement possibilities from one mounting point.

The two heads can:

• Open outward from the center
• Close toward one focal point
• Cross over the dance floor
• Sweep separate areas of the room
• Move in mirrored directions
• Rotate continuously
• Hold different vertical positions
• Produce layered aerial patterns

The real advantage is not simply having two beams. It is being able to shape a wider area without installing two completely separate moving head stage lights.

For a mobile DJ, that can mean one stand position instead of two. For a bar or karaoke venue, it can mean broader movement without filling the ceiling with fixtures. For a compact stage, it can create symmetrical looks from a relatively small piece of professional stage lighting equipment.

A dual-head fixture is not necessarily the same as two fully independent professional moving head lights. Before buying, confirm:

• Whether each head has independent tilt control
• Whether pan is shared or separate
• Whether tilt supports positioning, continuous rotation, or both
• Whether movement speed is adjustable
• Whether fine positioning is available
• Whether the fixture includes electronic repositioning
• Whether the DMX profile provides separate channels for both heads

These specifications determine whether the product can create controlled crossing and mirrored effects or only run preprogrammed movement patterns.

Multi-effect fixtures often list beam, strobe, and laser output as a group. In actual stage lighting design, they do very different jobs.

The most balanced results come from understanding the role of each effect.

A beam light creates a concentrated, directional output. It is not mainly intended to illuminate the whole room. Its purpose is to form visible lines, movement, and shapes in the air.

RGBW LEDs combine:

• Red
• Green
• Blue
• White

The RGB channels create a range of mixed colors, while the dedicated white channel generally produces a cleaner white beam than mixing red, green, and blue alone.

A dual moving head RGBW beam light can create:

• Symmetrical opening effects
• Center-crossing patterns
• Slow aerial sweeps
• Fast movement during dance music
• Separate left and right coverage
• Contrasting beam directions
• White accents during musical drops
• Color transitions between songs

For example, one head can cover the left side of a dance floor while the second covers the right. Both heads can then move inward to focus attention on the center.

This gives a small room more visual depth without requiring several separate DJ stage lights.

Brightness still needs to suit the room. In a low-ceiling venue, full-intensity white beams may feel harsh when the audience is close to the fixture. Reducing the master dimmer can make the light look more controlled without losing the effect.

Strobe lighting is powerful, but it is also one of the easiest effects to overuse.

Running a party strobe light at maximum speed for an extended period can make the room uncomfortable and remove any sense of contrast. If everything feels like a climax, the real climax no longer stands out.

Strobe works best as punctuation.

Good moments to use it include:

• The first beat after a buildup
• A short drum fill
• The transition into a chorus
• A major EDM drop
• A sudden movement change
• A brief white-beam hit
• A fast crossing sequence

A golden strobe produces a warmer impression than a typical cool-white strobe. That can blend more naturally with wedding décor, warm room lighting, bars, lounges, and private party lights.

Different strobe speeds create different results:

• Slow pulses add gentle movement during warm-up music
• Medium-speed flashes can support a steady dance beat
• High-speed flashing should be reserved for brief peak moments

An adjustable strobe rate is useful because a wedding reception, club night, home party, and concert-style performance do not require the same intensity.

For a mobile DJ comparing professional party lights, integrating the strobe into a multi-effect fixture can also reduce the amount of equipment that needs to be packed.

Laser effects look different from LED beams.

An LED beam appears wider and more three-dimensional. A laser creates thinner, sharper lines that can add detail to the overall picture.

Red and green laser effects work well when they support the beam movement rather than compete with it.

Practical combinations include:

• RGBW beams moving while the lasers remain steady
• Lasers moving slowly during a musical breakdown
• Strobe turned off while the laser creates detail
• Beam intensity lowered during an instrumental section
• All three effects combined briefly during a major drop

People searching for laser lights for party, party laser lights, club laser lights, or disco laser lights often focus on visual intensity. In a real installation, aiming and safety matter more than simply choosing the strongest available output.

Never direct laser output toward:

• People
• Animals
• Vehicles
• Aircraft
• Mirrors
• Highly reflective surfaces

The laser should be positioned above direct audience sightlines and operated according to local rules.

A lighting show becomes more convincing when it follows the structure of the music.

A useful way to think about the three effects is:

• Beam: establishes movement and spatial structure
• Strobe: emphasizes rhythm and impact
• Laser: adds detail and sharp aerial lines

When every effect is active at full intensity all night, the room has nowhere to go visually. The audience quickly becomes used to the look.

Contrast creates energy.

Use slower beam movement and lower brightness. Blue, green, purple, or mixed RGBW colors often work well. Leave the strobe off and introduce laser effects only occasionally.

Gradually increase movement speed. Let the two heads begin opening, crossing, or moving in opposite directions. Add more laser movement while keeping the strobe limited to selected beats.

Briefly combine RGBW beams, golden strobe, and red/green laser effects. This moment can feel powerful precisely because the full combination was not running earlier.

Reduce the number of active effects. One slow beam color or a controlled laser look gives the room a visual reset.

A dual moving head light is not automatically better for every job.

Large concerts, theaters, touring productions, and long-throw stages may need dedicated beam, spot, wash, prism, gobo, or framing fixtures. These professional moving head lights provide more specialized optical control.

A compact dual-head effect light is better understood as a practical multi-tool. It can offer wide movement and multiple effects with less equipment, making it useful for DJ party lights, disco lights, club lighting, mobile event lighting, and smaller venues.

There is no single control mode that is best for every event.

The right choice depends on setup time, operator experience, venue size, and how closely the lighting needs to follow the show.

Automatic mode runs built-in programs without a DMX light controller.

It is useful for:

• Home parties
• Birthday events
• Game rooms
• Temporary entertainment areas
• Small bars
• Background event lighting

The main advantage is speed. The fixture can begin producing movement and color almost immediately.

The limitation is that an automatic program does not understand the structure of the music. It may change effects at moments that do not match the performance.

Sound-active mode uses a built-in microphone to react to music.

It can work well for:

• Mobile DJs
• Karaoke venues
• Bars
• House parties
• Dance floors
• Small disco lighting systems

Microphone sensitivity needs to be adjusted carefully.

If sensitivity is too high, conversation, footsteps, and background noise may trigger unnecessary changes. If sensitivity is too low, the light may not respond to the beat.

A practical setup method is:

1. Play music at the normal event volume.
2. Start at a medium sensitivity level.
3. Watch how often the fixture changes.
4. Adjust the sensitivity one step at a time.
5. Test again when the room fills with guests.

A sound-activated DJ light is convenient, but DMX remains more predictable.

An IR remote is useful when the operator needs quick control without walking up to the fixture.

Depending on the model, it may control:

• Automatic programs
• Sound-active programs
• Program speed
• Microphone sensitivity
• RGBW colors
• Strobe output
• Red and green lasers

This is practical during weddings and private events. A DJ can reduce the effects for speeches and restore party lighting when dancing begins.

Infrared control generally requires a clear line of sight, so distance and physical obstructions can affect operation.

Master/slave operation lets compatible fixtures run the same built-in program.

One light becomes the master and runs an automatic or sound-active show. Connected fixtures follow as slaves.

This approach works well for:

• Wedding DJ lighting
• Bars
• Karaoke rooms
• Small clubs
• Mobile party lighting
• Simple two-fixture systems

Use a properly shielded DMX cable instead of a regular microphone cable.

DMX512 gives the operator direct control over the fixture’s available functions.

These may include:

• Pan
• Independent tilt
• Movement speed
• RGBW colors
• Master dimming
• Strobe rate
• Red laser
• Green laser
• LED macros
• Motor macros
• Automatic programs
• Sound-active programs
• Reset functions

The key benefit is repeatability.

A programmed scene can be recalled at the same moment in a song or performance. That makes DMX lights more suitable for professional club lighting, concert lights, compact stages, and events that need a consistent show.

Seventeen DMX channels may appear complicated, especially to someone building a first DJ lighting system.

The easiest method is to divide the channels into functional groups.

Begin with pan, tilt, and movement speed.

Before creating fast motion, build several static positions:

• Both beams aimed at the center
• Both beams opened outward
• A crossed-beam position
• One head aimed upward and one downward
• Separate left and right coverage
• A high position above the dance floor

After the static positions look correct, create slow transitions between them.

Controlled movement generally looks more professional than nonstop rotation.

A common DMX problem occurs when the color channels are raised but the fixture remains dark. The master dimmer is often still at zero.

Create several brightness levels:

• Low intensity for background music
• Medium intensity for normal dancing
• Higher intensity for peak moments

This makes it easier to shape the show instead of keeping the fixture at full output.

Build separate cues for:

• No strobe
• Slow pulse
• Medium rhythm
• Brief high-speed accent

Do not make strobe the default state of every cue.

Start with clean colors:

• Red
• Green
• Blue
• White
• Blue and purple
• Red and blue
• White beam with golden strobe
• Green beam with red laser

Avoid changing movement, color, strobe, and laser simultaneously in every scene.

A clean show usually highlights one or two visual changes at a time.

Red and green lasers can be used separately or together.

Built-in macros are useful for quickly adding movement and color combinations, but they may not follow the exact timing of the music. Use them as tools rather than letting them control the entire performance.

A simple six-cue sequence could be:

1. Static blue RGBW beams
2. Slow outward movement
3. Red and green laser effects added
4. Crossing beam movement
5. Short golden strobe accent
6. Fade back to a low-intensity look

Six clear cues can look better than twenty unrelated effects.

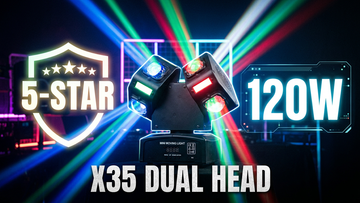

The Starshine X35 uses 17 consecutive DMX channels. That means every independently controlled fixture needs its own 17-channel address range.

A simple address plan is:

Use the same starting address only when you intentionally want multiple fixtures to respond identically.

For example, if two X35 units are both set to address 001, they will respond to the same controller data. If they need independent movement and color control, assign separate starting addresses.

The X35 manual confirms its 17-channel DMX512 profile, two separately controlled tilt axes, RGBW channels, strobe control, laser control, automatic programs, and effect macros.

There is no universal fixture count for every room.

Venue width, ceiling height, ambient light, haze, mounting position, and required brightness all affect the result.

The following table provides practical starting points.

These numbers are not fixed rules.

A narrow room with a low ceiling may need fewer fixtures than a wide hall with bright ambient lighting. Two well-positioned lights can often outperform four poorly aimed fixtures.

Before buying more equipment, test:

• The actual mounting height
• The beam coverage
• The distance to the audience
• The amount of ambient light
• Whether haze is available
• Whether the fixture can cover both sides of the room
• Whether the show needs symmetry or independent looks

For some small venues, one capable dual moving head DJ light is enough. Larger spaces may benefit from two units combined with LED wash lights.

Placement can change the appearance of the fixture more than many users expect.

Home parties often have low ceilings and short viewing distances.

A practical setup is to:

• Place the fixture behind or beside the DJ table
• Raise it above head level
• Lower the master brightness
• Use automatic or sound-active mode
• Keep laser output away from seating areas
• Avoid excessive haze

One fixture may be enough for a small room.

People searching for the best disco lights for home party use should focus on brightness adjustment, safe positioning, easy controls, and compact size instead of selecting only by rated power.

Mobile DJs need equipment that can be installed quickly and transported repeatedly.

A useful setup may place one or two fixtures behind the DJ booth on a lighting stand.

The two heads can:

• Open toward opposite sides of the dance floor
• Cross over the center
• Sweep above the audience
• Create mirrored movement
• Focus attention on entrances or special moments

For frequent travel, fixture dimensions, net weight, cable access, and mounting hardware are just as important as output.

The lowest DJ light price is not always the lowest long-term cost. A fixture that is awkward to transport, difficult to program, or poorly documented can create more problems than a slightly more expensive but practical unit.

Wedding lighting needs to support formal and energetic moments.

During dinner, speeches, and the first dance, movement should usually remain slow and brightness should be controlled. Once the dance floor opens, faster movement, laser accents, and short strobe effects can be introduced.

Useful practices include:

• Keep the output away from the head table
• Avoid aiming directly into photographers’ cameras
• Use softer RGBW colors for the first dance
• Save strobe effects for later in the evening
• Position lasers above direct eye level
• Test the fixture before guests enter

Two fixtures placed on opposite sides of the booth can be synchronized through master/slave or controlled independently through DMX.

Bars and karaoke venues often operate their lights for several hours at a time.

For a comfortable setup:

• Avoid full brightness all night
• Keep ventilation openings clear
• Do not aim beams continuously at seated customers
• Use moderate sound sensitivity
• Change colors and movement periodically
• Keep laser effects in a controlled safe area

Stable operation is more important than keeping every effect active.

DMX control is normally the best option for professional club lighting.

Fixtures can be installed:

• Above the DJ booth
• On a truss over the dance floor
• On raised stands
• At opposite sides of the room
• Behind performers

If the venue already has wash fixtures, let those lights provide the base room color. Use the dual moving head units for movement, RGBW beams, strobe accents, and laser detail.

This creates a clearer visual hierarchy than having all the club lights change color and move at once.

For a compact stage, rear or rear-side placement often creates the strongest aerial look.

Rear placement allows beams to pass around performers and create silhouettes. Side placement works well for crossing and layered movement.

Avoid placing concentrated beams and lasers directly in the audience’s sightline.

Any fixture mounted overhead should use:

• A suitable clamp
• A secure mounting structure
• An independent safety cable
• Clear ventilation space

Without haze, a beam may only be visible where it lands on a wall, floor, ceiling, or scenic surface.

Haze adds a fine layer of particles to the air. Light reflects from those particles, allowing the audience to see the path of the beam.

Haze works especially well with:

• RGBW beam lights
• Moving head lights
• Party laser lights
• Club laser lights
• Rave lights
• Concert stage lights
• Professional party lights

More haze is not automatically better.

When the atmosphere becomes too dense:

• Colors may appear muddy
• Cameras may lose contrast
• The room can feel uncomfortable
• Laser lines can become visually cluttered
• The venue may have ventilation or alarm problems

The goal is a thin, consistent atmosphere rather than a room filled with thick smoke.

Before using haze, confirm:

• The venue permits atmospheric effects
• The haze will not trigger alarms
• The ventilation system will not remove it immediately
• Guests do not have known sensitivities
• The fluid is intended for indoor entertainment use

Haze does not increase the actual power of the light. It makes the beam path easier to see.

Concentrated beams and lasers can become uncomfortable when they are placed at audience eye level.

Raise the fixture and aim it toward appropriate overhead or scenic areas.

Continuous beam, strobe, and laser output removes contrast from the show.

Save the full combination for the strongest musical moments.

Fast strobe should be a brief accent, not the default state.

Laser effects should be placed and aimed according to local requirements. Never direct the output toward people or reflective surfaces.

A three-pin XLR connector does not automatically make a cable suitable for DMX.

Use a properly shielded DMX cable. On longer signal runs, a terminator may be needed at the final fixture.

A 17-channel light starting at address 001 occupies channels 001 through 017. The next independently controlled fixture should begin at address 018 or later.

A mounting clamp is not a secondary safety device.

Always use an independent safety cable for overhead installation.

Do not place the fixture tightly against curtains, walls, ceilings, or other equipment.

Forced-air and convection cooling need clear airflow.

Run through the full show before guests arrive.

Test:

• Movement range
• Laser aiming
• Strobe rate
• Dimming
• DMX addresses
• Cable connections
• Master/slave operation
• Remote control
• Sound sensitivity

Unless the product has a documented waterproof rating, use it only indoors or in a fully protected dry location.

When searching for DJ lights for sale, moving head lights for sale, stage lights for sale, or club lights for sale, demonstration videos can make almost every fixture look impressive.

A better buying decision comes from checking the details behind the effects.

Do not judge a fixture only by its total power rating.

Rated power may include:

• RGBW LEDs
• Strobe LEDs
• Lasers
• Motors
• Cooling fans
• Control boards
• Internal power supplies

Review:

• The number of RGBW LEDs
• Wattage per LED
• The number and wattage of strobe LEDs
• Red and green laser output
• Whether a dedicated white channel is included
• Optical lens design
• Cooling and thermal protection

A well-designed compact light may be more useful for mobile event lighting than a higher-powered fixture with limited control.

Important specifications include:

• Pan range
• Tilt range
• Independent head control
• Continuous tilt rotation
• 8-bit or 16-bit precision
• Movement speed adjustment
• Automatic positioning
• Motor reset

A wide movement range is useful only when the fixture can move smoothly and return accurately to programmed positions.

For home parties and simple event lighting, automatic and sound-active operation may be enough.

For mobile DJs, IR remote and master/slave control can save setup time.

For club lighting, stage lighting, and programmed shows, a complete DMX profile is more important. The operator should be able to control:

• Movement
• Colors
• Dimming
• Strobe
• Laser output
• Macros
• Program selection

A mobile DJ may load and unload equipment several times each week.

Before purchasing, consider:

• Whether the fixture fits a practical case
• Whether one person can carry it
• Whether it can be mounted quickly
• Whether the connectors are easy to reach
• Whether the display can be read when mounted
• Whether replacement parts are available
• Whether technical support is accessible

A dependable stage lighting equipment supplier or stage lighting manufacturer should provide:

• Complete specifications
• DMX channel information
• A downloadable manual
• Product dimensions
• Net weight
• Voltage requirements
• Installation guidance
• Safety information
• Demonstration videos
• Contact details

A product page that shows dramatic effects but provides no technical documentation may create problems during programming and installation.

For mobile DJs and compact venues that want multiple effects without carrying separate beam, strobe, and laser fixtures, the Starshine X35 Dual Moving Head DJ Light is an example of an all-in-one approach.

The 120W X35 combines:

• Two motorized RGBW beam heads
• 8 × 10W CREE RGBW 4-in-1 LEDs
• 8 × 5W golden strobe LEDs
• A 100mW red laser
• A 50mW green laser
• Up to 540° pan movement
• Continuous 360° rotation on both tilt axes
• 17-channel DMX512 control
• Automatic programs
• Sound-active operation
• Master/slave synchronization
• Infrared remote control
• Linear master dimming
• Adjustable strobe effects

The housing measures approximately 25 × 15 × 26 cm and weighs about 2.9 kg. Its intended applications include DJs, parties, discos, clubs, bars, wedding receptions, karaoke venues, and compact stages.

That positioning matters.

The X35 is not intended to replace a long-throw concert beam, a theatrical profile fixture, or an advanced animation laser system. It is designed as a compact effect light for smaller and medium-scale indoor environments.

It may suit users who:

• Need several effects in one fixture
• Want a portable mobile DJ setup
• Need auto and sound-active operation
• Want to learn basic DMX programming
• Have limited mounting space
• Need crossing and mirrored movement
• Want to reduce the number of separate party lights

It may be less suitable for:

• Large outdoor concerts
• Long-distance beam projection
• Advanced gobo projection
• Large-area wash lighting
• Complex laser animation
• Permanent wet-weather installation
• Applications requiring a documented waterproof rating

The correct product is not simply the one with the longest list of features. It is the one that fits the venue, workflow, safety plan, and type of event.

For a small event, one fixture may cover most basic visual needs.

A dual moving head DJ light with RGBW beams, strobe, and laser effects can provide:

• Color
• Movement
• Music response
• Aerial beams
• Rhythmic accents
• Laser detail
• Basic DMX control

For a home party, mobile DJ event, small bar, or compact dance floor, that may be enough to create a complete atmosphere.

From a professional stage lighting perspective, no single effect fixture replaces every category of light.

A more complete system may include:

• Wash lights for room color
• Moving head lights for movement
• Strobe fixtures for stronger accents
• Laser lights for sharp lines
• Haze for aerial visibility
• A DMX controller for unified programming

An all-in-one fixture does not make every other type of stage light unnecessary. It makes a practical first system easier to build.

A new DJ can begin with one compact fixture, learn automatic operation, sound activation, and DMX basics, and then add other lights as the business and venue size grow.

That approach is usually more effective than buying a large collection of inexpensive DJ party lights with overlapping features and limited control.

The most memorable lighting shows are not always the brightest or the busiest.

A beam defines the space. A strobe emphasizes the beat. A laser adds sharp detail. Dual moving heads create movement patterns that would otherwise require several fixtures.

Those features only become valuable when they are positioned safely and used with intention.

For mobile DJs, wedding entertainers, bars, small clubs, karaoke venues, and compact stages, a dual-head multi-effect light offers practical advantages:

• Fewer fixtures to transport
• Faster setup
• Fewer power and DMX cables
• Wider movement from one mounting point
• Standalone operation when a controller is unavailable
• Detailed DMX control when the show requires it

Before comparing more DJ lights for sale, ask a few practical questions.

How large is the venue? Will the fixture operate automatically or through DMX? Does it need to travel every week? Can the laser be controlled separately? Is there a safe mounting position? Can haze be used? Is the fixture suitable for the operating environment?

Once those questions are answered, selecting moving head lights, party lights, disco lights, club lights, or professional stage lighting equipment becomes much easier.
