Dual-Sided Moving Head Lights: Wash, Strobe & Pixel Guide

But what if you do not have more rigging positions?

That is where a dual-sided moving head light starts to make sense.

Instead of using one moving head for narrow-beam effects and another fixture for strobe or pixel effects, a dual-sided fixture places different lighting systems on opposite sides of the same moving head. The result can be more visual variety from a single hanging position.

That does not mean one fixture automatically replaces two or three dedicated lights.

For DJs, club owners, lighting designers, rental companies, and event production teams, the better question is:

This guide explains where these fixtures make sense, where they do not, and what to check before buying one.

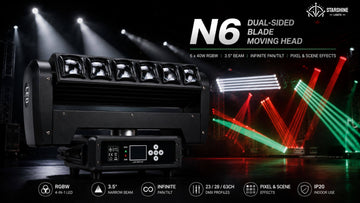

A dual-sided moving head light uses two active lighting faces on one motorized head. Depending on the fixture design, one side may provide beam output while the other provides strobe, pixel, scene, or other visual effects.

Its biggest advantage is not simply having more features.

It is being able to produce several different visual looks from the same rigging position.

That can be especially useful for clubs, mobile DJs, rental companies, and stages with limited hanging space.

However, a multi-effect moving head does not automatically equal several dedicated fixtures. If maximum single-purpose output, simple DMX programming, broader physical coverage, or maximum redundancy is your priority, separate fixtures may still be the better choice.

A dual-sided moving head is a moving light with usable lighting effects on both sides of the moving head.

A conventional moving head usually has one primary output direction. Point the head toward the stage and the beam, spot, or wash follows that direction.

A dual-sided fixture can behave differently.

One face may produce narrow-beam output. Rotate the head and the opposite side may present a strobe, pixel, scene, or color effect to the audience.

That changes the role of movement.

The fixture is no longer just moving a beam from one position to another. The movement can also change which lighting effect the audience sees.

Imagine four fixtures mounted above a DJ booth.

During a verse, their beam faces create narrow aerial looks through haze.

When the drop hits, all four heads rotate and reveal their strobe or pixel faces toward the audience.

The mechanical movement becomes part of the cue.

That is where the dual-sided design becomes more interesting than simply putting more LEDs into one fixture.

The practical reason is fixture consolidation.

A lighting designer normally builds a show from different layers:

• beam or spot fixtures for aerial movement
• strobes for impact
• pixel fixtures for animation
• blinders for audience hits
• wash fixtures for color and coverage
• lasers and other effects for additional visual layers

That works well when you have enough budget, power, cabling, truss space, and rigging positions.

Small and mid-sized shows often do not.

A dual-sided moving head attempts to combine several of those effect layers into one fixture position.

A mobile DJ has to load, unload, mount, cable, test, strike, and transport every fixture.

Reducing fixture count may also reduce the number of:

• clamps
• safety cables
• power connections
• DMX connections
• cases
• stands or truss positions

That can matter more in the real world than having one additional advanced lighting effect.

A fixture only saves time, however, if it is also easy enough to control.

A moving head with dozens of pixel channels may be powerful on a professional console but frustrating on a basic DJ controller.

Small clubs often have another problem:

A ceiling may already contain speakers, moving heads, laser projectors, strobes, HVAC equipment, CCTV systems, and structural obstacles.

In this situation, getting more effects from one existing rigging position can be genuinely useful.

Rental companies should look at dual-sided fixtures differently.

The question is not simply, “How many features does it have?”

A flexible fixture may work across club events, DJ shows, small concerts, private events, and permanent installations.

That can improve inventory utilization.

But more functions can also mean:

• more complicated programming
• more components to maintain
• more training for customers
• more functions lost if one fixture fails

Versatility has value, but it is not free.

This distinction matters.

A fixture may technically include narrow-beam output, strobe functions, and pixel effects while still performing differently from several dedicated fixtures.

Do not ask only:

Ask:

Look at:

• usable output
• beam angle
• color mixing
• dimming behavior
• beam consistency
• movement speed and precision

For a nightclub dance floor, DJ stage, aerial look, or atmospheric effect, a narrow multi-effect beam may be exactly what you need.

For broad stage coverage or performer illumination, a dedicated wash fixture is still a different tool.

The same rule applies to strobe and pixel performance.

A dedicated professional strobe is designed around high-impact flashes, wide audience coverage, rapid response, and sometimes advanced pixel or blinder effects.

A strobe section built into a moving fixture may be excellent for:

• club drops
• DJ effects
• chase sequences
• audience hits
• short accent cues

But if strobe is one of the central visual elements of a large concert design, you need to compare the actual strobe output and coverage rather than assuming the hybrid fixture will replace a dedicated unit.

Neither approach is automatically better.

The real decision is between:

On a normal moving head, pan and tilt mainly determine where the output points.

On a dual-sided fixture, movement may determine both:

1. where the light points, and
2. which lighting face is presented to the audience.

That creates another layer of show design.

Consider a club rig with multiple dual-sided fixtures.

You could begin a song with narrow RGBW beams cutting through haze.

During a build, the heads slowly rotate.

At the drop, the opposite pixel or strobe faces arrive together and fire toward the audience.

The rotation is not just positioning.

It becomes the transition.

This is particularly useful when multiple fixtures are synchronized. Alternating faces, mirrored movements, waves, and offset rotations can create motion that would otherwise require several separate fixture types.

If a fixture supports continuous or infinite movement, that can make a dual-sided design even more useful.

A continuously rotating two-faced fixture can repeatedly reveal different lighting surfaces as it moves.

But this is a specification that must be verified model by model.

Do not assume every dual-sided moving head supports infinite pan or tilt simply because the head has two active sides.

Pixel control is useful when somebody is actually going to program it.

That sounds obvious, but it is one of the easiest features to overbuy.

Individual or grouped pixel control can create:

• chases
• color waves
• segmented strobes
• directional effects
• gradients
• alternating patterns
• multi-fixture animations

For a lighting designer working with a professional console, these functions can add a lot of creative value.

For a mobile DJ using a compact DMX controller, they may add complexity without improving the actual show.

A fixture might offer an advanced mode with a large channel count. That does not mean you have to use it.

The more important question is whether the fixture also provides a simpler control mode.

If your normal workflow is:

• auto programs
• sound-active mode
• basic scenes
• simple DMX controller

then built-in macros and a compact DMX mode may matter more than individual pixel control.

If your workflow includes:

• professional lighting software
• advanced console programming
• timecoded shows
• individual pixel effects

then the extended control mode becomes much more valuable.

More channels are useful only when your control system and programming workflow can take advantage of them.

A multi-effect fixture may need control over:

• dimmer
• pan
• tilt
• movement speed
• RGBW output
• strobe
• pixel zones
• macros
• rotation functions
• scene effects

That can quickly produce a large DMX footprint.

For a professional lighting designer, this is manageable.

For a small venue or mobile DJ, it can become the main reason a feature-rich fixture is difficult to use.

Before purchasing, check whether the fixture provides multiple DMX modes.

Ideally, a flexible product offers something like:

Simple Mode
For basic movement, colors, macros, and effects.

Standard Mode
For normal show programming.

Extended or Pixel Mode
For advanced individual control.

This is a better sign of practical design than simply advertising the largest possible channel count.

This distinction is easy to miss.

A multifunction fixture can reduce fixture count.

It cannot create additional physical lighting positions.

Suppose a ballroom has a wide stage and dark areas at both edges.

Replacing six simple fixtures with two highly capable multi-effect moving heads may give you more types of effects.

It may also give you worse coverage.

You now have two lighting positions instead of six.

That is why lighting buyers should separate two questions:

If yes, a dual-sided moving head may help.

If yes, buying more fixtures may be more useful than buying fewer multifunction fixtures.

For clubs and compact stages, fixture consolidation can be excellent.

For wide stages, ballrooms, churches, and large event spaces, coverage may be the bigger problem.

Imagine a small club with only eight useful hanging positions.

A traditional layout might use:

• four moving heads
• two strobes
• two pixel or effect fixtures

All eight positions are already occupied.

If the lighting design can legitimately combine some beam, strobe, and pixel functions into four dual-sided fixtures, the designer may free positions for other visual layers such as:

• additional beam fixtures
• lasers
• blinders
• additional audience effects

The real benefit is not simply “four fewer lights.”

It is that the designer gains more freedom over how the limited rig is allocated.

That is one of the strongest reasons to consider a multi-effect moving head in a space-constrained venue.

A dual-sided moving head can make sense when the DJ wants a compact rig with:

• movement
• color
• narrow-beam effects
• strobe effects
• pixel effects
• fewer fixtures to transport

Pay close attention to fixture weight and control simplicity.

A lighter, easier-to-program unit may be more valuable to a mobile DJ than a more advanced fixture whose pixel features are rarely used.

This is one of the strongest use cases.

Clubs typically want a lot of visual change from a limited number of rigging positions.

Beam effects, strobe, pixel effects, movement, haze, and lasers often need to coexist in a relatively small ceiling grid.

A dual-sided design can increase effect density without simply filling the ceiling with more fixtures.

KTV rooms and compact entertainment spaces often value:

• visual variety
• automatic programs
• music-responsive effects
• compact installation

They may not need touring-level output, but they do need the room to look different as the music changes.

Simple control modes and good built-in programs can therefore be particularly important.

Rental companies should consider:

• how many event types the fixture can serve
• control modes
• fixture profiles
• transport weight
• repair access
• spare parts
• customer learning curve
• long-show reliability

There is also a redundancy trade-off.

If one simple fixture fails, you lose one fixture role.

If one fixture is responsible for beam, strobe, and pixel effects, a single failure may remove all three functions from that rigging position.

For critical productions, that should be part of the planning.

Dual-sided fixtures can be creatively useful in professional shows, but the standard becomes higher.

Look carefully at:

• photometric output
• dimming
• movement precision
• pixel architecture
• cooling
• fixture profiles
• rigging hardware
• weight
• serviceability
• roadworthiness

“Multi-effect” alone does not make a fixture touring-ready.

This application requires a different mindset.

A wedding dinner or corporate presentation may value:

• smooth general lighting
• quiet operation
• smooth dimming
• camera compatibility

more than aggressive strobe or pixel effects.

The same fixture could still be useful for the dance portion of the event, but effect count should not be the first specification you compare.

Choose dedicated fixtures first when one lighting function is clearly more important than everything else.

A purpose-built wash fixture may provide the coverage, beam quality, and zoom range you need more efficiently.

If your design relies heavily on high-impact audience strobes or blinder-style effects, compare dedicated strobes before assuming a multifunction fixture is enough.

If the stage is simply too wide or too dark in certain areas, more physical fixtures may solve the problem better than fewer advanced fixtures.

A feature-rich pixel moving head can become frustrating if your controller cannot access it efficiently.

Separating beam, strobe, and pixel functions across different fixture types means one failure does not remove several lighting layers at once.

Do not assume a fixture is weather resistant.

Verify the official IP rating and the manufacturer's stated operating conditions.

If an IP rating is not specified in the available documentation, treat outdoor suitability as unconfirmed.

“Dual-sided” tells you almost nothing about the performance.

Confirm what is physically installed on each face.

Do not compare fixtures using LED wattage alone.

Look for meaningful photometric information whenever available.

Consider your venue geometry.

A very narrow effect may look impressive in haze but may not provide the wide coverage your stage needs.

Check:

• number of control zones
• individual vs grouped pixels
• available macros
• extended DMX requirements

Verify:

• pan range
• tilt range
• movement resolution
• position correction
• whether continuous movement is actually supported

Look for control options that match your real workflow.

For weddings, livestreams, studios, broadcasts, and camera-heavy events, verify the manufacturer's flicker or PWM information.

Do not assume every LED fixture is automatically camera friendly.

More LEDs and more electronics produce heat.

For theaters, churches, studios, and corporate environments, fan noise can be a serious consideration.

Check:

• fixture weight
• clamp requirements
• safety cable points
• truss loading
• case weight for rental use

If the fixture will be exposed to weather, verify the documented IP rating.

For professional users, confirm that the fixture is practical to patch and program on the intended console or software.

Ask how easy it is to access:

• fans
• lenses
• LED modules
• moving components
• power supplies

A fixture that combines several effects may be efficient on the rig, but maintenance still matters.

The Starshine N6 Dual-Sided Blade Moving Head shows how a dual-sided moving head can combine narrow-beam output, independent lighting layers, continuous movement, and pixel-level programming in one fixture.

According to the official N6 product manual, the fixture uses six 40 W RGBW 4-in-1 LEDs with a 3.5° beam angle and a rated power of 300 W. Infinite pan and tilt rotation allow the head to continue moving instead of stopping at conventional movement limits, which is particularly useful for kinetic blade effects and repeated face-to-face transitions.

Control flexibility is one of the more practical parts of the design. The N6 provides 23CH, 28CH, and 63CH DMX profiles. The 28-channel mode gives direct RGBW control over both sides and is intended for general show programming, while the 63-channel mode expands control to ten secondary-side RGB zones and five independent white zones.

That means the advanced mode is not simply adding channels for the sake of a larger specification. It can be used for chases, segmented color patterns, and synchronized pixel effects across multiple fixtures.

At the same time, the N6 illustrates several trade-offs discussed in this guide. At 17.5 kg, it requires appropriate rigging and an independent safety cable. Its IP20 rating means it is designed for dry indoor use rather than outdoor events. And because the fixture can expose a large number of control parameters, users working with simple controllers may prefer the 23CH or 28CH profiles instead of the full 63CH pixel mode.

Two fixtures with similar electrical numbers can produce very different results because optics, LED efficiency, beam angle, and thermal design all affect usable output.

Integration gives you flexibility.

It does not guarantee that every function matches the strongest dedicated product in that category.

Two feature-rich fixtures may create more effects but still cover less physical space than six simpler fixtures.

Advanced control is valuable only if it fits your workflow.

Combining several functions into one unit also concentrates risk into one unit.

Movement specifications must be confirmed.

Check the documented IP rating.

A fixture designed to reduce hardware should not create unnecessary complexity at the controller.

A dual-sided moving head is most useful when the problem is not simply brightness.

The problem is often:

That is where this fixture category can be genuinely useful.

For mobile DJs, clubs, KTV venues, rental inventories, and compact stage productions, combining beam, strobe, pixel, scene, and movement effects into one moving fixture can reduce hardware and open new programming possibilities.

But consolidation creates trade-offs.

You still need to consider:

• output
• coverage
• DMX complexity
• programming workflow
• maintenance
• redundancy
• rigging weight
• environmental rating

If your show needs broad stage coverage, a dedicated wash may be better.

If it needs maximum strobe impact, a dedicated strobe may still be the better choice.

If your biggest problem is insufficient coverage, more lighting positions may help more than adding more functions to fewer positions.

The best reason to choose a dual-sided moving head is not that it has the longest feature list.

It is that the fixture can realistically take over several jobs you already need while fitting the way you actually build and control your show.

That is the right way to evaluate a product such as the Starshine N6 Dual-Sided Moving Head: not by asking how many effects it has, but by asking which real lighting tasks it can perform well enough to simplify your rig.
