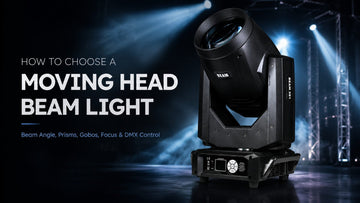

How to Choose a Moving Head Beam Light for Concerts, Clubs, and Events
When people shop for a moving head beam light for the first time, they usually begin with wattage.
“This fixture is 300W and that one is 380W, so the higher-wattage model must be brighter, right?”
Anyone who has worked with real stage lighting equipment knows that the answer is not always so simple. Two fixtures with similar power ratings can perform very differently once they are installed in the same venue. Beam sharpness, throw distance, optical efficiency, color quality, movement accuracy, cooling, and control all influence the final result.
Some beam lights look bright from ten feet away but lose definition across a larger stage. Others come with an impressive list of features, yet their movement feels uneven, their focus is difficult to control, or their prism effects are less useful in a real show than they appeared in a product video.
Choosing professional moving head lights is therefore not about finding the biggest number on a specification sheet. It is about understanding how the light source, beam angle, optics, electronic focus, colors, gobos, prisms, movement system, and DMX control work together.
This guide explains what matters when selecting moving head stage lights for concerts, nightclubs, DJ stages, churches, theaters, event companies, rental businesses, and touring productions.
Quick Answer
A good moving head beam light should match the size of the venue, mounting height, throw distance, control system, and intended visual effect. Wattage matters, but it should be evaluated together with beam angle, optical efficiency, electronic focus, prism design, pan and tilt precision, DMX channels, RDM support, cooling, and serviceability.
```
Narrow-beam fixtures are best for visible aerial effects. Spot fixtures are better for clear gobo projection, while Wash fixtures are designed for broad and even stage coverage. For professional concert lighting, club lighting, and large event lighting, a Beam fixture with accurate focus, smooth 16-bit movement, useful gobos, dual prisms, and dependable DMX control is usually more valuable than a fixture with high wattage but weak optics or unreliable movement.
```
Table of Contents
| Section | What You’ll Learn |
|---|---|
| 1. What Is a Moving Head Beam Light? | How beam fixtures create aerial effects and fit into a stage lighting system |
| 2. Moving Head Beam vs. Spot vs. Wash | The optical and practical differences between common moving head lights |
| 3. Light Source Power vs. Total Fixture Power | Why lamp wattage and total rated power are different |
| 4. Why Beam Angle Matters | How beam angle affects intensity, distance, and venue suitability |
| 5. How to Compare Real Brightness | Lux, beam diameter, test distance, and fair product comparisons |
| 6. Electronic Focus and Projection Distance | How focus improves beams, gobos, and venue adaptability |
| 7. Color Wheels, Open White, and Split Colors | What makes a color system useful in real programming |
| 8. Gobos and Pattern Effects | How gobos reshape aerial beams and add texture |
| 9. What Dual Prisms Actually Do | How 16-facet and 48-facet honeycomb prisms differ |
| 10. Frost, Dimming, and Strobe | How these effects add softness, transitions, and energy |
| 11. Pan, Tilt, and 16-Bit Movement | Why smooth movement and position correction matter |
| 12. DMX512, RDM, and Signal Connections | DMX channels, addresses, RDM, and XLR compatibility |
| 13. Can a Beam Light Work Without a DMX Console? | Auto Run, Sound Control, Master/Slave, and manual testing |
| 14. Choosing a Moving Head Beam Light by Application | What to prioritize for concerts, clubs, DJs, churches, and rentals |
| 15. Haze vs. Fog for Visible Beam Effects | How atmospheric effects make aerial beams visible |
| 16. Practical Fixture-Selection Examples | Realistic priorities for four common venue types |
| 17. Rigging, Cooling, and Maintenance | Installation safety and routine fixture care |
| 18. What to Ask a Stage Lighting Equipment Supplier | Questions about output, control, ordering, warranty, and support |
| 19. Professional Moving Head Beam Light Buying Checklist | A complete pre-purchase comparison table |
| 20. When a 381W Dual-Prism Beam Light Is a Good Choice | When this fixture class fits the project and when a smaller light may be better |
| Frequently Asked Questions | Practical answers about wattage, haze, prisms, DMX, and installation |
| Final Thoughts | How to select a fixture that fits the venue and the show |
1. What Is a Moving Head Beam Light?
A moving head beam light is designed to produce a narrow, concentrated shaft of light that can move rapidly across a stage or through the air.
Its main job is not to provide soft, even illumination for a performer. Instead, it creates strong directional effects that give a stage depth, motion, and visual energy.
When a controlled layer of haze is present, a narrow beam becomes visible from the fixture to its target. Multiple moving head stage lights can then create fan shapes, crossing beams, tunnels, waves, and radial patterns by combining pan and tilt movement with colors, gobos, prisms, dimming, and strobe.
Beam fixtures are commonly used for:
- Concert lighting and music festivals
- Nightclubs and entertainment venues
- DJ stages and mobile events
- Theater productions and live performances
- Church concerts and holiday programs
- Corporate events, weddings, and rental productions
- Touring shows that need long-throw aerial effects
A Beam fixture is primarily an effects light. It should not usually replace front lighting, stage wash, or dedicated lighting for performers.
A complete professional stage lighting system often includes several fixture types. Wash lights provide broad color coverage, Spot or Profile fixtures project patterns and highlight specific areas, Beam fixtures create aerial movement, and strobes or lasers add impact during selected moments.
The best-looking shows rarely depend on one type of fixture alone. They use each light for the job it handles best.
2. Moving Head Beam vs. Spot vs. Wash
Beam, Spot, and Wash fixtures are often grouped together as professional moving head lights, but they produce very different results.
| Fixture Type | Light Characteristics | Typical Application |
|---|---|---|
| Beam | Very narrow, concentrated, and long-throw | Aerial beams, prisms, fast sweeps, concert effects |
| Spot | Defined edges and clear gobo projection | Patterns, textures, logos, scenic highlights |
| Wash | Wide, soft, and even | Background color, performers, and broad stage coverage |
| Hybrid | Combines two or more optical functions | Touring, rentals, and multipurpose productions |
Why a Beam fixture is narrow
The main advantage of a beam moving head light is its ability to concentrate light into a small angle.
A narrower angle keeps more output inside a smaller area. This gives the beam stronger visual definition at longer distances. It also makes the light easier to see through haze, especially in venues with LED screens, decorative lighting, or bright backgrounds.
A wider beam covers more space but spreads the available light across a larger area. That may be useful for a Wash fixture, but it reduces the focused intensity that makes Beam fixtures visually powerful.
When to use a Spot fixture
A moving head spot is generally better when the design depends on readable gobo patterns, projected textures, logos, or defined pools of light.
A Beam fixture can still use gobos, but the patterns are often intended to reshape the aerial light rather than create a detailed image on a surface.
When to use a Wash fixture
A moving head wash creates a broad field of color. It is useful for lighting backgrounds, scenery, performers, and large stage areas.
A stage made entirely from narrow beams may look energetic but still feel visually empty. Wash fixtures add color and atmosphere between the beam lines.
In many concert lighting systems, Wash lights establish the base color, Spot or Profile fixtures provide detail, and Beam fixtures deliver movement and impact.
3. Light Source Power vs. Total Fixture Power
A common source of confusion is the difference between light-source wattage and total rated power.
For example, a professional moving head light may use a 381W discharge lamp while listing approximately 500W as the rated fixture power.
These numbers refer to different things:
- The 381W light source is the power used by the lamp.
- The 500W fixture rating represents the approximate power consumed by the complete unit.
The fixture also needs power for:
- Pan and tilt motors
- Cooling fans
- Power supplies
- Color and gobo wheels
- Prism motors
- Electronic focus
- Control electronics
- Display and communication circuits
A total power rating higher than the lamp wattage is normal.
Why wattage cannot tell the whole story
Two fixtures that use the same type of lamp can produce different results because the optical systems may not be equally efficient.
Actual output is affected by:
- Reflector quality
- Lens design
- Beam angle
- Optical alignment
- Color and gobo transmission
- Lamp condition
- Cooling performance
- Focus accuracy
- Dust on the lens or internal optics
A fixture with well-designed optics may create a cleaner and more useful beam than another model with similar or even higher wattage.
That is why professional buyers should not compare stage lights by wattage alone.
4. Why Beam Angle Matters
Beam angle determines how quickly the light spreads after leaving the fixture.
Imagine two lights with similar optical efficiency. One produces a 3° beam and the other produces an 8° beam. At the same distance, the 3° beam covers a smaller area, so it appears tighter and more intense. The 8° beam covers more space but distributes the output across a larger surface.
Where narrow beams work best
A narrow beam in the 0–4° range is especially useful for:
- Medium and large concert stages
- Music festivals
- Nightclubs with higher ceilings
- Long-throw event lighting
- Touring productions
- Beam matrices using multiple fixtures
- Shows that need clearly visible aerial lines
Small venues require more planning
A narrow beam can also work in a smaller club, church, or DJ venue, but the mounting height and scanning area need to be controlled carefully.
If the fixture is mounted too low, the beam may sweep directly across the audience at eye level. If the room is shallow, the light may strike a wall before it creates a useful aerial effect.
Before purchasing, confirm:
- The distance from the fixture to the main target area
- The planned mounting height
- The audience position
- The available movement range
- Whether haze is allowed in the venue
The correct fixture is not simply the brightest one. It is the one whose beam geometry fits the room.
5. How to Compare Real Brightness
Descriptions such as “super bright” or “powerful output” are difficult to compare because they do not include a testing distance or measurement method.
A professional product page or test report should ideally include:
- Lux at 5 meters
- Lux at 10 meters
- Lux at 15 meters
- Lux at 20 meters
- Beam diameter at each distance
- Beam angle used during the test
- Open-white or color-filter status
- Whether a gobo or prism was inserted
- Lamp operating hours
- Test instrument and date
Why distance matters
Illuminance decreases as the beam travels farther. A reading taken at five meters cannot be compared directly with a reading taken at ten or twenty meters.
The beam diameter also matters. A high lux reading concentrated into a very small spot may look impressive, but it may not suit a venue that needs wider coverage.
Compare like with like
When reviewing stage lighting equipment for sale, compare fixtures under similar conditions:
- Same distance
- Same beam mode
- Same color position
- Same lamp warm-up time
- Same measurement method
- Same prism and gobo status
Real test data is more useful than a wattage number or an edited effect video.
6. Electronic Focus and Projection Distance
Electronic focus is not just a convenience feature. It helps the fixture maintain a clear beam and sharper gobo effects as the projection distance changes.
During a show, a moving head beam light may point toward the nearby stage floor in one cue and then move to a distant truss, backdrop, or audience area in the next. A fixed focus cannot keep every target equally clear.
Electronic focus helps with four practical tasks
Beam Definition: It helps maintain a stronger edge and cleaner center at different distances.
Gobo Clarity: It allows the operator to sharpen patterns at the target surface.
Venue Adaptation: It makes the fixture easier to use at different mounting heights.
Creative Transitions: It can intentionally move a pattern from sharp to soft during a cue.
A lighting designer can also combine focus with a rotating prism, frost filter, or moving gobo. This creates effects that develop over time instead of switching abruptly from one look to another.
The Starshine F22 is one example of a professional moving head beam fixture that combines a 381W MSD source, a narrow 0–3.9° optical system, electronic focus, two prism systems, 18CH DMX512, RDM, and 16-bit pan and tilt control.
7. Color Wheels, Open White, and Split Colors
A larger number of colors does not automatically make a fixture better.
The quality of the color wheel depends on:
- Filter consistency
- Color saturation
- Light transmission
- Selection accuracy
- Wheel movement
- Split-color positioning
- Stability during fast rotation
- Clean open-white output
What is open white?
Open white is an unfiltered position in the color wheel. It generally provides the brightest and cleanest output because the light does not pass through a colored filter.
Open white is often used for:
- Musical peaks
- High-energy beam sweeps
- Maximum-output aerial effects
- White prism patterns
- Contrast against colored Wash fixtures
- Strong strobe moments
What is a split-color effect?
A split-color effect occurs when the wheel stops between two filters. Both colors appear in the beam at the same time.
This can create:
- Half-color beams
- Symmetrical two-color designs
- Faster color transitions
- More layered prism effects
- Visual contrast without using two separate fixtures
For concert lights and professional club lighting, accurate split-color positioning can be more useful than simply adding more filters to the wheel.
8. Gobos and Pattern Effects
Product descriptions often emphasize how many gobos are included, but the control functions matter just as much as the quantity.
A useful gobo system may include:
- Pattern selection
- Gobo shake
- Slow and fast shake
- Continuous scrolling
- One-way movement
- Speed adjustment
- Pattern positioning
- Electronic focus
How gobos work in a Beam fixture
In a moving head Spot, a gobo is often used to project a recognizable image or texture onto a wall, stage, or floor.
In a Beam fixture, a gobo more often changes the shape and internal texture of the aerial beam.
With controlled haze, the audience can see the pattern along the light path rather than only where the beam lands.
Different patterns create different results:
- Small apertures make the beam appear thinner
- Radial gobos work well with prisms
- Stripes create movement during scrolling
- Irregular patterns produce fragmented beam textures
- Gobo shake adds energy during rhythmic sections
A carefully selected group of clear and useful patterns is usually more valuable than a large wheel filled with effects that are difficult to focus or program.
9. What Dual Prisms Actually Do
A prism divides one main beam into multiple beams.
Different prism designs create noticeably different visual structures.
16-facet prism
A 16-facet prism creates a moderate number of separated rays. The individual beams remain relatively easy to distinguish.
It works well for:
- Fan-shaped effects
- Radial patterns
- Symmetrical movement
- Medium-speed rotation
- Clean geometric designs
- Multiple fixtures programmed in matching groups
48-facet honeycomb prism
A 48-facet honeycomb prism creates a denser and fuller beam pattern.
It works well for:
- Nightclubs
- DJ stage lighting
- Festival peaks
- Wide multi-beam effects
- Music drops
- Fast rotation combined with strobe
Rotation direction and speed
A prism becomes much more useful when it supports:
- Forward rotation
- Reverse rotation
- Adjustable speed
- Stop control
- Positioning
These controls allow a lighting designer to rotate the left and right fixture groups in opposite directions, slow the prism during a quiet section, or accelerate it during a musical peak.
The real value of a dual-prism system is not only the number of beams it creates. It is the additional programmable movement it adds to the stage picture.
10. Frost, Dimming, and Strobe
Frost
A frost filter softens and diffuses the narrow beam.
It does not turn a Beam fixture into a true moving head wash, because the optical design and coverage remain different. However, it can create a wider and less aggressive look.
Frost is useful for:
- Softening gobo textures
- Creating atmospheric transitions
- Enlarging prism patterns
- Reducing beam sharpness
- Moving from energetic cues into quieter scenes
Linear dimming
Smooth 0–100% dimming allows the beam intensity to change gradually.
This matters for:
- Fade-ins and fade-outs
- Matching multiple fixture groups
- Reducing output for smaller venues
- Camera-sensitive productions
- Building visual transitions
A fixture that jumps between dimming levels may be acceptable for fast club effects but becomes distracting in theater, church stage lighting, or televised productions.
Strobe modes
Professional strobe control may include:
- Standard strobe
- Pulse strobe
- Ramp strobe
- Synchronized strobe
- Asynchronous strobe
- Random strobe
Different modes create different energy. A synchronized strobe makes the entire rig flash together, while asynchronous or random modes create a less predictable and more chaotic look.
11. Pan, Tilt, and 16-Bit Movement
Pan controls horizontal movement. Tilt controls vertical movement.
A fixture with 540° pan and approximately 270–280° tilt can cover a wide area, but the movement range is only one part of performance.
Why 16-bit movement matters
An 8-bit channel provides 256 control values. A 16-bit movement system adds Fine channels for smaller position adjustments.
The difference is especially noticeable in:
- Slow sweeps
- Multiple-fixture alignment
- Precise scenic positions
- Theater productions
- Camera-friendly movement
- Small correction movements
A lower-quality fixture may move quickly but appear to step or shake during slow cues.
Automatic position correction
Repeated high-speed movement, physical interference, or mechanical resistance can occasionally cause a fixture to lose its expected position.
Automatic pan and tilt correction helps the fixture return to the programmed location.
This is particularly useful for:
- Fixed installations
- Rental companies
- Touring productions
- Nightclubs running long programs
- Multi-fixture concert lighting systems
Consistency between fixtures is often more important than the maximum movement speed of a single unit.
12. DMX512, RDM, and Signal Connections
DMX512 is the standard control protocol used by most professional stage lighting equipment.
An 18-channel moving head light may use separate channels for:
- Pan
- Pan Fine
- Tilt
- Tilt Fine
- Movement Speed
- Dimmer
- Strobe
- Frost
- Color
- Gobo
- Rainbow Effect
- Prism Selection
- Prism Rotation
- Electronic Focus
- Lamp Control
- Reset
DMX address planning
Suppose the first fixture begins at address 001 and uses 18 channels. The next fixture can begin at address 019.
A simple address plan would be:
| Fixture | Start Address |
|---|---|
| Fixture 1 | 001 |
| Fixture 2 | 019 |
| Fixture 3 | 037 |
| Fixture 4 | 055 |
Fixtures assigned the same start address will respond together.
What does RDM add?
RDM is a bidirectional extension of DMX.
Traditional DMX mainly sends commands from the controller to the fixture. With compatible RDM equipment, the controller may also read or modify information such as:
- DMX address
- Fixture identification
- Device status
- Operating information
- Selected settings
- Basic diagnostic data
RDM is not essential for a two-light DJ setup, but it becomes valuable when a system includes many DMX moving head lights.
3-pin and 5-pin XLR
Three-pin XLR is widely used in DJ lighting, clubs, and mobile event systems. Five-pin XLR remains common in professional touring and installation systems.
A fixture with both connections is easier to integrate into different rigs. This is especially useful for rental companies that regularly connect their equipment to unfamiliar consoles, cables, and venue infrastructure.
For longer DMX lines, use proper shielded data cable rather than microphone cable, and terminate the final fixture when required. The F22 manual also specifies load-rated rigging, suitable clamps, an independent safety cable, and proper DMX cabling for professional installation.
13. Can a Beam Light Work Without a DMX Console?
Yes. Many professional moving head lights include standalone modes.
Auto Run
The fixture follows internal programs automatically. This is useful for:
- Product demonstrations
- Small parties
- Temporary installations
- Simple entertainment venues
- Events without a dedicated operator
Sound Control
The fixture responds to strong audio signals.
Sound Control works well for casual DJ lighting and club environments, but it cannot replace structured programming when exact timing and movement are required.
Master/Slave
One fixture acts as the master and sends program data to matching slave fixtures.
This allows multiple lights to run together without assigning a separate sequence to every unit.
Manual Test
A fixture menu may also let technicians test:
- Pan
- Tilt
- Focus
- Color
- Gobo
- Prism
- Frost
- Strobe
Manual testing is helpful during installation, maintenance, and troubleshooting.
For concerts, theater, broadcast, or programmed worship events, DMX control remains the better choice because it provides repeatable cues and precise synchronization.
14. Choosing a Moving Head Beam Light by Application
Different venues need different combinations of brightness, movement, control, and durability.
Concerts and Festivals
For concert lighting equipment, prioritize:
- Long-throw output
- Narrow beam angle
- Smooth 16-bit movement
- Useful prism effects
- Reliable DMX communication
- Strong cooling
- Consistency between fixtures
- Easy access to replacement parts
Concert lighting often uses Beam fixtures in groups. Four, eight, twelve, or more units may need to match in color, speed, focus, and positioning.
A single impressive sample is not enough. The entire group needs to behave consistently.
Nightclubs and Entertainment Venues
Professional club lighting often emphasizes:
- Fast pan and tilt
- High-speed strobe
- Dense prism effects
- Sound Control
- Rapid color changes
- Gobo shake
- Long operating hours
- Stable cooling
Nightclubs frequently contain LED screens, decorative lights, and illuminated architecture. A narrow beam needs enough optical intensity to remain visible against these competing light sources.
DJs and Mobile Events
Buyers comparing DJ lighting equipment should also consider:
- Fixture weight
- Packing dimensions
- Setup time
- Master/Slave operation
- Three-pin DMX
- Power requirements
- Flight-case options
- Spare-part availability
A fixture with more effects is not always the better mobile choice. A dependable unit that is easy to transport and set up may deliver more value over time.
When searching for DJ lights for sale, compare movement quality, optical performance, and serviceability instead of choosing only by price.
Church Stage Lighting
Church stage lighting has different priorities from nightclub lighting.
Important considerations include:
- Smooth movement
- Controlled brightness
- Audience sightlines
- Camera exposure
- Noise levels
- Safe scanning zones
- Integration with Wash and Profile fixtures
Beam fixtures are especially useful for worship concerts, youth events, seasonal productions, and large music programs. They should support the atmosphere rather than remain active during every part of a service.
For church stage lighting on a budget, a smaller number of reliable fixtures is often more useful than a larger group of inconsistent low-cost lights.
Theater and Live Production
Theater applications place more emphasis on:
- Smooth slow movement
- Accurate positioning
- Quiet transitions
- Repeatable cues
- Focus control
- Dimming quality
- Controlled use of strobe and prisms
A Beam fixture is normally used as a special-effect tool rather than the primary source for actors.
Rental and Touring
Rental companies evaluating moving head beam lights wholesale should look beyond the first purchase price.
Important questions include:
- How well does the fixture survive transportation?
- Are replacement lamps and fans available?
- Can the power supply or control board be replaced easily?
- Are the DMX chart and service documents complete?
- Are flight cases available?
- Does the supplier maintain spare parts?
- How quickly does technical support respond?
Rental equipment must survive repeated loading, rigging, operation, and teardown. A short showroom demonstration cannot reveal long-term reliability.
15. Haze vs. Fog for Visible Beam Effects
A light beam is not a physical object. We see the complete path because airborne particles scatter some of the light toward our eyes.
Without haze, you normally see:
- The output lens
- The illuminated target
- Limited reflection from dust in the air
With a controlled layer of haze, the entire beam becomes more visible.
Haze
Haze creates fine, evenly distributed particles that remain in the air for a longer period.
It is generally better for:
- Concert lights
- Continuous aerial beams
- Professional club lighting
- Theater effects
- Camera-friendly atmosphere
Fog
Fog creates thicker, more visible clouds.
It is generally better for:
- Short special effects
- Entrances and reveals
- Localized smoke
- Dramatic bursts
Too much fog can hide performers, backgrounds, and video screens. The goal is not to fill the room with dense smoke. It is to create a light, even atmosphere that reveals the beams without reducing overall visibility.
Always confirm that haze or fog is permitted by the venue and compatible with its detection systems.
16. Practical Fixture-Selection Examples
Example 1: Medium Concert Stage
A medium concert stage needs visible long-throw beams, smooth movement, and effects that remain clear through video-wall light.
Prioritize:
- Narrow beam angle
- Electronic focus
- 16-bit movement
- Dual prisms
- Reliable DMX512
- RDM
- Strong cooling
A 381W-class professional beam fixture may be appropriate when the stage requires a concentrated output without moving into a much larger and heavier touring fixture.
Example 2: Nightclub with a Low Ceiling
A low-ceiling nightclub does not necessarily need the highest-output fixture.
Prioritize:
- Controlled scanning zones
- Compact placement
- Fast movement
- Dense prism effects
- Sound Control
- Smooth dimming
Avoid placing narrow, high-intensity beams at audience eye level. Program movement boundaries carefully.
Example 3: Church Concert or Holiday Production
A church production needs impact without making the lighting distracting.
Prioritize:
- Smooth movement
- Controlled intensity
- Camera-friendly programming
- Repeatable DMX cues
- Integration with Wash and Profile fixtures
- Safe audience scanning
Beam fixtures can create strong musical moments, while Wash fixtures maintain a comfortable visual environment during speaking and worship sections.
Example 4: Mobile DJ or Event Company
A mobile event company needs fixtures that are quick to deploy and easy to maintain.
Prioritize:
- Manageable weight
- Durable packaging
- Auto and Sound modes
- Master/Slave operation
- Three-pin DMX compatibility
- Replacement parts
- Optional flight cases
The best DJ stage lights are not always the ones with the longest specification sheet. They are the ones that remain reliable after frequent transportation.
17. Rigging, Cooling, and Maintenance
Professional stage lights are often installed above performers and audiences. Safe rigging must come before visual effects.
Rigging essentials
Before suspending a fixture, confirm that:
- The truss or support structure is load-rated
- The clamps are suitable for the fixture
- Quarter-turn fasteners are fully locked
- An independent safety cable is attached
- The safety cable uses the designated safety point
- Power and DMX cables are secured
- Pan and tilt movement is unobstructed
- The optical output is kept away from combustible materials
Overhead installation and removal should be performed by qualified personnel.
Routine maintenance
Regular maintenance should include:
- Cleaning the front lens
- Removing dust from fans
- Inspecting air filters and ventilation openings
- Checking power and DMX connectors
- Inspecting clamps and safety cables
- Listening for unusual fan or motor noise
- Monitoring lamp operating time
- Allowing the fixture to cool before servicing
The F22 manual recommends regular cleaning of fans, filters, and optical lenses, warns against damp operating environments, and requires adequate cooling time before restarting or servicing the fixture.
A fixture that appears dim does not always need a new lamp. Dirty lenses, blocked vents, poor focus, or optical contamination can also reduce performance.
18. What to Ask a Stage Lighting Equipment Supplier
Whether you are looking for a moving head beam light for sale, wholesale stage lighting equipment, OEM production, or a long-term manufacturing partner, do not ask only for the price.
Better questions lead to better purchasing decisions.
Optical performance
Ask for:
- Lux readings at multiple distances
- Beam diameter at each distance
- Beam-angle data
- Electronic focus range
- Real prism videos
- Gobo demonstrations
- Haze and no-haze comparisons
Control and compatibility
Confirm:
- DMX channel count
- Complete DMX chart
- RDM support
- 3-pin or 5-pin XLR
- Auto Run
- Sound Control
- Master/Slave operation
- Pan and tilt correction
- Display language
Ordering and customization
Ask about:
- Minimum order quantity
- Sample availability
- Wholesale pricing
- Production lead time
- Plug options
- Voltage options
- Custom logo
- Private-label packaging
- Flight cases
- Spare parts
Warranty and support
Confirm:
- Warranty period
- Lamp exclusions
- Replacement-part policy
- Repair documentation
- Service videos
- Technical support
- Long-term spare-part availability
A dependable stage lighting equipment supplier should be able to discuss venue dimensions, operating hours, control requirements, installation conditions, and budget—not simply send a price list.
19. Professional Moving Head Beam Light Buying Checklist
| Category | What to Confirm |
|---|---|
| Light Source | Type, wattage, expected life, and replacement availability |
| Rated Power | Total fixture consumption |
| Beam Angle | Suitability for venue size and throw distance |
| Photometrics | Lux and beam diameter at several distances |
| Focus | Electronic control and effective range |
| Color Wheel | Color count, open white, and split-color capability |
| Gobo Wheel | Pattern count, shake, scrolling, and positioning |
| Prism System | Facet count, rotation direction, speed, and indexing |
| Frost | Availability and amount of diffusion |
| Dimmer | Smooth 0–100% output |
| Strobe | Speed range and available modes |
| Pan and Tilt | Movement range, speed, and 16-bit fine control |
| Position Correction | Automatic correction or reset |
| DMX | Channel count and complete channel documentation |
| RDM | Supported or not |
| Signal Connections | 3-pin, 5-pin, or both |
| Standalone Modes | Auto, Sound, and Master/Slave |
| Rigging | Brackets, clamp points, and safety attachment |
| Packaging | Carton, foam, or flight case |
| Support | Warranty, spare parts, and technical assistance |
20. When a 381W Dual-Prism Beam Light Is a Good Choice
A fixture in this class is worth considering when a project needs:
- A narrow and concentrated moving head beam
- Medium- or large-venue coverage
- Electronic focus
- Multiple colors and gobos
- Separate 16-facet and 48-facet prism effects
- 16-bit pan and tilt control
- DMX512 and RDM
- Both 3-pin and 5-pin connections
- Auto, Sound, and Master/Slave modes
The Starshine F22 381W Moving Head Beam Light is one example. It combines a 381W MSD source with a 0–3.9° beam, electronic focus, 14 colors plus open white, 17 gobos plus open white, dual rotating prisms, frost, strobe, and professional DMX control.
This type of fixture can suit concert lighting, festivals, DJ stages, professional club lighting, rental productions, touring shows, theaters, and large church programs.
When a smaller fixture may be better
A lower-power LED beam or compact DJ light may make more sense when:
- The venue is small
- Long-distance projection is unnecessary
- Haze is not permitted
- No DMX controller is available
- Simple automatic effects are enough
- Transportation weight is a major concern
If the main need is performer lighting, broad color coverage, or video-friendly illumination, a Wash, Profile, Fresnel, or high-CRI LED fixture should take priority.
Frequently Asked Questions
Is a higher-wattage beam light always brighter?
No. Wattage affects potential output, but optical efficiency, beam angle, lamp condition, lens quality, focus, and ambient light also influence what the audience sees.
Can a moving head beam light work without haze?
Yes, but the complete aerial beam will be less visible. You will still see the output and the surface where the beam lands.
Is a 16-facet prism better than a 48-facet prism?
Neither is universally better. A 16-facet prism creates clearer and more separated rays. A 48-facet honeycomb prism creates a denser and fuller pattern.
Is 18CH DMX professional enough?
Yes. Channel count alone does not determine quality. What matters is whether movement, dimming, strobe, color, gobos, prisms, focus, and other important functions can be controlled independently.
Can Sound Control replace DMX?
Not for a structured professional show. Sound Control is useful for simple DJ and party applications, while DMX provides precise timing and repeatable cues.
Can a Beam fixture be used as front lighting?
It is not recommended. A Beam fixture is too narrow and concentrated to evenly illuminate performers. Front lighting is better handled by Profile, Fresnel, Wash, or dedicated video fixtures.
How many moving head beam lights does a venue need?
There is no universal number. The correct quantity depends on stage width, mounting positions, throw distance, desired symmetry, ambient light, and budget.
Should I choose discharge-lamp or LED moving head lights?
Discharge-lamp beam lights are known for intense, concentrated output. LED moving head lights may offer longer source life, lower maintenance, and different color capabilities. The best choice depends on the required beam performance and operating cost.
What should I compare when looking at stage lights for sale?
Compare verified photometric data, beam angle, movement quality, effect systems, DMX documentation, safety hardware, warranty, spare parts, and supplier support.
Are professional moving head lights suitable for permanent installation?
Yes, provided that the fixtures are installed on load-rated structures, have adequate ventilation, receive regular maintenance, and are operated within their specified environmental limits.
Buy the Fixture That Fits the Show
One of the easiest mistakes when choosing a moving head beam light is comparing only wattage, color count, and gobo count.
A successful stage lighting system depends on how the complete setup works together:
- Does the beam angle suit the venue?
- Can the focus cover the required distance?
- Do the prism effects match the show design?
- Is slow movement smooth?
- Is the DMX control complete?
- Are the signal connections compatible?
- Is the mounting position safe?
- Can the supplier provide parts and technical support?
A good professional moving head beam light should do more than look bright when it is first switched on. It should remain accurate, stable, and easy to control during long shows, slow movement, multi-fixture programming, repeated transportation, and demanding installation conditions.
The right fixture is not always the model with the largest numbers. It is the one that fits the venue, supports the lighting design, works with the existing control system, and can be maintained throughout its service life.
Need Help Choosing a Moving Head Beam Light?
```
The right fixture depends on your stage size, mounting height, throw distance, control system, and application. Send Starshine your venue dimensions, required quantity, and project details for a professional recommendation.
WhatsApp: +86 135 2139 1704
Email: sales@starshinelights.com
Chat on WhatsApp ```Email: sales@starshinelights.com
Download PDF Product Catalogs
Get detailed specs, wiring diagrams, rigging notes, and install tips.
