LED Moving Head Profile Light: Precision Control for Stage Projects

But in real projects, wattage is only part of the story. A professional LED moving head profile light is valuable not just because it is bright, but because it can shape the beam cleanly, control color accurately, run quietly, work with a DMX controller, and stay reliable during long shows.

That is why many professional stage lighting projects are moving beyond basic beam light fixtures or simple moving head spot units. A beam light can create strong aerial effects. A wash light can fill a large area. But when a venue needs clean framing, controlled spill, gobo projection, smooth CMY color mixing, and detailed DMX512/RDM control, moving head profile lights become much more useful.

For B2B lighting projects, the better question is not “Which light is the brightest?” The better question is: “Which fixture solves the real problems on-site?”

An 800W/1000W LED moving head profile light is best for professional stage lighting projects that need strong output, clean framing, CMY color mixing, CTO control, wide zoom, gobo projection, DMX/RDM control, and reliable long-term operation. The 800W version is usually a strong fit for medium venues, churches, theaters, and hotel ballrooms, while the 1000W version is better for large stages, touring productions, concert lighting, and B2B engineering projects with longer throw distances.

A LED moving head profile light is a professional moving light that combines the flexible movement of moving head lights with the precise beam control of a profile light. Compared with basic LED moving lights, a profile fixture gives lighting designers much tighter control over where the light goes.

In a theater, the lighting designer may need to light only the actor without spilling onto the backdrop. In a church stage lighting setup, the fixture may need to cover the pulpit, choir area, or worship team without washing out the LED screen. In a hotel ballroom or corporate event space, the keynote speaker, logo wall, stage set, and audience area may all need separate lighting zones.

This is where a framing shutter system becomes important. A profile light with four independent framing blades can cut the beam into rectangles, trapezoids, narrow strips, or custom shapes. Instead of flooding the stage with uncontrolled light, it lets you place light exactly where it belongs.

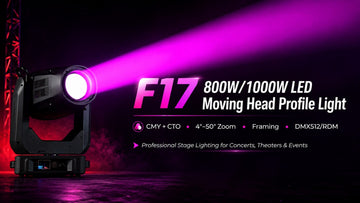

The F17 is a good example of this type of professional moving head light. It is available in 800W and 1000W power options and includes a 4-blade framing system, CMY color mixing, CTO control, 4°–50° zoom, rotating gobos, fixed gobos, prism effects, iris, frost, and DMX512/RDM control. For stage lighting contractors, system integrators, rental houses, and fixed installation projects, this type of fixture is designed for much more than basic movement.

Many buyers assume that higher wattage is always better. In some cases, it is. But for professional stage lights, the best choice depends on venue size, throw distance, ambient light, show type, and budget.

The 800W version is usually a strong choice for medium-size venues, churches, theaters, school auditoriums, hotel ballrooms, clubs, multi-purpose halls, and rental events. It provides strong output while keeping power consumption and project cost more balanced. For many fixed indoor installations, 800W is already enough when the optical system is well designed.

The 1000W version makes more sense for large stages, touring productions, concert lighting, commercial performance venues, cultural tourism shows, large event halls, TV studios, and installations that need longer throw distance or stronger output. If the fixture has to compete with bright LED screens, large stage washes, or high ambient light, the extra power can make a real difference.

Still, wattage should never be the only deciding factor. A 1000W light with weak optics may not perform as well as an 800W fixture with a strong optical system, a large lens, efficient LED engine, smooth zoom, and reliable cooling. When comparing professional moving head lights, buyers should look at the full system: LED source, lens size, beam angle, zoom range, CRI, color control, framing accuracy, dimming, cooling, and DMX control.

The F17 uses a 6500K LED source and a 150mm output lens, giving it strong stage presence and clean projection. With both 800W and 1000W versions available, it gives rental companies, venues, and installation teams more flexibility for different project levels.

Color is not just decoration. In professional stage lighting, color controls mood, depth, focus, and visual emotion.

A basic color wheel can switch quickly between fixed colors, which is useful for fast effects. But CMY color mixing gives lighting designers much more freedom. It allows smooth transitions from soft pastel tones to deep saturated concert lighting colors. This is especially helpful for theater productions, worship services, corporate shows, concerts, broadcast stages, and immersive event spaces.

For example, a warm amber tone can make a scene feel intimate. A cool white look can make a conference stage feel clean and modern. A deep blue or purple can create tension, drama, or atmosphere. With CMY color mixing, the designer is not limited to a few fixed color choices.

CTO control is just as important. The F17 offers linear CTO adjustment from 2500K to 7000K, allowing the fixture to move from warm white to cool white. This matters in church stage lighting, theater lighting, TV studios, livestreaming spaces, and camera-focused events. If the color temperature does not match the camera or other light sources, skin tones can look yellow, gray, or unnatural.

A high-CRI mode also helps. With standard mode RA ≥75 and high display mode RA ≥90, the fixture can produce better color rendering for performers, clothing, scenery, and video capture. For any project where people are being filmed or photographed, this is not a small detail. It affects how natural the final image looks.

A wide zoom range gives one fixture more jobs to do.

At the narrow end, a 4° beam can create strong beam light effects for concerts, clubs, music festivals, and live event production. It gives the fixture the punch needed for aerial looks and dramatic stage movement.

At a medium angle, the same fixture works like a moving head spot. It can project gobos, highlight performers, create stage texture, and focus attention on key areas.

At the wider end, 50° coverage helps create broader stage washes or soft atmospheric looks, especially when used with frost. This makes the fixture useful not only for hard-edge profile work, but also for softer stage coverage.

That flexibility is one reason LED moving lights with wide zoom ranges are popular in rental and installation projects. A rental company may use the same fixture for concerts one week, a corporate event the next week, and a church production after that. A fixed venue may need one lighting system to support speeches, worship, theater, school events, concerts, and community shows.

With a 4°–50° linear zoom, the F17 can move between narrow beam light effects, moving head spot projection, soft washes, and profile control. That makes it more practical than a single-purpose fixture.

The biggest difference between a profile light and many other moving head lights is the framing system.

In real installations, uncontrolled spill light can cause many problems. It can hit an LED screen and reduce contrast. It can wash out a projection surface. It can spill onto the audience. It can light areas of the stage that should stay dark. In a theater, conference center, church, TV studio, or commercial event space, that kind of spill makes the whole lighting design look less clean.

Framing shutters solve this problem. A 4-blade framing system allows the designer to trim the beam from multiple sides and create a clean shape. This is useful for lighting a lectern, a pastor, a singer, a performer, a product display, a logo wall, a scenic element, or an architectural feature.

For B2B project work, this is a very practical feature. Lighting contractors and system integrators often need to satisfy both the creative team and the client. The show needs to look polished, but the installation also needs to be efficient and serviceable. A precise framing system can reduce adjustment time and help the project reach a cleaner final result.

The F17 uses 4 independent blades with 8-axis control and 180° rotation, giving lighting designers the flexibility to shape beams accurately for stages, studios, worship spaces, and commercial installations.

A good stage lighting design is not just about brightness. It is about layers.

Gobos help create pattern, texture, and visual storytelling. They can simulate windows, trees, water, abstract shapes, architectural lines, or scenic texture. In theaters, they help build the world of the story. In concerts and events, they add movement and energy. In commercial spaces, they can create branded or atmospheric looks.

The F17 includes 7 rotating gobos, 8 fixed gobos, and open white, giving designers a useful range of projection tools. Rotating gobos can add motion, while fixed gobos can create clean patterns and background textures.

Prism effects expand the beam and create layered looks. The rotating 3-prism system can turn a single beam into a wider, more dynamic visual effect. This is useful for concert lighting, clubs, festivals, and large performance stages.

Iris control helps adjust the beam size without changing the full zoom position. A 6%–100% aperture range allows precise control over how tight or open the beam feels. Frost softens hard-edge light, creating smoother washes and more atmospheric looks. With 0–100% linear frost, the fixture can move from sharp projection to soft coverage.

Together, gobos, prism, iris, frost, zoom, and framing make the fixture more versatile. For commercial installation projects, this matters because the same lighting system often needs to support many different event types.

A professional lighting fixture should be easy to control, not just impressive on paper.

The F17 supports DMX512 and RDM with 34 standard DMX channels. This gives lighting designers detailed control over pan, tilt, dimming, strobe, CMY, CTO, color wheel, gobos, prism, iris, frost, zoom, framing, and reset functions through a professional DMX controller or DMX lighting controller.

For programmed shows, clear DMX channel control is essential. It allows the designer to build repeatable cues, smooth movement, accurate color changes, and reliable transitions. This is especially important for theaters, touring shows, corporate events, worship productions, and broadcast environments.

RDM is also valuable for larger installations. In many venues, fixtures are mounted high on truss, catwalks, lighting bars, or ceiling points. Changing addresses manually can waste time and increase labor costs. With RDM support, technicians can manage fixture addresses and device information remotely through compatible control systems.

The F17 also supports auto run, master-slave, and sound control modes. This makes it useful for smaller setups where a full console is not always available. For rental companies and mid-size venues, that added flexibility can make day-to-day use easier.

For engineering projects, the best fixture is not always the one with the longest spec sheet. It is the one that fits the space, the show style, the control system, and the maintenance plan.

This type of checklist is useful because B2B buyers are not only buying a light. They are buying a system that has to work repeatedly, safely, and predictably.

Wattage matters, but it does not tell the whole story. Lens size, LED efficiency, optical design, zoom range, cooling, and color control all affect real-world performance.

A beam moving head light is great for aerial effects, but it cannot replace a profile light when the project needs clean edges and controlled spill. For theaters, churches, conference centers, and TV studios, framing shutters are often more important than raw beam punch.

Noise may not matter much in a loud club, but it matters a lot in churches, theaters, studios, and conference rooms. Ultra-quiet motors and fan cooling can make the fixture much more comfortable for quiet productions.

For small setups, manual addressing is manageable. For large installations, RDM can save a lot of time during setup, troubleshooting, and maintenance.

An IP20 moving head light is made for indoor or protected environments. If the project is outdoors, near moisture, or exposed to weather, the installation needs proper protection.

A fixture may look good for one event, but professional buyers should think about service life, spare parts, software control, rigging, transport, and future event types.

A basic moving head light may be enough for a small DJ setup or simple party lighting. But an 800W/1000W LED moving head profile light becomes much more useful in projects that need precision, power, and flexibility.

In theater lighting, it can provide clean beam shaping, gobo texture, color control, and accurate focus. In church stage lighting, it can light speakers, musicians, and worship teams while keeping spill off LED screens. In hotel ballrooms and multi-purpose halls, it can support meetings, weddings, performances, and product launches. In conference centers and corporate event spaces, it can create a polished professional look for speakers and brands.

For cultural tourism shows and immersive entertainment spaces, the fixture can support scenic texture, layered color, architectural lighting effects, and dynamic movement. For rental companies, it offers the flexibility to serve concerts, festivals, theater productions, corporate shows, and touring events. For TV studios and livestreaming rooms, color temperature, CRI, quiet operation, and precise control become especially important.

This is why professional moving head lights like the F17 are often used as part of a complete stage lighting system, not just as individual effect lights.

The Starshine F17 is designed for buyers who need a serious LED moving head profile light for professional stage lighting and commercial installation projects. It is not just a simple effect light. It combines 800W/1000W power options, CMY color mixing, 2500K–7000K CTO, 4°–50° linear zoom, 4-blade framing shutters, rotating gobos, fixed gobos, prism effects, iris, frost, DMX512/RDM control, 34 channels, quiet motors, and fan cooling.

That combination makes it suitable for rental houses, theaters, churches, event venues, concert stages, studios, commercial performance spaces, and B2B engineering projects that need both creative flexibility and dependable operation.

Starshine does not need to be mentioned in every paragraph for this kind of product to make sense. What matters is whether the fixture gives lighting teams the tools they actually use on-site: strong output, clean beam shaping, stable color, flexible zoom, professional control, and reliable daily operation.

For buyers comparing professional moving head lights, the F17 is worth considering when the project needs more than basic movement and color. It is built for venues and lighting teams that need one fixture to handle multiple production roles.

Here is a practical way to think about it: does your project need light that can throw far, cut cleanly, render color well, program smoothly, and run for long hours?

If you only need simple movement and basic colors, standard moving lights or smaller stage lights may be enough. But if you are working on a theater, church, conference center, hotel ballroom, cultural tourism show, touring rental package, commercial event space, TV studio, or fixed installation project, a fixture like the F17 is worth considering.

The real value is not one single number on the spec sheet. It is the full feature set working together: 800W/1000W power options, CMY color mixing, CTO control, wide zoom, framing shutters, gobos, prism, iris, frost, DMX512/RDM control, quiet operation, and a professional housing design.

In the end, a good LED moving head profile light should help the project look better and run smoother. It should help the lighting designer create stronger looks, help the installer finish the job with less trouble, help the venue handle different events, and help the client see a clear difference on stage.

That is what separates a fixture that simply “turns on” from a fixture that is truly useful for professional stage lighting and B2B project applications.
