RGB Moving Head Laser Guide for DJs, Clubs & Stage Lighting

That is where an RGB moving head laser light becomes different from a basic party laser. It does more than project a few patterns on the wall. It can sweep across a dance floor, create aerial beams through haze, move across ceilings and stage backdrops, and work with other stage lights in a complete lighting design.

For DJs, club owners, rental companies, and event production teams, this kind of fixture can become one of the most flexible tools in a lighting setup. It can be used as part of DJ stage lights, club lights, DMX stage lights, or a larger stage lighting equipment system.

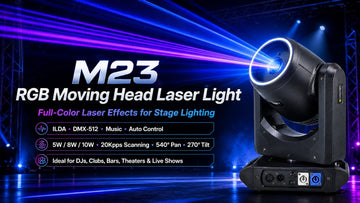

A good example is the Starshine M23 RGB Moving Head Laser Light. It combines RGB laser color, 5W / 8W / 10W laser power options, ILDA control, DMX-512 control, music mode, auto mode, a 20Kpps scanning system, 540° pan, and 270° tilt. On paper, those specs sound technical. In real use, they mean one thing: more control over the show.

This guide breaks down how an RGB moving head laser works, when to use DMX or ILDA, why scanning speed matters, and how to apply moving head laser effects in DJs, clubs, bars, theaters, live shows, and indoor stage lighting setups.

An RGB moving head laser is a laser stage lighting fixture that combines full-color laser output with motorized pan and tilt movement. Instead of staying fixed in one direction, the laser head can move across the room and send beams or patterns to different parts of the venue.

The “RGB” part means the fixture uses red, green, and blue laser sources. These colors can create a wide range of full-color laser effects, from sharp green beams to blue and purple atmospheres, red accents, and mixed-color patterns. For RGB stage lights, this color flexibility is important because different music styles and event spaces need different moods.

The “moving head” part means the fixture can move horizontally and vertically. On the M23, 540° pan and 270° tilt allow the laser to cover stage areas, ceilings, walls, dance floors, DJ booths, and safe projection zones. This makes it more dynamic than a fixed laser light projector.

In a DJ event or club environment, lighting has to move with the music. A static effect can look nice for a few minutes, but once the energy builds, the lighting needs to grow with it.

That is why moving head stage lights are so common in professional venues. They add movement, rhythm, and direction. When you combine that movement with laser beams, the result feels more alive.

For DJs, an RGB moving head laser can be used during intros, buildups, drops, breakdowns, and finales. During a slow intro, soft blue or purple beams can create atmosphere. During a drop, fast green or RGB laser beams can cut through haze and make the room feel bigger. During a finale, full-color laser patterns can add a strong visual ending.

For clubs and bars, the fixture can work with other professional club lighting equipment, such as LED wash lights, strobes, moving head beams, fog machines, and video walls. When controlled through DMX, the laser becomes part of the whole lighting system instead of running separately.

For mobile DJs, music mode and auto mode are especially helpful. Not every event has a lighting technician. Sometimes the setup has to be fast, reliable, and easy to operate. A fixture like the M23 can still create strong DJ stage lighting effects without requiring a full lighting console every time.

Color is one of the biggest reasons people choose RGB laser lights over single-color models. In real venues, color changes the emotional feeling of the room.

Green beams are bright, sharp, and highly visible in haze. They are great for high-energy moments, EDM drops, club scenes, and aerial effects.

Blue and purple laser effects create a deeper, more modern look. They work well for electronic music, lounge settings, theater backgrounds, and slower atmospheric moments.

Red laser accents can feel intense and dramatic. They are useful for strong beat hits, darker scenes, or moments that need a more aggressive visual mood.

The M23 uses RGB laser output with red 638±5nm, green 520±5nm, and blue 450±5nm wavelengths. This gives lighting designers more flexibility than a simple two-color laser. It also makes the fixture more useful across different applications, including stage laser lights, stage lasers, club lighting, event lighting, and theater effects.

The important thing is not to use every color at full intensity all the time. A better show has contrast. Let the colors breathe. Use soft blue beams during quieter moments, green beams when the energy rises, and full RGB laser effects when the music reaches its peak.

DMX-512 is one of the most important control methods in professional stage lighting. It allows different fixtures to work together through a lighting console or controller.

If you are using multiple DMX stage lights, moving head lights, LED fixtures, strobes, or fog machines, DMX control helps keep everything organized. The laser can follow the same scenes, cues, and timing as the rest of the lighting system.

With the M23, DMX control can be used for functions such as laser dimming, pattern selection, strobe, color effects, movement, zooming, rotation, positioning, wave effects, LED brightness, LED effects, and more. This makes it useful for both simple and advanced setups.

For a club, DMX control can help create different looks throughout the night. A warm-up scene might use slow movement and low brightness. A peak-time scene might use faster pan and tilt movement with brighter laser beams. A breakdown might hold the laser in one position with a soft animated pattern. A final scene might use full RGB color, strobe, zoom, and sweeping movement.

For rental companies and production teams, DMX compatibility is also important because it makes the fixture easier to integrate with existing rigs. A product that works with standard DMX moving head lights and other stage lighting equipment is easier to use in different venues.

DMX is great for show control, but ILDA is better for custom laser content.

ILDA control is commonly used when the laser needs to display graphics, animations, text, logos, or more detailed programmed laser shows. Instead of only choosing built-in effects, ILDA software gives users more control over what the laser draws.

This is useful for branded events, theater scenes, product launches, nightclubs, DJ visuals, corporate shows, and custom stage productions. For example, a club may use DMX for most of the night, then use ILDA for a special logo moment. A theater may use ILDA to project a symbol or graphic that supports the story. An event production team may use it for custom visual content that matches music or video.

For buyers comparing professional moving head lights, ILDA support is a valuable feature because it expands the fixture beyond basic beam effects. It gives advanced users more creative control while still allowing simpler control through DMX, music mode, or auto mode.

The M23 supports Normal 29CH and Expert 46CH DMX modes. These channel modes decide how much control you have over the fixture through DMX.

The 29CH mode is practical for most standard applications. It gives control over core functions like pan, tilt, motor speed, reset, laser dimming, auto mode, sound mode, pattern library, pattern selection, strobe, pattern size, horizontal and vertical positioning, color, rotation, zooming, wave effects, LED brightness, LED effect speed, and LED strobe.

For DJs, small clubs, bars, and many indoor events, 29CH is often enough. It gives strong control without making the console too complicated.

The 46CH expert mode is better for advanced users who want more detailed programming. It gives more room for complex pattern control, layered effects, movement control, LED effects, strobe timing, zooming, and positioning.

For professional club lighting, theater installations, live shows, touring setups, and rental lighting systems, 46CH can be useful because the operator can shape the show more precisely.

Scanning speed is one of the most important technical details in a laser light projector. It affects how smooth and stable the patterns look.

The M23 uses a 20Kpps vibratory mirror scanning system. Kpps means thousands of points per second. Without getting too technical, this tells you how fast the scanner can draw laser points and shapes.

If the scanner is too slow, graphics may look shaky, broken, or rough. This becomes more obvious with animations, text, circles, complex shapes, and fast pattern movement. A smoother scanner helps the laser create cleaner graphics, better beam movement, and more stable pattern transitions.

For DJs, clubs, bars, theaters, and medium-sized indoor events, 20Kpps is a practical scanning level. It supports many common laser show effects without making the system overly complicated.

Very large professional laser shows may use higher scanning speeds, especially for detailed graphics. But for many real-world laser stage lighting setups, 20Kpps gives a useful balance between performance and ease of use.

A moving head laser should not move randomly all night. Movement should have a purpose.

The M23 offers 540° pan and 270° tilt, giving it enough range to cover different areas of an indoor venue. It can sweep across a dance floor, aim toward a stage backdrop, move across a ceiling, or create overhead beam effects when installed safely.

Slow pan movement works well during intros, lounge scenes, ambient moments, and theater backgrounds. It gives the space a calm, controlled feeling.

Fast pan and tilt movement works better during energetic drops, peak-time club moments, DJ transitions, and live show climaxes. This is where the fixture can add excitement and movement to the room.

Fixed-position patterns are useful when you want the laser to project a logo, animation, or graphic onto a surface. In this case, the moving head does not need to move constantly. Sometimes holding the position creates a cleaner and more professional look.

For larger venues, multiple moving head stage lights can be programmed to cross, mirror, or alternate movements. This creates depth and makes the space feel wider.

An RGB moving head laser can be used in many environments, but the best setup depends on the venue.

For mobile DJs, speed matters. Weddings, private parties, school events, and temporary setups often do not leave much time for detailed programming. Music mode and auto mode are useful because they let the fixture create movement and color effects quickly.

In these situations, the M23 can work as part of a compact DJ stage lights setup. It can create laser beams, moving patterns, and party energy without requiring a full lighting console.

For clubs and bars, DMX control is usually the better option. The laser should match the rest of the lighting system, including LED wash lights, moving head beams, strobes, and fog machines.

In a club lighting setup, the M23 can be used for aerial beams, dance floor movement, ceiling effects, and full-color laser moments. It works especially well when haze is used correctly, because the beams become more visible in the air.

Theaters need more control and less randomness. A laser effect should support the scene, not distract from it. In this type of environment, lower brightness, slower movement, and careful positioning are usually better.

ILDA control can also be useful for custom graphics or scene-based visual effects. For example, a theater production may use a laser pattern as part of a futuristic scene, dream sequence, or visual transition.

Rental companies need fixtures that can work in many different situations. One client may need party laser lights. Another may need stage laser lights for a live event. Another may need professional club lighting for a nightclub installation.

A fixture with DMX, ILDA, music mode, auto mode, RGB output, and moving head movement gives rental companies more flexibility. It can serve more customers and fit more jobs.

For event production teams, the M23 can be part of a larger lighting design. It can work alongside LED walls, wash lights, beam lights, strobes, and other stage lighting equipment.

In a full show design, the laser does not need to do everything. Its job may be to add aerial beams, laser graphics, color accents, or high-energy moments. When used this way, it becomes one layer in a complete visual system.

Professional users often focus on DMX and ILDA, but music mode and auto mode are still important.

Not every show has a lighting operator. Not every DJ has time to program a full cue list. Not every bar has a DMX console installed. In these real-world situations, simple control modes matter.

Music mode allows the fixture to react to sound. This can work well for mobile DJs, small parties, bars, and casual events. It gives the room movement and energy without detailed programming.

Auto mode runs built-in programs. This is useful for quick setup, product demos, smaller venues, and events where the fixture needs to run without constant control.

These modes do not replace professional programming, but they make the fixture easier to use. A good stage light should not only work in a perfect production environment. It should also work in the real world.

Laser lights are powerful tools, and they should be handled with care. This is especially true for 5W, 8W, and 10W RGB laser systems.

The M23 is designed for indoor use only. It should not be used in rain, moisture, or damp environments. The fixture also needs proper ventilation. Fan cooling helps manage heat, but the vents should never be blocked.

When installing the fixture on truss, ceiling structures, or overhead positions, use proper mounting hardware and a safety cable. Installation should be handled by trained users or qualified technicians.

Laser beams should never be aimed directly into people’s eyes. In clubs, bars, theaters, and event venues, projection angles should be planned carefully so beams stay in safe areas. A safe laser show looks controlled, professional, and more comfortable for the audience.

The Starshine M23 sits in a useful middle ground. It is more capable than a simple party laser light, but it is still practical for DJs, clubs, bars, rental companies, and indoor venues that need flexible control.

Its 5W / 8W / 10W laser power options give users choices for different venue sizes. The RGB laser output supports full-color effects. DMX-512 makes it suitable for larger lighting systems. ILDA control allows custom graphics and programmed laser shows. Music mode and auto mode make it easier to use when fast setup is needed.

This balance is what makes the fixture practical. It can be used by mobile DJs, club lighting operators, theater technicians, rental companies, and event production teams. It can also fit into catalogs for stage lighting equipment suppliers because it serves many common applications.

For buyers comparing stage lights, stage lasers, DMX moving head lights, and professional moving head lights, the M23 offers a strong mix of movement, color, control, and real-world usability.

When choosing an RGB moving head laser, do not look at power alone. Power matters, but it is only one part of the decision.

Start with your venue size. A small bar or mobile DJ setup may not need the strongest output, while a larger club or stage may need more laser power for better visibility.

Next, look at color. RGB laser color gives you more creative options than single-color or dual-color systems. This is important for DJs, clubs, theaters, and live events where different scenes need different moods.

Then check control modes. DMX is important for stage lighting systems. ILDA is important for custom graphics and animations. Music mode and auto mode are useful for fast setup and simpler events.

Scanning speed is another key point. A 20Kpps scanner helps create smoother laser graphics, beam movement, and pattern transitions.

Pan and tilt range also matter. A 540° pan and 270° tilt range gives the fixture enough movement for many indoor stage lighting and club lighting applications.

Finally, think about the operator. A professional lighting designer may want expert DMX channels and ILDA control. A mobile DJ may care more about music mode and quick setup. A rental company may need both.

A good lighting setup does more than fill a room with light. It builds emotion. It gives music a visual shape. It helps the audience feel when a moment is building, breaking, or reaching its peak.

That is why an RGB moving head laser can be such a valuable part of modern stage lighting. With RGB laser effects, DMX-512 control, ILDA software support, 20Kpps scanning, 540° pan, 270° tilt, music mode, and auto programs, a fixture like the Starshine M23 can support many different lighting needs.

For DJs, clubs, bars, theaters, rental companies, and event production teams, the right moving head laser light can turn a simple setup into a more complete show. It can create aerial beams, animated patterns, laser graphics, and professional club lighting effects that make the space feel alive.
