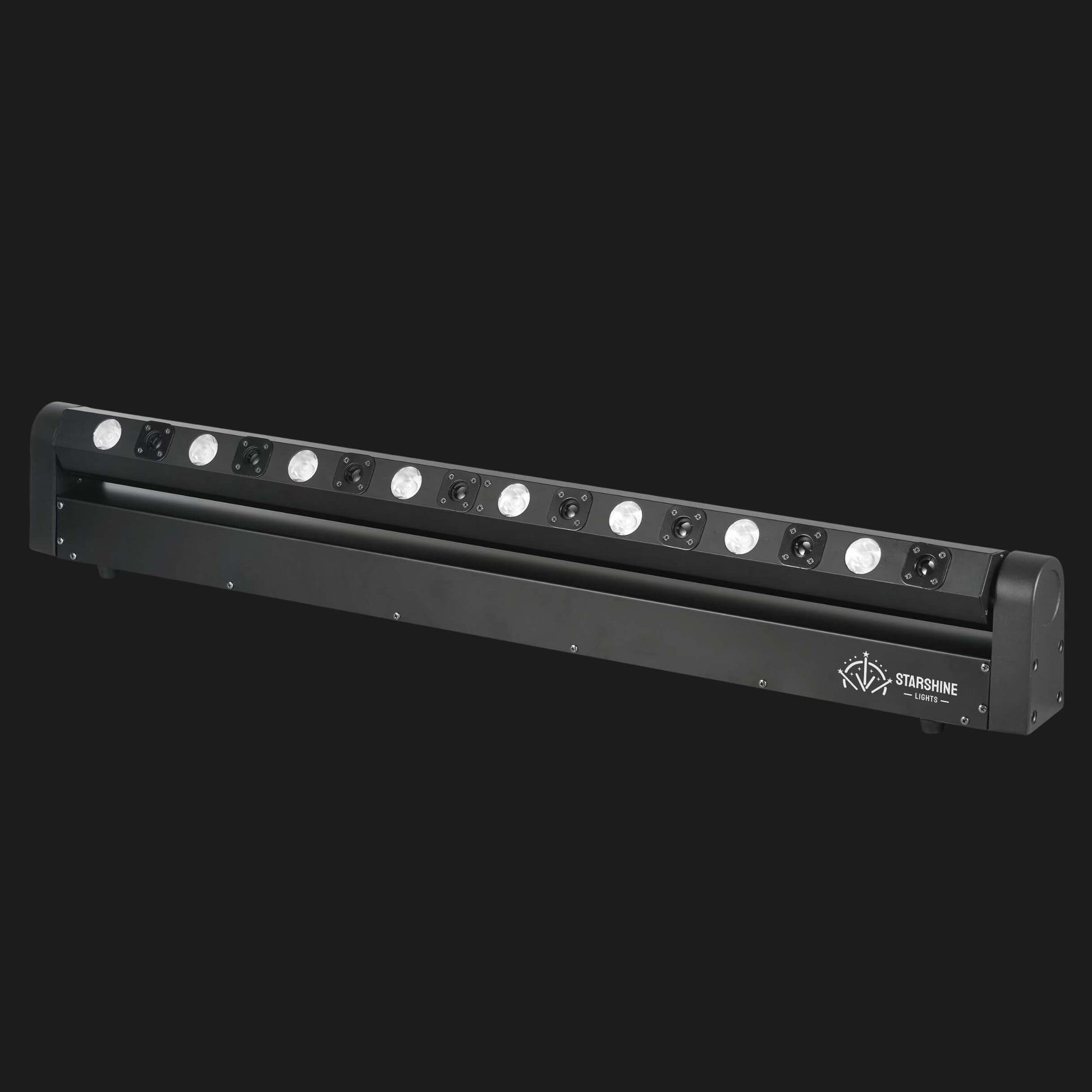

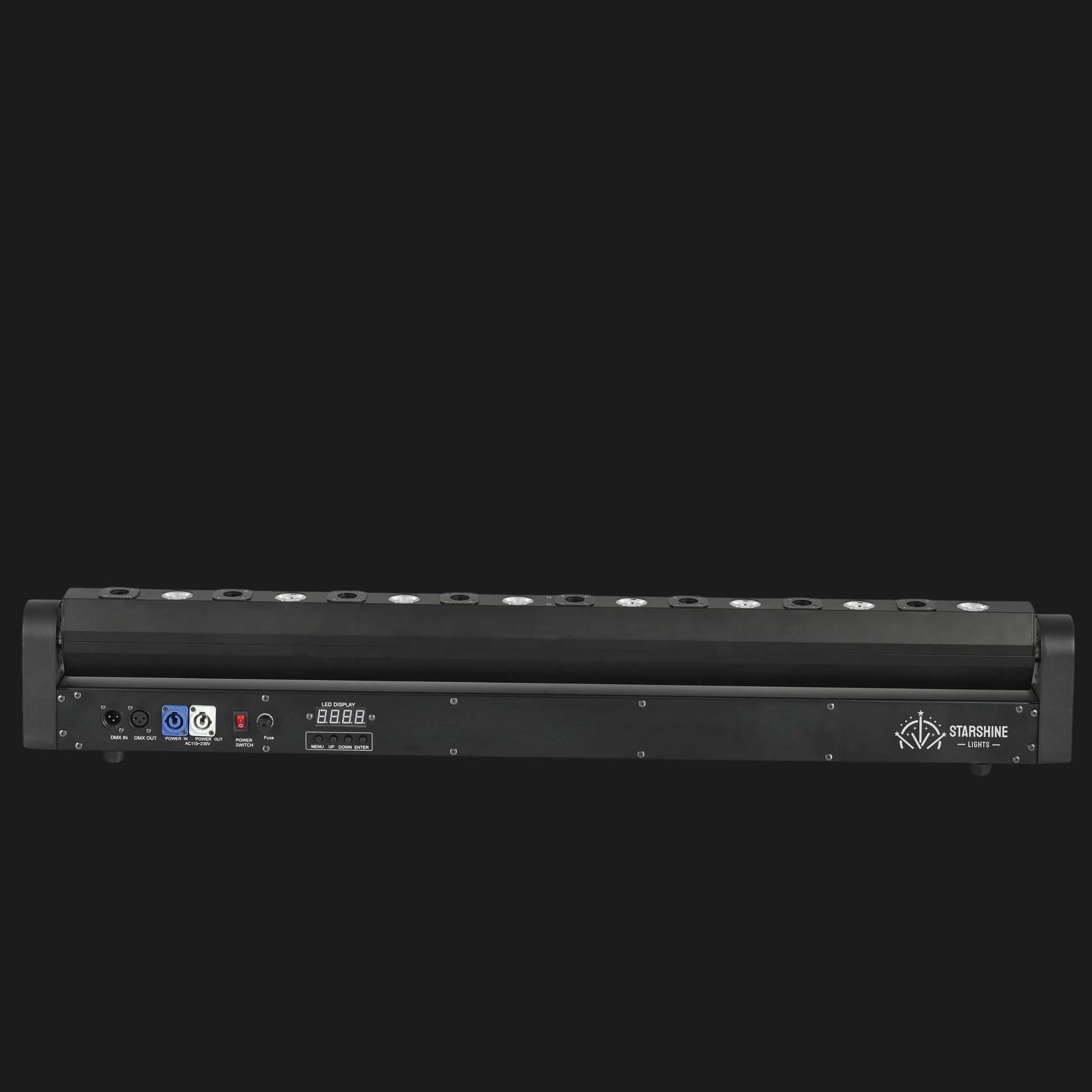

B1 GBW laser bar RGBW 8x8 DJ laser light bar
RGBW 8-head laser light bar with 500mW x8 beams
DMX512 controllable DJ laser bar light 23-channel effects
15K scanning laser bar light for club stage lighting setup

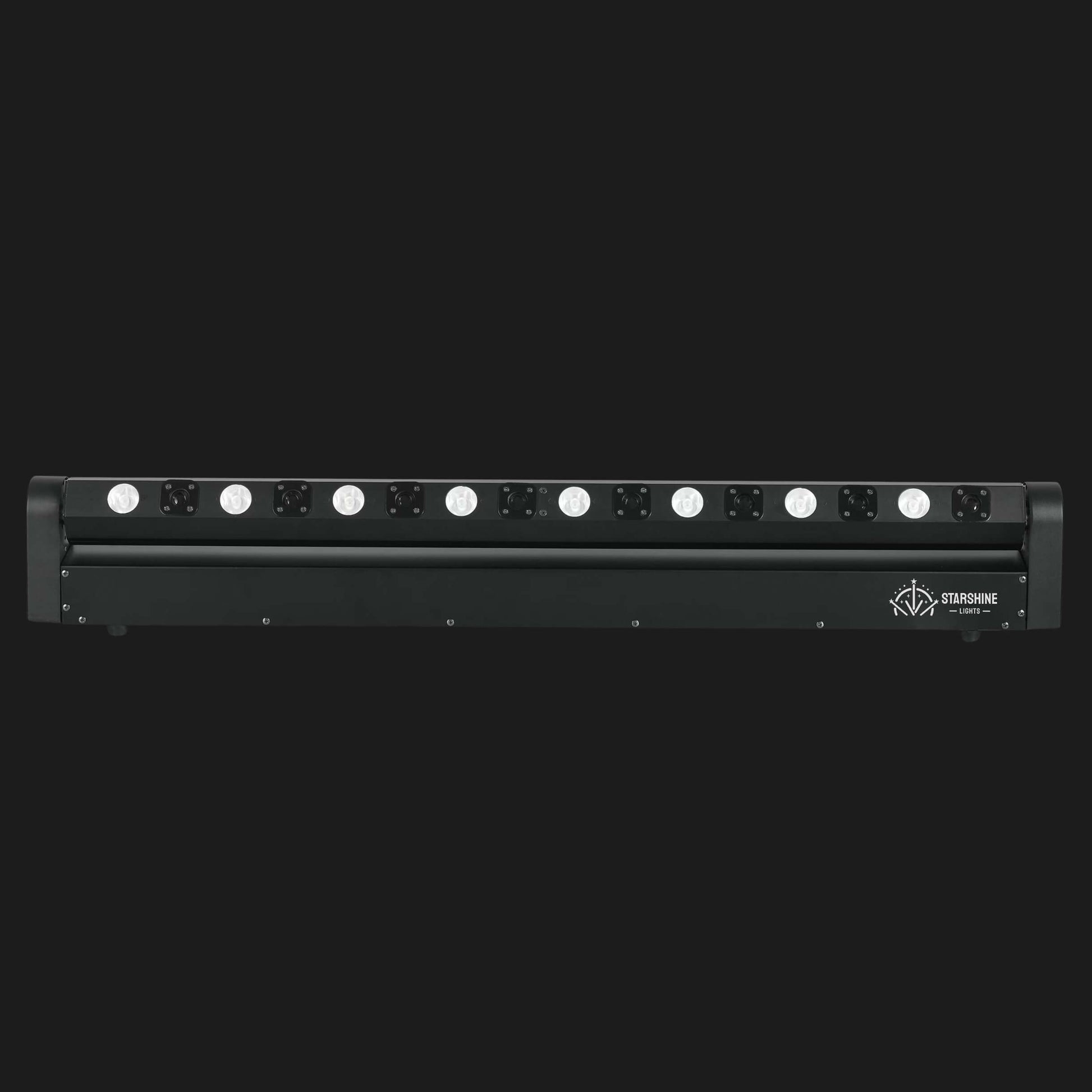

Stage laser light bar aerial beam and strobe effect lighting
B1 GBW laser bar RGBW 8x8 DJ laser light bar
B1 GBW laser bar RGBW 8x8 DJ laser light bar
RGBW 8-head laser light bar with 500mW x8 beams
DMX512 controllable DJ laser bar light 23-channel effects
15K scanning laser bar light for club stage lighting setup
Stage laser light bar aerial beam and strobe effect lighting
B1 GBW laser bar RGBW 8x8 DJ laser light bar
B1 GBW laser bar RGBW 8x8 DJ laser light bar
RGBW 8-head laser light bar with 500mW x8 beams
DMX512 controllable DJ laser bar light 23-channel effects
15K scanning laser bar light for club stage lighting setup
Stage laser light bar aerial beam and strobe effect lighting
B1 GBW laser bar RGBW 8x8 DJ laser light bar
B1 GBW laser bar RGBW 8x8 DJ laser light bar
RGBW 8-head laser light bar with 500mW x8 beams
DMX512 controllable DJ laser bar light 23-channel effects
15K scanning laser bar light for club stage lighting setup
Stage laser light bar aerial beam and strobe effect lighting
B1 GBW laser bar RGBW 8x8 DJ laser light bar

B1 DMX512 8×8 LED Laser Light Bar 4000mW for DJ Clubs

Regular price $440.00
Sale price $440.00 Regular price
Unit price
  • 8-Head Output
    • Eight laser heads create a stronger, wider laser light bar effect.
  • 4000mW Power
    • Delivers the brightness needed for club laser lights and commercial indoor venues.
  • Sharp Beam Angle
    • A 3–5° beam angle helps produce cleaner laser beam lines.
  • 180° Movement
    • Wide scanning adds more motion to stage laser lights programming.
  • DMX512 Control
    • A strong fit for users looking for practical dmx laser lights.
  • Sound-Active Modes
    • Great for buyers comparing sound activated laser lights for DJ use.
  • Party-to-Stage Use
    • Works across party laser lights, dj laser light, and stage laser applications.
    Overview
    Payment Method
    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Google Pay
    • Shop Pay
    • Union Pay

    What's in the box

    User Manual
    • 1 × B1 Laser Light Bar
    • 1 × Power Cable
    • 1 × Mounting Bracket Set
    • 1 × User Manual

    Services and Benefits

    In Stock Fast Tax-Free Shipping

    $440.00
    Overview Specs FAQ Review

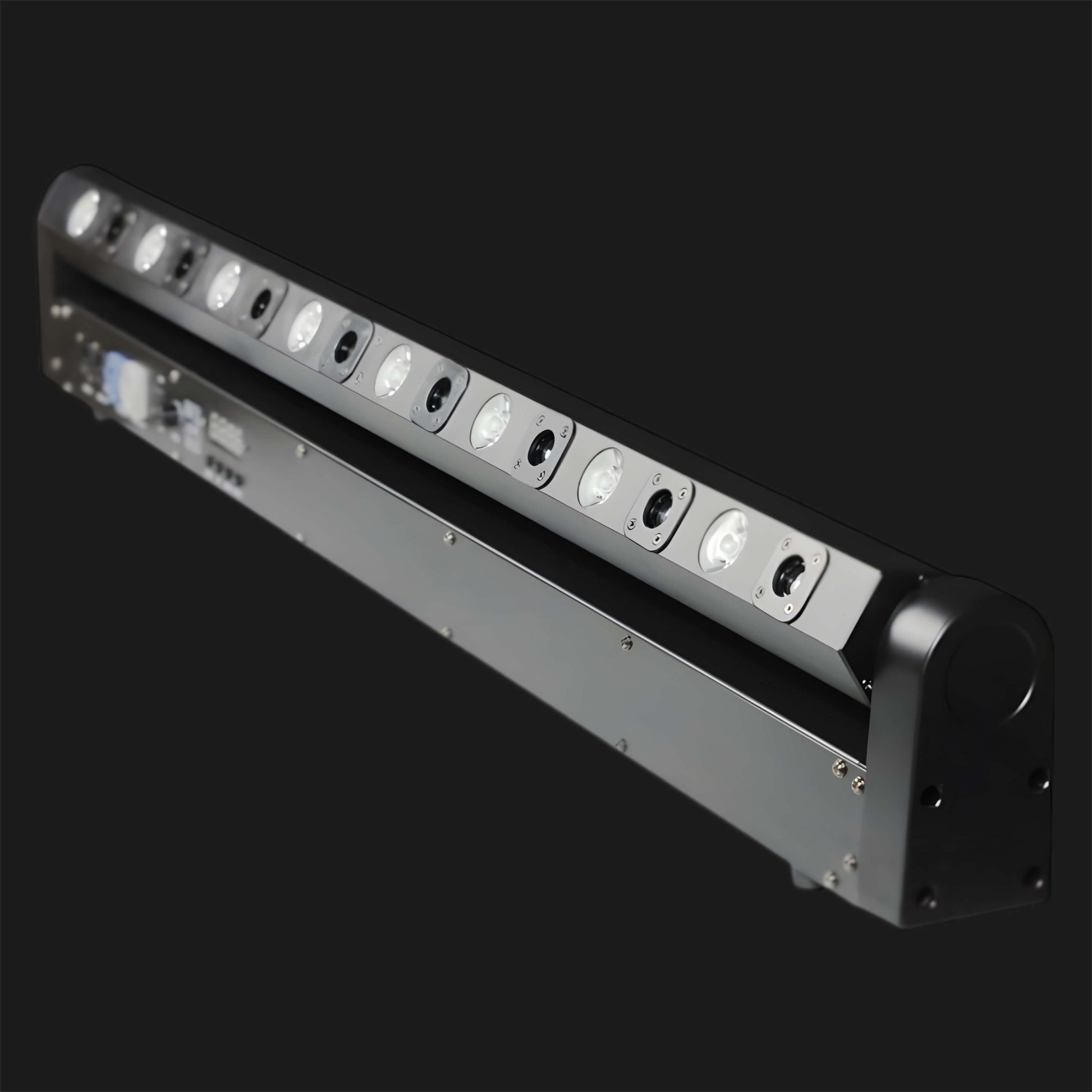

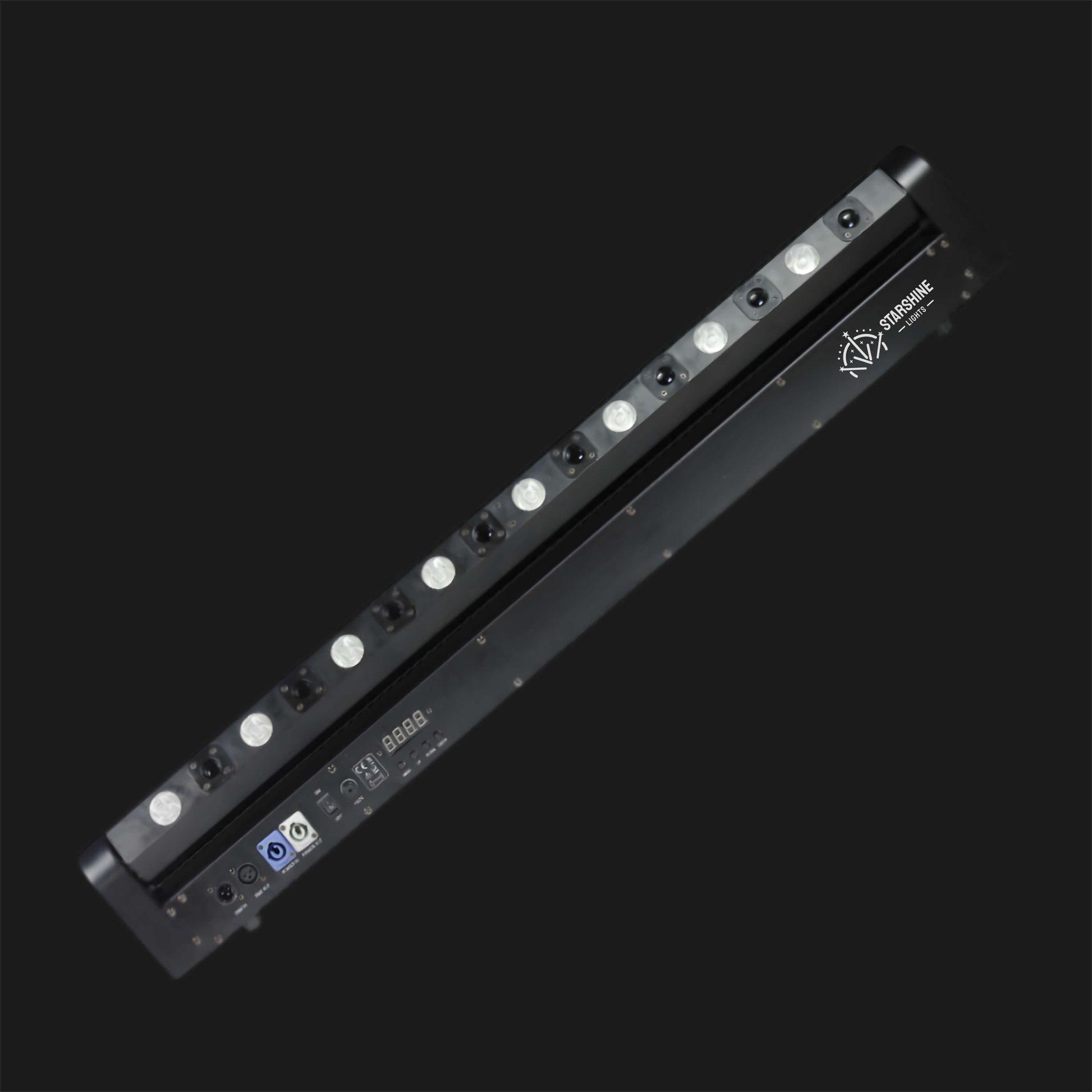

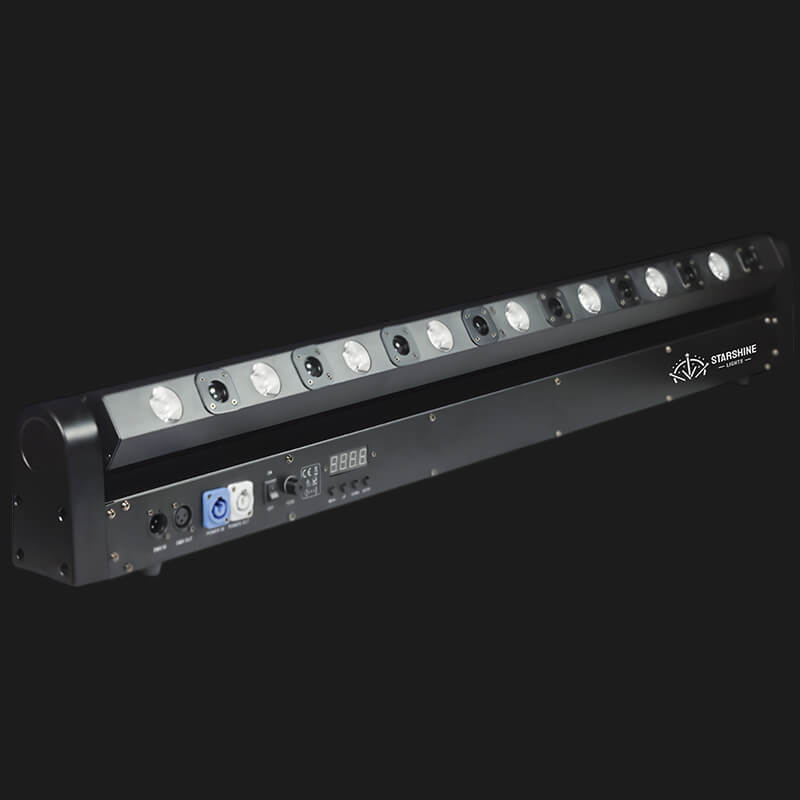

    8 Lasers and 8 LED Lenses in One Fixture
    The B1 laser light bar combines eight laser apertures and eight LED lenses in one compact, motorized effect fixture. Its linear 8+8 layout delivers broader, more structured coverage than a conventional single-aperture DJ laser, while independent DMX control enables chases, alternating patterns, and segmented effects. Laser lines and LED beams work together to add depth, contrast, and movement, and the slim bar-style housing fits easily above DJ booths, on lighting stands, and across indoor truss systems.
    StarShine 8x8 LED Laser Bar effect1
    B1 high-output laser beams and motorized scanning
    High-Output Beams and Motorized Scanning
    Rated Laser Output: The single-red configuration delivers 4,000mW from eight 500mW laser apertures.
    Configuration Note: Power, wavelength, and color vary by the selected RGB, RGBW, red, or LED configuration.
    Tight Beam Angle: The 3–5° beam angle creates sharp, concentrated aerial effects.
    Motorized Positioning: Up to 540° positioning expands performance-area coverage.
    Internal Scanning: Up to 180° scanning creates fan beams, water-line patterns, and horizontal effects.
    Sound-Active Party and Club Effects
    Music Response: Adjustable sound sensitivity reacts to the music’s rhythm and energy.
    Automatic Programs: Built-in sequences run without an external lighting controller.
    Party Applications: The wide layout suits party laser lights and indoor laser lights for party setups.
    Club Atmosphere: Strobes, chases, and scanning energize club lighting, lounges, dance floors, and DJ performances.
    Visible Aerial Beams: Professionally controlled haze improves beam visibility where permitted.
    B1 sound-active party and club laser effects
    B1 professional 23-channel DMX512 control
    Professional 23-Channel DMX512 Control
    Detailed Programming: Standard DMX512 provides 23 channels for precise show control.
    Individual LED Channels: DMX channels 5–12 control LED lenses 1–8 for chases and rhythmic sequences.
    Individual Laser Channels: DMX channels 13–20 control laser apertures 1–8 for alternating or segmented patterns.
    Movement Control: Dedicated channels control position, speed, strobe, built-in effects, and effect speed.
    Flexible Integration: Use it as a DMX laser, automatic effect, sound-activated light, or master/slave fixture.
    Designed for DJs, Clubs, and Indoor Stages
    DJ Applications: The slim housing gives mobile DJs powerful effects without multiple fixtures.
    Club Installation: The B1 complements nightclub lighting, club laser lights, moving heads, strobes, and professional club equipment.
    Stage Programming: Separate addresses enable larger stage lasers and synchronized effects.
    Simple Setup: The four-digit LED display and MENU, UP, DOWN, and ENTER buttons simplify setup.
    Durable Construction: Aluminum housing and forced-air cooling support reliable indoor shows and events.
    B1 laser light bar for DJs clubs and indoor stages
    Specs
    Product Model
    B1
    Product Type
    Motorized 8-laser + 8-LED effect bar
    Product Category
    Laser Light Bar / DJ Laser Light
    Input Voltage
    AC 100–230V, 50/60Hz, ±10%
    Laser Apertures
    8
    Output per Laser
    Rated 500mW on the single-red version
    Total Laser Output
    Rated 4,000mW on the 8 × 500mW red version
    Output Note
    Laser output varies by selected color configuration
    Red Laser Wavelength
    638nm on the single-red version
    Laser Modulation
    TTL
    LED Lenses
    8 fixed-color LED lenses
    LED Color
    Depends on the selected configuration
    Beam Angle
    Approximately 3–5°
    Main Motor Positioning
    Up to 540°
    Internal Laser Scan Range
    Up to 180°
    Control Protocol
    International standard DMX512
    DMX Channels
    23 channels
    Control Modes
    DMX512, automatic, sound-active, and master/slave
    Sound Sensitivity
    Adjustable from 0–100
    Main Effects
    Aerial beams, water-line effects, strobes, chases, and rhythmic patterns
    Display
    Four-digit LED display
    Menu Controls
    MENU, UP, DOWN, and ENTER
    Housing
    Aluminum
    Cooling System
    Forced-air cooling
    Operating Environment
    Indoor use only
    Operating Temperature
    -4°F to 131°F / -20°C to 55°C
    Laser Safety
    May contain Class 4 high-power laser output
    FAQ
    Q: What is the B1 laser light bar?
    A:The B1 is a motorized effect fixture that combines eight laser apertures with eight LED lenses. It creates aerial beams, water-line effects, strobes, chases, and music-responsive patterns for indoor entertainment venues.
    Q: How much laser power does the B1 produce?
    A:The single-red version uses eight rated 500mW laser apertures for a total rated output of 4,000mW. Other configurations may have different output ratings and wavelengths.
    Q: Is the 4,000mW output available on every version?
    A:No. The 4,000mW specification applies to the 8 × 500mW single-red configuration. Output varies by the selected RGB, RGBW, red, and LED option.
    Q: Can all eight laser apertures be controlled independently?
    A:Yes. DMX channels 13–20 independently switch Laser 1 through Laser 8, allowing alternating patterns, sequential chases, and segmented beam effects.
    Q: Can all eight LED lenses be controlled independently?
    A:Yes. DMX channels 5–12 control LED lenses 1–8 separately. The visible LED color depends on the selected product configuration.
    Q: How many DMX channels does the fixture use?
    A:The B1 uses 23 DMX channels to control motor position, movement speed, master output, strobe, eight LED lenses, eight laser apertures, built-in effects, effect speed, and reset.
    Q: What is the difference between 540° movement and 180° scanning?
    A:The main motor can position the complete bar through a range of up to 540°. The internal laser effect has a separate scan range of up to 180°.
    Q: Does the B1 support sound-activated operation?
    A:Yes. It can operate as one of the venue’s sound activated laser lights, with microphone sensitivity adjustable from 0 to 100.
    Q: Can the B1 run without a DMX controller?
    A:Yes. Built-in automatic and sound-active programs allow the fixture to operate without an external lighting console.
    Q: Can multiple B1 fixtures operate together?
    A:Yes. Multiple fixtures can be linked in master/slave mode for synchronized operation. They can also be assigned separate DMX addresses for more advanced programming.
    Q: Is it suitable for mobile DJs?
    A:Yes. Its slim housing, automatic programs, sound activation, and DMX control make it practical for mobile DJs, event companies, and temporary indoor installations.
    Q: Can it be used as part of professional DJ laser lights?
    A:Yes. Its independent head control, motorized movement, and 23-channel DMX mode make it suitable for professional DJ laser lights and programmed event productions.
    Q: Is the B1 suitable for party laser lights?
    A:Yes. It can produce wide beam patterns, fast chases, strobes, and music-responsive effects for indoor parties, weddings, and dance-floor applications.
    Q: Is it suitable for club laser lights?
    A:Yes. The B1 can be combined with moving heads, strobes, wash fixtures, and other club lights to create a layered nightclub environment.
    Q: Can the fixture be used for concert lasers?
    A:It can be included in smaller indoor concert and stage lighting systems. Suitability depends on venue size, placement, programming, and compliance with local laser regulations.
    Q: Does it require haze or fog?
    A:No, but a controlled amount of haze can make the aerial beam paths more visible. Use atmospheric effects only where permitted.
    Q: Can the B1 be used outdoors?
    A:No. The fixture is designed for dry indoor environments and should be protected from rain, moisture, and prolonged humidity.
    Q: Can the laser beams scan the audience?
    A:Audience scanning should not be performed unless the installation has been professionally evaluated and complies with all applicable regulations.
    Q: Is the B1 a graphics laser light projector?
    A:No. The B1 is primarily an aerial beam and effect fixture. It creates laser lines, scanning patterns, water-line effects, strobes, and chases rather than text, logos, or animated graphics.
    Q: What should I do if one LED or laser head stops working?
    A:Use the manual test function to check the affected head. If it still does not operate, discontinue use and contact qualified technical support.
