B12 DMX 12-Head Snake Shadow RGB Laser Bar 24W for DJ Stage
Regular price
$4,300.00
Sale price
$4,300.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × B12 24W 12-Head RGB Laser Bar Light
- 1 × User Manual
- 1 × Power Cable
- 1 × DMX Signal Cable
- 1 × Mounting Parts Kit
- 1 × Safety Cable
- 1 × Protective Carton Packaging
Services and Benefits
In Stock Fast Tax-Free Shipping
$4,300.00

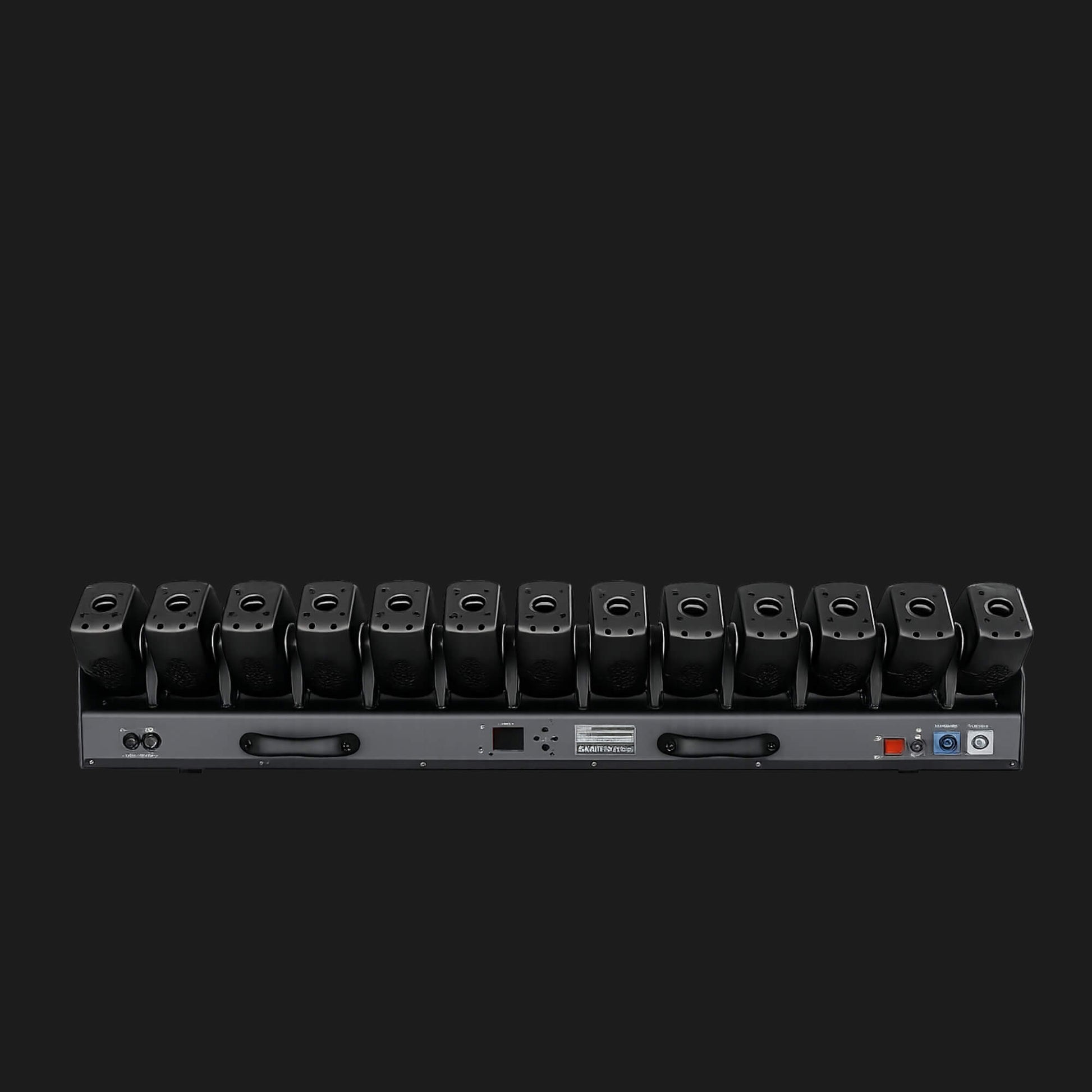

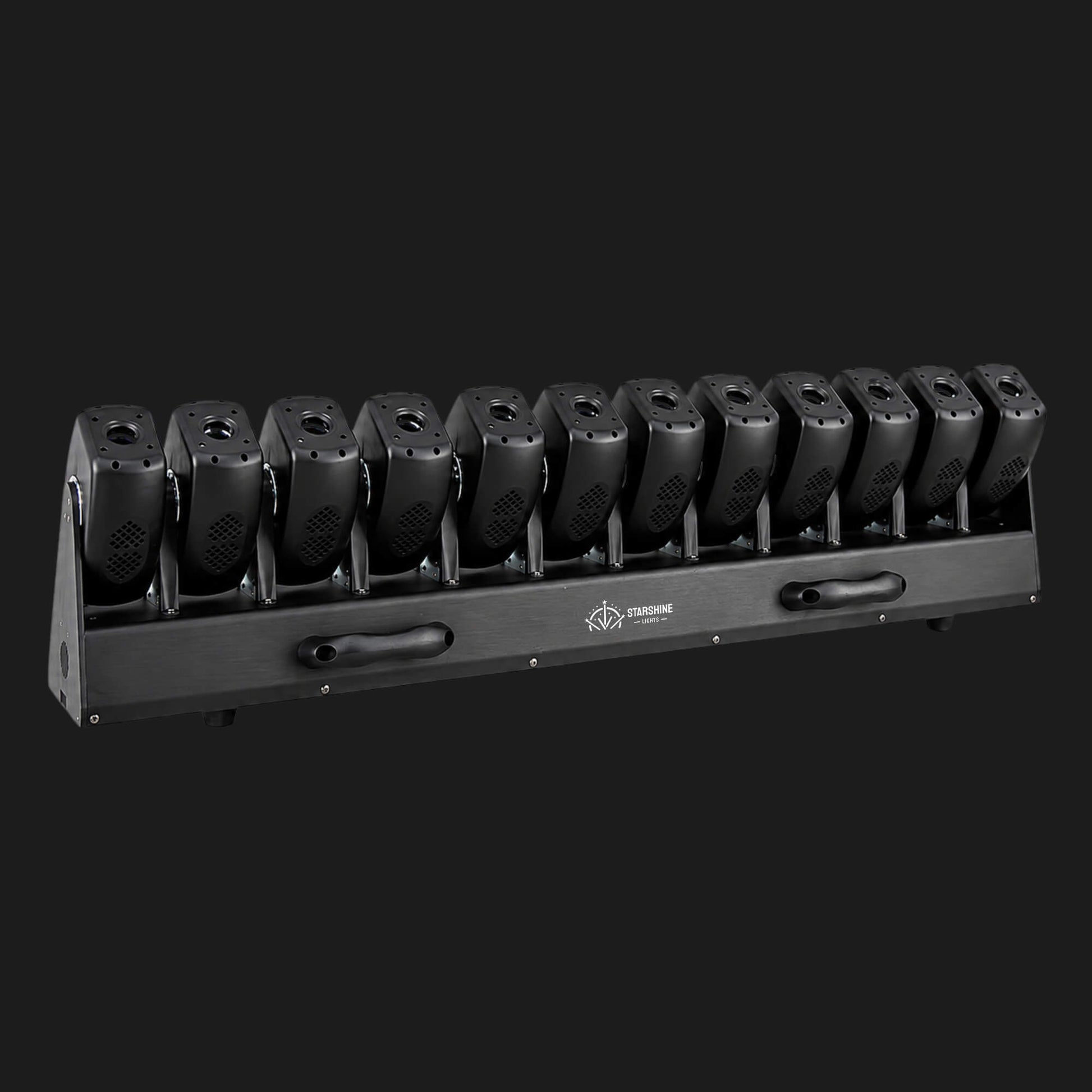

24W 12-Head RGB Laser Bar for Big Stage Looks
The B12 24W 12-Head RGB Laser Bar uses twelve 2W full-color laser heads for a powerful 24W total laser output. This laser light bar creates wide, layered beam coverage across clubs, DJ stages, live venues, bars, and indoor stage productions. With red 635nm, green 525nm, blue 450nm, and a φ15 mm thick beam, it delivers vivid full-color RGB effects and stronger, more visible laser beam effects in haze or fog.
Flexible DJ Laser Control for Different Show Setups
Multiple Control Modes: Supports Auto, DMX512, Master-Slave, User Mode, and Sound Control.
DMX Programming: Choose 14CH for simple control or 74CH for individual head control.
DJ-Friendly Playback: Built-in effects make this DJ laser light bar easy to use without a console.
Sound-Active Mode: Triggers effects from music, ideal for DJ laser lights and party scenes.
Console Ready: 3-pin XLR DMX IN/OUT ports connect with controllers and stage laser fixtures.
Built-In Macros for Faster Laser Effects
Effect Macros: Built-in macro functions create laser movement, color changes, and beam combinations.
Color Macro Control: Rich RGB color macros help build a DJ laser light show faster.
17 Auto Shows: Select from 17 built-in effects; the 17th mode loops all effects automatically.
User Mode Control: Custom channel values can be adjusted and saved for repeatable show looks.
Programmable Laser Design: Built for quick playback and detailed DMX control.
Moving Head Laser Bar Light with 180° Vertical Movement
180° Vertical Rotation: All 12 heads support vertical movement for sweeping laser effects.
Individual Head Control: Each head can be controlled separately in 74CH mode.
Synchronized Movement: The 12 heads move together for uniform stage beam effects.

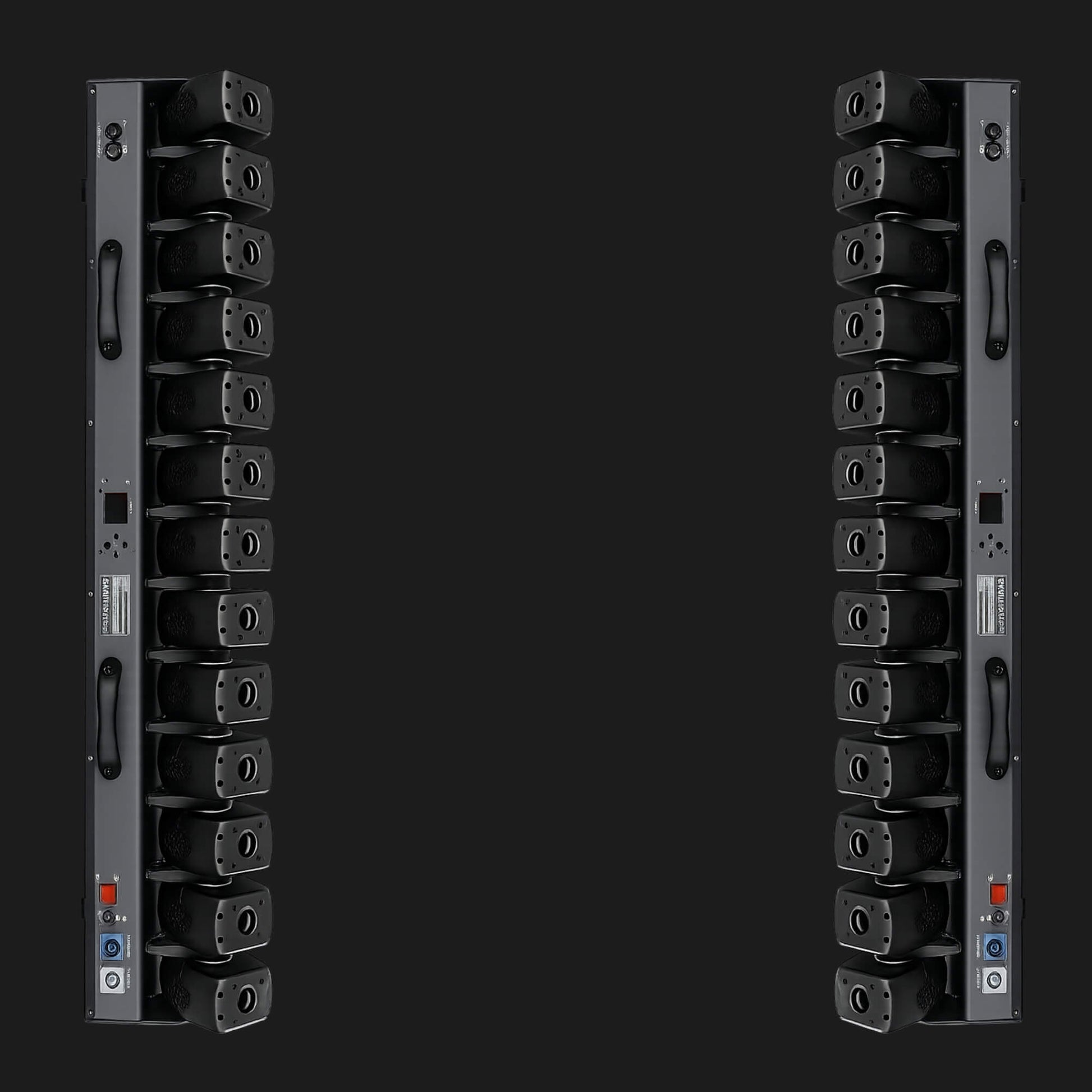

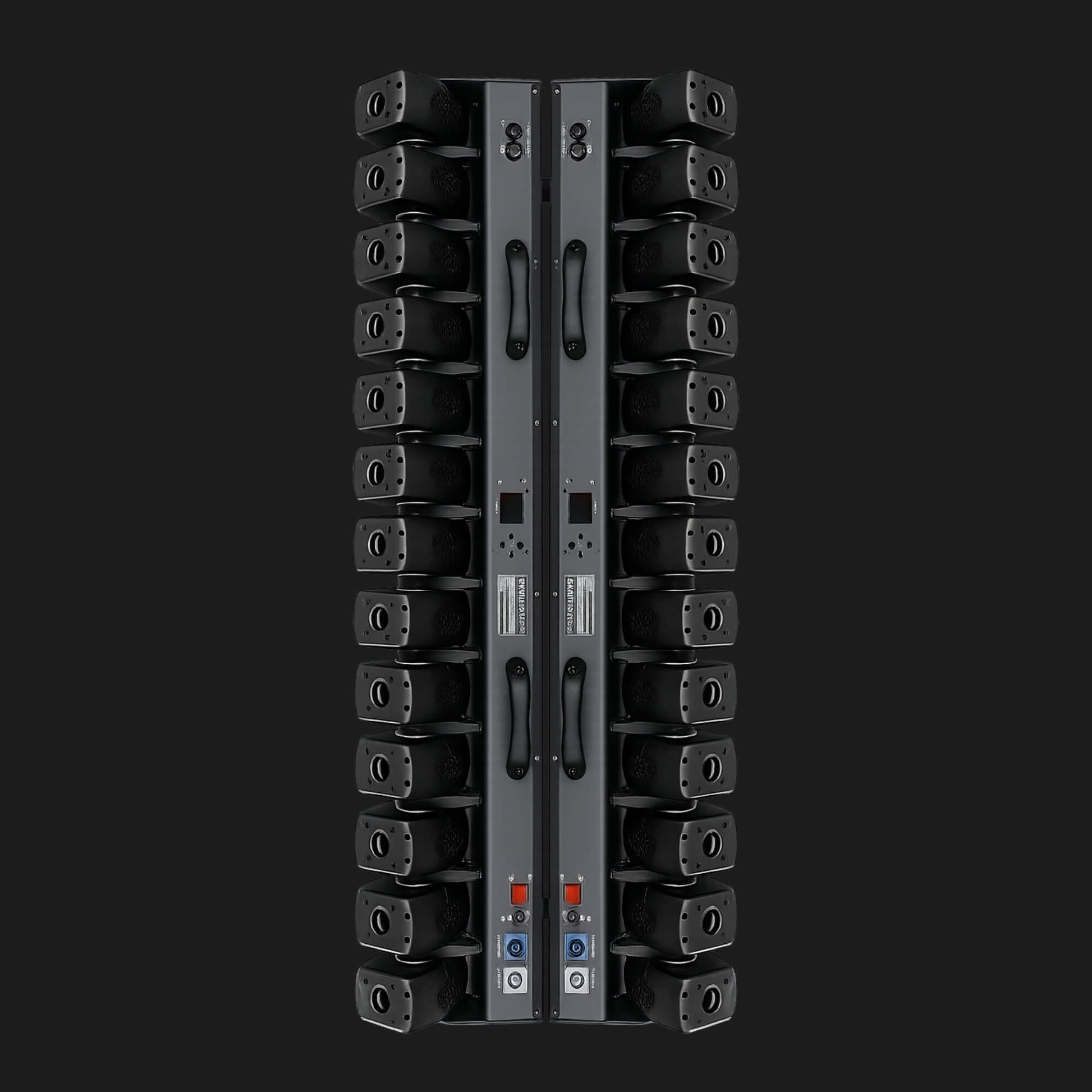

Flexible Installation: Supports horizontal and vertical splicing for larger lighting designs.
Stage-Ready Housing: A solid structure suits fixed or touring moving head laser bar light setups.
Built for Indoor Clubs, DJs, and Live Events
Indoor Stage Use: Designed for indoor venues with a working temperature of 0°C–35°C.
Smart Cooling System: Intelligent air cooling supports stable operation during long shows.
Wide Voltage Input: AC 100–240V, 50/60Hz power input supports professional lighting setups.
Event Applications: Ideal for nightclubs, DJ booths, live stages, banquet halls, bars, and entertainment venues.
Professional Laser Fixture: A powerful RGB laser bar light with stronger beams, flexible control, and reliable performance.
Specs
Product Model
B12
Product Type
12-Head RGB Laser Bar Light
Total Laser Power
24W
Laser Configuration
2W × 12 pcs
Red Laser
635nm, 500mW × 12
Green Laser
525nm, 500mW × 12
Blue Laser
450nm, 1W × 12
Laser Color
Full-Color RGB
Beam Diameter
φ15 mm thick beam
Working Voltage
AC 100–240V, 50/60Hz
Rated Power
220W
Control Modes
Auto / DMX512 / Master-Slave / User Mode / Sound Control
Control Interface
3-Pin XLR DMX512 IN/OUT
DMX Channels
14CH / 74CH
Built-In Effects
17 built-in effects with loop playback
Macro Functions
Color macros and light effect macros
Head Control
Unified control or individual head control
Vertical Rotation Angle
180° for 12 heads
Cooling System
Intelligent air-cooling system
Working Environment
Indoor use
Working Temperature
0°C–35°C
Package Size
105 × 52 × 56 cm
Net Weight
20 kg
Gross Weight
28 kg
FAQ
Q: What is the B12 RGB laser light bar used for?
A:The B12 is designed for indoor stage lighting, DJ events, nightclubs, bars, live shows, banquet halls, and entertainment venues that need a high-impact RGB laser beam effect.
Q: What is the total laser power of the B12?
A:The B12 has a total laser output of 24W, using 12 × 2W RGB laser heads. Each head includes red, green, and blue laser sources for full-color beam effects.
Q: How many laser heads does the B12 have?
A:The B12 has 12 full-color RGB laser heads, giving it much wider beam coverage than smaller DJ laser lights or compact laser projectors.
Q: Is this a DJ laser light bar?
A:Yes. The B12 works well as a DJ laser light bar because it supports Auto, Sound Control, DMX512, Master-Slave, and User Mode. DJs can use built-in effects for quick shows or connect it to a DMX controller for programmed scenes.
Q: Does the B12 support DMX control?
A:Yes. The B12 supports DMX512 control with 14CH and 74CH channel modes. 14CH is easier for basic operation, while 74CH gives more detailed control over each laser head.
Q: Can each laser head be controlled separately?
A:Yes. In advanced 74CH DMX mode, each head can be controlled individually for custom RGB color, angle, and movement programming.
Q: Can the B12 run without a DMX controller?
A:Yes. The B12 includes built-in auto programs and sound-active operation, so it can run preset effects without an external DMX console.
Q: What does the 17th built-in effect do?
A:The 17th built-in effect loops all effects automatically, making it useful for quick setup, DJ parties, and club scenes where continuous playback is needed.
Q: Is the B12 better for small rooms or large indoor venues?
A:The B12 is better suited for medium to large indoor venues such as clubs, live stages, bars, event halls, and entertainment spaces. For very small rooms, a smaller DJ laser may be easier to manage.
Q: Can the B12 create synchronized beam effects?
A:Yes. The 12 heads can move together for clean synchronized beam looks, or they can be controlled individually in advanced DMX mode for more complex programming.
Q: Is the B12 suitable for outdoor use?
A:No. The B12 is designed for indoor use only. It should be used in dry, well-ventilated indoor environments.
Q: What type of DMX connector does the B12 use?
A:The B12 uses a 3-pin XLR DMX512 IN/OUT interface, making it easy to connect to a DMX controller or link multiple fixtures in series.
Q: What kind of venues is the B12 best for?
A:It is a strong fit for clubs, DJ booths, live stages, theaters, bars, event halls, touring rigs, and venues that need a powerful RGB laser bar light with moving beam effects.
Q: How should the B12 be maintained?
A:Keep the fixture clean, make sure the cooling fan works properly, and clean the optical parts according to the maintenance instructions. Always disconnect power before cleaning or service.
