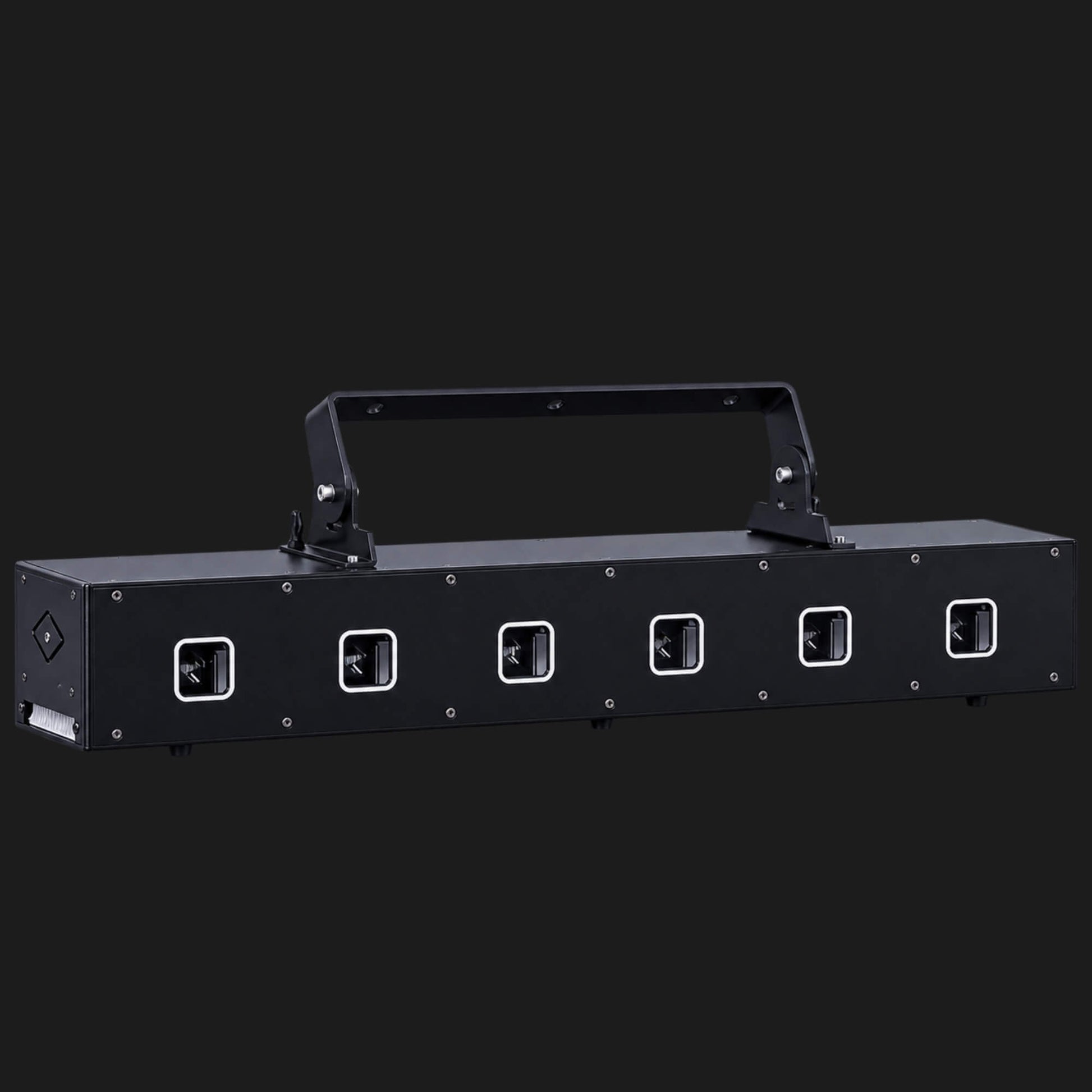

B13 HEXA – Six-Head RGB Animation Laser 6W/12W
Regular price
$1,240.00
Sale price
$1,240.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × B13 HEXA Laser Light
- 1 × Power Cable
- 1 × Mounting Bracket
- 1 × English User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$1,240.00
Six-Head Animation for Multi-Zone Stage Effects
The StarshineLights B13 is a six-head full-color animation laser light for professional entertainment environments, supporting animated graphics, segmented color effects, and independent programming through a 102-channel DMX profile. Built-in pattern groups include geometric shapes, lines, letters, numbers, and dotted graphics, with color chases, zoom, rotation, wave, and drawing effects. Choose the 17-channel profile for a single-head control block or 102-channel for individual head programming. B13 is suited to controlled indoor DJ, club, and stage productions where flexible laser animation is the priority.
Six-Head Full-Color Animation Output
Six Laser Heads: Six animation engines provide multiple graphic output positions within one fixture.
Full-Color Effects: Select fixed colors, rainbow looks, and segmented color programs through DMX.
Built-In Graphics: Pattern groups include geometric shapes, lines, letters, numbers, and dotted effects.
Animation Functions: Create moving looks using zoom, rotation, wave, and progressive drawing controls.
Independent Six-Head Programming
102CH Multi-Head Mode: Six consecutive 17-channel blocks provide independent control of all six heads.
Individual Head Effects: Assign different patterns, colors, or movement values to separate heads.
Layered Show Design: Combine alternating graphic families to create varied visual compositions.
Flexible Console Patching: Use separate DMX address ranges when programming multiple fixtures.
Color, Pattern & Drawing Effects
Segmented Color Selection: Choose 2-, 3-, 4-, 8-, 16-, or 32-segment color programs.
Six Color Chases: Built-in chase programs add movement to selected color looks.
Automatic Zoom: Select expanding, contracting, continuous, or irregular zoom effects.
Pattern Drawing: Manual and automatic tracing modes create progressive graphic reveals.
Professional DMX512 Control
17CH / 102CH Profiles: Choose the documented control configuration for your programming needs.
Pattern & Color Channels: Adjust graphic selection, color programs, strobe, and transformations.
Built-In Dynamic Effects: Select effect programs through CH16 and adjust behavior through CH17.
Random Effect Playback: CH16 values 254–255 activate random playback of built-in effects.
Specs
Brand
StarshineLights
Product Model
B13
Product Type
Six-Head Full-Color Animation Laser Light
Fixture Style
Six-head laser bar
Nominal Total Laser Power
6W / 12W
Laser Configuration
1W × 6 / 2W × 6
Laser Heads
6
Color System
Full-color RGB laser animation
Scanning System
20K high-speed galvanometer
Scanning Angle
±20°
Control Protocol
DMX512
DMX Profiles
17CH per-head profile / 102CH multi-head profile
Control Modes
DMX512 / Auto / Sound Active / Master-Slave / Computer Software
Head Control
Independent control of all six heads in 102CH mode
17CH Profile
Complete 17-channel function map for one head/profile block
102CH Multi-Head Mode
Six consecutive 17-channel blocks for individual head programming
Fixed Color Selection
White, red, blue, pink, cyan, yellow, and green
Segmented Color Programs
2, 3, 4, 8, 16, and 32 segments
Color Chase Programs
6
Pattern Groups
Geometry and lines; letters and numbers; white-edge highlight patterns; dotted graphics
Pattern Size
Manual size adjustment
Automatic Zoom
Expanding, contracting, continuous, and irregular zoom
Center Rotation
Manual angle, forward rotation, and reverse rotation
X/Y Transformations
Axis rotation / flip controls
Position Control
Horizontal and vertical movement
Wave Effect
X-direction wave
Drawing Effects
Manual and automatic pattern tracing
Dynamic Effects
Built-in effect selection and random playback
Master Output / Shutter
CH1
Strobe
CH2
Color Selection
CH3
Color Chase Speed
CH4
Pattern Selection
CH5
Pattern Group
CH6
Pattern Size Control
CH7
Automatic Zoom Control
CH8
Center Rotation Control
CH9
X-Axis Rotation
CH10
Y-Axis Rotation
CH11
Horizontal Movement
CH12
Vertical Movement
CH13
X-Direction Wave
CH14
Pattern Drawing / Tracing
CH15
Built-In Dynamic Effects
CH16
Dynamic Effect Speed / Color
CH17
Random Effect Playback
CH16 values 254–255
Power Supply
AC 110/220V, 50/60Hz; verify the actual fixture label before use.
Fuse
Follow the rating marked on the fixture.
DMX Connection
Controller DMX OUT to fixture DMX IN using a shielded DMX cable.
Mounting
Suitable mounting hardware and an independent safety cable for overhead installation.
Intended Environment
Professional indoor entertainment use
Main Applications
Controlled indoor DJ, club, and stage productions
Product Dimensions
960 × 170 × 145 mm
Package Size
103 × 24 × 30 cm
Packing Quantity
1 fixture per package
Maintenance
Disconnect power before inspection, cleaning, or service.
FAQ
Q: What is the StarshineLights B13 HEXA, and who is it designed for?
A:The StarshineLights B13 HEXA is a six-head RGB animation laser light available in nominal 6W and 12W configurations. It combines 20K scanning, a ±20° scanning angle, built-in graphics, and 17CH/102CH DMX512 control. The 102CH profile allows independent programming across all six heads. B13 is designed for controlled indoor DJ, club, and stage productions where operators need multi-position laser animation rather than a conventional LED wash or moving-head fixture.
Q: Should I choose the 6W or 12W version, and how large a venue can it cover?
A:Choose the 6W version for the lower-output configuration or the 12W version when higher nominal laser output is required. Both versions use six RGB laser heads, with 1W or 2W per head respectively. The supplied specification confirms 20K scanning and a ±20° scanning angle, but does not establish a guaranteed projection distance, coverage area, or venue capacity. Actual visibility depends on the graphics, ambient lighting, atmospheric conditions, and installation, so confirm your project requirements before choosing a version.
Q: What is the difference between 17CH and 102CH mode, and can I control all six heads independently?
A:Yes. In 102CH mode, B13 uses six consecutive 17-channel blocks, allowing a DMX console to assign different colors, patterns, sizes, and movement values to each head. The 17CH profile contains the documented function map for one head/profile block. Choose 102CH when independent six-head programming is important. The available documentation does not establish how all six heads behave together in 17CH mode, so verify that behavior before building a synchronized show.
Q: Do I need a computer or DMX controller to run B13?
A:No. B13 supports automatic and sound-active operation, so a computer or DMX controller is not required for every show. Auto mode provides built-in playback, while sound-active mode offers music-responsive operation. Use DMX512 when you need precise cue timing, graphic adjustments, or independent six-head programming. Computer software control is also supported, but the exact software and connection interface should be confirmed for your setup.
Q: Is B13 compatible with my DMX controller, laser software, or phone?
A:B13 supports DMX512 with documented 17CH and 102CH profiles, so your controller must be able to patch the required channel configuration. Computer software control is also listed in the supplied specification. However, the exact software name, interface, supported operating systems, and phone-control compatibility have not been confirmed. If your workflow requires ILDA, Art-Net, sACN, Bluetooth, Wi-Fi, or a particular software package, verify compatibility before ordering.
Q: Can B13 display custom logos, text, or imported graphics?
A:B13 includes built-in graphic patterns, English letters, and Arabic numerals, which can be combined with size, zoom, and progressive drawing effects. Computer software control is supported, but the supplied information does not confirm the workflow for uploading custom logos, importing animation files, or creating unrestricted text. If your project requires specific artwork or branded content, confirm the supported software, interface, and file workflow before purchasing.
Q: What color and animation effects can B13 create?
A:B13 includes fixed colors, rainbow looks, segmented color programs, and six color chases. Its built-in pattern groups include geometry, lines, letters, numbers, white-edge highlights, and dotted graphics. Operators can also adjust pattern size, automatic zoom, center rotation, X/Y transformations, position, wave, and progressive drawing. The DMX chart documents built-in dynamic effect selection through CH16, speed/color behavior through CH17, and random effect playback. These functions support varied graphic looks without creating every animation from scratch.
Q: Can I link multiple B13 fixtures for a larger laser show?
A:Yes. B13 supports master/slave operation and DMX512. For independent console programming, assign each fixture a separate, non-overlapping address range. In 102CH mode, each B13 occupies 102 consecutive DMX channels; fixtures sharing the same starting address receive the same DMX values. Separate addressing allows different patterns and chase timing across multiple fixtures. Confirm the available channels and controller configuration before planning a larger installation.
Q: Can I use B13 outdoors?
A:B13 should be treated as a dry-indoor fixture unless the actual product label and supporting documentation establish an appropriate outdoor rating. The supplied information does not confirm an IP rating or weather resistance. Do not expose the fixture to rain or prolonged moisture. If your project requires outdoor operation, choose a fixture with a verified environmental rating suitable for the installation.
Q: What should I check before using B13 in a public venue?
A:Confirm the actual fixture's laser classification, applicable safety documentation, and local operating requirements before public use. Keep beams away from eyes, reflective surfaces, and uncontrolled audience areas. Audience scanning must not be assumed to be permitted or safe simply because the fixture supports animation. Any audience-scanning plan requires appropriate authorization, qualified personnel, and the necessary safety measures wherever applicable.
Q: What are the electrical and mounting requirements?
A:The supplied specification lists AC 110/220V at 50/60Hz. Verify the actual fixture label, including the required voltage and fuse rating, before connecting power. For overhead installation, use suitable mounting hardware and an independent safety cable. Keep ventilation openings clear and disconnect power before inspection, cleaning, or maintenance. The confirmed product dimensions are 960 × 170 × 145 mm.
Q: Do I need haze or fog to see the laser effects?
A:The supplied B13 information does not specify a required haze or fog level. Haze can make laser beams more visible in the air, while graphic visibility also depends on the projection surface, ambient lighting, and installation. If your show uses atmospheric effects, follow the venue's rules and the equipment manufacturer's instructions. Do not use haze as a substitute for proper laser safety measures or assume it establishes a guaranteed projection distance.
Q: What is included in the box, and what warranty does B13 have?
A:The supplied packing information confirms one B13 fixture per package, with a packing size of 103 × 24 × 30 cm. It does not yet confirm the complete accessory list or a model-specific warranty period. Before ordering, verify the included cables, mounting hardware, manual, and warranty terms against the actual sales configuration. Do not rely on the packing list or warranty information from a different StarshineLights model.
