B5 DMX RGB Moving Laser Bar Light 3W/6W/12W for DJ Stage
Regular price
$490.00
Sale price
$490.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × B5 6-Head RGB Moving Laser Bar Light
- 1 × Power Cable
- 1 × User Manual
- 1 × Mounting Bracket
- 2 × Bracket Knobs / Mounting Screws
Services and Benefits
In Stock Fast Tax-Free Shipping
$490.00

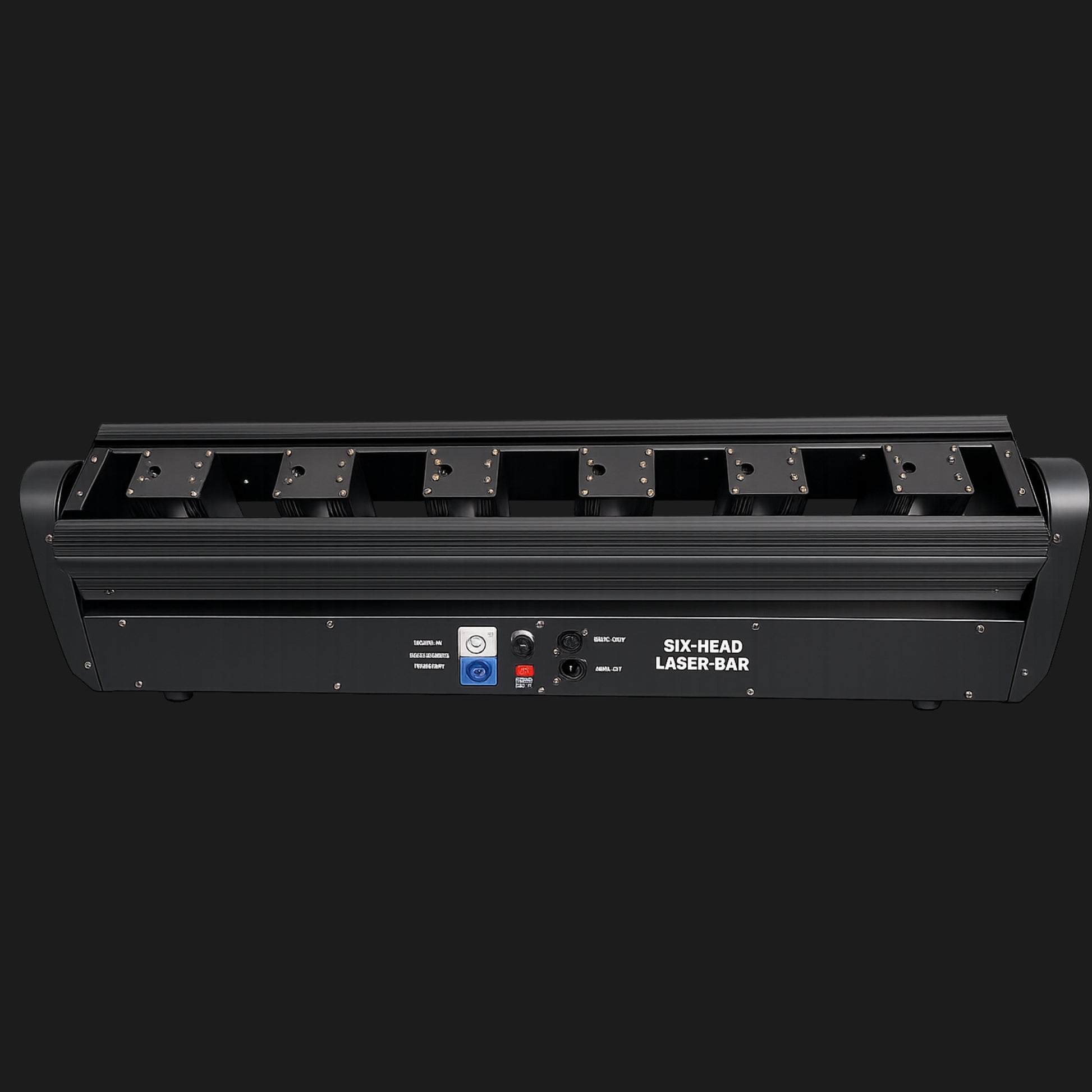

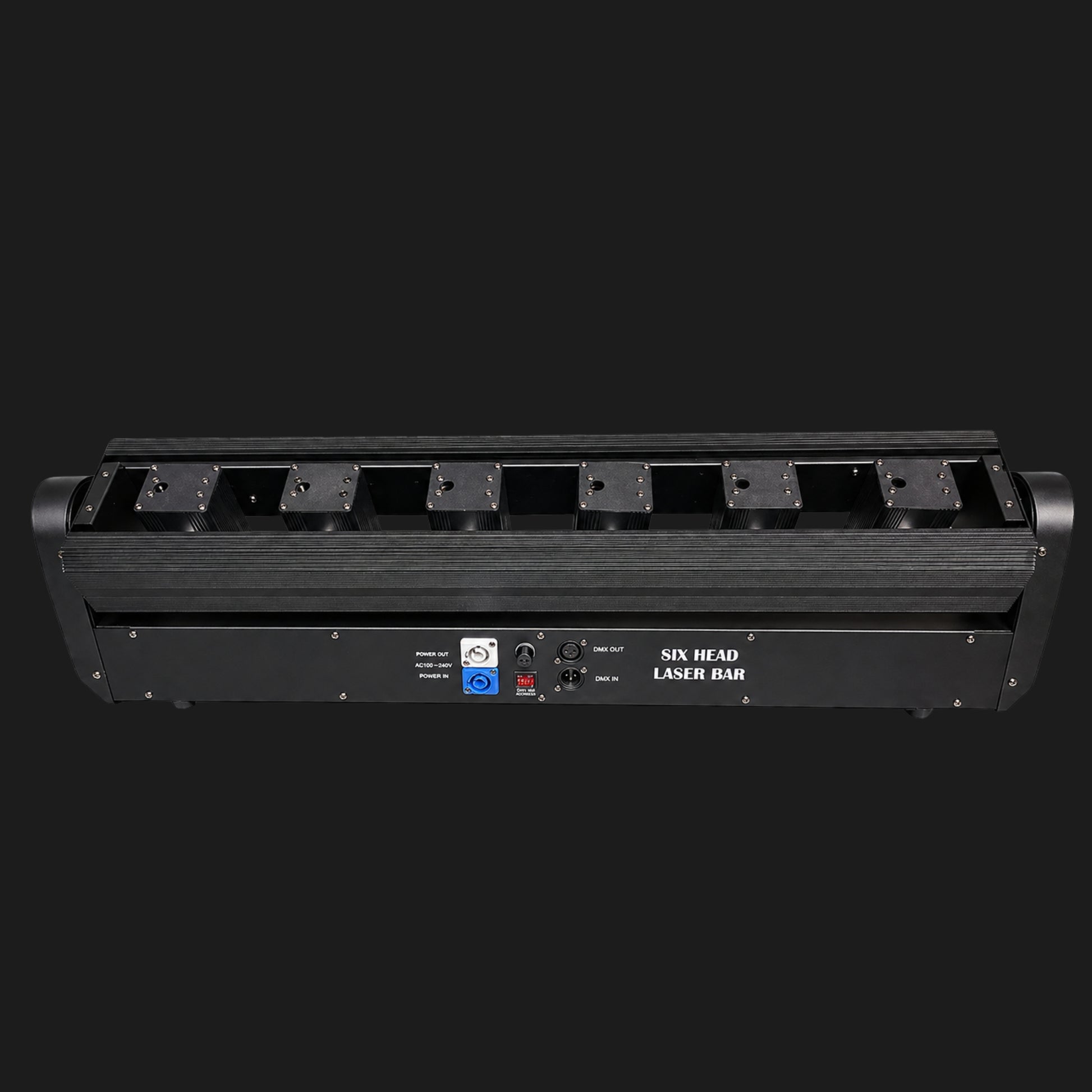

6-Head RGB Laser Bar Light for High-Energy Indoor Shows
The B5 6-Head RGB Laser Bar Light uses six full-color laser heads to create a wider, layered laser bar light show with vivid RGB laser lights from 638nm red, 520nm green, and 450nm blue sources. Available in 3W, 6W, or 12W, this 6 head laser bar light is designed for clubs, DJ stages, bars, and indoor events that need sharp laser beams, fast movement, strong atmosphere, laser net effects, flowing laser lines, strobe looks, and professional laser bar stage lighting.
Moving Laser Bar Light with Dynamic Swing Effects

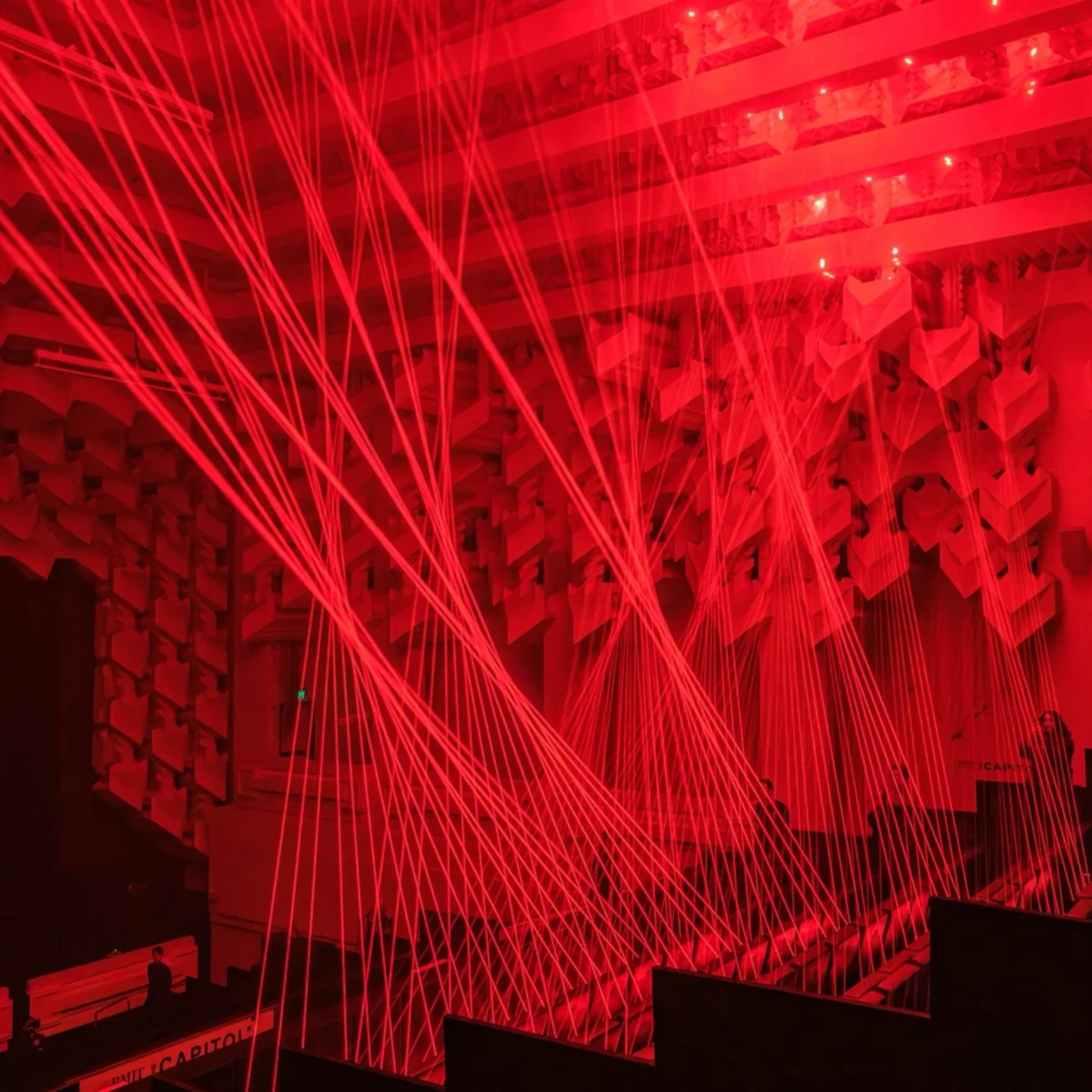

Moving Laser Heads: The precision stepper motor system lets the Y-axis swing 180°, while the X-axis laser heads move for richer beam motion.

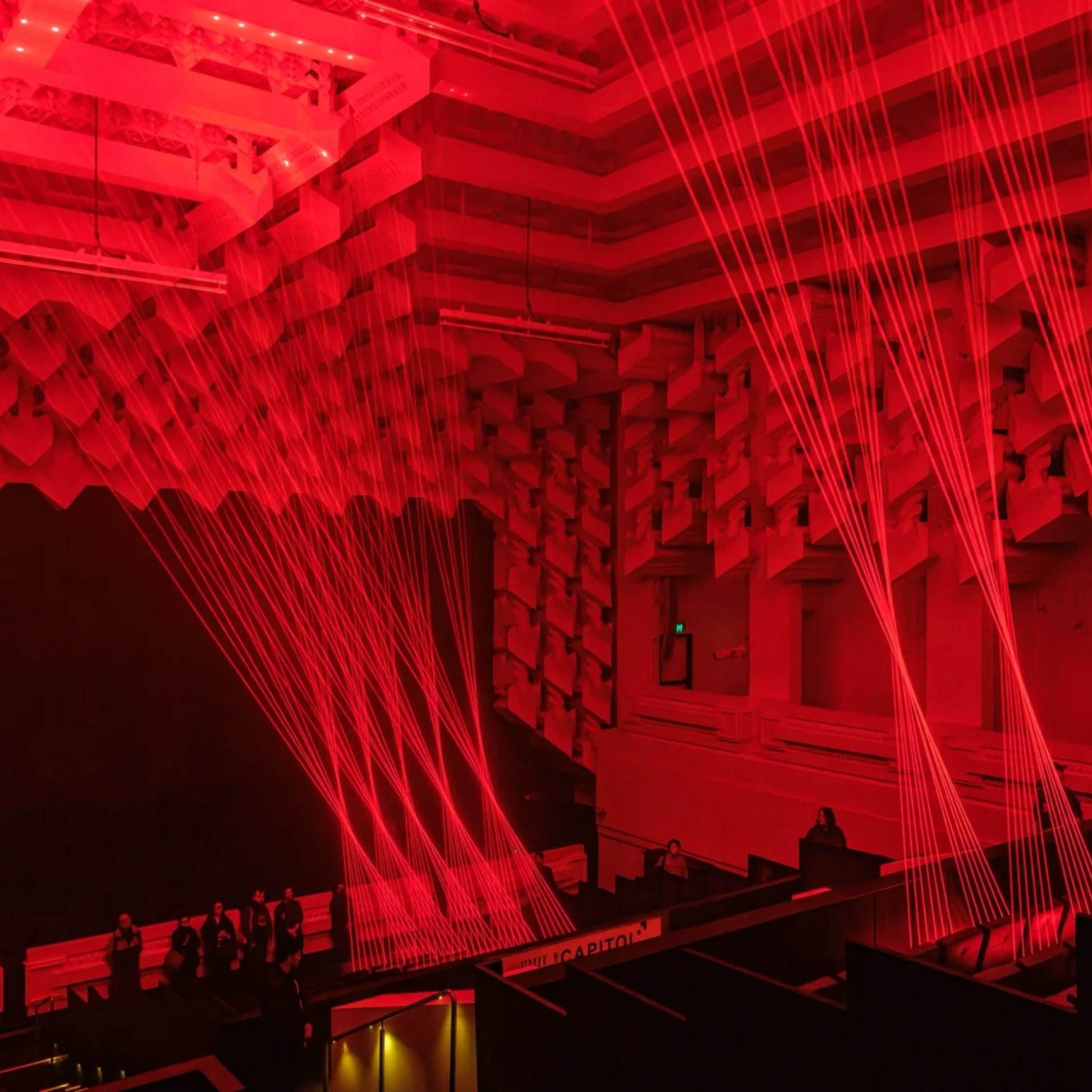

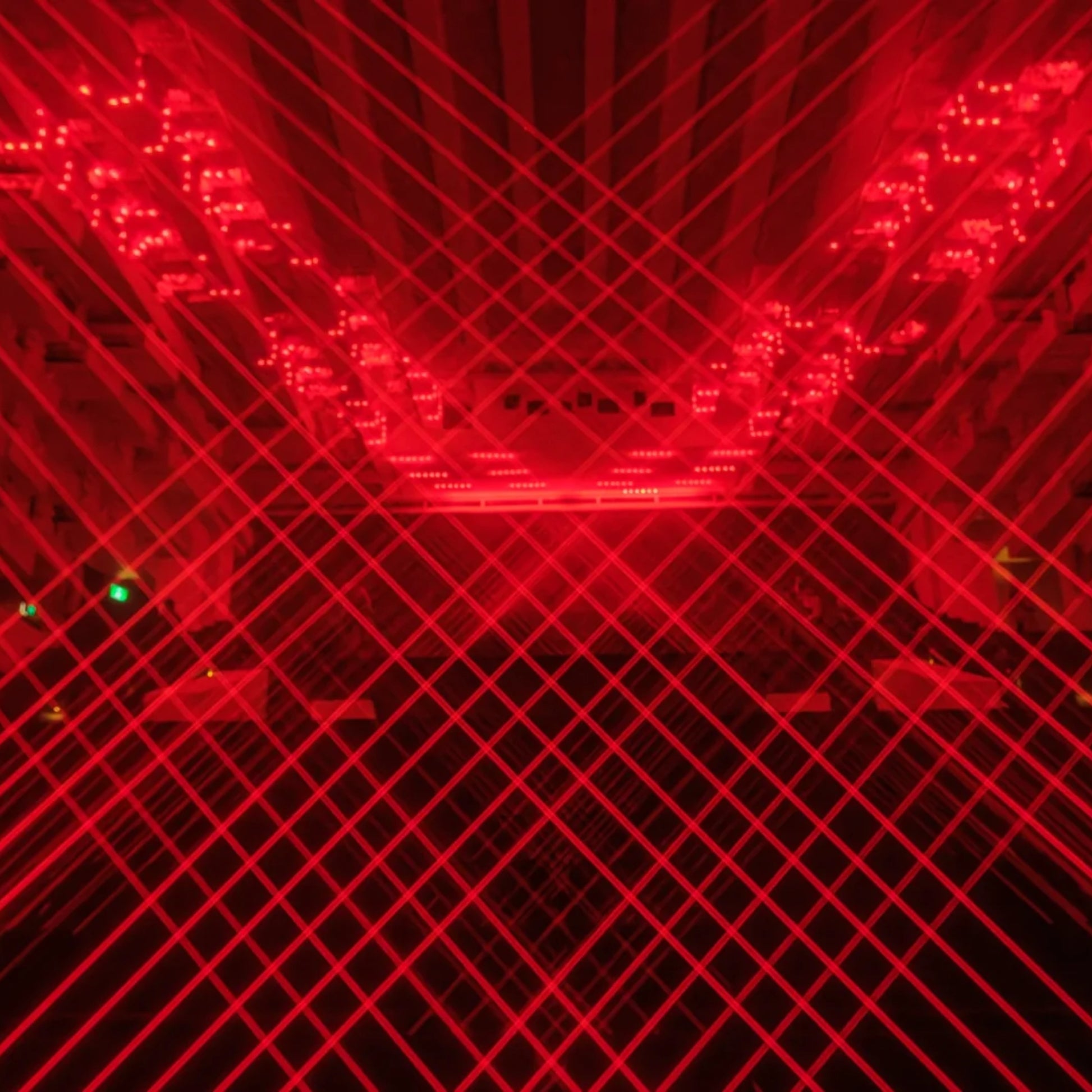

Laser Net Effects: Build wide aerial beam grids that spread across the room for a bigger, deeper, more immersive stage look.
Flowing Line Effects: Create smooth running-line looks for EDM sets, DJ transitions, club shows, and party laser bar light scenes.
Strobe Beam Looks: Add fast laser strobe effects for music drops, build-ups, and high-impact stage moments.

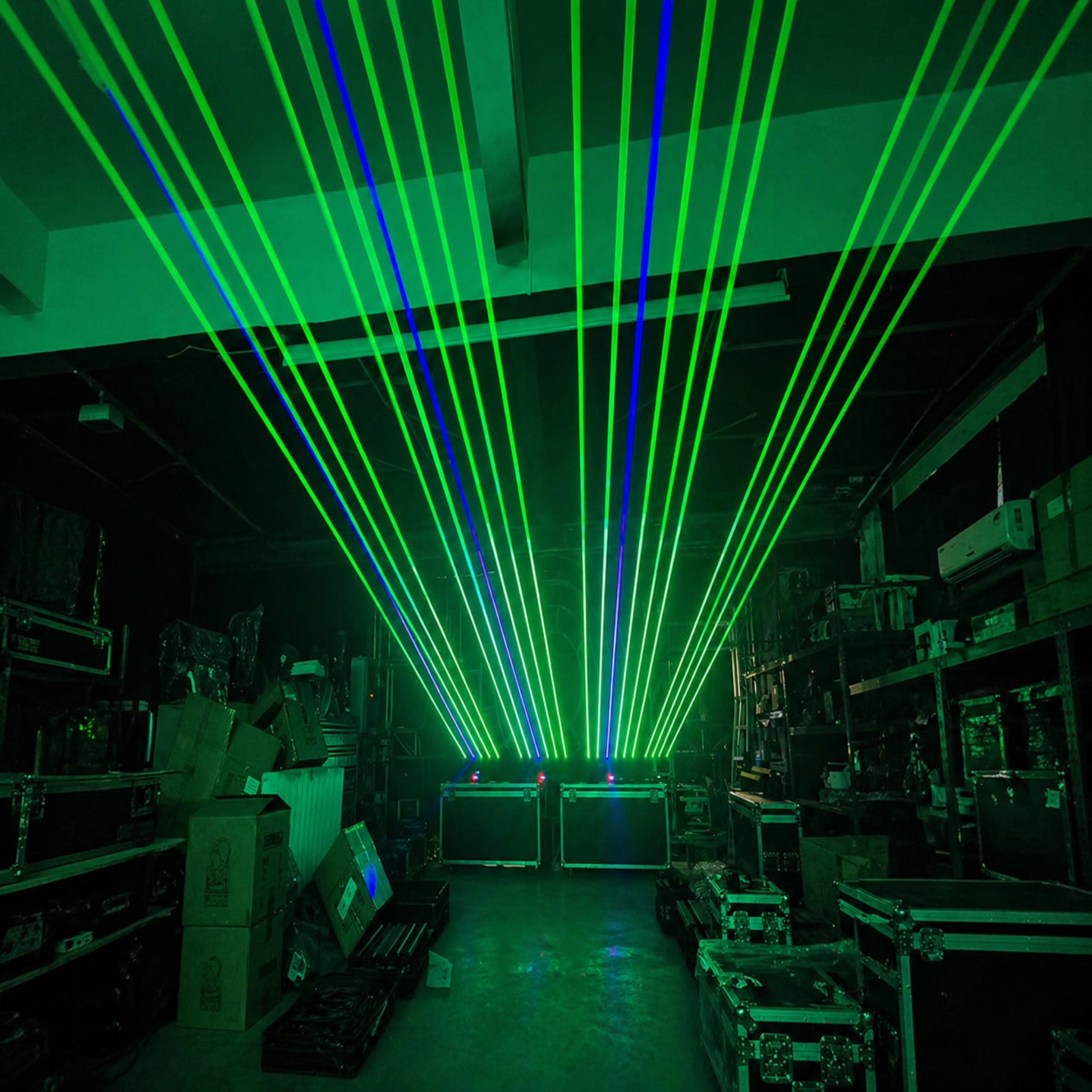

Layered Beam Coverage: Six moving heads create crossing beams, fan looks, tunnel-style movement, and full color laser bar light effects.

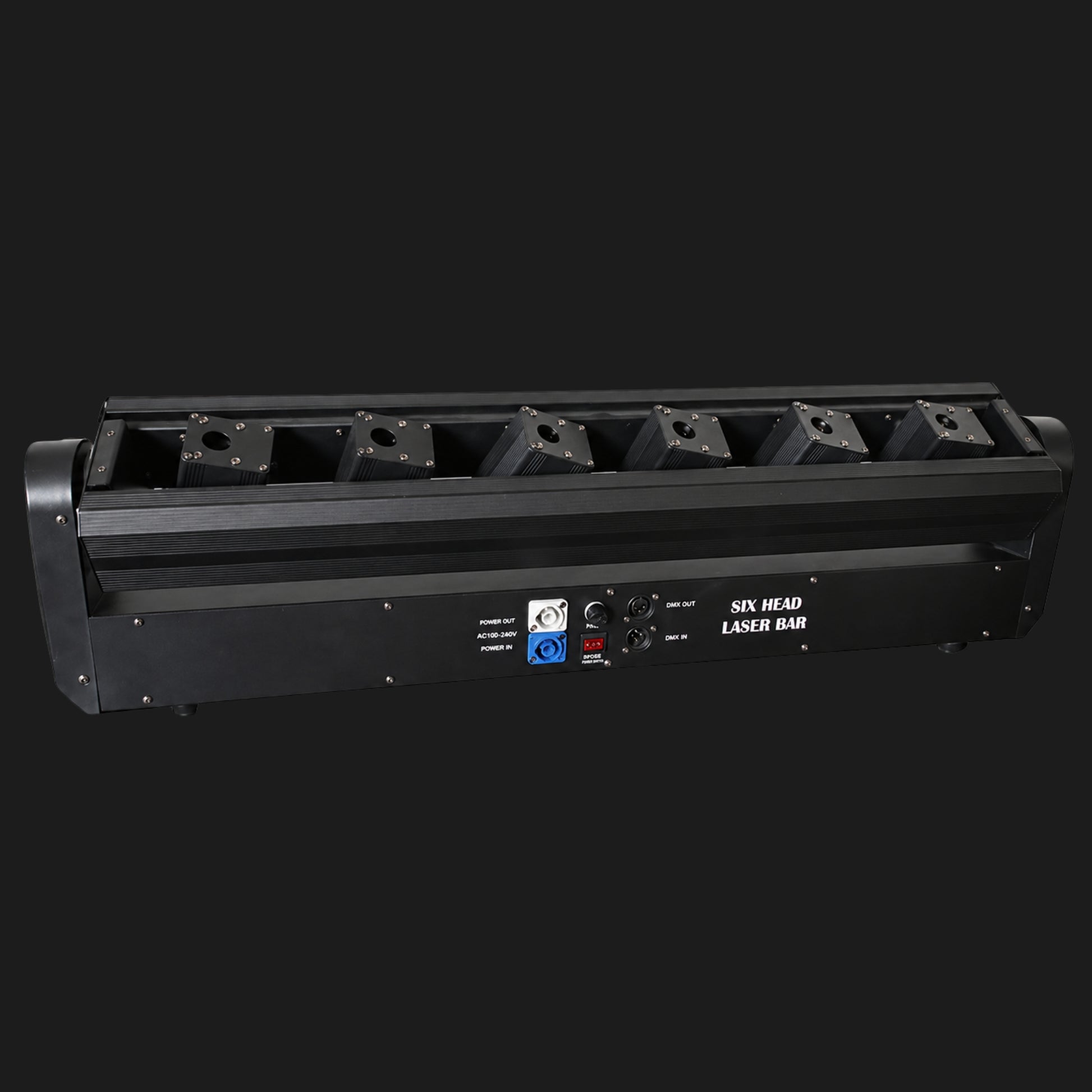

DMX Laser Bar Light for Flexible Show Control
DMX512 Control: Connect the B5 to a lighting console for programmed movement, color, dimming, strobe, and laser beam bar light effects.
Selectable DMX Modes: 11CH, 26CH, and 38CH modes support simple setups or advanced programming.
Sound Active Mode: Let the laser bar light with sound active mode react to music for DJ shows, parties, and nightclub installations.
Auto-Run Mode: Built-in auto programs let the laser light bar run dynamic effects without a dedicated lighting console.
Master-Slave Sync: Link multiple laser bars for synchronized movement across a stage, truss, or DJ booth.
RGB Laser Light Bar with Strong Beam Impact
Semiconductor Laser Source: The B5 uses a semiconductor-pumped laser source for stable full-color RGB beam output.
TTL Laser Modulation: TTL modulation creates clean on/off beam transitions, sharp strobe effects, and fast color changes.
RGB Dimming Control: Red, green, and blue laser channels adjust through DMX for better color balance and show control.
Master Dimmer: Control total brightness of the moving head laser bar light from subtle atmosphere to full-output beam scenes.
Fast Flash Control: Adjustable strobe speed creates slow pulsing looks to rapid laser flash effects.
Professional Laser Bar Fixture for Clubs, DJs, and Events
150W Rated Power: The B5 delivers strong performance for indoor entertainment venues and mobile DJ setups.
Wide Voltage Input: AC100V–230V, 50/60Hz support fits different markets and event environments.
Onboard LED Menu: Set DMX address, show mode, slave mode, blackout, sound sensitivity, pan/tilt reverse, auto test, and reset functions from the display.
Truss-Friendly Design: The bar-style housing works above DJ booths, on stage trusses, or as a backline laser bar stage light.
Best Use Cases: Ideal for clubs, bars, DJs, parties, discos, weddings, indoor events, live shows, and professional stage lighting setups.
Specs
Model
B5
Product Name
6-Head Full-Color Swinging Laser Arrow / 6-Head RGB Moving Laser Bar Light
Rated Voltage
AC100V–230V, 50/60Hz ±10%
Rated Power
150W
Laser Source
Semiconductor-pumped laser source
Laser Modulation
TTL
Laser Wavelength
638nm Red / 520nm Green / 450nm Blue
Laser Power Options
500mW × 6 = 3W / 1000mW × 6 = 6W / 2000mW × 6 = 12W
Laser Color
Full-color RGB
Laser System
Precision stepper motor scanning system
Movement
Y-axis 180° swing; X-axis laser heads can swing
Laser Effects
Laser net beam show, flowing laser line effect, laser strobe, LED-style beam effect, flowing strobe effect
Control Modes
Sound Active, Auto Run, DMX512, Master-Slave
DMX Channels
11CH / 26CH / 38CH selectable
Display Functions
DMX address, show mode, slave mode, blackout, sound state, sound sensitivity, pan/tilt reverse, auto test, fixture time, firmware version, factory reset, system reset
Suggested Applications
Clubs, bars, DJ stages, indoor parties, discos, weddings, live shows, mobile DJ events, stage productions
FAQ
Q: What is the B5 6-head RGB moving laser bar light used for?
A:The B5 is designed for indoor stage and entertainment lighting, including clubs, bars, DJ booths, parties, weddings, discos, live events, and mobile DJ shows that need strong RGB laser beam effects.
Q: How many laser heads does the B5 have?
A:The B5 has six full-color RGB laser heads. This 6 head laser bar light creates wider beam coverage, laser net effects, flowing lines, strobe looks, and layered aerial effects.
Q: What laser power options are available?
A:The B5 is available in 3W, 6W, and 12W versions, using 500mW × 6, 1000mW × 6, or 2000mW × 6 laser output options.
Q: Does the B5 support DMX control?
A:Yes. The B5 is a DMX laser bar light with 11CH, 26CH, and 38CH modes, giving operators flexible control over movement, color, dimming, strobe, and show effects.
Q: Can the B5 work without a DMX controller?
A:Yes. The B5 supports Auto Run, Sound Active, and Master-Slave modes, so it can run built-in effects without a lighting console.
Q: What kind of movement does the B5 provide?
A:The fixture uses a precision stepper motor system. The Y-axis can swing 180°, while the X-axis laser heads can move to create dynamic beam movement.
Q: Is the B5 suitable for outdoor use?
A:No. The B5 is designed for indoor use only. For outdoor laser stage lighting, choose a fixture with a proper outdoor IP rating.
Q: What effects can the B5 create?
A:The B5 can create laser net beam shows, flowing laser line effects, strobe effects, LED-style beam looks, chase effects, and full-color RGB laser bar light shows.
Q: Can multiple B5 units be synchronized?
A:Yes. Master-Slave mode allows multiple laser bar lights to run synchronized effects, which is useful for larger stages, clubs, and DJ lighting setups.
Q: What voltage does the B5 support?
A:The B5 supports AC100V–230V, 50/60Hz ±10%, making it suitable for many indoor event power setups.
Q: Is the B5 a moving head laser or a laser bar light?
A:The B5 is best described as a moving head laser bar light. It combines a 6-head RGB laser bar structure with moving laser heads and 180° Y-axis swing effects.
Q: What is the difference between the B5 and a normal laser light bar?
A:A normal laser light bar may use fixed beams, while the B5 adds moving laser heads, selectable DMX modes, full-color RGB output, and dynamic laser net and flowing line effects.
Q: Is the B5 suitable for mobile DJs?
A:Yes. The B5 works well as a DJ laser bar light because it supports sound-active mode, auto mode, DMX512 control, and master-slave sync for multi-fixture setups.
Q: Can the B5 be used for weddings?
A:Yes. The B5 can be used as a wedding laser bar light for indoor receptions, DJ booths, dance floors, and party-style lighting scenes. For formal wedding use, lower brightness and softer effects are recommended.
Q: Does the B5 need haze or fog?
A:The B5 can operate without haze, but haze or fog makes the RGB laser beams more visible and helps create stronger laser net, tunnel, and aerial beam effects.
