F15 DMX BSW Moving Head Light 320W with LED Ring for Stage
Regular price
$880.00
Sale price
$880.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method

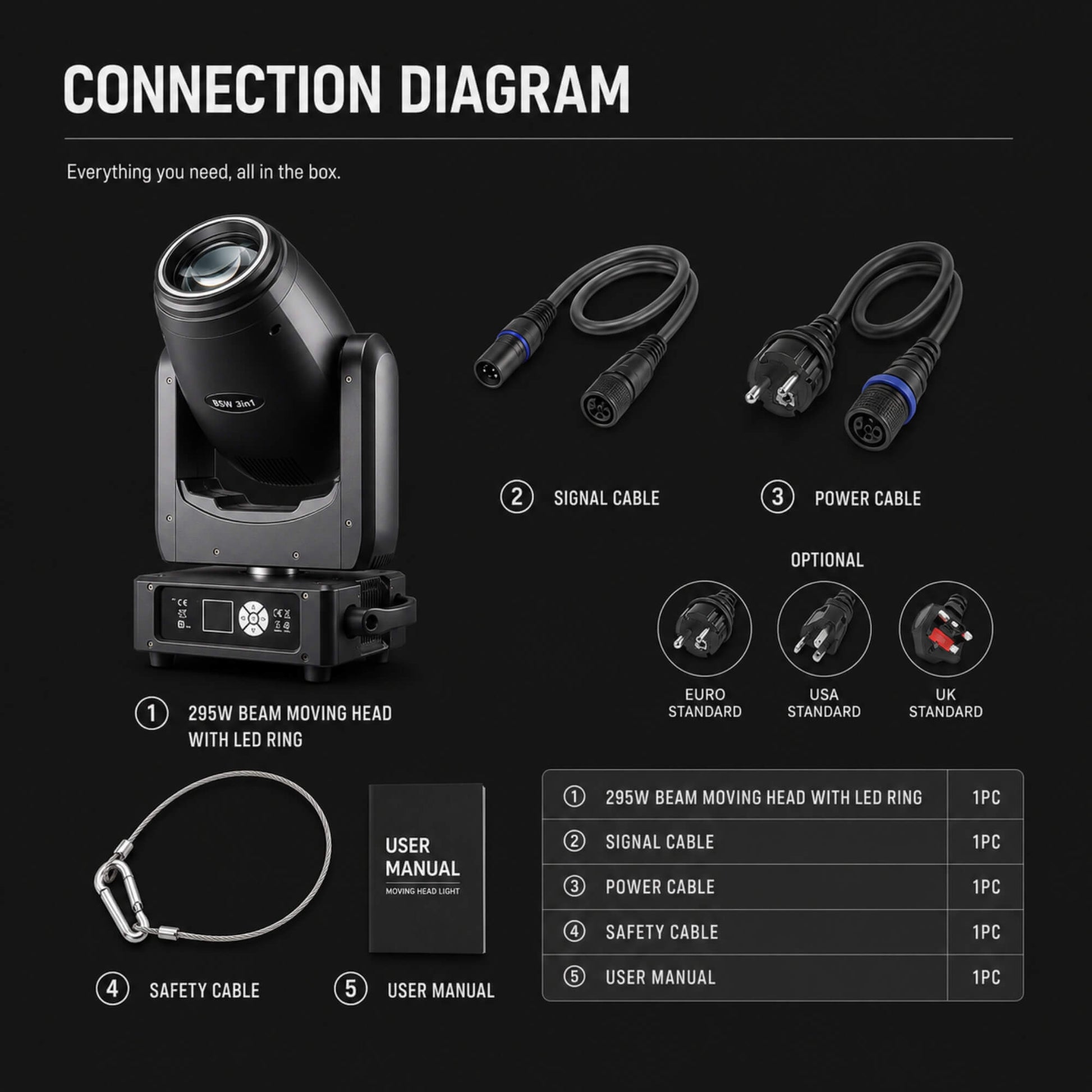

What's in the box
User Manual- 1 × F15 320W Moving Head Light
- 1 × Power Cable
- 1 × Signal Cable
- 1 × Safety Cable
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$880.00
Powerful 320W Hybrid Moving Head Performance

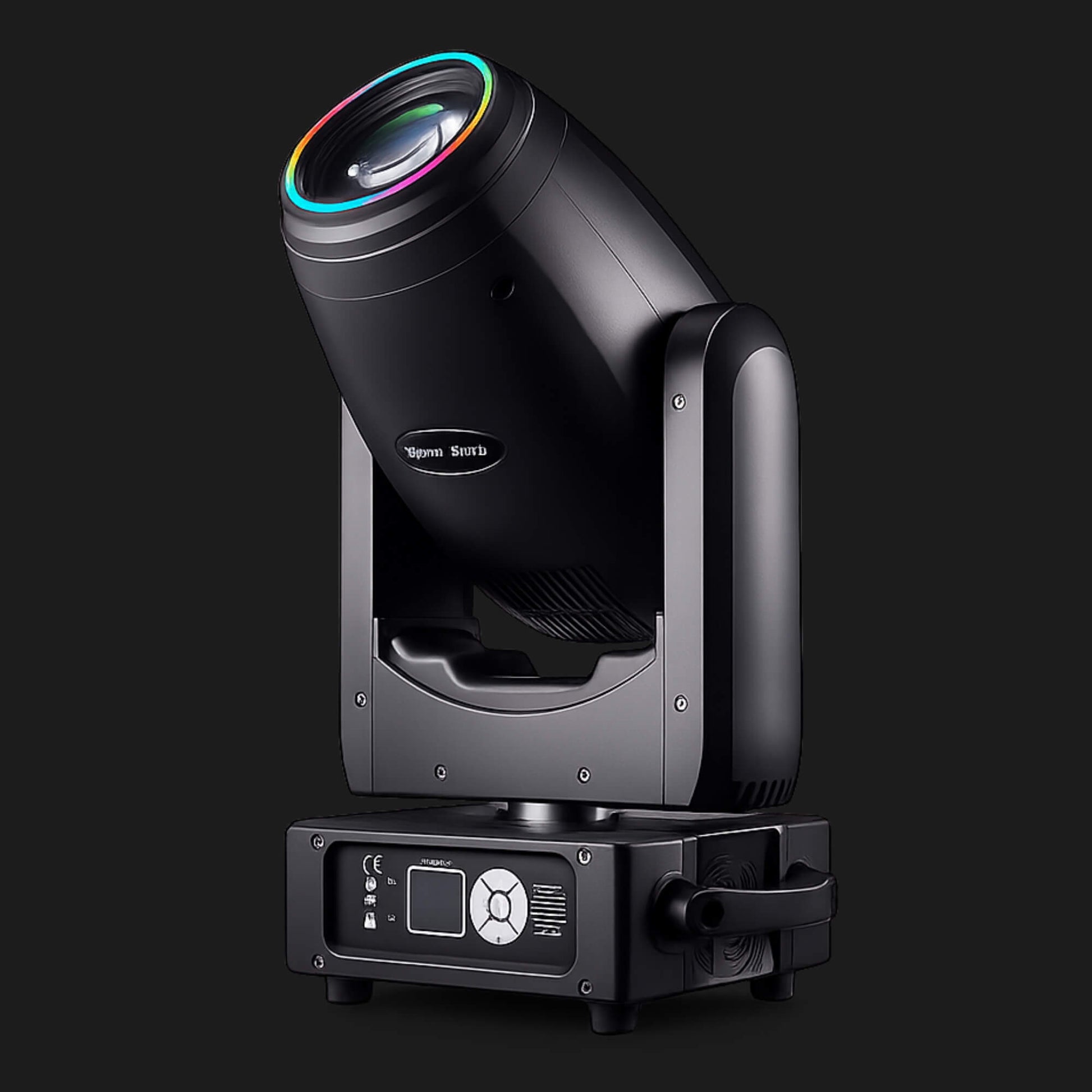

The F15 320W Hybrid Moving Head Light uses a powerful 320W LED module to deliver bright, clean output for professional moving head lights. Its BSW 3-in-1 design combines Beam, Spot, and Wash functions in one hybrid moving head for flexible stage design, while the built-in RGB LED ring adds a colorful halo effect that makes the fixture stand out in live shows. With sharp aerial beams, colorful washes, gobo projections, and layered prism effects, it creates professional stage impact for DJs, nightclubs, concerts, theaters, churches, weddings, and touring productions.

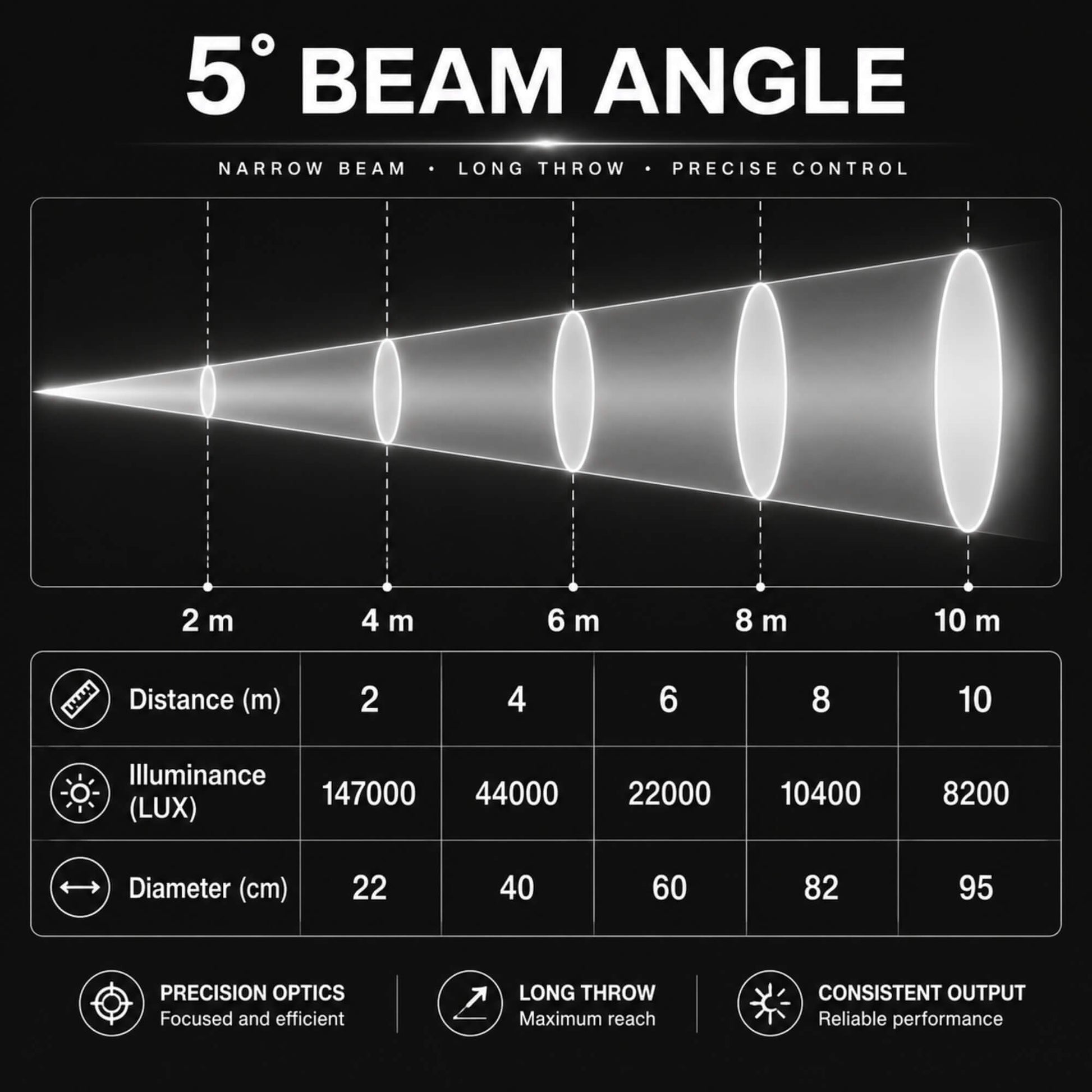

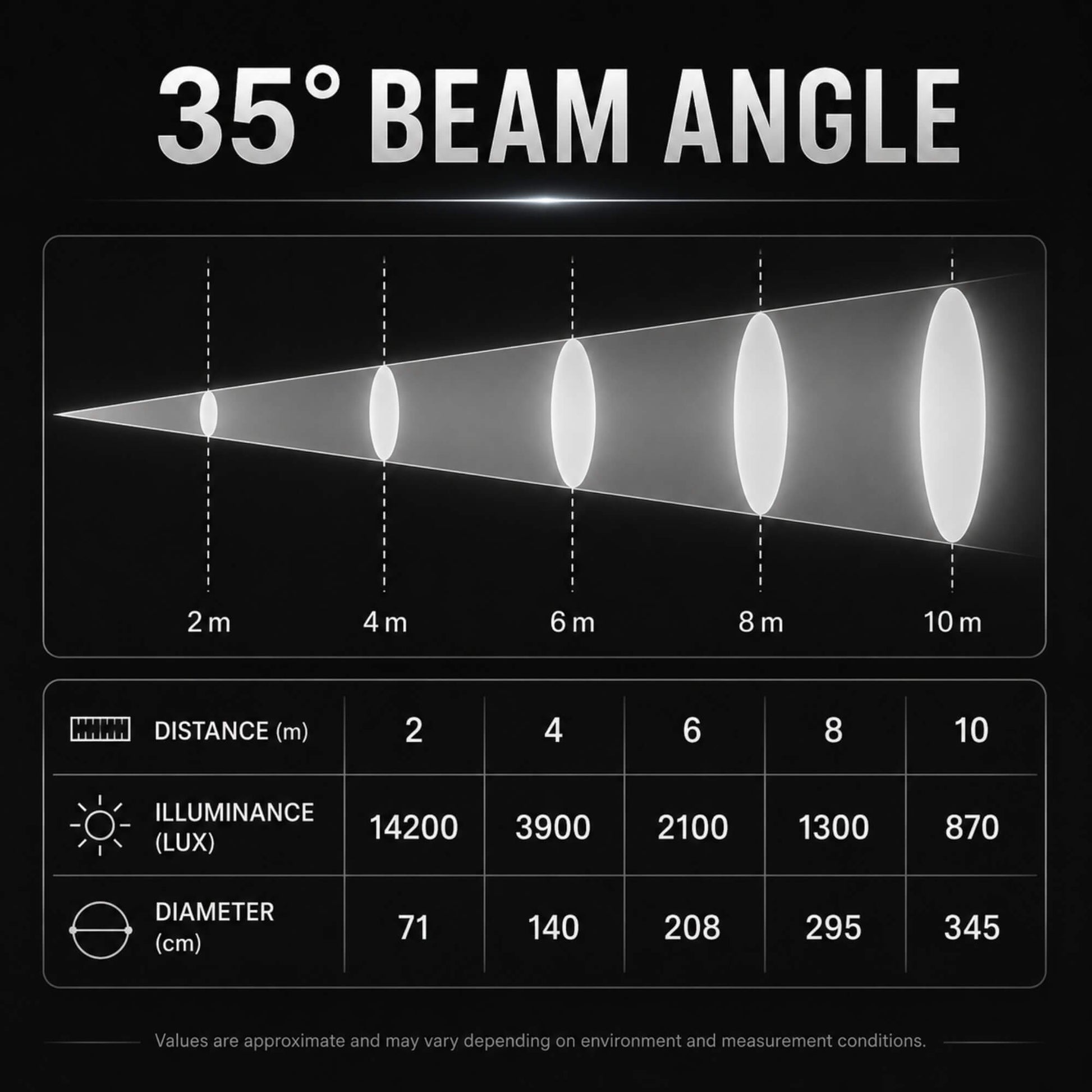

Flexible 5°–35° Zoom for Beam, Spot & Wash
Motorized Zoom: The 5°–35° zoom range moves from a narrow beam to a wider moving head wash light effect.

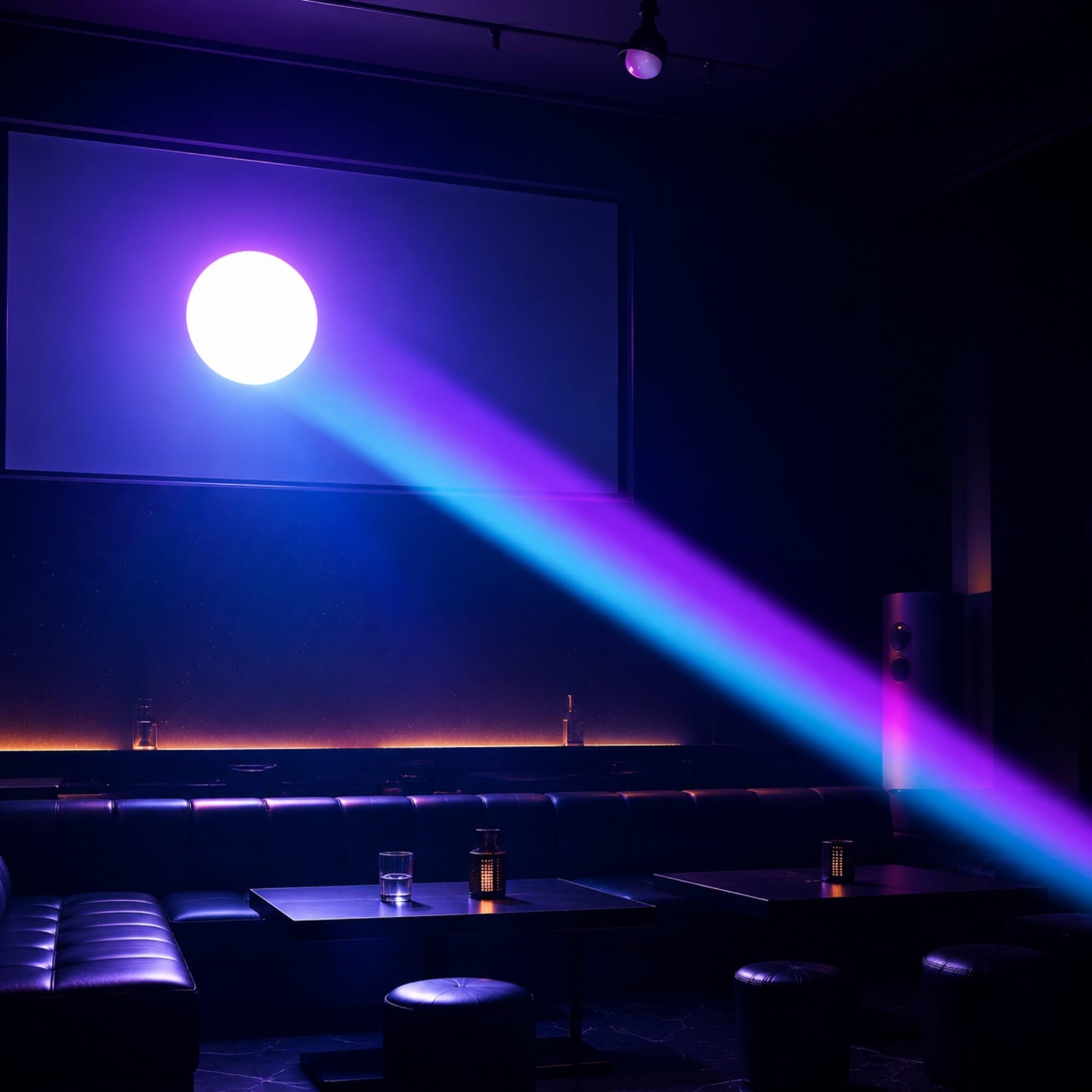

Beam Mode: The tight zoom setting creates long-throw aerial effects with haze or fog.
Spot Mode: Project gobos and patterns clearly on stages, walls, backdrops, and event spaces.
Wash Mode: Expand coverage for softer color fills and wider stage lighting.
One Fixture, More Looks: The F15 reduces separate beam, spot, and wash fixtures.

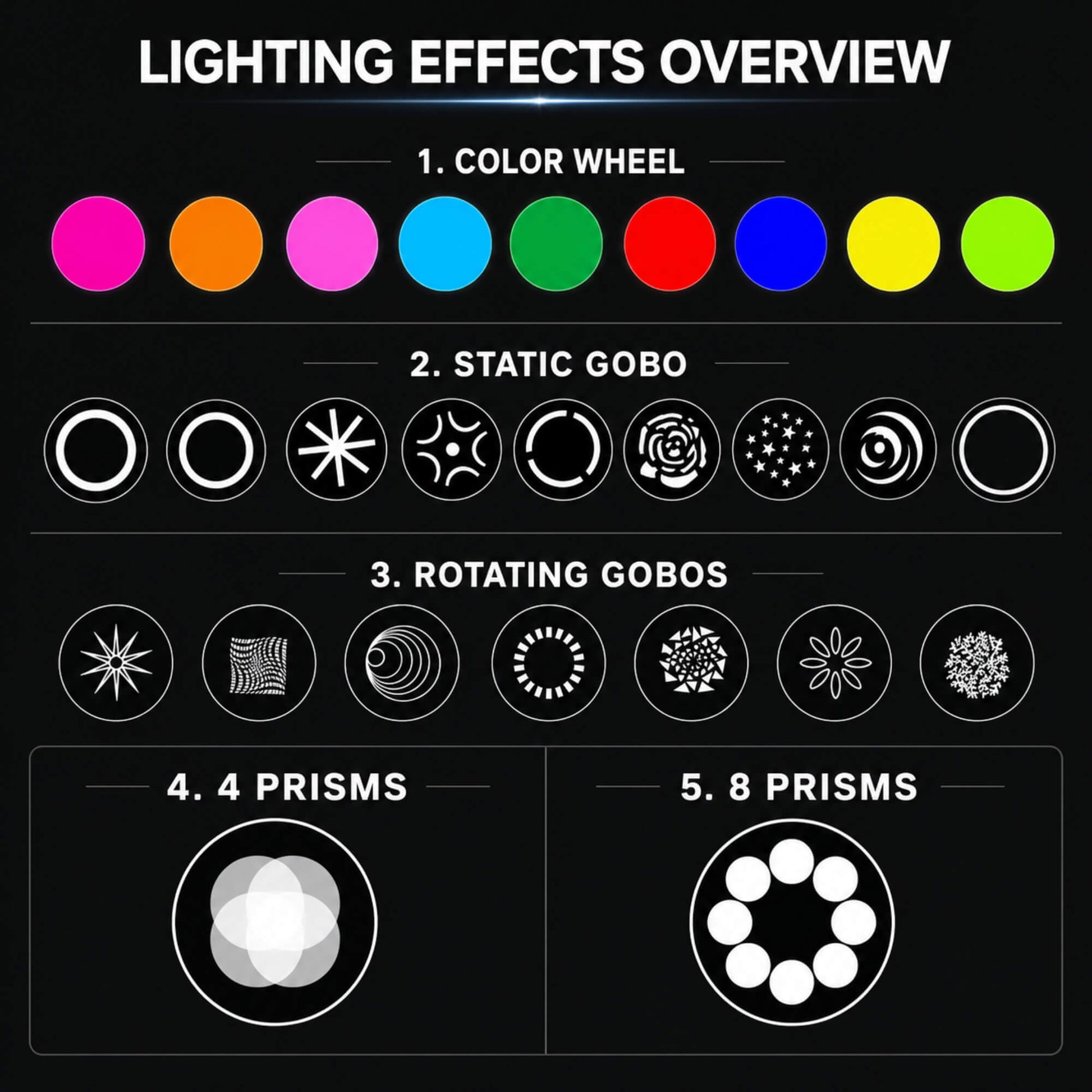

Rich Colors, Gobos & Prism Effects
Color Wheel: 9 colors plus open create fast color changes, split colors, and rainbow-style looks.
Static Gobos: The static gobo wheel adds beam shapes, textures, and graphic stage patterns.
Rotating Gobos: 7 rotating gobos plus open add movement, depth, and professional visual layering.
Prism Effects: Multi-prism visuals create duplicated beam patterns for a bigger stage look.
Creative Programming: A strong choice for moving head DJ lights, clubs, concerts, and event lighting designers.
Smooth Movement & Professional DMX Control
Wide Movement Range: 540° pan and 270° tilt provide broad coverage and dynamic moving effects.
Precision Movement: 16-bit pan/tilt resolution delivers smooth motion and accurate beam placement.
Auto Correction: Automatic pan/tilt position correction improves reliability during long shows.
DMX/RDM Ready: The F15 works as one of your DMX moving head lights with 18CH and 26CH control modes.
Multiple Run Modes: Supports DMX, Auto, Sound, and Master/Slave operation for different setups.

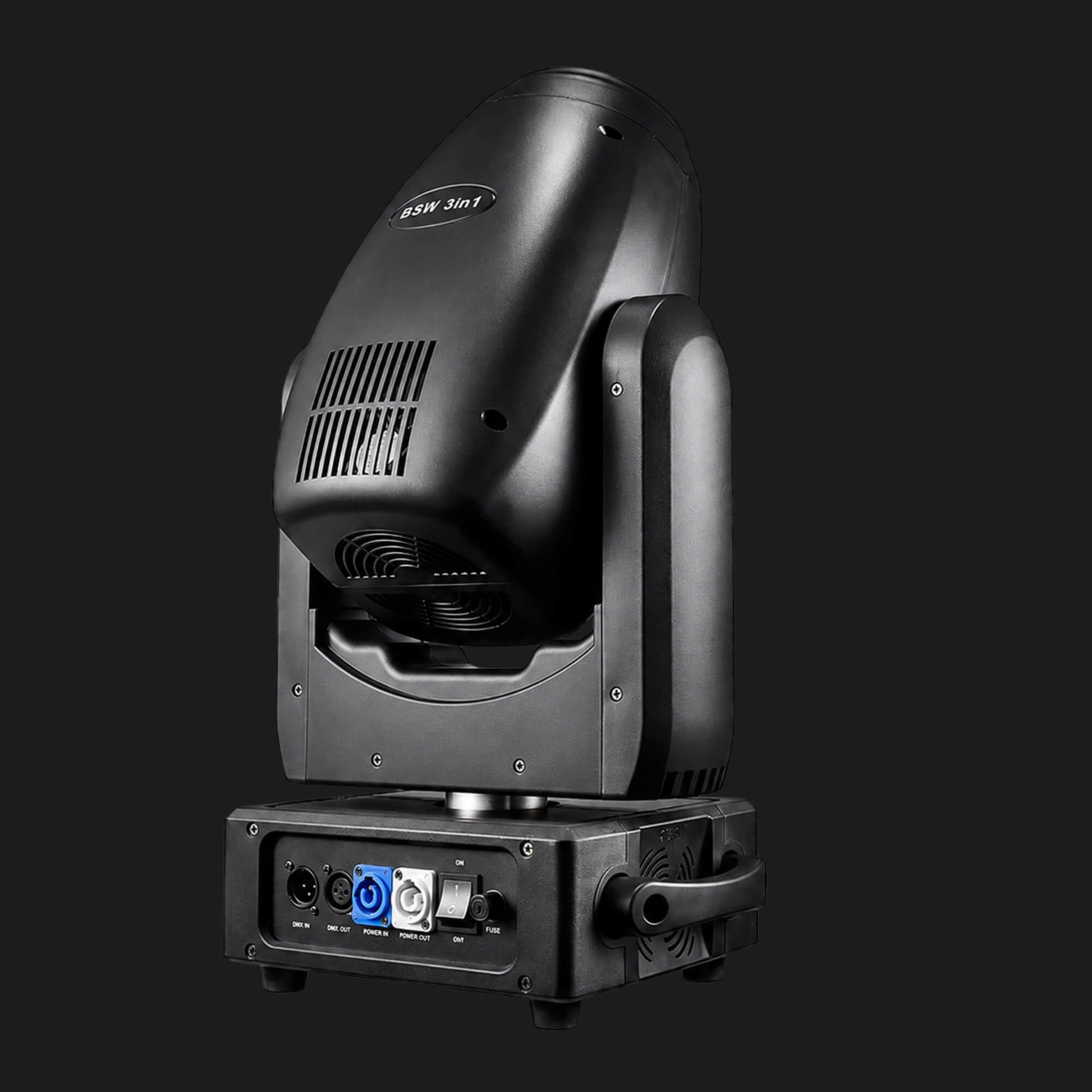

Built for Professional Stage Applications

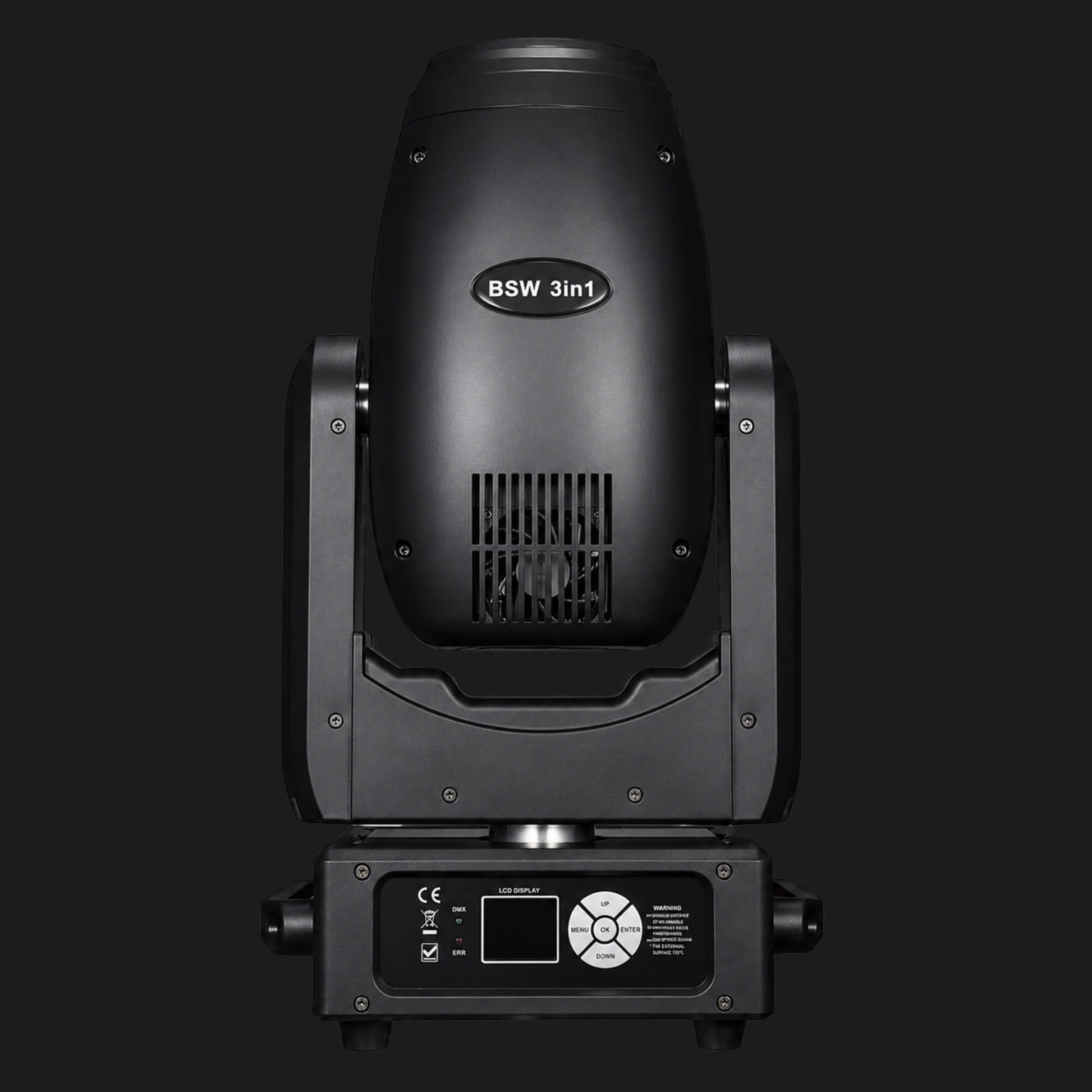

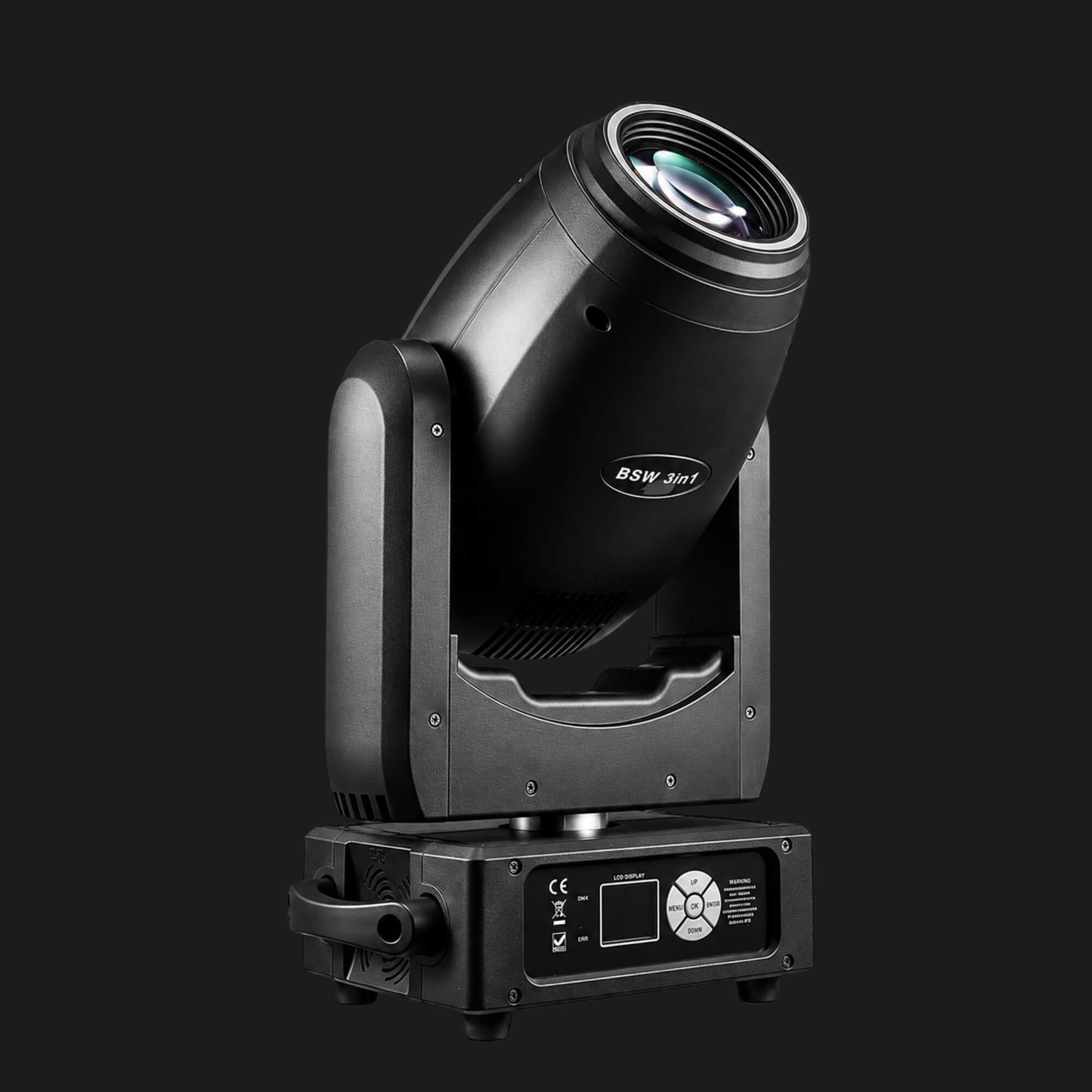

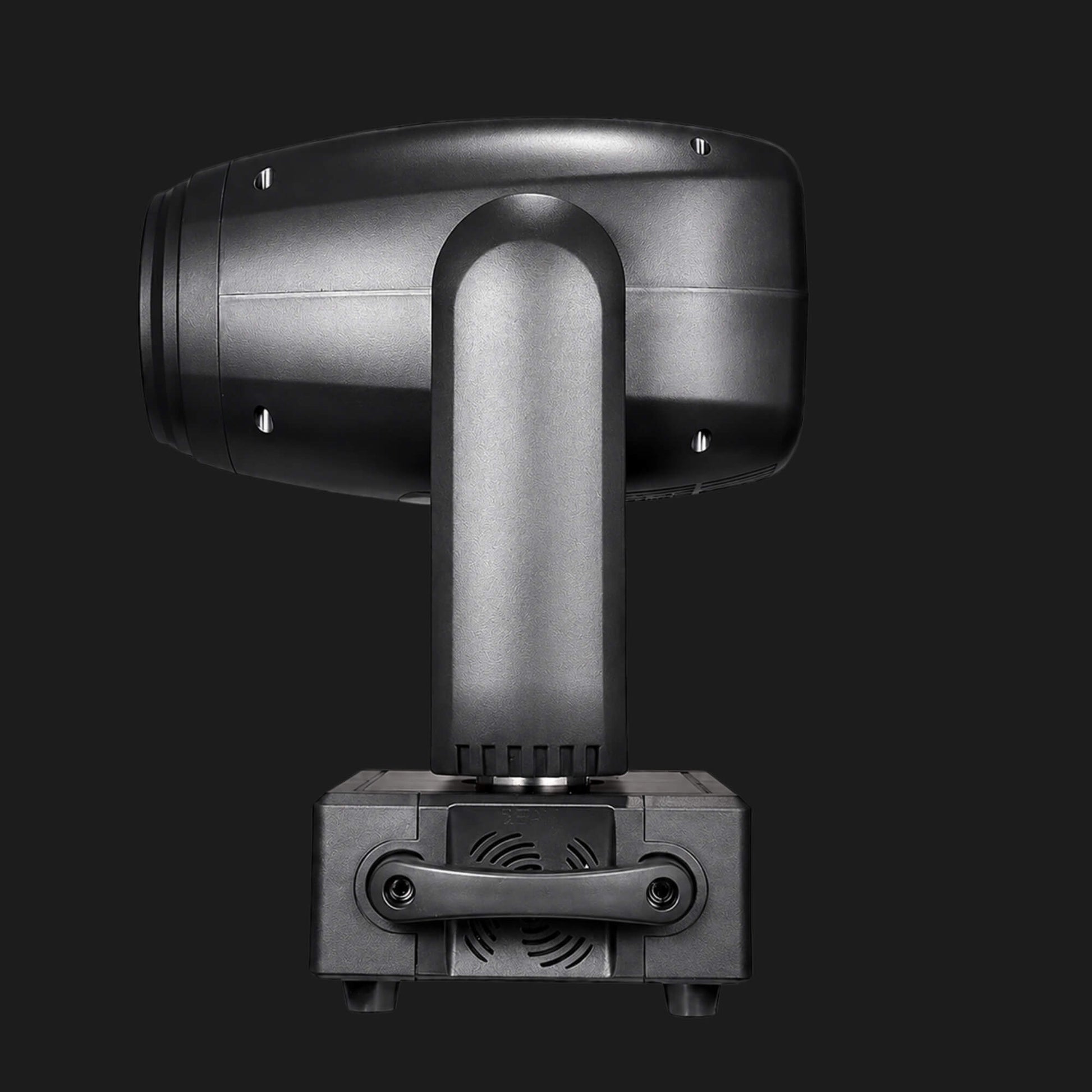

Durable Housing: The solid black body is designed for installation, touring, and repeated event use.

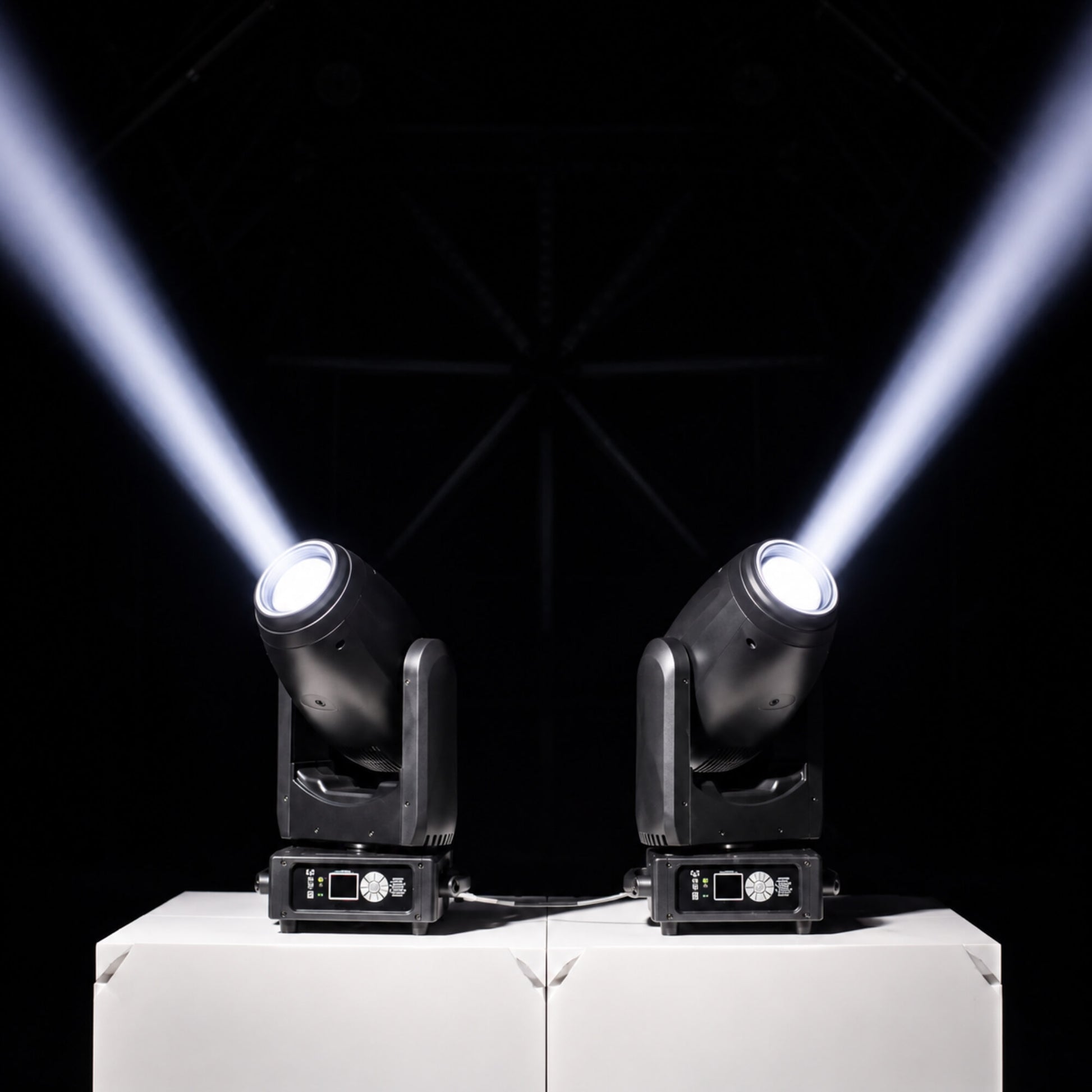

LCD Control Panel: The LCD display and four-button menu simplify setup, addressing, and adjustments.

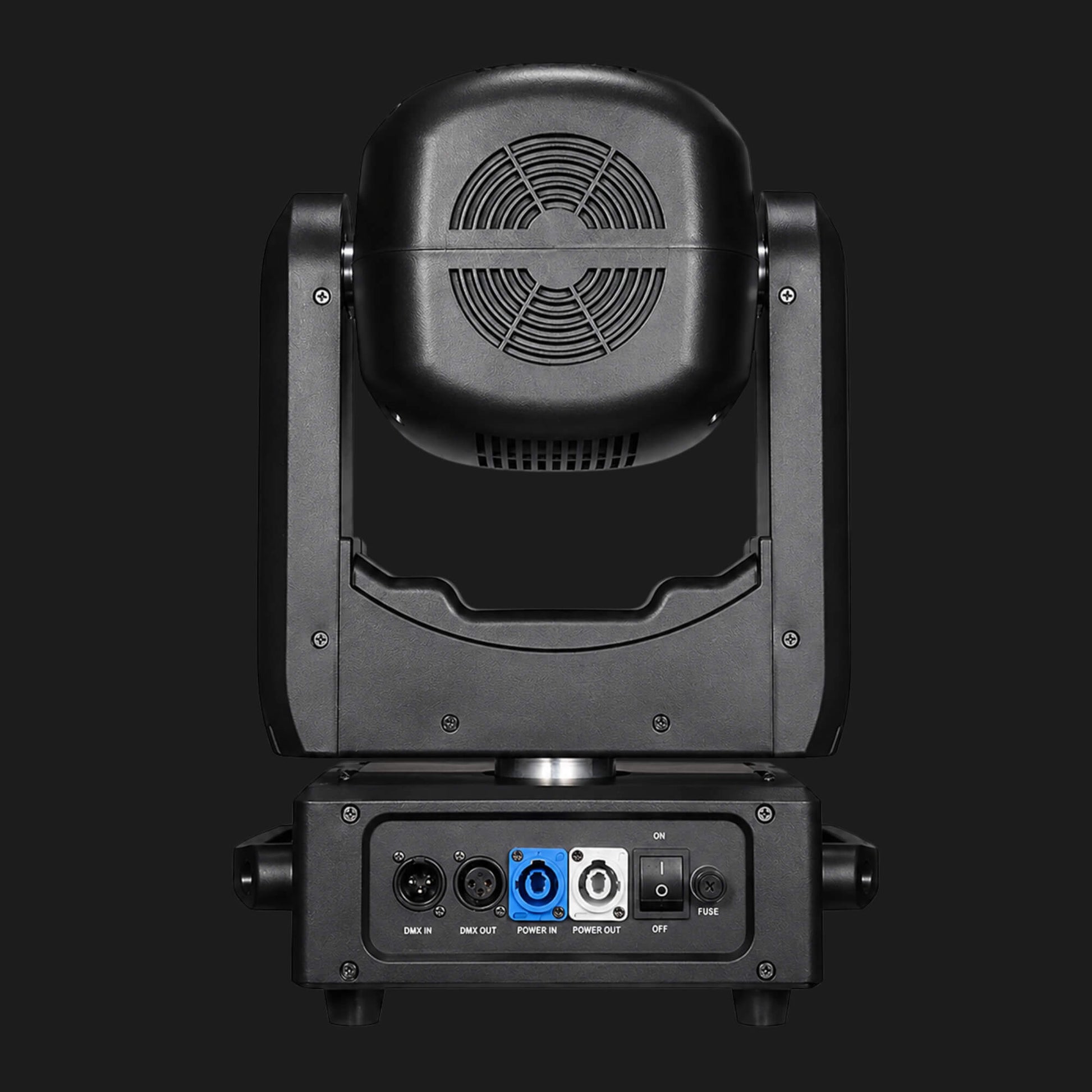

Efficient Cooling: Built-in fan cooling maintains stable performance during extended operation.
Compact Size: The 311 × 205 × 525 mm body mounts on truss, stage, or mobile rigs.
Versatile Use: A reliable option for professional moving head lights, moving head stage lights, and LED moving lights.
Specs
General
Product Model: F15
Product Name: F15 320W BSW Moving Head Light with LED Ring
Product Type: Beam / Spot / Wash Hybrid Moving Head
Main Keywords: moving head light, beam moving head light, LED moving head light
Recommended Use: Clubs, DJs, concerts, theaters, churches, weddings, bars, stage events, and live shows
Power & Light Source
Power Supply: AC100–240V, 50/60Hz
Rated Power: 320W
Light Source Output Power: 270W
Light Source: 320W LED Module + 22pcs RGB LED Ring
Luminous Flux: 10,000 lumens at 8 m
Light Source Lifespan: 20,000 hours
Optical System
Color Temperature: 9000K
Lens Diameter: 90 mm
Zoom Angle: 5°–35°
Effects
Color Wheel: 9 Colors + Open
Static Gobo Wheel: 9 Gobos + Open
Rotating Gobo Wheel: 7 Gobos + Open
Gobo Size: 19.9 mm
Image Size: 8 mm
Control
Control Protocol: DMX512 / RDM
DMX Channel Mode: 18CH / 26CH
Control Panel: LCD Display + 4 Physical Buttons
Movement
Pan Movement: 540°
Tilt Movement: 270°
Movement Resolution: 16-bit
Position Correction: Automatic Pan/Tilt Position Correction
Pan/Tilt Lock: Supported
Housing and Dimensions

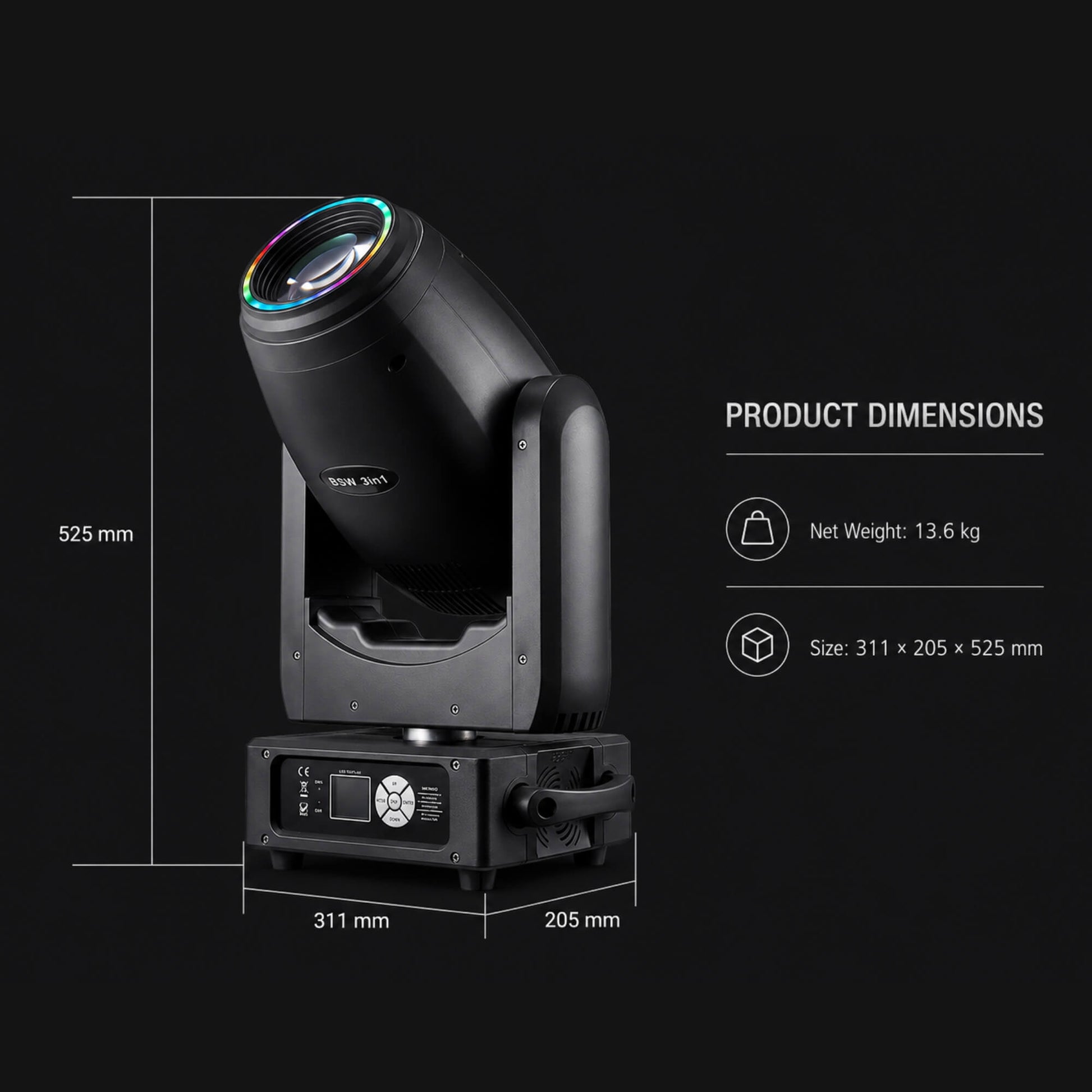

Product Size: 311 × 205 × 525 mm
Net Weight: 13.6 kg
Packing Size: 52 × 42 × 42 cm
Gross Weight: 15.15 kg
FAQ
Q: What does BSW mean on the F15 moving head light?
A:BSW means Beam, Spot, and Wash. The F15 combines all three effects in one hybrid moving head, making it more flexible than a single-function fixture.
Q: Is the F15 good for DJs and clubs?
A:Yes. The F15 is a strong choice for moving head DJ lights because it includes bright beam output, RGB LED ring effects, gobos, prism visuals, and DMX control.
Q: What is the zoom range of the F15?
A:The F15 supports a 5°–35° zoom range, allowing users to create narrow beam effects, spot projections, or wider wash-style lighting.
Q: Does this beam moving head light include an LED ring?
A:Yes. The RGB LED ring around the lens creates colorful halo effects and adds a premium look to stage performances and product displays.
Q: Can I control the F15 with DMX?
A:Yes. The F15 supports DMX512/RDM and includes 18CH and 26CH channel modes for professional lighting control.
Q: Does the F15 include gobo effects?
A:Yes. It includes both static and rotating gobo wheels, allowing users to create patterns, textures, rotating graphics, and layered stage projections.
Q: What kind of prism effects does the F15 create?
A:The prism effects split and multiply the beam to create wider, more dynamic aerial patterns for clubs, concerts, and stage events.
Q: Can multiple F15 moving head lights work together?
A:Yes. Multiple fixtures can be linked with DMX cable and controlled through a lighting console or used in Master/Slave mode for synchronized shows.
Q: Is the F15 suitable for fixed installation?
A:Yes. The F15 can be used for fixed installations in clubs, bars, churches, theaters, and event venues, as well as mobile DJ and touring setups.
Q: What makes the F15 different from regular moving lights?
A:Compared with basic moving lights, the F15 combines BSW output, RGB LED ring effects, gobo wheels, prism effects, zoom, and DMX/RDM control in one professional fixture.
