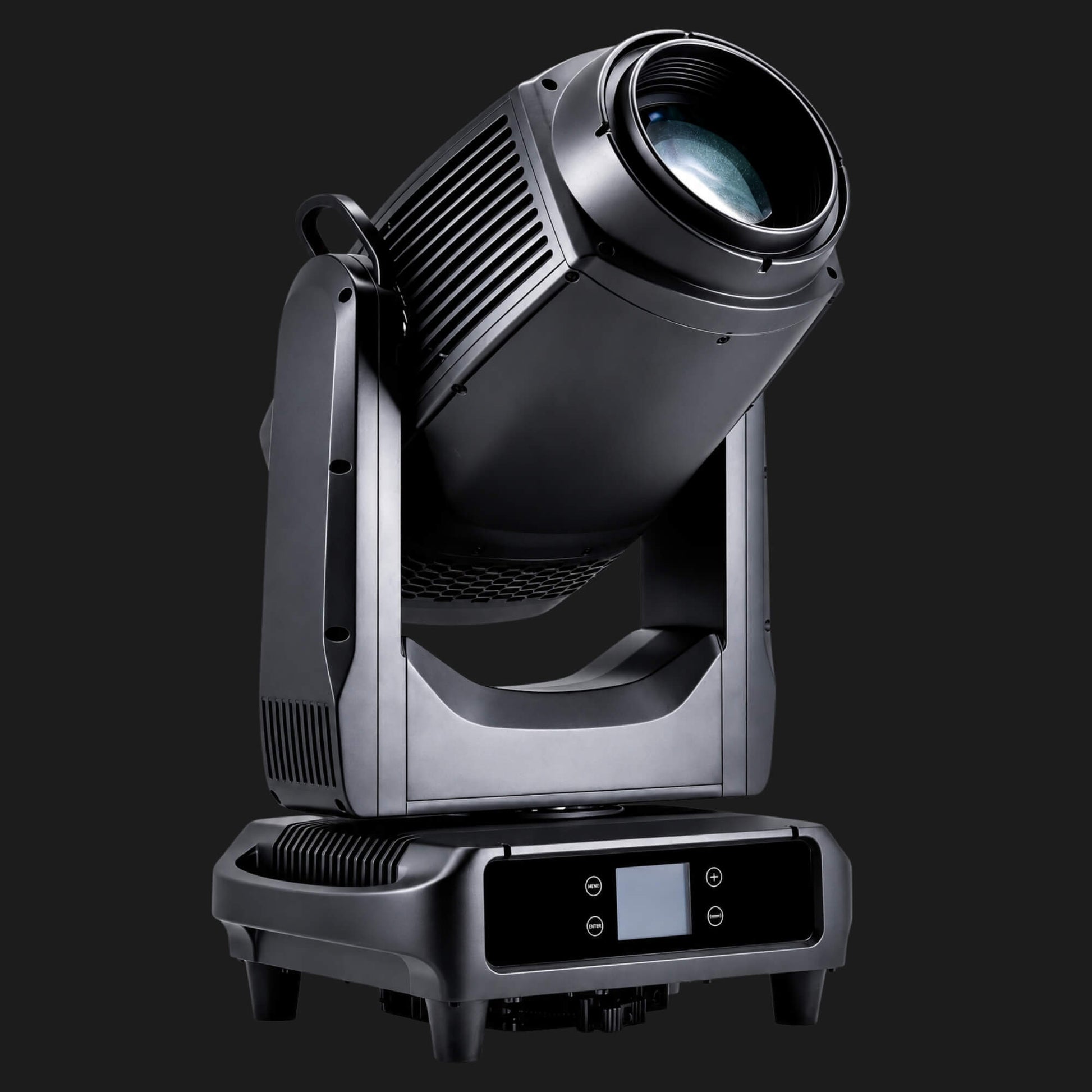

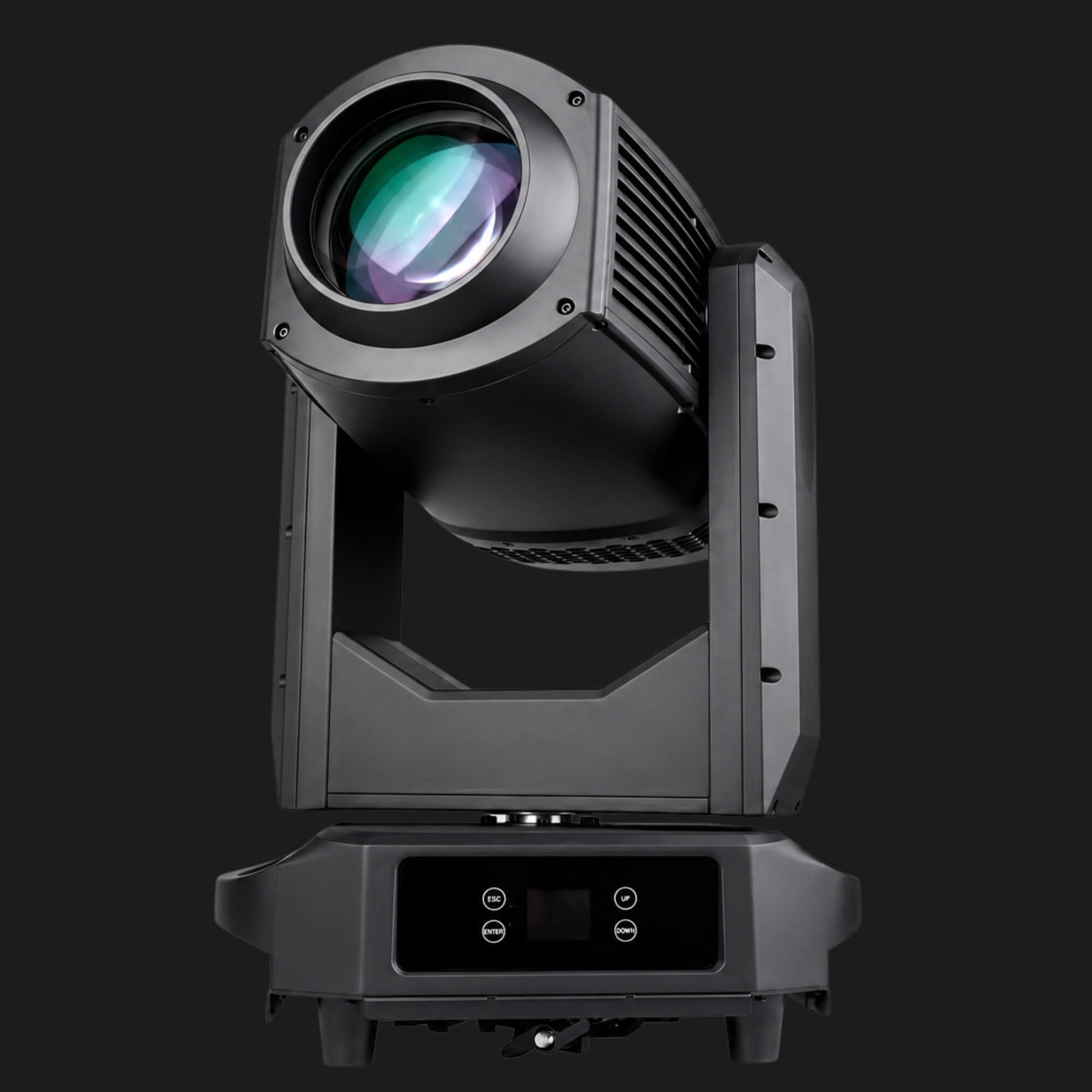

FO25 DMX512 IP66 BSW Moving Head Light 420W for Outdoor Stages
Regular price
$1,550.00
Sale price
$1,550.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × F23 295W Moving Head Beam Light
- 1 × Power Cable
- 1 × DMX Signal Cable
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$1,550.00
<
High-Output Beam, Spot, and Wash Performance
The FO25 combines beam, spot, and wash effects in one professional moving head light, reducing the need for separate stage lighting fixtures. Its PHILIPS MSD Silver 420W lamp delivers intense long-throw output, while motorized zoom, high-definition electronic focus, and a 140 mm output aperture create narrow aerial beams, sharp gobo projections, and wide wash coverage. A 7800 ± 500K color temperature provides crisp white output, vivid colors, strong contrast, and detailed pattern projection for concerts, festivals, touring shows, outdoor stages, and large venues.
Advanced CMY Color Mixing

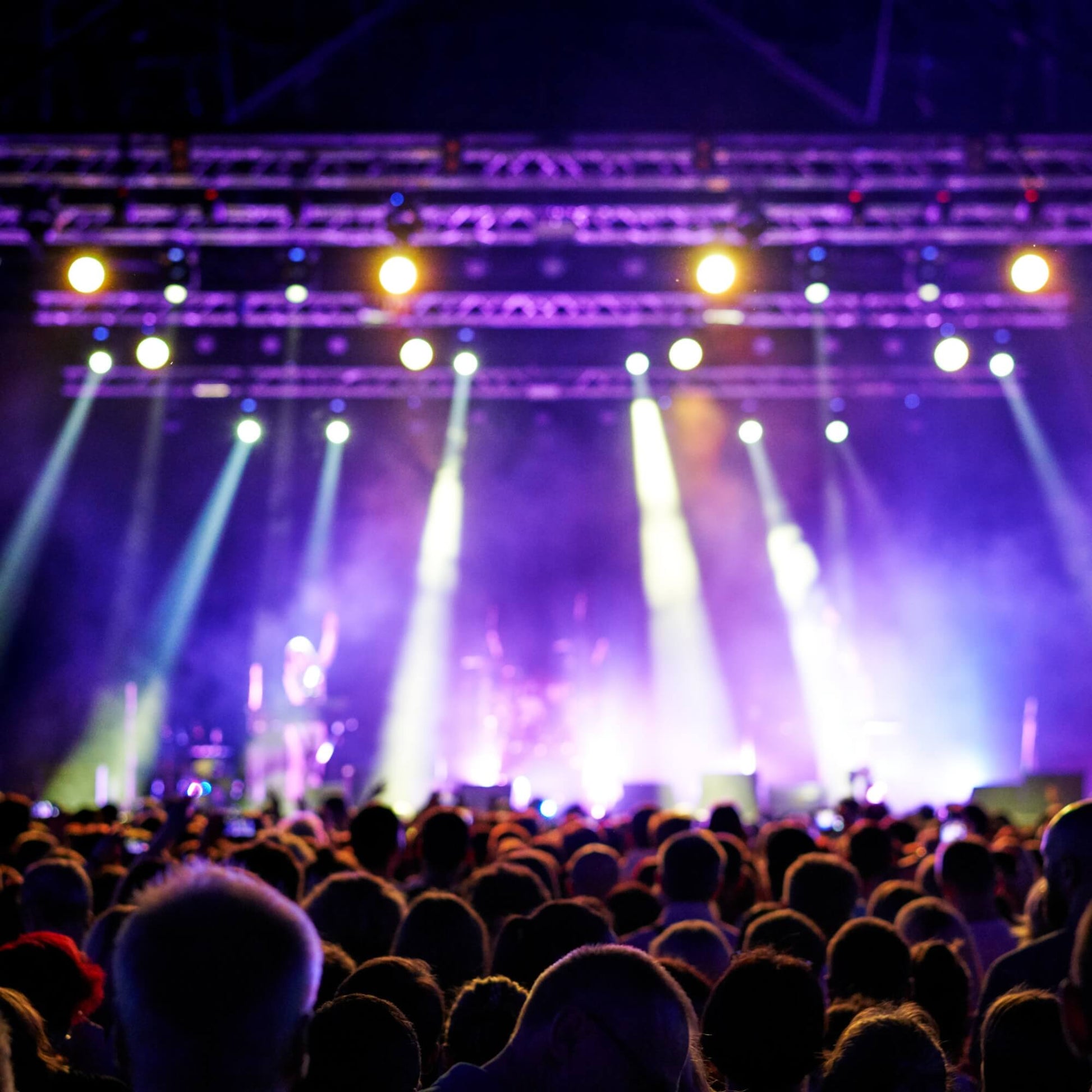

Linear CMY Control: Independent cyan, magenta, and yellow adjustment creates a broad range of custom colors beyond fixed presets.

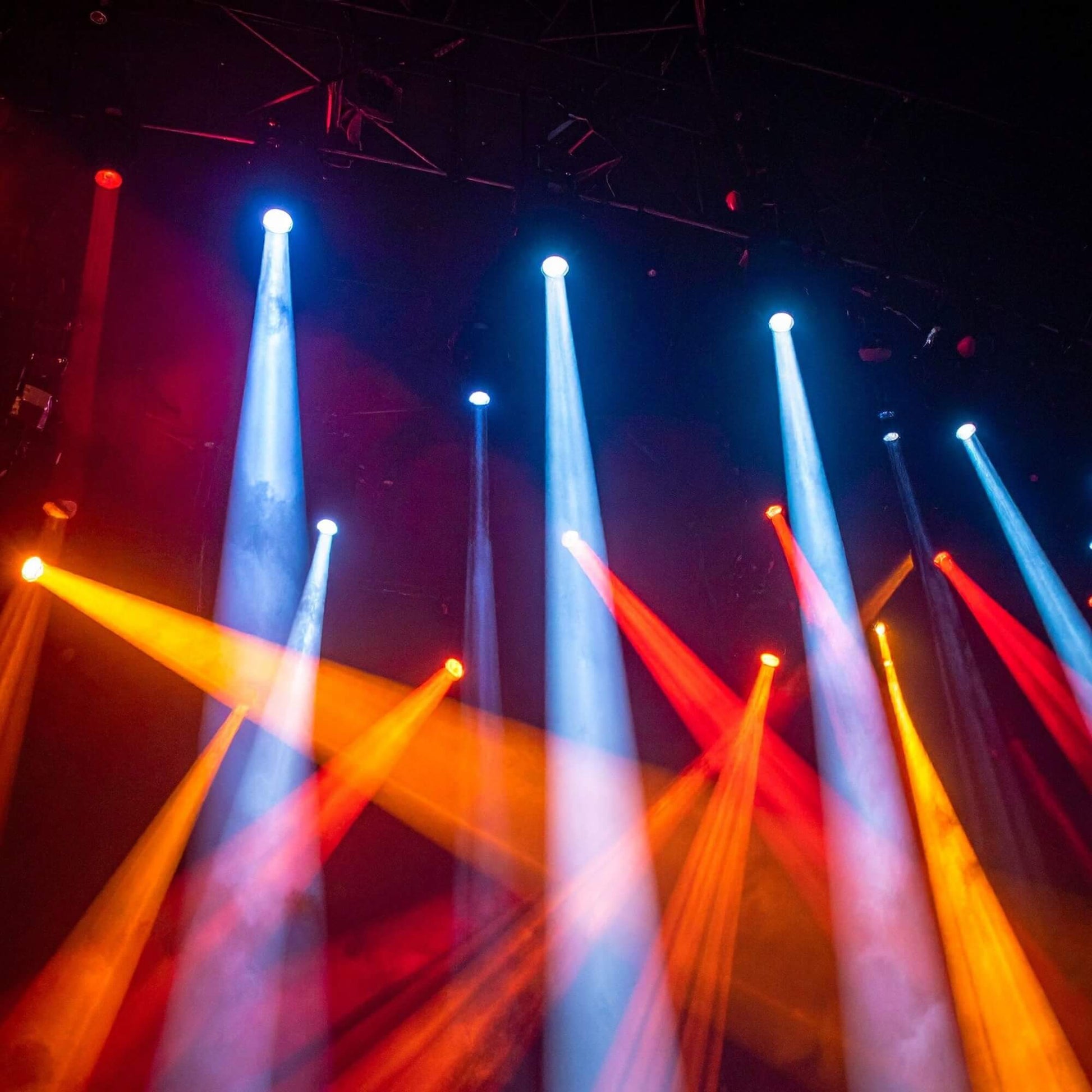

Dual Color Wheels: Two color wheels provide 12 fixed colors for quick changes, split-color looks, and layered combinations.
Smooth Color Transitions: Precise color mixing supports gradual fades and consistent transitions across multiple professional moving head lights.
Electronic Dimming: Smooth 0–100% dimming enables controlled fades, balanced scene changes, and fast blackouts.
Dynamic Strobe Effects: Adjustable 1–20 Hz strobe functions include pulse, fast, and random effects for concert lights and live event lighting.
Creative Gobo and Prism Effects

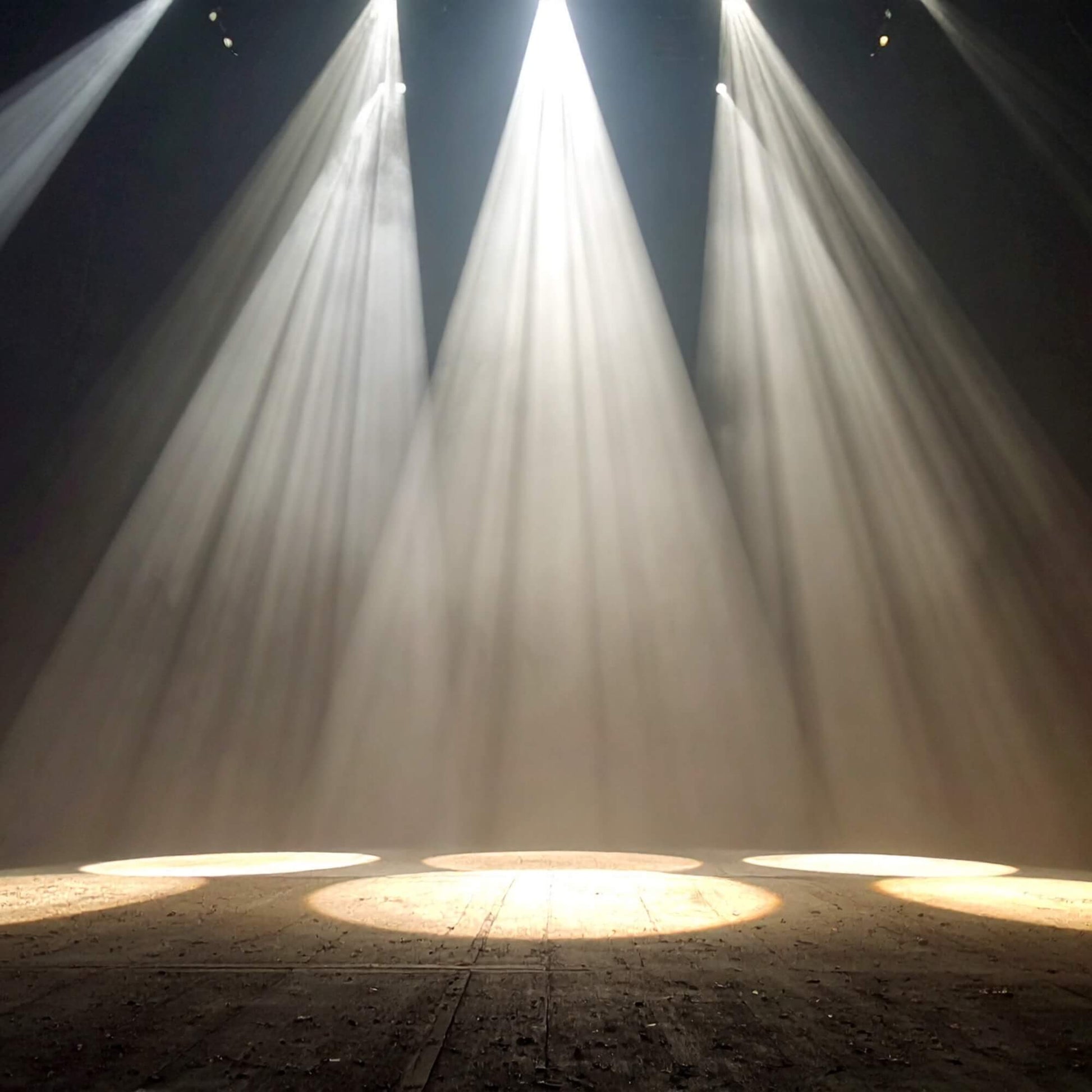

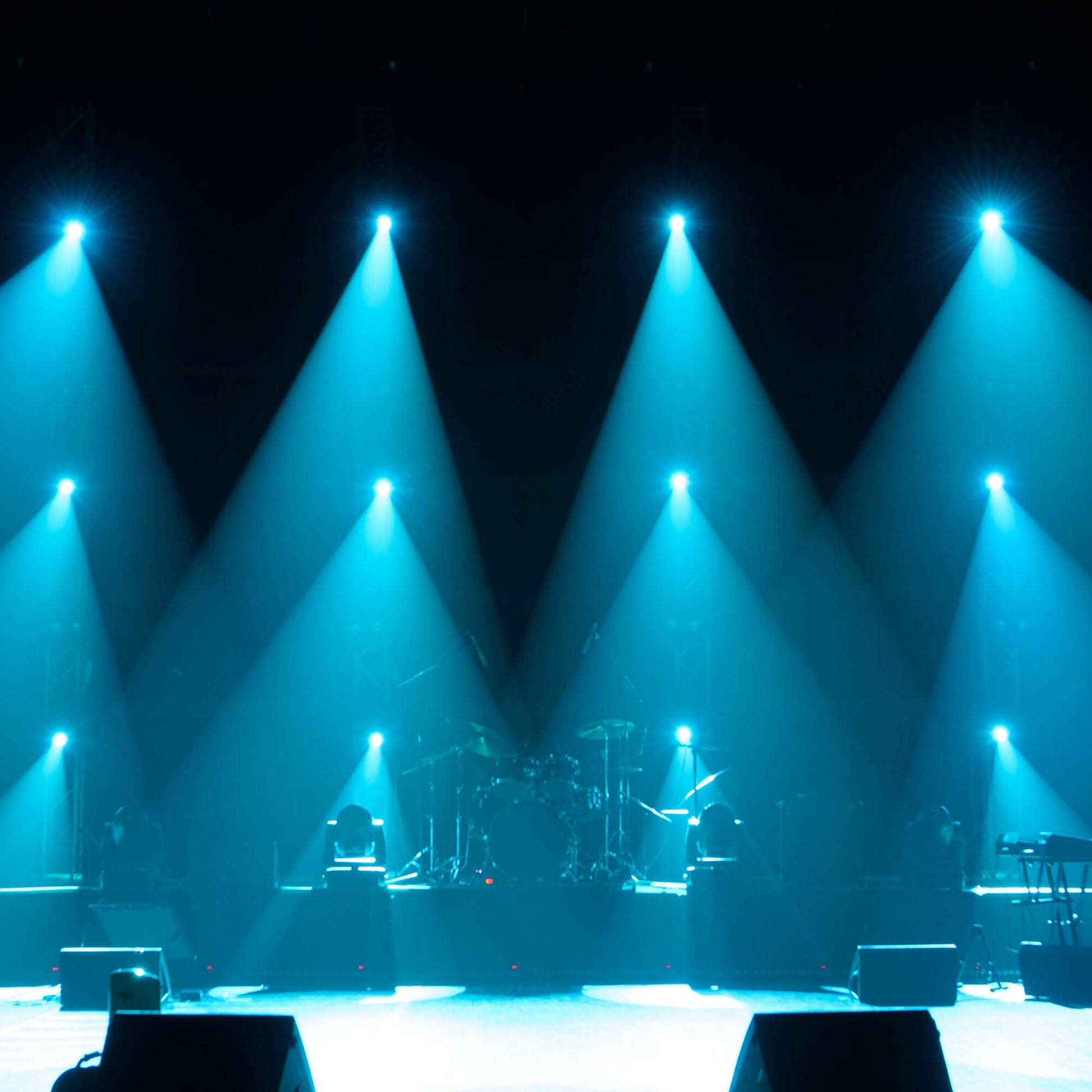

Dual Gobo Wheels: One static gobo wheel with 14 patterns and one rotating gobo wheel with seven interchangeable patterns create varied textures and aerial effects.
Advanced Gobo Control: Position, shake, rotate, stop, or reverse patterns to add movement and depth to concert stage lighting.
Dual Prism System: An 8-facet rotating prism and a 6-facet linear prism create wide, layered aerial patterns.
Integrated Frost Filter: The frost filter softens concentrated output for a smoother wash light.
Multiple Lighting Looks: Use the FO25 as a narrow beam moving head light, focused moving head spotlight, or wider wash fixture.
Professional Movement and DMX Control
Wide Movement Range: Smooth 540° pan and 270° tilt provide broad coverage across stages, truss systems, theaters, and outdoor venues.
28-Channel DMX512: Control movement, color, dimming, gobos, prisms, frost, zoom, focus, strobe, lamp functions, and resets through a compatible DMX controller.
RDM Compatibility: Remote Device Management supports fixture identification, addressing, and system information through compatible professional lighting consoles.
Flexible Operating Modes: Choose DMX512, Master/Slave, Auto Run, or Scene operation for programmed productions and standalone applications.
Easy Menu Operation: The 2.8-inch display supports automatic rotation, screen locking, manual control, live DMX monitoring, and service information.

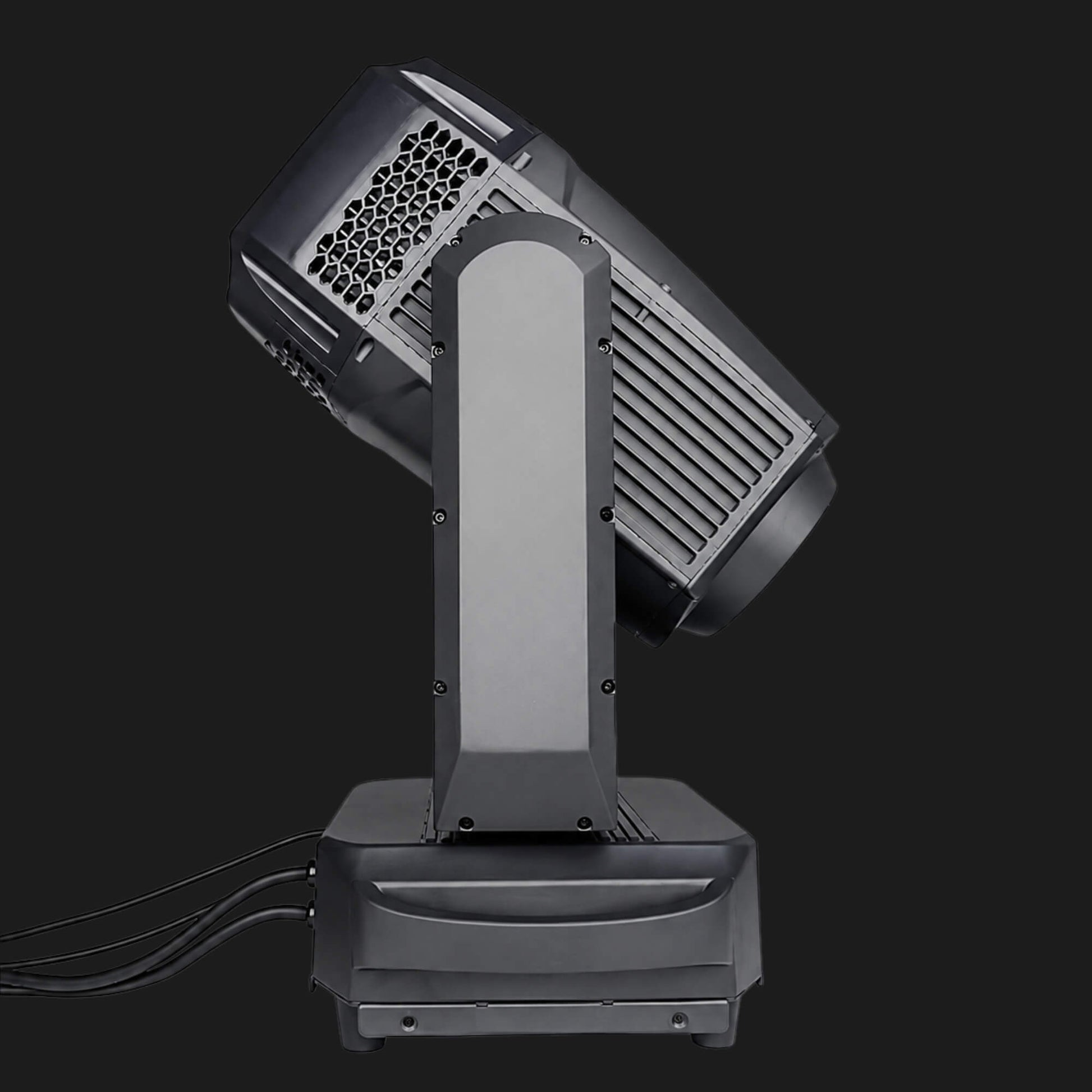

IP66 Outdoor-Ready Construction
IP66 Protection: The sealed housing helps protect the fixture from dust and powerful water exposure during properly installed outdoor stage lighting applications.
Magnesium-Alloy Body: The all-magnesium construction combines strength with a professional black baked finish.

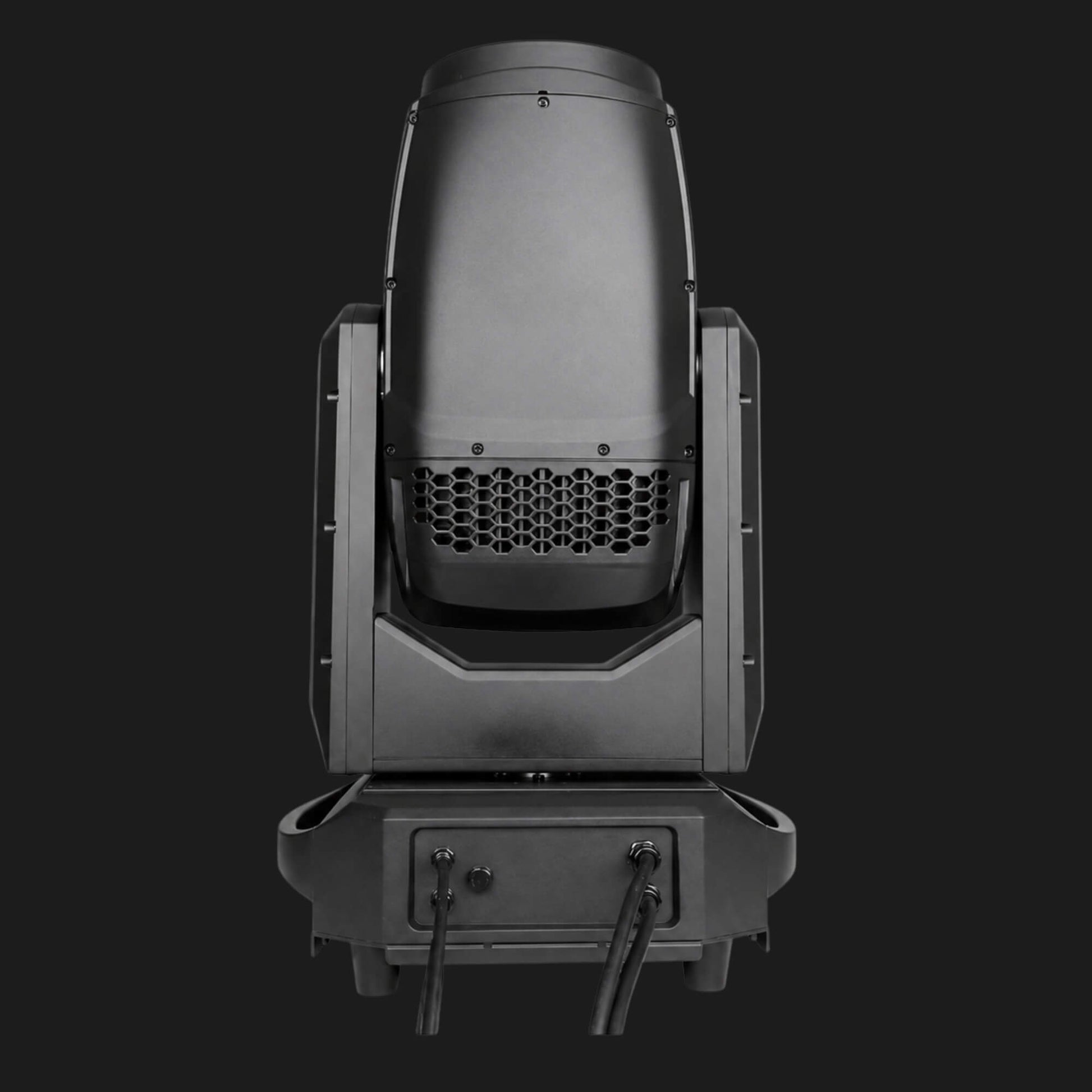

Weather-Resistant Connections: Waterproof power input/output and protected signal connections support temporary outdoor events and touring systems.
Broad Operating Range: The fixture operates in ambient temperatures from -10°C to +40°C.
Professional Applications: The FO25 suits concert lighting equipment, festivals, theaters, rental companies, performance venues, clubs, touring productions, and permanent installations.
Specs
General
Brand: Starshine Lights
Model: FO25
Product Type: Hybrid Beam, Spot, and Wash Moving Head Light
Ingress Protection: IP66
Power & Light Source
Input Voltage: AC 100–240V, 50/60Hz
Maximum Power Consumption: 600W
Light Source: PHILIPS MSD Silver 420W/2 LL
Lamp Power: 420W
Color Temperature: 7800 ± 500K
Rated Lamp Life: Approximately 3,500 hours
Optical System
Zoom / Beam Angle: 2°–31°
Output Aperture Diameter: 140 mm
Focus: 0–100% Electronic High-Definition Focus
Frost Filter: One Frost Filter
Color System
Color Mixing: Linear CMY Color Mixing
CTO Control: Linear CTO Adjustment
Fixed Colors: Two Color Wheels with 12 Colors
Gobo System
Static Gobos: One Wheel with 14 Gobos
Rotating Gobos: One Wheel with Seven Interchangeable Gobos
Prism System
Prism 1: 8-Facet Rotating Prism
Prism 2: 6-Facet Linear Rotating Prism
Dimmer & Strobe
Dimming: 0–100% Smooth Electronic Dimming
Strobe: 1–20 Hz with Multiple Strobe Effects
Movement
Pan Movement: 540°
Tilt Movement: 270°
Pan/Tilt Control: Coarse and Fine Control
Control
Control Protocols: DMX512 and RDM
Operating Modes: DMX512, Auto Run, Scene, and Master/Slave
DMX Channel Mode: 28CH
DMX Address Range: 1–512
Connections & Display
DMX Connectors: 3-Pin and 5-Pin XLR
Power Connections: Waterproof Power Input and Output
Display: 2.8-Inch Display with Automatic Rotation
Housing
Housing Material: Magnesium Alloy
Housing Finish: Black Baked Finish
Ingress Protection: IP66
Operating Environment
Operating Temperature: -10°C to +40°C

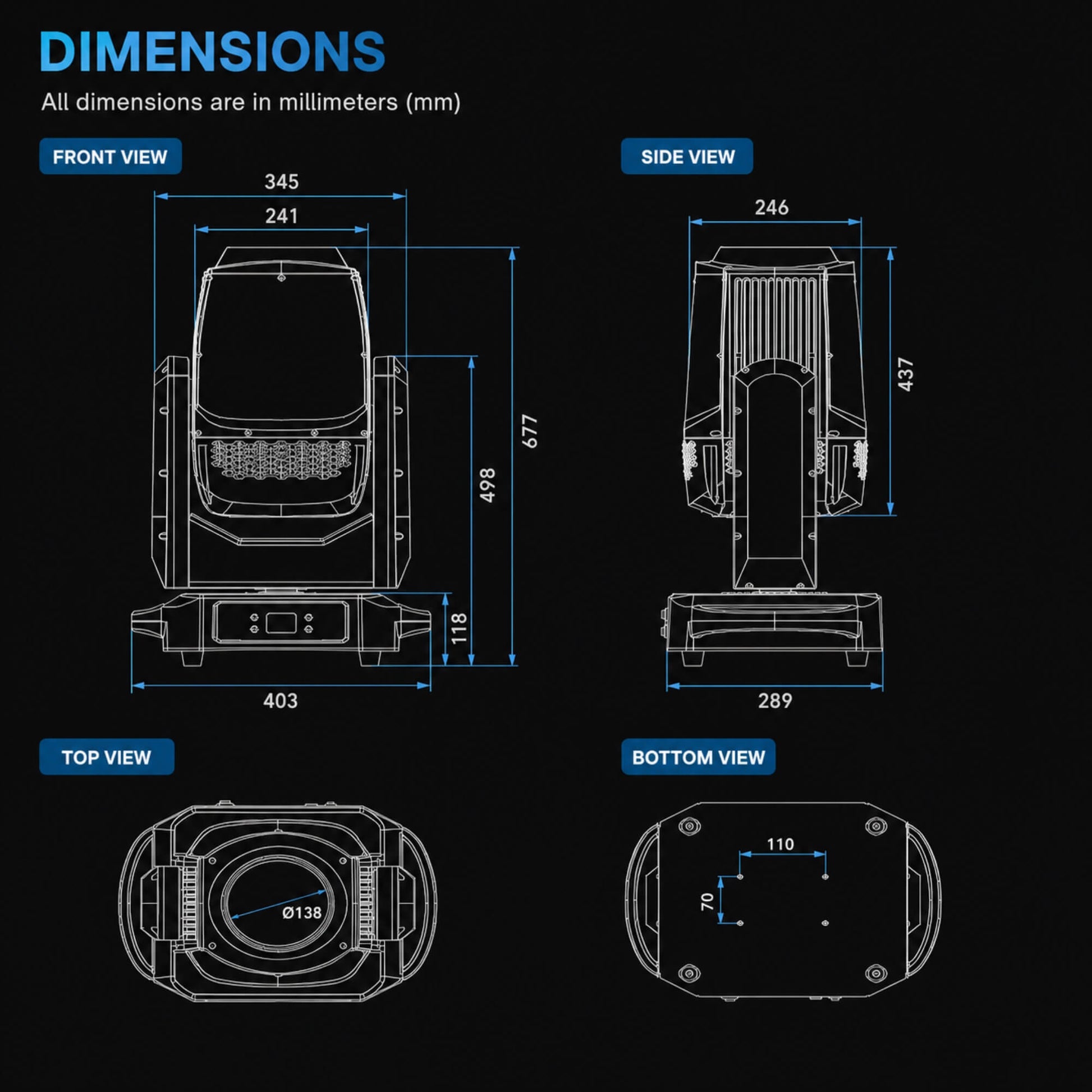

Product Dimensions
Product Dimensions: 709 × 386 × 290 mm
Product Weight
Net Weight: 27 kg
FAQ
Q: What does BSW mean on the FO25?
A:BSW stands for Beam, Spot, and Wash. The FO25 combines these three major stage lighting functions in one professional hybrid moving head light.
Q: Is the FO25 suitable for outdoor stage lighting?
A:Yes. The FO25 features an IP66-rated housing, waterproof power connections, and protected signal connections for properly installed outdoor stage lighting applications.
Q: Is the FO25 completely waterproof?
A:The fixture is rated IP66, meaning it is protected against dust and powerful water jets when all seals and connectors are properly secured. It must not be submerged or operated with damaged seals, caps, or cables.
Q: What light source does the FO25 use?
A:The FO25 uses a PHILIPS MSD Silver 420W/2 LL discharge lamp with a rated color temperature of 7800 ± 500K and an estimated operating life of approximately 3,500 hours.
Q: Is the FO25 an LED moving head light?
A:No. The FO25 uses a 420W PHILIPS discharge lamp rather than an LED source. This lamp is selected for intense beam output and long-throw professional stage lighting.
Q: Can the FO25 produce custom colors?
A:Yes. It includes linear CMY color mixing, linear CTO adjustment, and two fixed color wheels with a total of 12 colors.
Q: How many gobo patterns are included?
A:The FO25 includes 14 static gobos and seven interchangeable rotating gobos. The rotating gobos support positioning, shake, forward rotation, reverse rotation, and variable speed.
Q: Which prism effects are available?
A:The fixture includes an 8-facet rotating prism and a 6-facet linear prism. These effects multiply the original beam to create layered aerial patterns.
Q: Does the fixture include a frost filter?
A:Yes. The integrated frost filter softens the output and creates smoother wash coverage.
Q: Can the FO25 be controlled with DMX512?
A:Yes. The fixture uses a detailed 28-channel DMX512 mode with control over movement, dimming, strobe, CMY, CTO, color wheels, gobos, prisms, frost, zoom, focus, and fixture functions.
Q: Does the FO25 support RDM?
A:Yes. RDM allows compatible controllers to remotely identify and manage the fixture within a professional DMX lighting network.
Q: What DMX connectors are available?
A:The FO25 supports 3-pin and 5-pin XLR DMX connections, making it compatible with different professional stage lighting systems.
Q: What are the pan and tilt ranges?
A:The fixture provides 540° pan and 270° tilt movement with coarse and fine positioning control.
Q: Can several FO25 fixtures be linked together?
A:Yes. Fixtures can be connected in a DMX daisy chain, and the waterproof power output can supply power-through connections within the permitted system limits.
Q: Is the FO25 suitable for concert lighting?
A:Yes. Its high-output lamp, long-throw beam, CMY mixing, gobos, prisms, IP66 housing, and professional control make it suitable for concert lighting equipment, festivals, touring shows, and large stages.
Q: Can the FO25 be used for theater lighting?
A:Yes. Electronic focus, smooth dimming, variable zoom, custom color control, gobos, and precise movement make it suitable for theater lighting and programmed scenic effects.
Q: What is the minimum projection distance?
A:The manual specifies a minimum distance of 12 meters between the fixture and the illuminated surface.
Q: What is required for overhead installation?
A:Use an approved mounting clamp and an independent safety cable. Installation must be completed by qualified personnel on a structure capable of safely supporting the fixture.
Q: What should I do if the fixture does not respond to DMX?
A:Check the DMX start address, channel mode, cable direction, XLR connections, signal cable condition, and controller output. Keep DMX cables away from high-voltage cables and strong electromagnetic interference.
Q: How often should the lens be cleaned?
A:The external optical lens should be cleaned at least every 20 days and more frequently in dusty, smoky, or haze-heavy environments.
