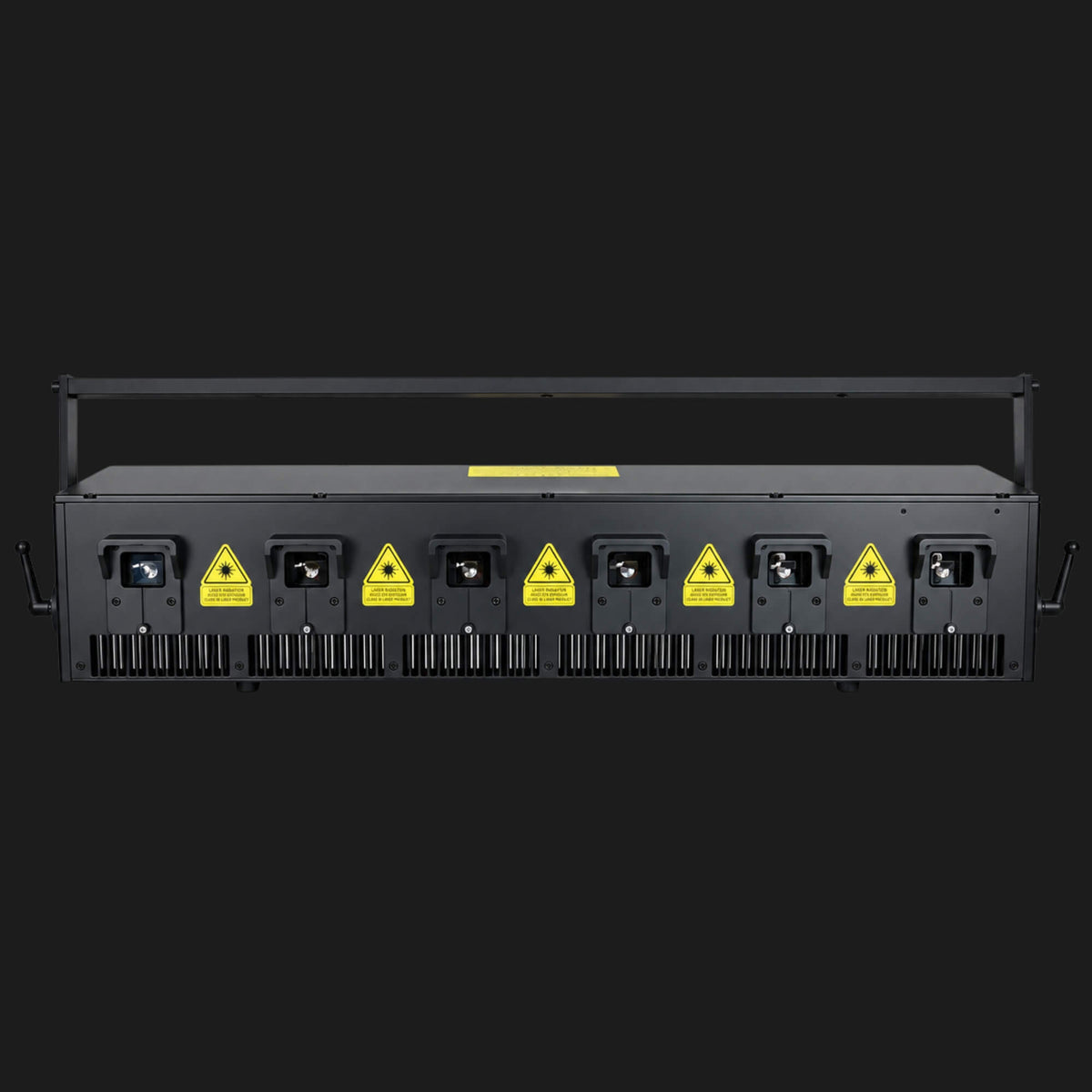

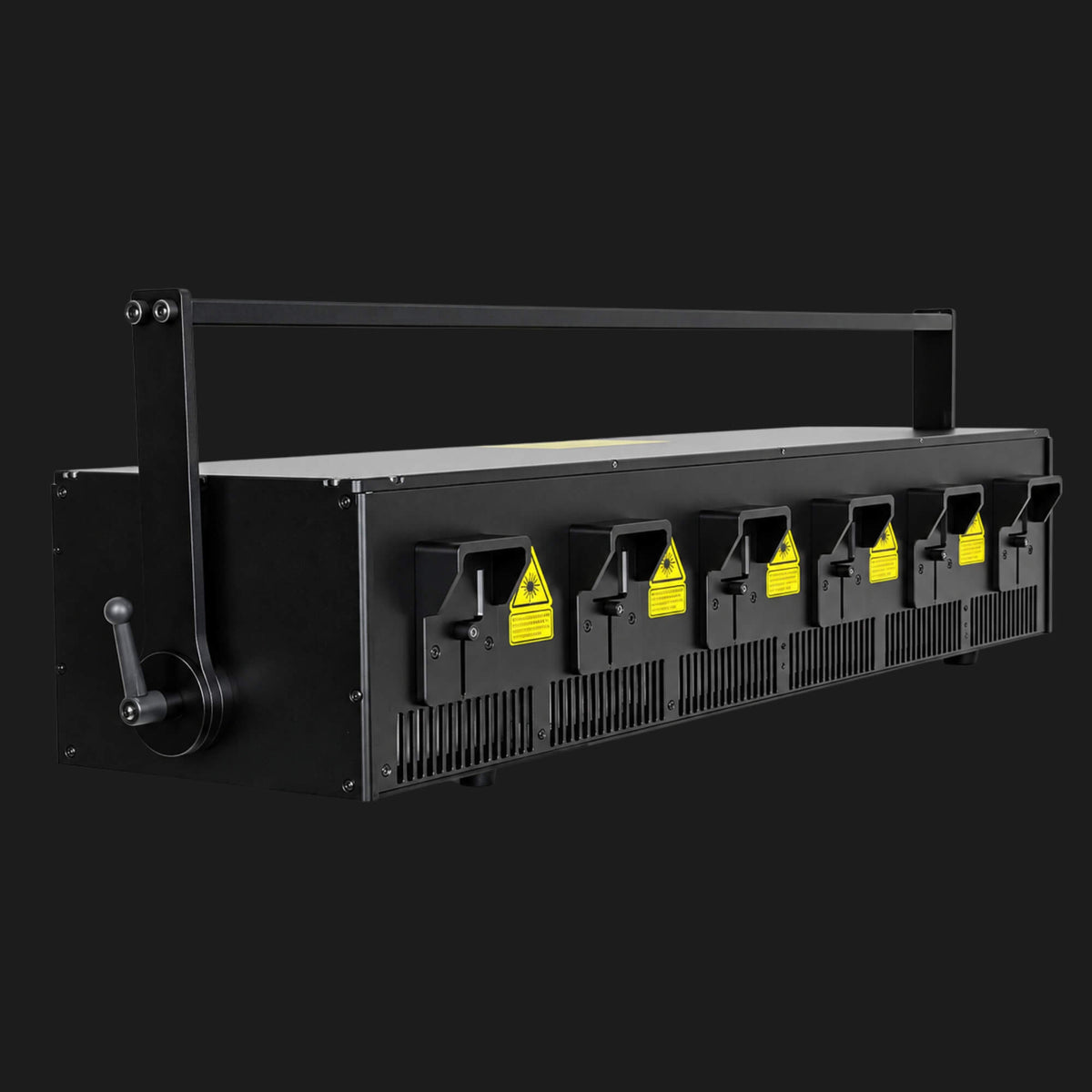

O9 60W RGB IP65 Outdoor Laser Light Bar 6-Head 40Kpps
Regular price
$5,100.00
Sale price
$5,100.00
Regular price
Unit price
Overview
Tax-free and free shipping to the US, EU, and most regions in 7–14 days.
Every stage lighting product is inspected by our QC team before dispatch.
All eligible products include a 1-year warranty, giving you added confidence for professional use.
Get support with product selection, setup questions, shipping updates, and order-related assistance from our team.
Payment Method
What's in the box
User Manual- 1 × O9 60W RGB IP65 Outdoor Laser Light Bar
- 1 × Power Cable
- 1 × Safety Cable
- 1 × User Manual
Services and Benefits
In Stock Fast Tax-Free Shipping
$5,100.00
Six-Head RGB Laser Bar Output for Wider Stage Coverage
The O9 is a 60W RGB IP65 outdoor laser light bar built with six independent Nichia RGB laser modules for wider, more structured stage coverage. Its six-head design creates synchronized beam arrays, layered laser effects, graphics, animations, text, and logos across large performance spaces. With 40Kpps scanning, a 60° maximum scan angle, and beam divergence below 1.0mrad, this RGB laser bar delivers clean, defined output for concerts, EDM festivals, stadium productions, and large outdoor stages. As a professional stage laser light and outdoor laser light bar, the O9 is designed for demanding large-scale show applications.
60W RGB Six-Head Laser Light Bar

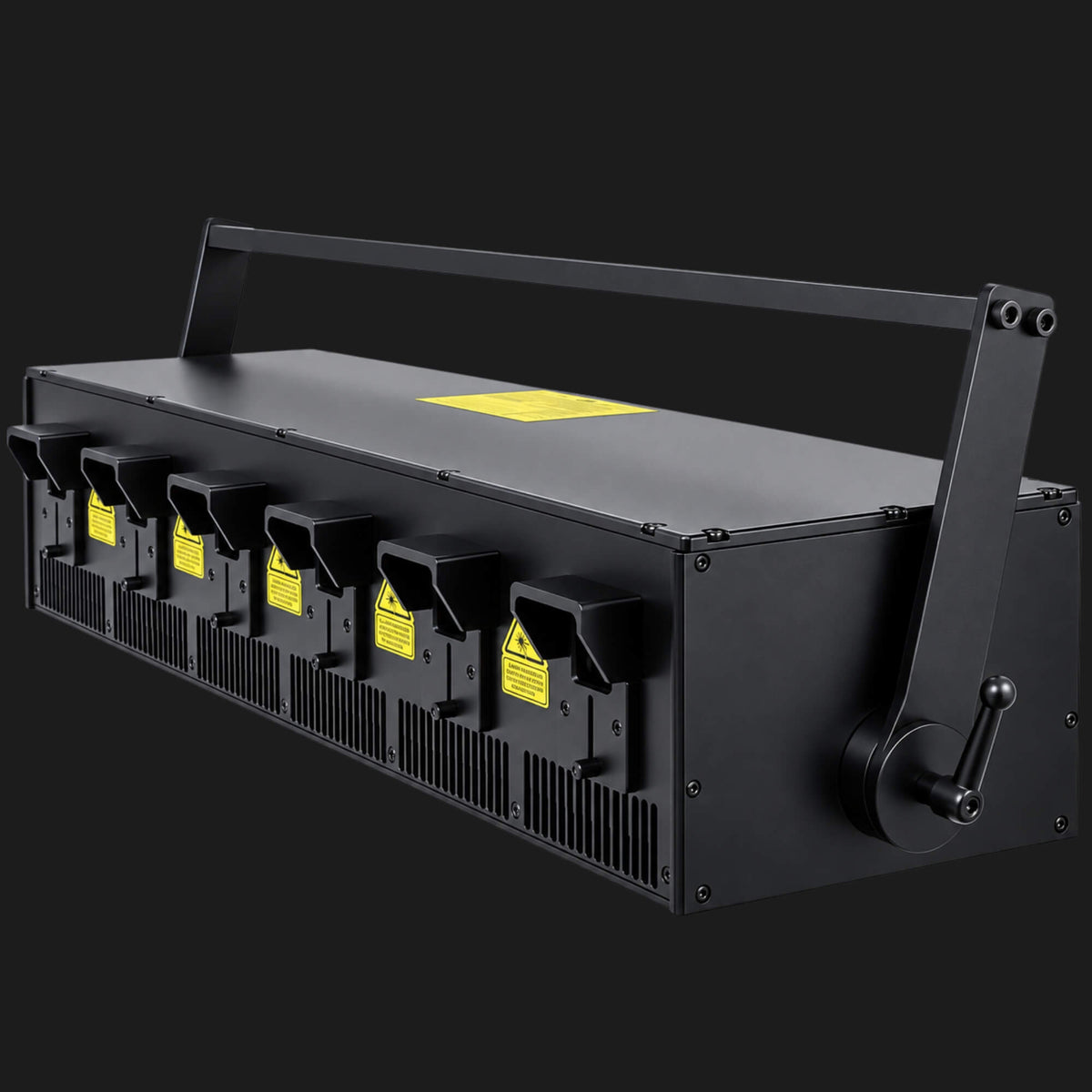

Six Independent RGB Modules: Six individually arranged laser heads create wide, synchronized beam arrays with consistent spacing.

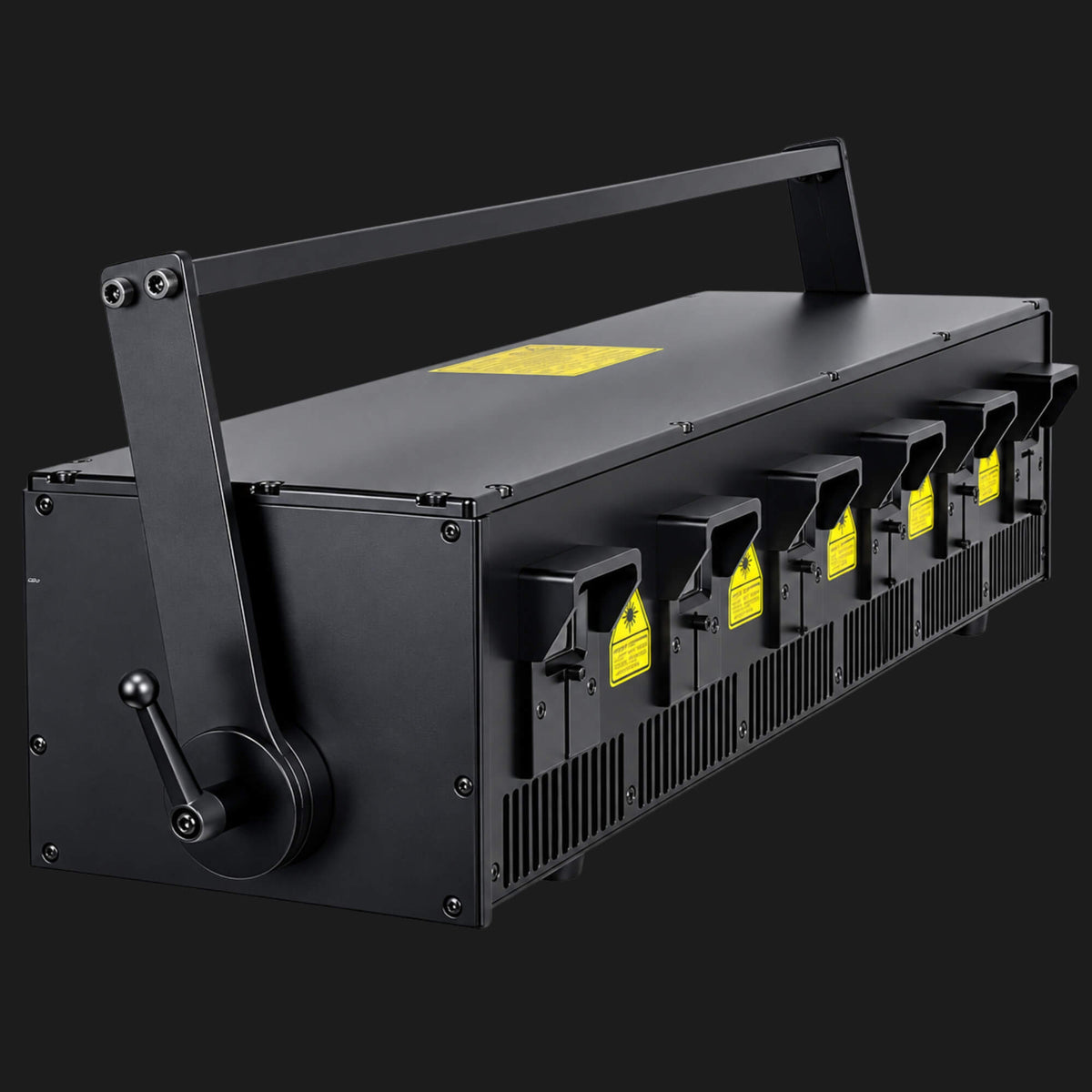

Nichia Laser Sources: Uses Japanese Nichia sources with 638nm red, 525nm green, and 455nm blue wavelengths.
60W+ RGB Output: Each module is specified above 10W, with total fixture output above 60W.
Fiber Beam Shaping: Optical shaping helps produce clean beam spots, accurate color, and consistent output between all six heads.
Multiple Laser Effects: Create beams, graphics, animations, text, logos, geometric patterns, and synchronized multi-head sequences.
GS-45 40Kpps Precision Scanning
40Kpps GS-45 Scanner: High-speed scanning supports smoother animation and more accurate graphic reproduction.
60° Maximum Scan Angle: A wide scanning range gives designers greater flexibility for large-format stage effects.
Low Beam Divergence: Divergence below 1.0 mrad helps maintain concentrated, clearly defined laser beams.
≤7 × 5 mm Beam Size: Compact beam dimensions support precise graphics and strong beam effects.
Camera-Oriented Optimization: High-speed scanning and optimized programs are designed to reduce visible flicker and produce smoother effects on video.
IP65 Outdoor Laser Construction
IP65-Rated Protection: Designed for appropriate professional outdoor stage and event installations.
Fully Sealed Optical Layer: A dual-layer internal structure separates and fully seals the optical path.
Wide Operating Temperature: Rated for operation from -40°C to +45°C.

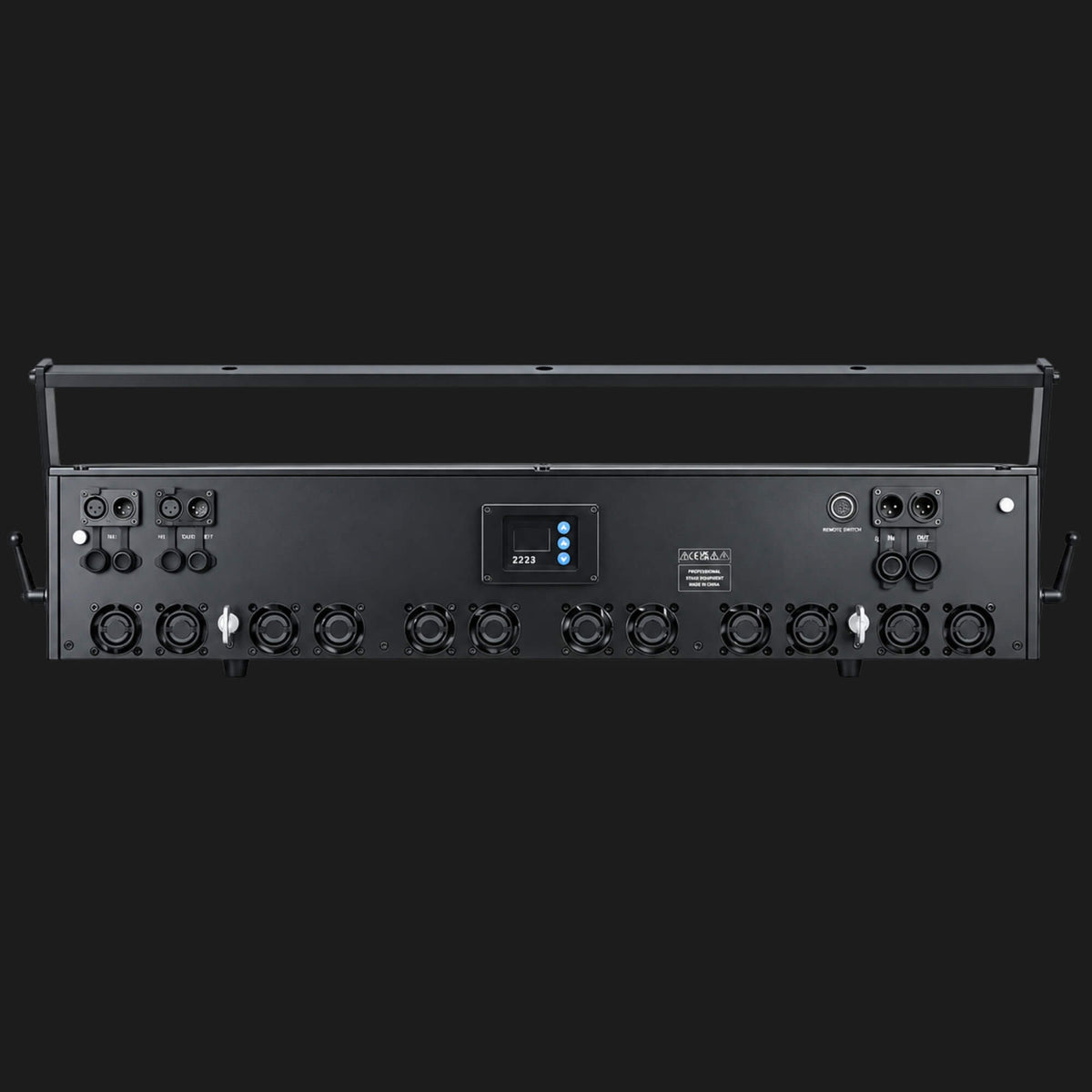

Forced-Air Cooling: Integrated fan cooling supports stable thermal management during extended operation.

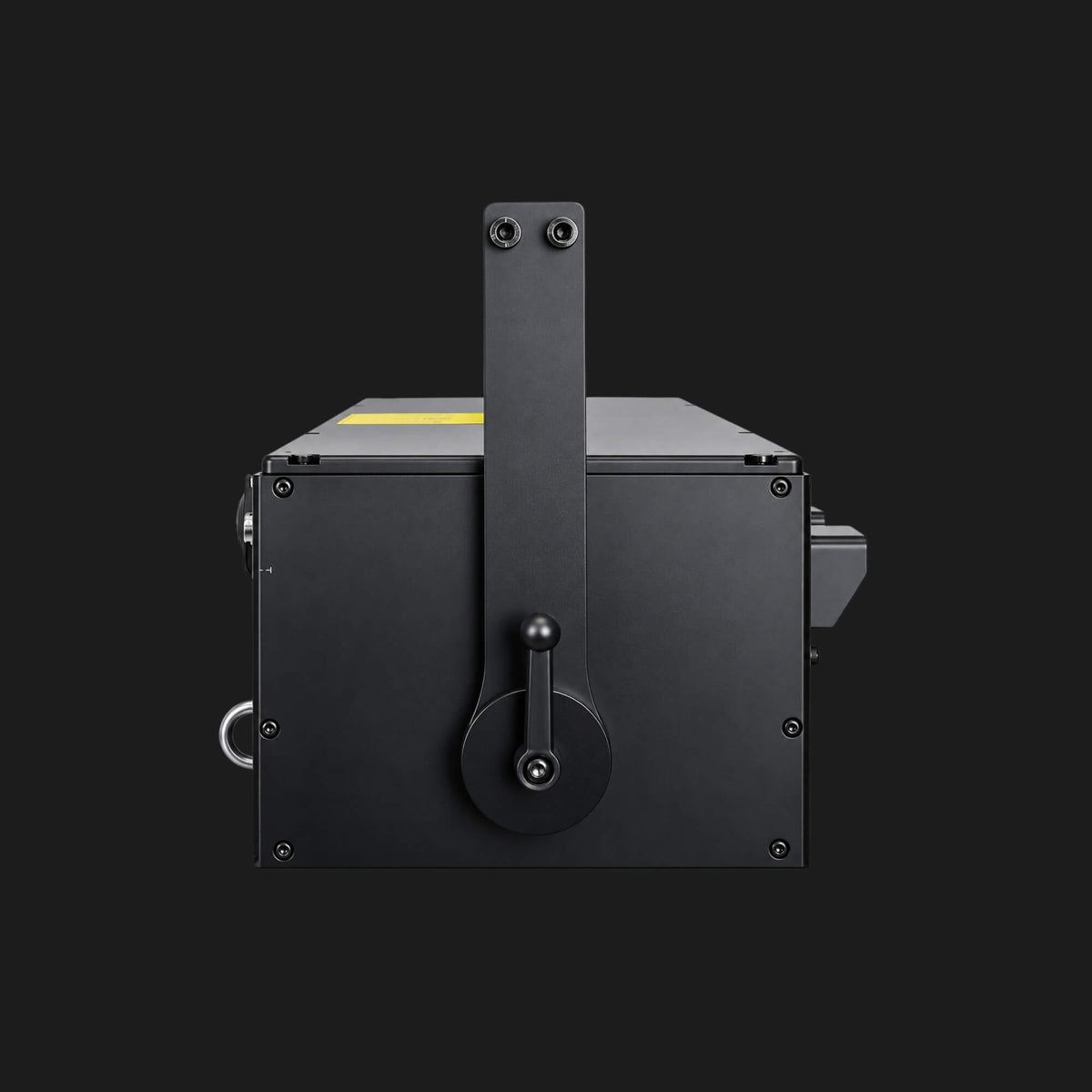

Horizontal or Vertical Mounting: Flexible orientation supports different stage structures and multi-fixture layouts.
Professional DMX512 & Standalone Control
DMX512 Programming: Integrates with professional lighting consoles for programmed show control.
Standalone Auto Mode: Run built-in effects without continuous external console operation.
Up to 2,000 Internal Programs: The dedicated six-head system includes an extensive optimized program library.
100 kHz Analog / TTL Modulation: Provides responsive RGB modulation for color mixing, dimming, and dynamic effects.
Dedicated Six-Head Architecture: The control system is designed to maintain synchronized output across all six laser modules.
Specs
Brand
StarshineLights
Model
O9
Product Type
60W RGB IP65 Outdoor Laser Light Bar
Laser Modules
6 independent RGB modules
Total Laser Output
60W+
Installation Orientation
Horizontal / Vertical
Protection Rating
IP65
Cooling
Forced-air cooling
Operating Temperature
-40°C to +45°C
Applications
Concerts, EDM festivals, stadium productions, large outdoor stage shows
Laser Source Brand
Nichia, Japan
Red Laser
638nm, 3W × 6
Green Laser
525nm, 3W × 6
Blue Laser
455nm, 5W × 6
Scanner Model
GS-45
Scanner Speed
40Kpps
Maximum Scan Angle
60°
Beam Size
≤7 × 5 mm
Beam Divergence
<1.0 mrad
Modulation
100 kHz Analog / TTL
Beam Shaping
Fiber beam shaping
Optical Structure
Dual-layer design with fully sealed optical path
Control Modes
DMX512 / Auto
Standalone Operation
Yes
Internal Programs
Up to 2,000
Per-Head Configuration
Supported
Safety-Zone Configuration
Supported
Safety-Zone Memory
Position and size settings retained after power-off
Multi-Head Operation
Independent or synchronized
Multi-Fixture Setup
Supported
FAQ
Q: What is the StarshineLights O9, and what types of productions is it designed for?
A:The StarshineLights O9 is a 60W+ RGB IP65 outdoor laser light bar with six independent Nichia RGB laser modules. It combines GS-45 40Kpps scanning, a 60° maximum scan angle, DMX512 control, and standalone operation. Its six-head format is designed for large concerts, EDM festivals, stadium productions, outdoor stages, and other applications that need wide, synchronized laser effects.
Q: How is the O9's 60W+ RGB output distributed across its six laser heads?
A:The O9 uses six independent RGB modules. Each head combines a 3W 638nm red laser, 3W 525nm green laser, and 5W 455nm blue laser. This creates more than 10W of RGB source output per module, with the complete laser light bar specified at more than 60W total output.
Q: Can the O9 outdoor laser light bar be used for outdoor events?
A:Yes. The O9 has an IP65-rated enclosure and a dual-layer design with a fully sealed optical-path section. Its specified operating range is -40°C to +45°C, making it suitable for appropriate outdoor concert and event installations. Proper grounding, protected electrical connections, ventilation, drainage, and secure mounting are still required.
Q: How do the 40Kpps scanner, 60° scan angle, and low beam divergence affect performance?
A:The O9 uses a GS-45 scanner rated up to 40Kpps, with a 60° maximum scan angle, ≤7 × 5 mm beam size, and divergence below 1.0 mrad. Together, these specifications support smoother animations and graphics, wider programmed effects, and concentrated beam output for large-stage laser designs.
Q: Do I need a DMX controller to run the O9?
A:No. The O9 supports standalone Auto Mode as well as DMX512 control, so it can run built-in programs without continuous control from an external DMX console. For programmed concerts or synchronized stage productions, DMX512 provides greater control over effects, RGB levels, positioning, geometry, scanning behavior, and other supported show parameters.
Q: Can each of the six RGB laser heads be adjusted independently?
A:Yes. Each of the six laser modules supports individual configuration for parameters including X/Y position, X/Y scale, master size, brightness, and red, green, and blue levels. This makes it possible to align individual heads or combine them into coordinated six-head effects for more complex stage and laser show layouts.
Q: How does the O9 per-head safety-zone function work?
A:The O9 allows operators to restrict the permitted projection area of each laser head using configurable position and size settings. These settings can be retained after power-off for repeated setups. The function can also help keep programmed output away from designated camera positions or restricted areas. Because concentrated laser energy can damage camera sensors, safety-zone programming should be used together with proper fixture positioning and show planning.
Q: What types of laser effects can the O9 create?
A:The O9 can produce laser beams, geometric patterns, animations, text, logos, RGB color effects, and synchronized multi-head sequences. Its six-head architecture can be used for coordinated effects across the complete bar, while individual head adjustment gives programmers more flexibility when building layered or wide-format laser scenes.
Q: Can multiple O9 laser light bars be used together?
A:Yes. Multiple O9 fixtures can be arranged to create wider synchronized laser arrays, and the six heads are designed with consistent spacing for coordinated layouts. The fixture can also be installed horizontally or vertically, giving stage designers more flexibility when integrating several units into concert, festival, stadium, or large outdoor stage systems.
Q: Will the O9 work with U.S. power?
A:Yes. The O9 accepts AC100–240V, 50/60Hz, which includes standard U.S. supply voltage ranges. Its rated power consumption is 600W. The fixture requires an appropriate grounded electrical connection, and installation should follow applicable electrical and event-safety requirements.
Q: Is the O9 a practical choice for mobile DJs?

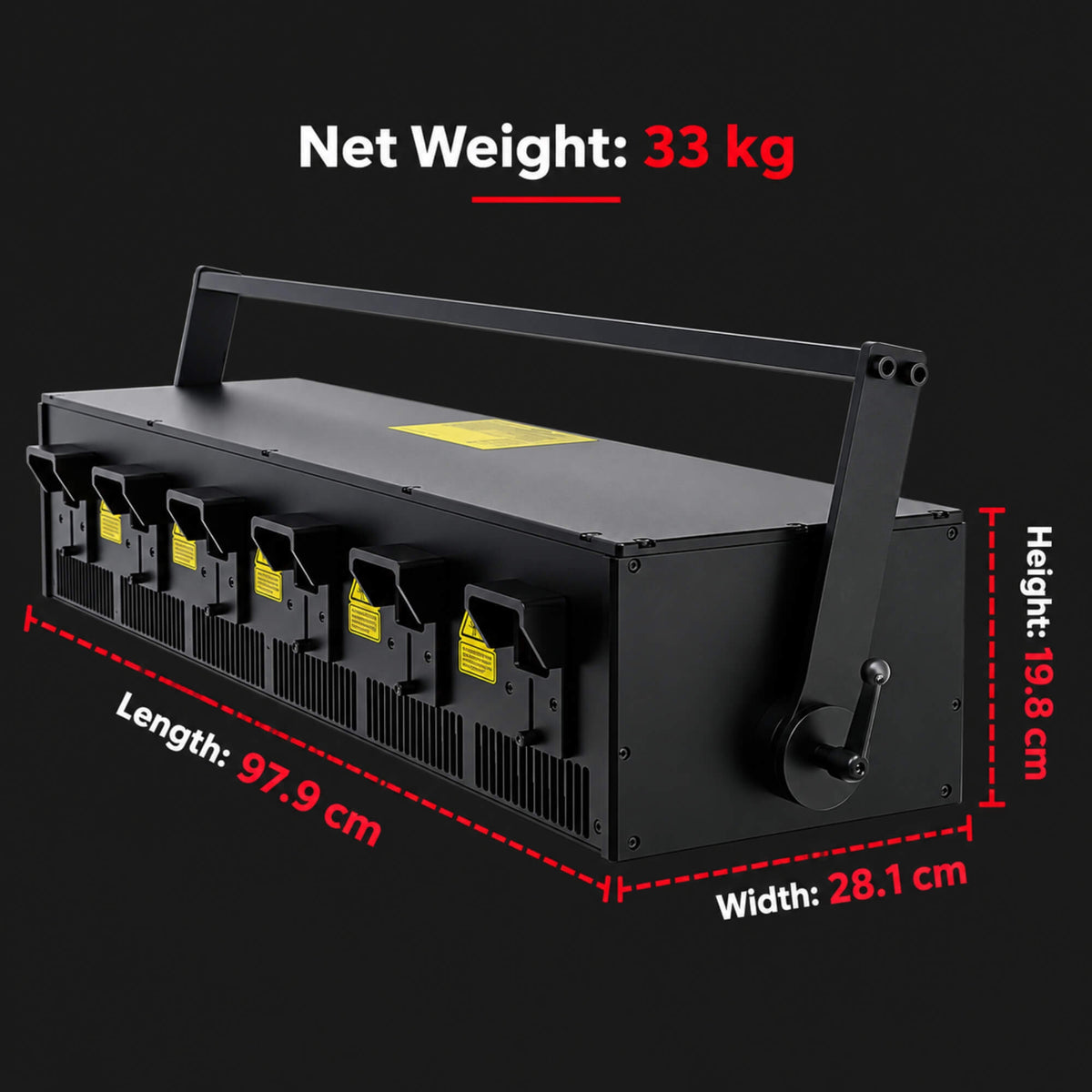

A:It can be used in DJ productions, but portability should be considered carefully. The O9 measures 97.9 × 28.1 × 19.8 cm and weighs 33 kg, so it is better suited to larger production rigs, rental systems, festivals, and stage installations than to buyers looking for a compact, lightweight mobile DJ laser.
Q: Is the O9 approved for audience scanning?
A:The current O9 product information does not confirm audience-scanning approval or certification. Buyers should not assume that direct audience exposure is permitted. Fixture placement, programming, and operation should follow the applicable laser-safety requirements for the installation location and event.
